Description

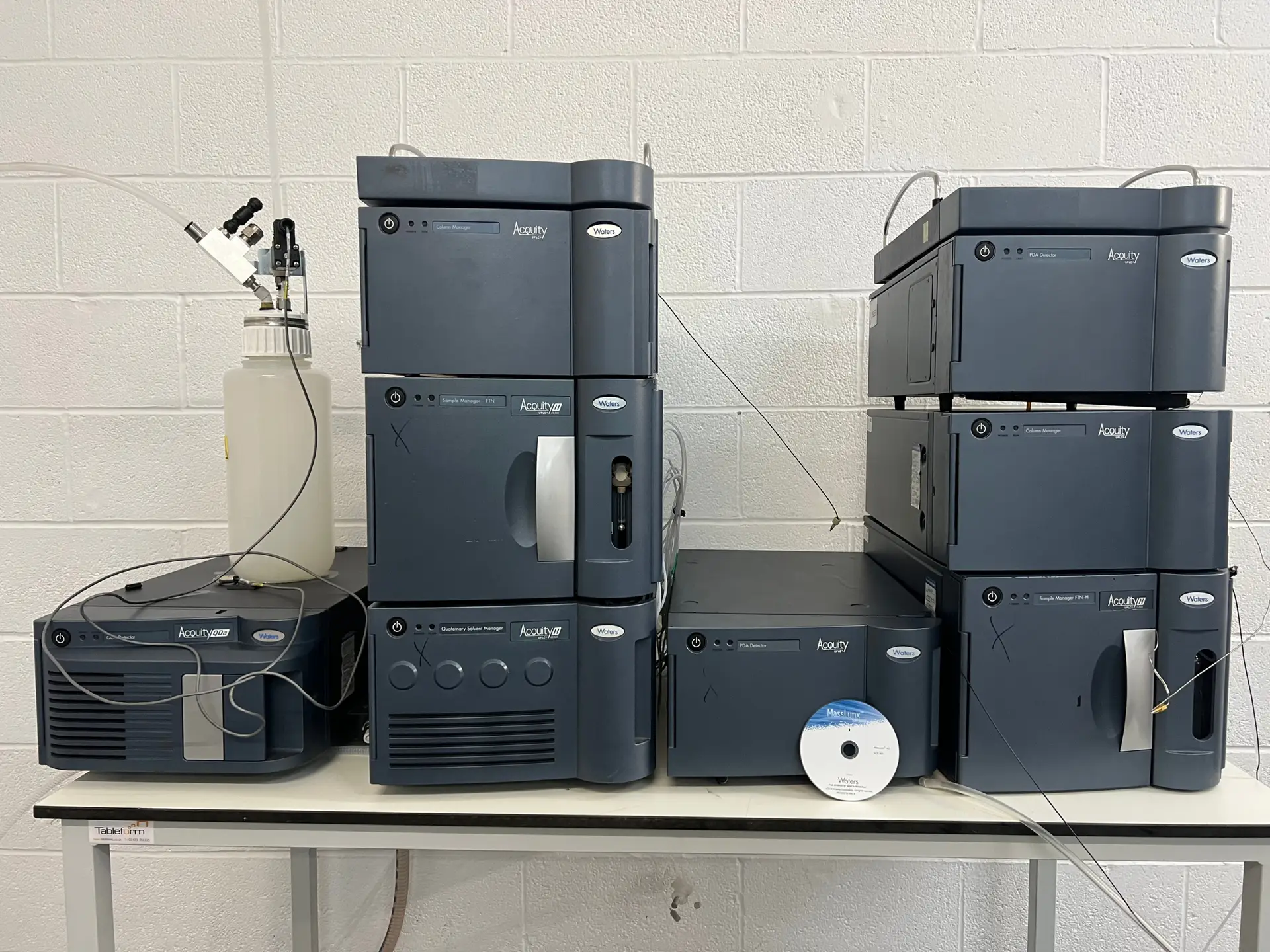

The Waters Acquity H-Class UPLC is a state-of -the-art Ultra Performance Liquid Chromatography System. It delivers the UPLC’s advanced performance with the flexibility of quaternary solvent blending. Designed with a holistic approach, the system is ideal for routine analysis and method development, supporting both HPLC and UPLC applications, while delivering the enhanced resolution and sensitivity of UPLC separations.

We are offering these modules as a build-your-own system. Choose from the following items to fully customise the system to your lab needs.

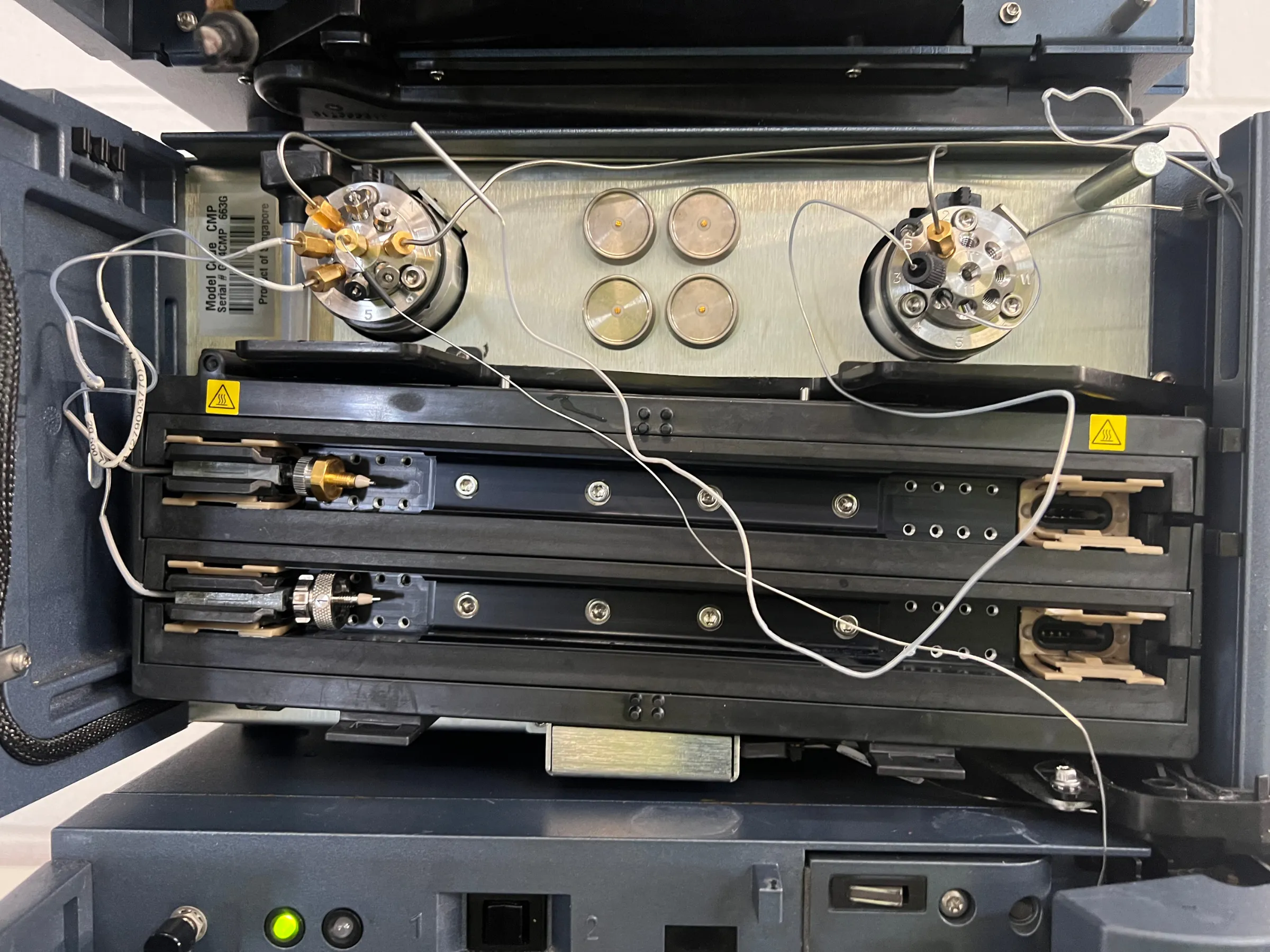

– Quaternary solvent manager (QSM), capable of blending up to four solvents in any combination.

– Photodiode array detector (PDA Detector) with high optical and digital resolution, a wavelength range of 190 to 500nm and flexible parameter control.

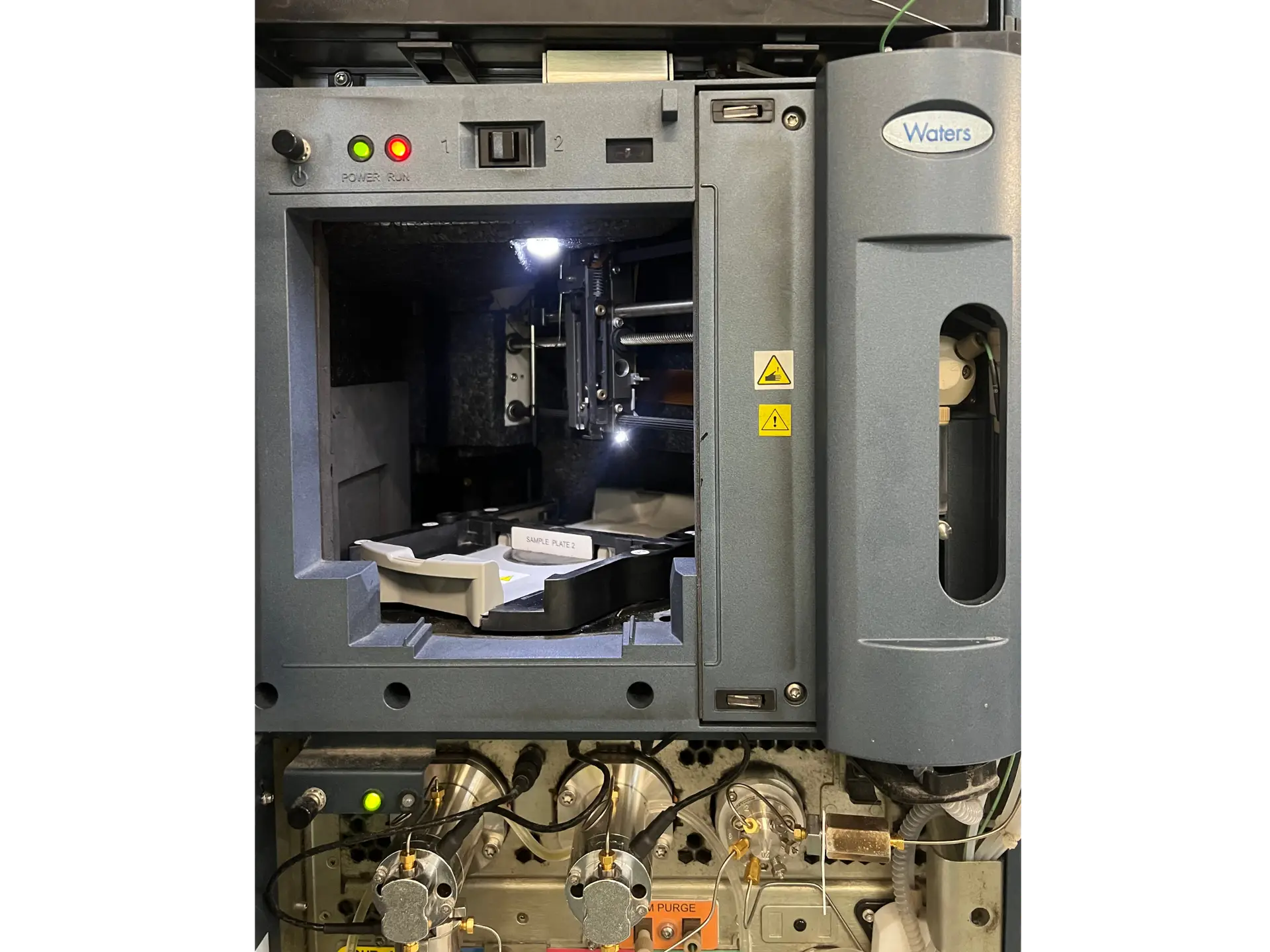

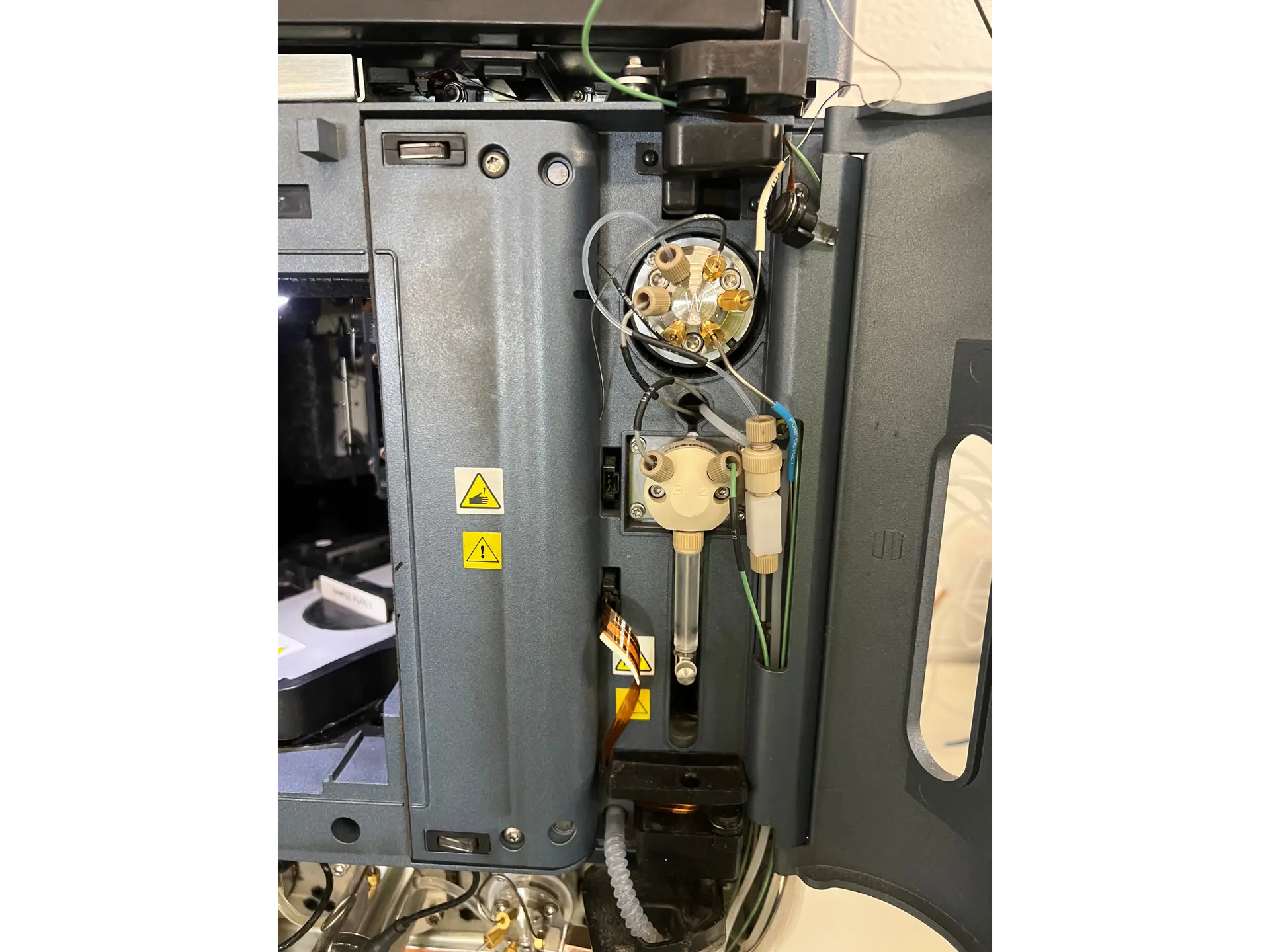

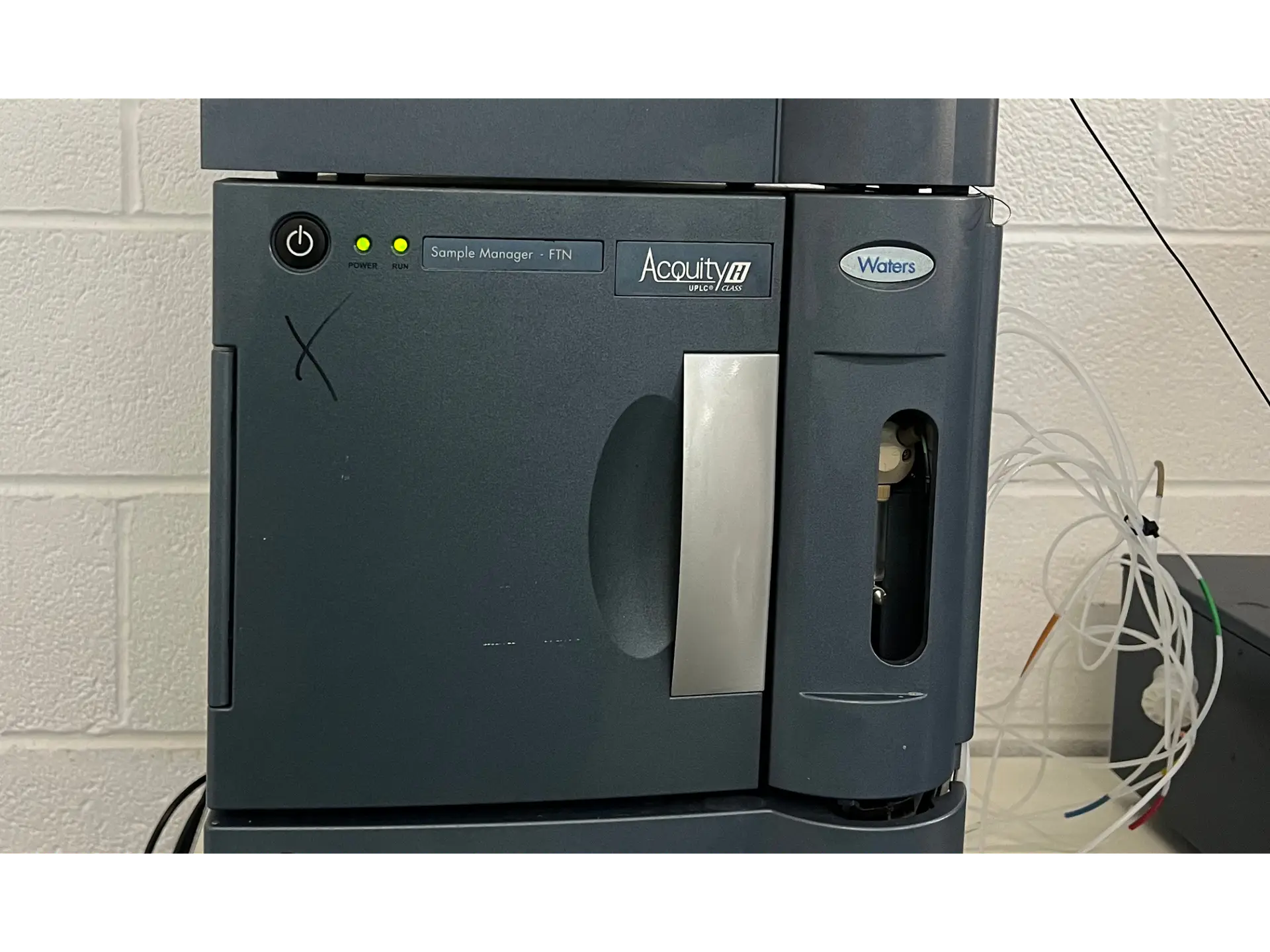

– Sample manager with flow through needle (SM-FTN), with an injection volume range of 0.1 to 10uL as standard, and up to 100uL with extension loops.

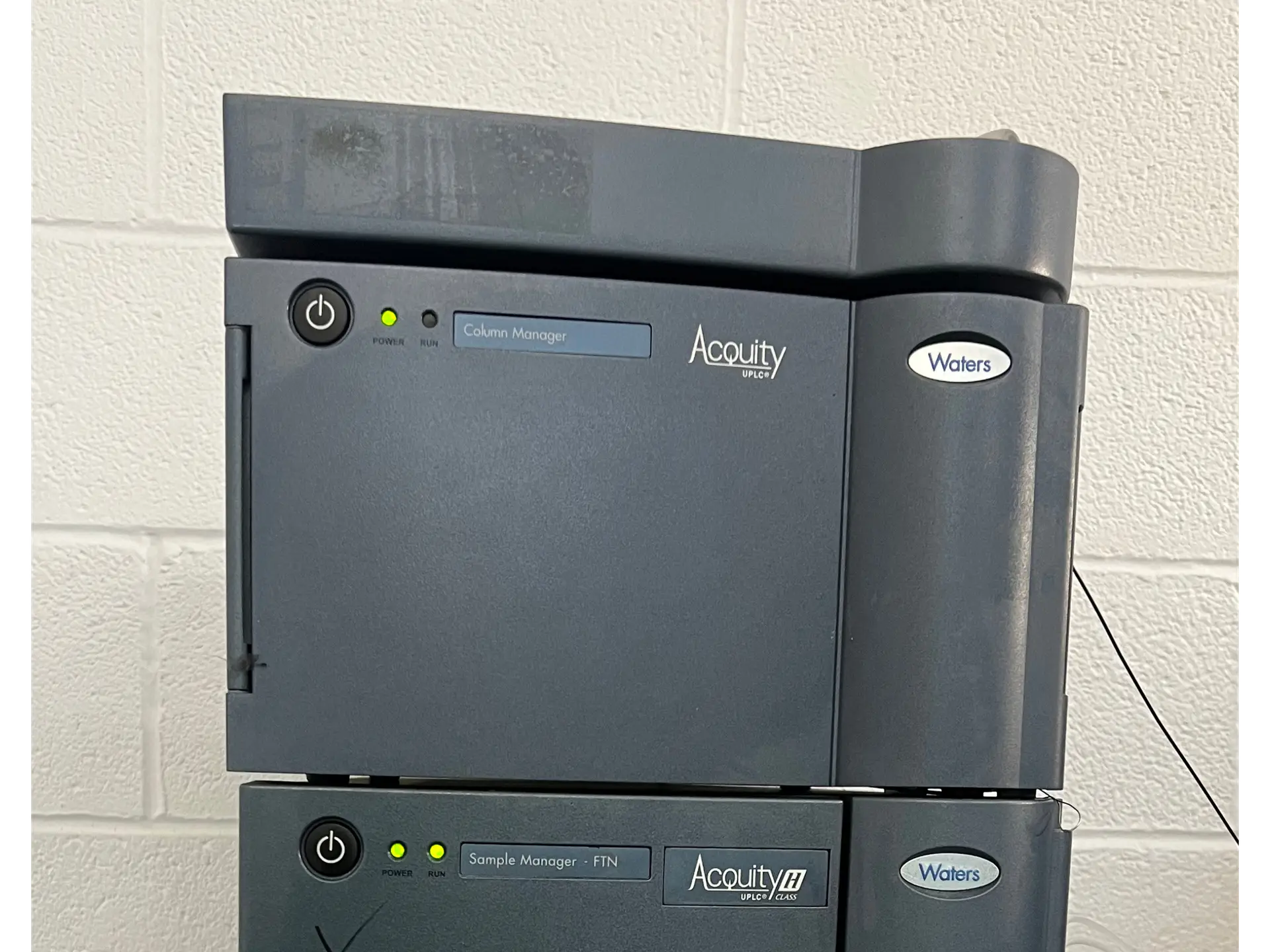

– Column manager (CM-A) which has a column capacity of two columns with a maximum length of 150mm. The temperature range for the column compartment is 4°C to 90°C, settable in 1°C increments.

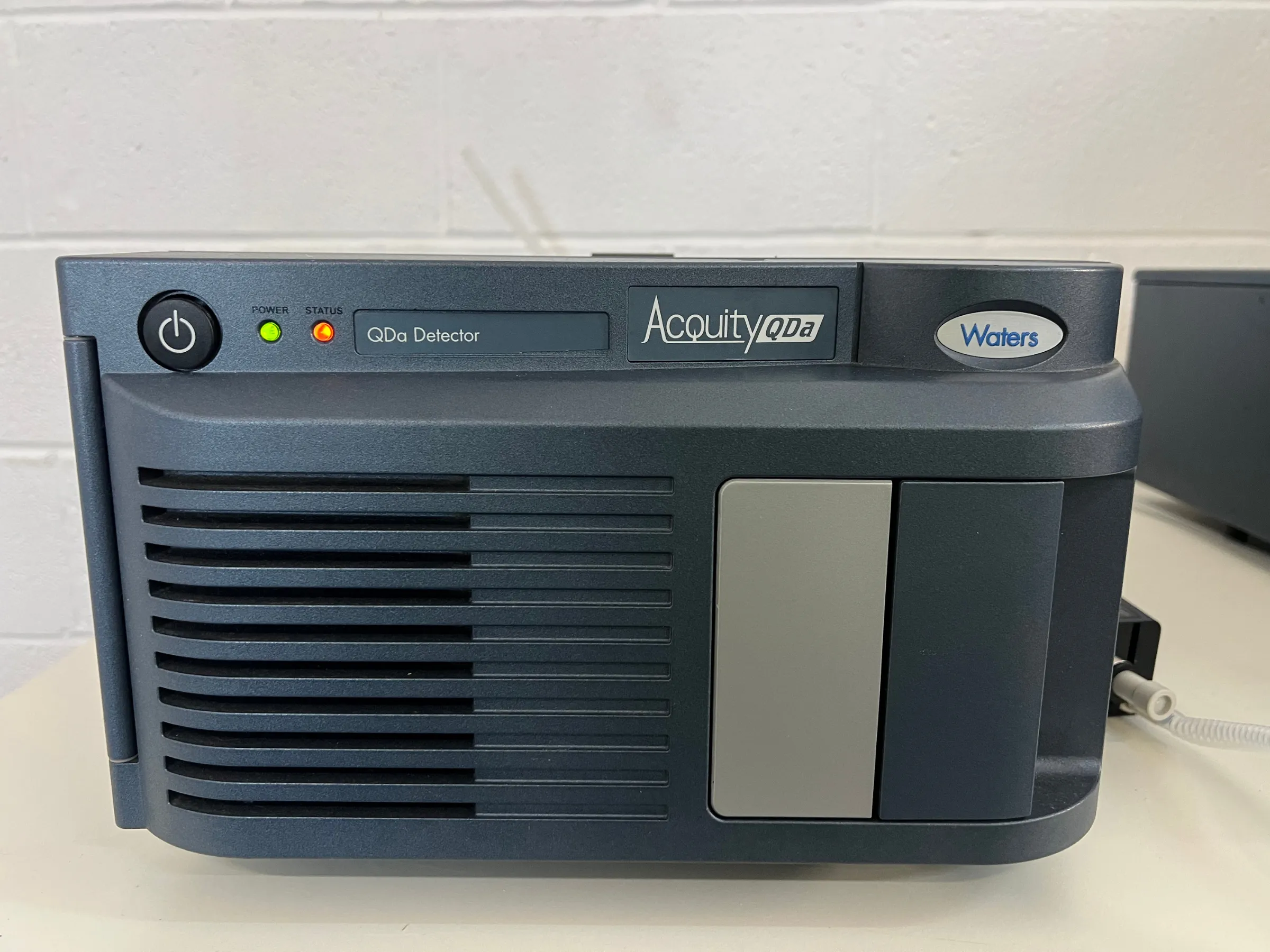

– QDa Detector, a single-quadrupole mass spectrometer designed for integrating mass detection directly into liquid chromatography workflows.

Your chosen system will be completed with PC & Software.

Key Features of the Waters Acquity UPLC Modules

UPLC System General Features
- Dwell Volume: <400 uL
- Integrated Leak Sensors
- pH Range: 2 – 12
- Cycle Time: <30 s (inject-to-inject)

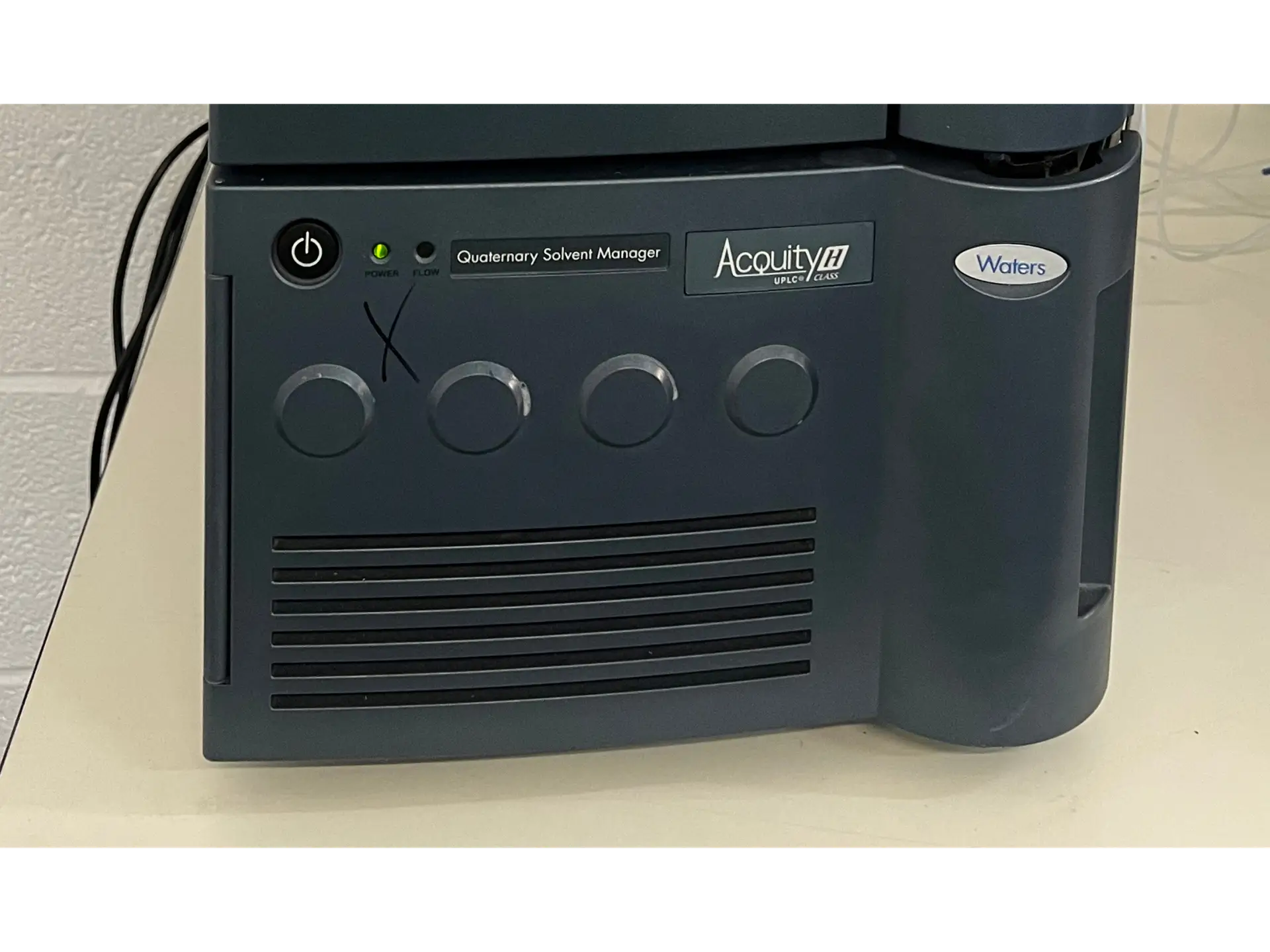

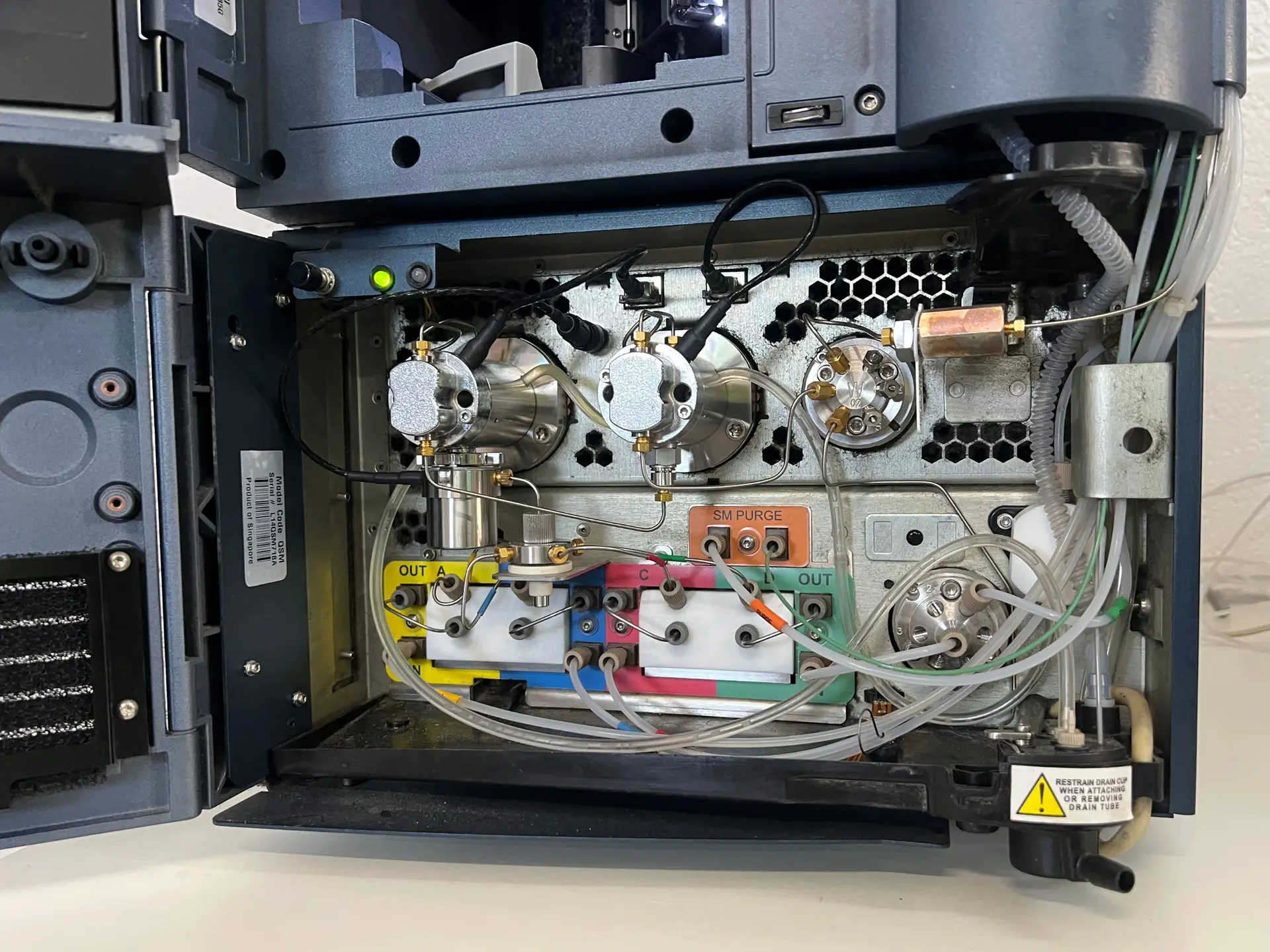

Quaternary Solvent Manager (QSM)
- Blend up to Four Solvents
- Integrated Solvent Degassing
- Automated Solvent Blending
- Low Pressure Mixing
- 11 x Gradient Curves

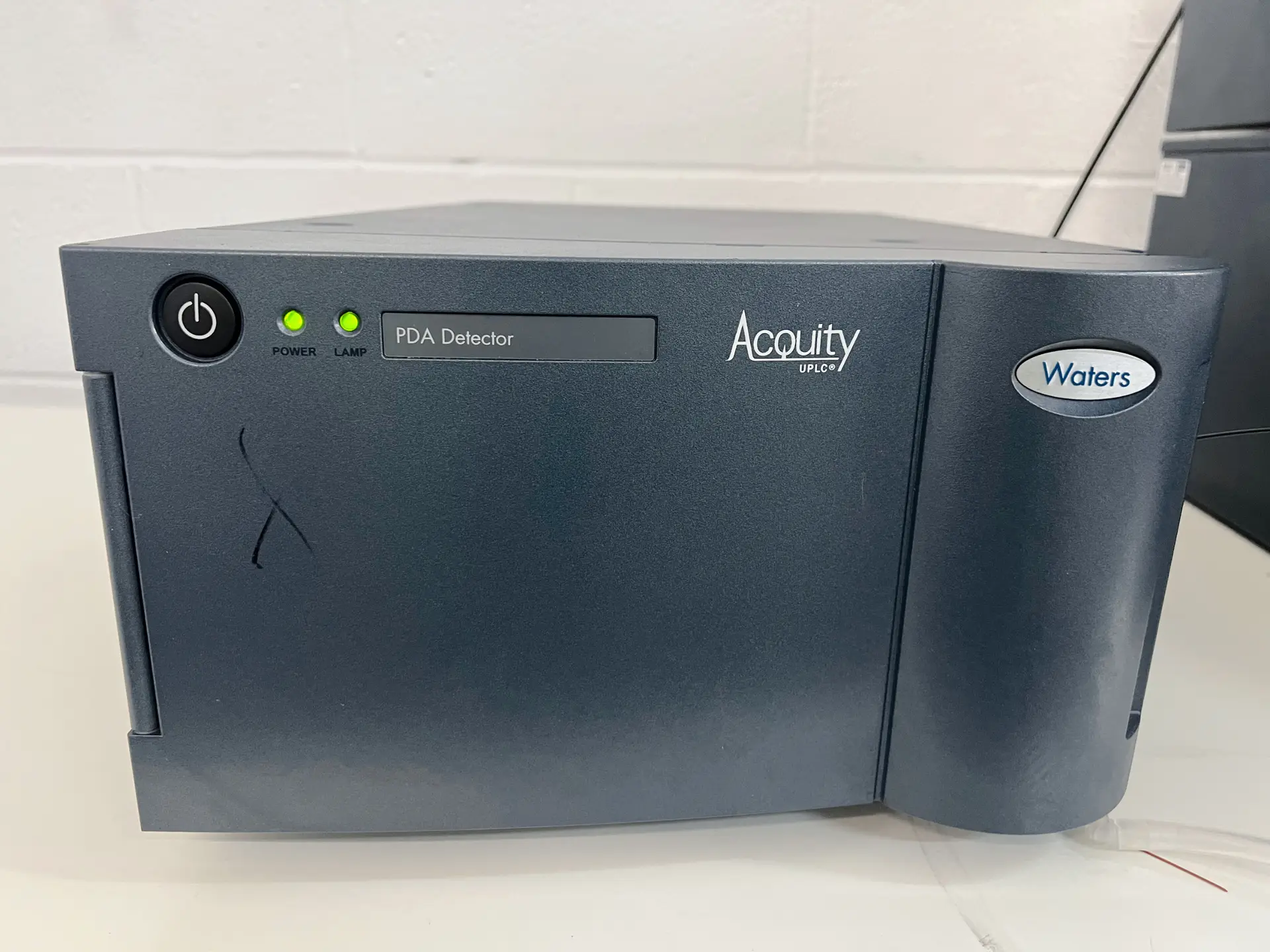

Photodiode Array Detector (PDA Detector) – two available.
- 512 Photodiodes
- Optical Resolution: 1.2 nm
- Wavelength Range: 190 – 500 nm
- Operating Temperature: 4°C – 40°C

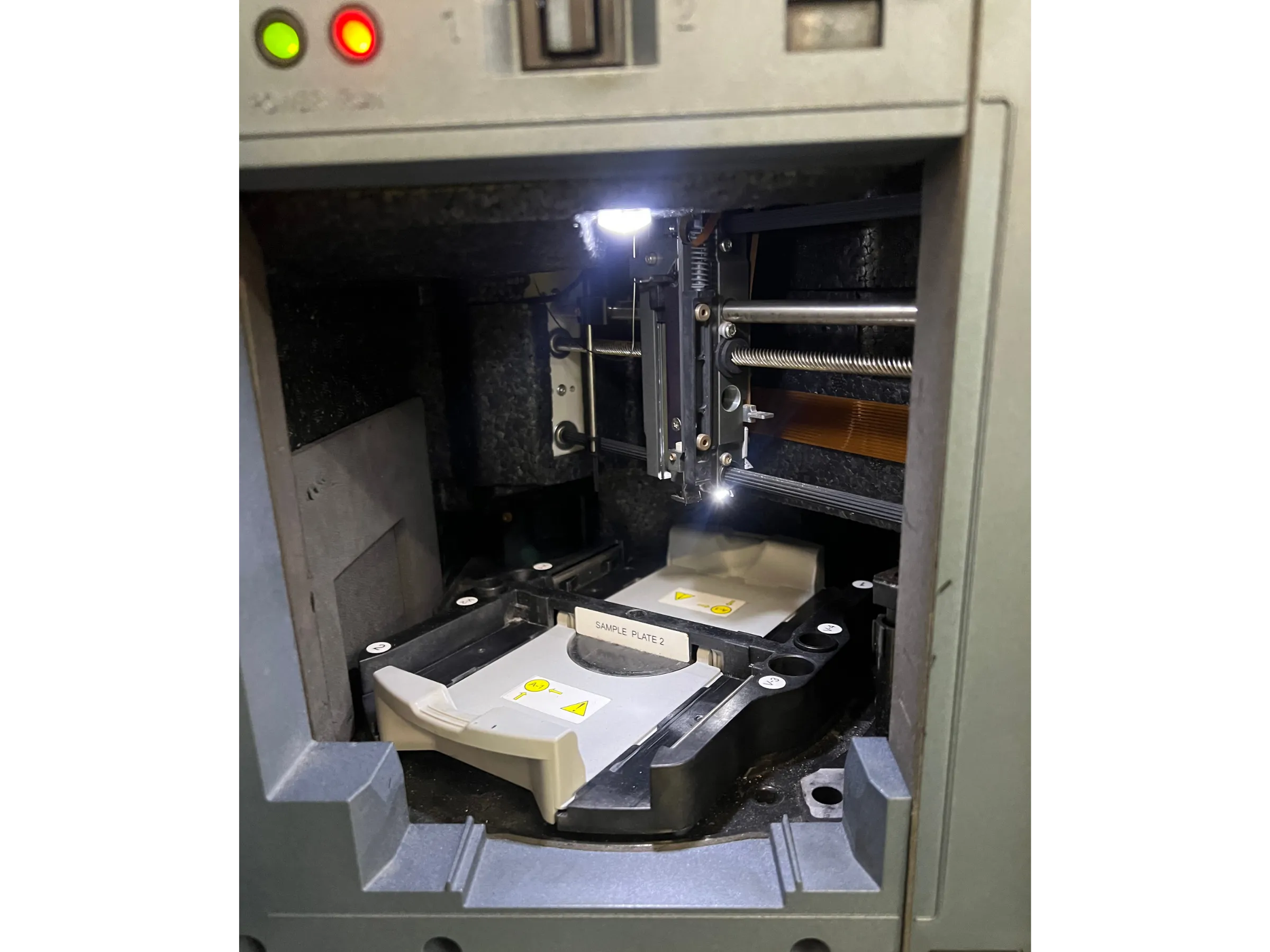

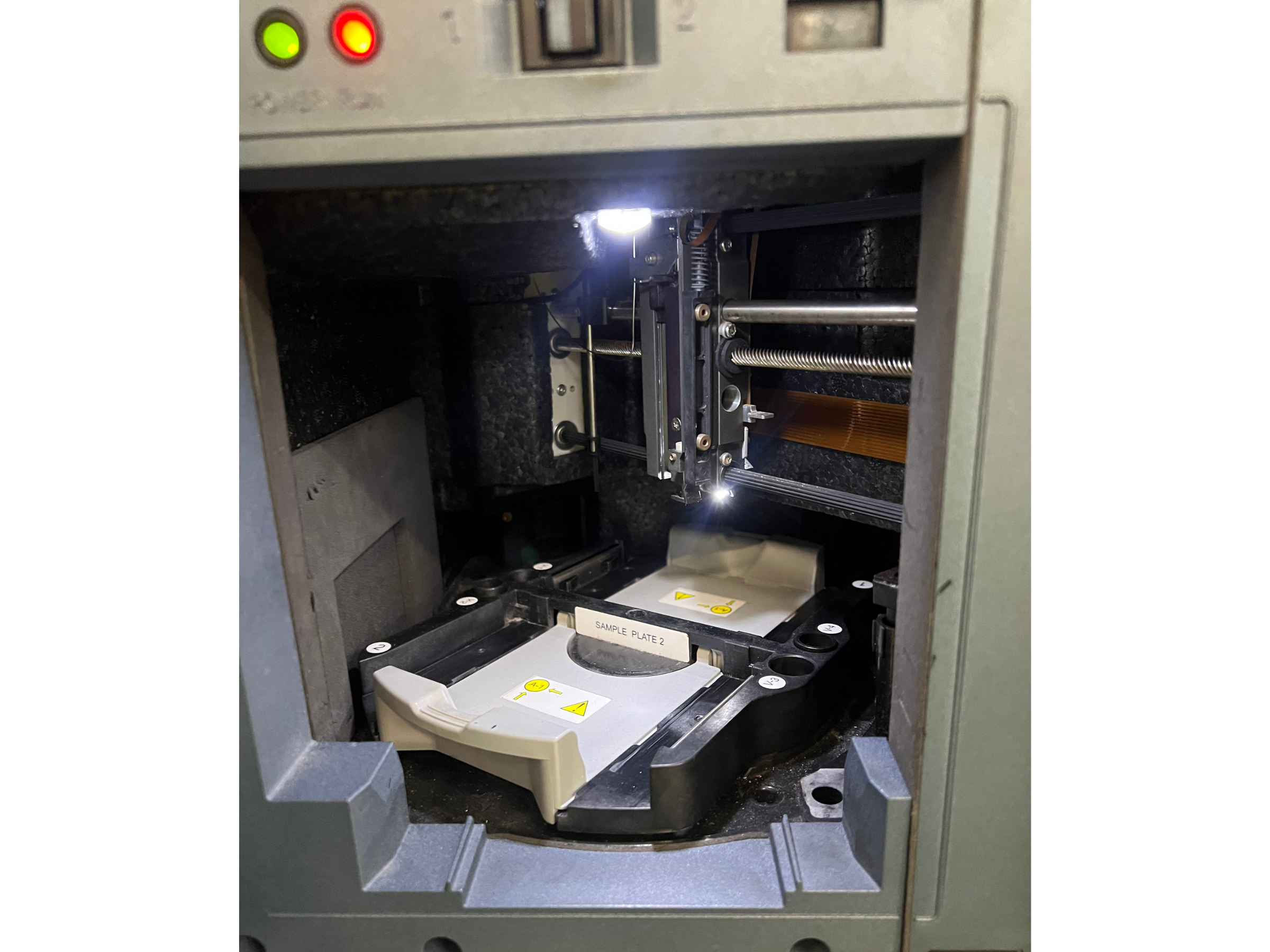

Sample Manager with Flow Through Needle (SM-FTN) – other model available SM-FTN-H.
- 4°C-40°C (settable in 0.1°C increments)
- Max Capacity: 768 in 2 well-plates / 96 in 2ml Vial Holders
- Injection Volume: 0.1 – 10 uL
- Linearity: <1% RSD 0.2 to 1.9 uL

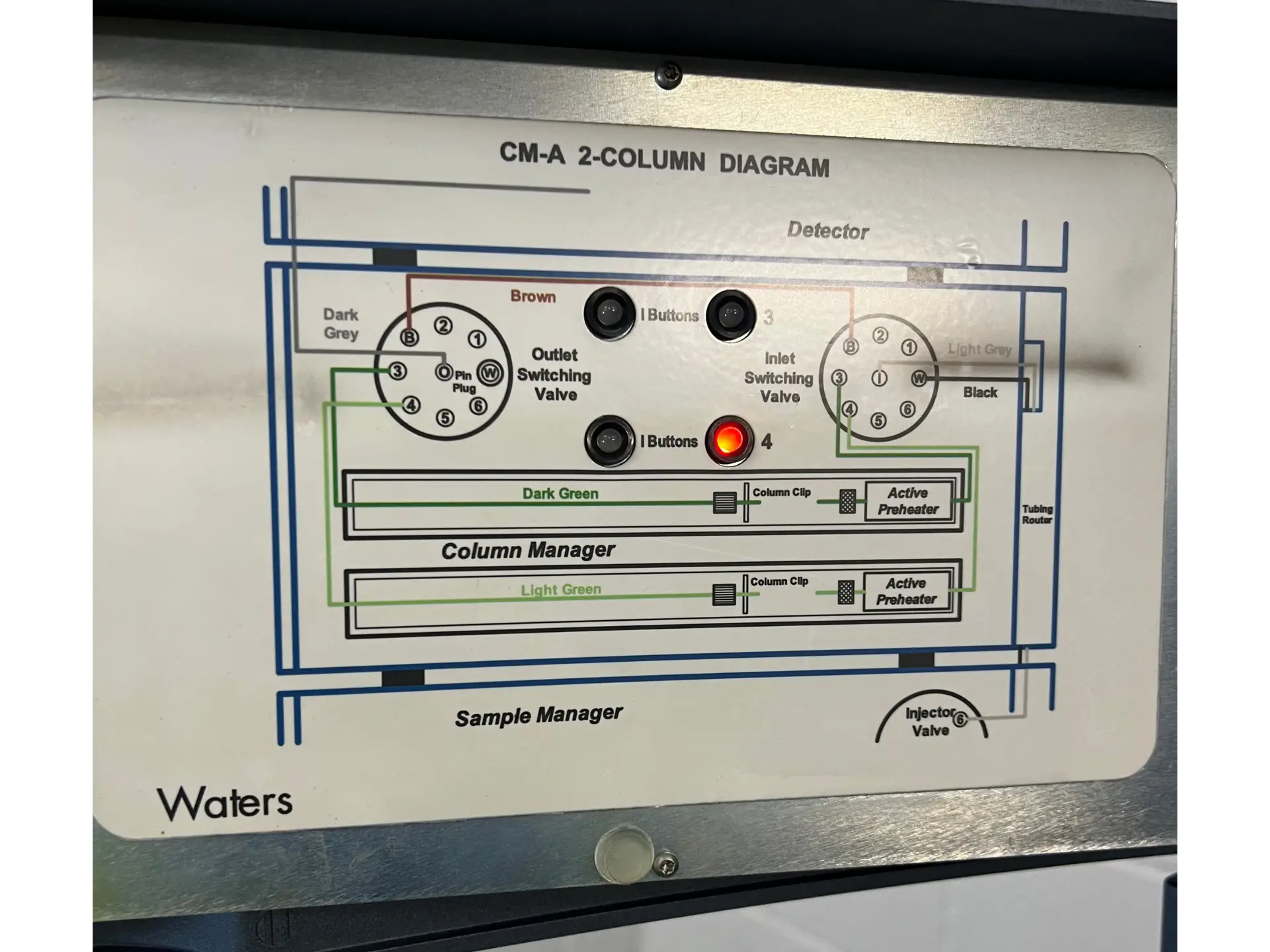

Column Manager (CM-A) – two available.
- 2 x Column (150mm)
- 2 x 9-Port, 8-Position Valves
- Temperature Range: 4°C – 90°C
- Active Pre-Heating
QDa Detector (QDa)
- Mass Range: 30 – 1,250 m/z
- Detector: Photomultiplier
- Automated Mass Calibration
