Description

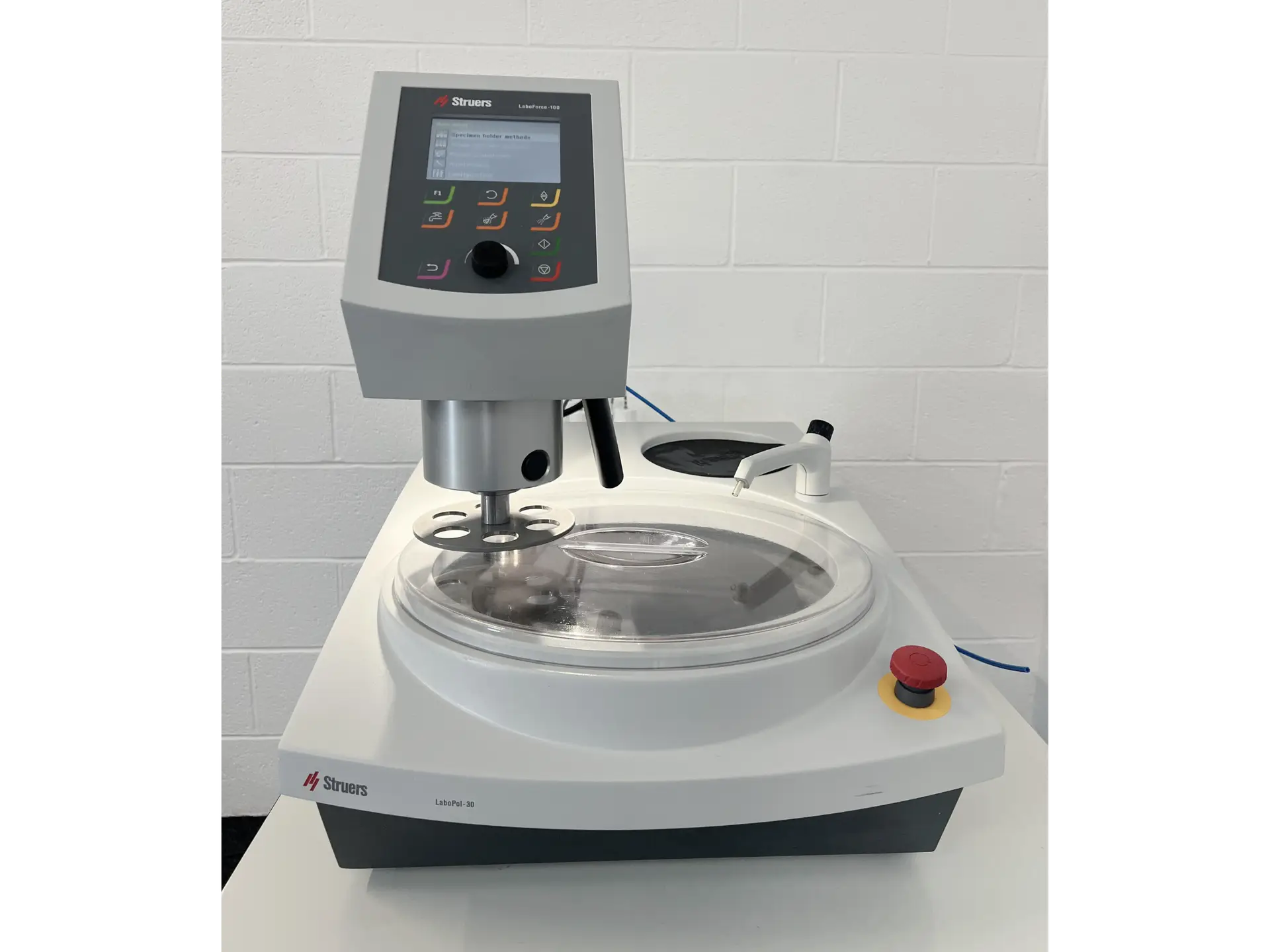

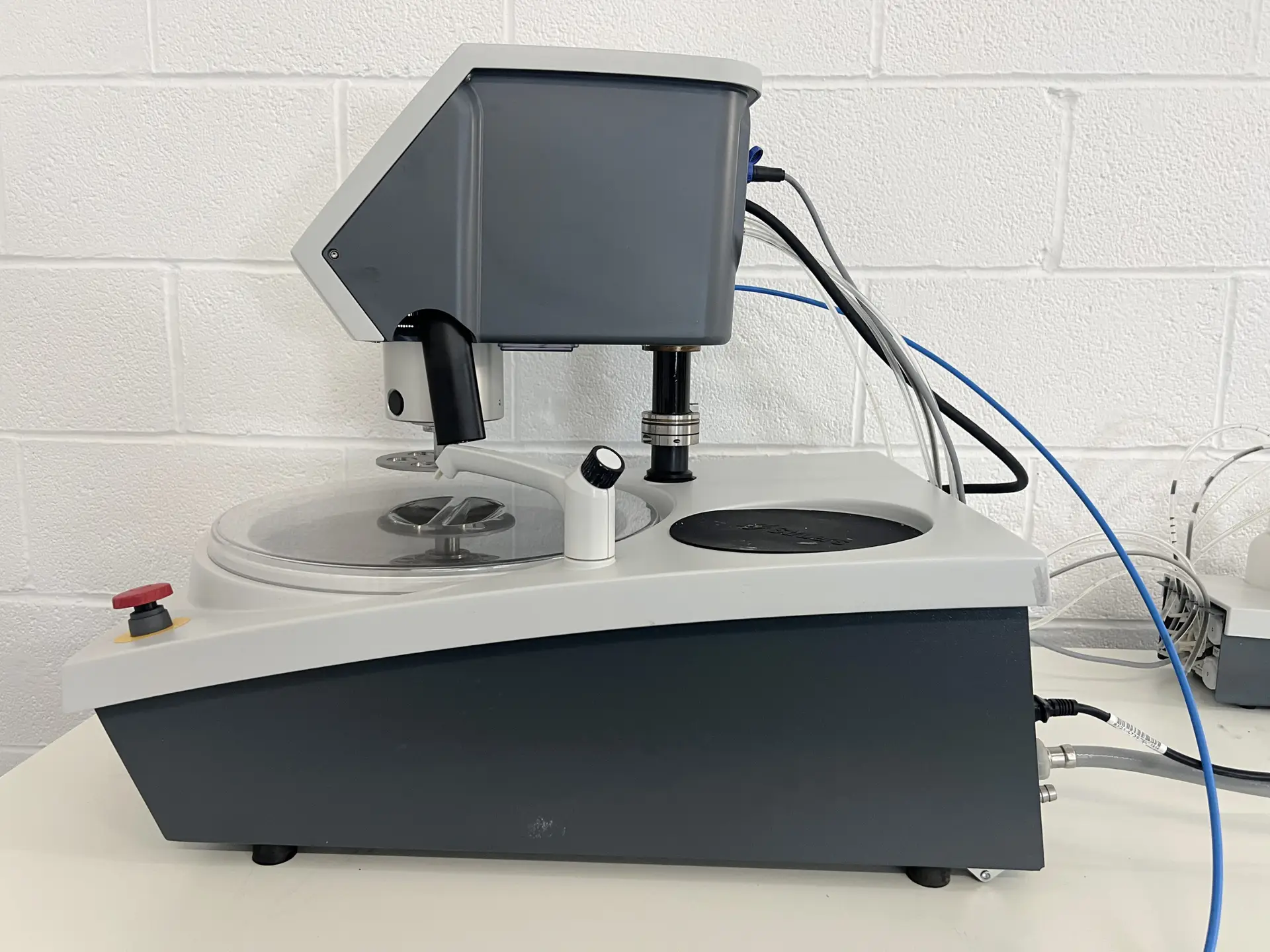

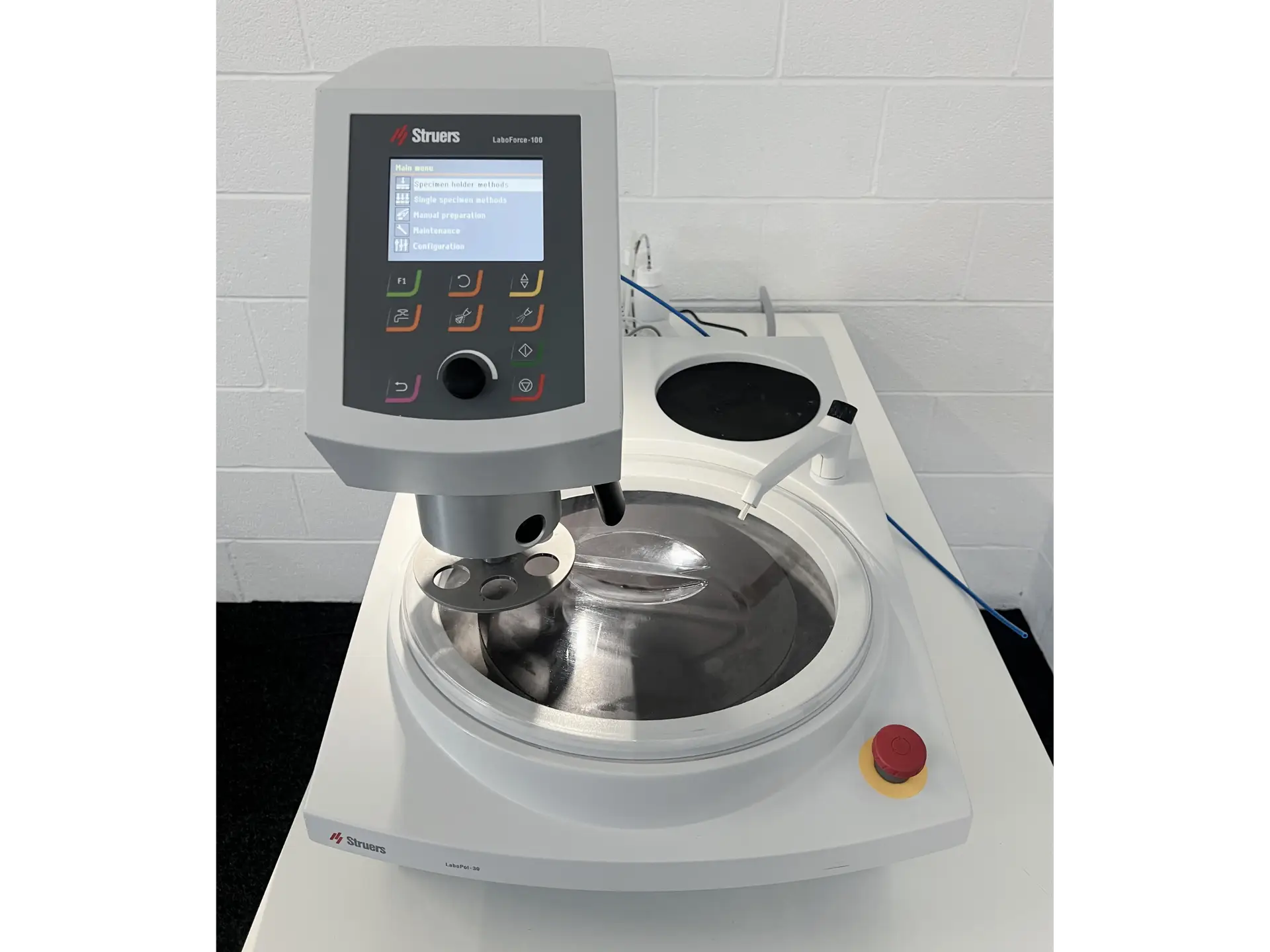

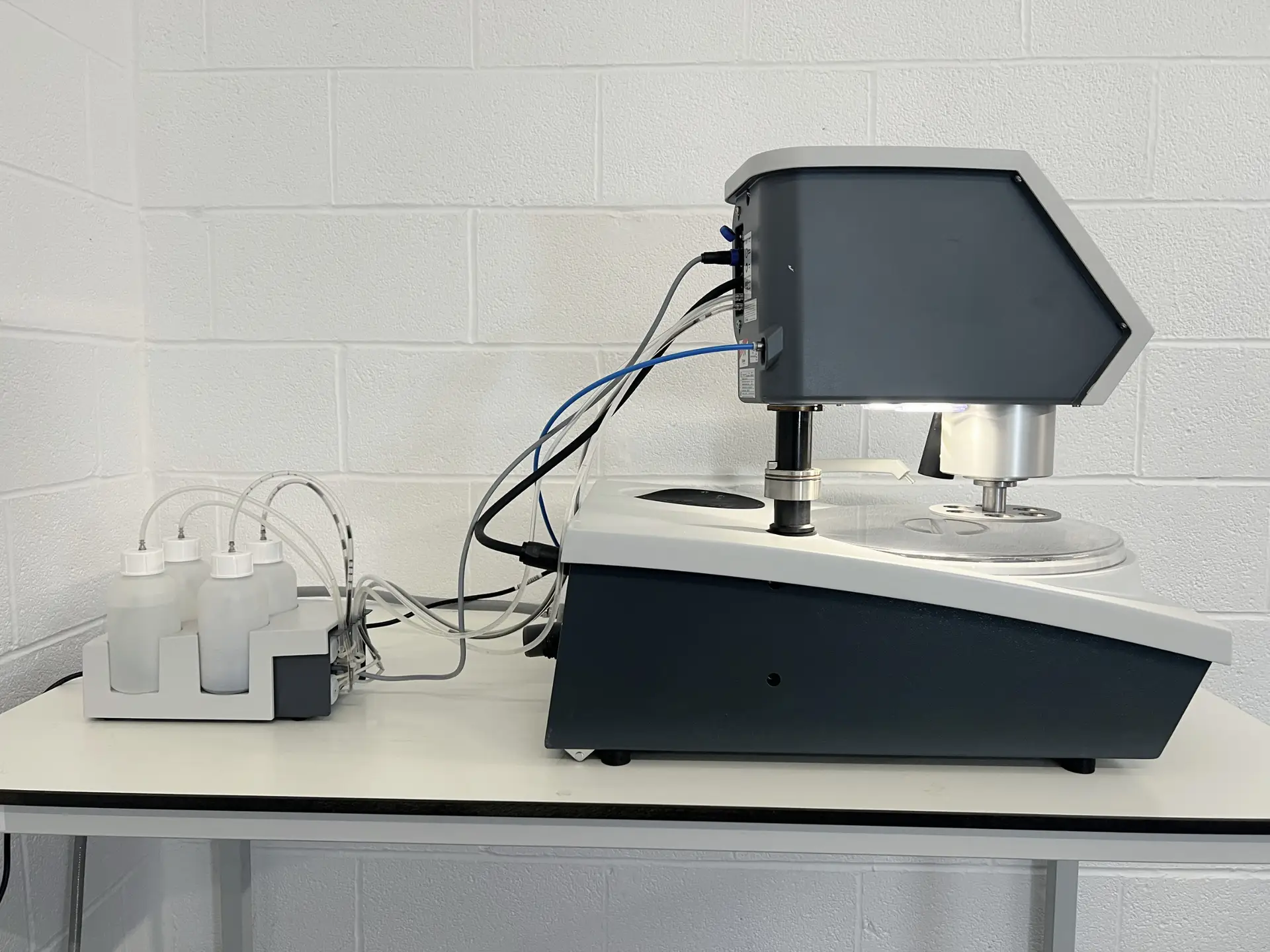

The Struers LaboPol-30 LaboSystem is a reliable and robust machine designed to grind and polish samples. Featuring a LaboPol-30, a Laboforce-100 and a LaboDoser-100, the Labosystem is made up of a polishing machine, specimen mover and a dosing unit. Used primarily by metallurgists, material scientists and quality control engineers, the LaboSystem is a great addition for anyone looking to prepare samples for microscopic analysis.
Specifications for the Labopol-30 include a speed range of between 50 to 500 rpm, and a disc diameter of 300mm. For added protection, there is a plastic lid to cover the disk when not in use. The LaboForce-100 can move up to six specimens, and the built-in screen allows the user to set parameters, cooling fluids and abrasive suspensions. To protect the user, LaboForce-100 has safety features such as crushing hazard warnings, emergency stops and automatic tube cleaning. Furthermore, an automatic dosing unit – LaboDoser-100 – contains four peristaltic pumps for dosing of lubricants and diamond suspension. Four 500 ml bottles are included.
Key Features of the Struers LaboPol-30 LaboSystem

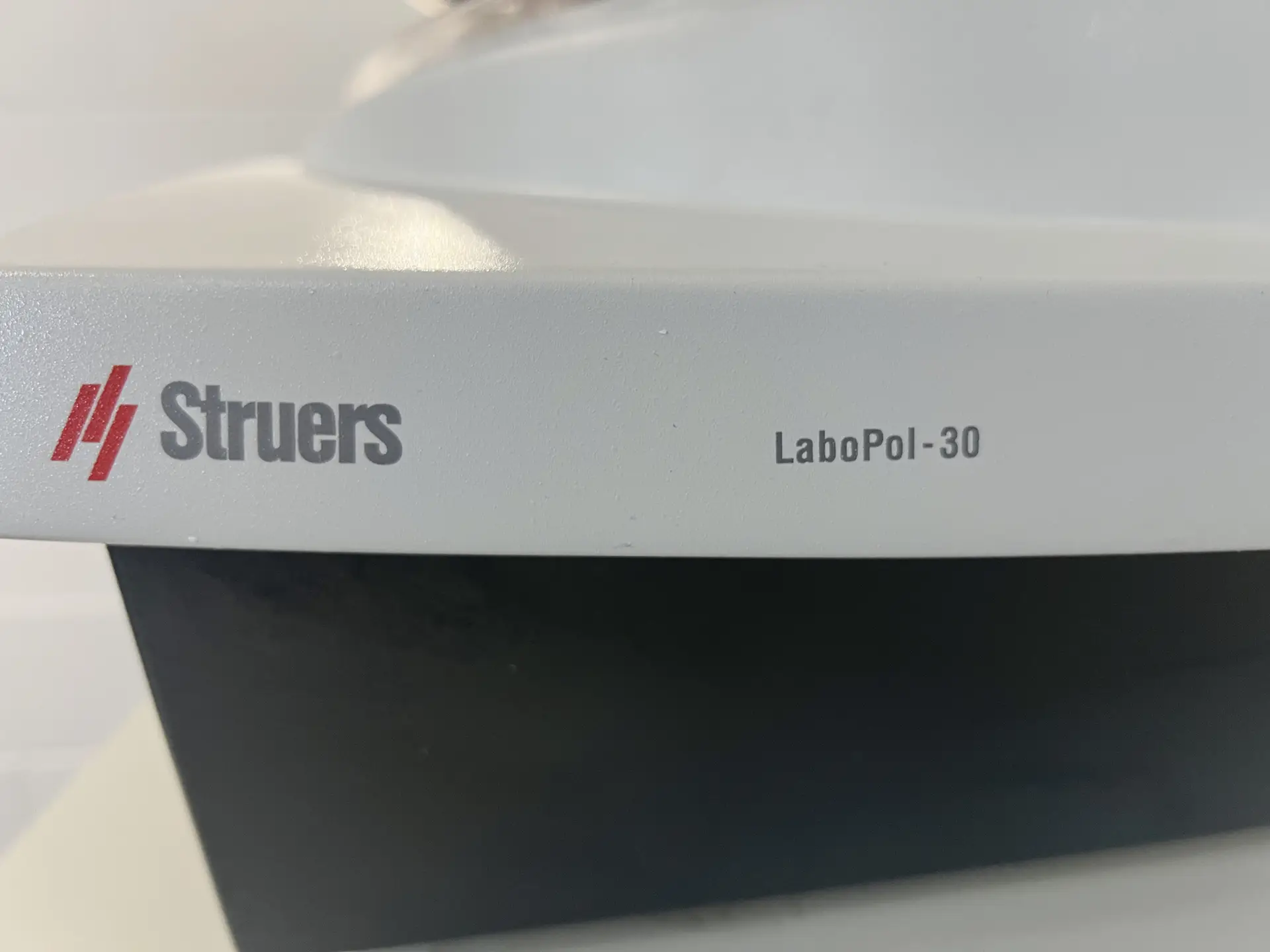

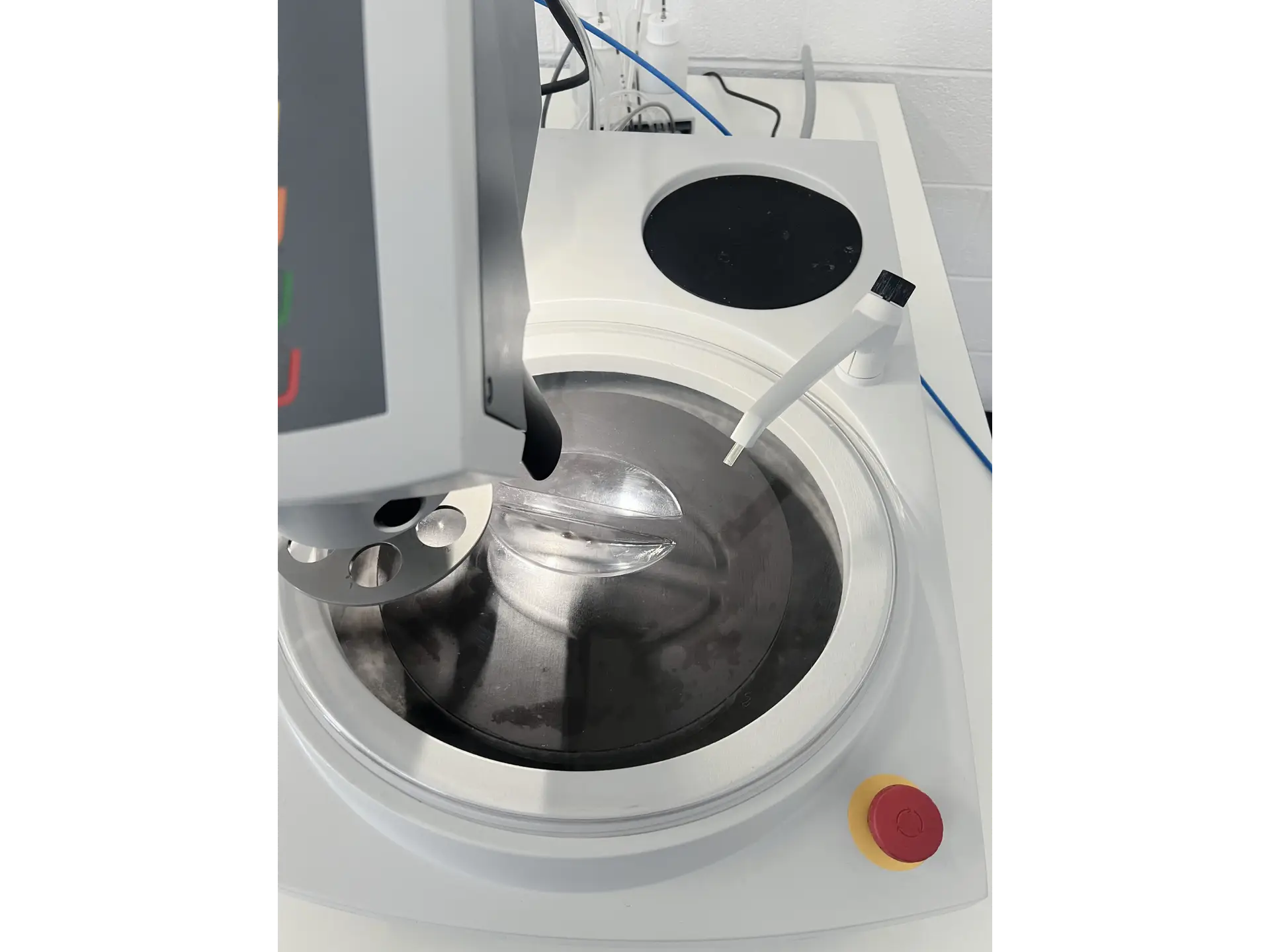

- 1 x LaboPol-30
- Speed Range: 50 – 500 rpm

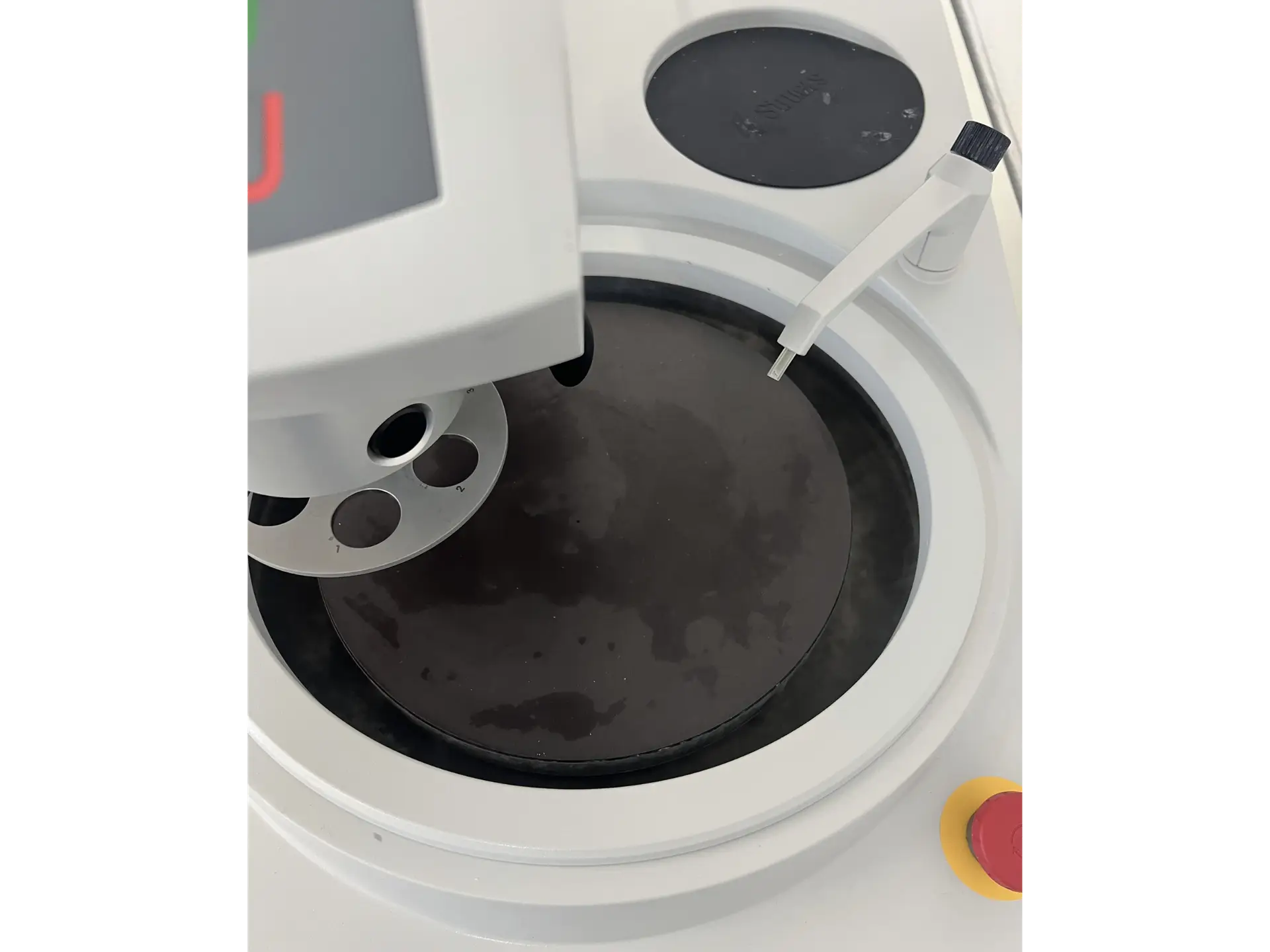

- Disc Diameter: 300 mm
- Rotational Direction: Counter-Clockwise

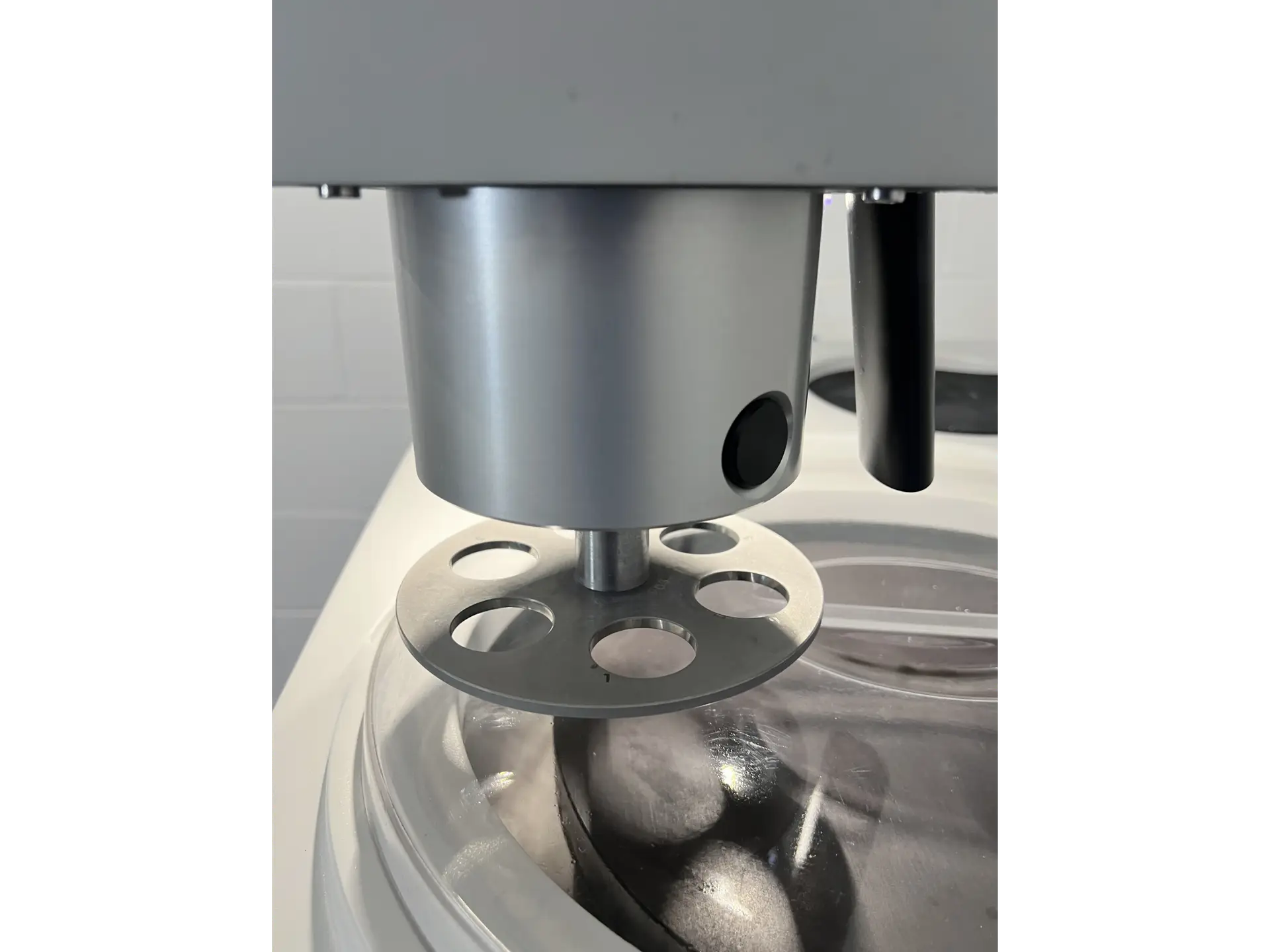

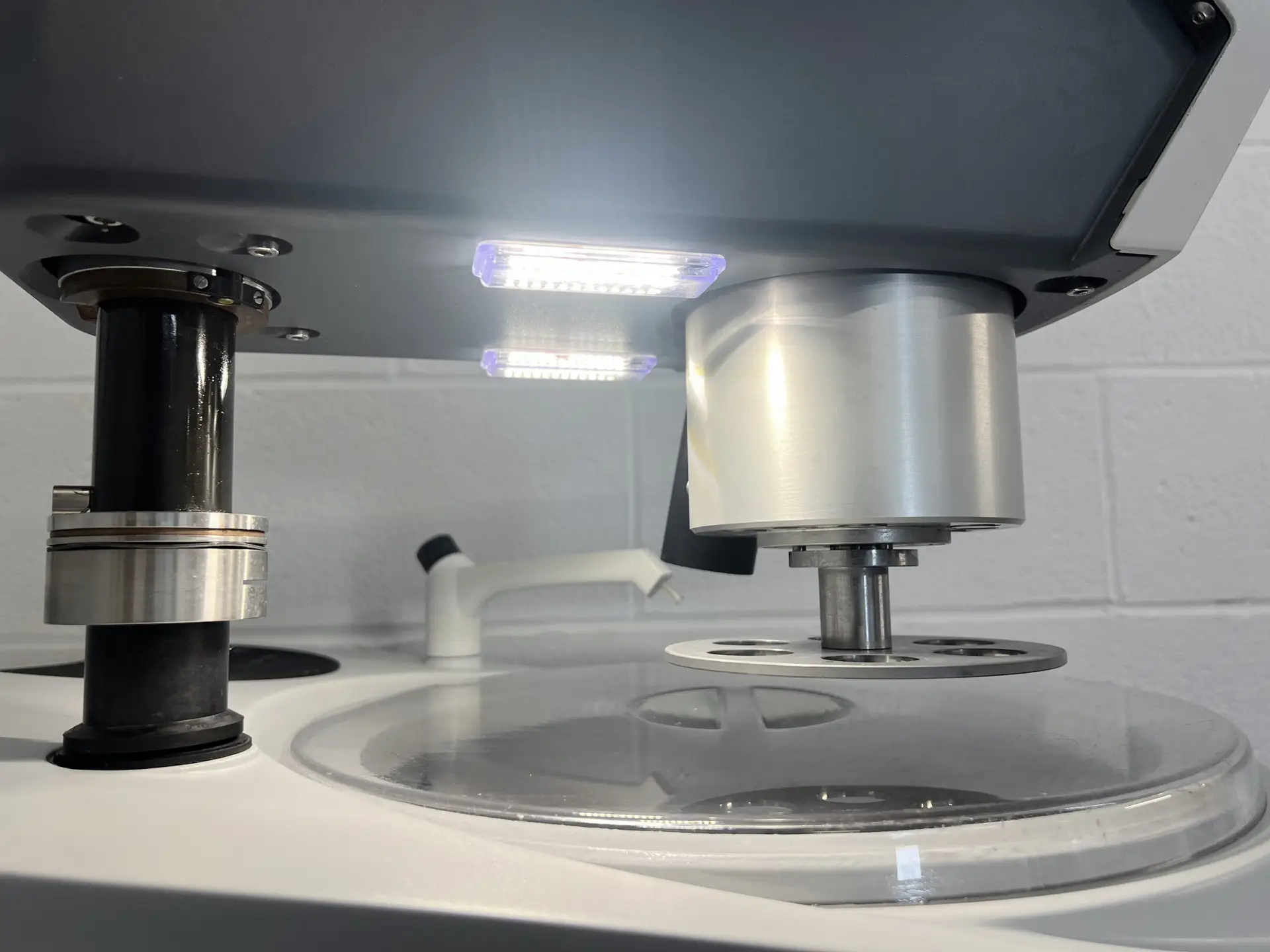

- 1 x LaboForce-100

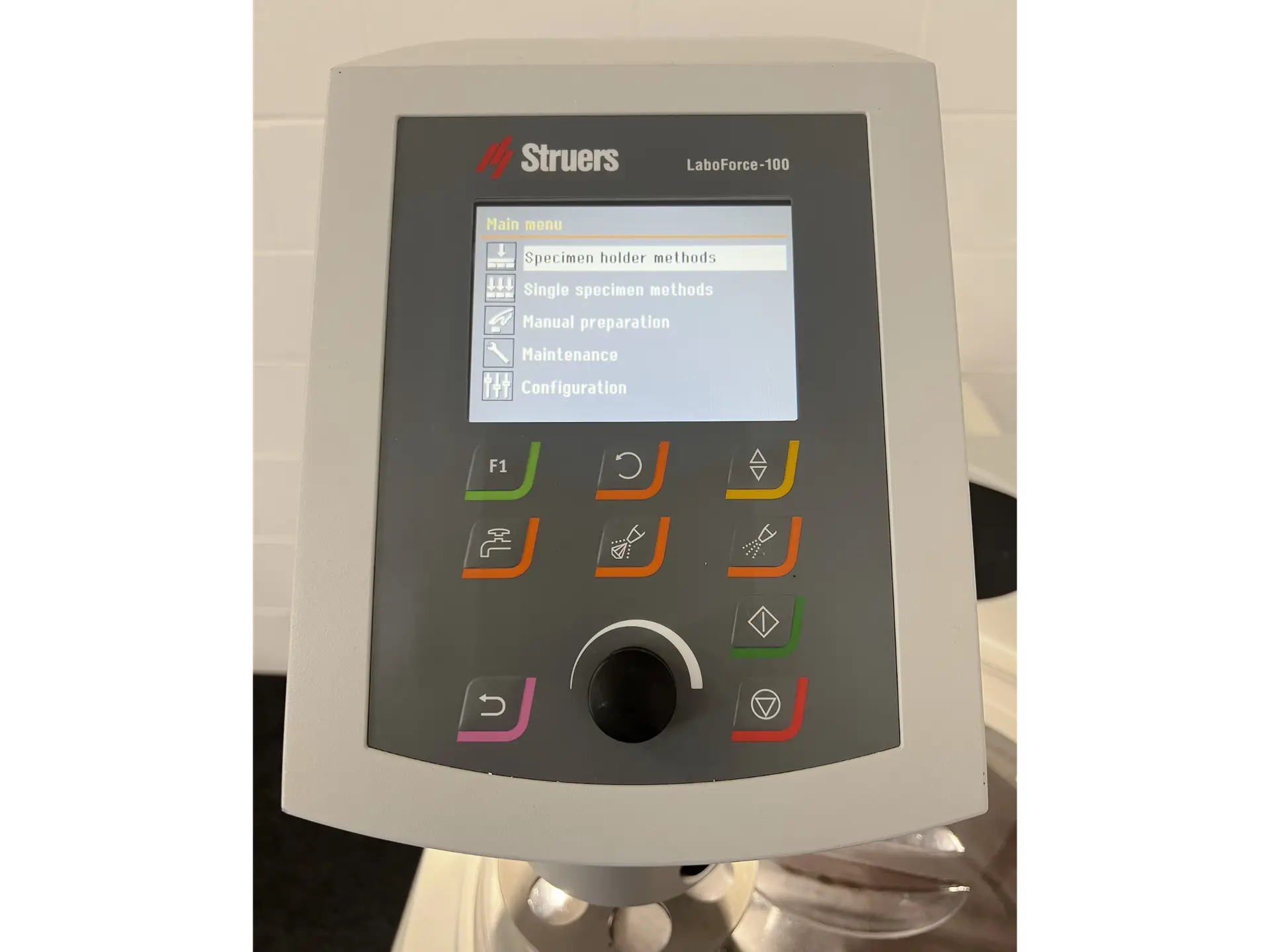

- Built-In Screen
- Moves Up To 6 Specimens

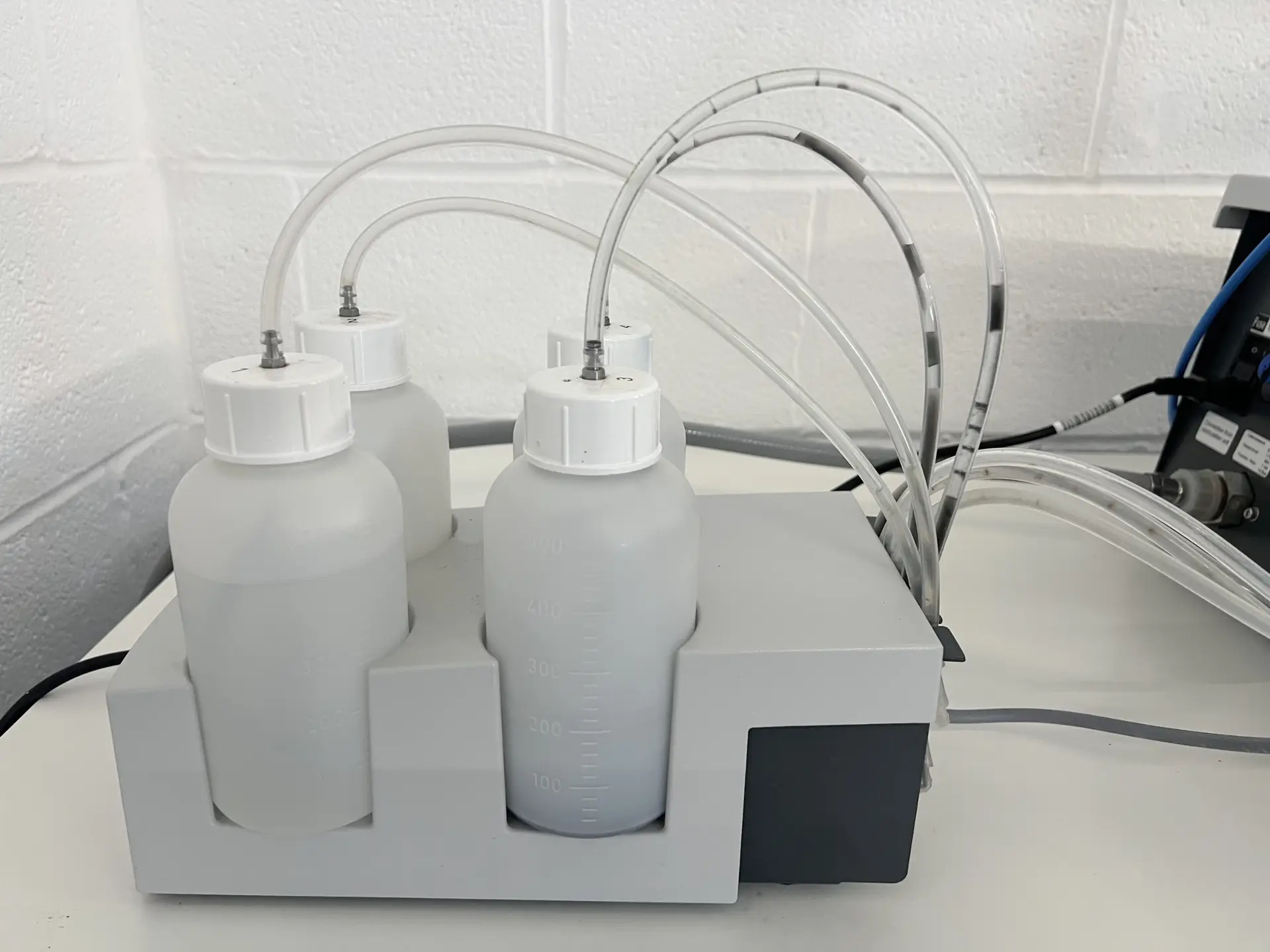

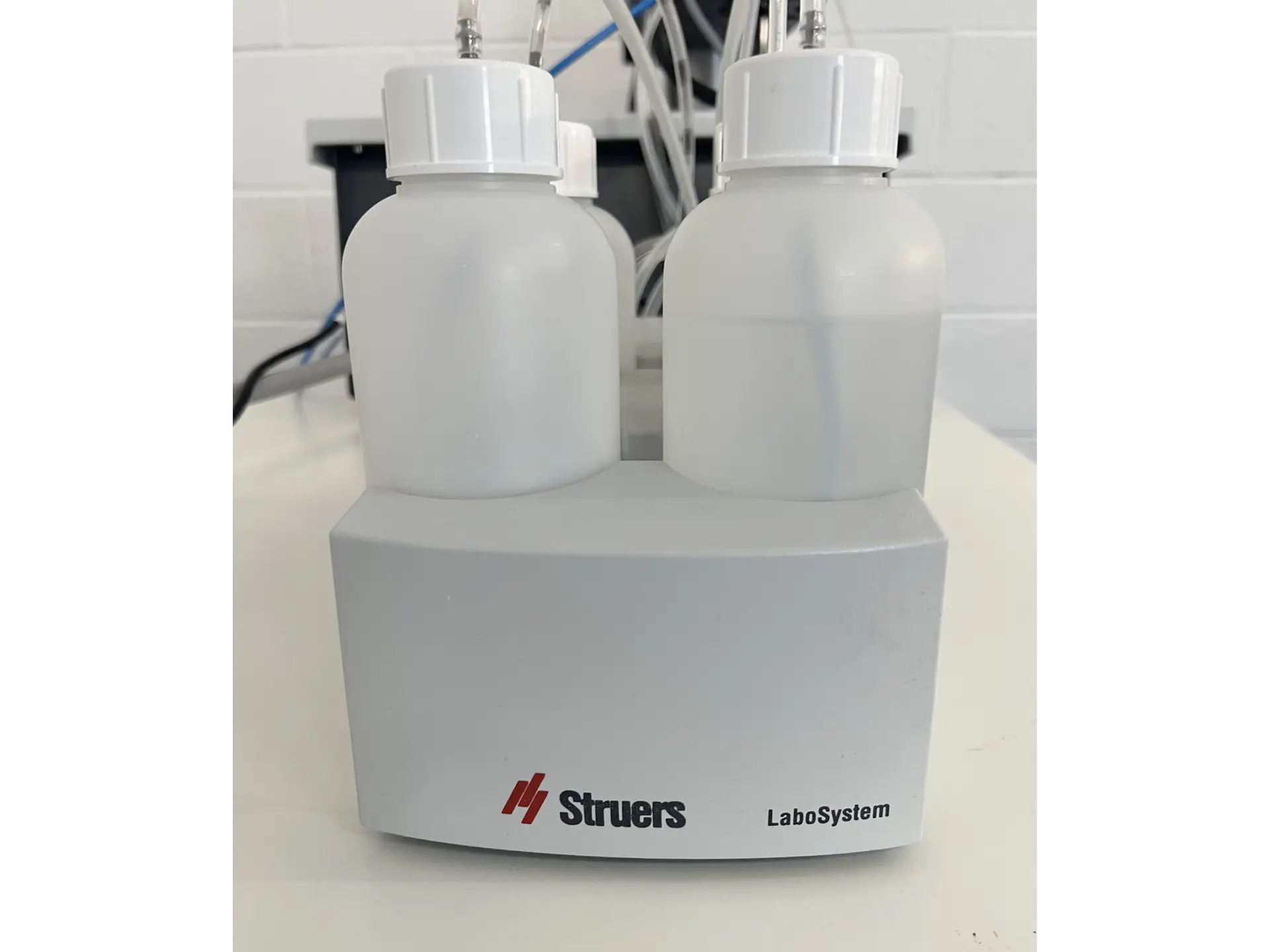

- 1 x LaboDoser-100
- 4 x Peristaltic Pumps
- 4 x 500 ml Bottles

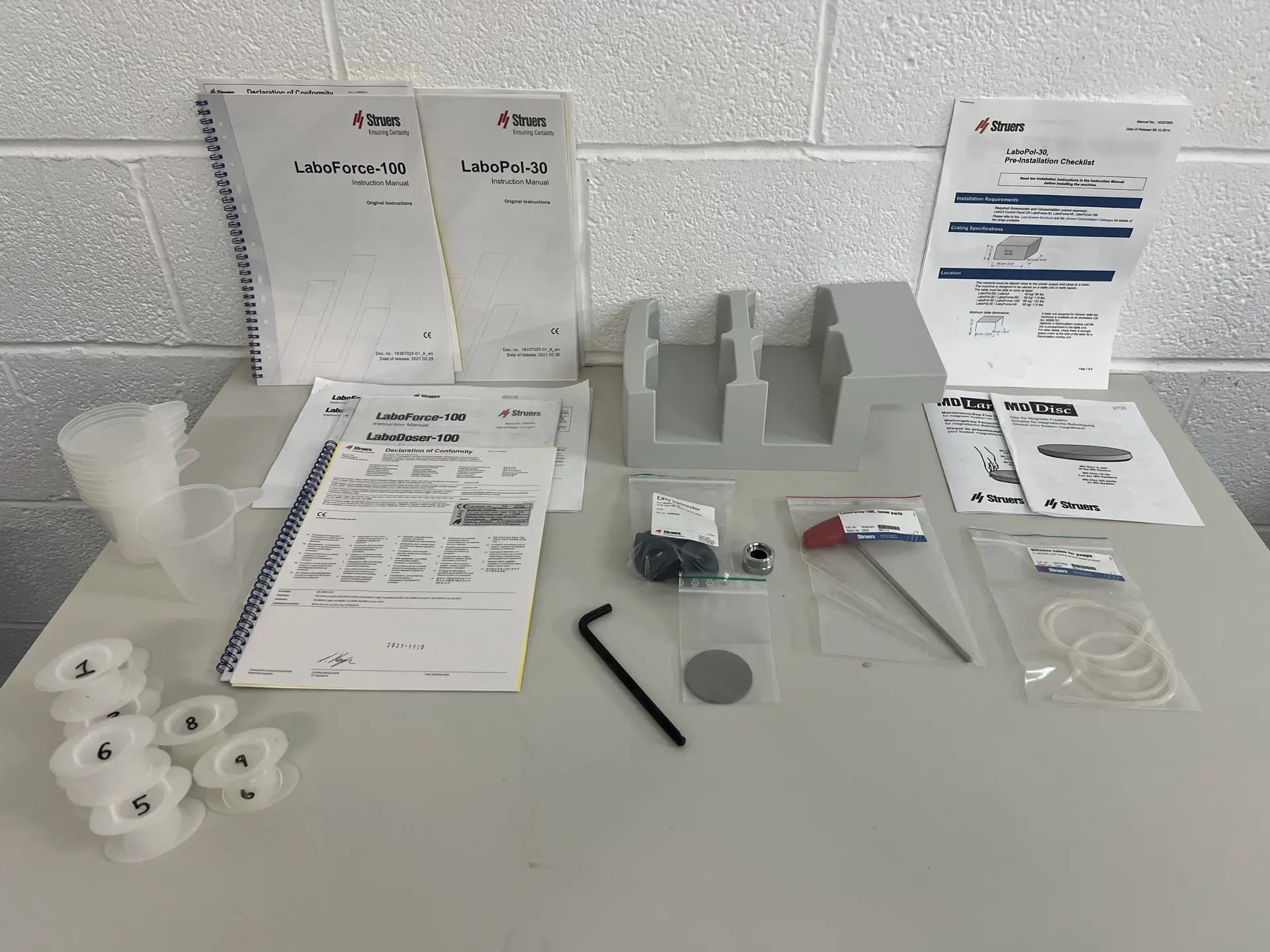

Instruction Manual for LaboPol-30
Instruction Manual for LaboDoser-100
Instruction Manual for LaboForce-100
