Description
The POL-EKO Multi-Chamber range combines two or three independently controlled chambers within one space-saving unit. Customers can select different arrangements of CHL laboratory refrigerators, ZLN freezers and ST cooled incubators. Alternatively, matching refrigerator-only or incubator-only configurations are available. Chamber capacities include 74, 157 and 208 litres for CHL and ST models, while the ZLN freezer provides 85 litres. This allows laboratories to create a system suited to their storage, incubation and sample-processing requirements without installing several separate units. Furthermore, multi-chambers enable users to easily move samples between the fridge, freezer and incubator for streamlined sample processing and intuitive laboratory workflow
Each chamber has its own control panel, allowing users to set and monitor temperatures independently. CHL refrigerator sections operate from 0°C to +15°C, while the ZLN freezer provides temperatures from -25°C to 0°C. Meanwhile, ST cooled incubators operate from +3°C to +40°C with the SMART controller or up to +70°C with SMART PRO. SMART PRO models also add Wi-Fi and Ethernet connectivity alongside USB data transfer. Overall, the POL-EKO Multi-Chamber range offers a flexible, compact solution for laboratories managing samples across several controlled temperature conditions.
Please note, each unit must use the same controller type – SMART or SMART PRO – and the same housing material. For a comparison chart on SMART and SMART PRO controllers please see the ‘downloads’ tab.
Pol-Eko Multi-Chamber laboratory systems are highly customisable with additional accessories. Please refer to the relevant data sheet for the full range of add ons or contact us on 01257 270433 to discuss your requirements.
Possible Combinations for the POL-EKO Multi-Chamber
Fridges

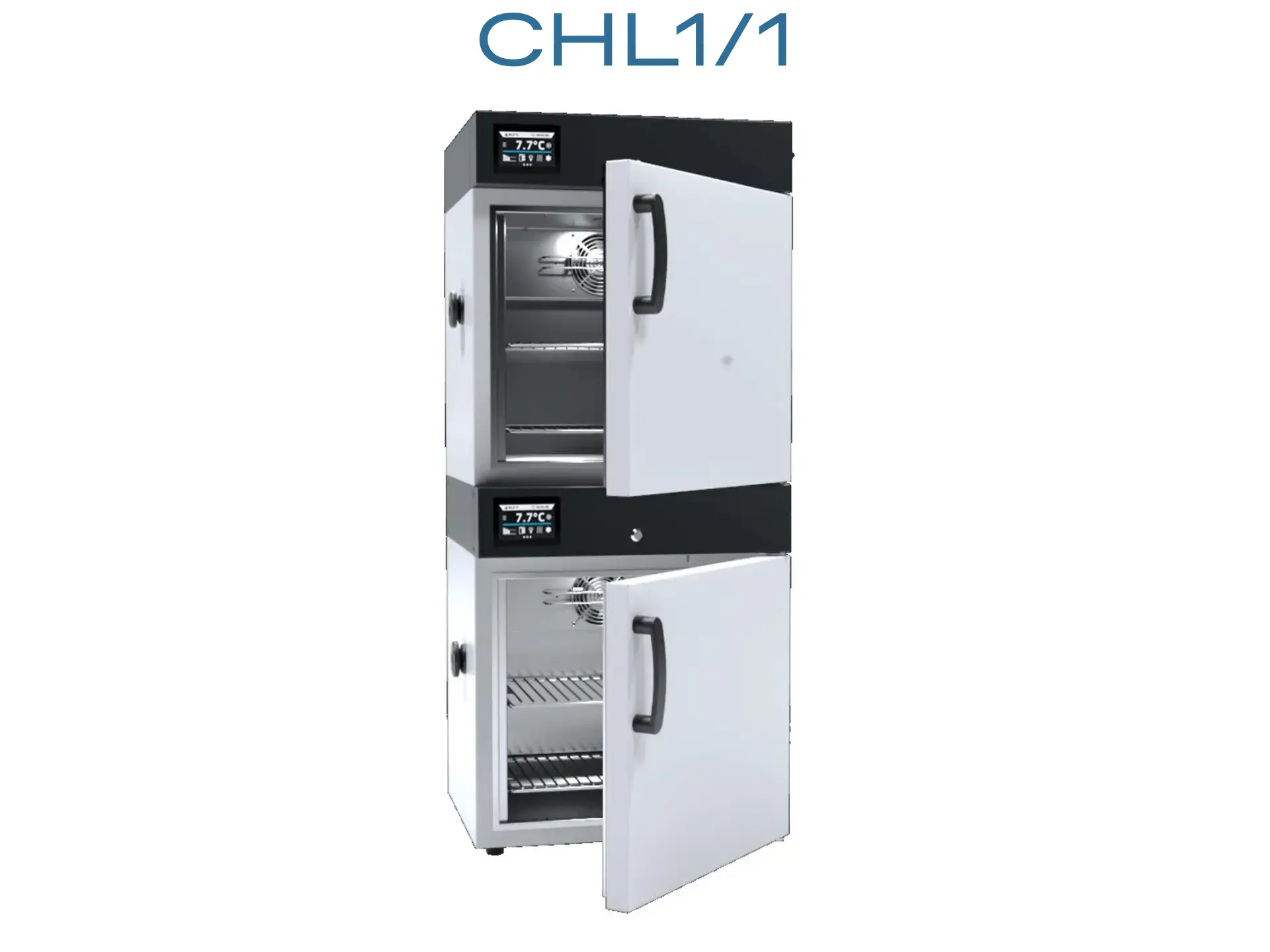

- CHL 1 Fridge + CHL 1 Fridge

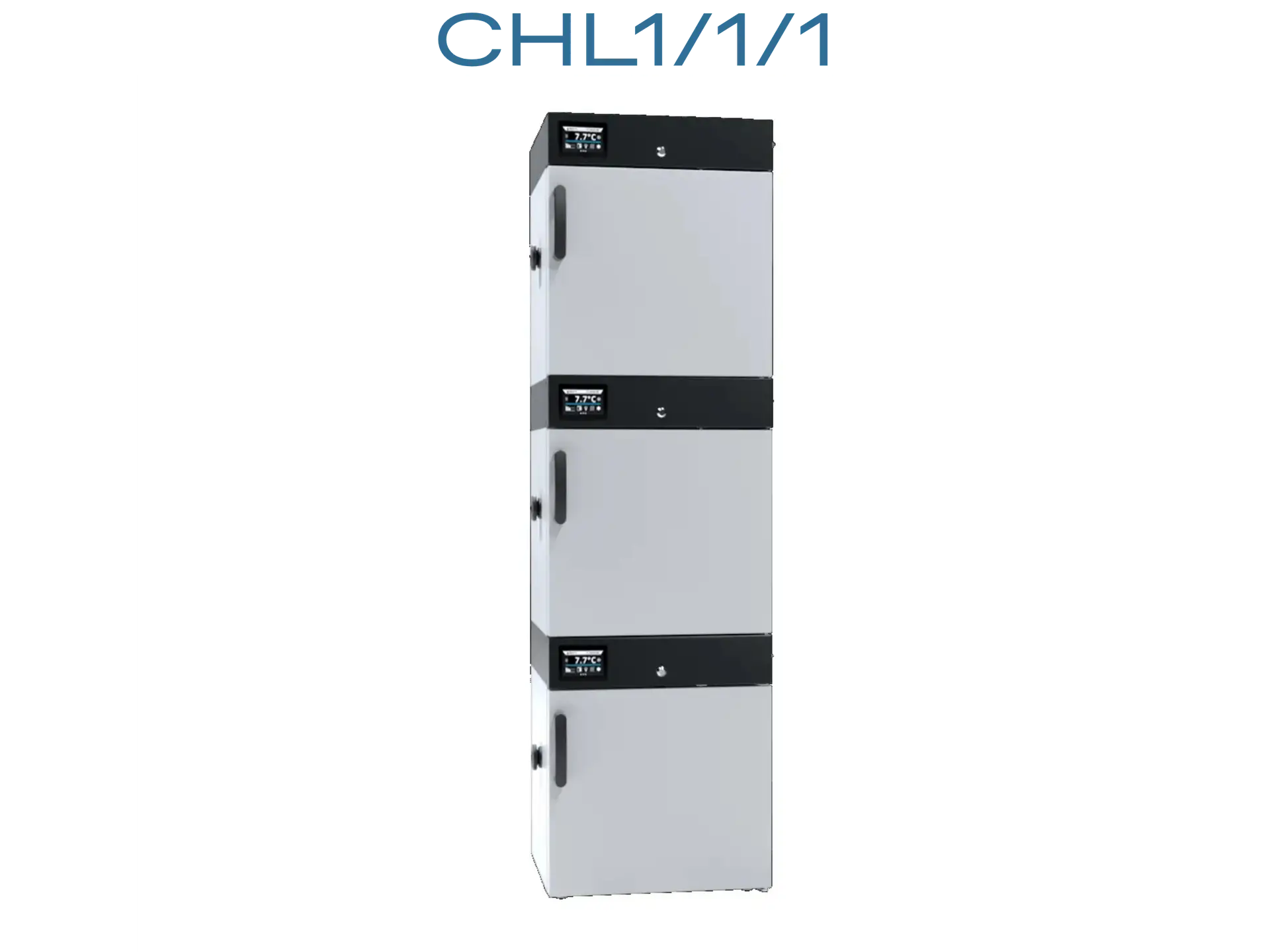

- CHL 1 Fridge + CHL 1 Fridge + CHL 1 Fridge

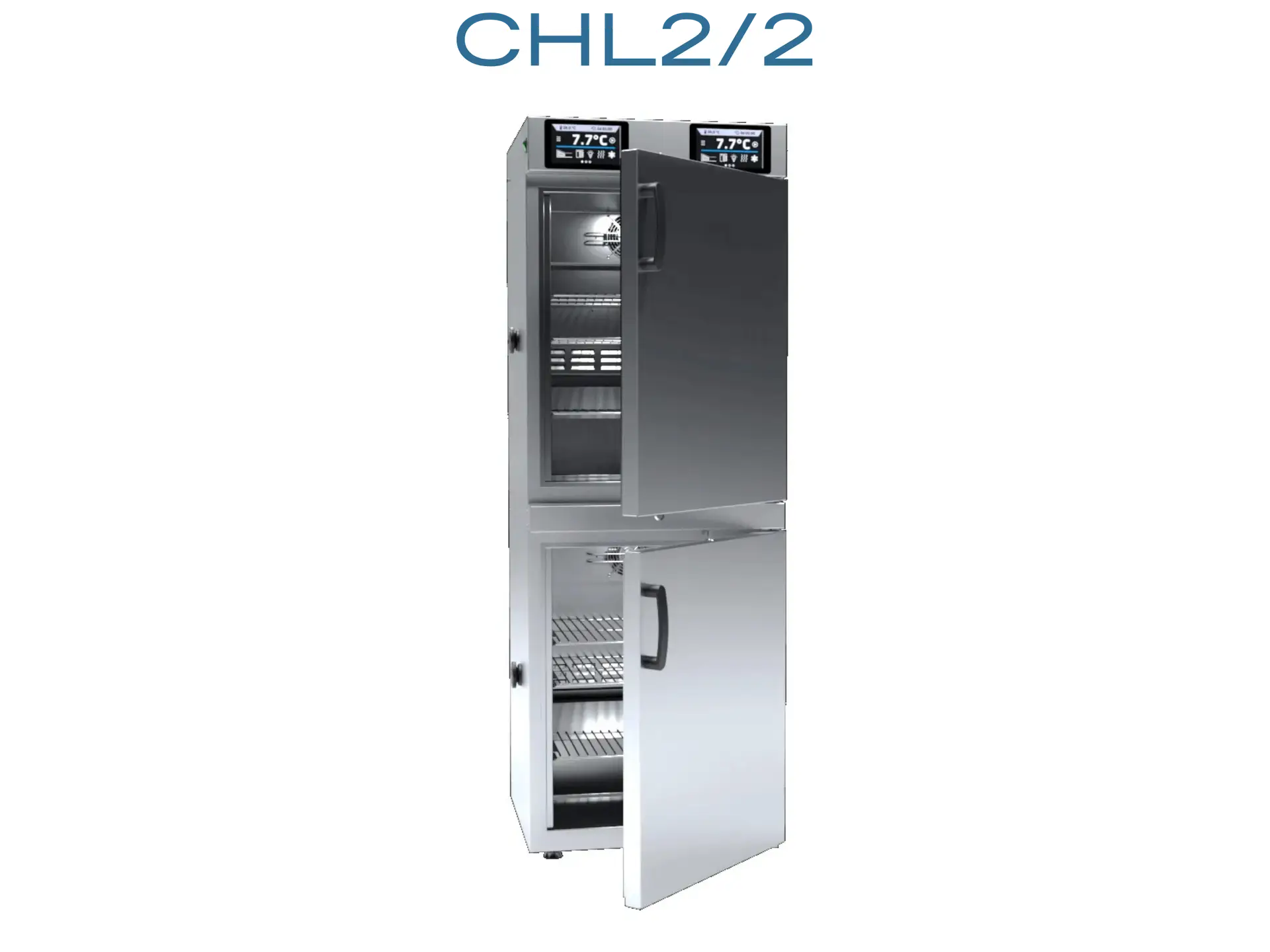

- CHL 2 Fridge + CHL 2 Fridge

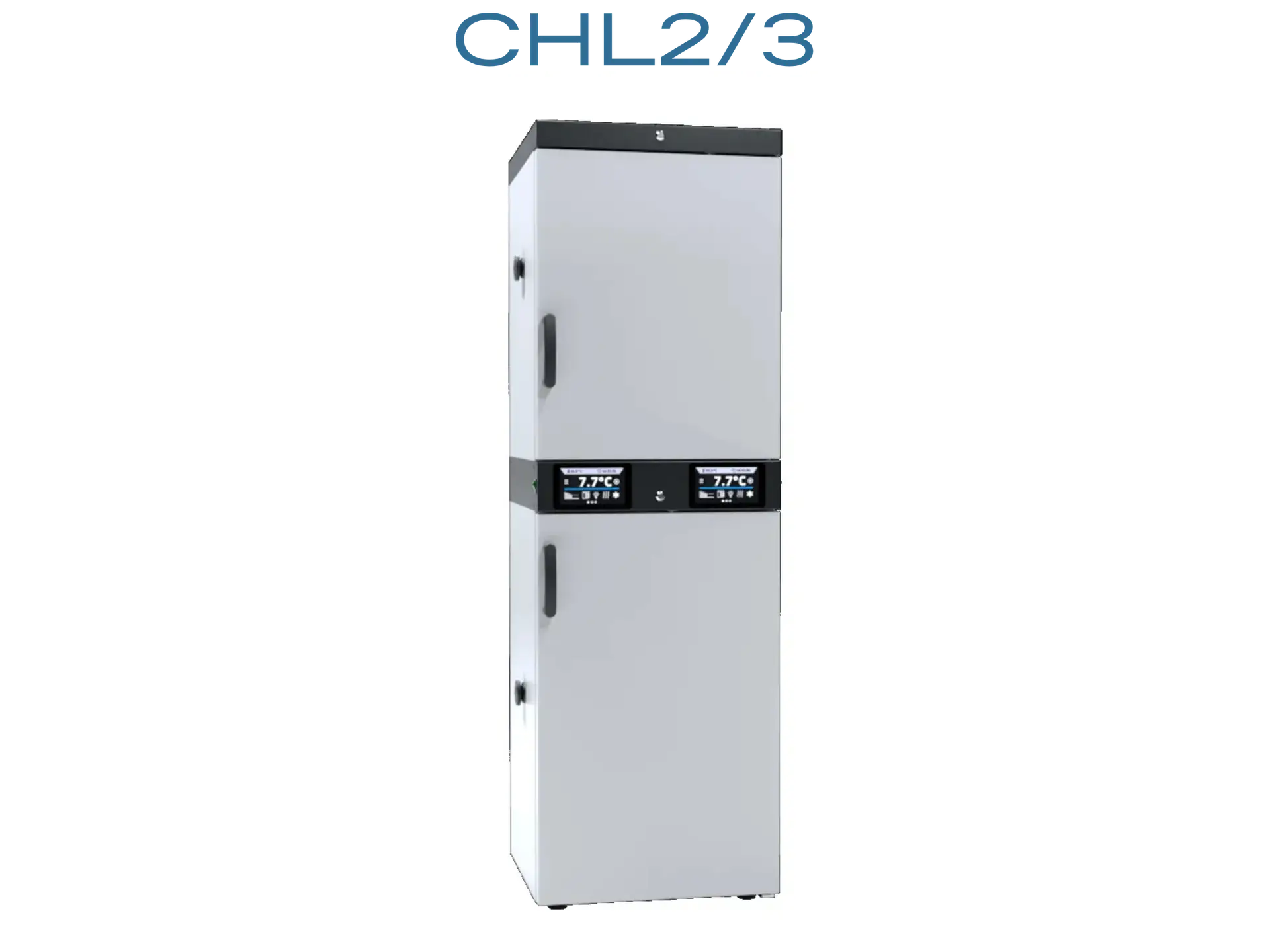

- CHL 2 Fridge + CHL 3 Fridge
Incubators
- ST 1 Incubator + ST 1 Incubator

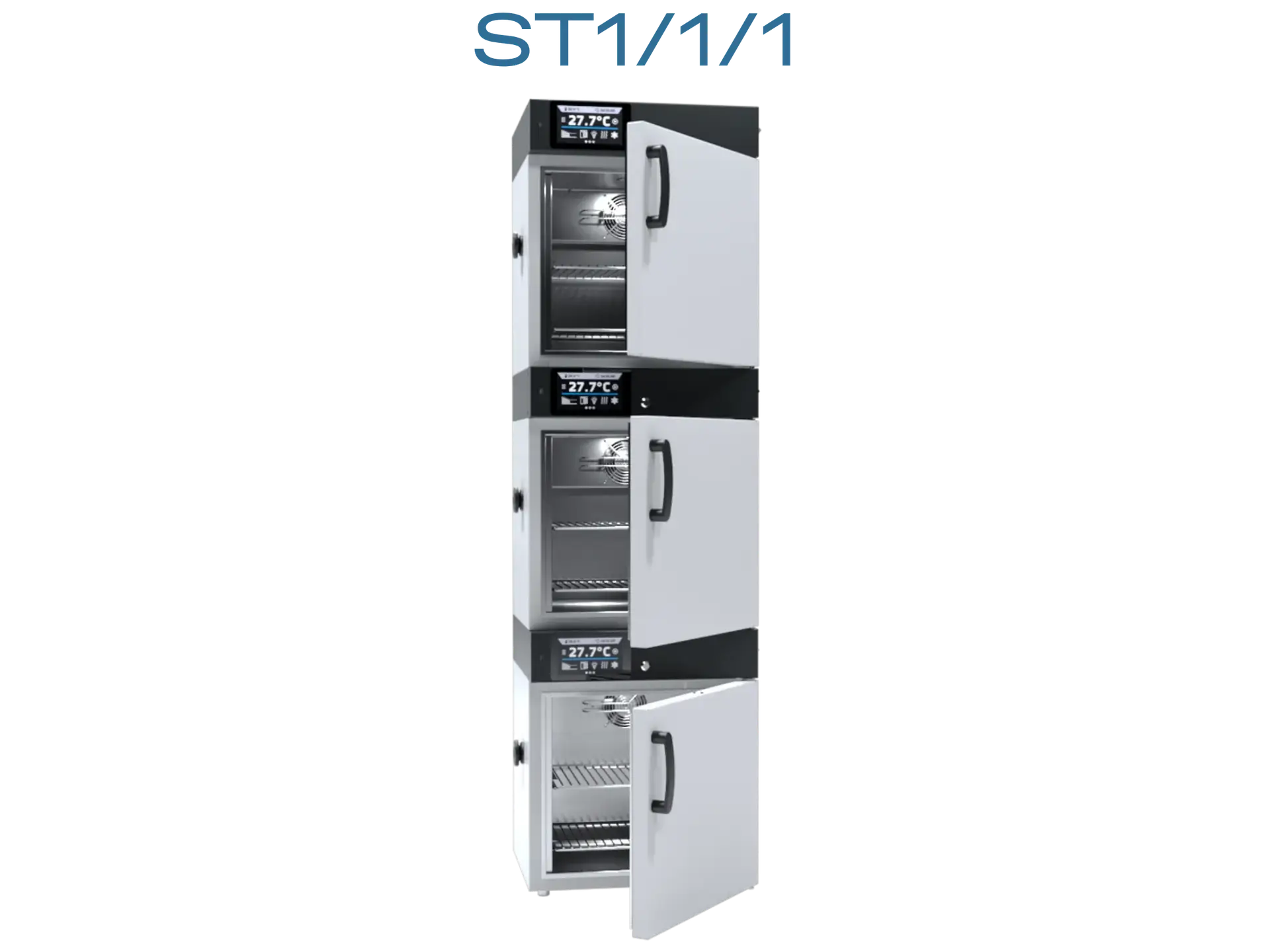

- ST 1 Incubator + ST 1 Incubator + ST 1 Incubator

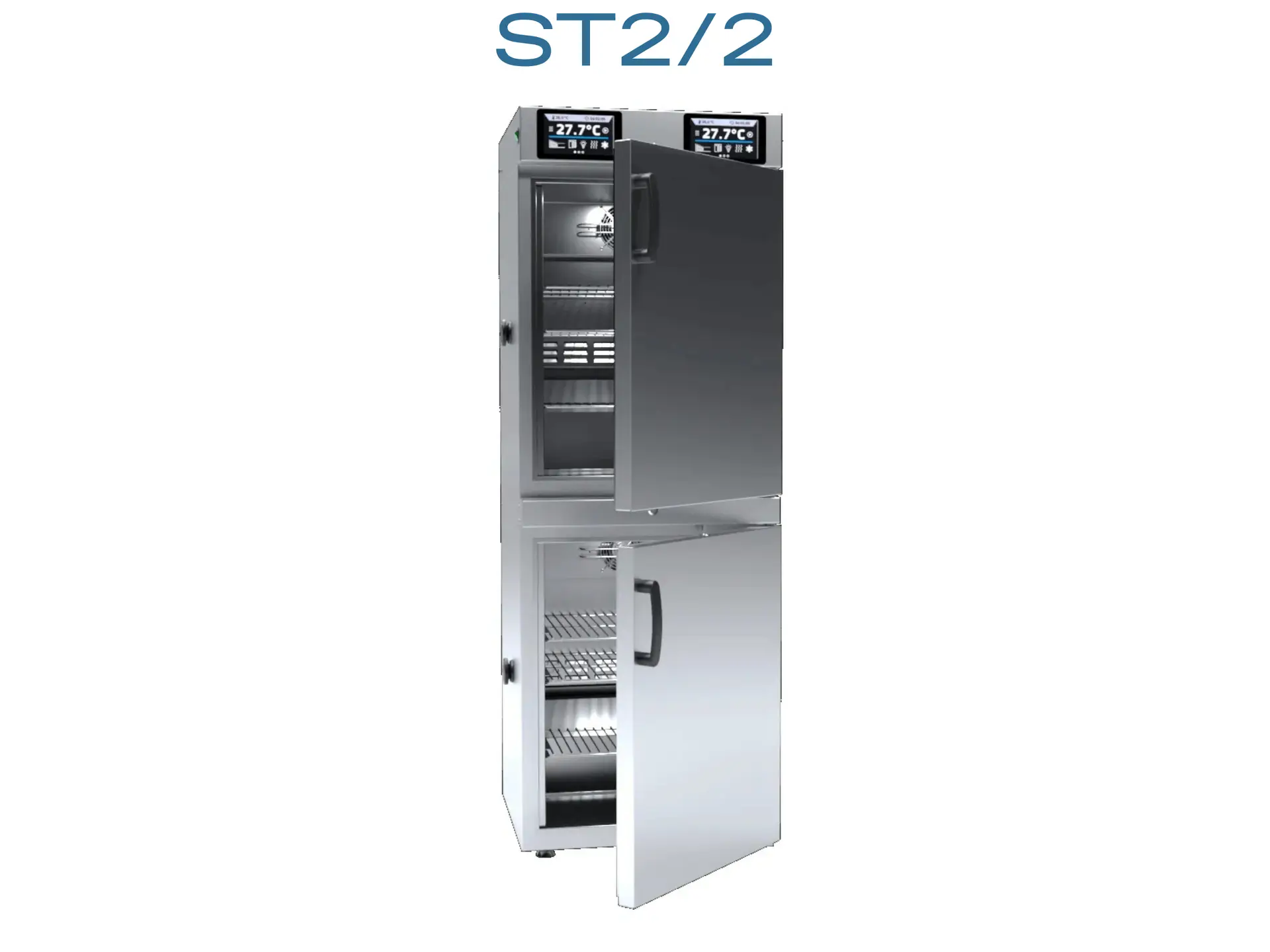

- ST 2 Incubator + ST 2 Incubator

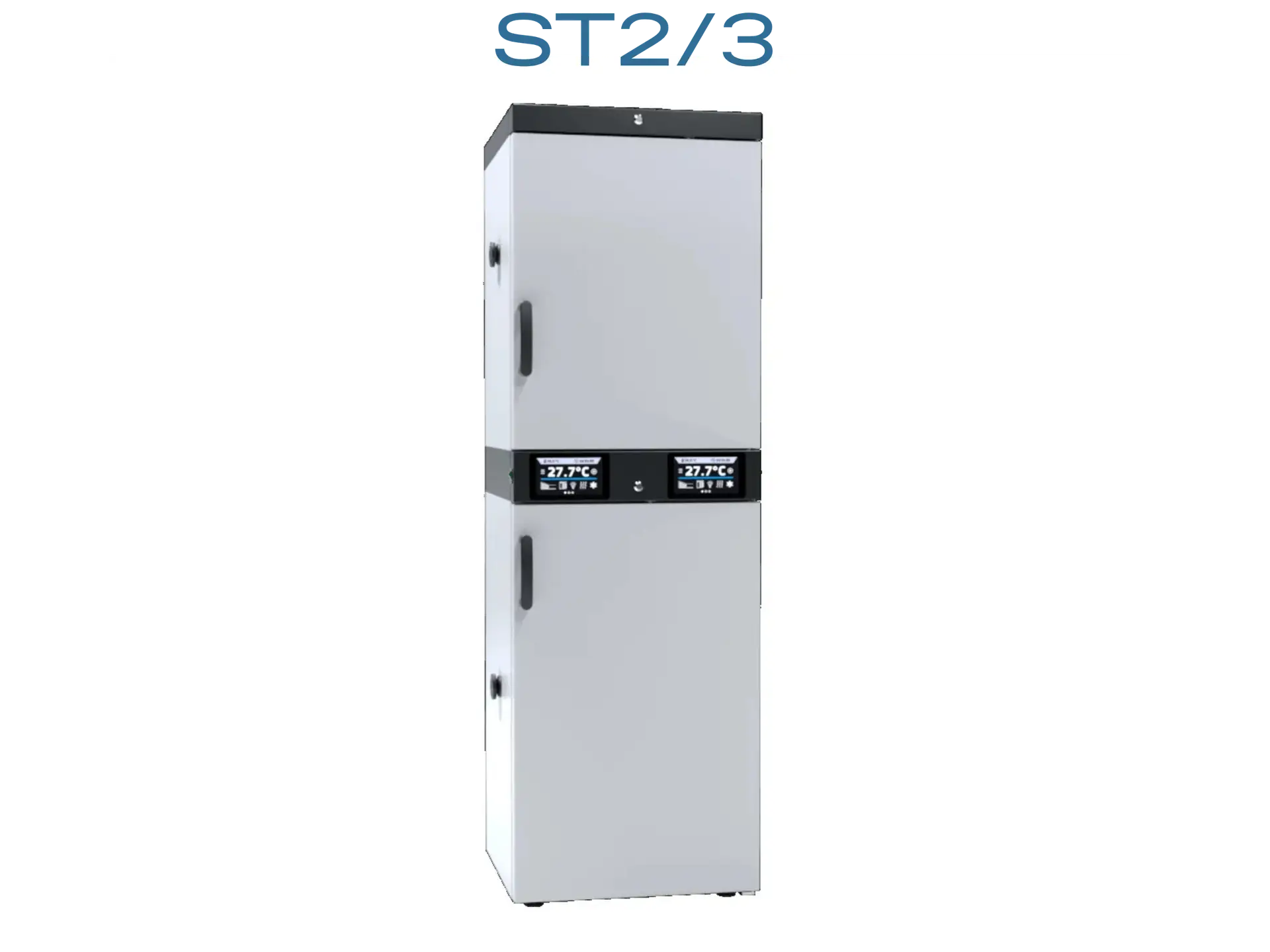

- ST 2 Incubator + ST 3 Incubator
Fridge/Freezers*

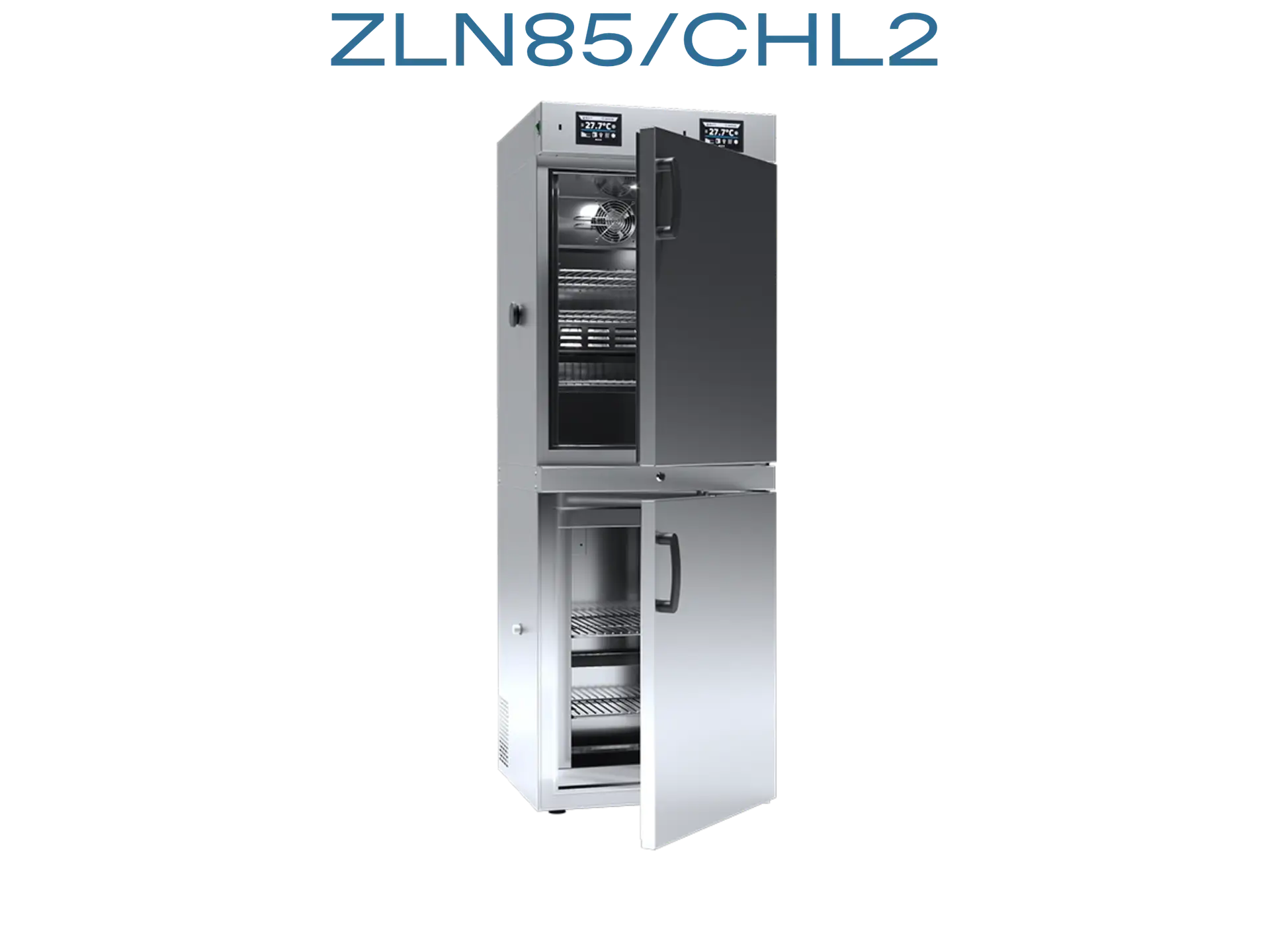

- ZLN 85 + CHL2 Fridge

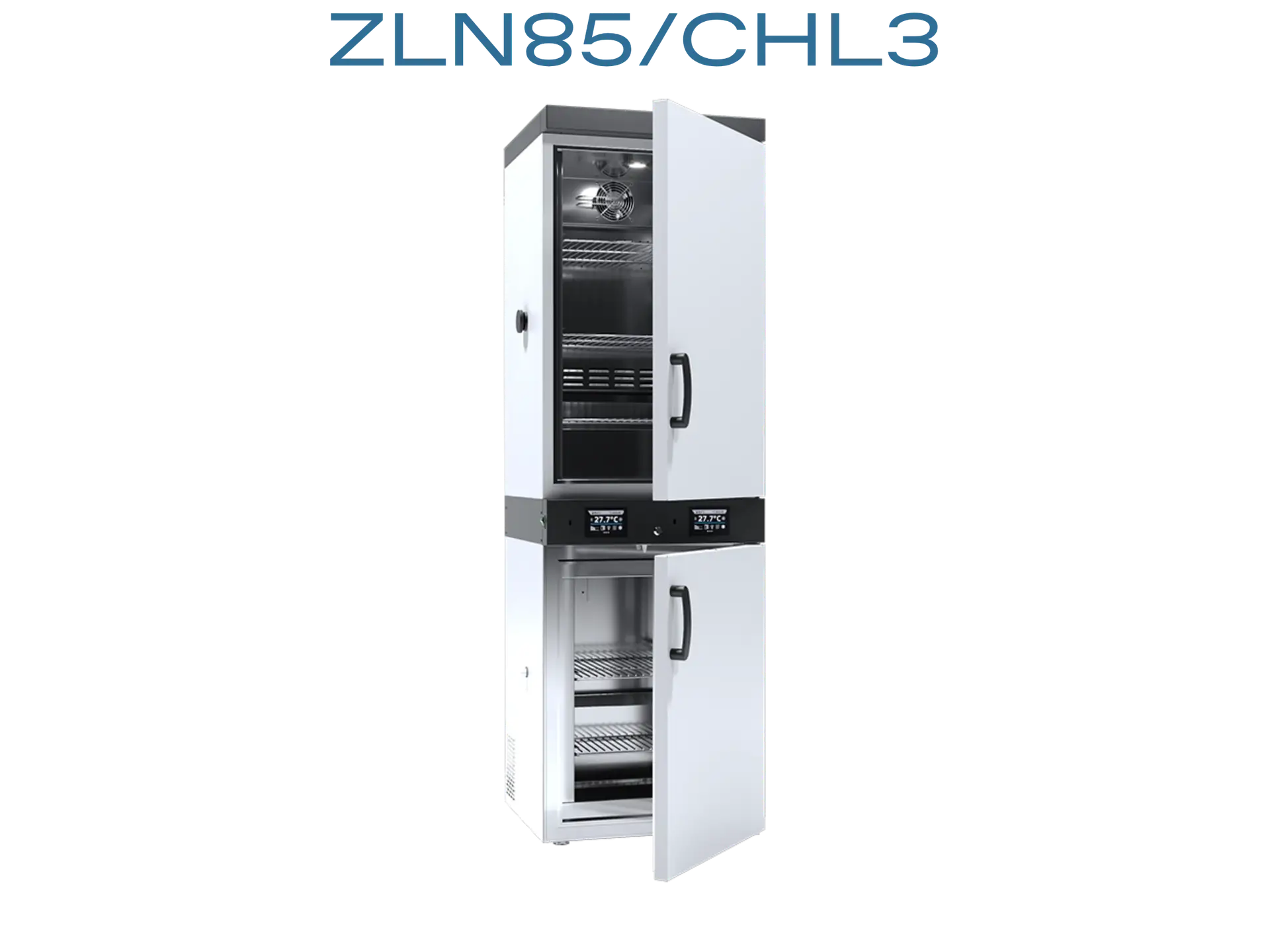

- ZLN 85 + CHL3 Fridge
Freezer*/Cooled Incubators

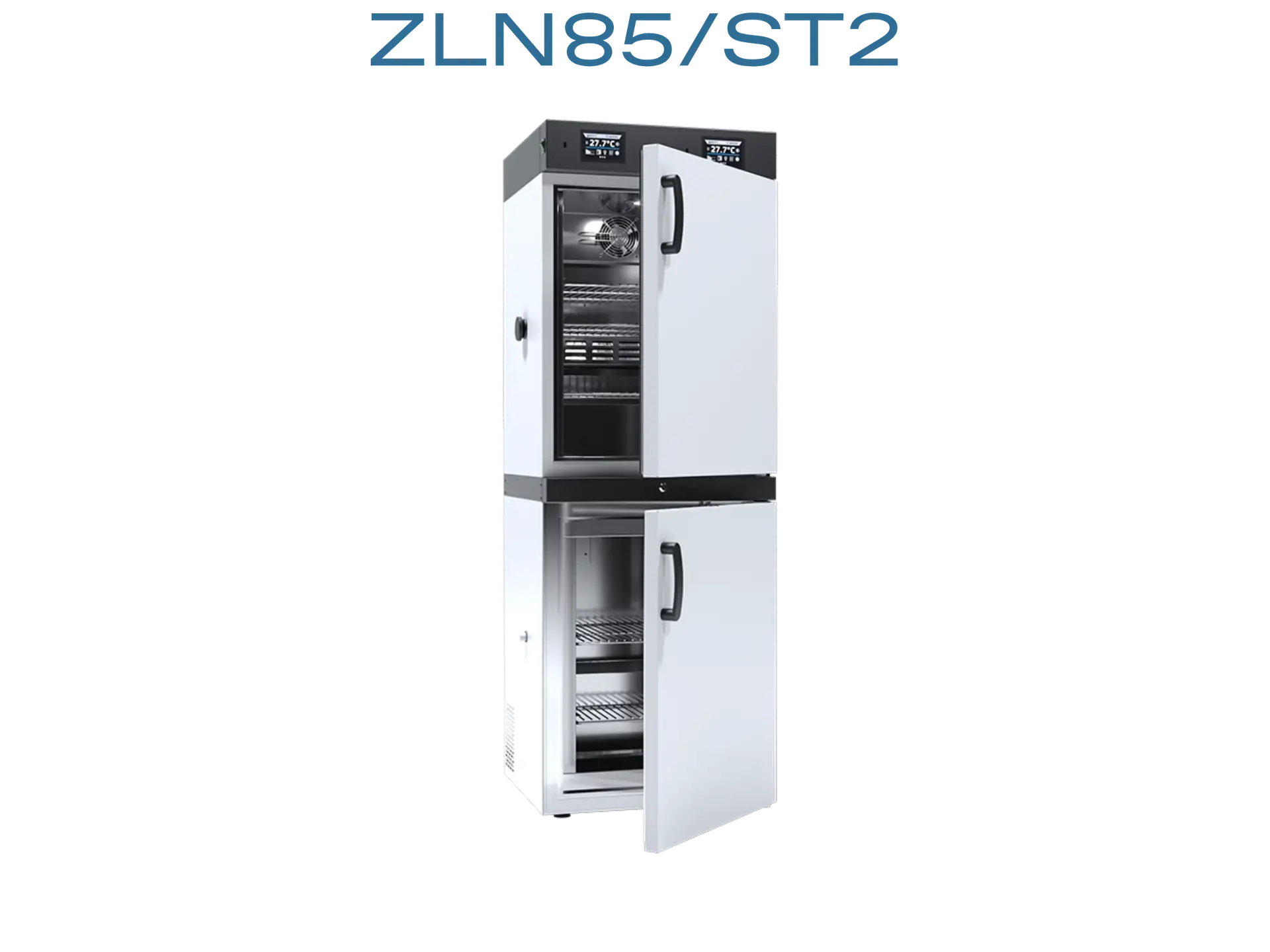

- ZLN 85 Freezer + ST 2 Incubator

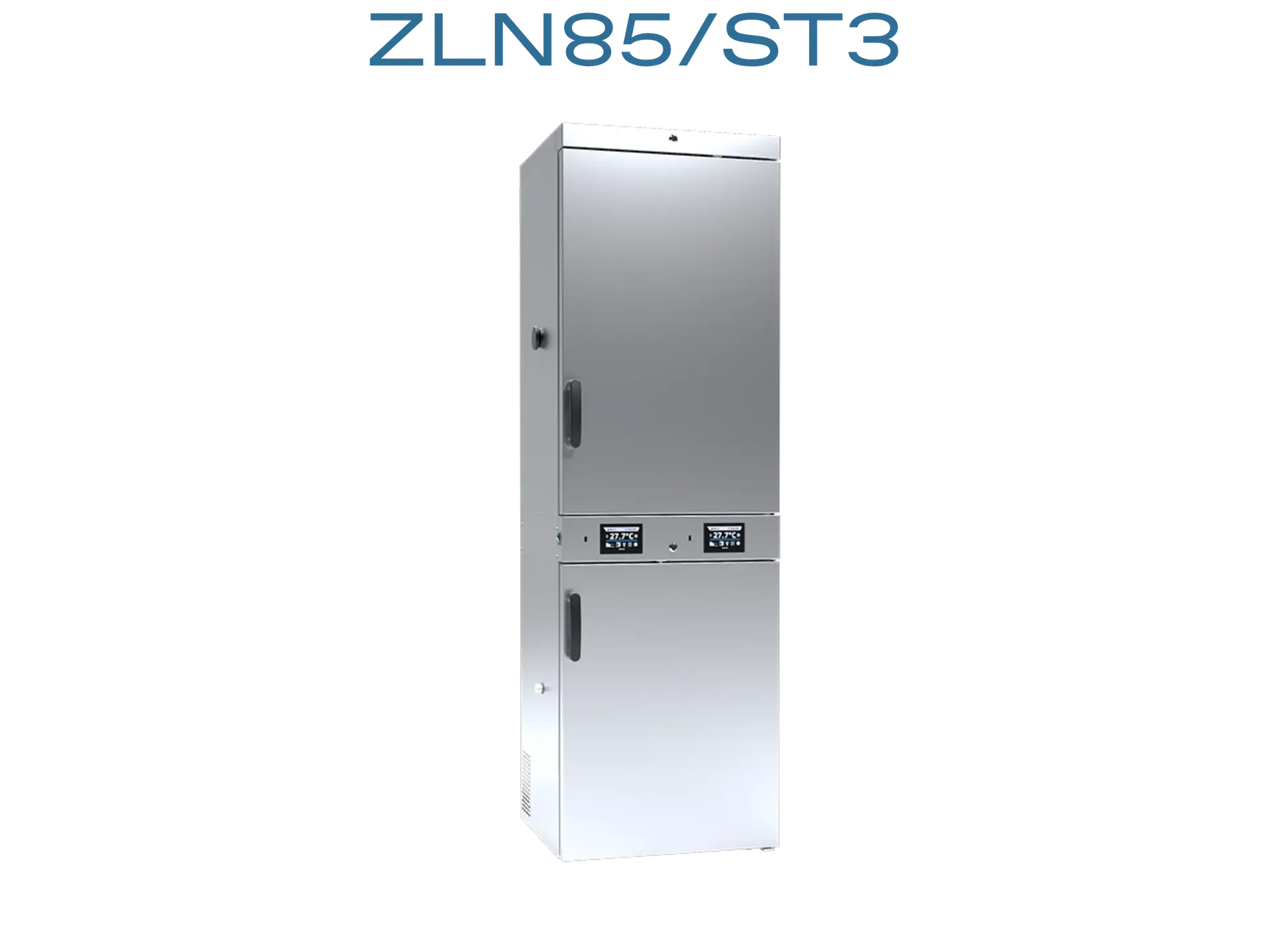

- ZLN 85 Freezer + ST 3 Incubator
Fridge/Cooled Incubators

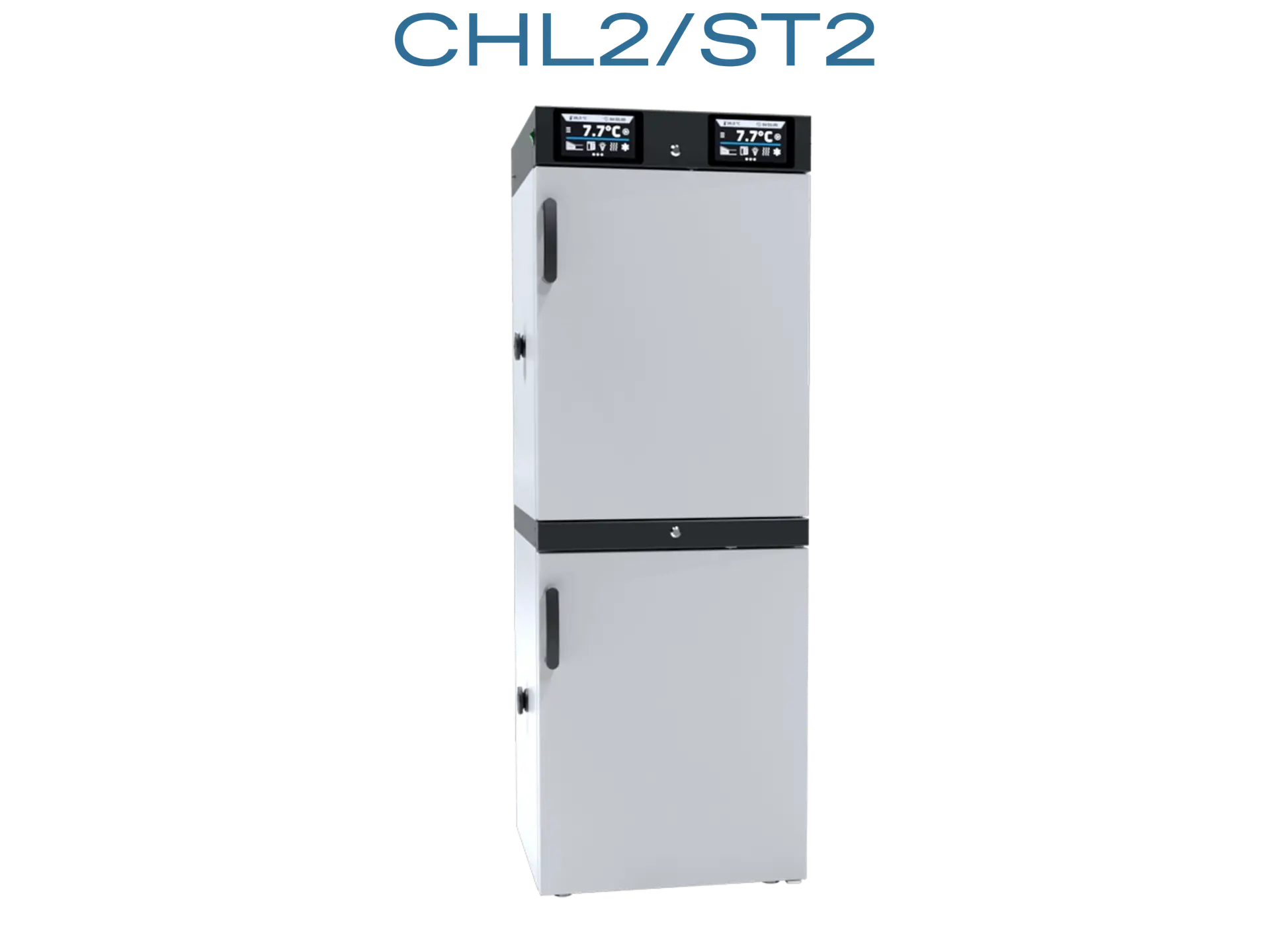

- CHL 2 Fridge + ST 2 Incubator

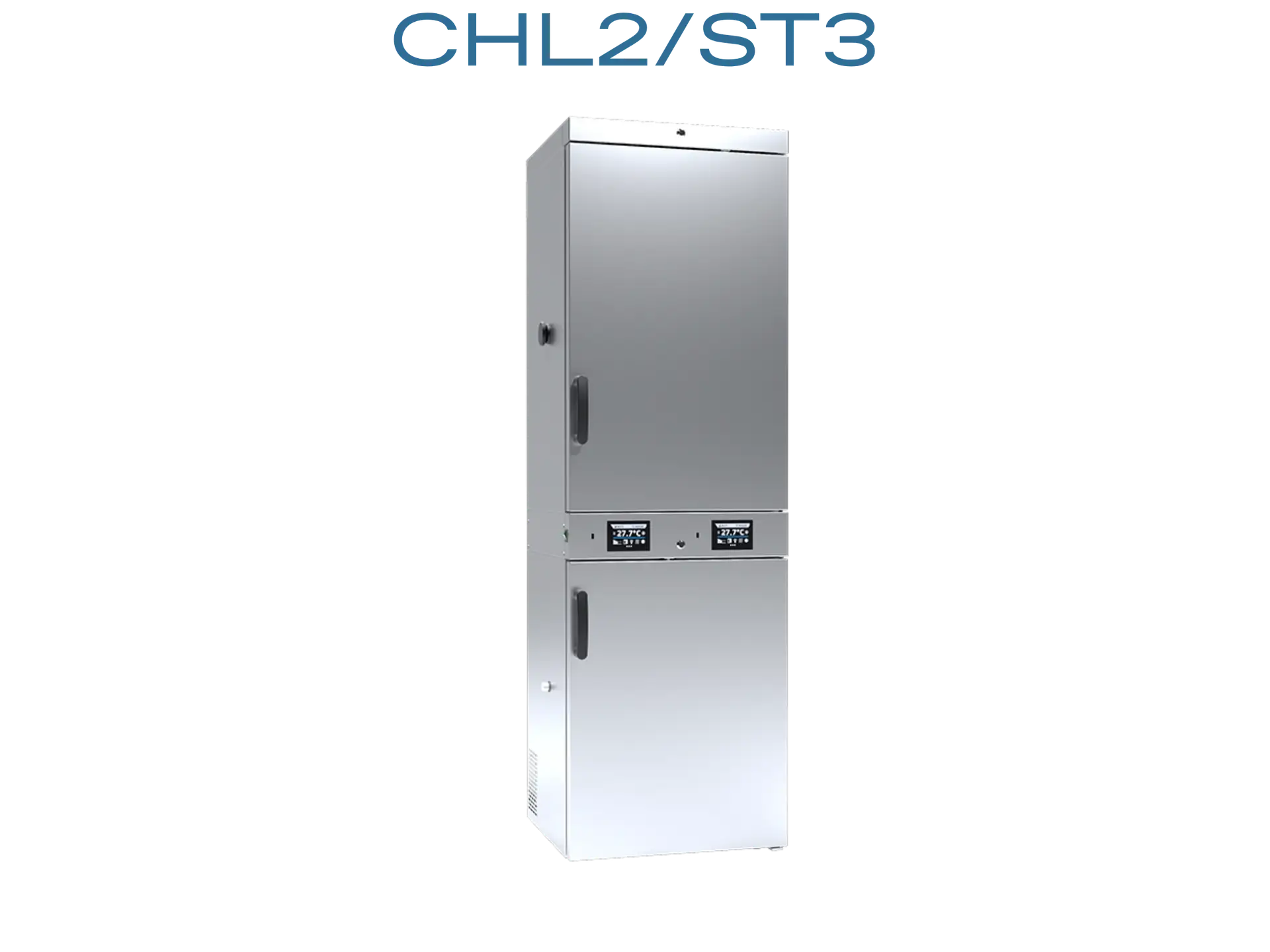

- CHL 2 Fridge+ ST 3 Incubator

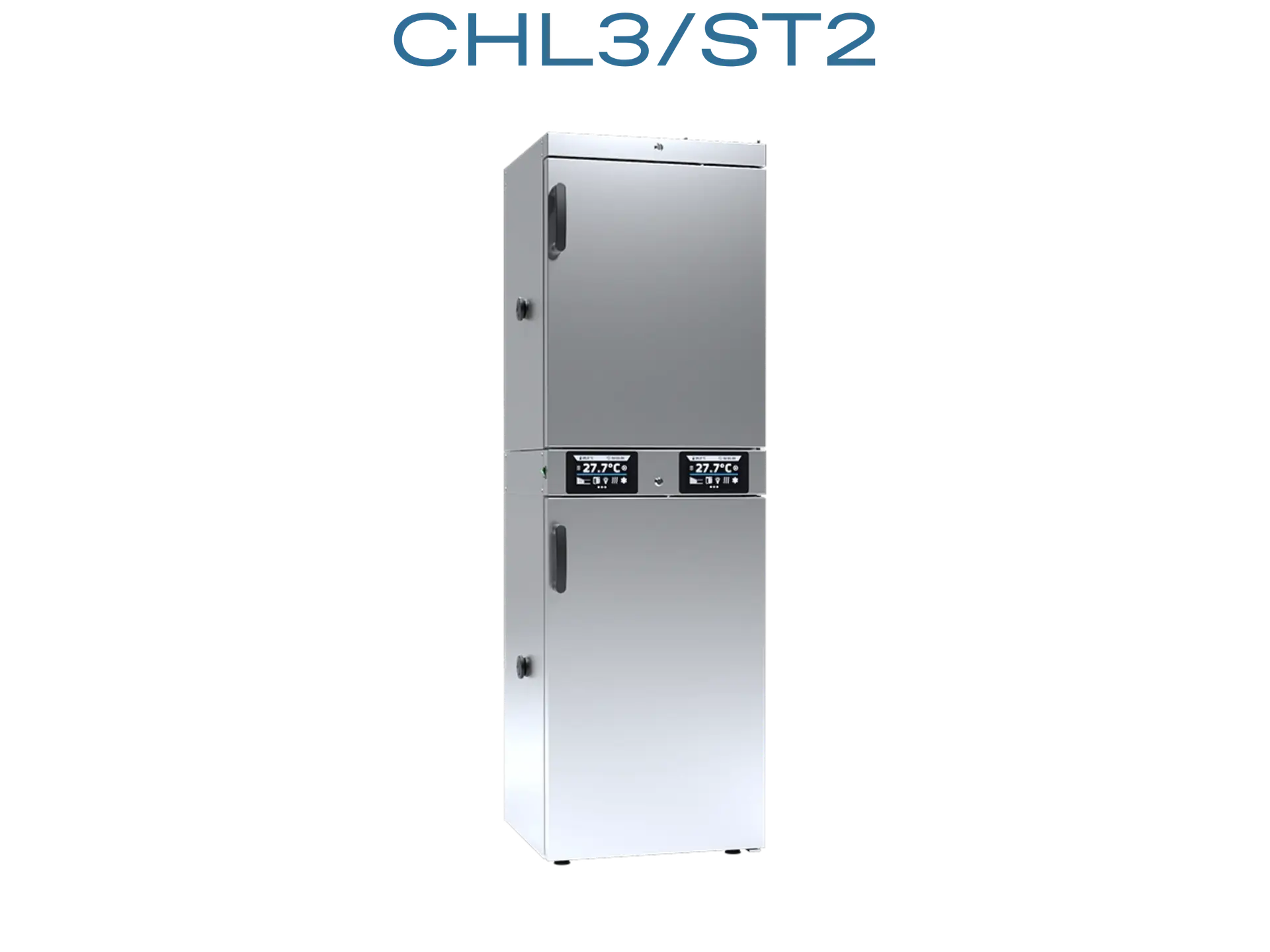

- CHL 3 Fridge + ST 2 Incubator
*ZLN Freezers will always be located at the bottom of the stack. In combinations without a freezer the largest chamber will always be located at the bottom.
Click here to view full product details for the POL-EKO ST Cooled Incubator Range / POL-EKO CHL Refrigerators Range / POL-EKO ZLN Freezer Range.
