Description

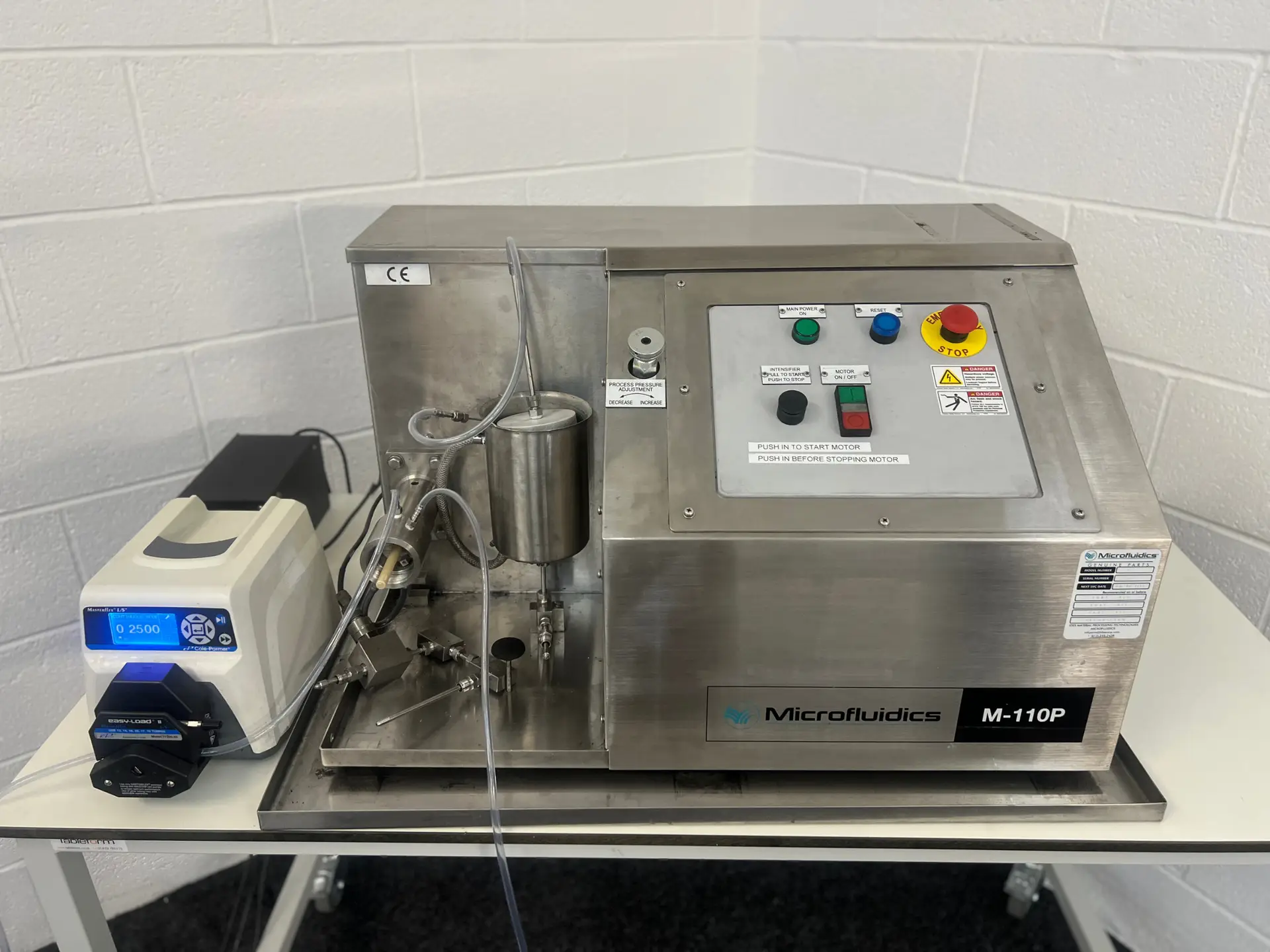

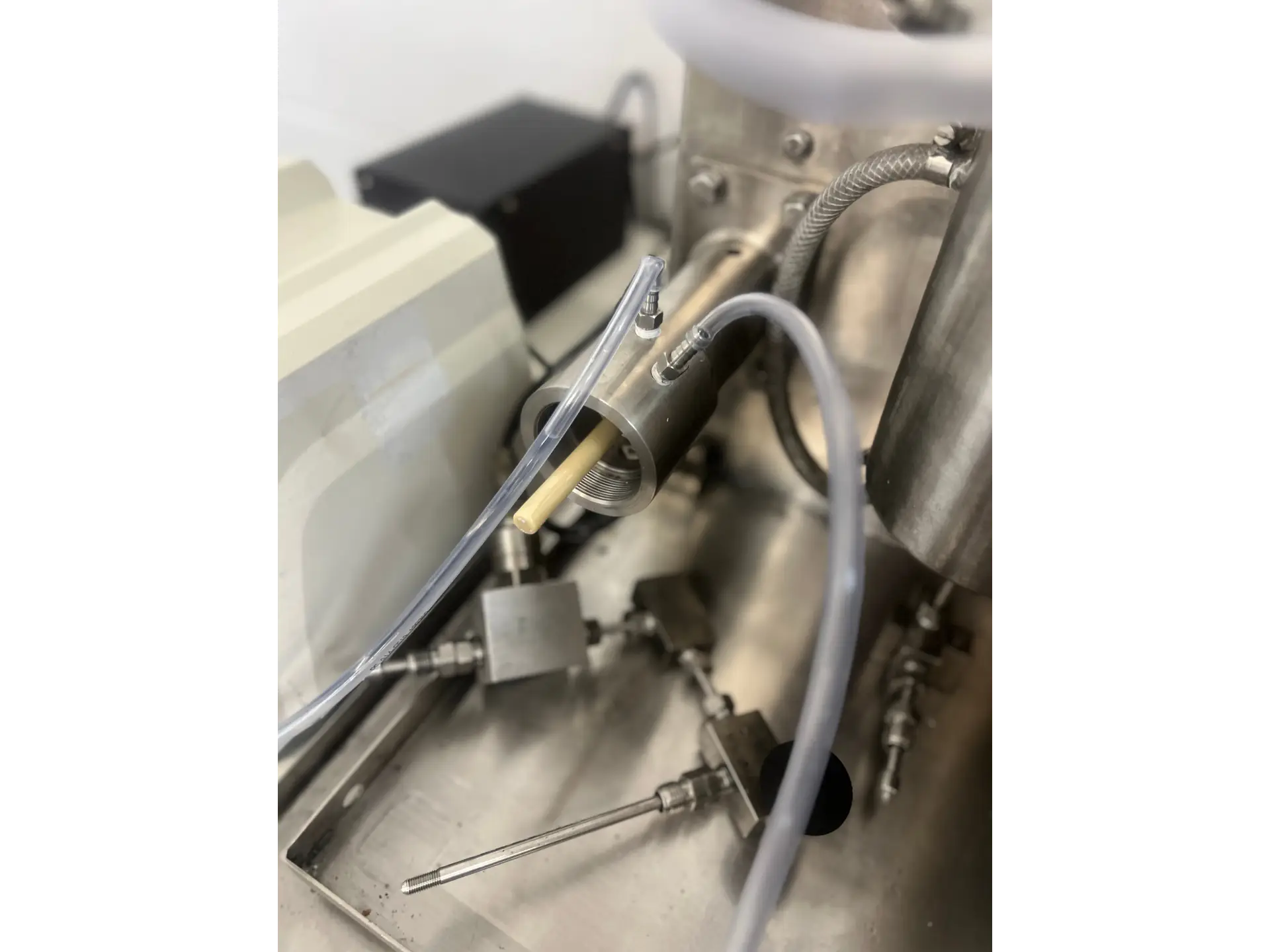

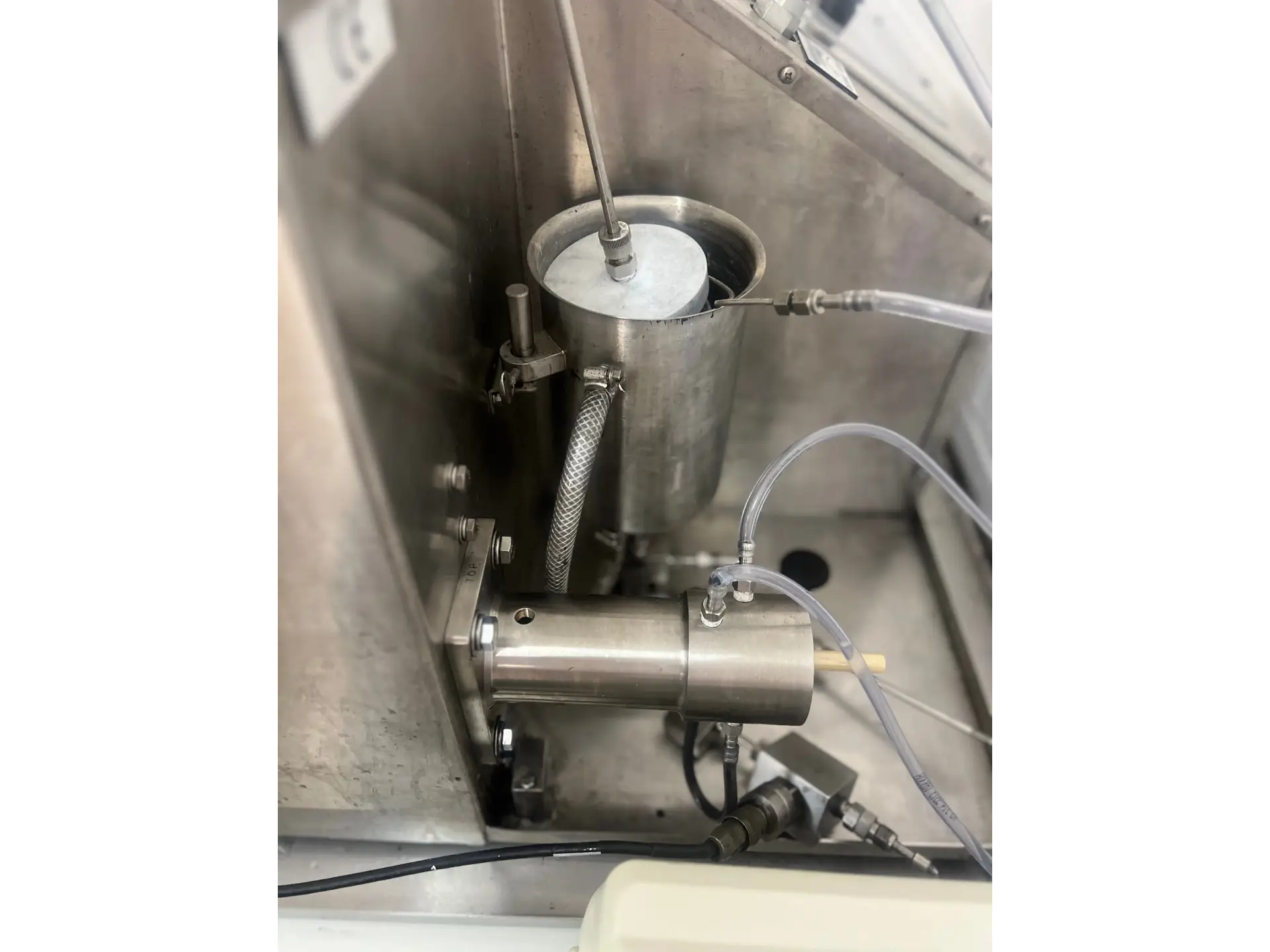

The M110P range contain an electric-hydraulic drive that powers a single acting intensifier pump. The product is driven at constant pressure through the interaction chamber, where unique fixed-geometry microchannels accelerate product streams to high velocities. This creates high-shear and impact forces to bring about the desired results.

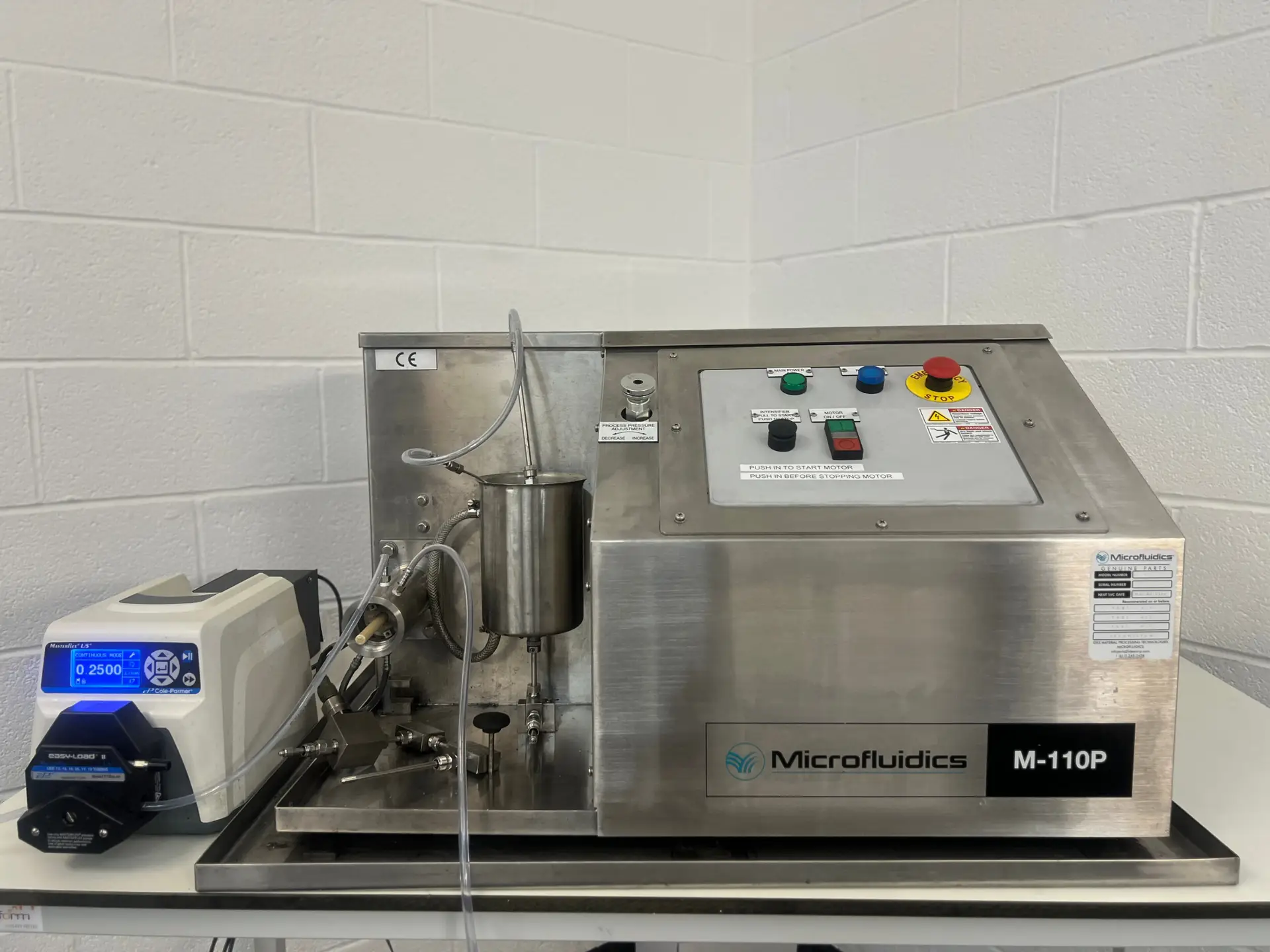

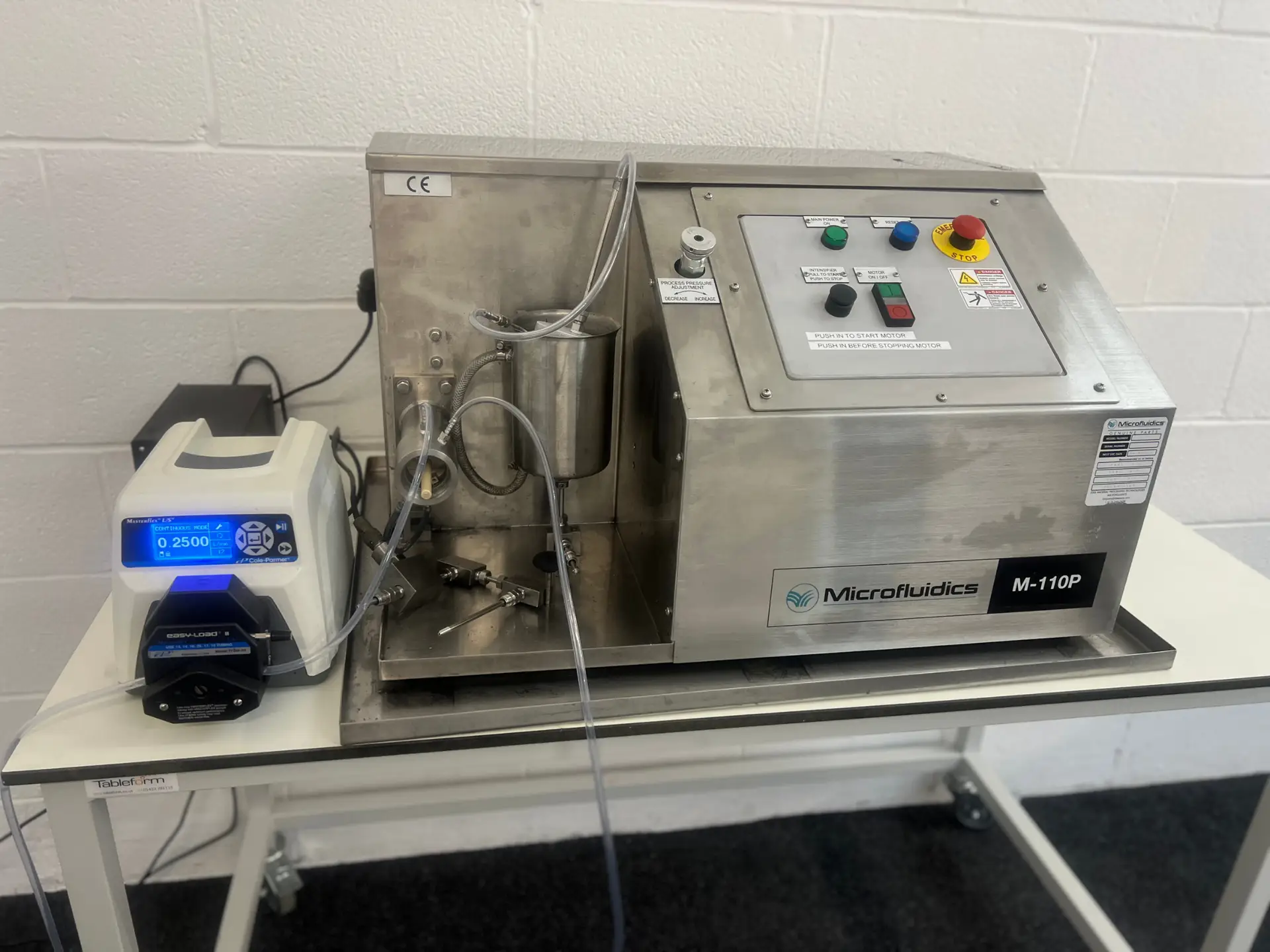

The Microfluidics 110P-30K fluid processor delivers pressures of up to 30,000 psi (2,068 bar), enabling efficient high-pressure homogenisation across a wide range of applications. The homogeniser processes product at flow rates of up to 100 or 120 mL/min. Operators can control the process system through a 7-inch HMI colour touchscreen, which offers an intuitive interface for setting and monitoring operating parameters. The homogeniser is CE compliant and handles minimum sample sizes of 50 mL, making it suitable for both small-scale development and routine processing.
Key Features of the Microfluidics 110P-30K Benchtop Homogeniser:
- Maximum Pressure 30,000 psi (2068 bar)
- Product flow rate up to 120 ml/min (100 ml/min on 50 Hz model)

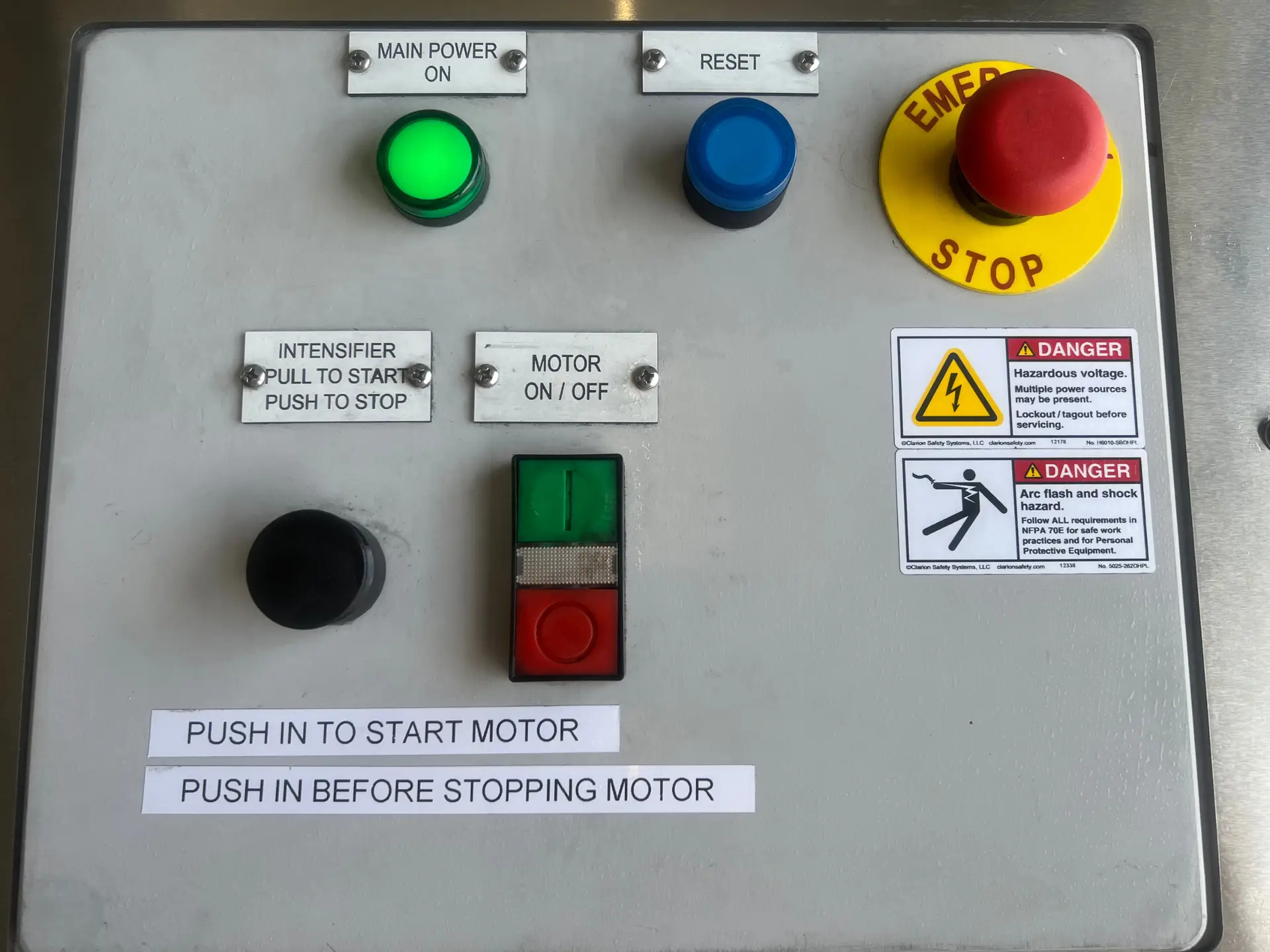

- 7” HMI color touchscreen control
- CE-compliant
- Minimum Sample Size 50 mL
- Maximum Feed Temperature 65°C
- Interaction Chamber Material: Diamond
- Plunger Material: Zirconia Ceramic
- Stainless Steel Housing
- Electric / Hydraulic Drive

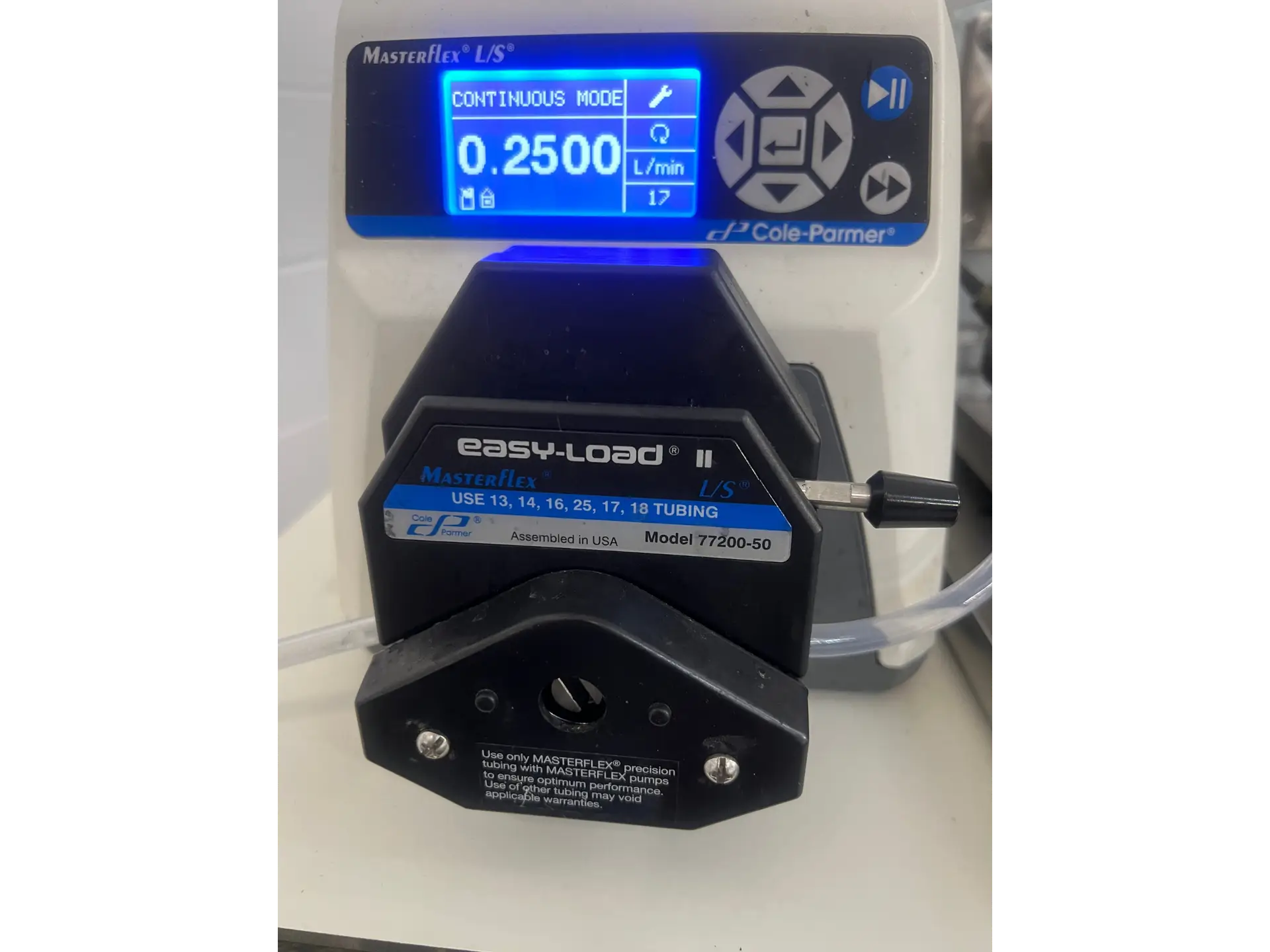

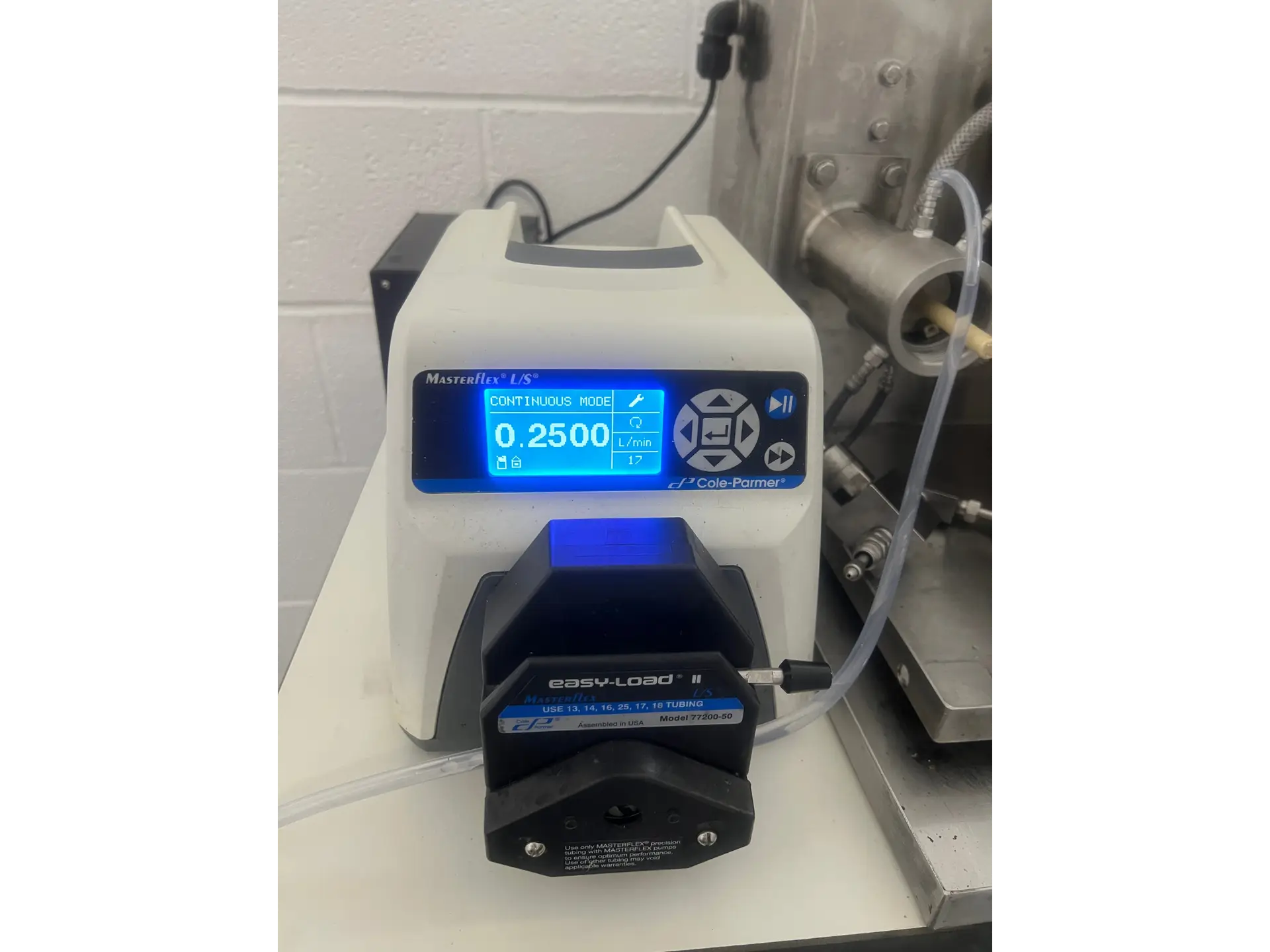

- Pump Included
The 110P Processor Models are recommended for:
- Production of stable nanodispersions and nanoemulsions
- Cell disruption (yeast, E. coli, etc.)
- Microencapsulation in polymers, liposomes & oils
- Deagglomeration
