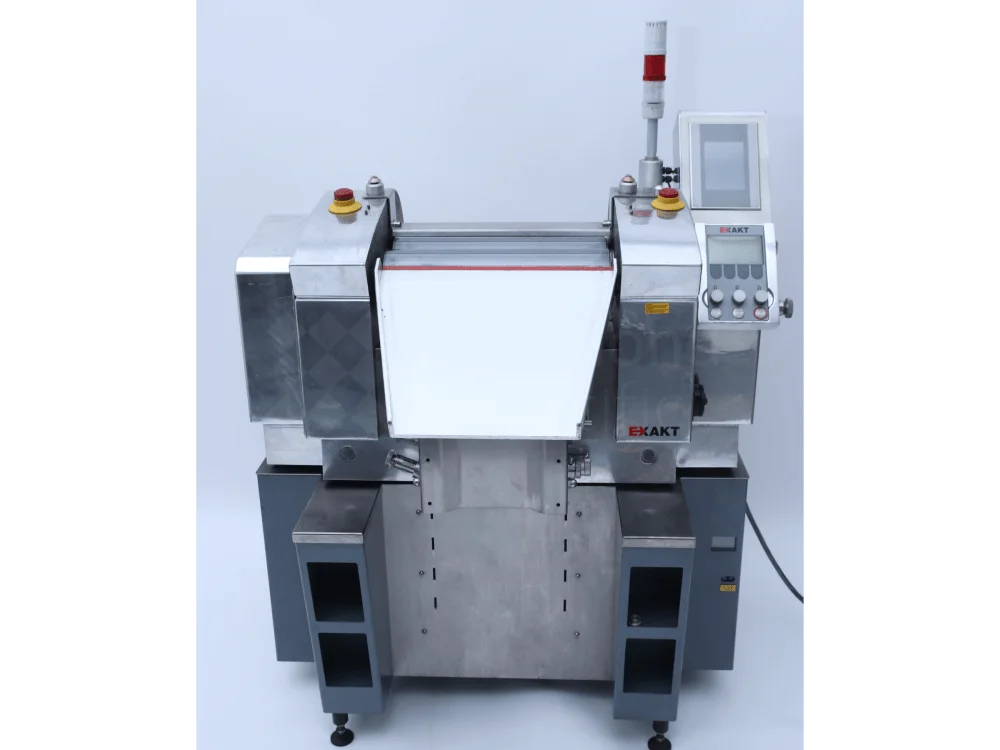

Exakt 120EH-450 Three Roll Mill

A Three Roll Mill suitable for a variety of applications such as: Colours, Electronics, Adhesives, Cosmetics, Dental, Nano Technologies and Food.

Covered by our 30 Days No Quibble RTB Guarantee.

This product has been sold!

If you’d like to chat to us about alternatives we have in stock, or be informed when similar stock becomes available, please contact us using the details below:

Telephone: +44 (0) 1257 270 433

Email: [email protected]


The Exakt 120EH-450 Three Roll Mill provides automatic filling, monitoring and cooling with electronic control for precise setting of all relevant processing parameters. The three roll mill can provide a throughput up to 14 or 27.5 l/h with a gap width of 5 μm. This makes the roll mill suitable for a variety of applications such as colours (inks and paints), electronics (flux, metal or carbon pastes), adhesives and many more materials.

Features of the 120EH-450 Roll Mill:

  • Achievable Fineness: less than 1 μm
  • Throughput: up to 60 l/h
  • Roller Diameter: 12cm
  • Roller Width: 45cm
  • Maximum Speed: 600 Rpm
  • Maximum Gap: 150µm

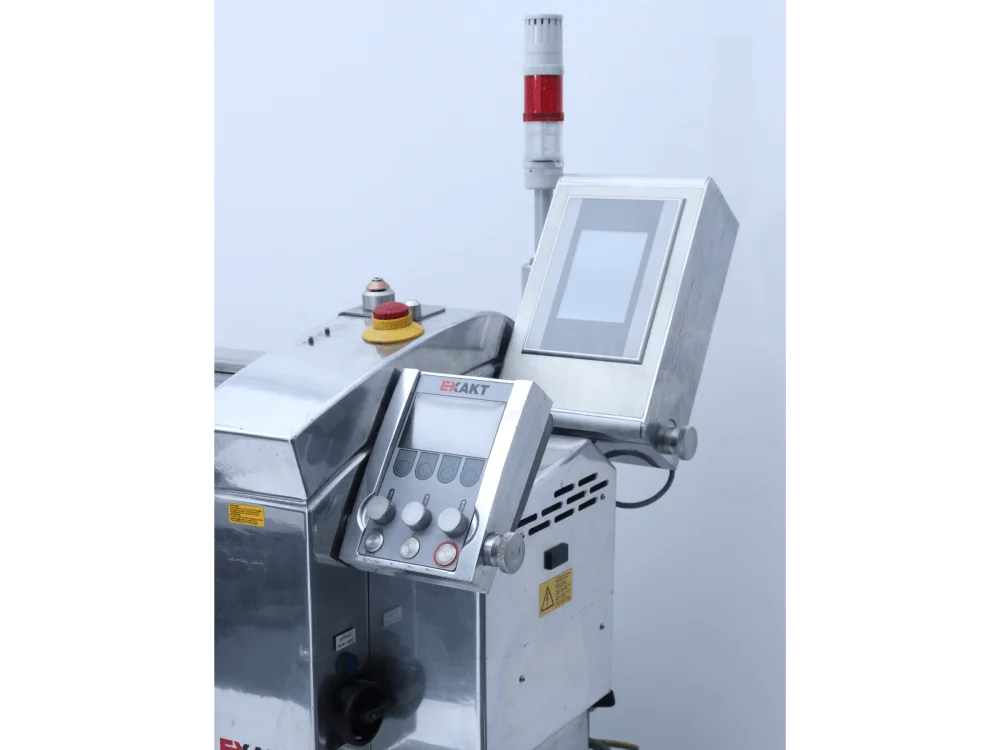

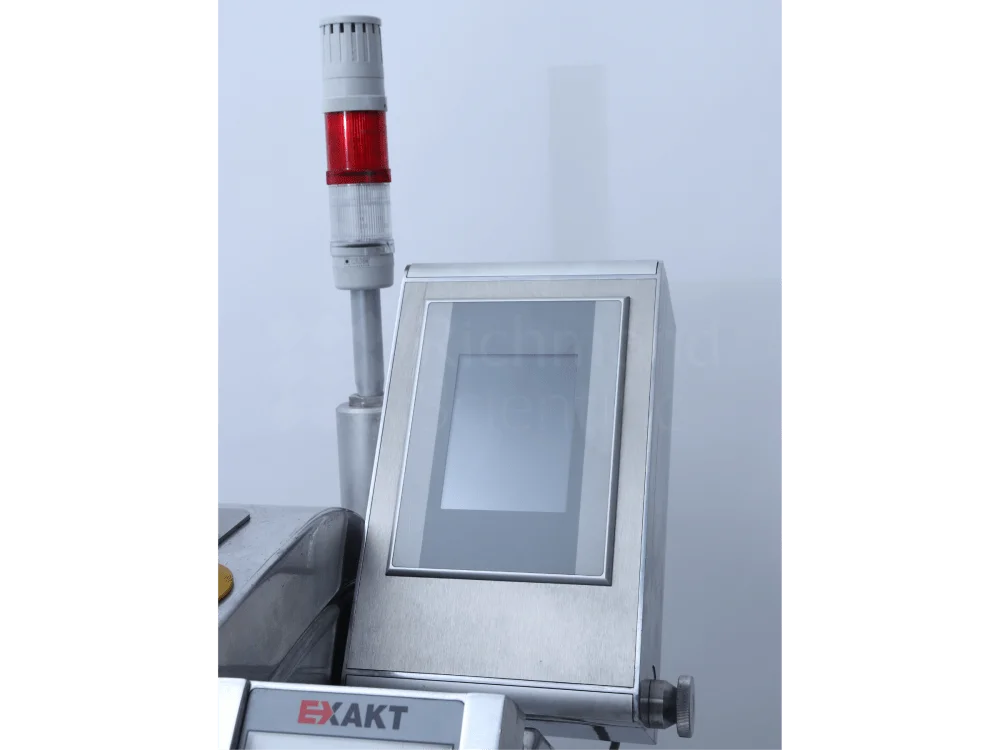

  • Digital display of all operating parameters
  • Roller Temperature Control – optimum process control
  • Cleaning and Reverse modes
  • One-pass Calibration – auto adjustment of spacing and parallelism of the rollers
  • Data Log – documentation of processing parameters
  • Reproducible and consistent quality
  • Overload Protection


Additional information

Weight200 kg
Dimensions112 × 112 × 152 cm
