Agilent MS40+ 949-9225 Rotary Vane Pump

Product Code

IT19375117

1 in stock

Price on Enquiry

1 in stock

Description

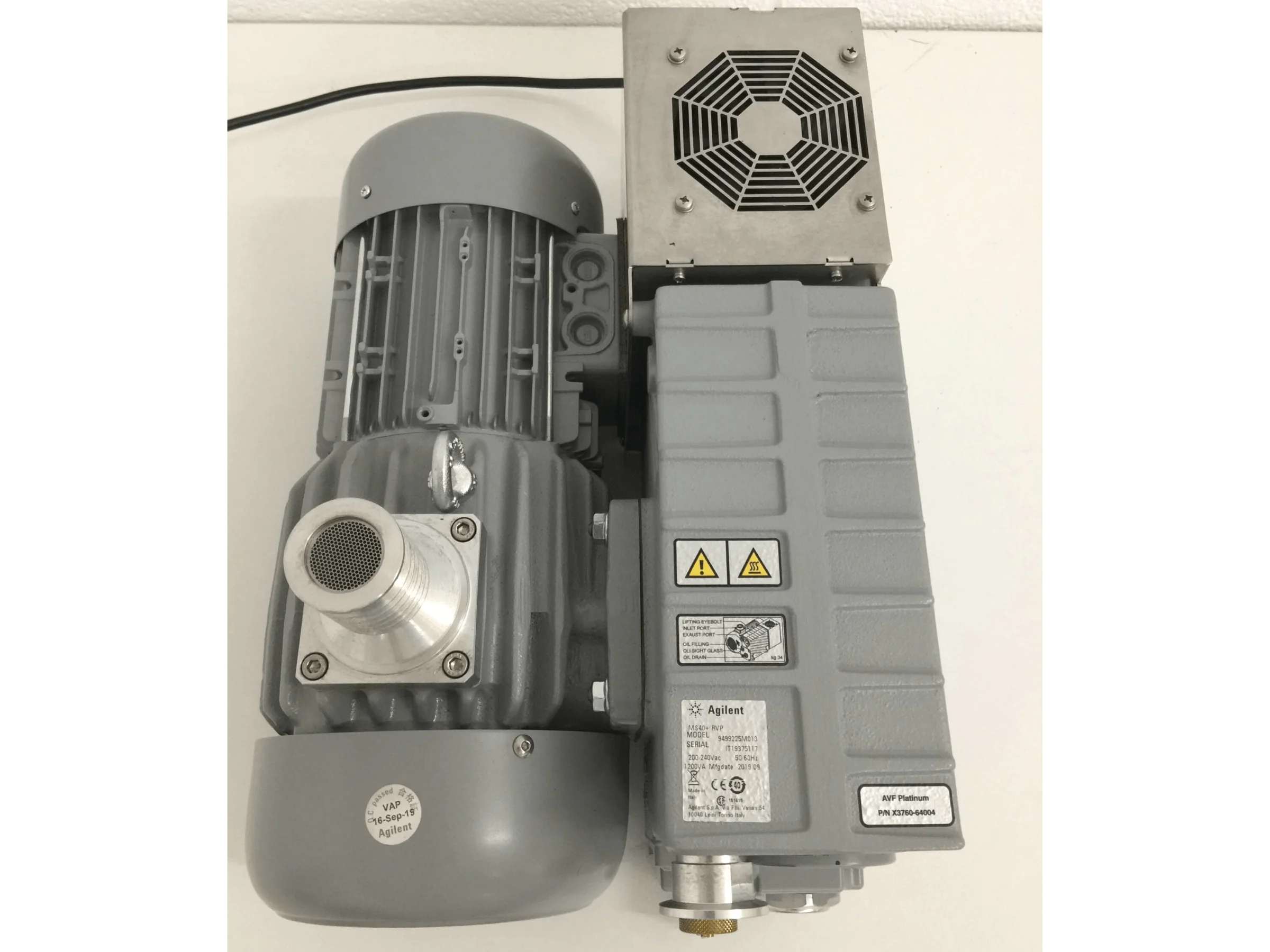

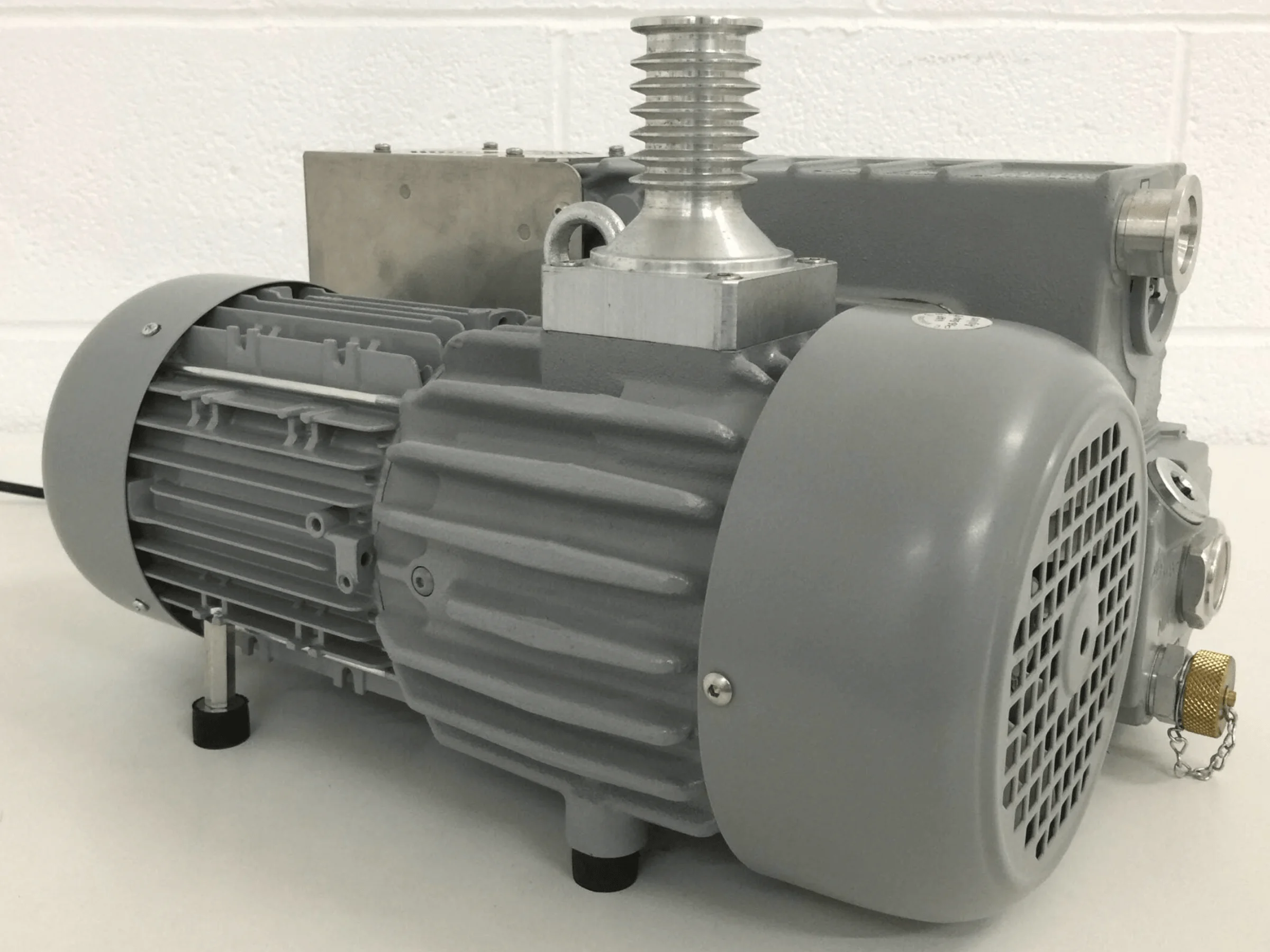

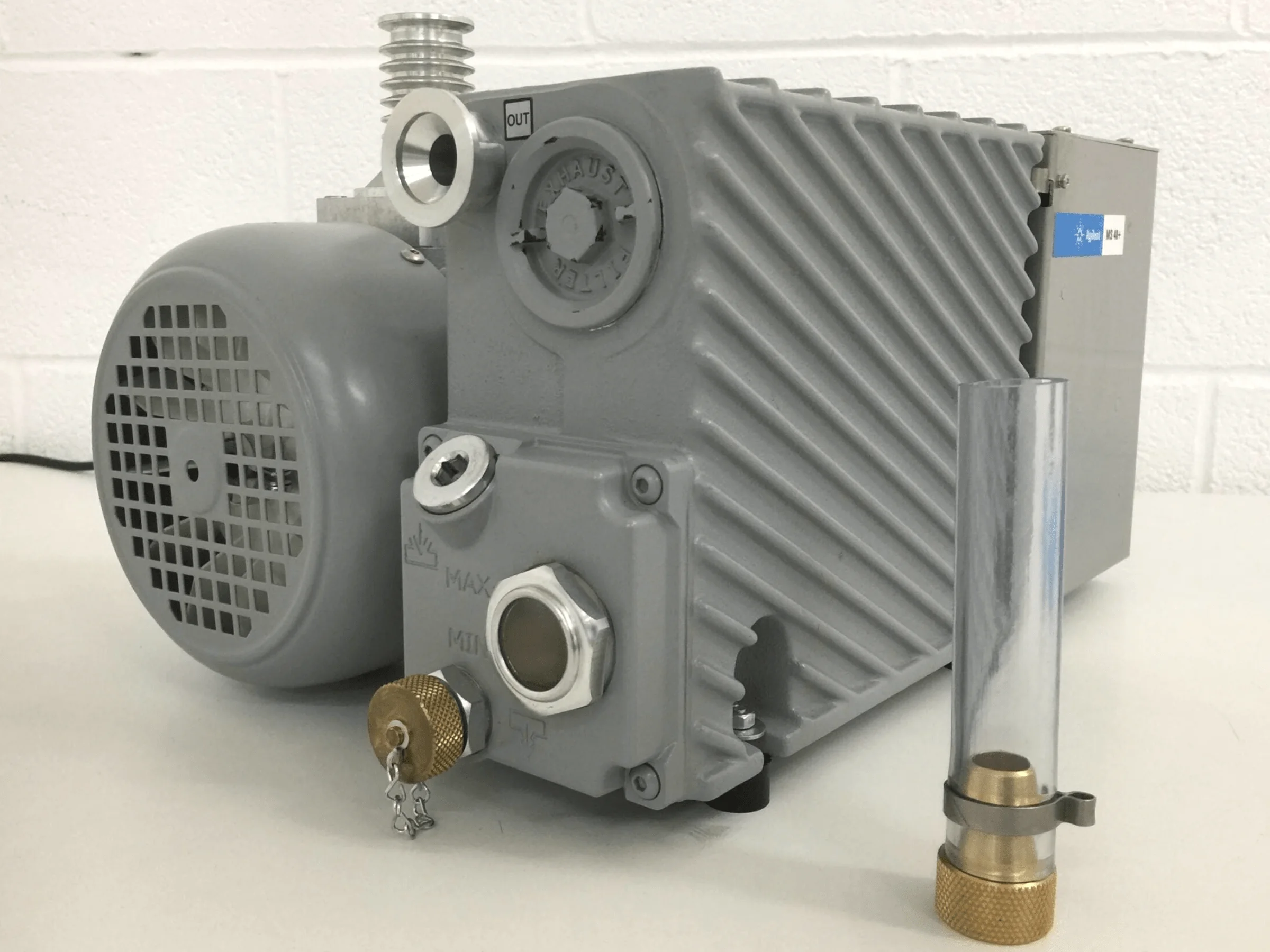

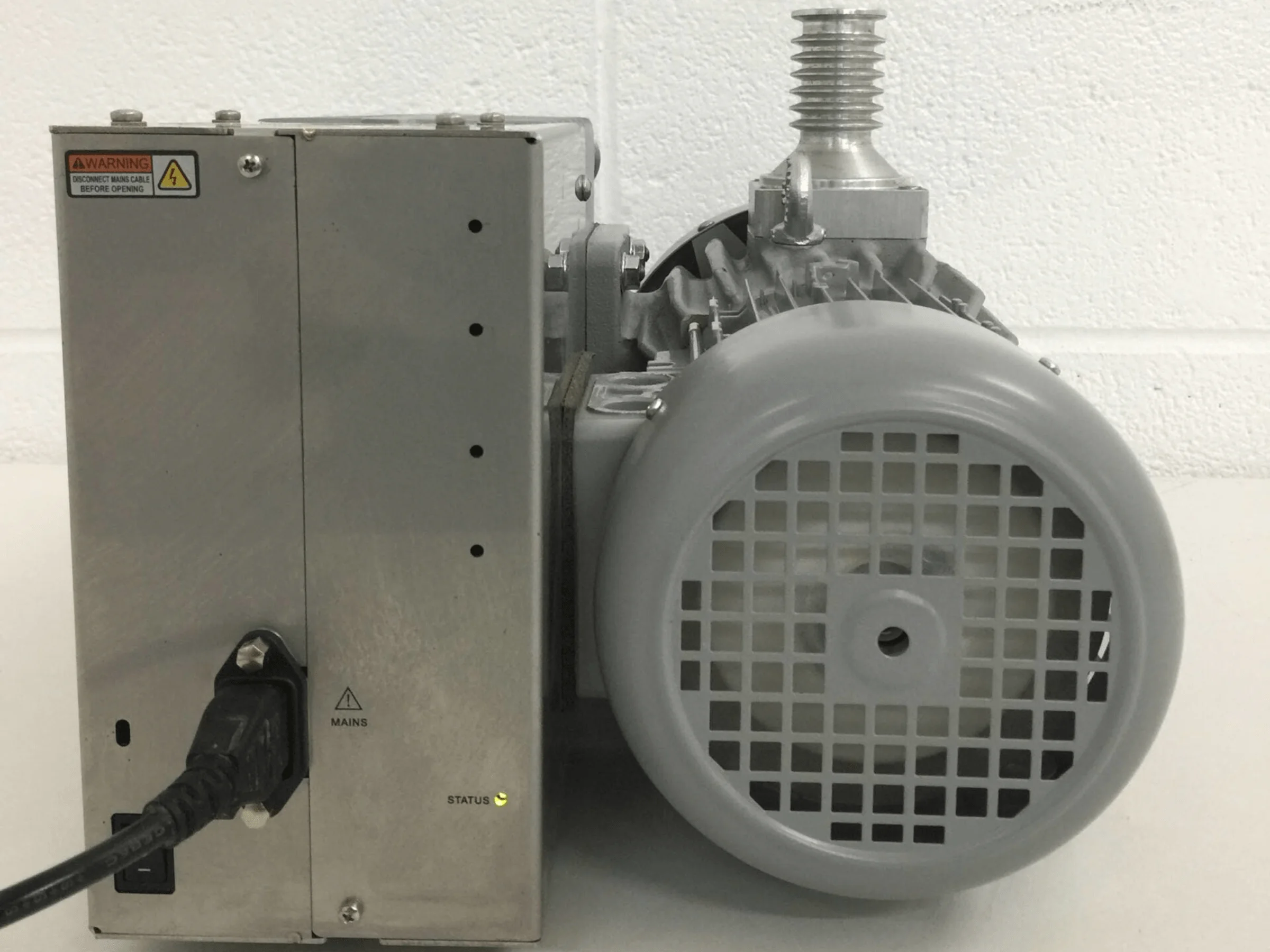

Agilent MS40+ Single Stage Rotary Vane Pumps are single-stage, rotary vane and oil sealed. They are driven by a three-phase electric motor and are suitable for pumping non corrosive gases.

Features:

  • all parts in direct contact with the fluid pumped are free of copper alloys;
  • all materials utilised in manufacture of the pump extend the lifecycle of the equipment;
  • due to its design features and low number of gaskets, the pump requires little maintenance;
  • disassembly and reassembly are easy and require minimal time.

The oil guarantees perfect sealing of the discharge valves. It enters the pump to ensure lubrication and sealing of the parts inside, facilitates heat dissipation and reduces pump noise.

The pump features a special anti-suckback device which automatically isolates the vacuum system when the pump stops. This helps to avoid a rise in pressure or oil flow in the vacuum system while air flows back into the stator chambers.

The air entering the pump after the anti-suckback device has closed prevents the oil in the casing from filling the stator chambers.

See Manual Here

Additional information

Weight33.2 kg
Dimensions41.8 × 29.7 × 22.8 cm
Brand

Model

MS40+

New/Used

Used

Condition

Equipment powers on but has not been tested further. Inspections are welcome.

Free Air Displacement

49.7 m³/h

Pumping Speed (at 5 mbar inlet pressure)

40m³/h

Ultimate Total Pressure

5x10⁻² mbar

Nominal Rotation Speed

1450rpm

Electric

200V-240V
50/60Hz
1200VA
12.5A
