Description

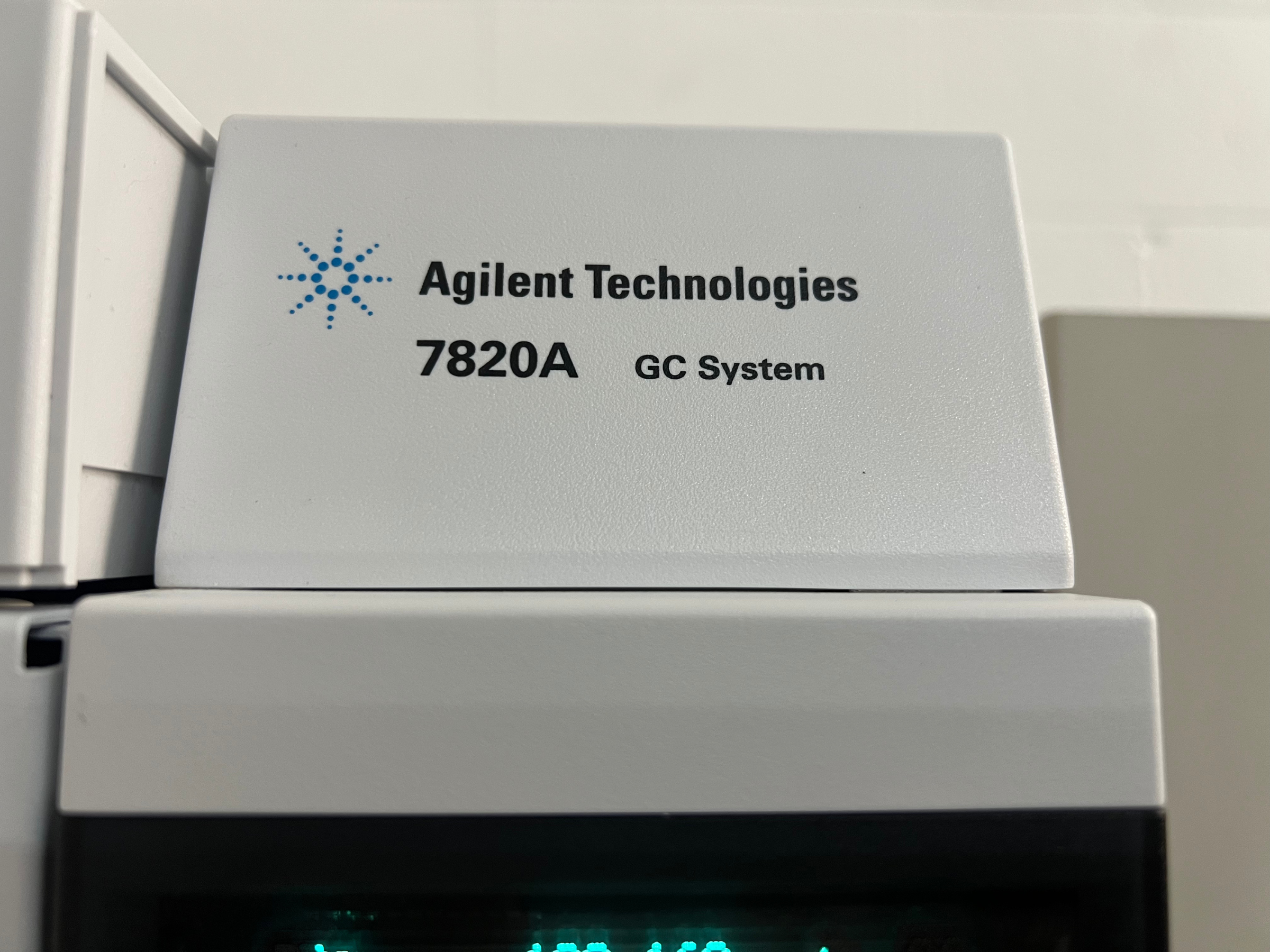

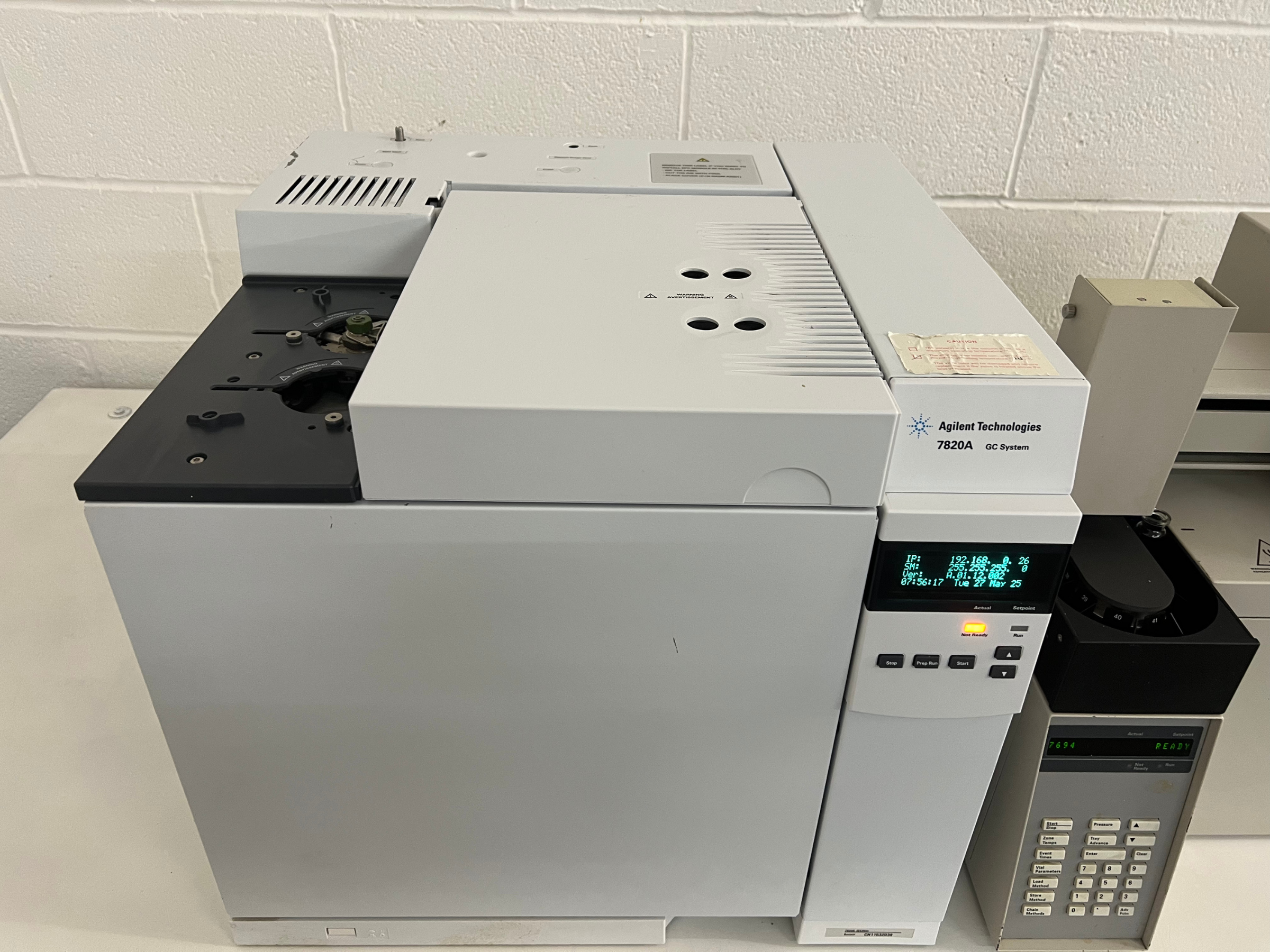

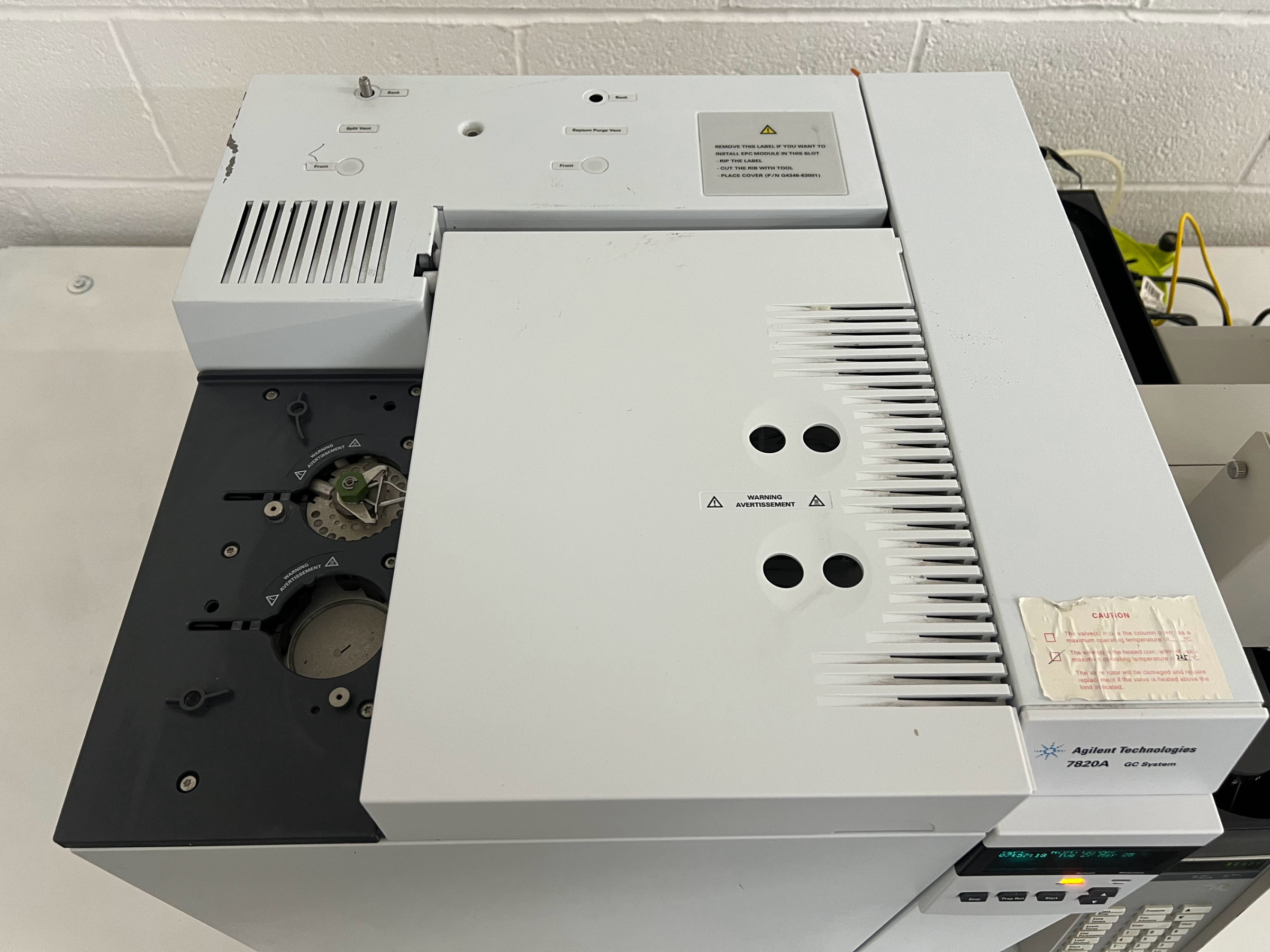

The Agilent 7820A Gas Chromatograph delivers dependable, high-quality performance designed for routine analytical tasks. With retention time repeatability of less than 0.06% and peak area repeatability below 2%, the system ensures accurate and consistent results, run after run. A digital display, accompanied by run and ready indicator lights and an audio alarm, provides clear, real-time status updates to keep users informed at all times.
This Agilent GC supports a wide range of detector options, making it versatile enough for various applications. It includes one analogue output channel, remote start/stop capabilities, and LAN connectivity, allowing smooth integration into existing laboratory networks and data systems.

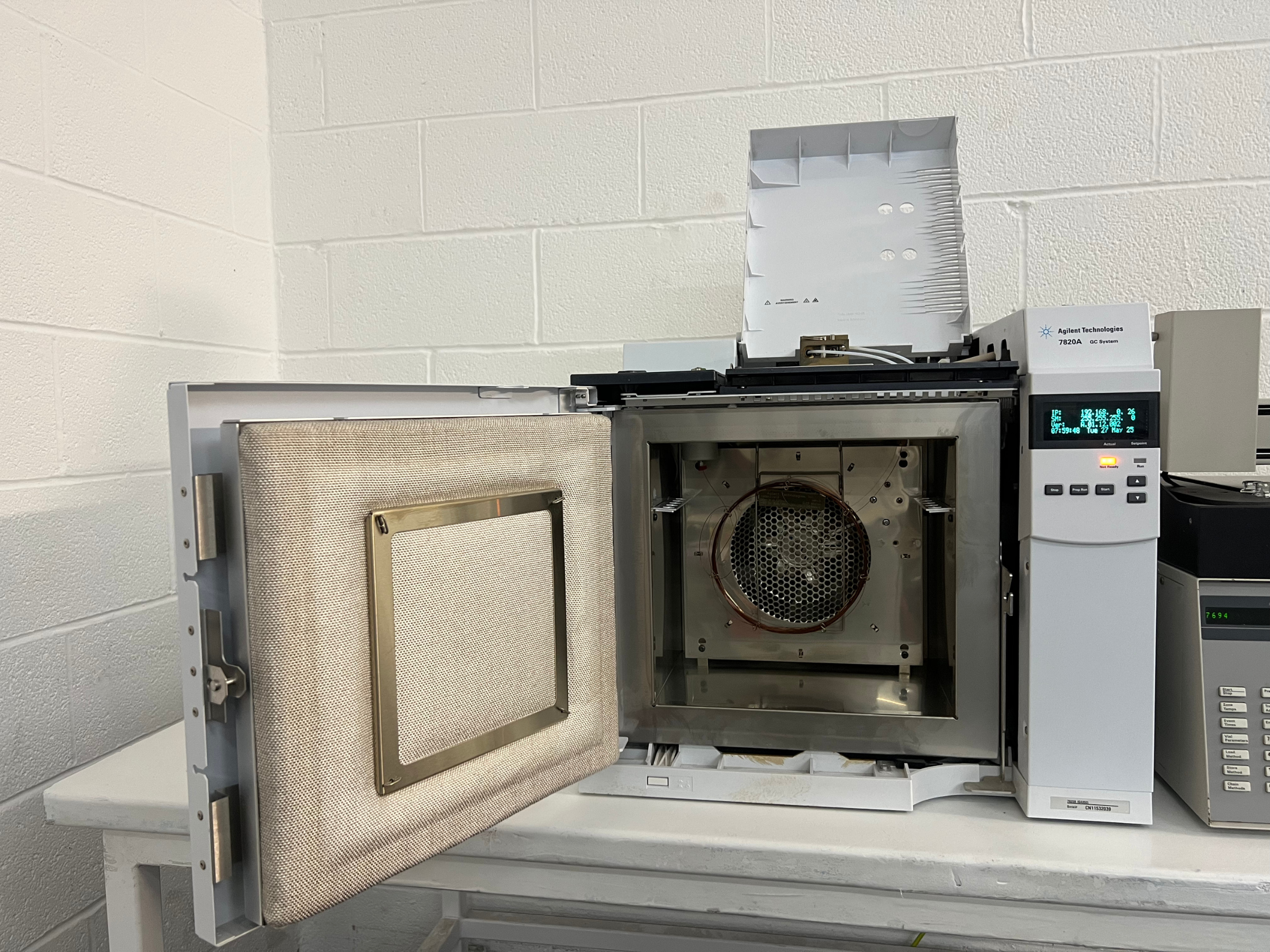

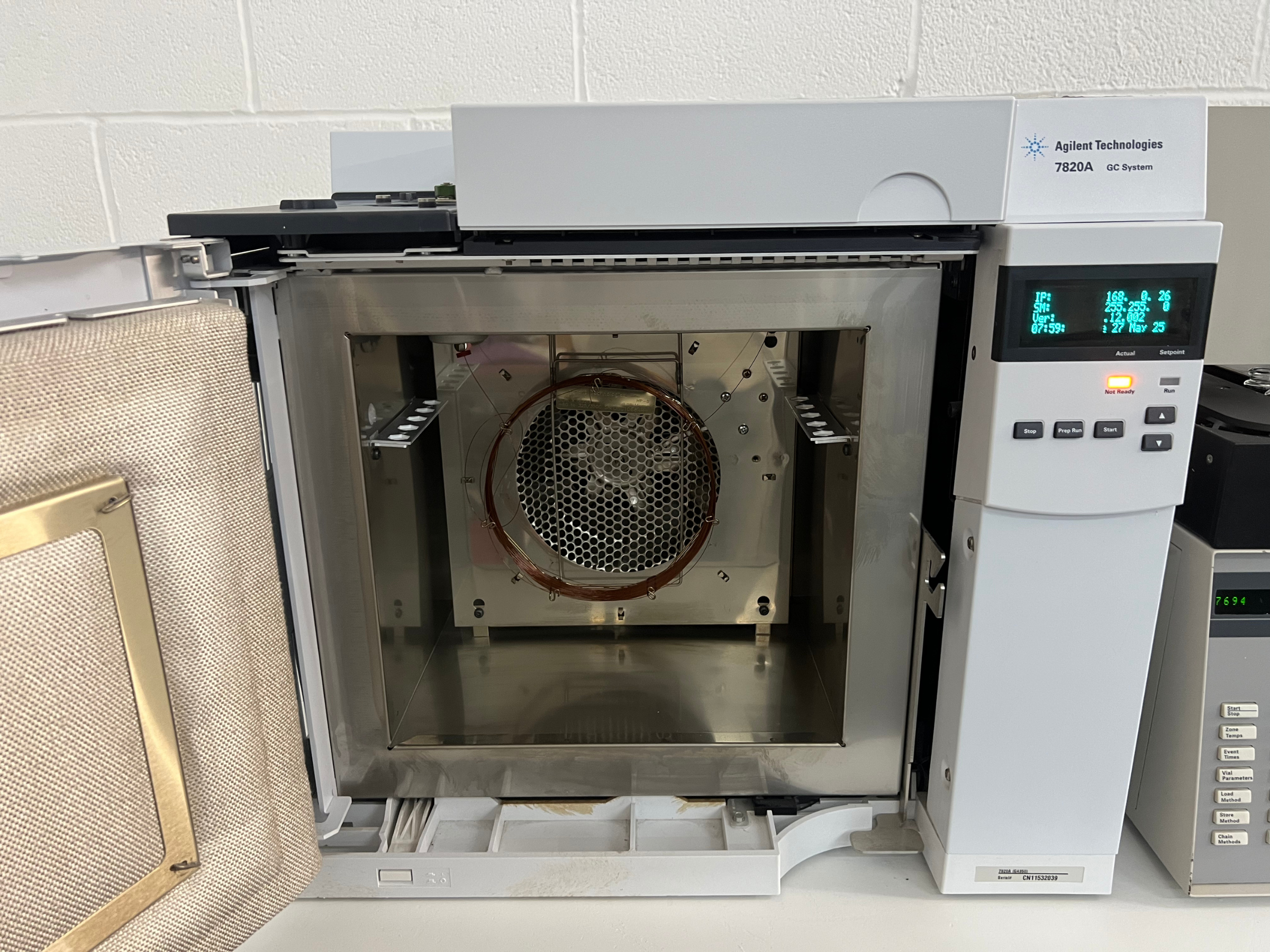

The column oven operates from ambient +8°C up to 425°C, offering a setpoint resolution of 1°C for precise temperature control. It supports a maximum temperature ramp rate of 75°C per minute and accommodates run times up to 999.99 minutes.

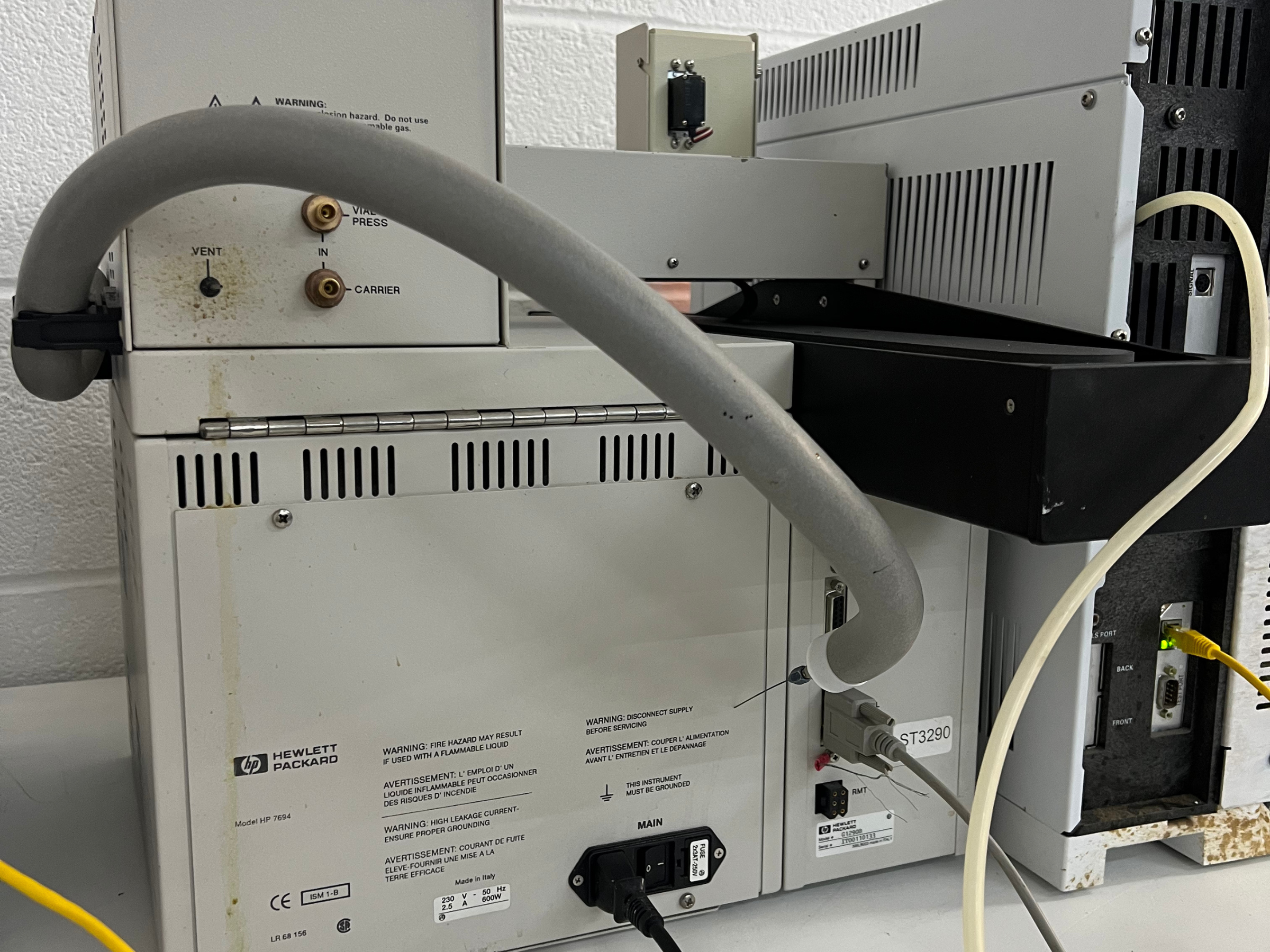

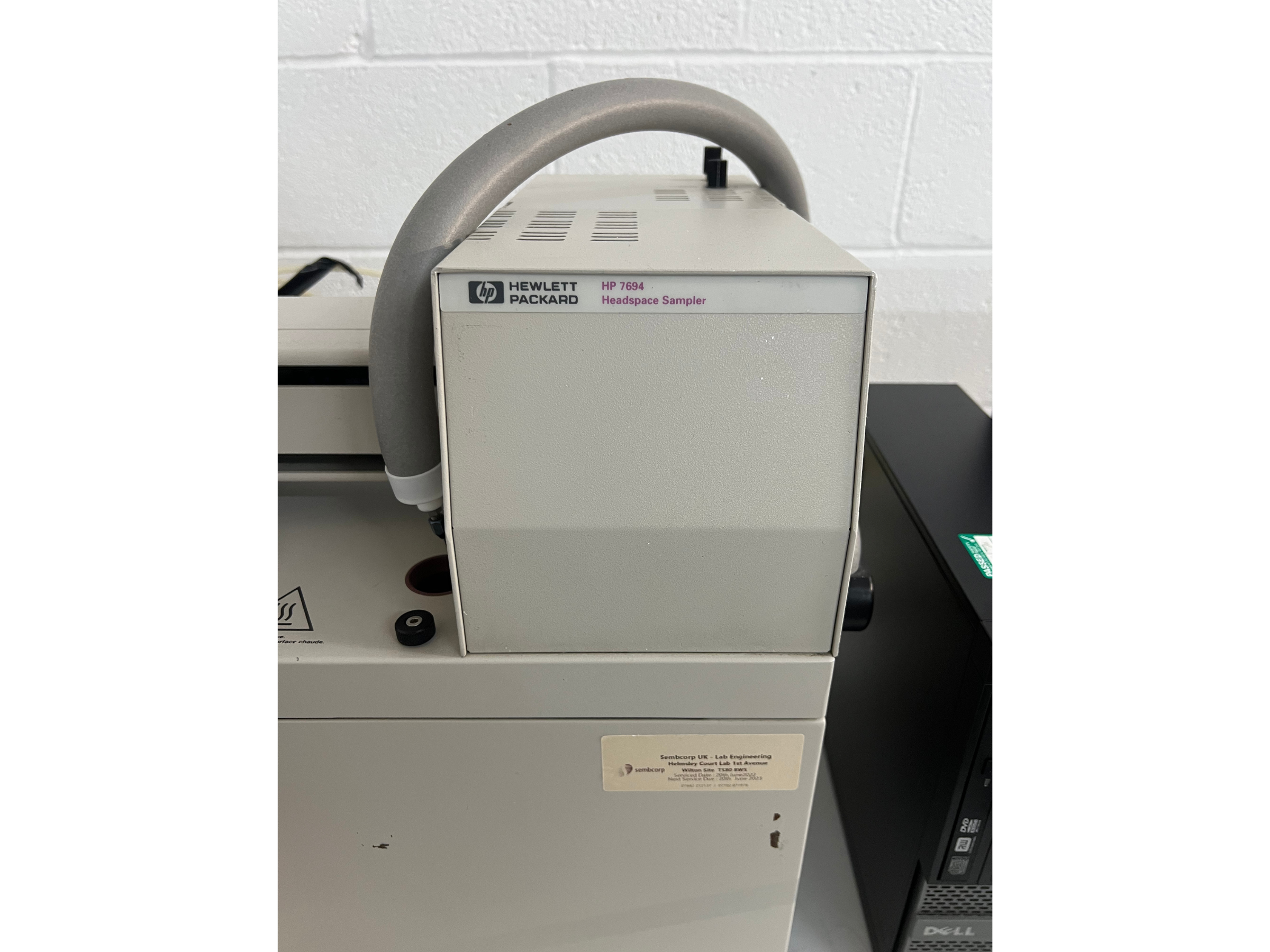

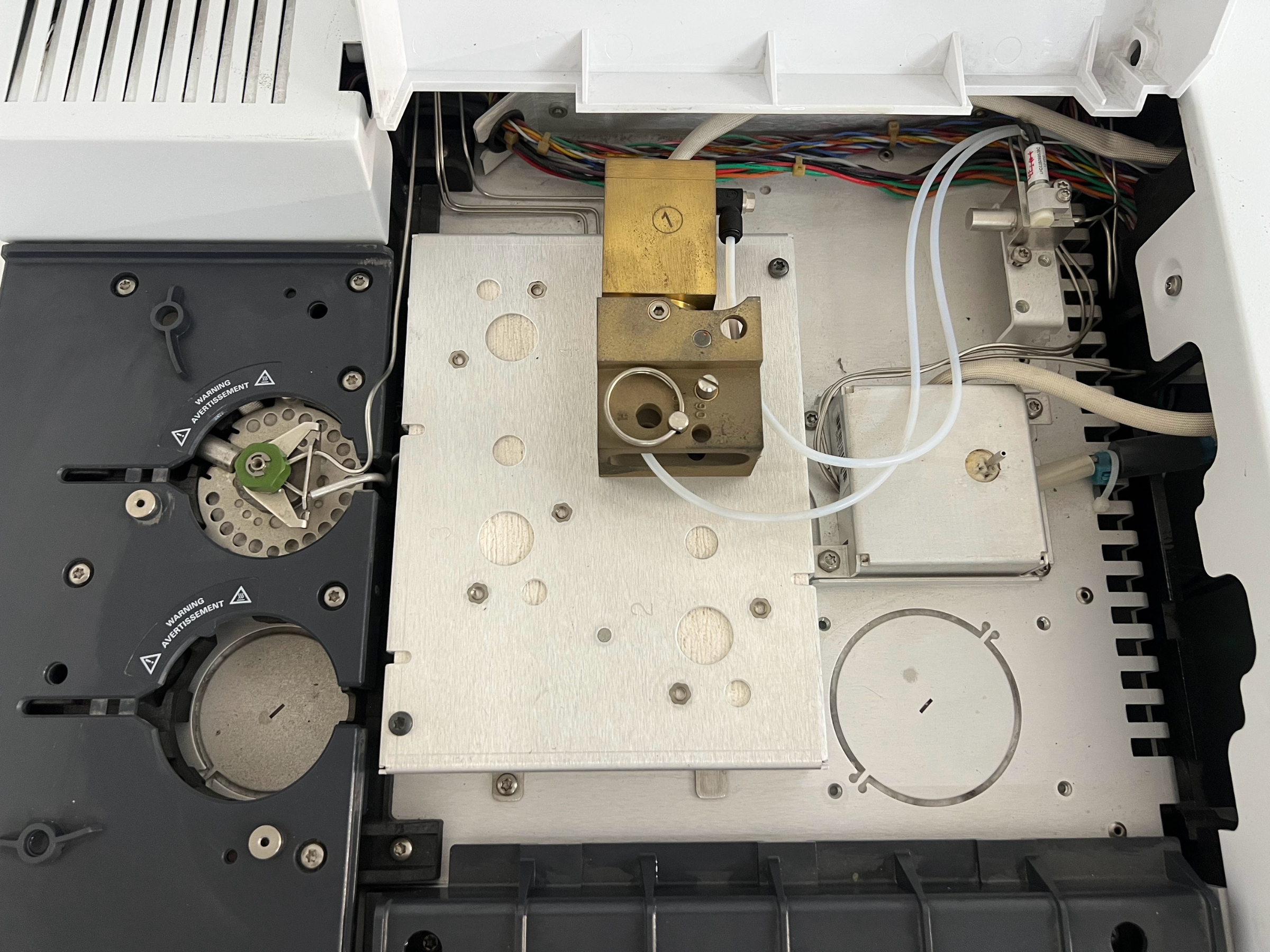

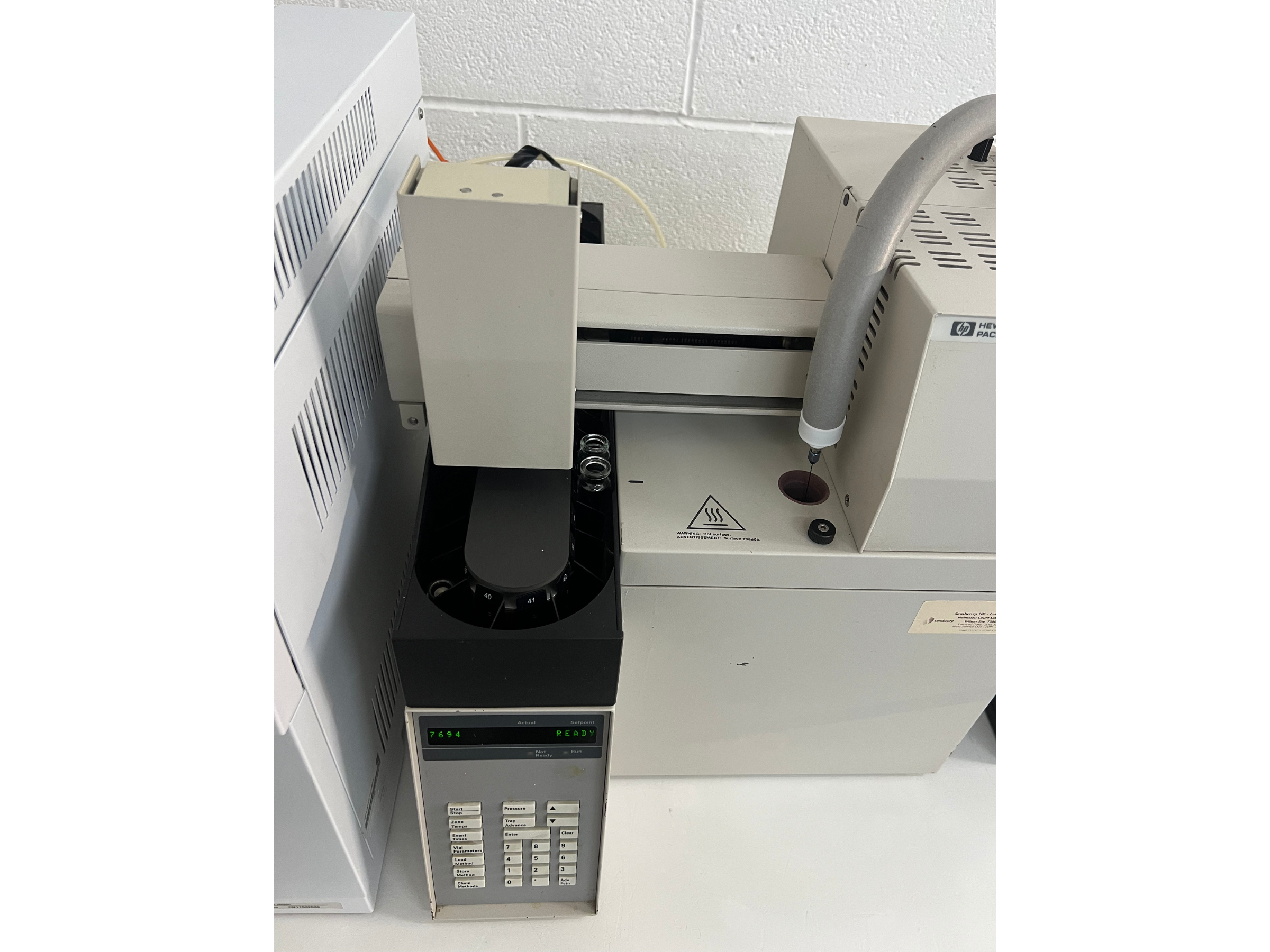

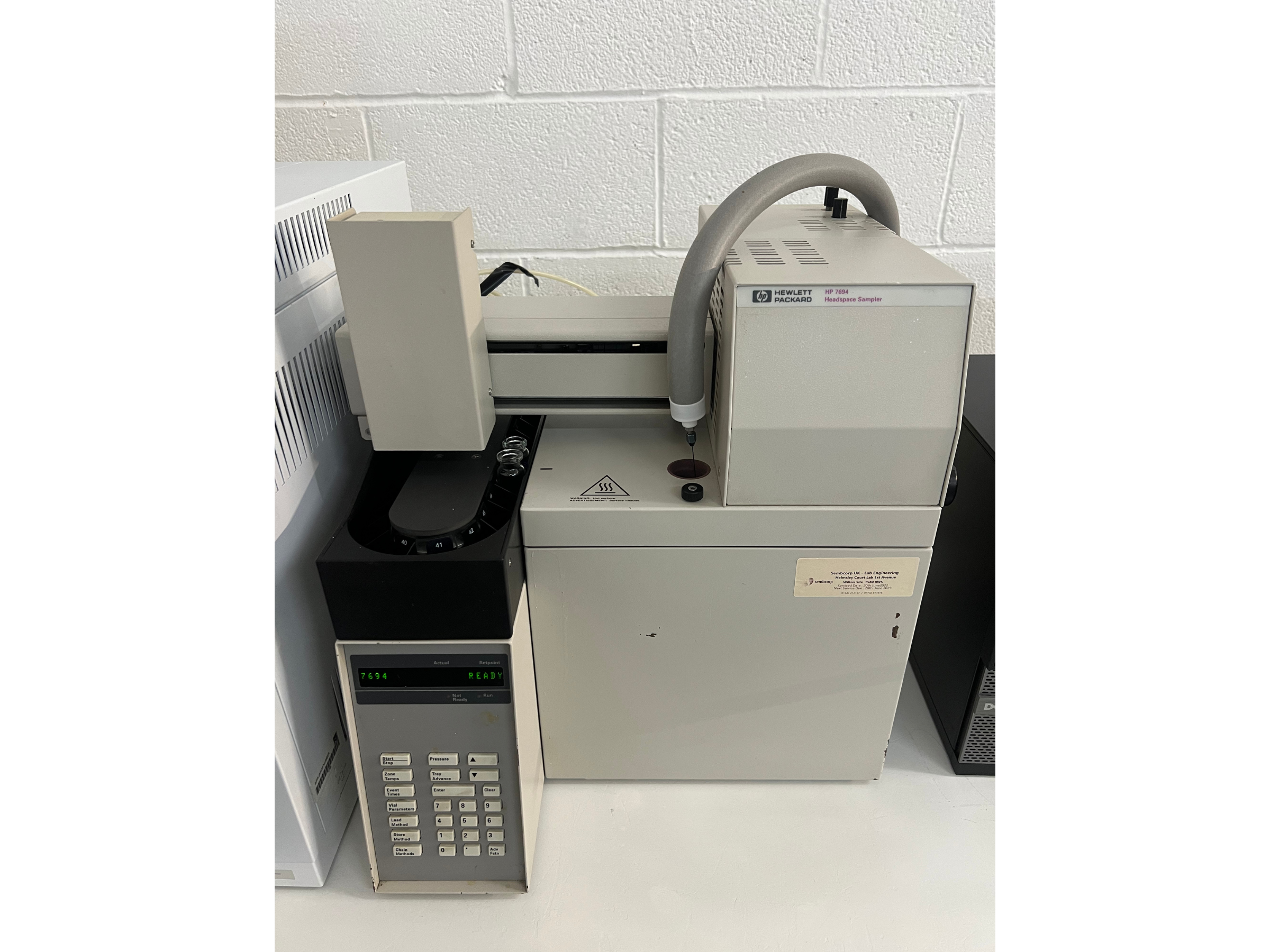

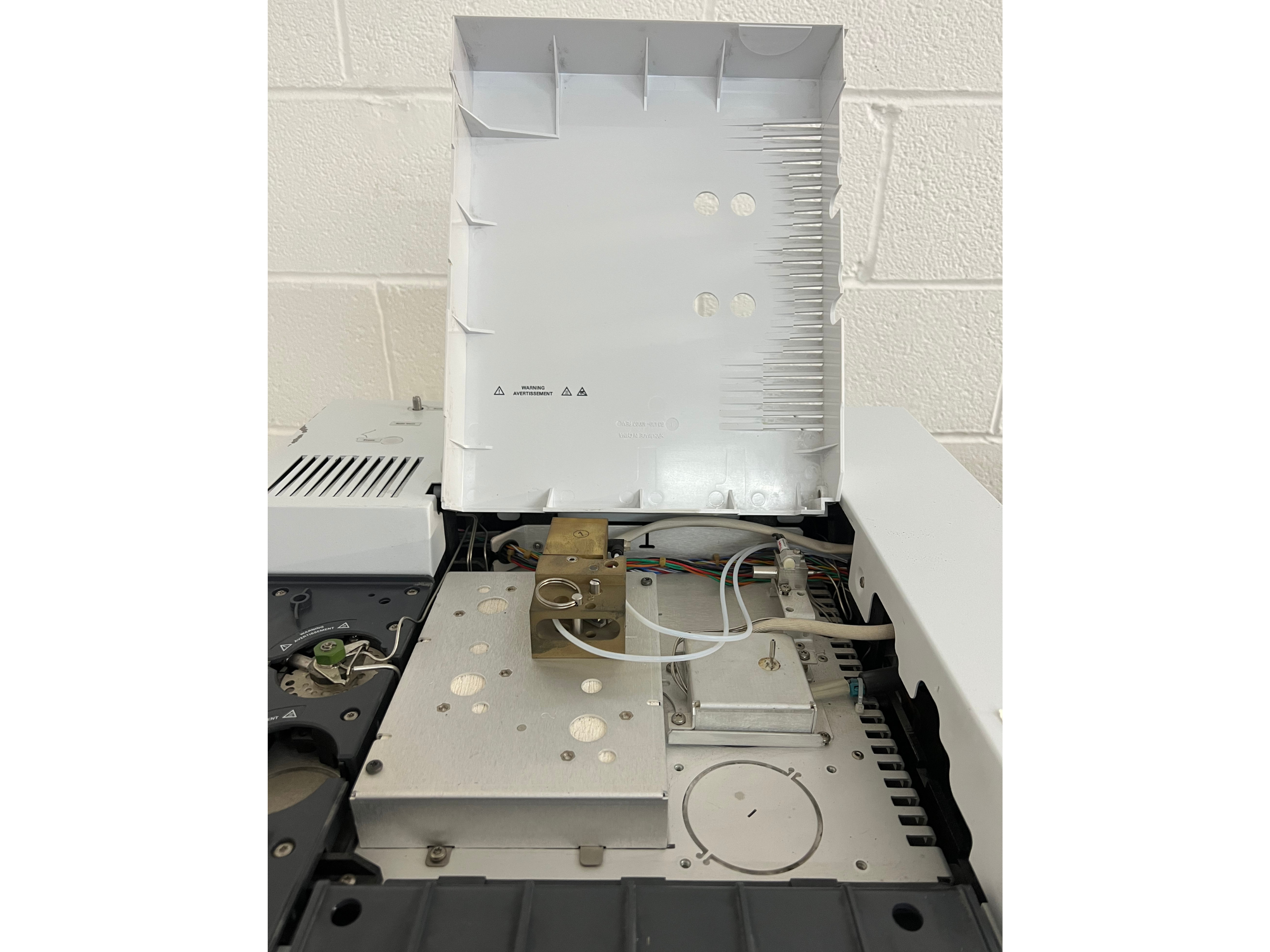

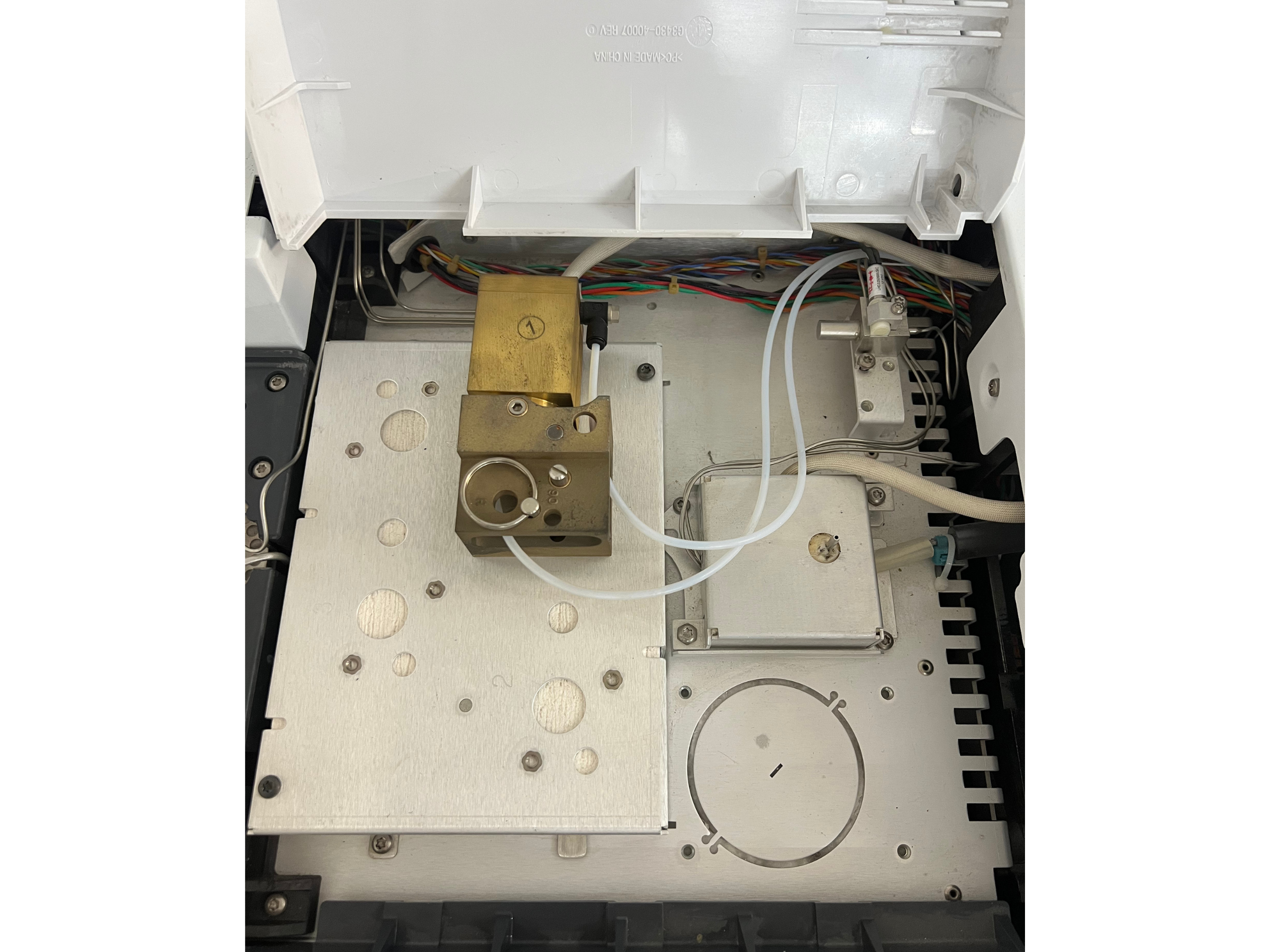

The Agilent 7820A includes capacity for two inlets and supports up to two detectors, providing flexibility for dual-channel analysis. Its electronic pressure control (EPC) system features a pressure set point resolution of 0.01 psi, delivering highly accurate flow regulation. The system includes the HP7694 headspace sampler, making it a reliable and adaptable choice for laboratories performing volatile component analysis.
Key Features of the Agilent 7820A GC:
- Retention time repeatability <0.06%
- Peak area repeatability <2%

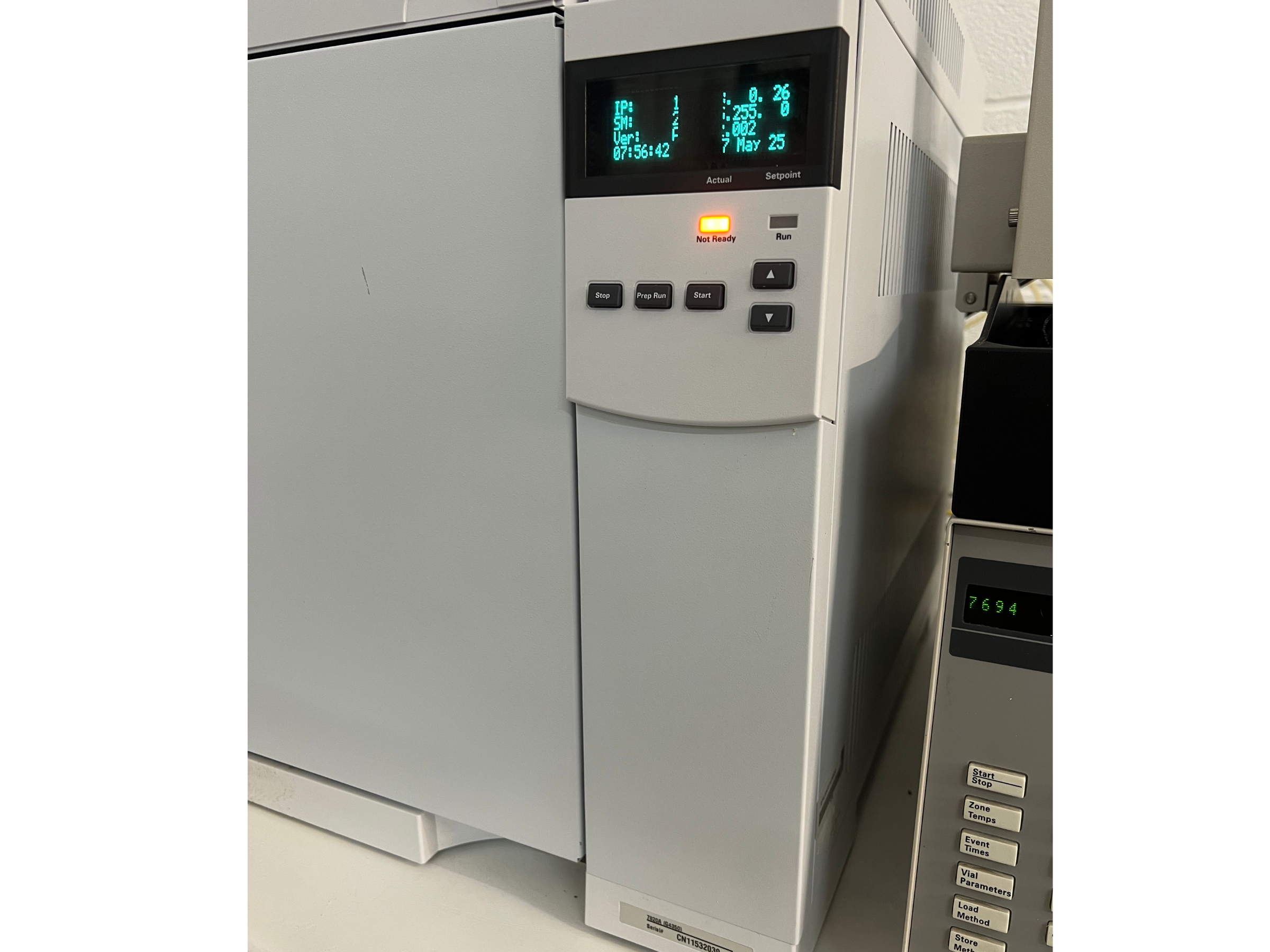

- Digital display
- Run and ready indicator lights
- Audio alarm
- Compatible with a range of detectors
- Data communications
- 1x analog output channel
- Remote start/stop
- LAN
- Column Oven
- Operating temperature ambient + 8°C to 425°C
- Setpoint resolution 1°C
- Maximum temperature ramp rate 75°C/min
- Maximum run time 999.99 min

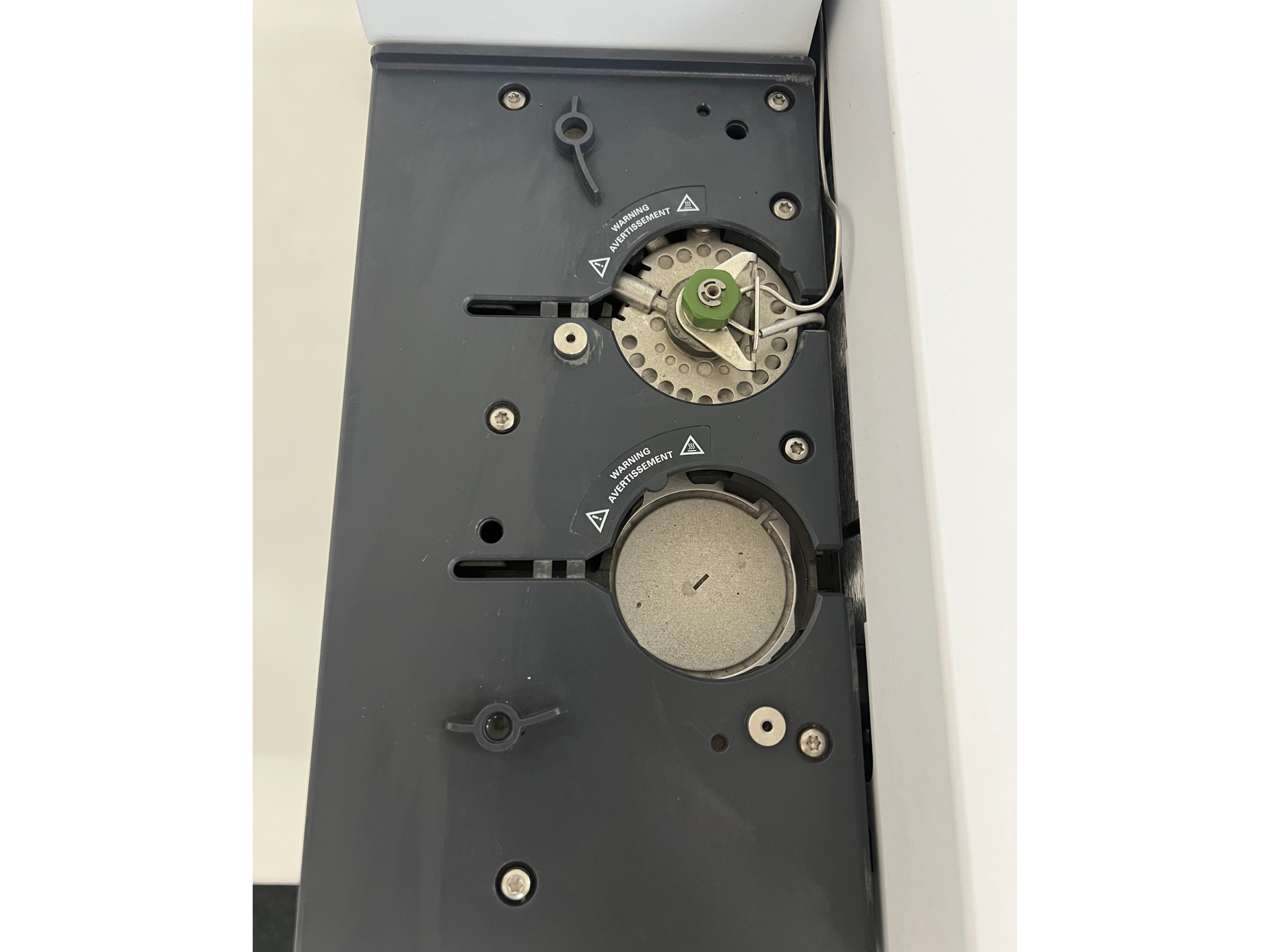

- Inlets
- Capacity for 2 inlets
- EPC pressure set point 0.01 psi
- Compatible with up to 2 detectors

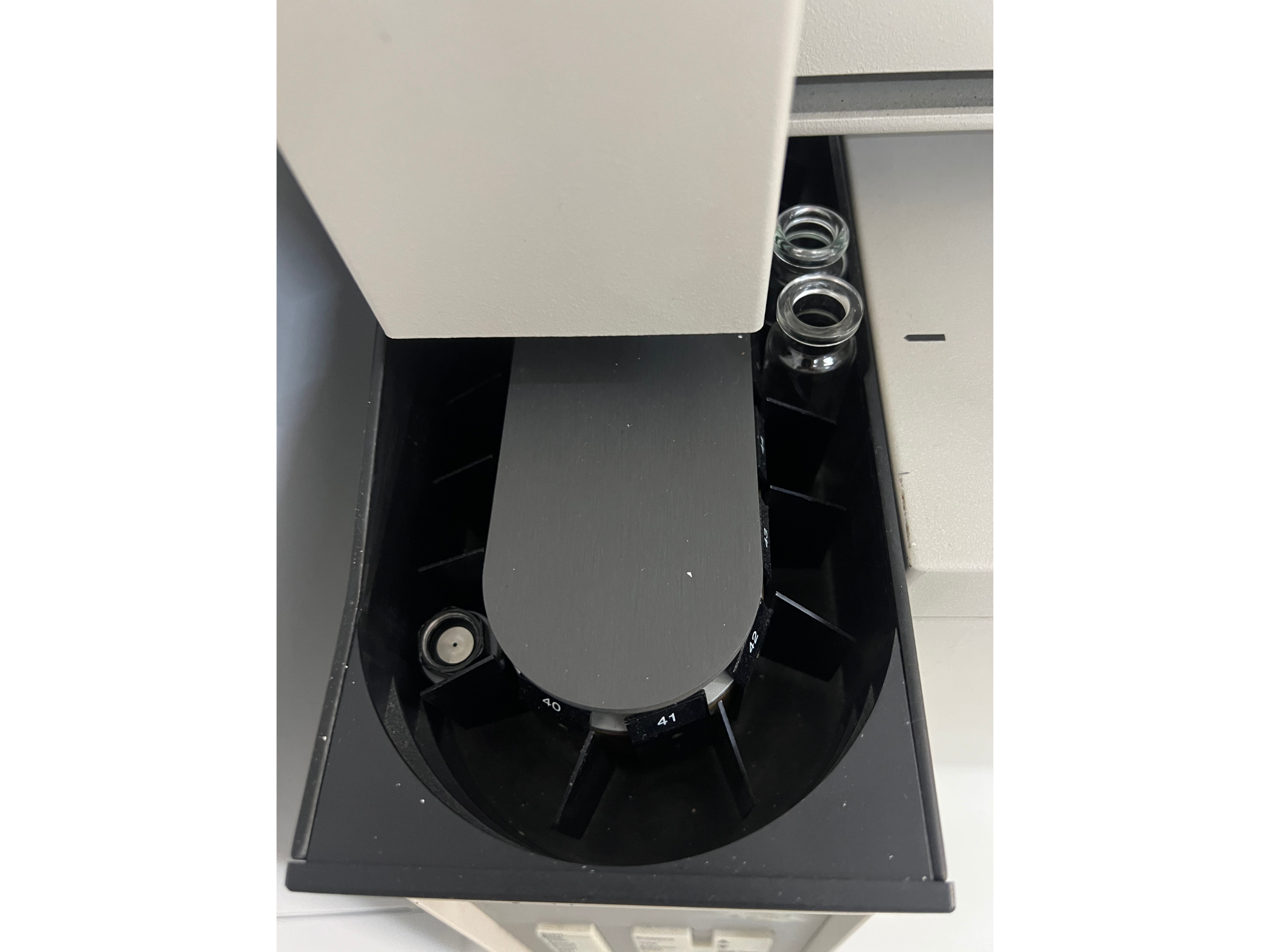

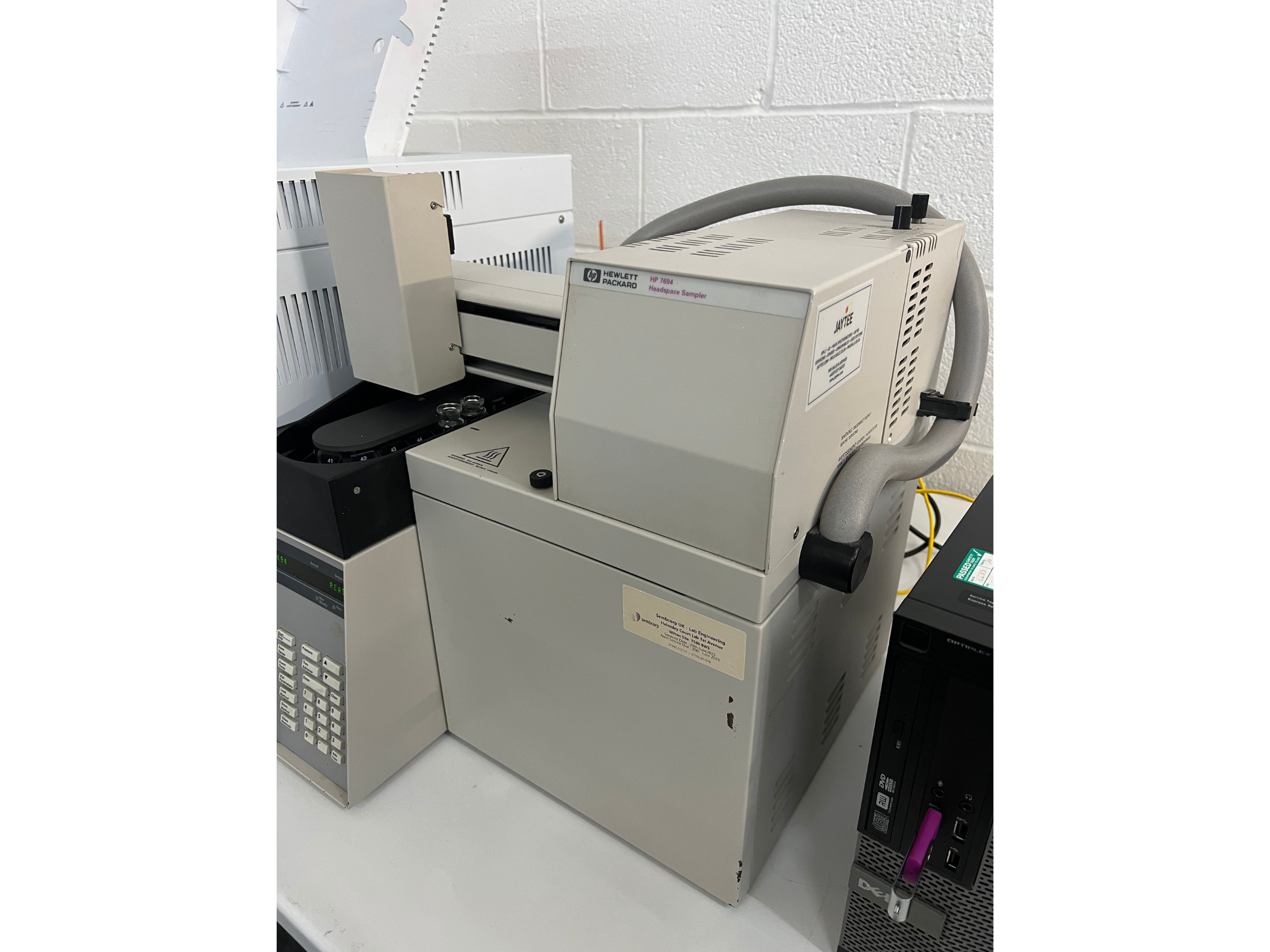

- Headspace sampler HP7694
