Description

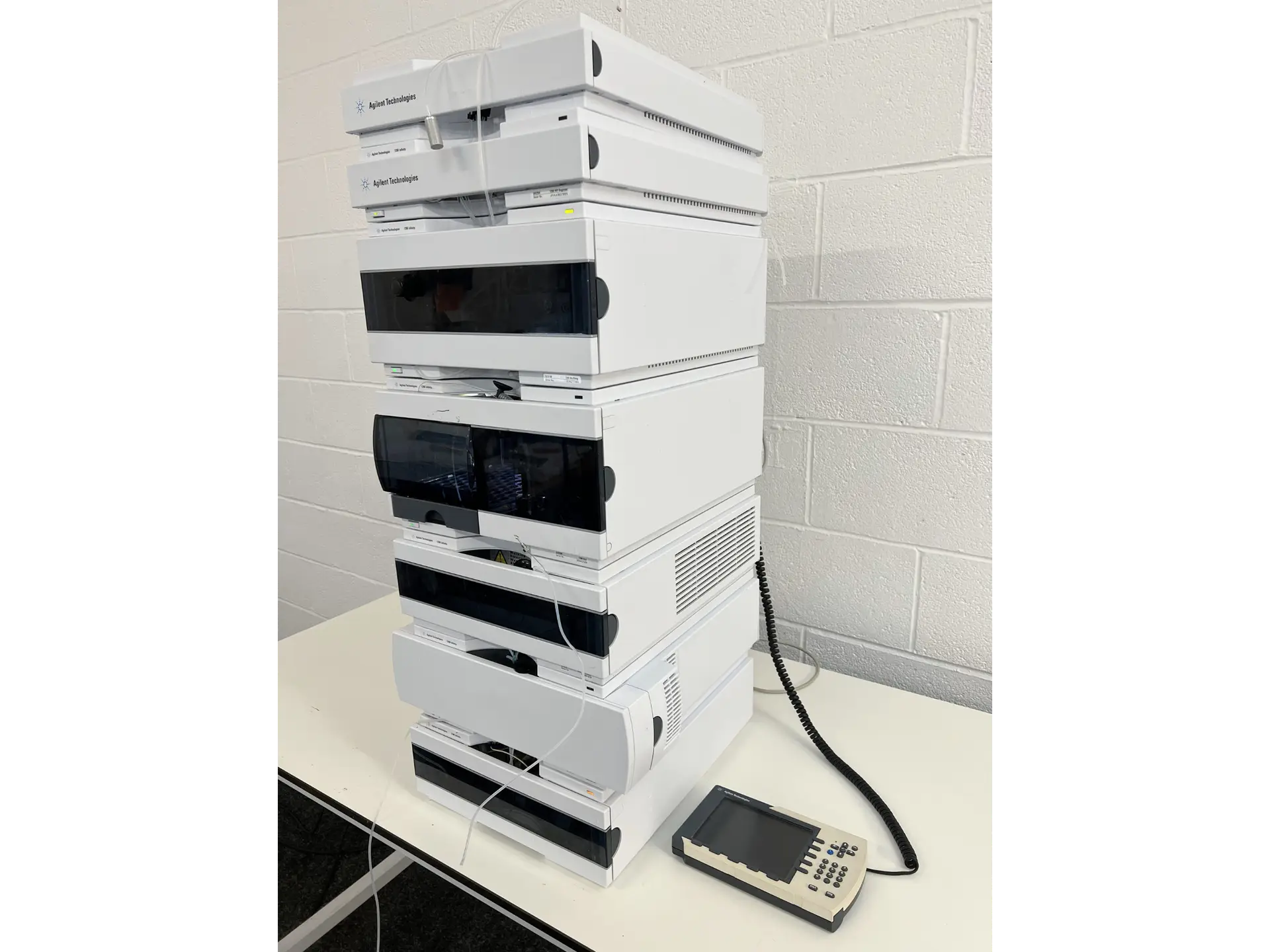

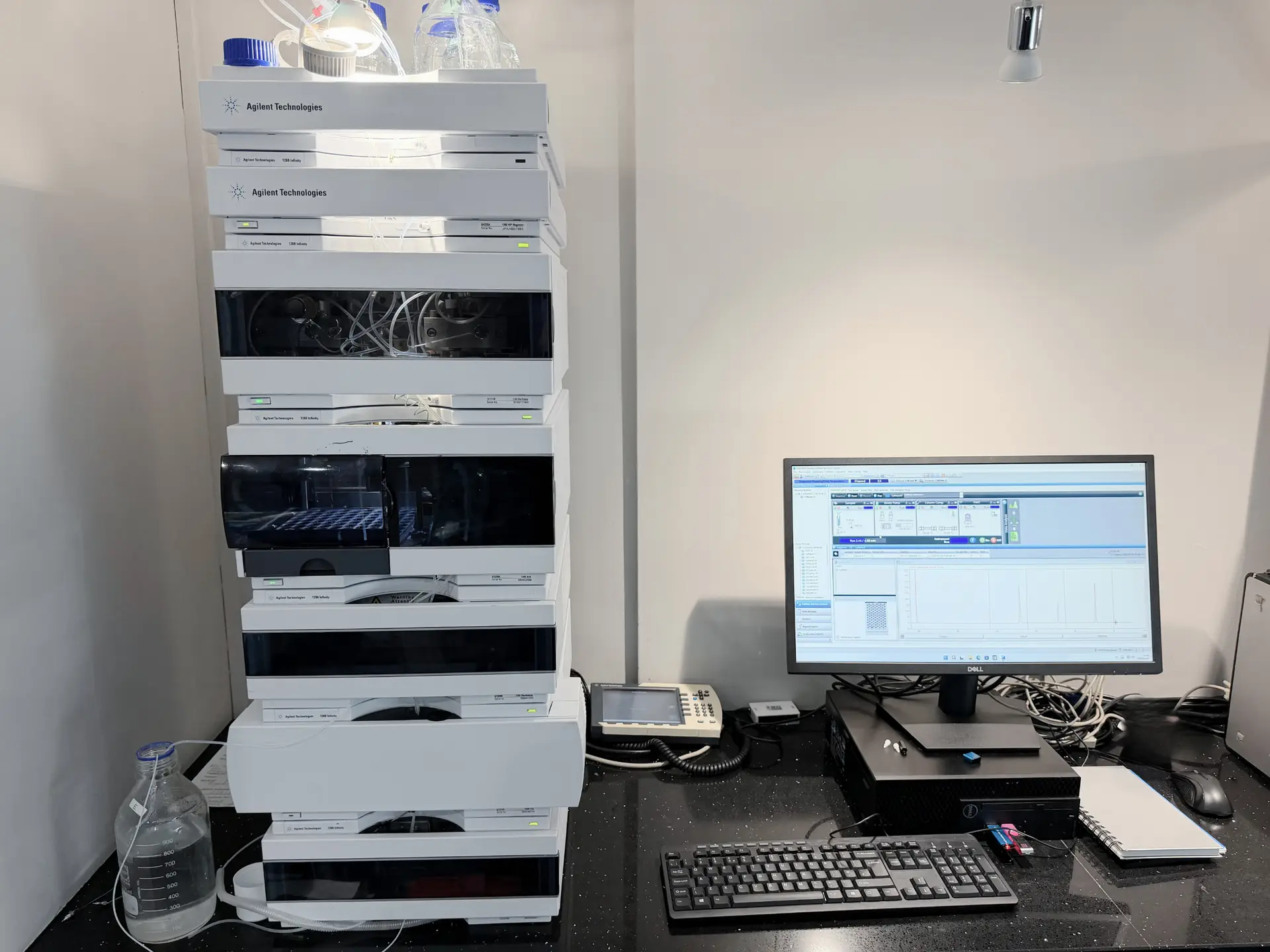

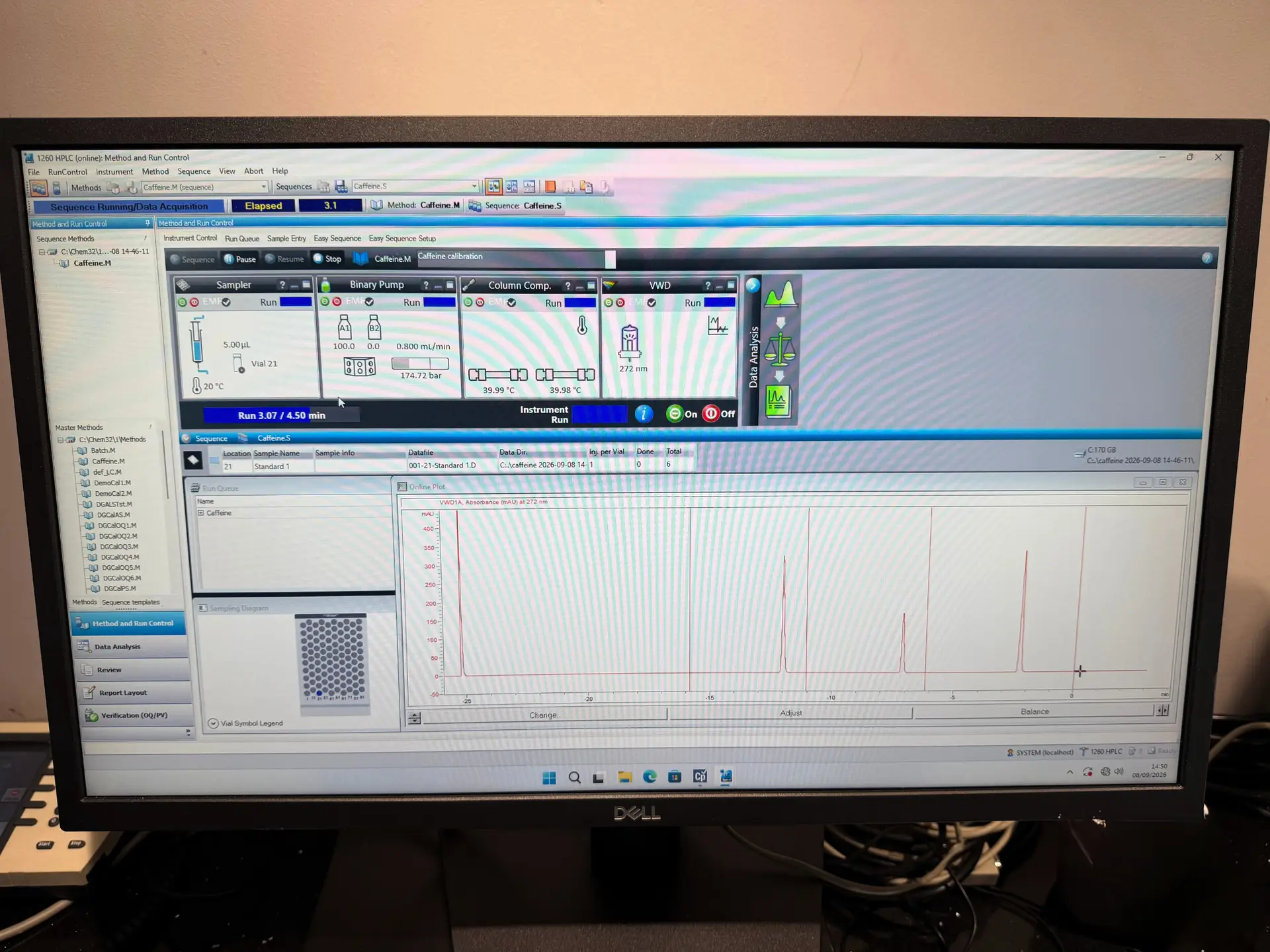

The Agilent 1260/90 HPLC System with a degasser, BIN pump, ALS, thermostat, and VWD delivers high-performance liquid chromatography for robust and reliable routine analysis. This user-friendly, precision instrument includes a software licence and PC for an immediate, plug-and-play setup. Devices like the 1260/90 perfectly serve laboratories looking to increase sample throughput by reducing cycle times. Consequently, industries such as pharmaceuticals, food safety, and environmental science rely on these HPLC systems to fulfill their analytical requirements.
This configuration features an Agilent 1260 G4225A HIP Degasser, which utilizes four separate vacuum chambers with semipermeable tubing. For solvent delivery, an Agilent 1260 G1312B BIN pump supports high-pressure gradient formation and delivers a precise mobile phase up to 5 mL/min. To ensure accurate heating and cooling, the G1316A TCC maintains temperatures between 10°C and 80°C. Additionally, an Agilent 1260 ALS autosampler streamlines workflow, while an Agilent 1290 Thermostat provides precise temperature control. Finally, the Agilent 1260 VWD LV+ measures wavelengths from 190 to 600 nm with a 1 nm resolution.
Key Features of the Agilent 1260/90 HPLC System

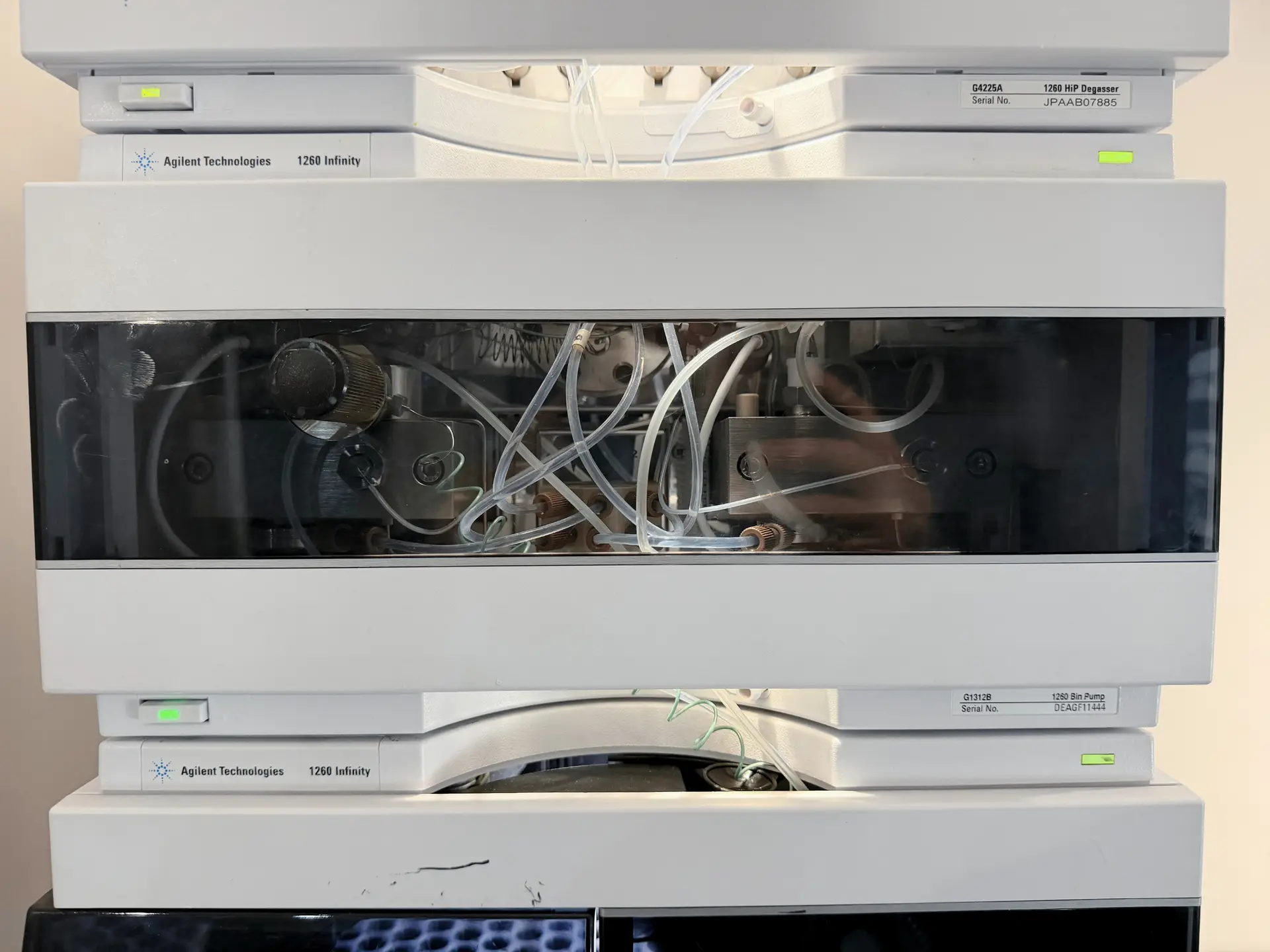

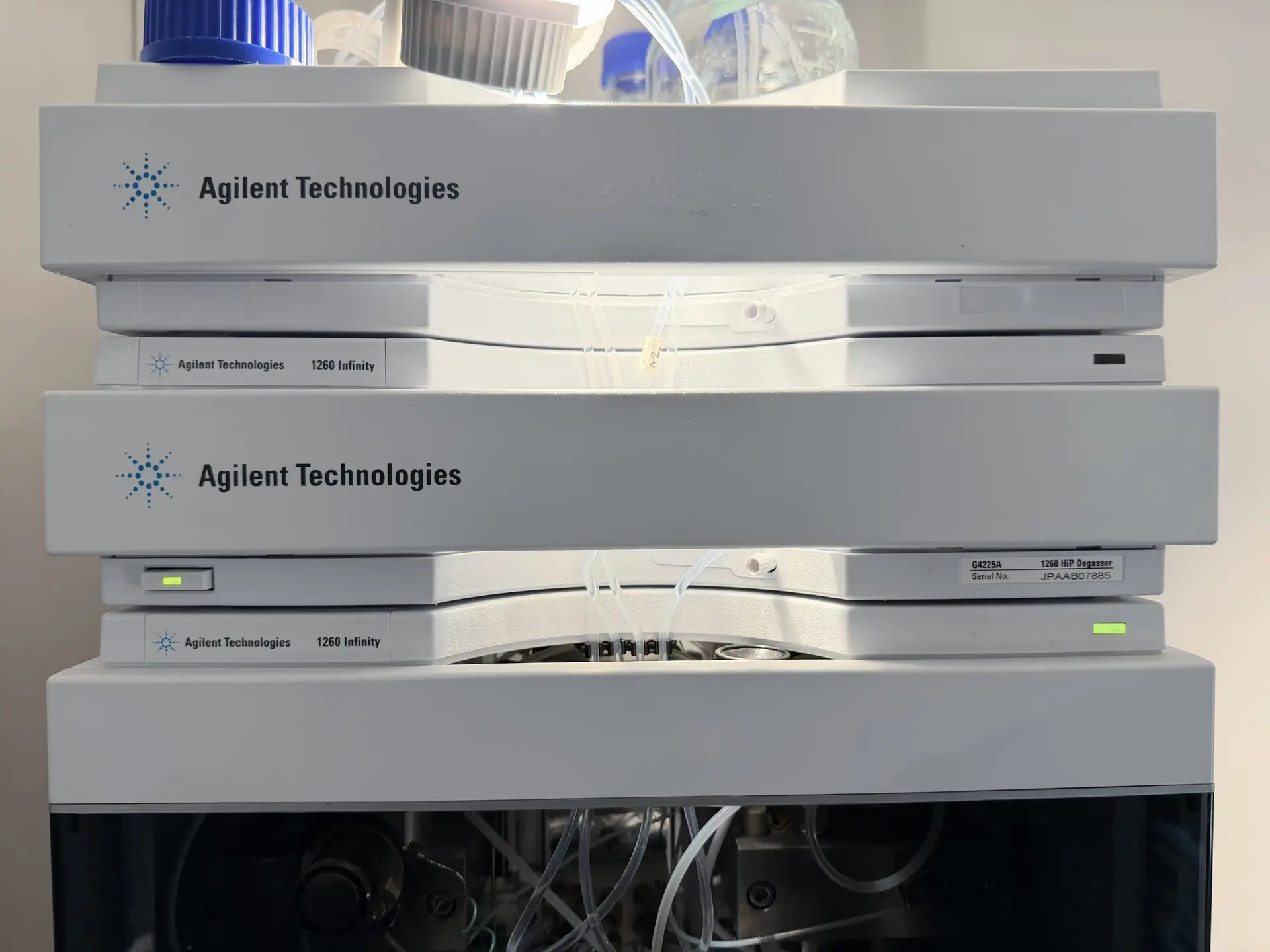

- Agilent 1260 G4225A HIP Degasser
- Number of Channels: 4 solvent channels
- Flow Range: 0 to 10 mL/min per channel
- Internal Volume: 0.45 mL per channel

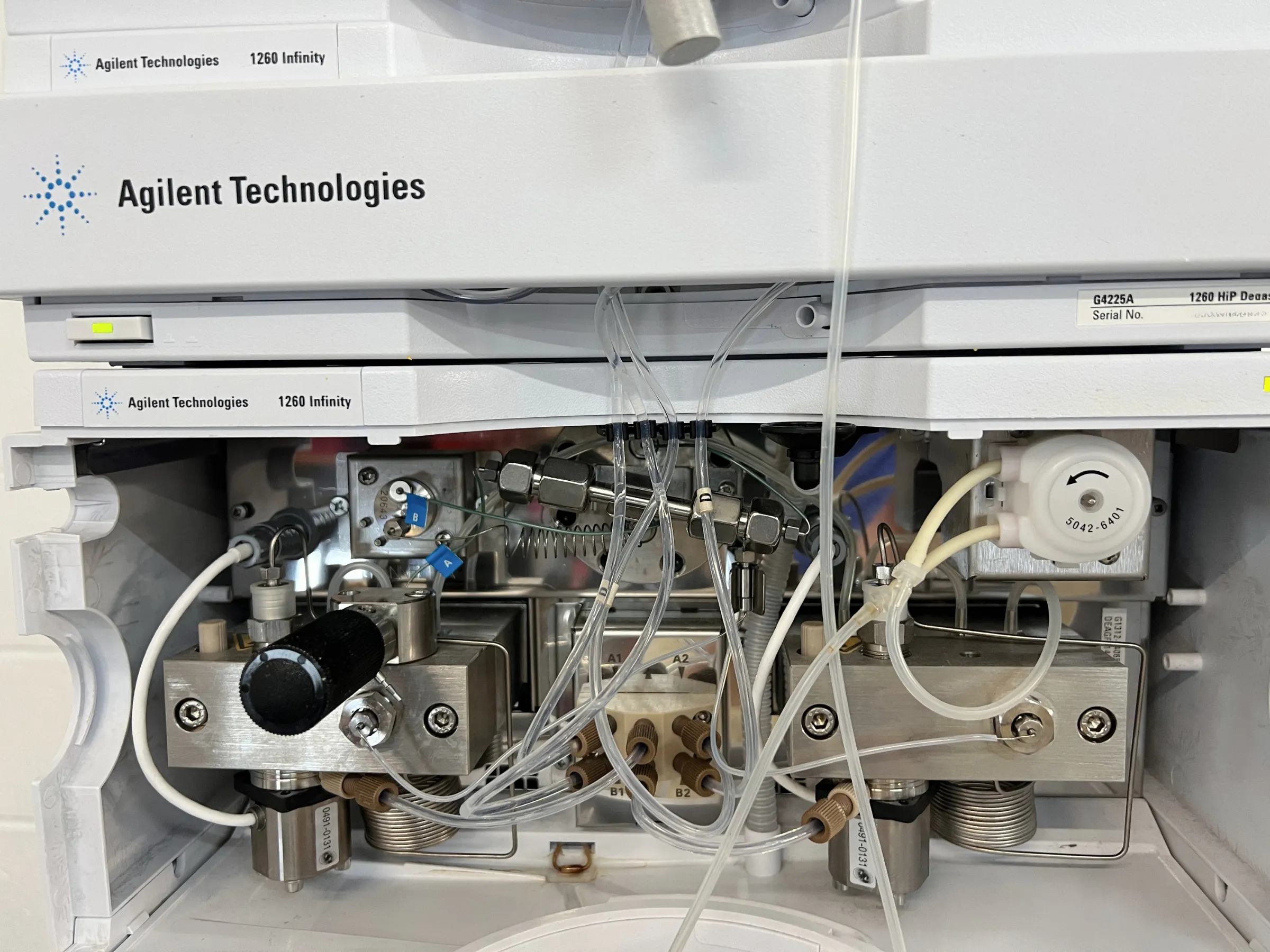

- Agilent 1260 G1312B BIN pump
- Flow Rates: 0.001 mL/min to 5 mL/min
- Maximum Pressure: 800 bar

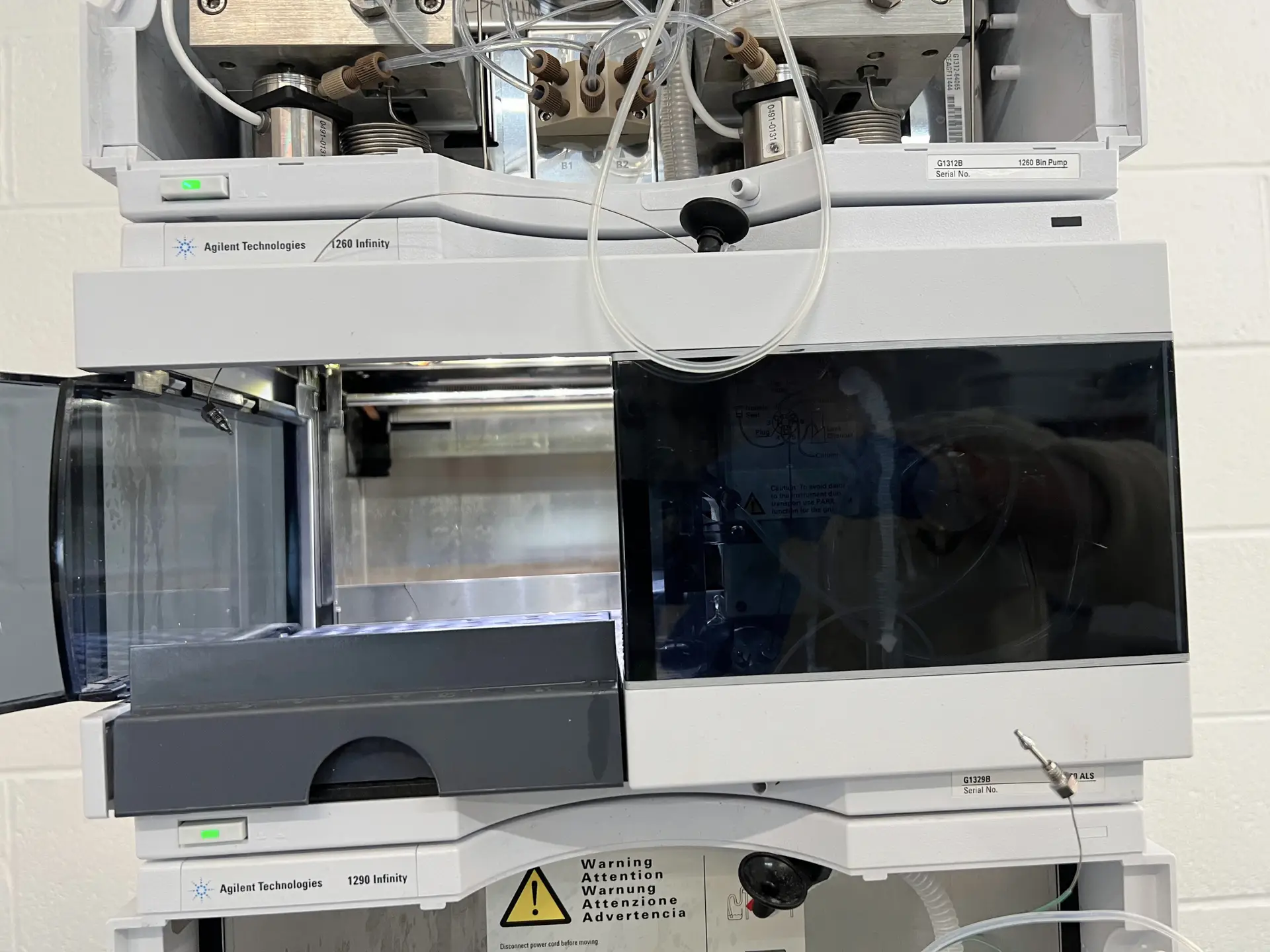

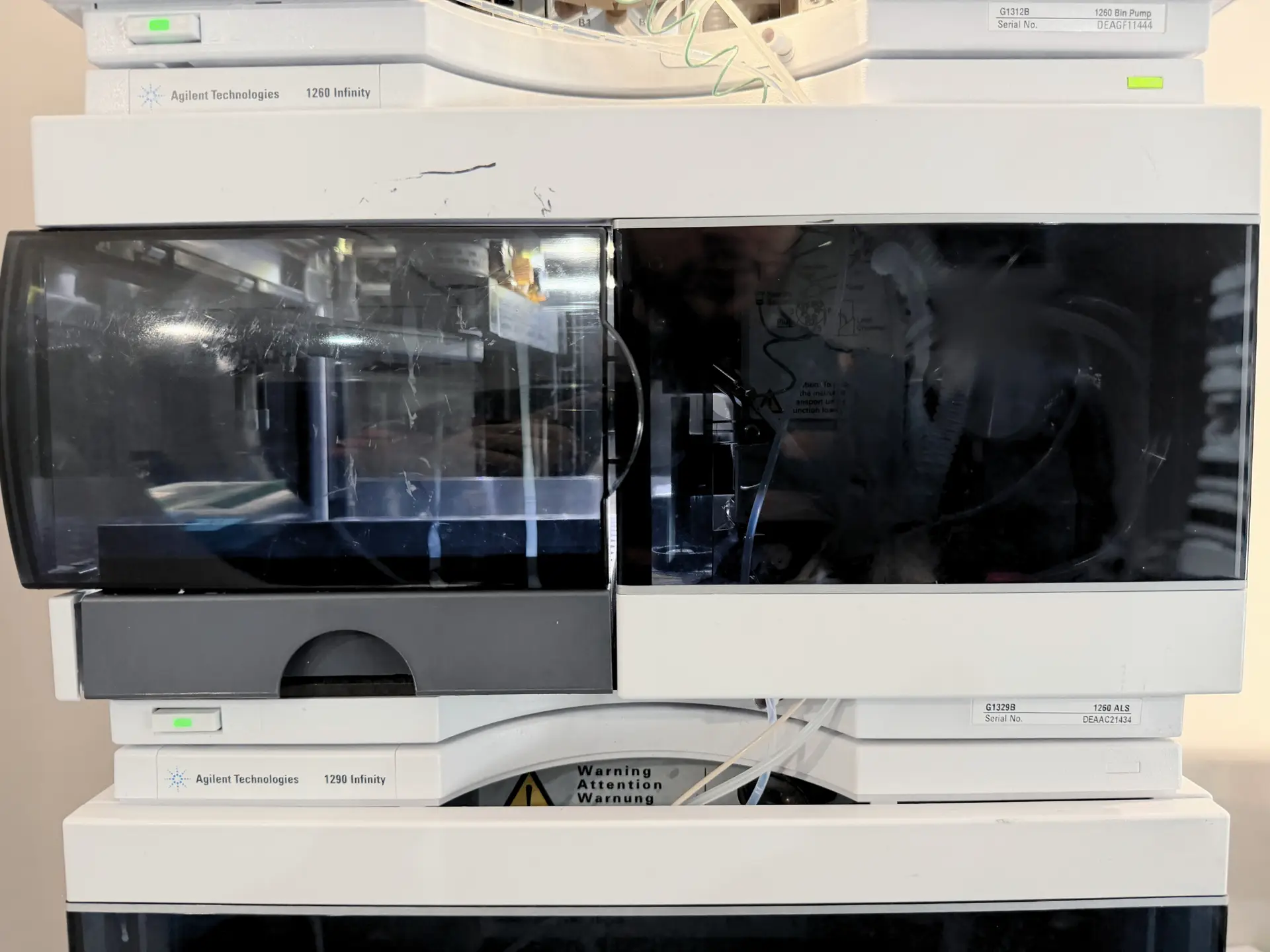

- Agilent 1260 ALS
- Maximum Operating Pressure: 600 Bar
- Injection Volume Precision: < 0.25% RSD from 5–100 µL; < 1% RSD from 1–5 µL
- Injection Cycle Time: typically 50 seconds but varies based on sample volume

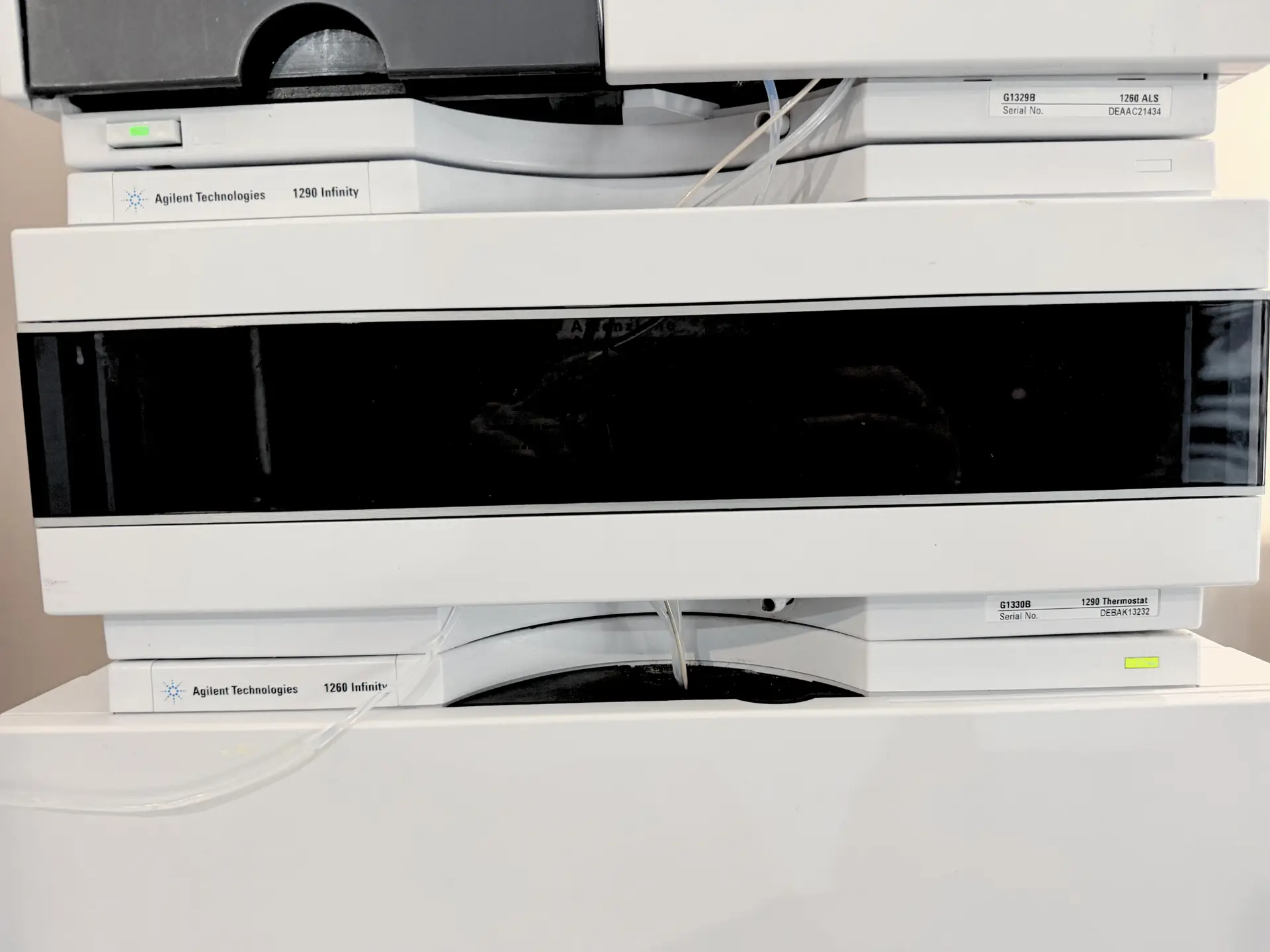

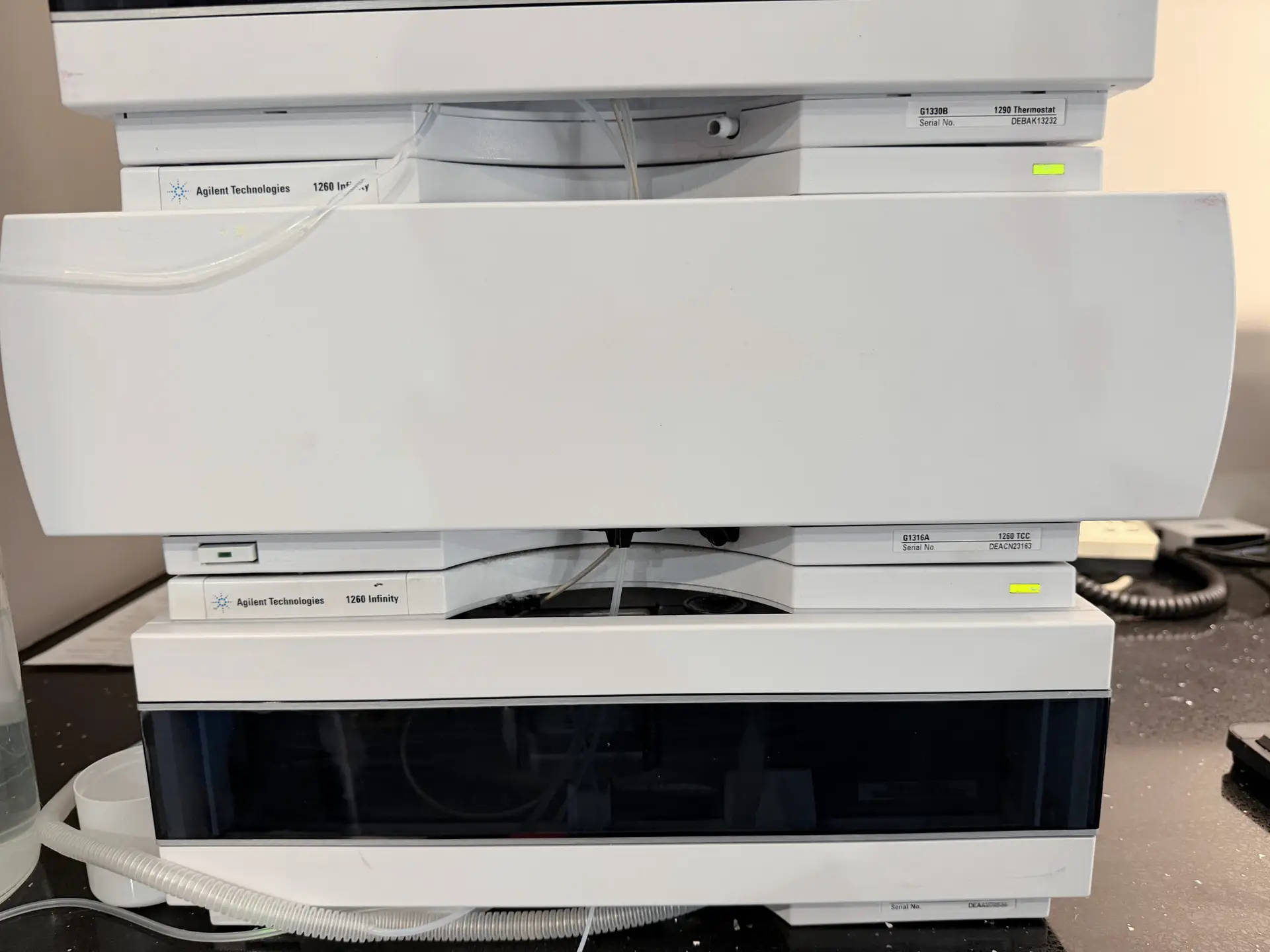

- Agilent 1290 G1330B Thermostat
- Temperature Range: 4°C to 40°C adjustable in 1°C increments
- Capacity: accommodates specialized thermostattable trays holding either 100 × 1.8 mL vials or two well plates alongside 10 × 1.8 mL via
- Column Capacity: 3x 30 cm long analytical columns

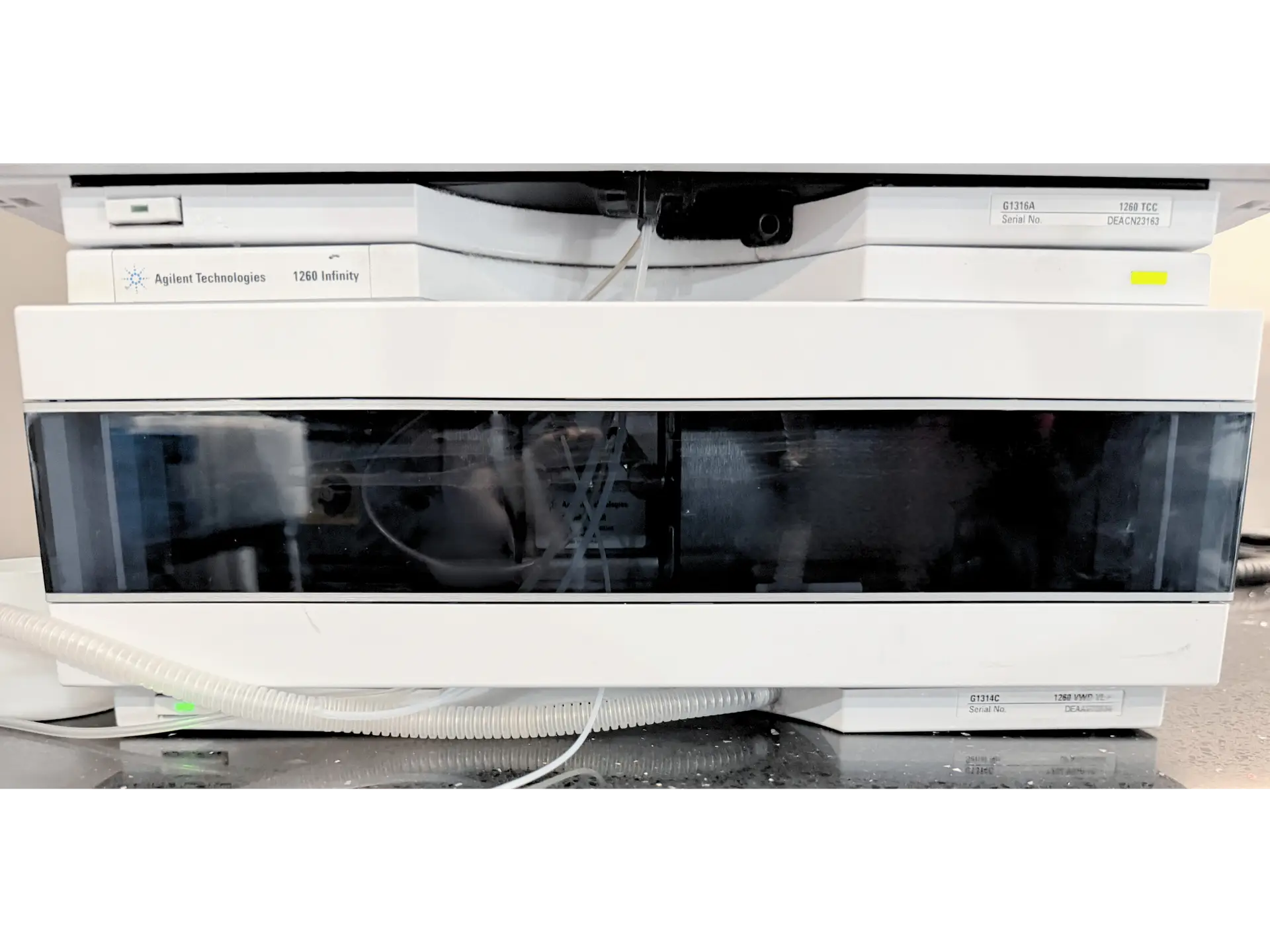

- Agilent 1260 G1316A TCC
- Temperature Range: From 10 °C below ambient up to 80 °C
- Temperature Stability: ±0.15 °C
- Agilent 1260 VWD LV+
- Wavelength Range: 190 to 600 nm
- Maximum Data Collection Rate: 55 Hz
