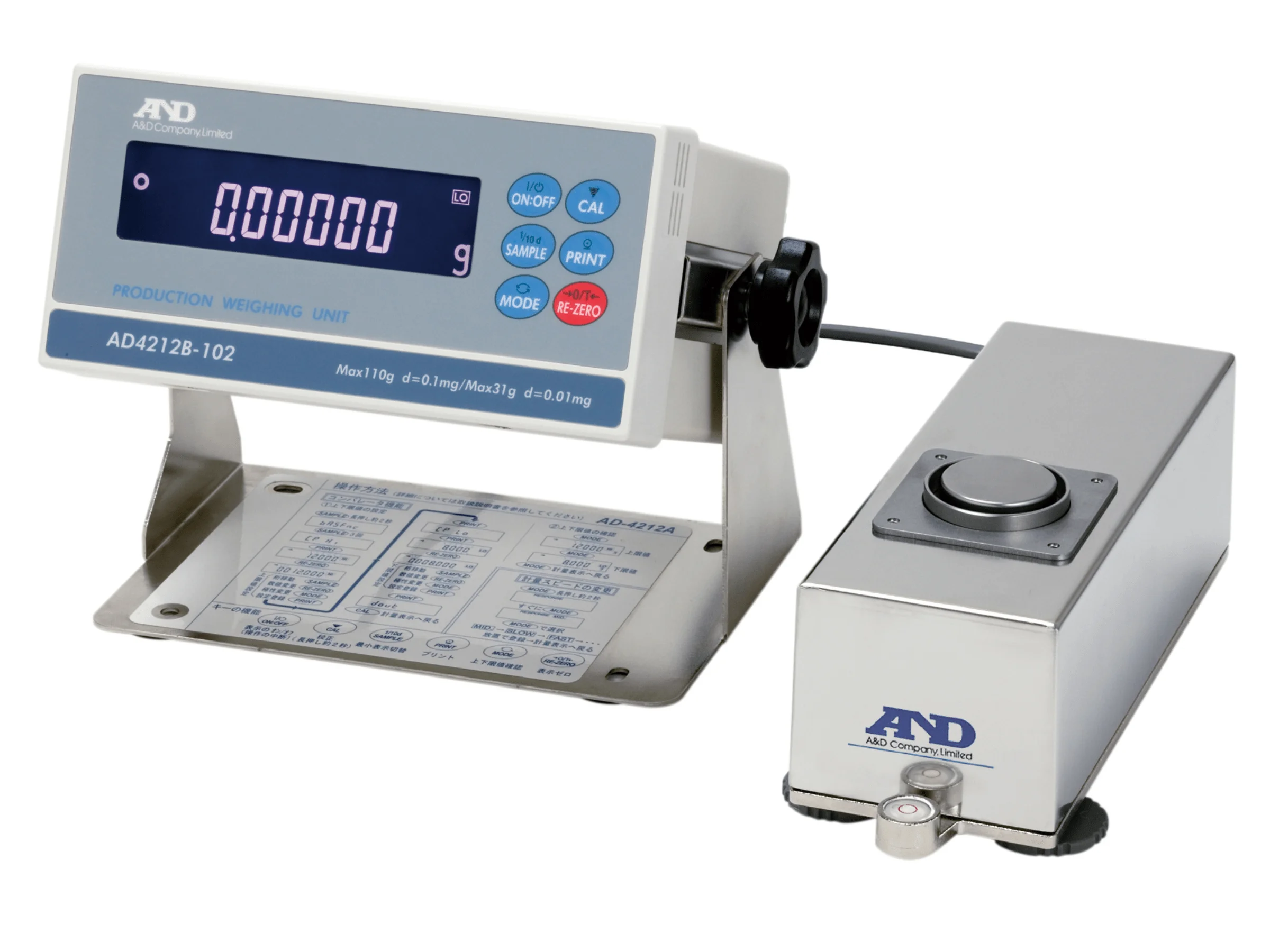

A&D AD-4212B-102 Weigh Module Balance

The A&D AD-4212B-102 Weigh Module Balance, with its 110g and readability of 0.01mg, offers precision and speed for diverse applications.

Product Code

AD-4212B-102
New

Enquire for price

Lead time varies. Please call for details

Description

The A&D AD-4212B-102 Weigh Module Balance, known for precision, speed, and cost-effectiveness. With a 110g capacity and 0.01mg readability, the device enhances production processes and provides a range of measurement units, including milligram, gram, ounce, troy ounce, metric carat, momme, pennyweight, grain, pieces (counting mode). Additionally, for the percent mode, tael or tola can be added upon request. In counting mode, it achieves 0.1mg readability for samples of 10,25,50, or 100 pieces, and in percent mode, it provides 10mg precision with 0.01%, 0.1% or 1% readability.

It stabilizes in 4.0 seconds, with a repeatability of 0.02mg for 30g and 0.04mg for 100g. External calibration weights, including a 50g weight (OIML Class E2 equivalent), cover 10g, 20g, 50g, and 100g options. I/O unit includes bi-directional RS-232C (600-19200 bps) and a 3 or 5-level comparator contact output with a buzzer. It also features an external contact input for Re-Zero and Print functions.

Features of the A&D AD-4212B-102 Weigh Module Balance:

  • The balance with a capacity of 110g and readability of 0.01mg.

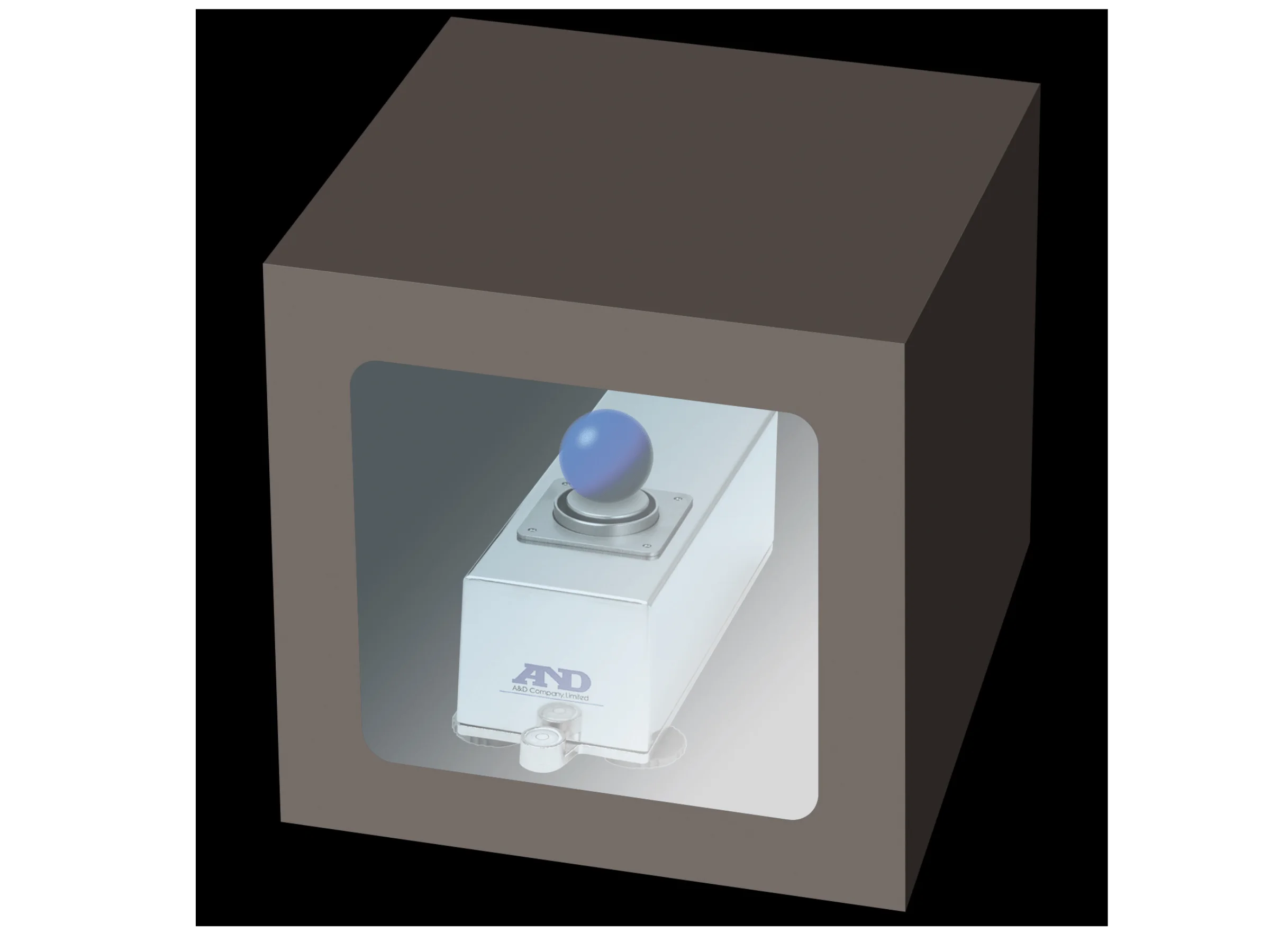

  • Installation options include wall/panel-mount display, slim 80mm unit, custom pans, and vacuum chamber weighing
  • Patented shock absorber under the pan safeguards sensor from disruptions.
  • Stainless steel IP54 weighing unit with SUS304 body and SUS316 weighing pan, sized at 34 cm for chemical resistance.
  • Auto power function reduces manual activation after power interruptions.
  • Counting mode, percent mode, data memory, clock and calendar functions.
  • Manufacturer warranty included.



Useful links :

See the Manual here

See the Brochure here

You may feel free to review the selection of available balances we offer. For more information, please call 01257 270 433 or message us, and we’ll be happy to help.

Additional information

Weight2.3 kg
Dimensions23 × 8 × 9 cm
Brand

Model

AD-4212B-102

New/Used

New

Capacity

110g

Readability

0.01mg

Display Unit Dimension (L X W X H)

15 X 23.7 X 15.5 cm

Lead Time

Lead time varies. Please call for details

Downloads

See the Manual here

See the Brochure here
