Description

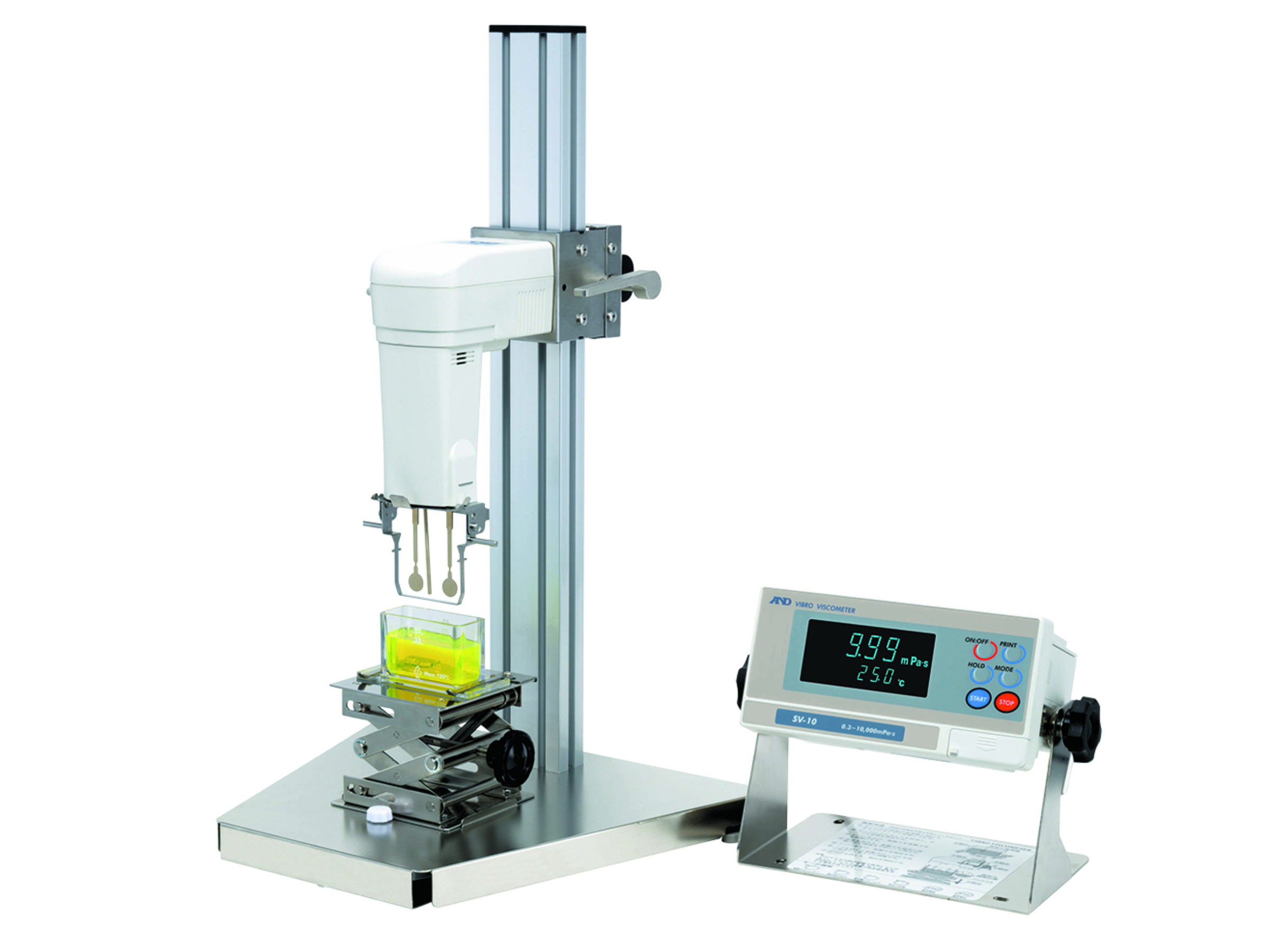

The A&D Viscometer SV-100 features the revolutionary vibrating tuning fork measurement method. The SV Series provides a fast highly accurate result and is simple to use. Ideal for non Newtonian products particularly those with a volatile nature. This model comes with a 100,000cP Capacity.
Highlights of Viscometer SV-100
- Wide measurement range: 1,000 – 100,000mPa.s
- Measurement of very low viscosities (down to 1/3 of water viscosity!)
- Temperature measurement from 0 to 160° C
- Fast measurements: 1st result within 15 seconds, and refresh in real time
- Possible continuous measurements in order to characterize changes of state
- High precision with a repeatability of ±1% of displayed value
- Small size sample: cups of 35ml, 13ml & 10ml
- Possibility to do measurements directly into your containers: beakers, product packages…
- Low mechanical impact: preservation of sample characteristics and its texture
- Negligible thermal impact
- Measurements possible on foaming samples, on foam itself, on flowing or agitated samples
- Simple operation: no configuration – just push the start button
- Easy cleaning
- WinCT-Viscosity software for data acquisition on PC, graphic display of curves, and data archiving (viscosity curves against temperature or time)
- Calibration (judgement and even adjustment) of viscosity possible by the user: 1 or 2 points
- Simplified and automated calibration (including adjustment)
- Temperature control of sample with water jacket option (AX-SV-37) or other methods
Features of Viscometer SV-100
- Measurement range from 1-100 Pa.s
- Units: Pa.s, P
Standard accessories delivered with SV-100:
4 x 35ml-sample cup (polycarbonate), WinCT-Viscosity software, RS-232C interface and cable
| Options & Accessories for SV-100 | Model |
|---|---|
| Sample cup, 35-45ml, polycarbonate (pack of 10) | AX-SV-33 |
| Small sample cup, 10ml, with cover, polycarbonate (pack of 10) | AX-SV-34 |
| Sample cup, 13ml, Glass | AX-SV-35 |
| Positioning stopper | AX-SV-36 |
| Water jacket (1 water jacket, 4 × 10ml-cups with cover) | AX-SV-37 |
| Storage container, 60ml, glass (pack of 10) | AX-SV-38 |
| Storage container, 120ml, plastic (pack of 20) | AX-SV-39 |
| Analog voltage output (0-1V) | AX-SV-42 |
| Extension cable (5m) between the main unit and the display | AX-SV-43 |
