Description

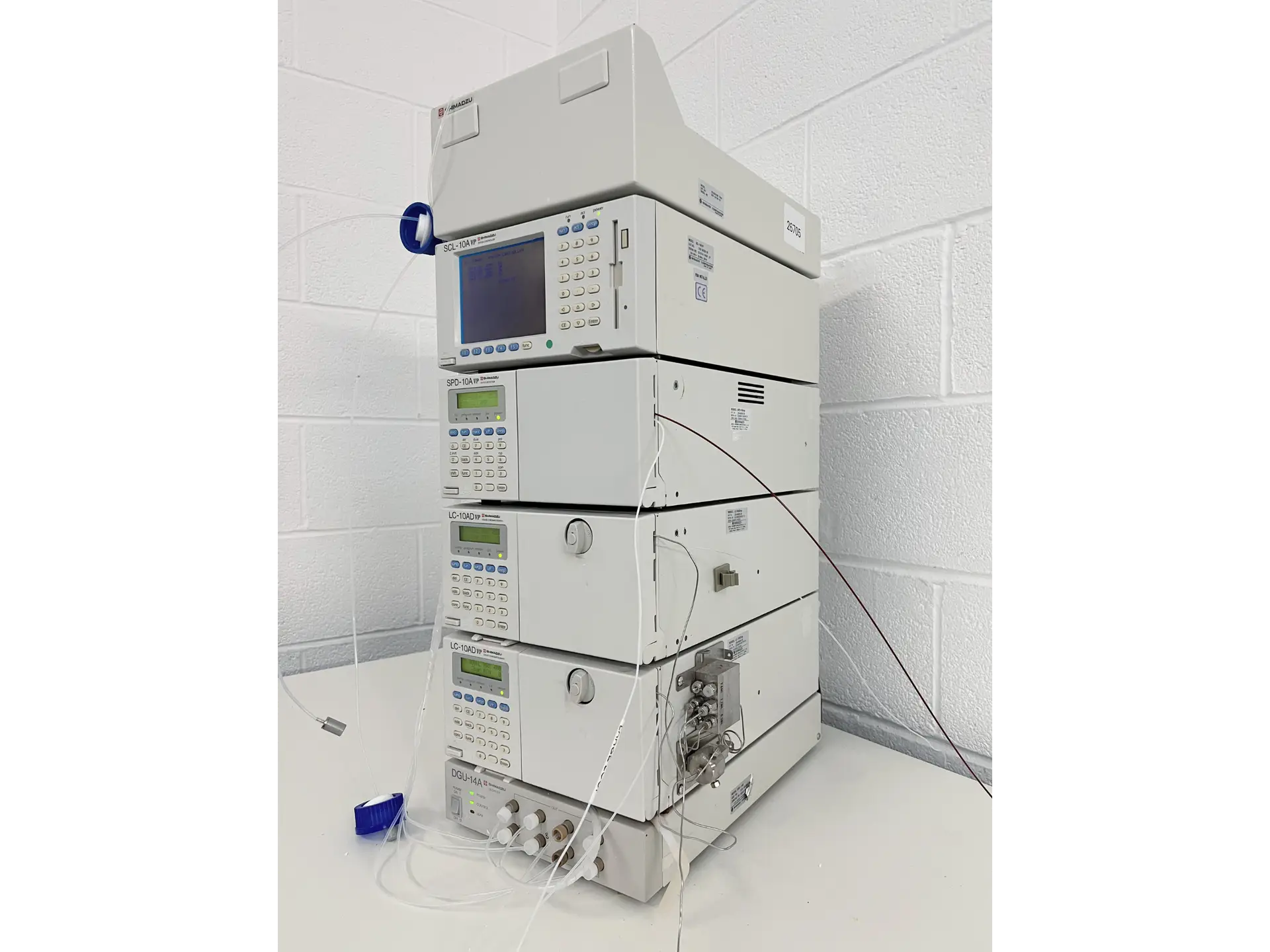

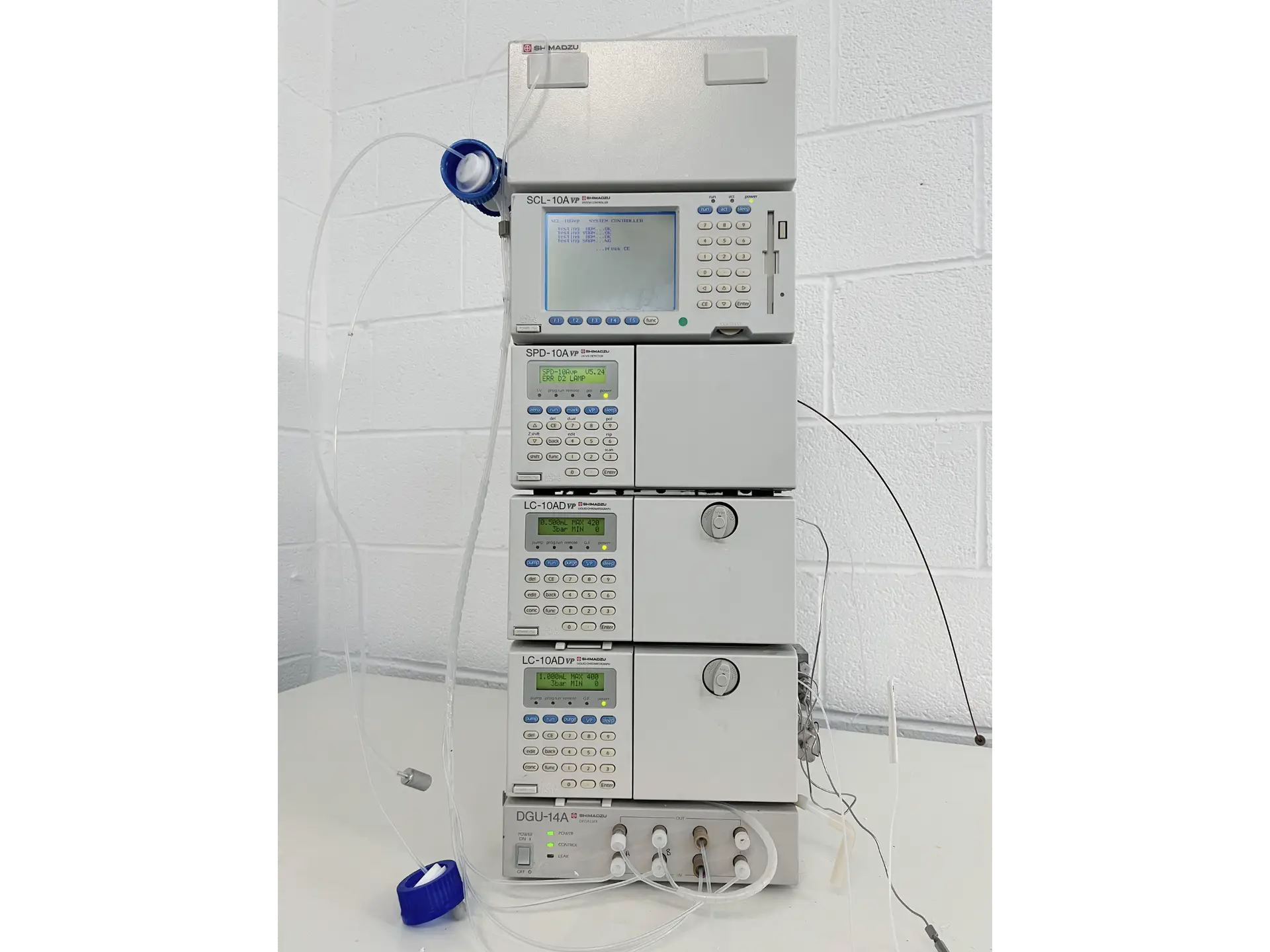

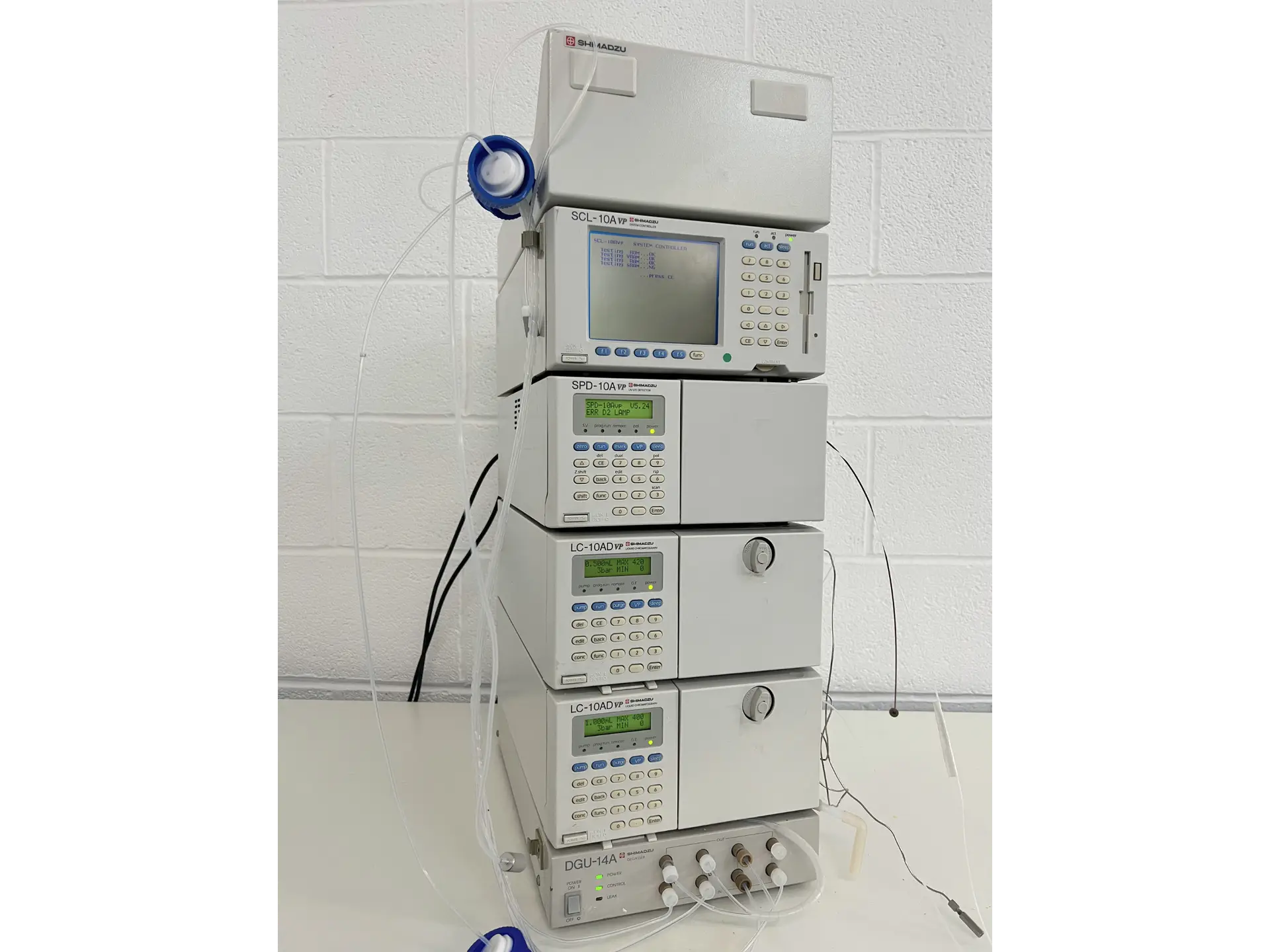

The Shimadzu VP HPLC System is a robust and highly durable liquid chromatography system, engineered for separating and identifying molecules. Its modular design means individual modules can be swapped and changed as needed.

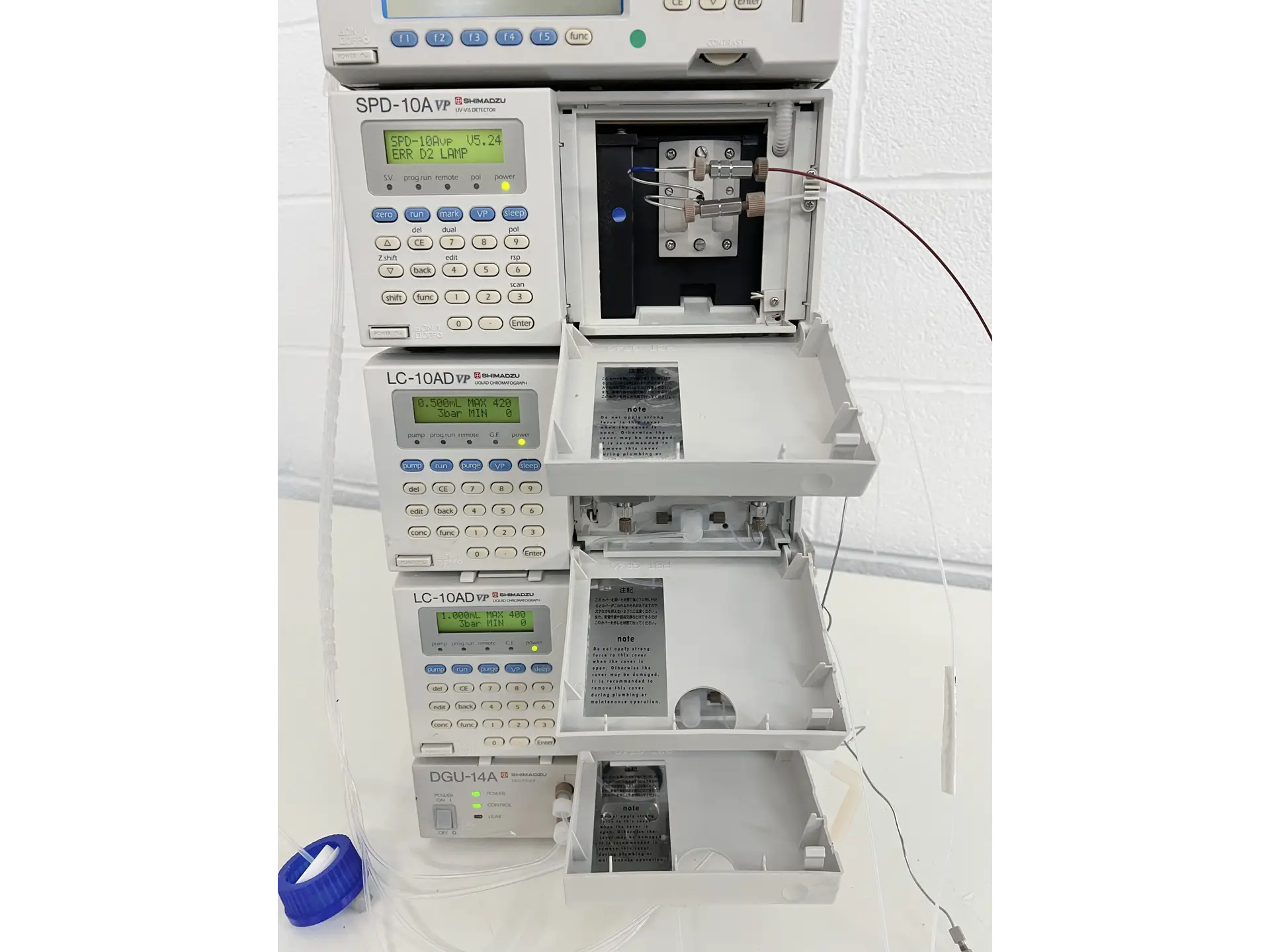

This system includes –

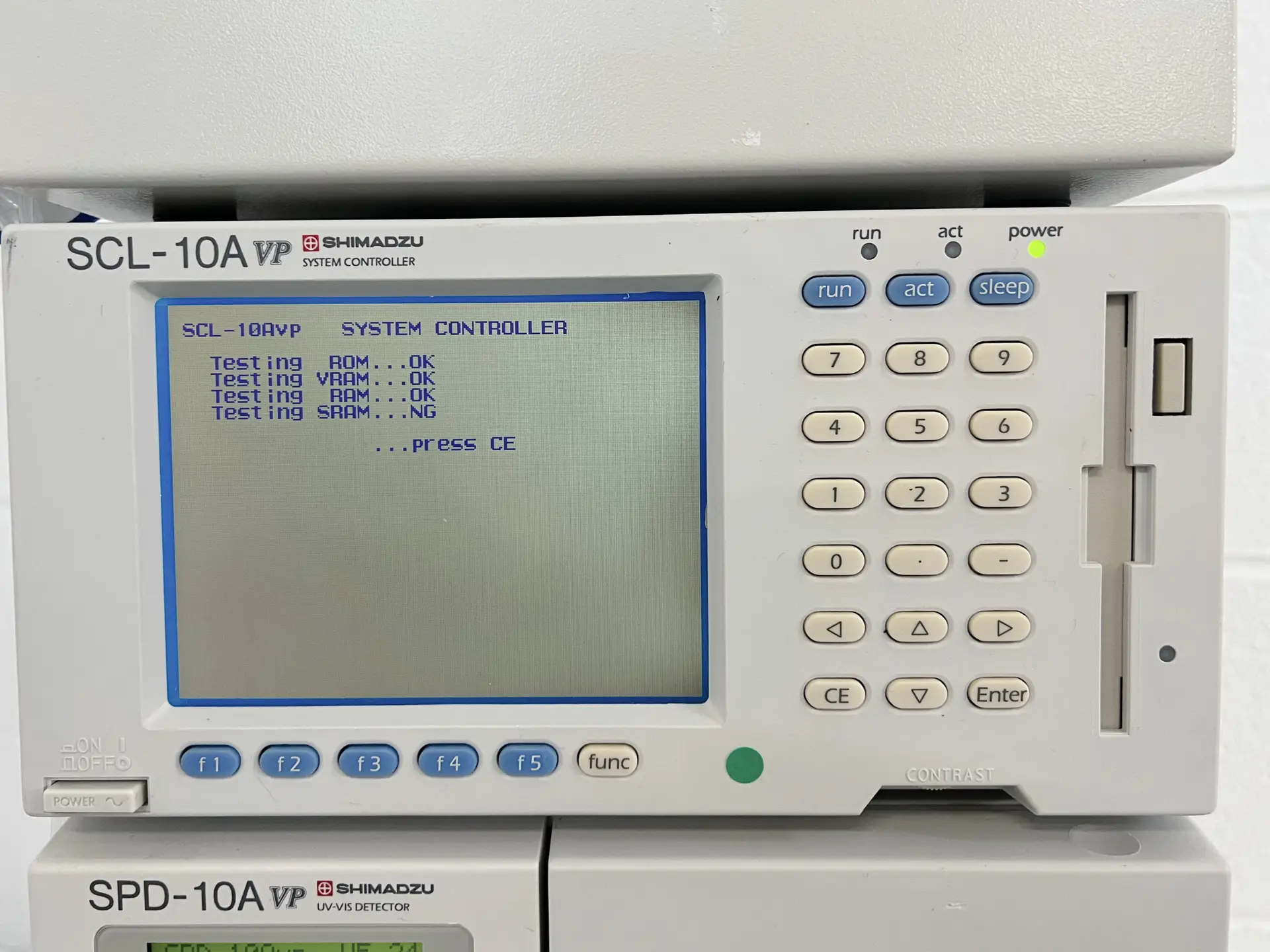

A System Controller (SCL-10Avp) for directly controlling all components in the configuration.

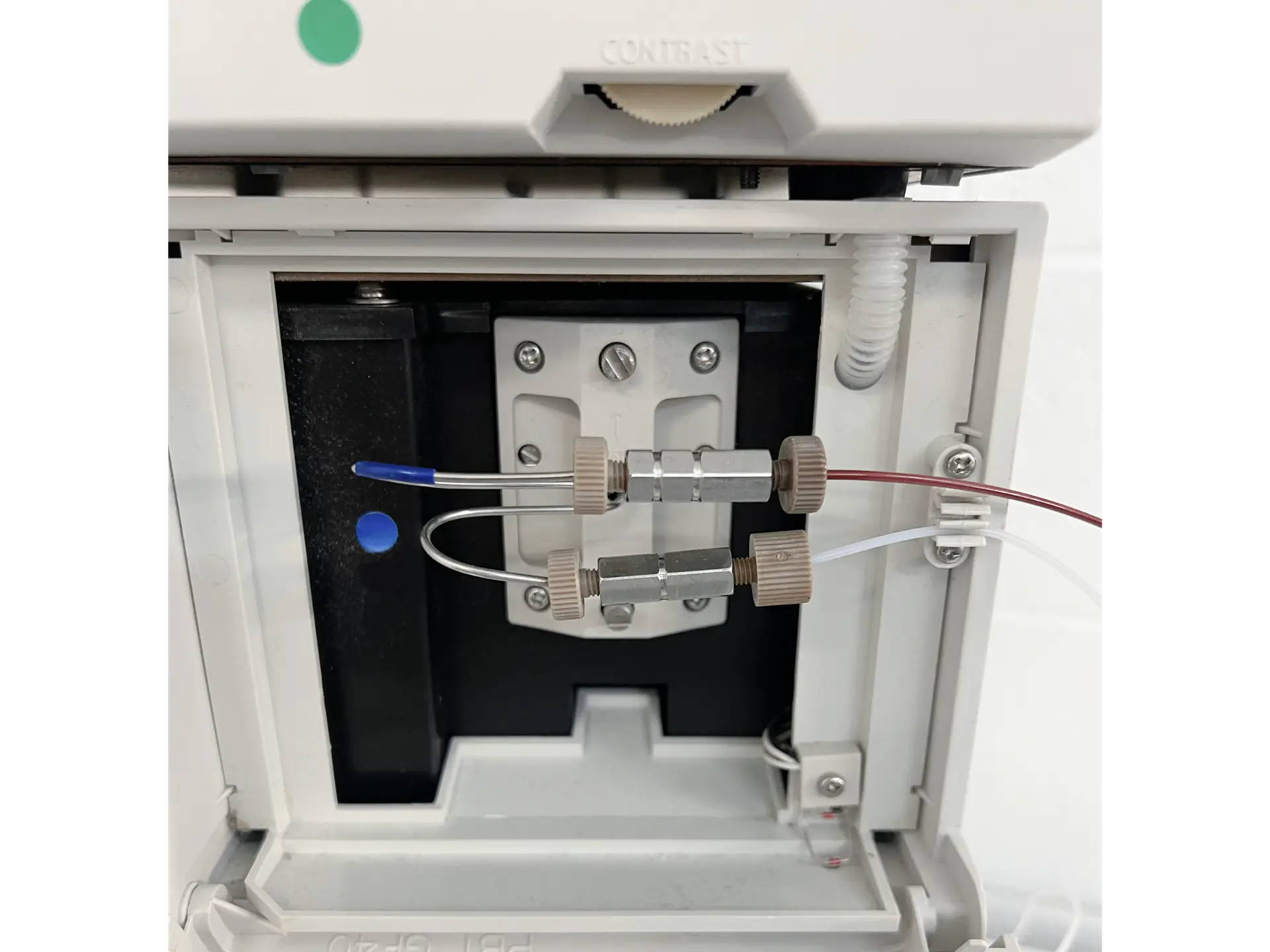

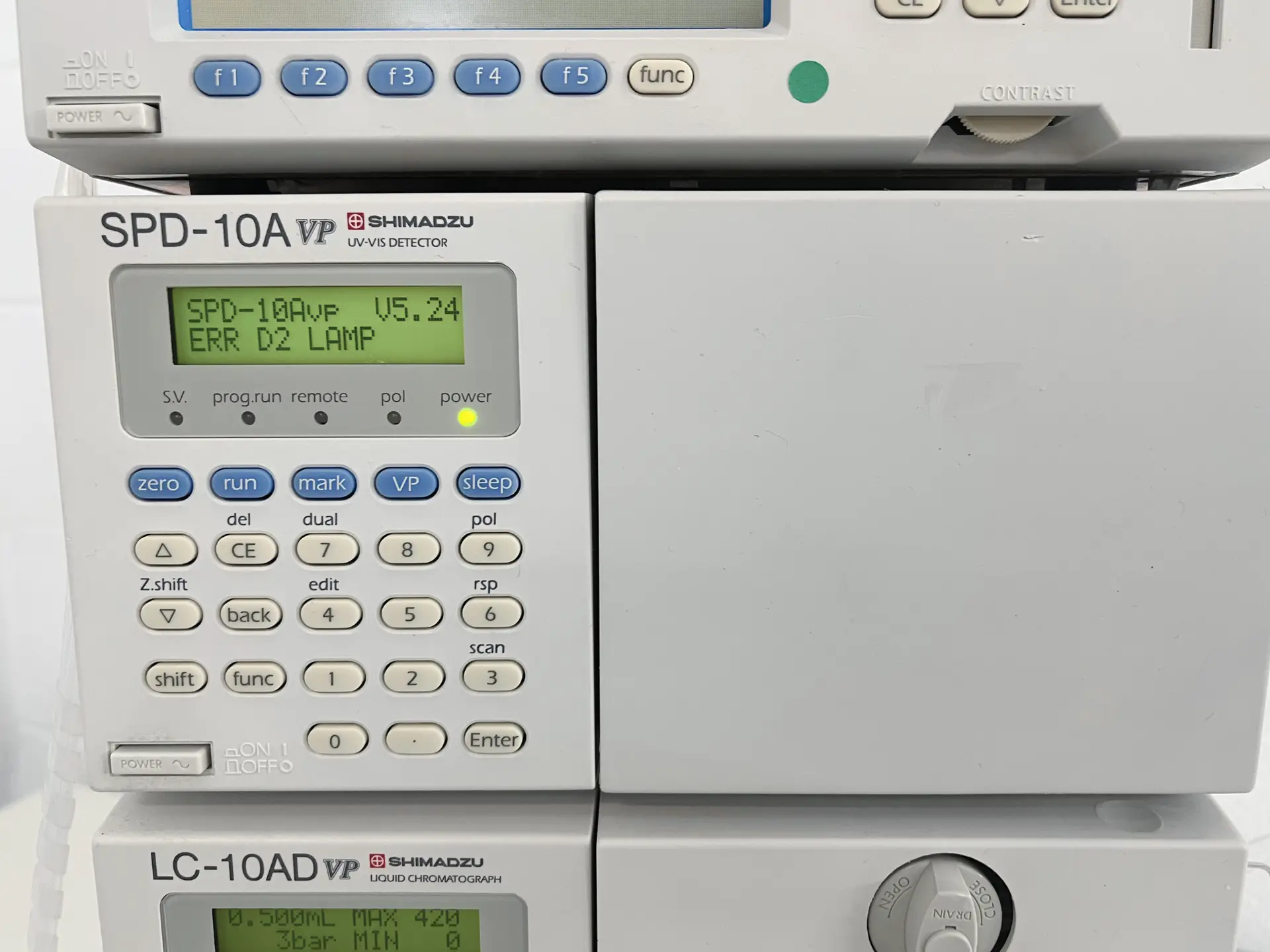

One UV-VIS (SPD-10Avp). A highly sensitive and non-destructive detector, used for measuring how much ultraviolet or visible light a sample absorbs. It features a wavelength range of 190 – 600 nm and an 8 nm spectral bandwidth.

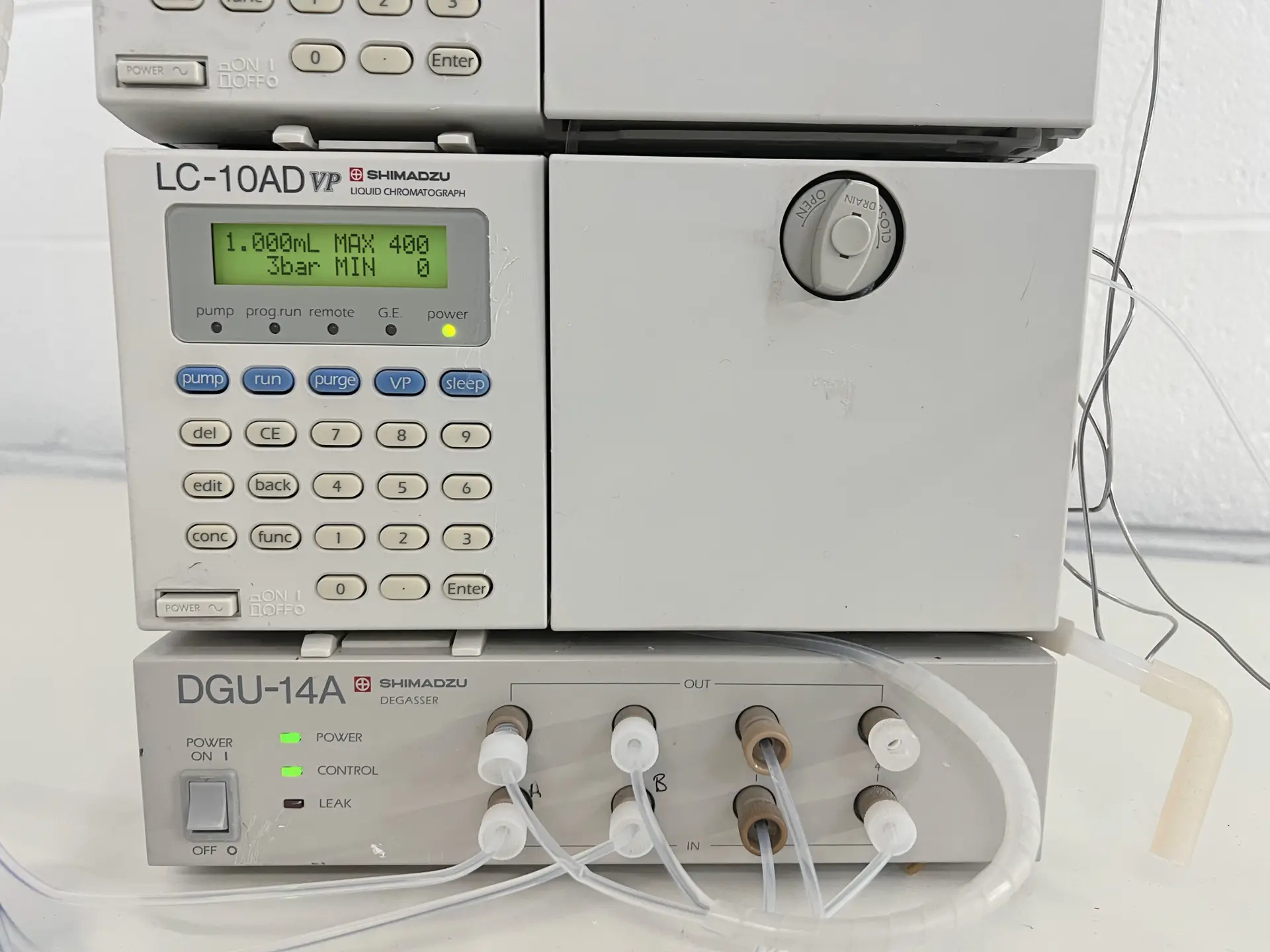

A four-channel vacuum membrane degasser (DGU-14A) to efficiently remove dissolved gasses from the solvents.

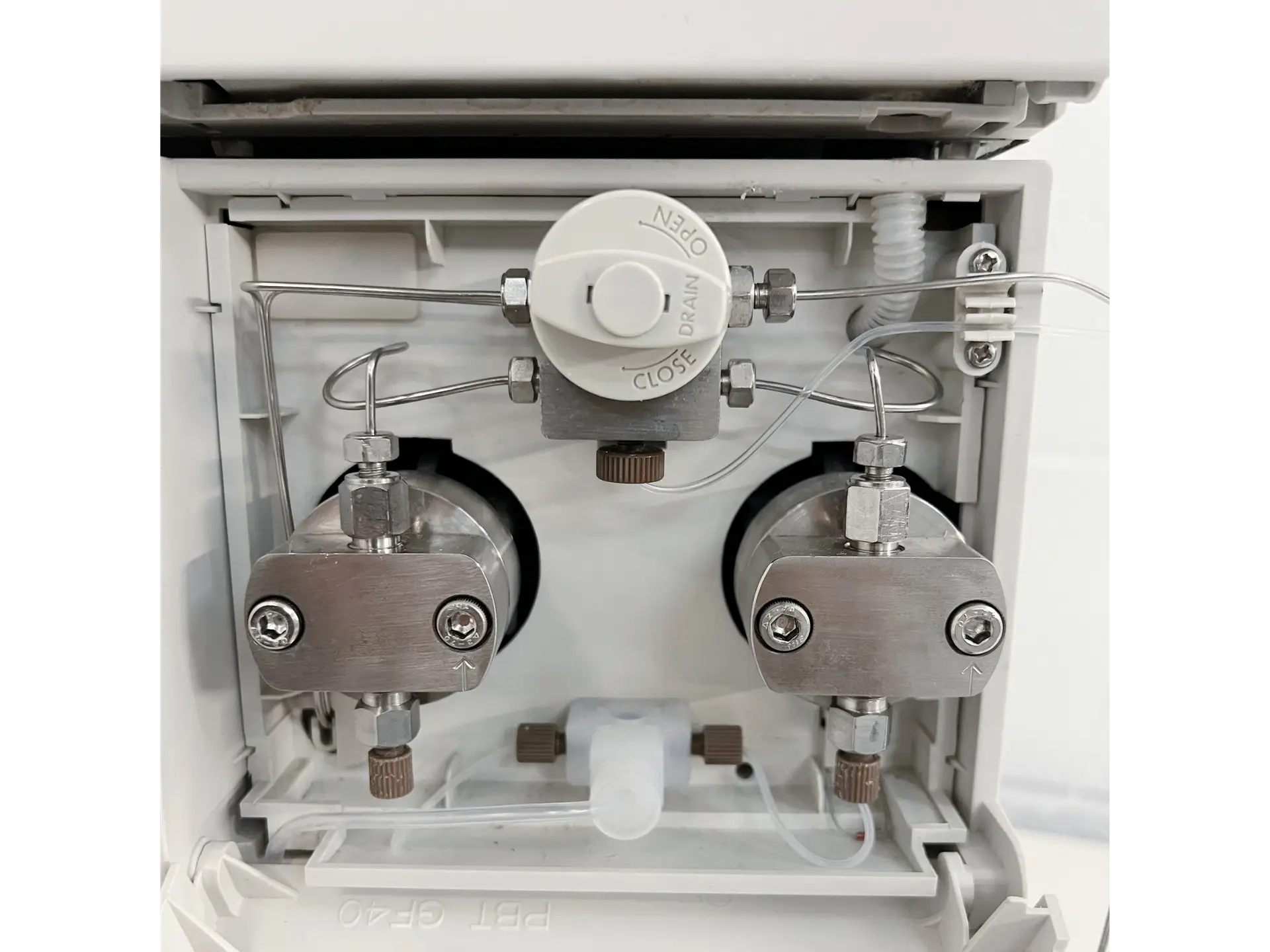

And two double reciprocating micro-plunger solvent delivery pumps (LC-10Avp). For stable, pulse-free solvent delivery, the LC-10Avp delivers an adaptable flow rate up to 9.999 ml/min and maintains flow accuracy within ±2% or ±2 μL/min.

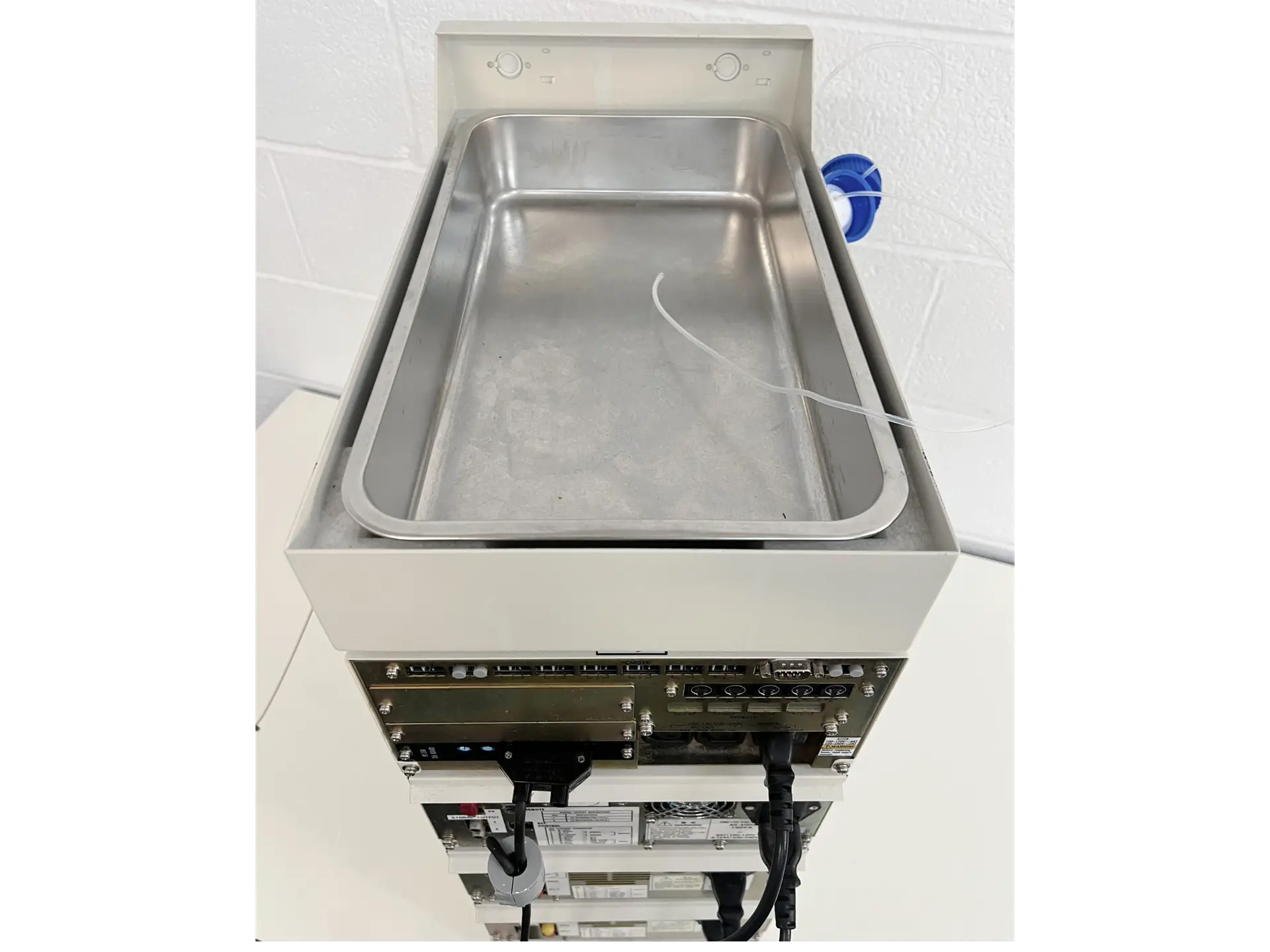

A solvent rack for storing effluent bottles is also included.
Key Features of the Shimadzu VP HPLC System
- 1 x System Controller (SCL-10Avp)
- 1 x Degasser (DGU-14A)
- 4 Channels
- Flow Rate: 20 mL/min per Line
- Internal Volume: 10 mL per Flow Line.
- 2 x Solvent Delivery Pumps (LC-10Avp)
- Flow Rate: 0.001 – 9.999 mL/min
- Flow Accuracy: ±2% or ±2 μL/min
- Maximum Pressure: 392 bar
- 1 x UV-VIS Detector (SPD-10Avp)
- Wavelength Range: 190 – 600 nm
- Spectral Bandwidth: 8 nm
- Wavelength Accuracy: ± 1 nm
- 1 x Solvent Rack
