Description

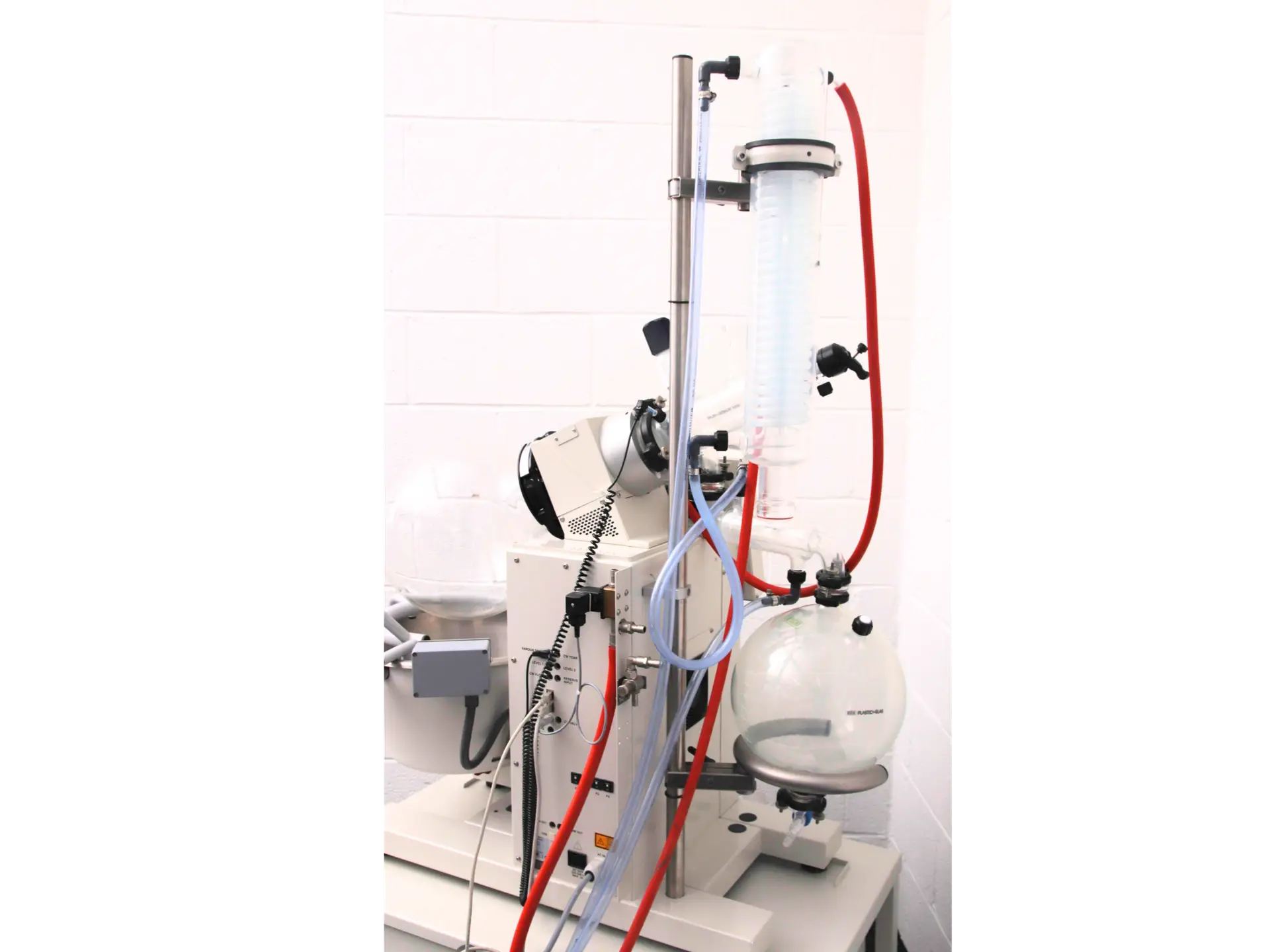

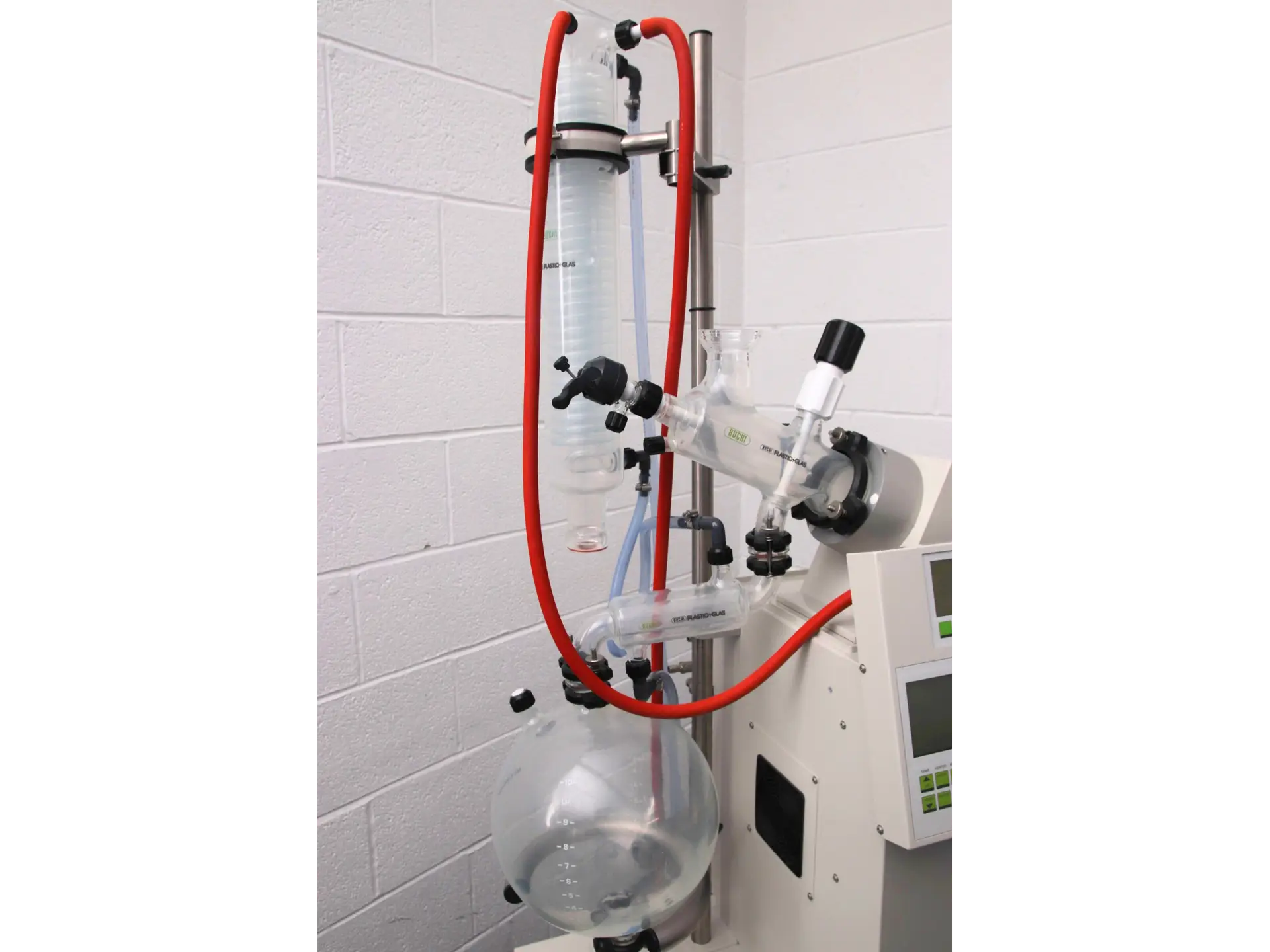

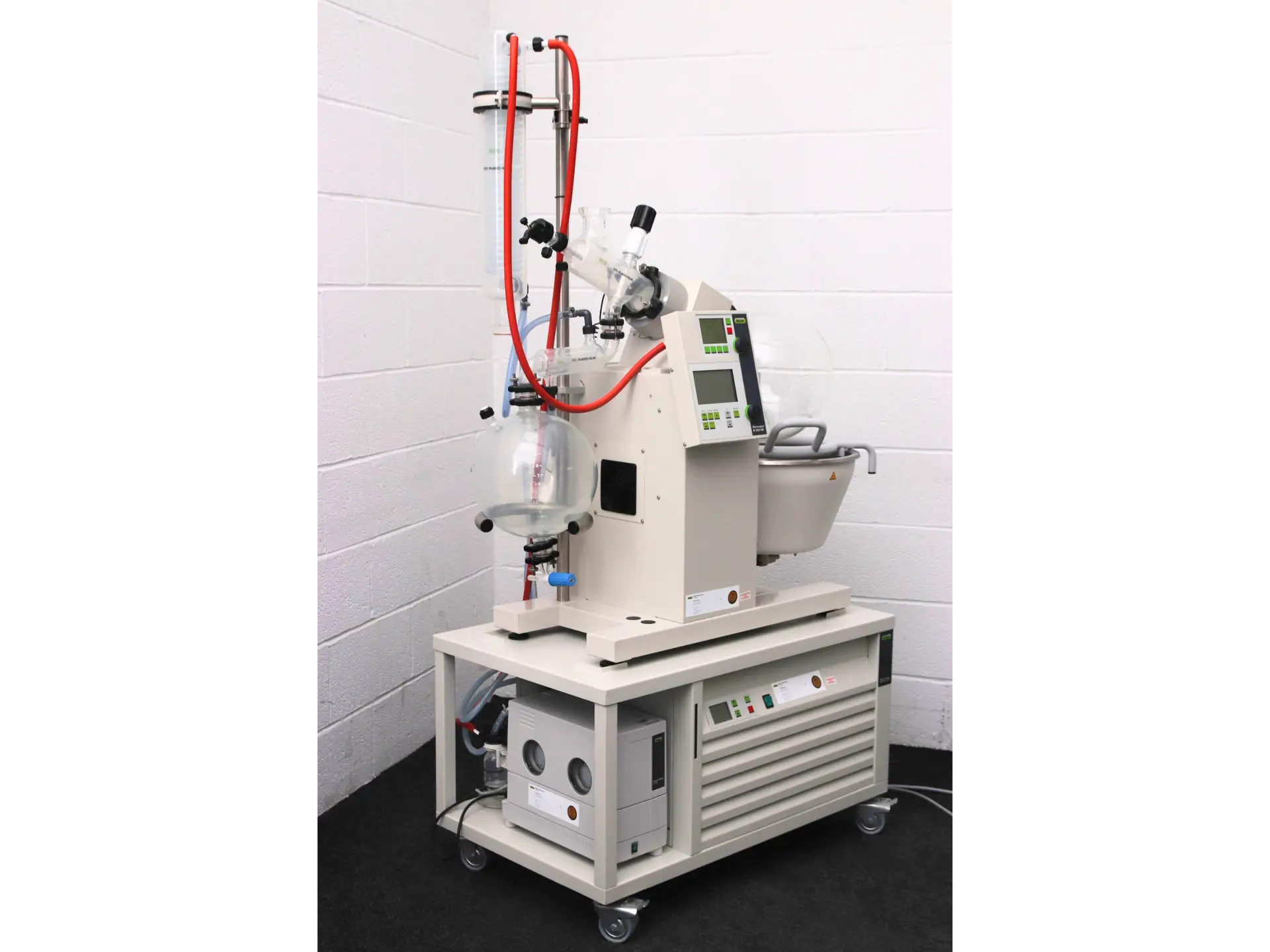

The RotaVapor R-220 SE is a rotary evaporator designed for a wide range of distillation applications in the industrial environment. It features soft start rotation, with electronic control. The rotation speeds range from 5 rpm to 150 rpm. The heating bath uses either water or oil as a medium and operates within a temperature range from ambient to 180 °C. The Buchi displays key parameters, including bath temperature, set bath temperature, vapour temperature, set rotation speed, actual vacuum, and set vacuum.
Features of the RotaVapor R-220 SE Rotary Evaporator:
- Safety Coated Glassware
- Excluding Evaporating Tank
- Temperature Protected Bath
- Separate Monitoring Circuit
- Manual Reset
- Error if 15 °C Above Set Temperature
- Rotation:
- Soft Start Rotation
- 1-Phase Motor
- 0.6 A
- 50 Hz
- 10 Nm
- Electronic Control
- Speed 5rpm to 150rpm
- Speed Accuracy
- 1rpm (at 5rpm)
- 5rpm (at 150rpm)
- Displays:
- Bath Temperature
- Set Bath Temperature
- Vapour Temperature
- Set Rotation Speed
- Actual Vacuum
- Set Vacuum

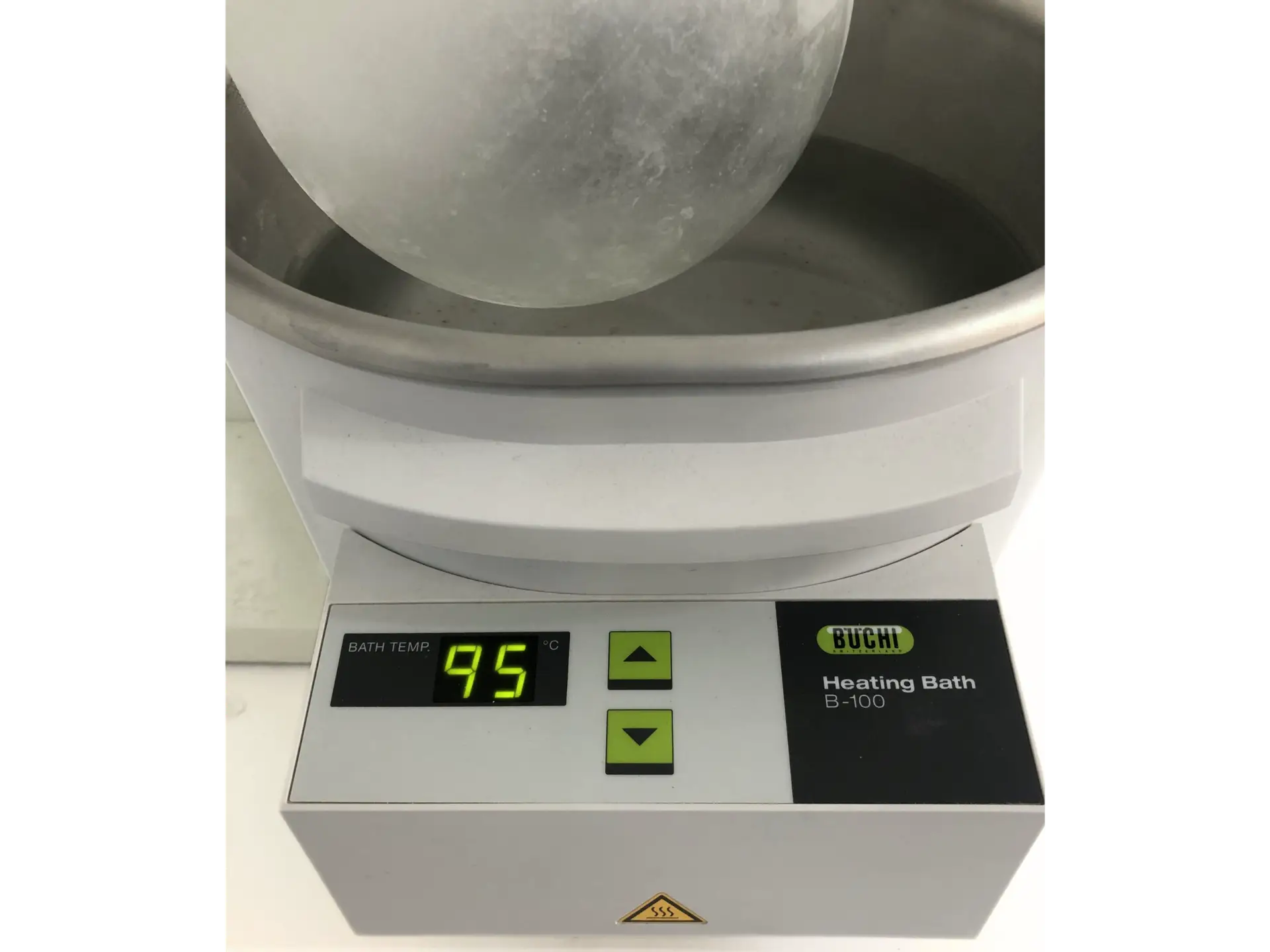

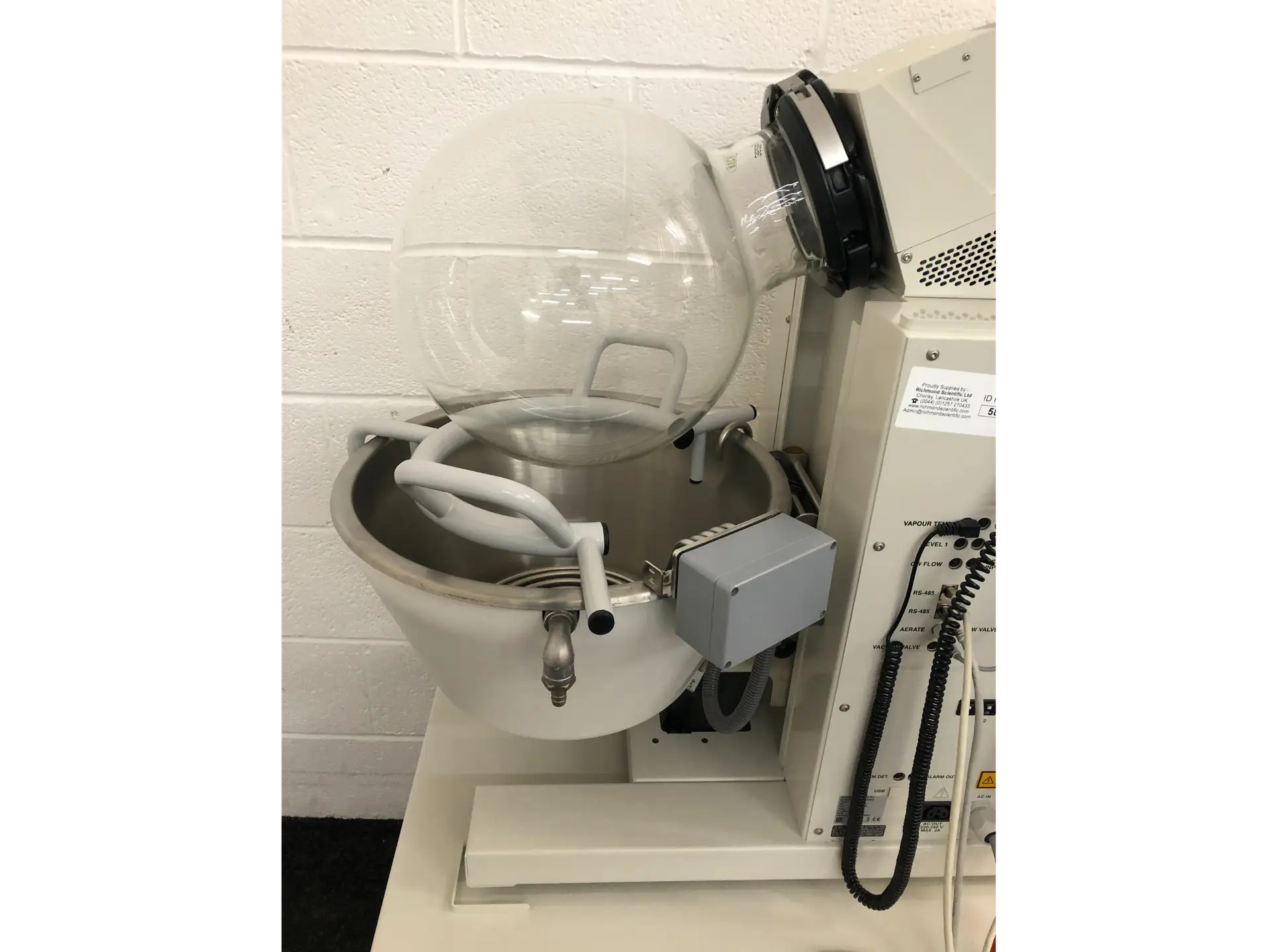

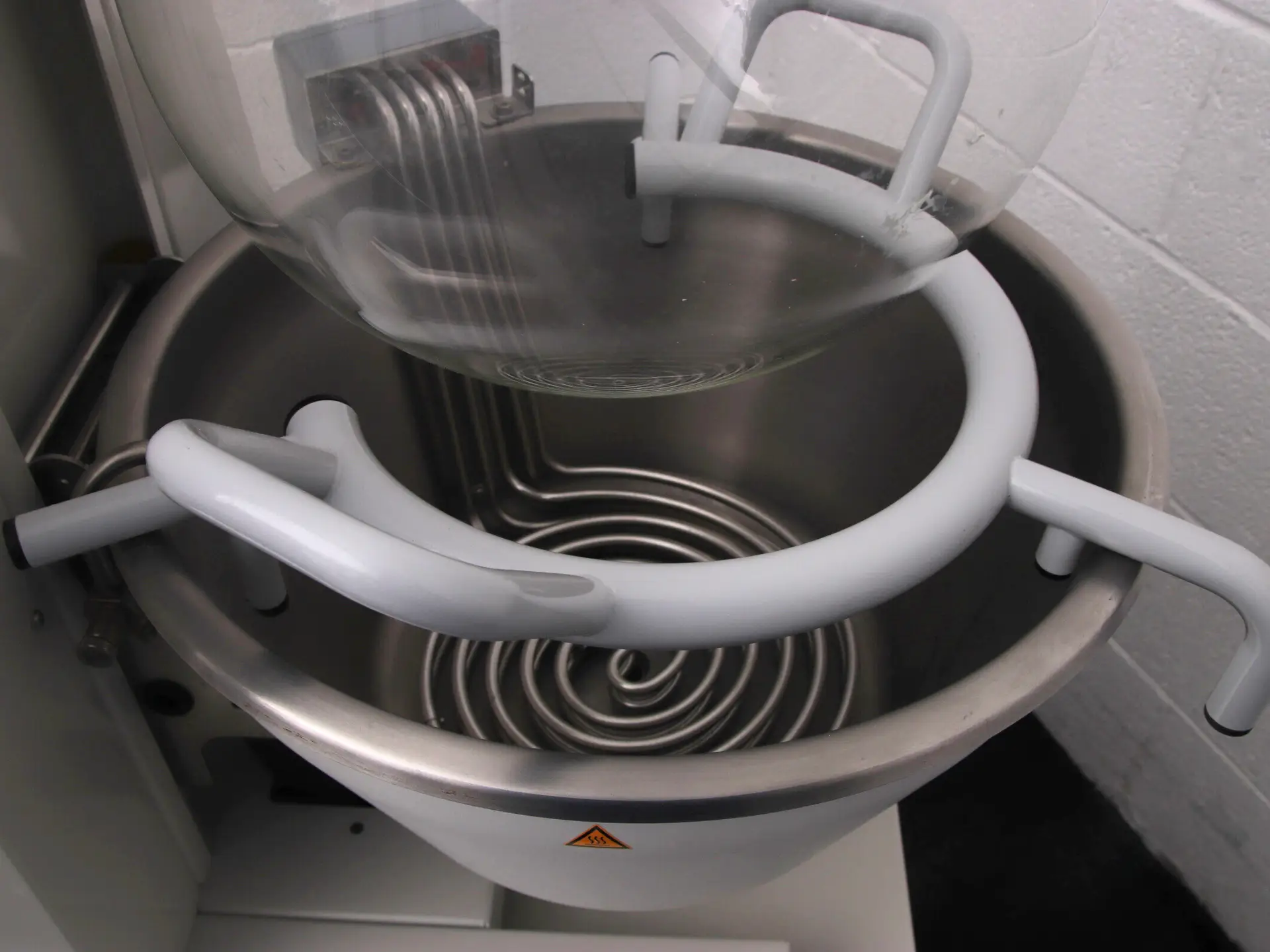

- Heating Bath:
- Water or Oil Medium
- Temperature Range Ambient to 180 °C
- Temperature Accuracy 2 °C
- Error Protocols:
- Bath Lowers
- Heater Switches Off
- Rotation Switches Off
- Error Type Display
- Reset by Main Switch
- Sensors:
- Vapour Temperature
- Bath Temperature
- Speed
- Vacuum
- Stainless Steel Housing
- Stainless Steel Bath Pan
- Stainless Steel Heating Element

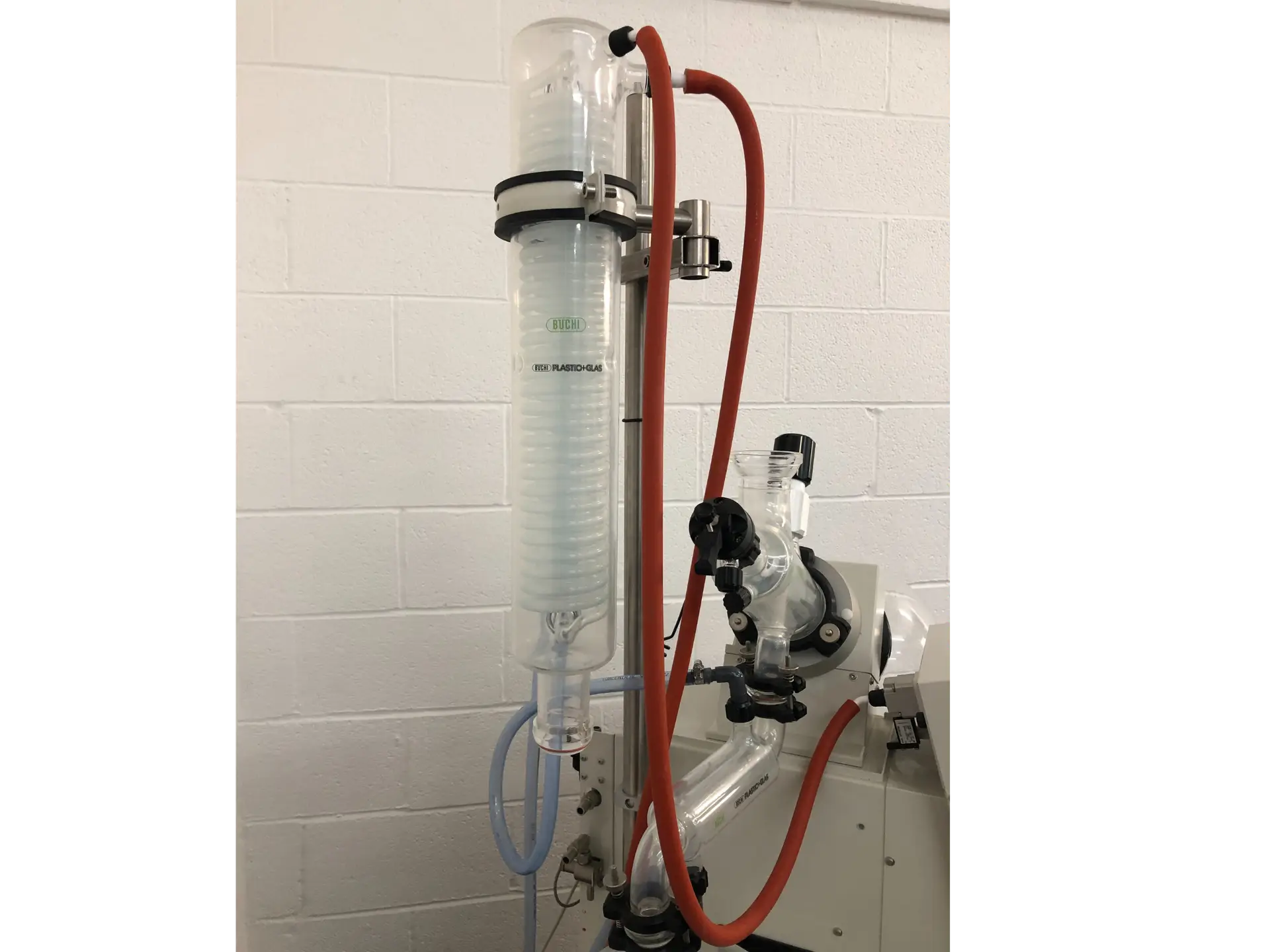

- Borosilicate Glass
- Cast Aluminium Gear Head
- FDA Approved Materials in Contact with Product
- External Dimensions (W x D x H) 120 x 56 x 180 cm

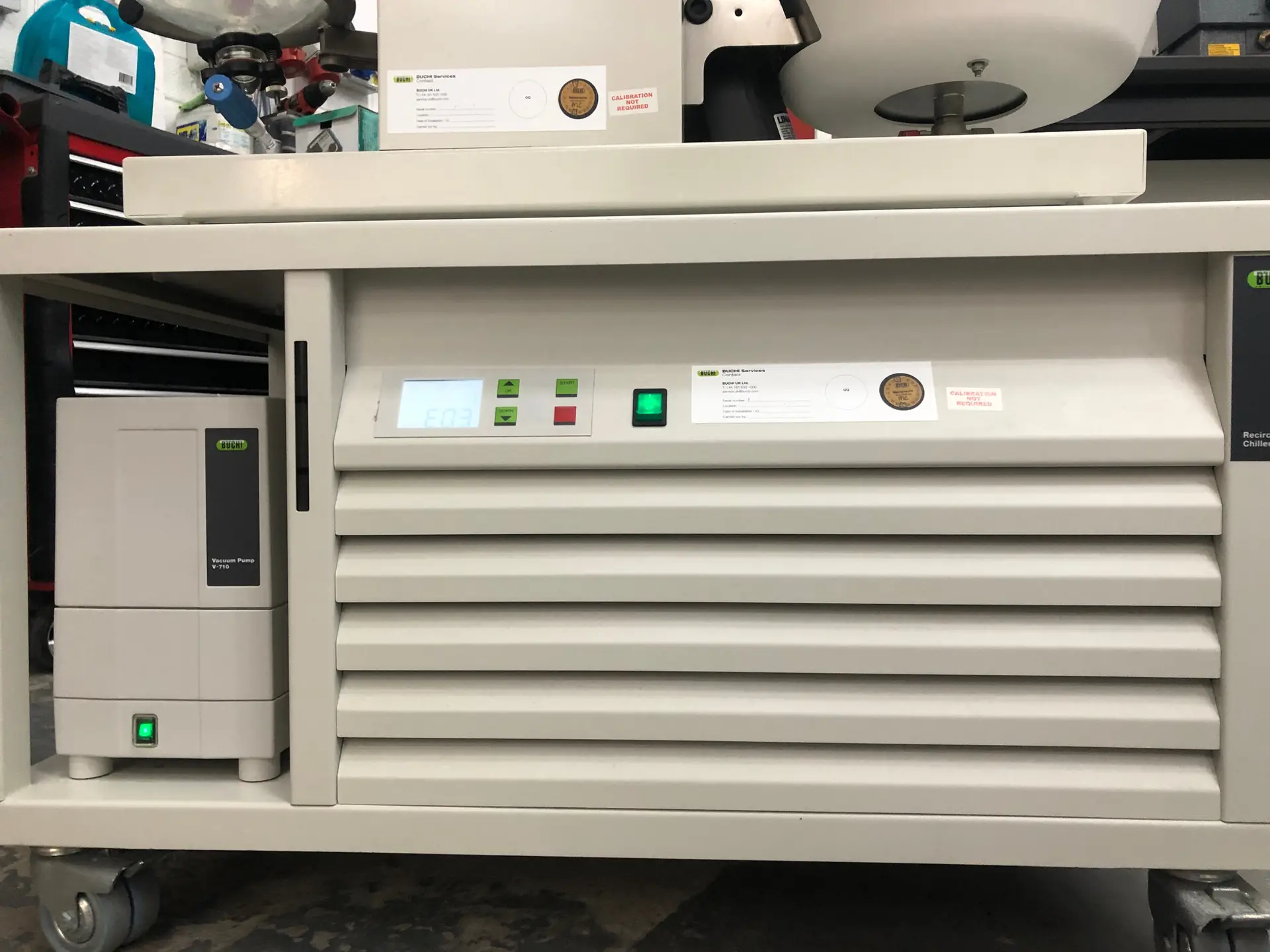

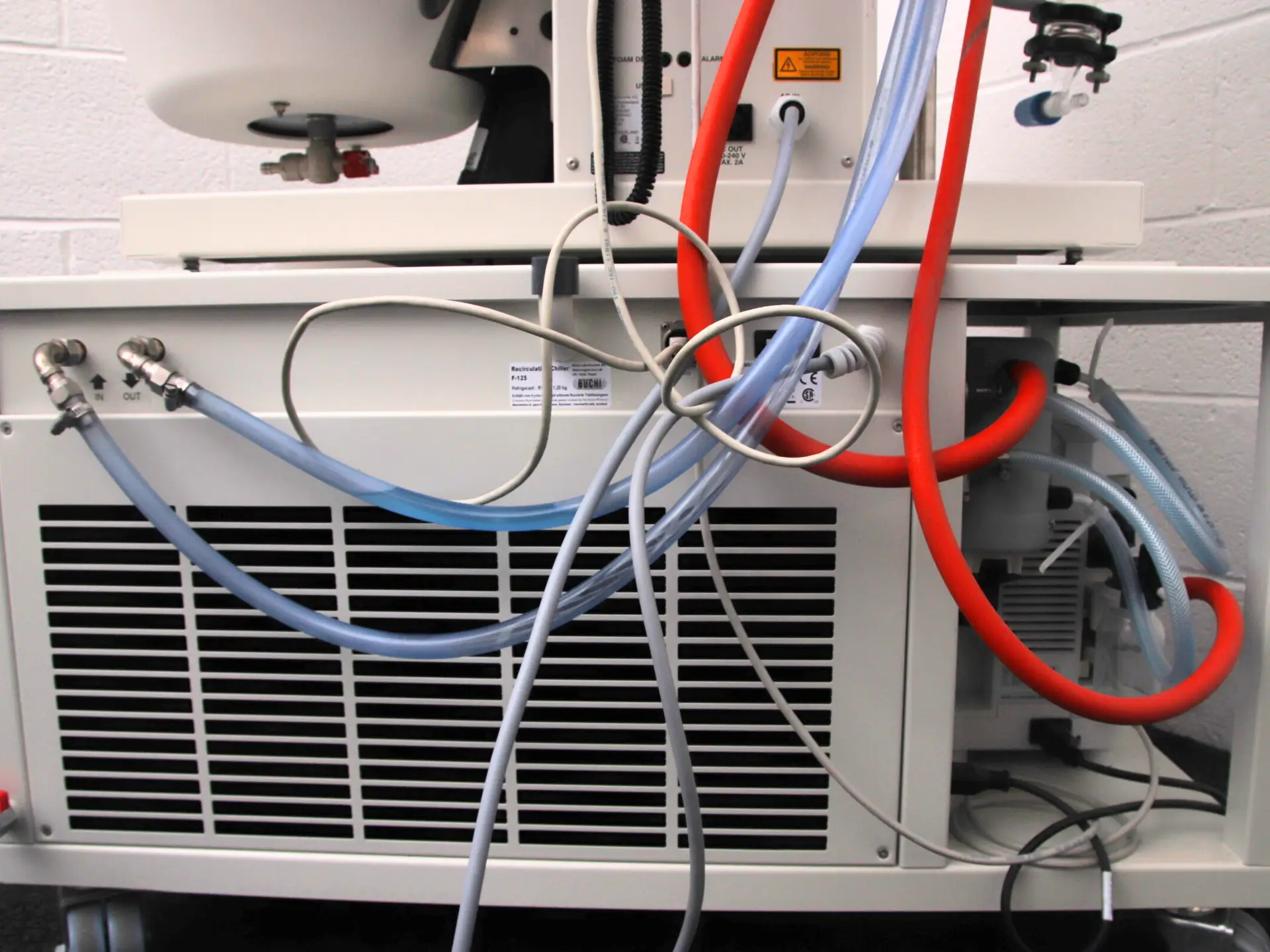

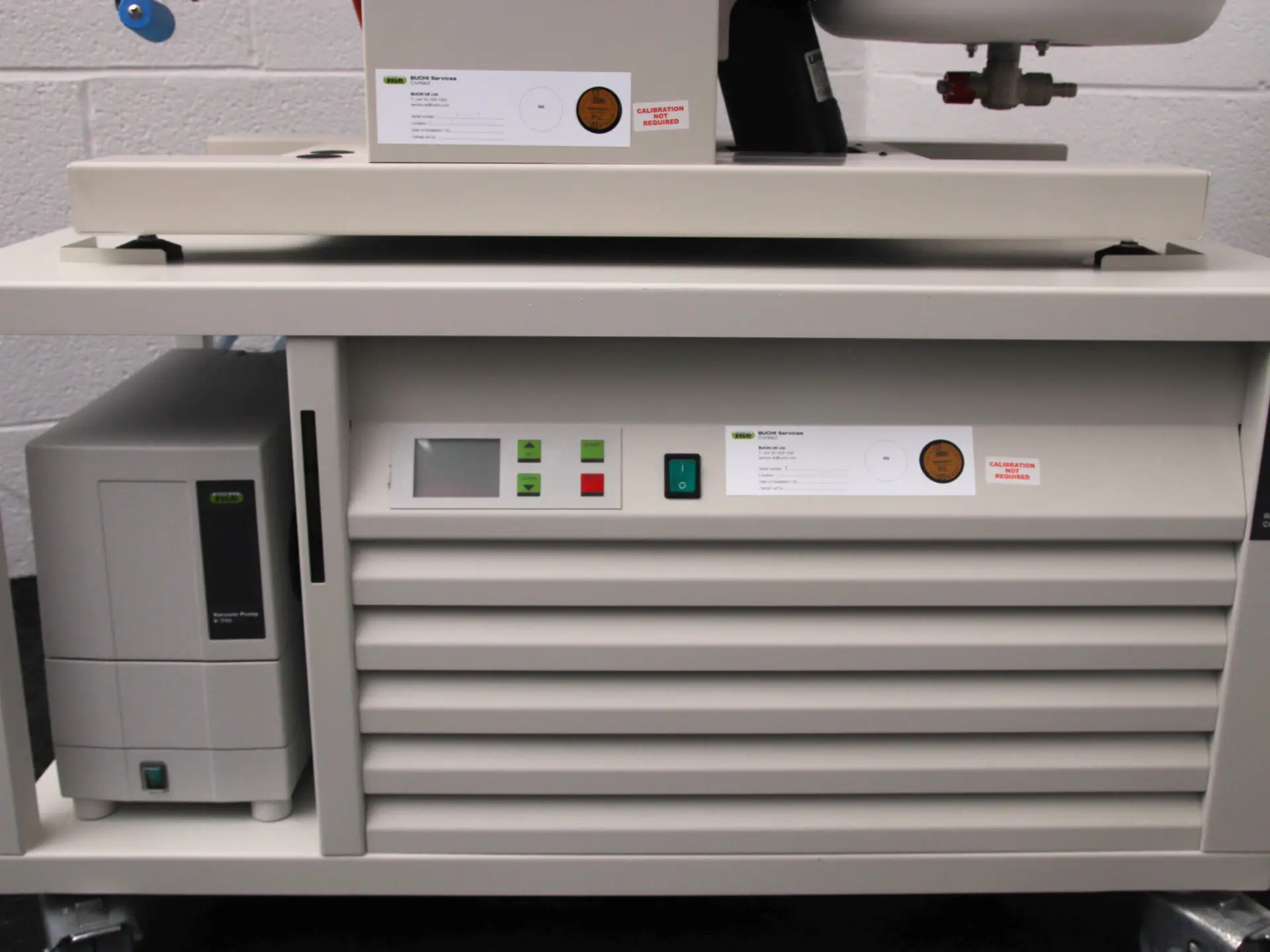

Features of the F0125 Recirculating Chiller
- Tank Volume 9L
- Pump Pressure 2.5 bar
- Flow Rate 14 L/min
- Temperature Range –10 °C to +25 °C
- Temperature Accuracy 1°C
- Ambient Temperature 5 – 35°C
- R 134a Refrigerant
- External Dimensions (W x D x H) 99 x 65 x 58 cm
Data Sheet for the Buchi RotaVapor R-220 SE Rotary Evaporator
