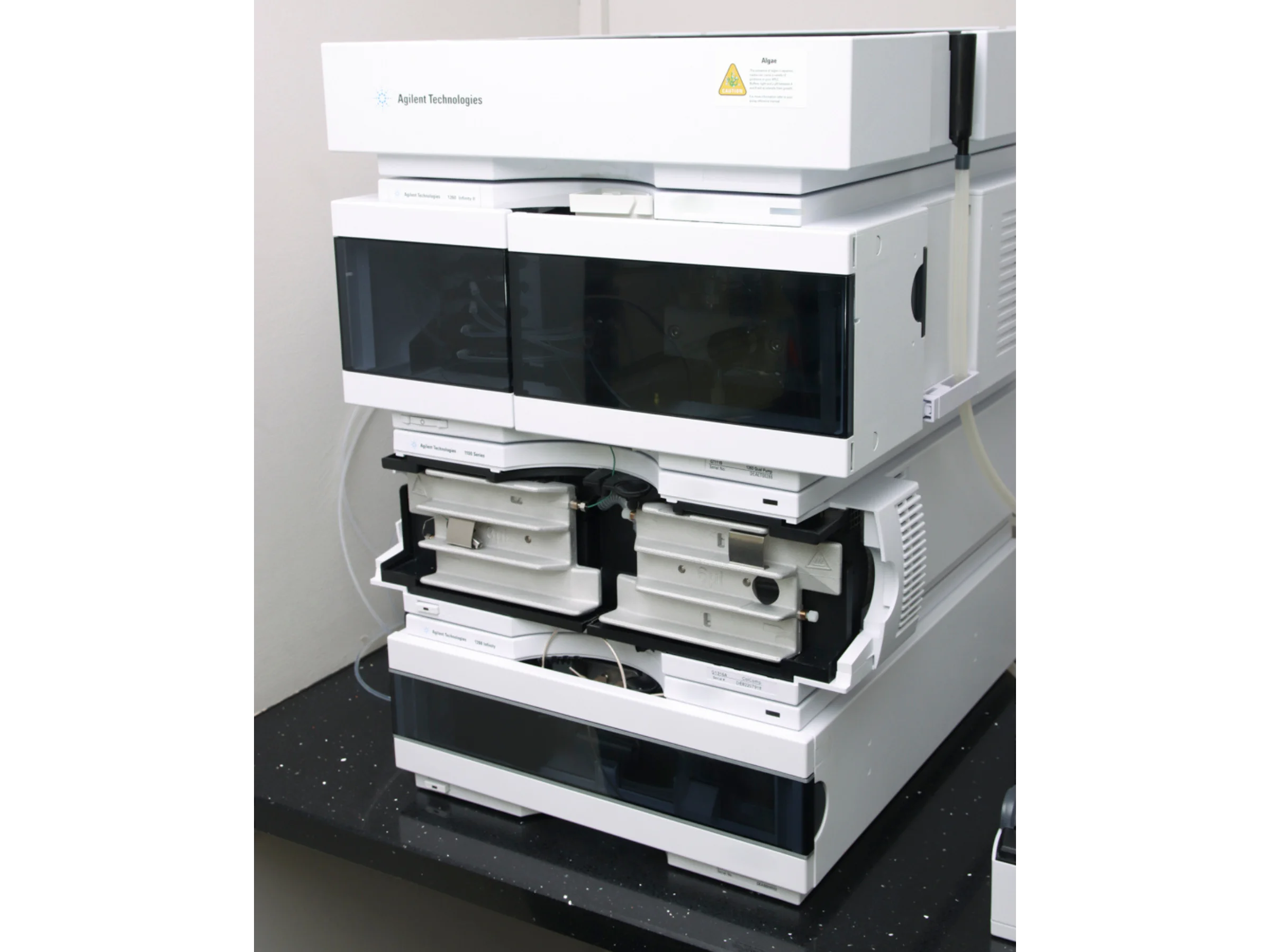

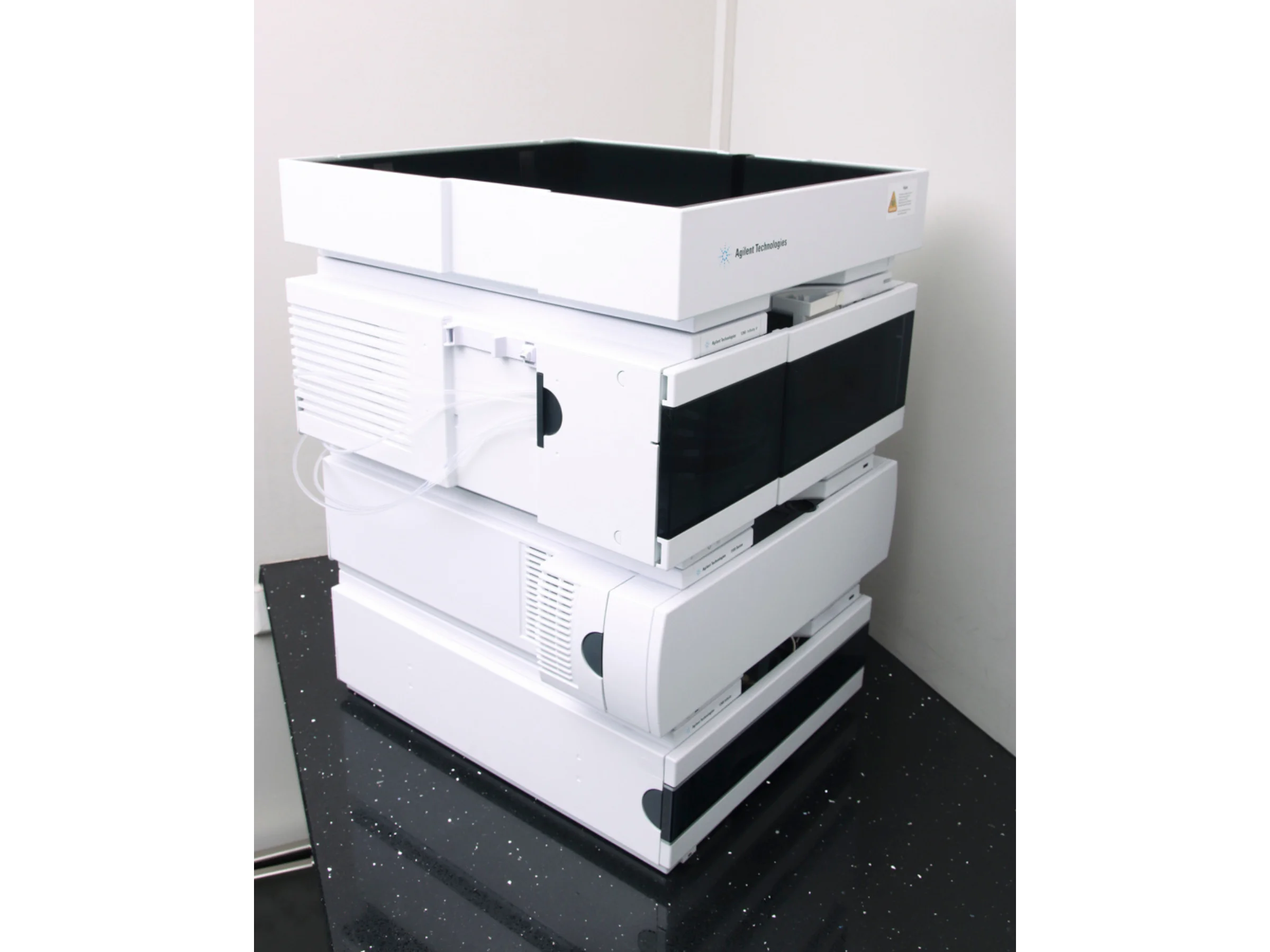

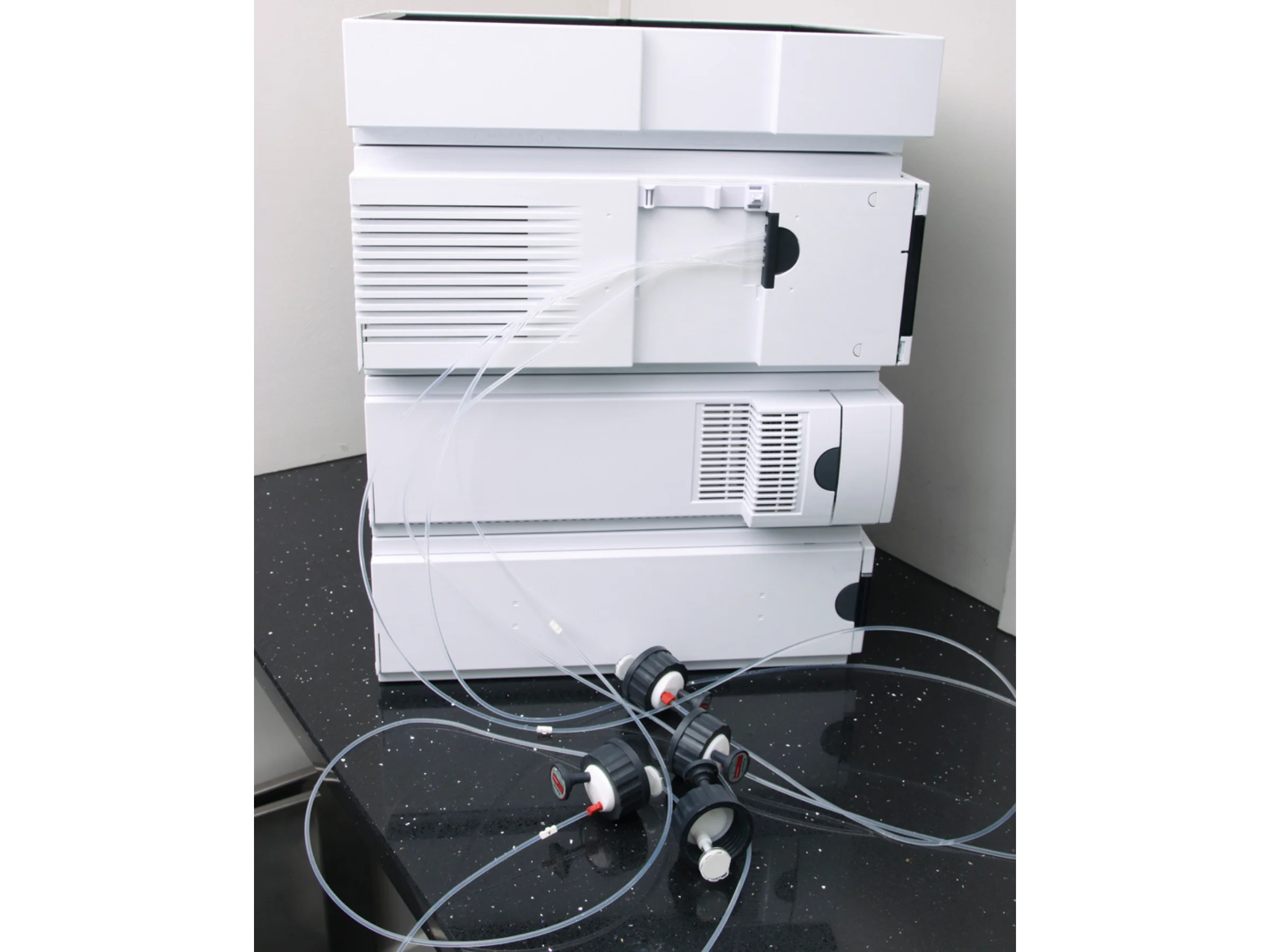

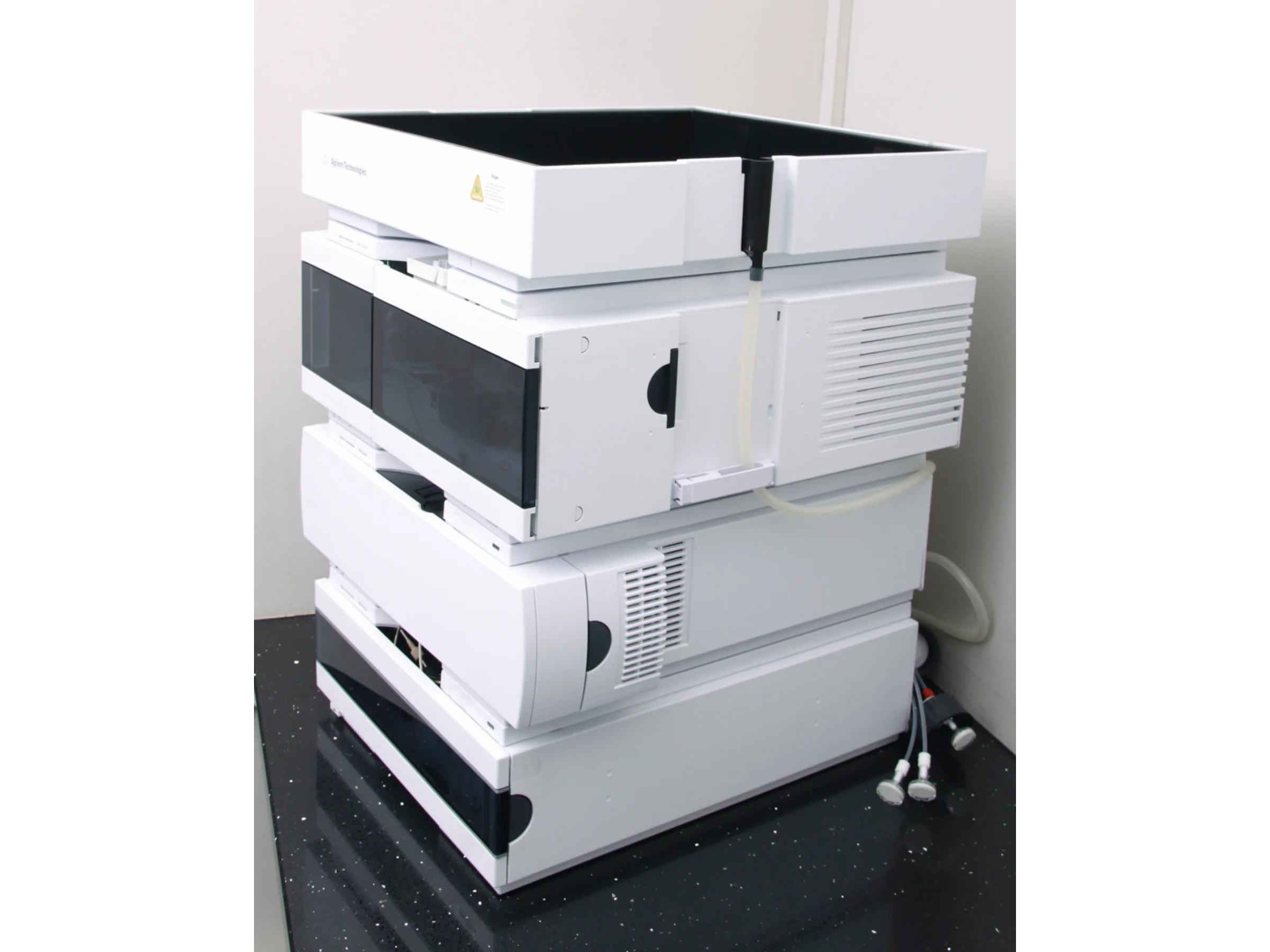

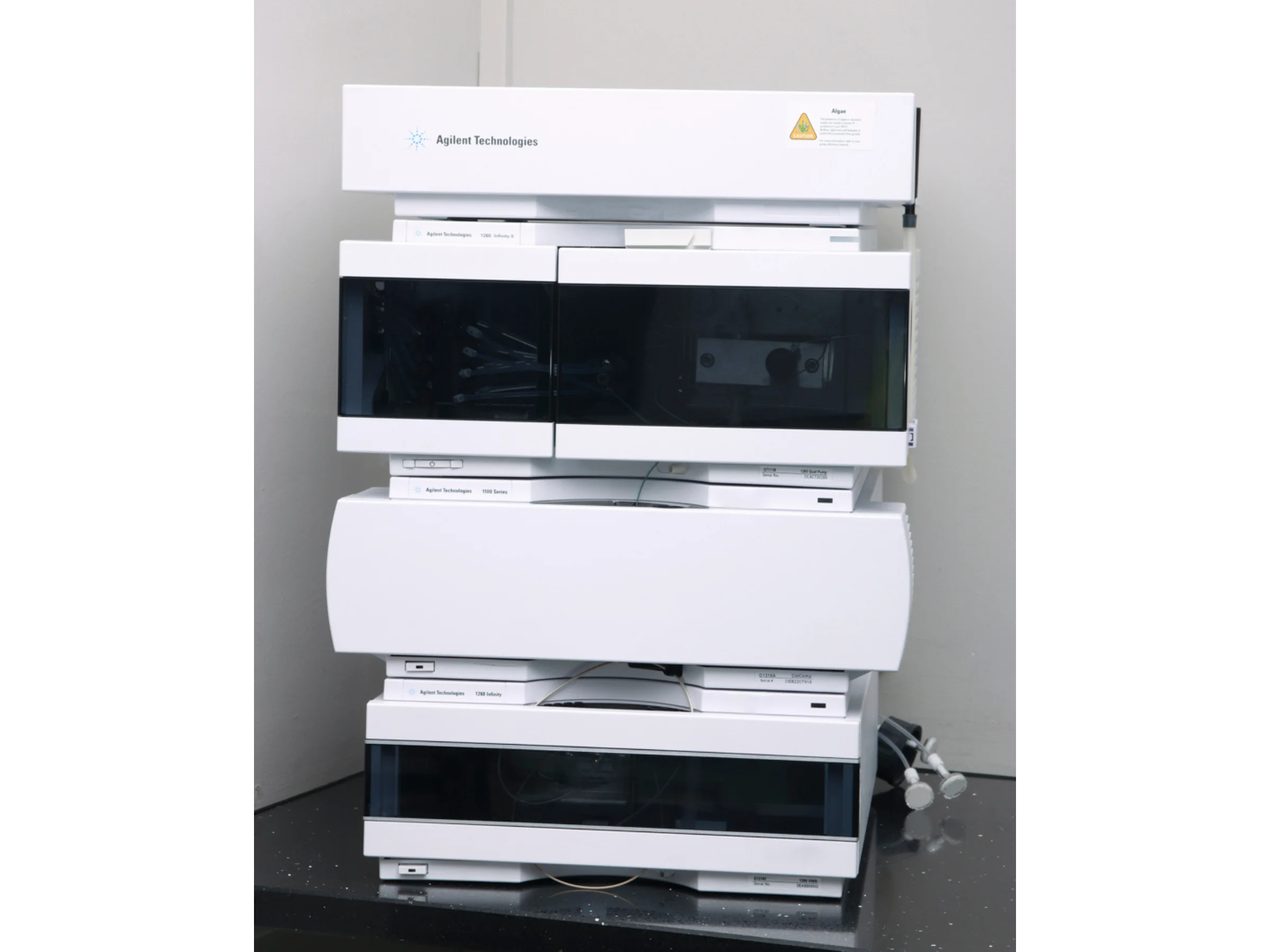

Agilent 1260 Infinity/1100 HPLC System with Quat Pump, ColComp and VWD

This Agilent 1260/1100 HPLC system includes a 1260 Infinity II Quat Pump, 1100 ColComp and 1260 Infinity VWD.

Covered by our 30 Days No Quibble RTB Guarantee.

This product has been sold!

If you’d like to chat to us about alternatives we have in stock, or be informed when similar stock becomes available, please contact us using the details below:

Telephone: +44 (0) 1257 270 433

Email: [email protected]


The Agilent 1260 Infinity/1100 HPLC System is a high performance liquid chromatography instrument thus providing reliability and robustness for daily use. The system will feature:

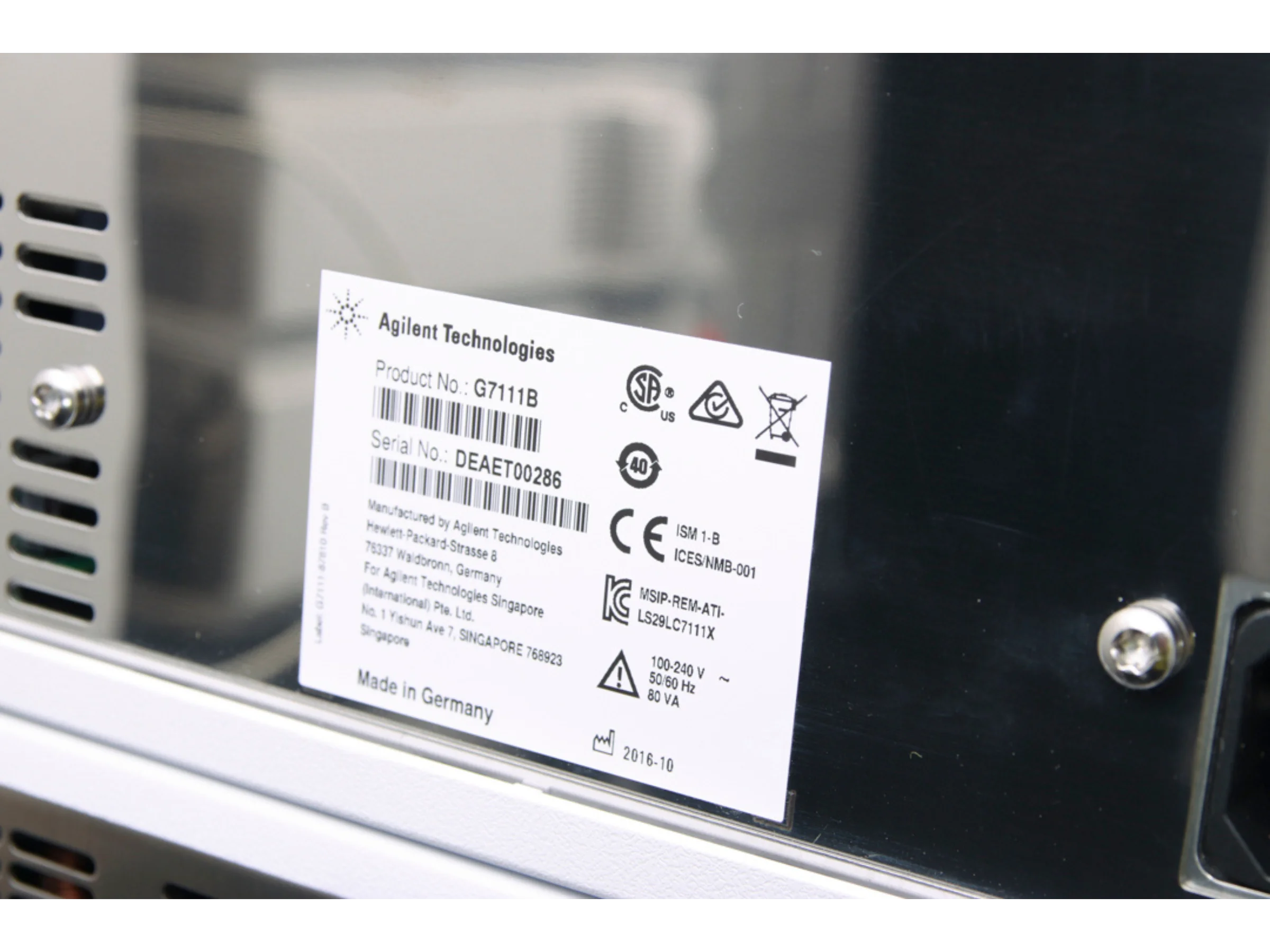

  • 1260 Infinity II QuatPump G7111B
  • 1100 Series ColComp G1316A

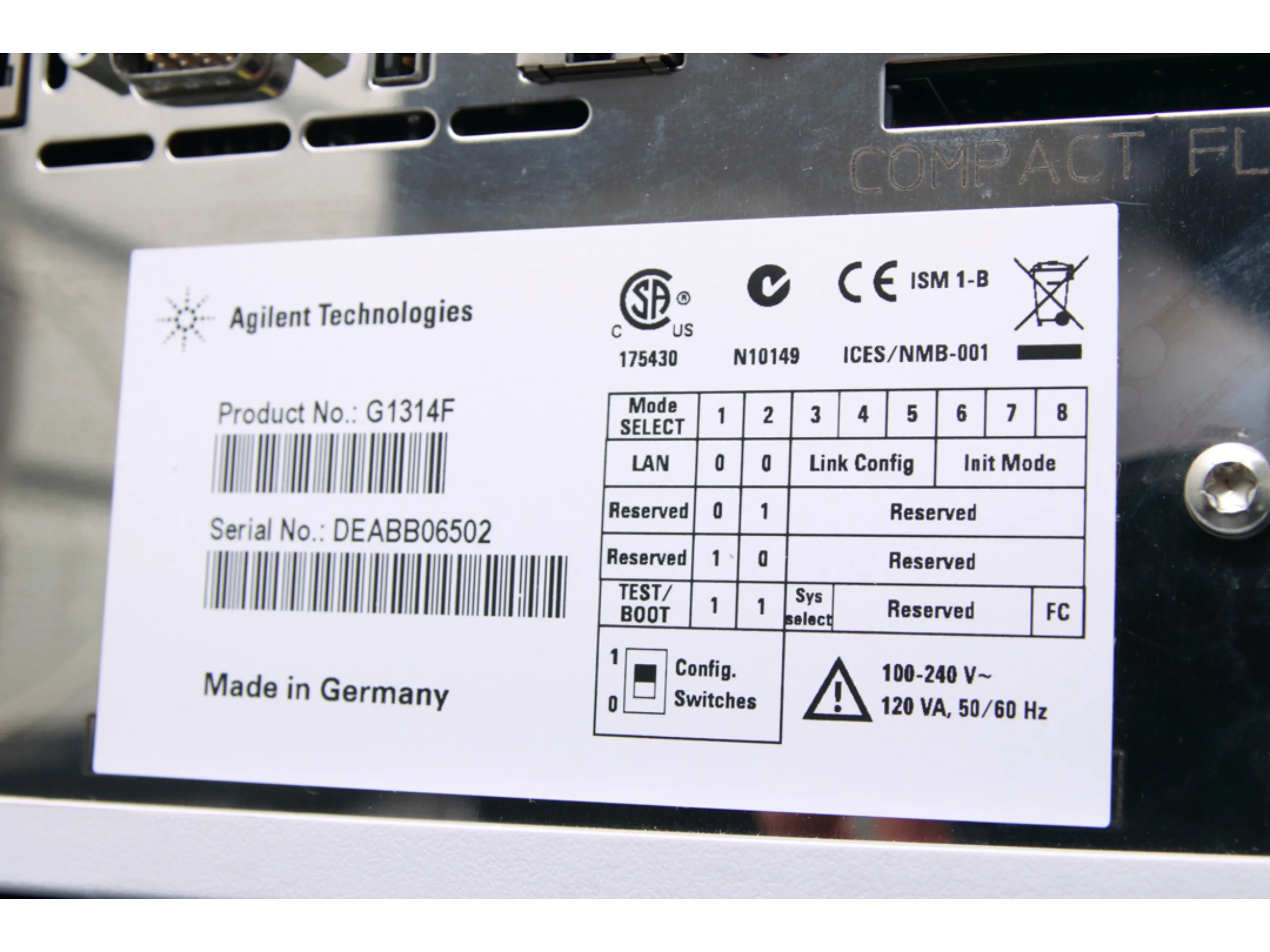

  • 1260 Infinity VWD G1314F
  • PC & Software

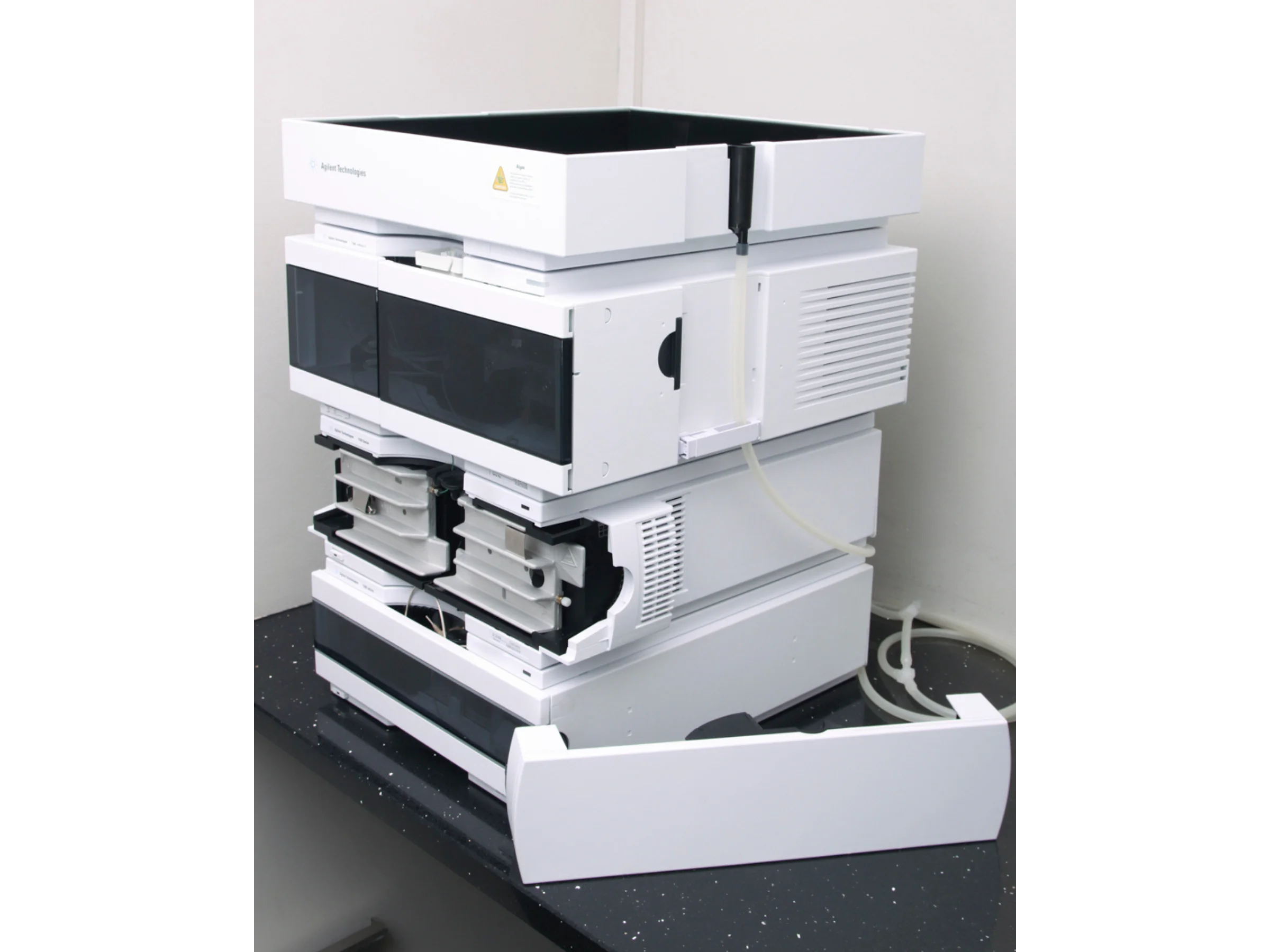

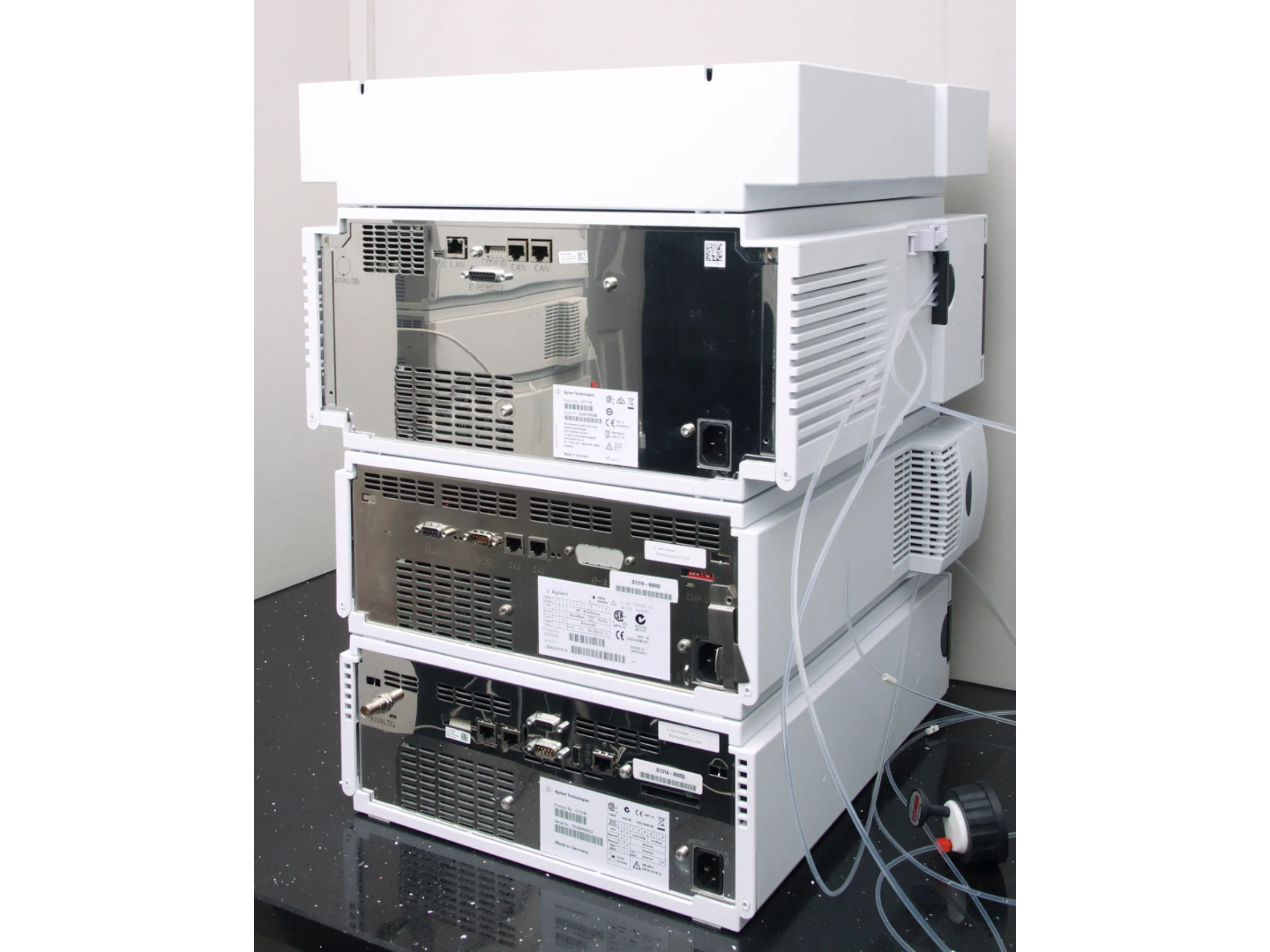

Module Breakdown of the Agilent 1260 Infinity/1100 HPLC System with Quat Pump, Colcomp and VWD

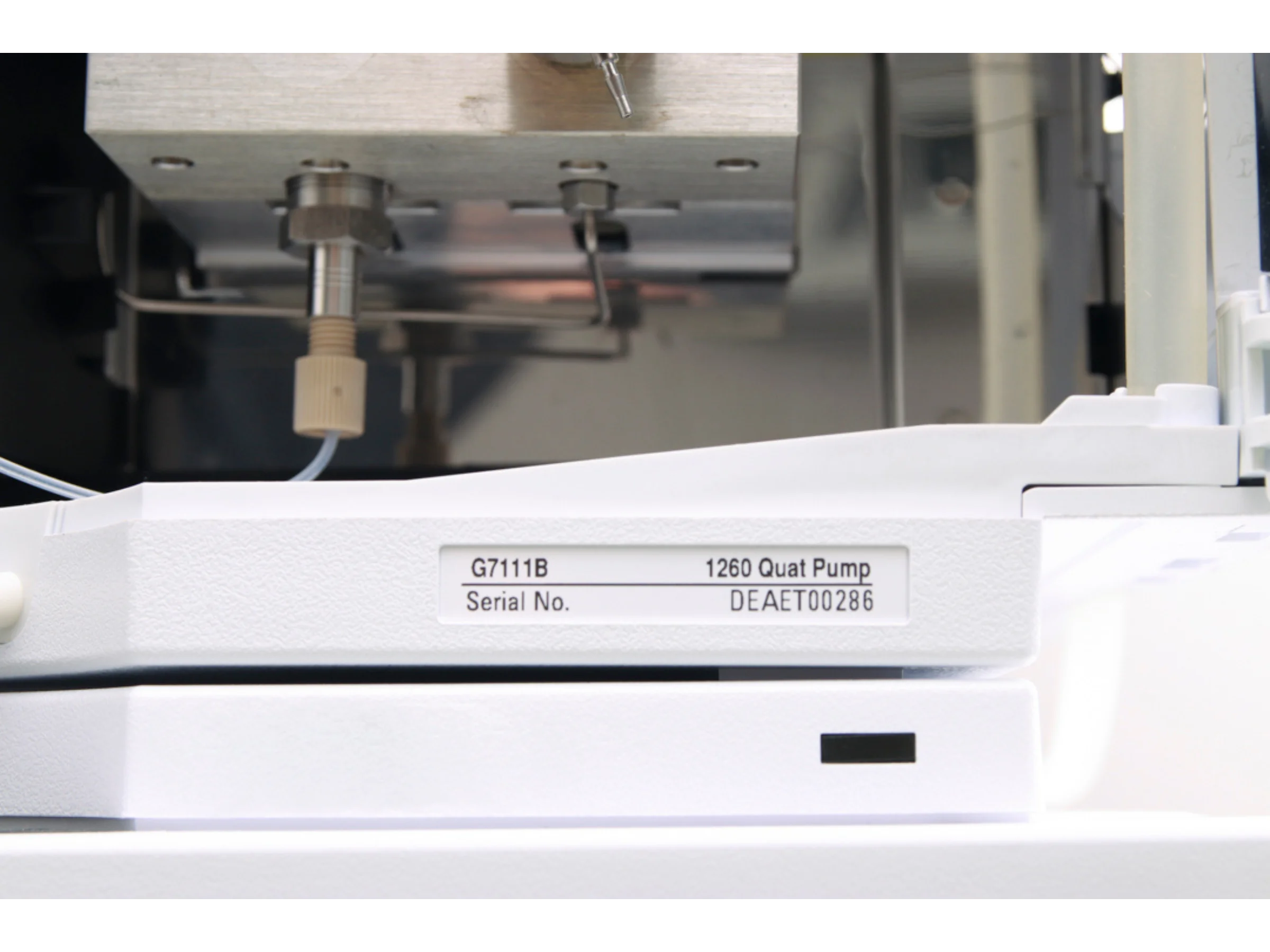

The first module of the Agilent 1260/1100 HPLC System is a 1260 Infinity II Quaternary Pump.

 Features of Agilent 1260 Infinity II Quaternary Pump:

  • Extended power range of up to 600 bar, allowing the use of smaller particle size columns as well as higher viscous solvents, resulting in higher resolution and faster separations
  • Virtually pulse-free, well mixed and stable solvent flows, thanks to its dual floating, precise servo-controlled pistons
  • Ideal for research and routine applications in the food, environmental and pharmaceutical and for method development
  • Wide flow range of up to 10 mL/min
  • Convenient access speeds up method development, preparation of mobile phases and system flushing as well as providing greater flexibility
  • Easy, fast and secure transfer of methods from HPLC to sub-2-micron columns

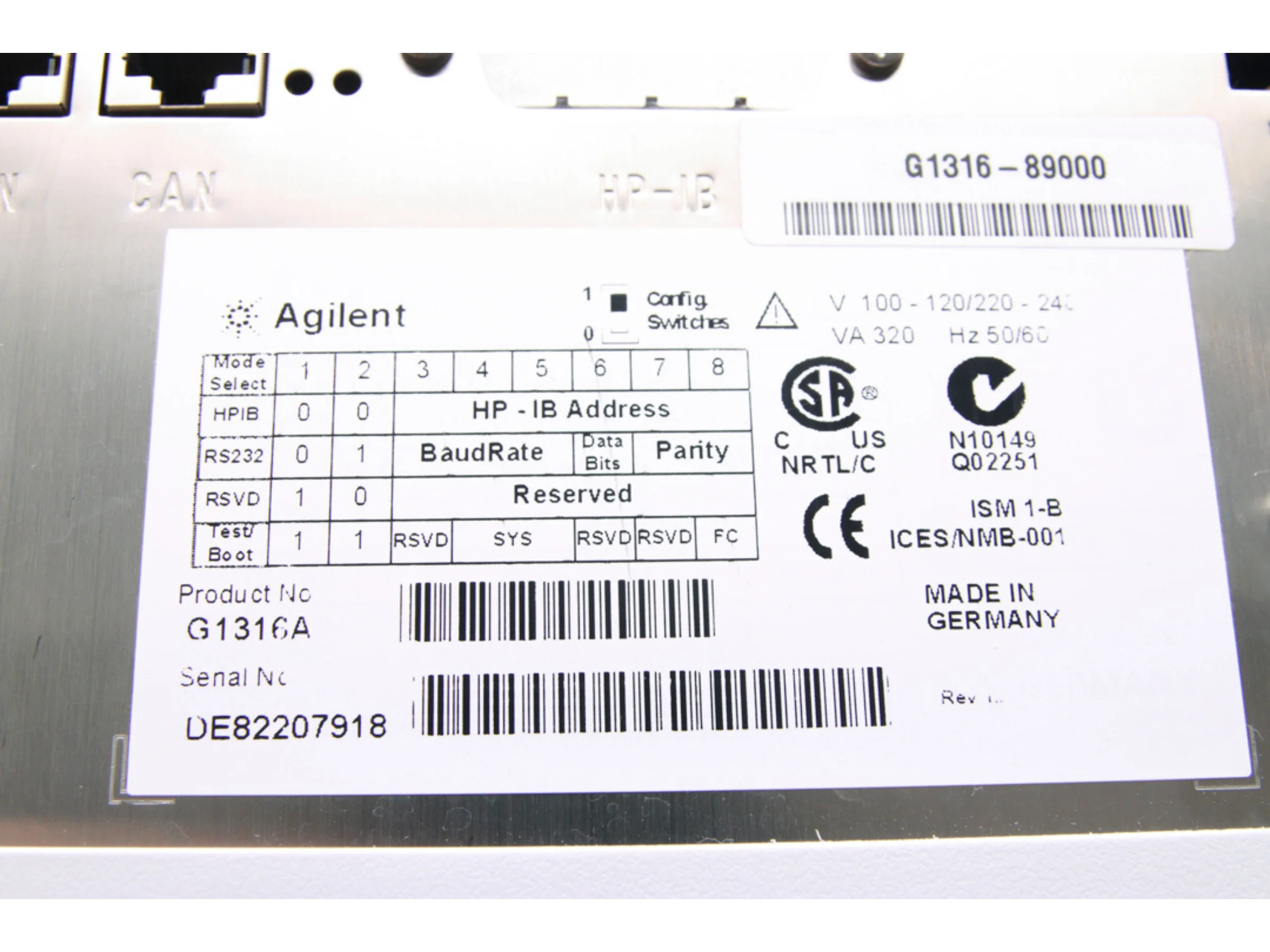

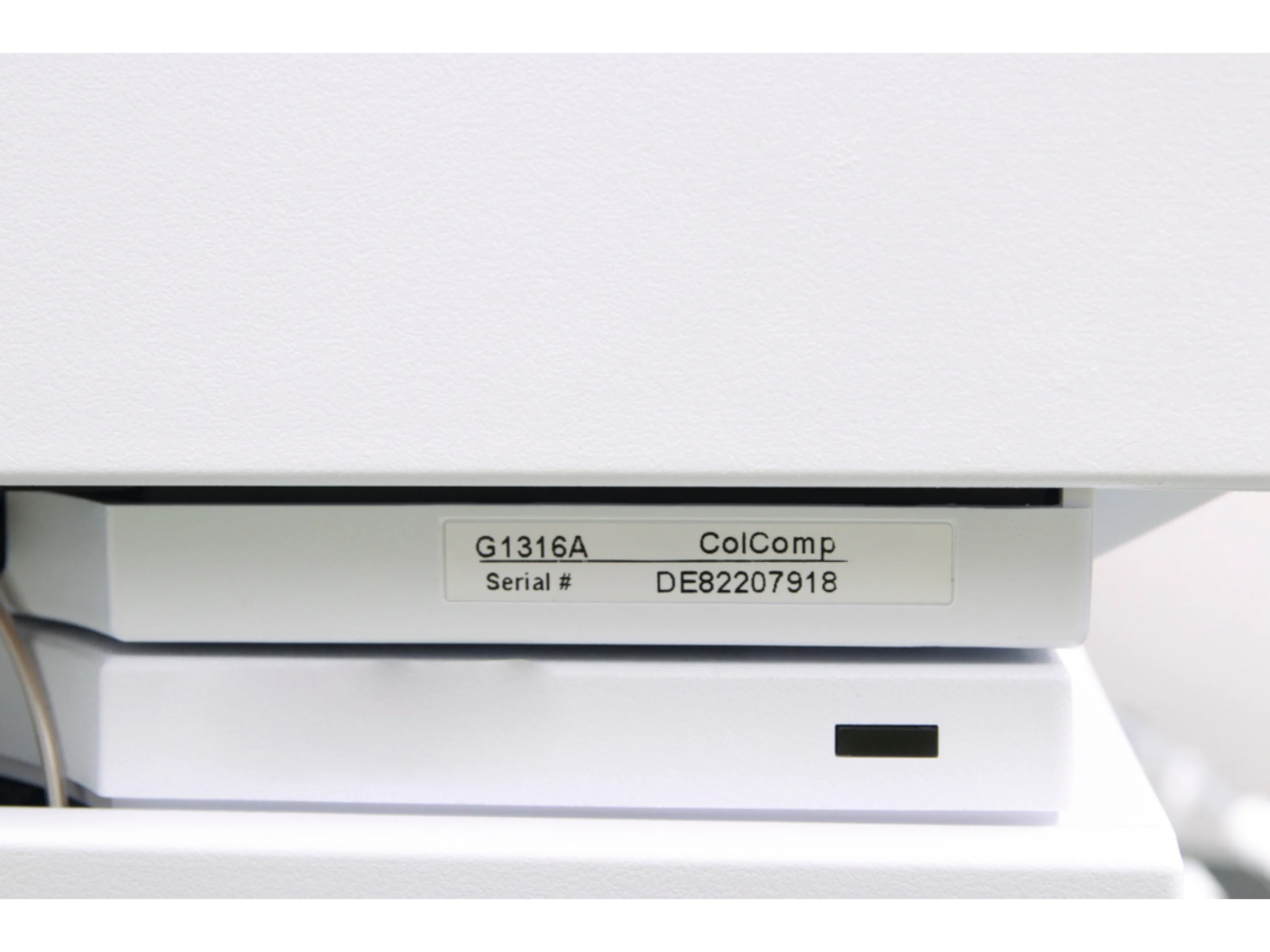

The second module of the Agilent 1260/1100 HPLC System is an 1100 Thermostatted Column Compartment.

Features of Agilent 1100 Series ColComp

  • Peltier heating and cooling from 10 degrees below ambient up to 80 degrees Centigrade
  • Holds up to three 30-cm columns
  • Two independently programmable heat exchangers
  • Electronic column-identification module

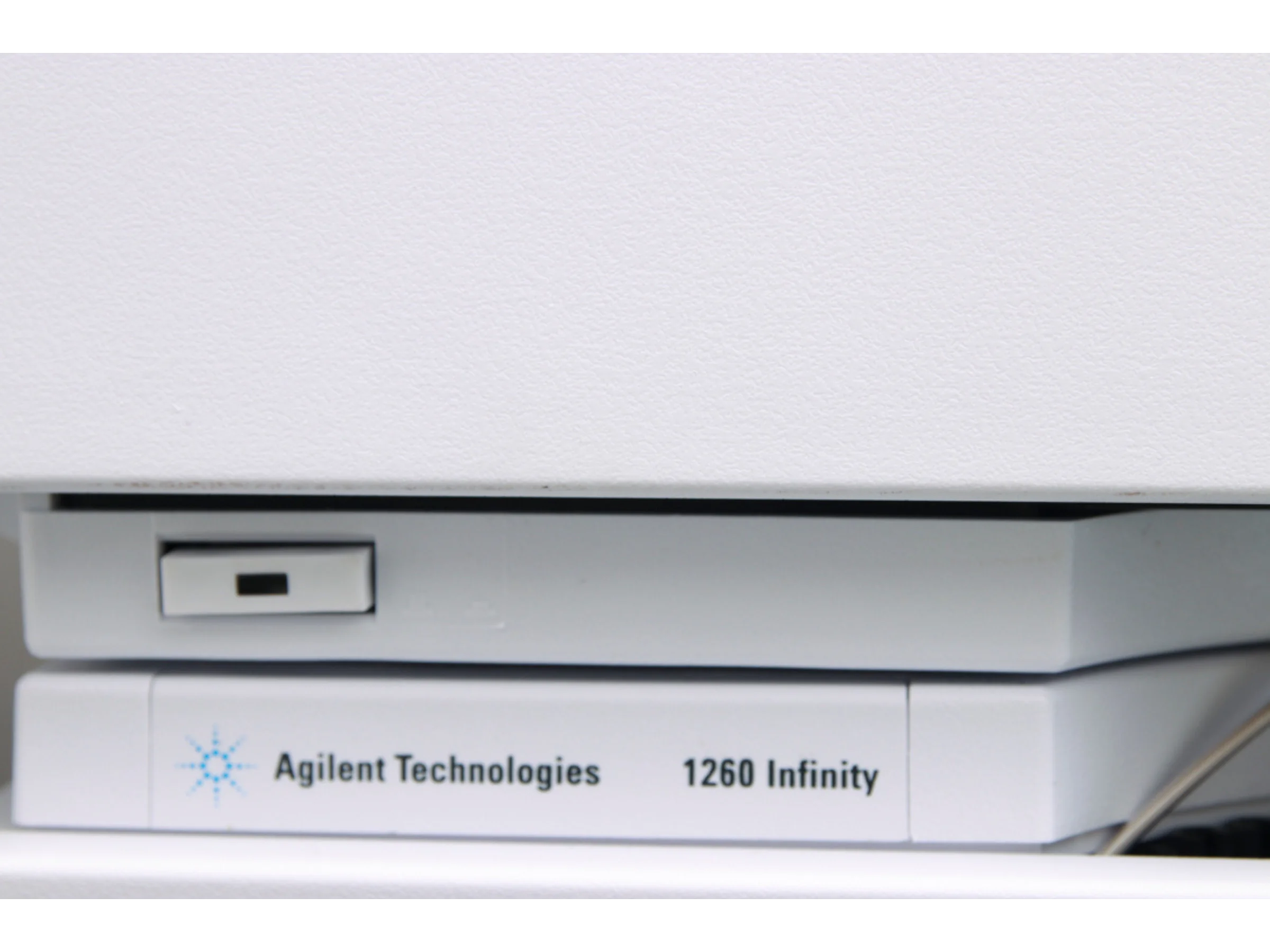

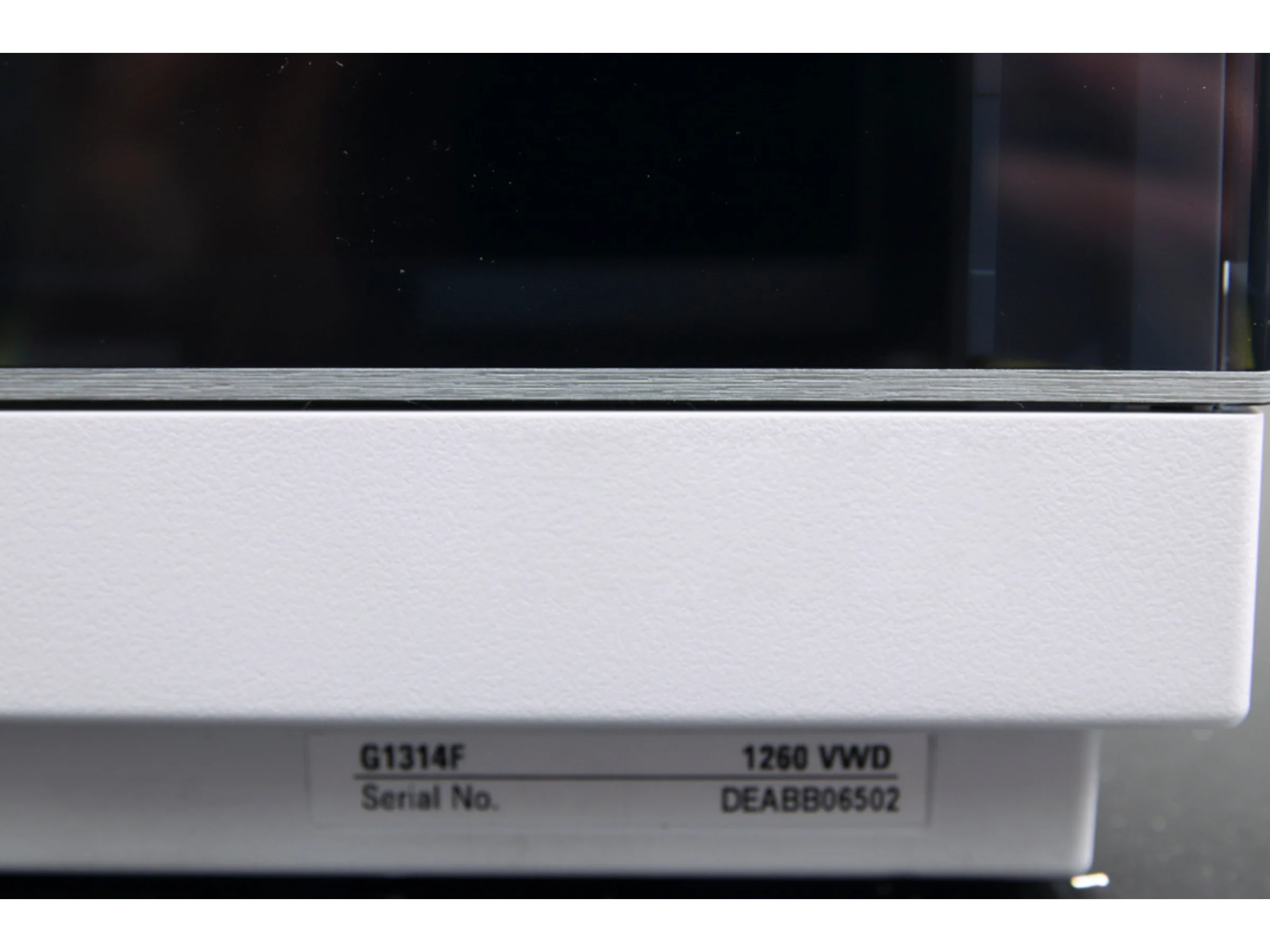

The third module of the Agilent 1260/1100 HPLC System is a 1260 Infinity Variable Wavelength Detector, designed to deliver robust quantification of trace level components and more analyte information per run.

Features of Agilent 1260 Infinity VWD :

  • Deuterium lamp for high-intensity and low detection limit over a wavelength range of 190 to 600 nm

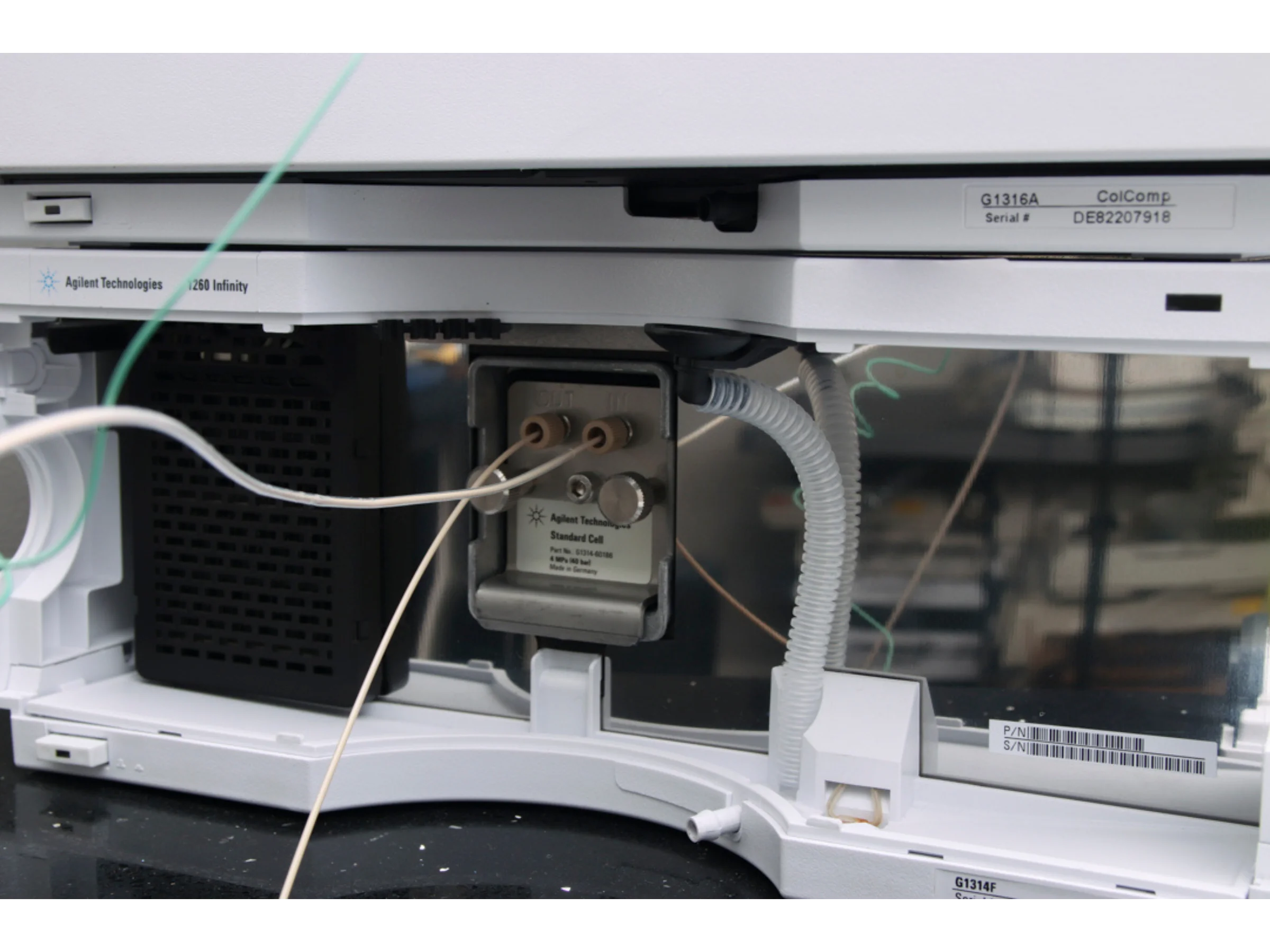

  • Easy front access to the lamp and flow cell for quick replacement
  • Built-in holmium oxide filter for fast wavelength accuracy verification
  • Dual-wavelength capabilities for more analyte information per run
  • Fast wavelength optimization with stop-flow wavelength scanning
  • Radio frequency identification technology for flow cells as well as lamps for maximum data traceability


Additional information

Weight60 kg
Dimensions44 × 41 × 56 cm


1100 Series, 1260 Infinity II, 1260 Infinity




30 days (Richmond Promise)


User Manual for Agilent 1100 Series Thermostatted Column Compartment

User Manual for Agilent 1260 Infinity II Quaternary Pump

User Manual for Agilent 1260 Infinity Variable Wavelenght Detector
