Description

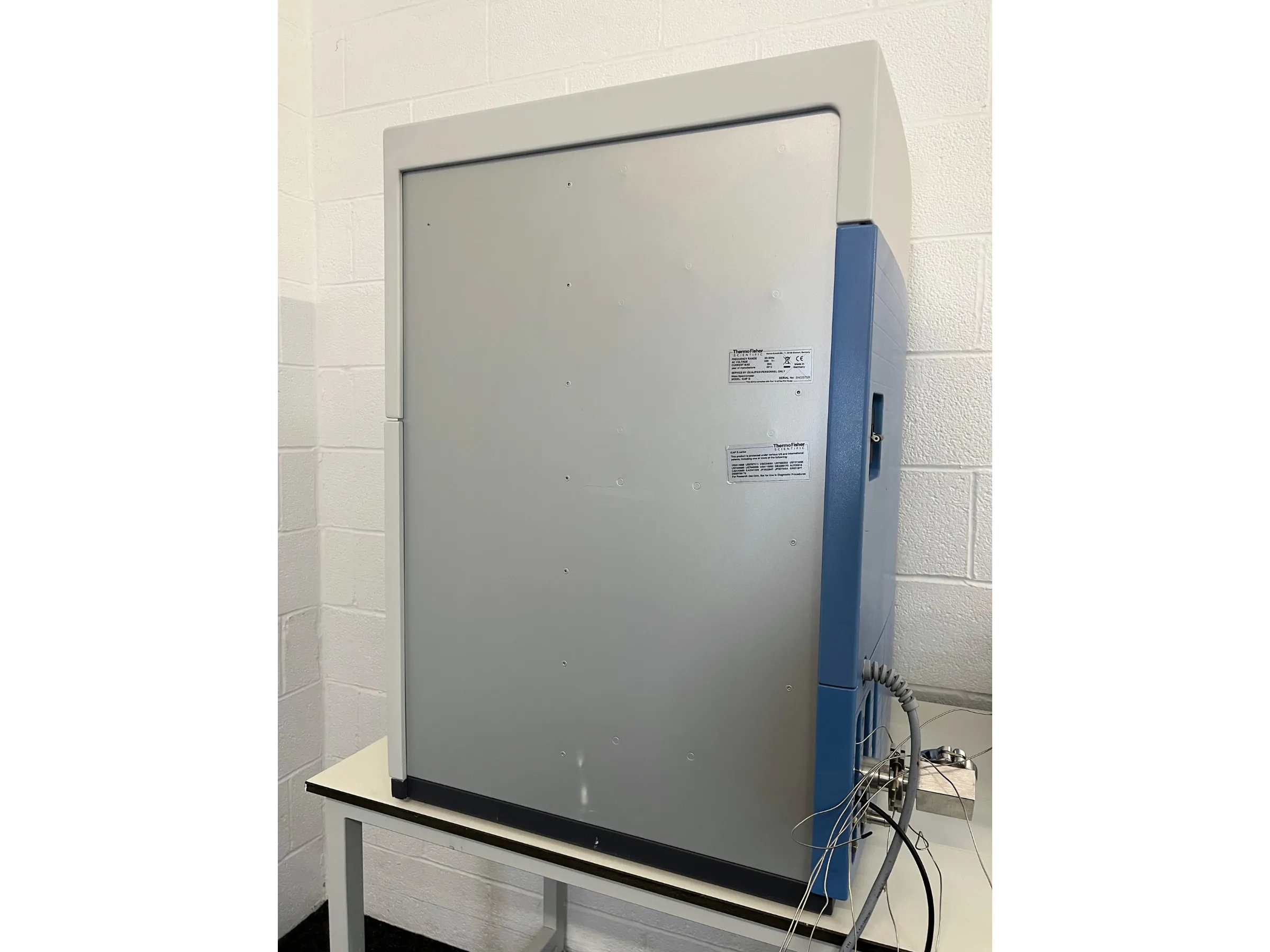

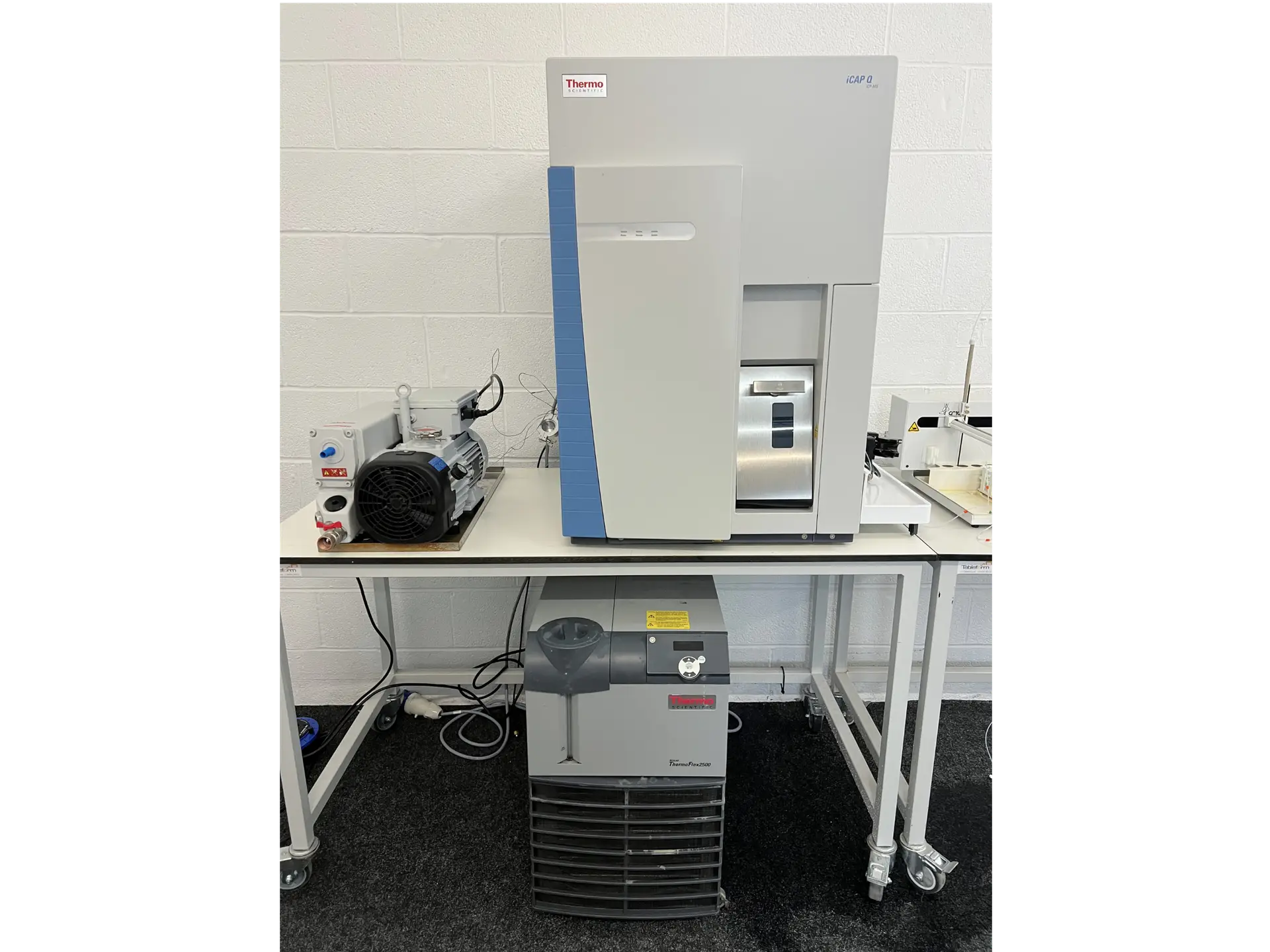

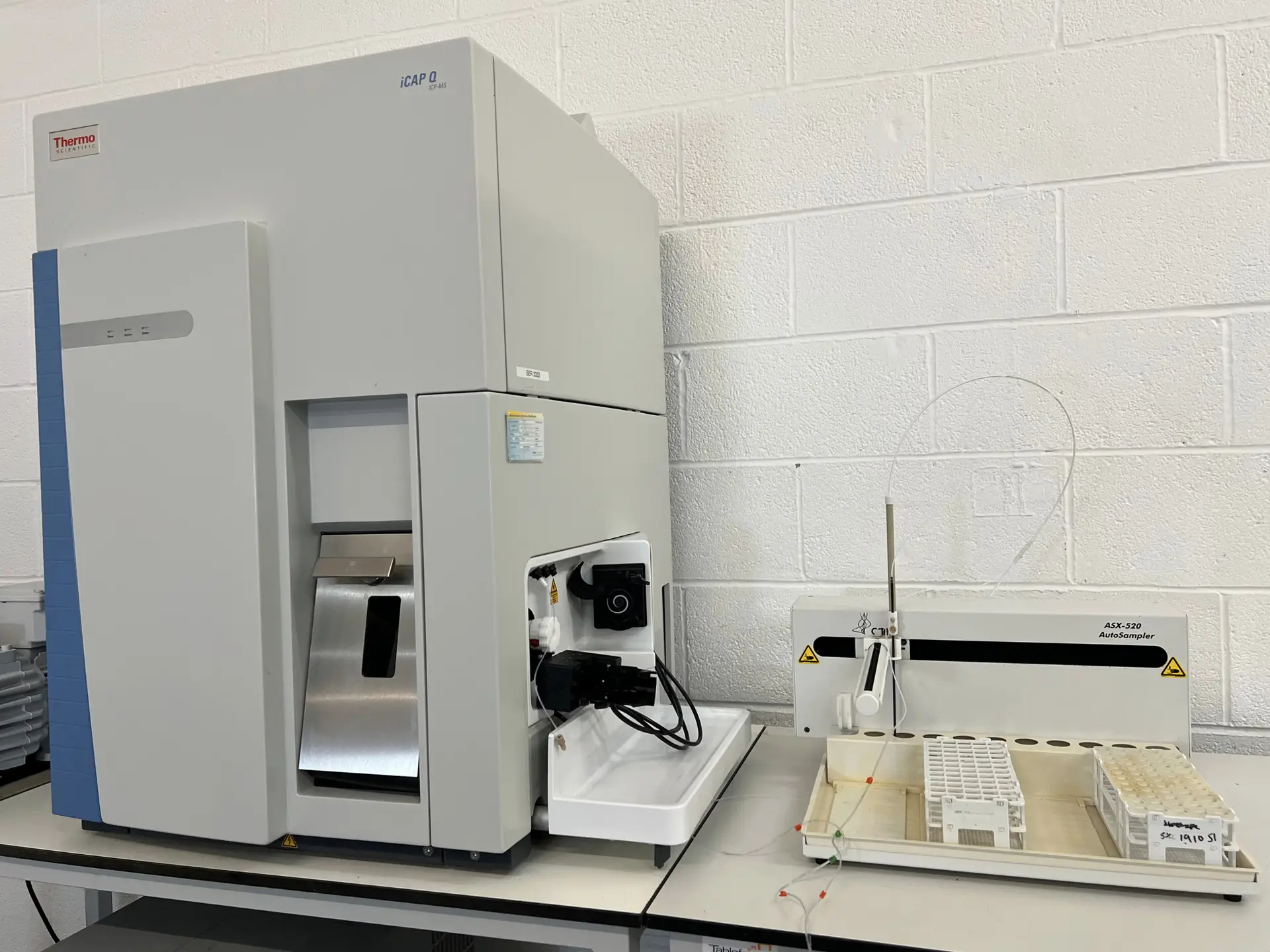

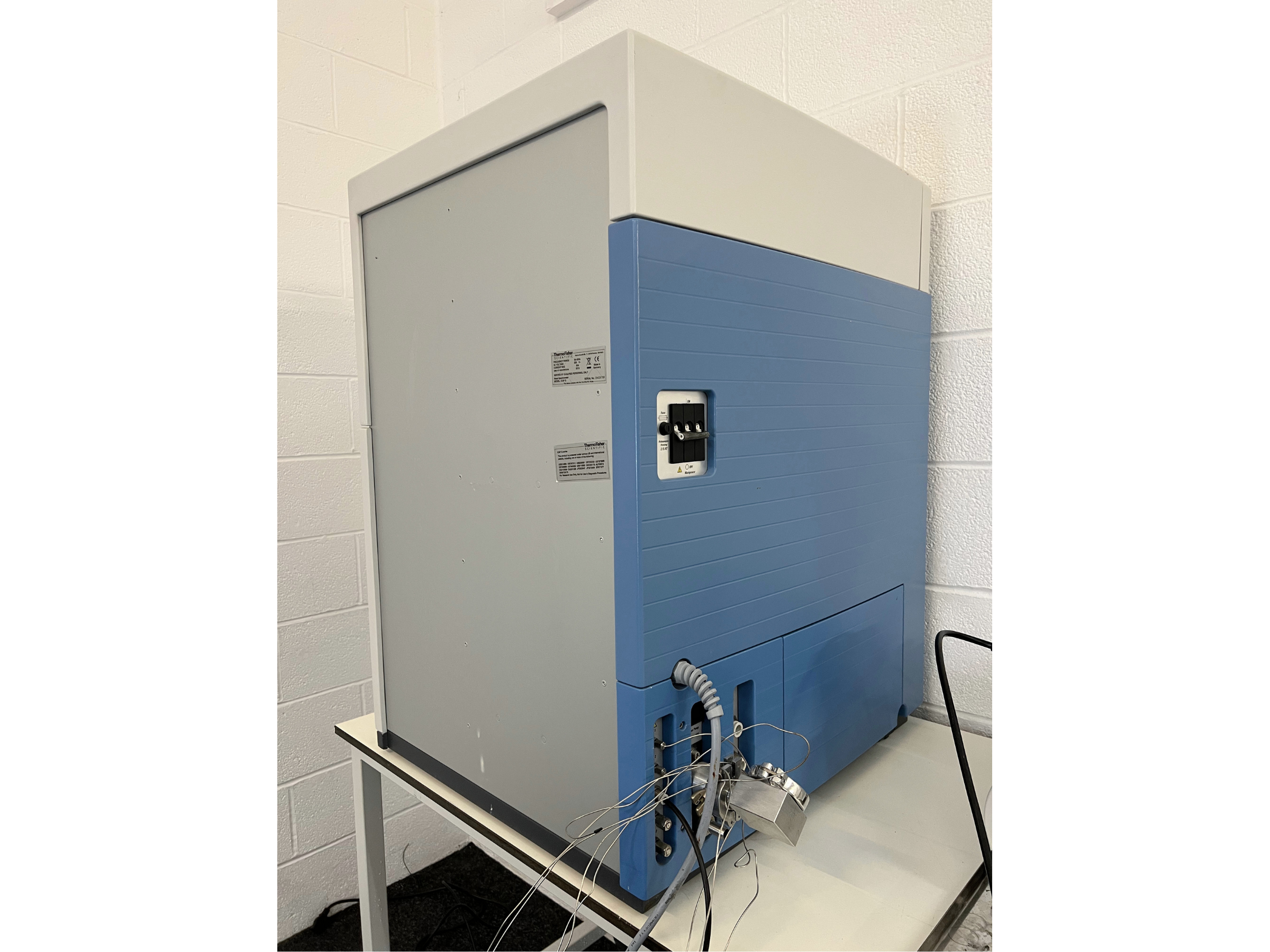

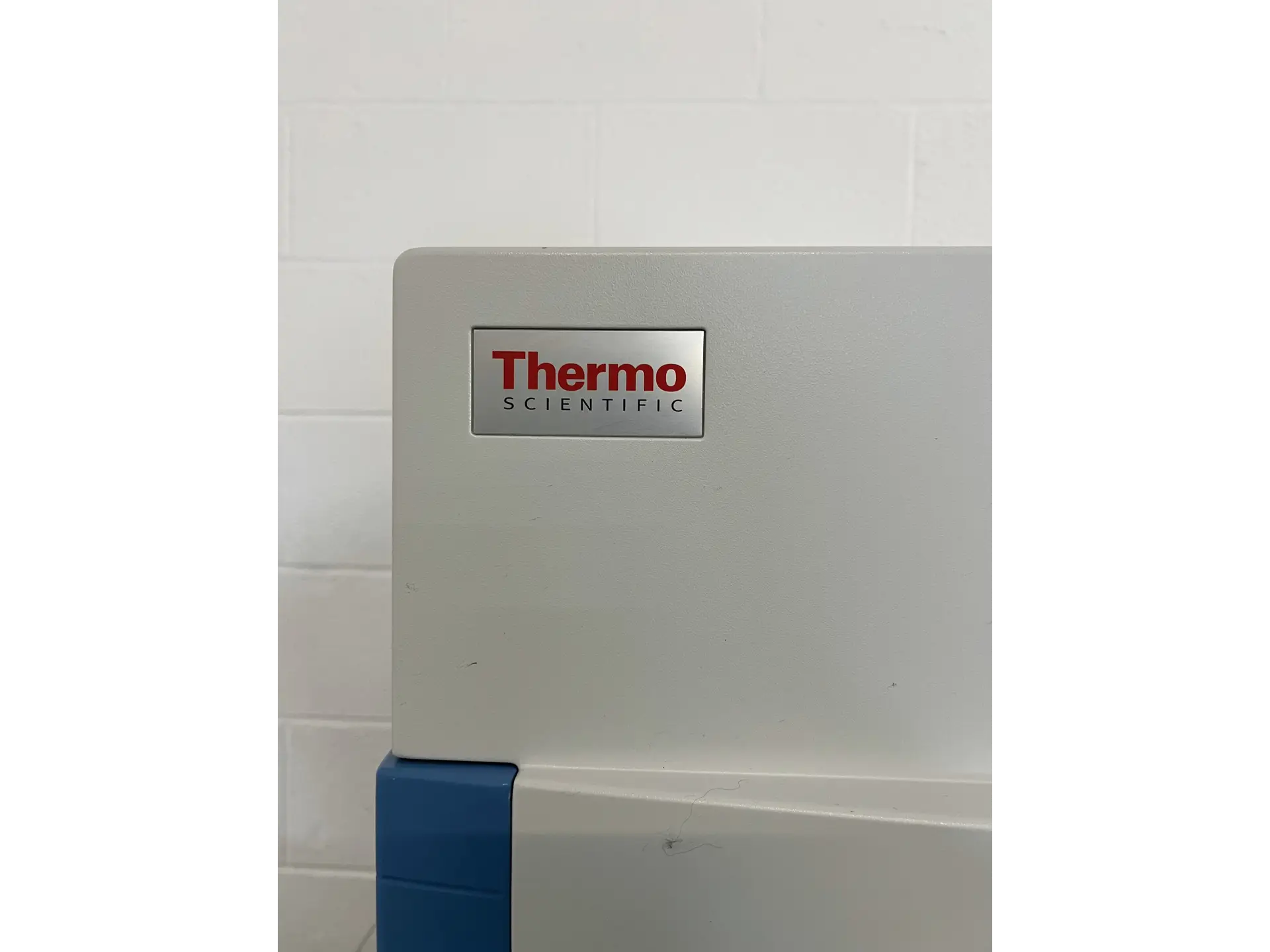

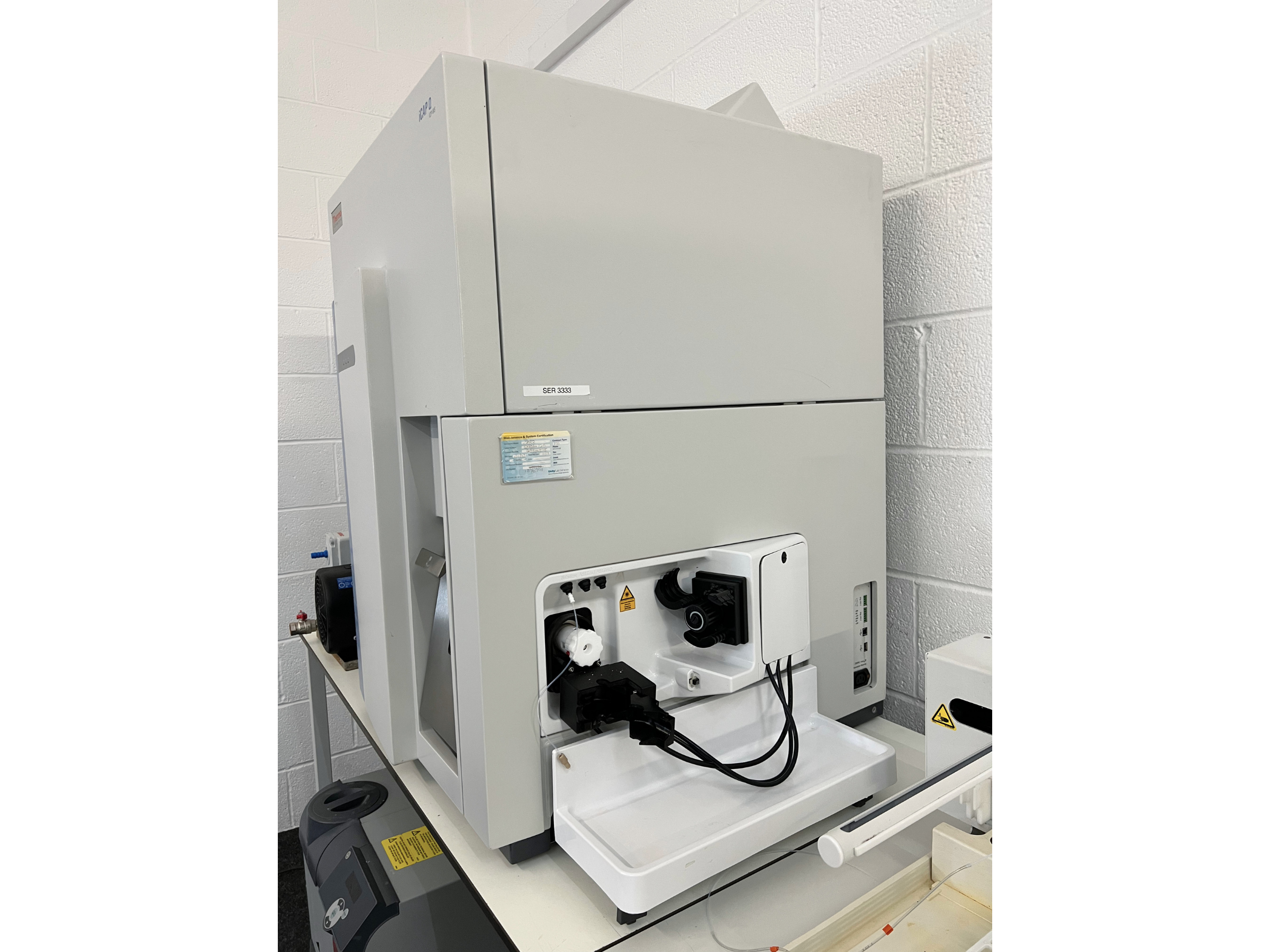

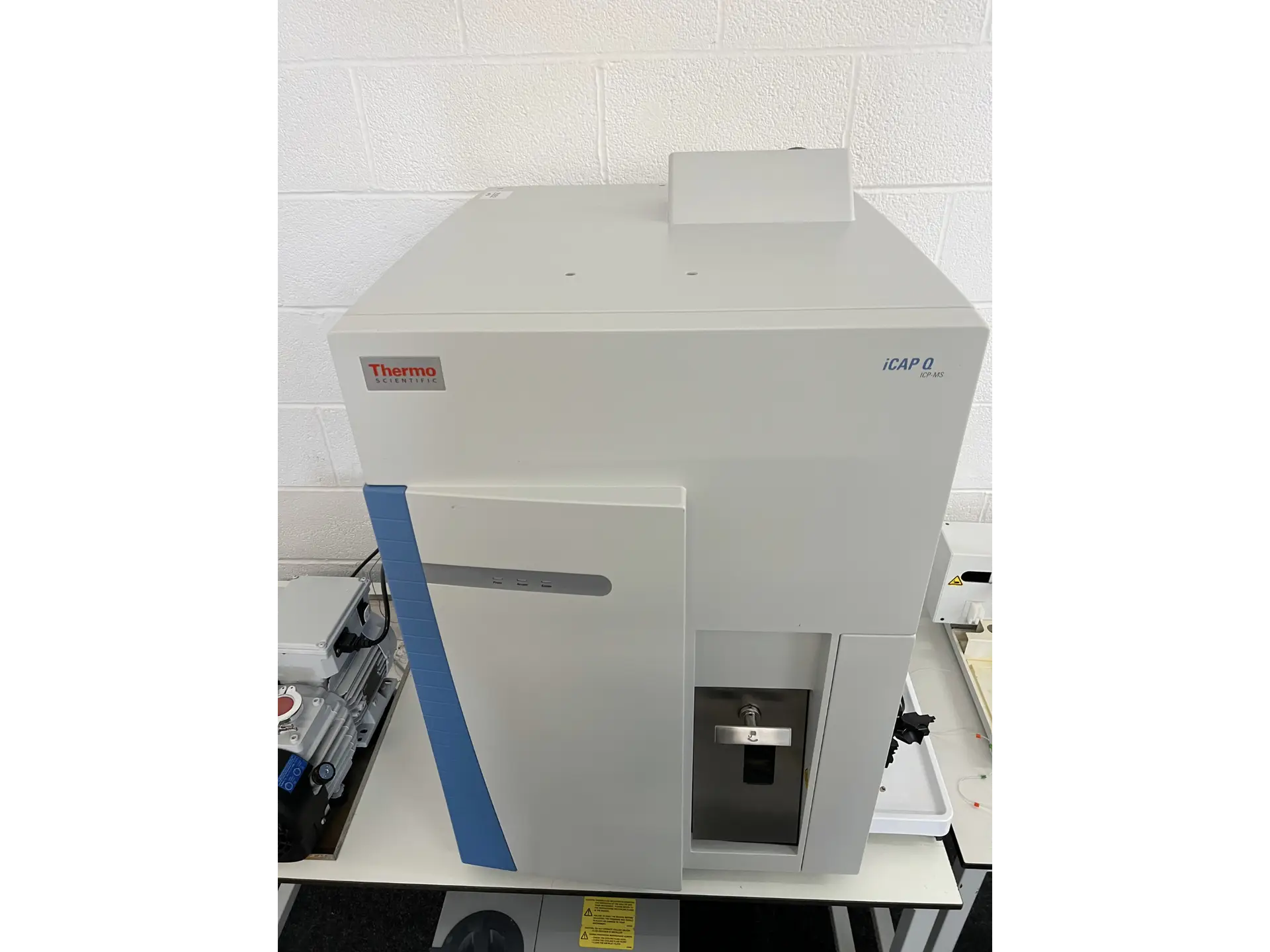

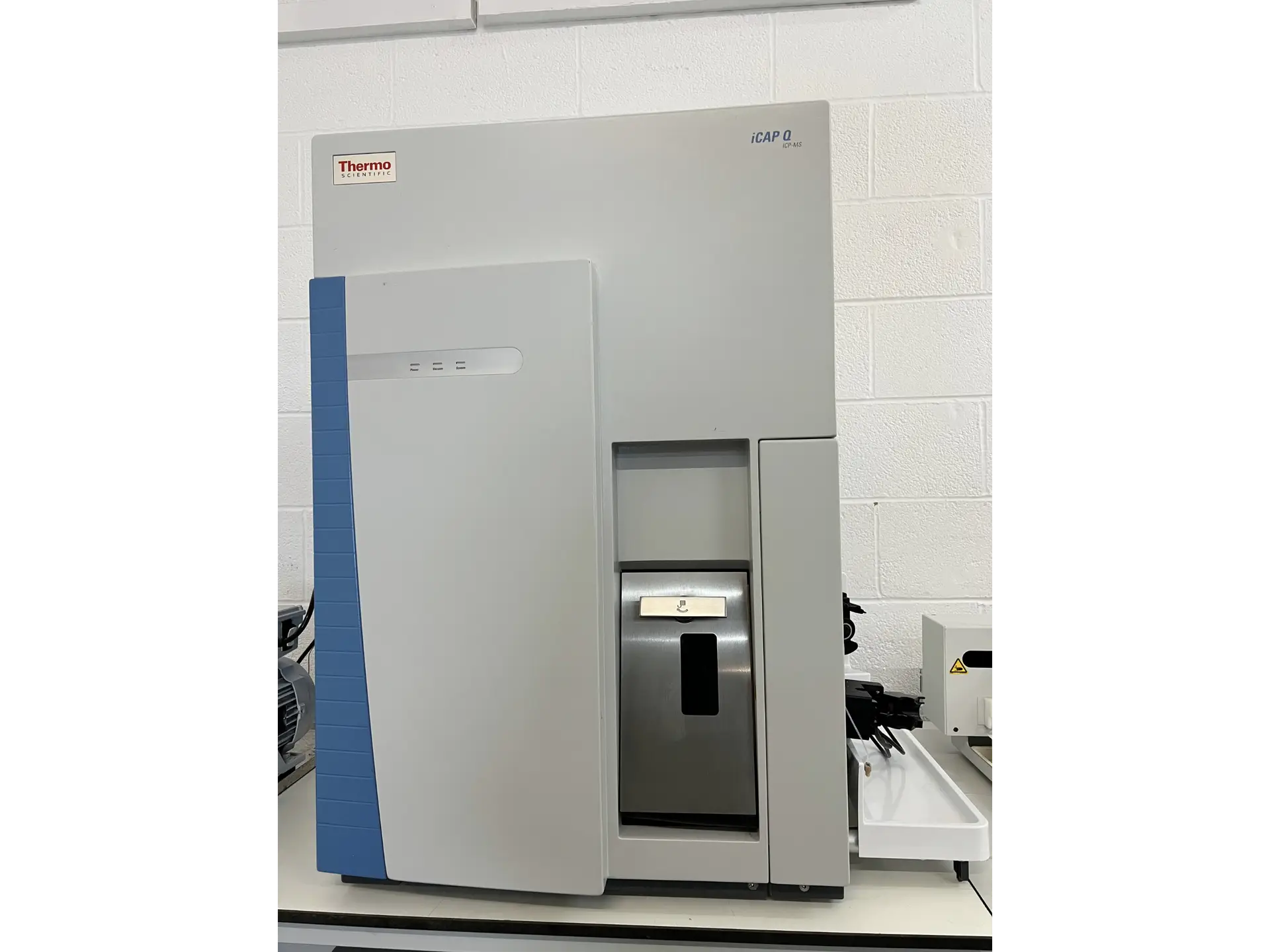

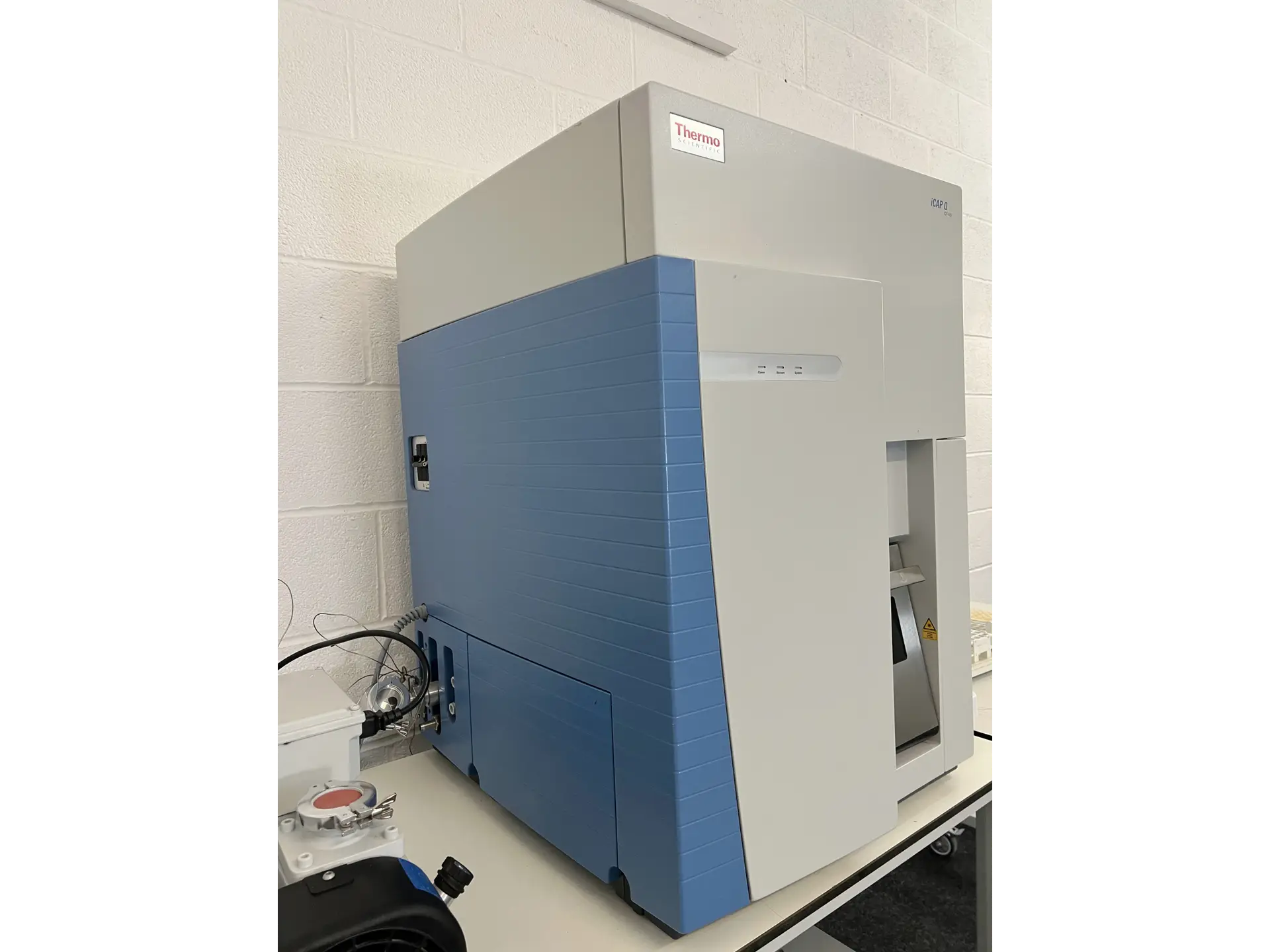

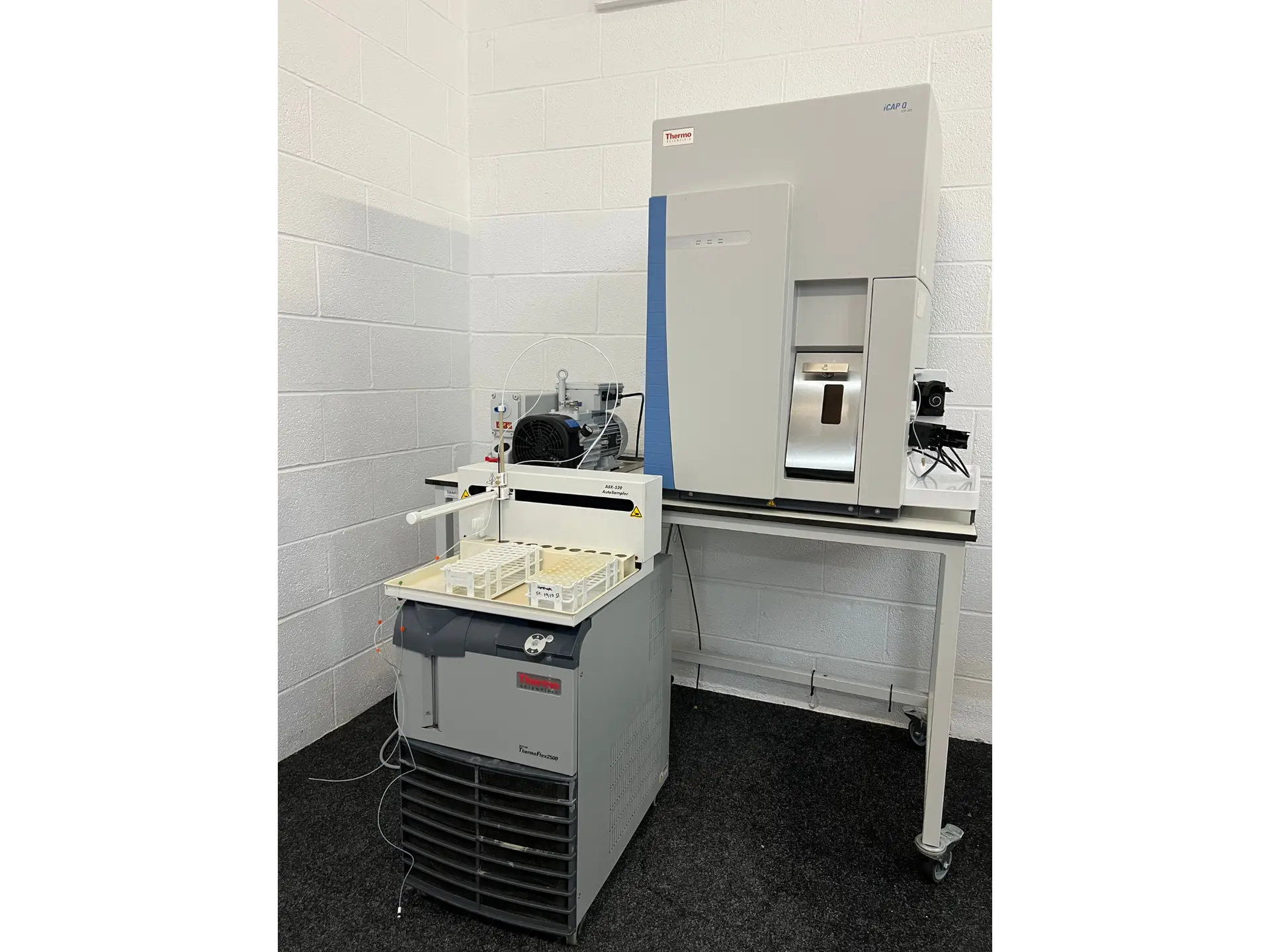

The Thermo Scientific iCAP Q ICP-MS is a quadrupole inductively coupled plasma mass spectrometer configured for the analysis of inorganic elements and isotopes at ultra-trace concentrations. The system is paired with a Teledyne CETAC ASX-520 Autosampler to provide automated sample introduction. Consequently, key applications for this setup include environmental analysis, geochemistry, and pharmaceutical testing.

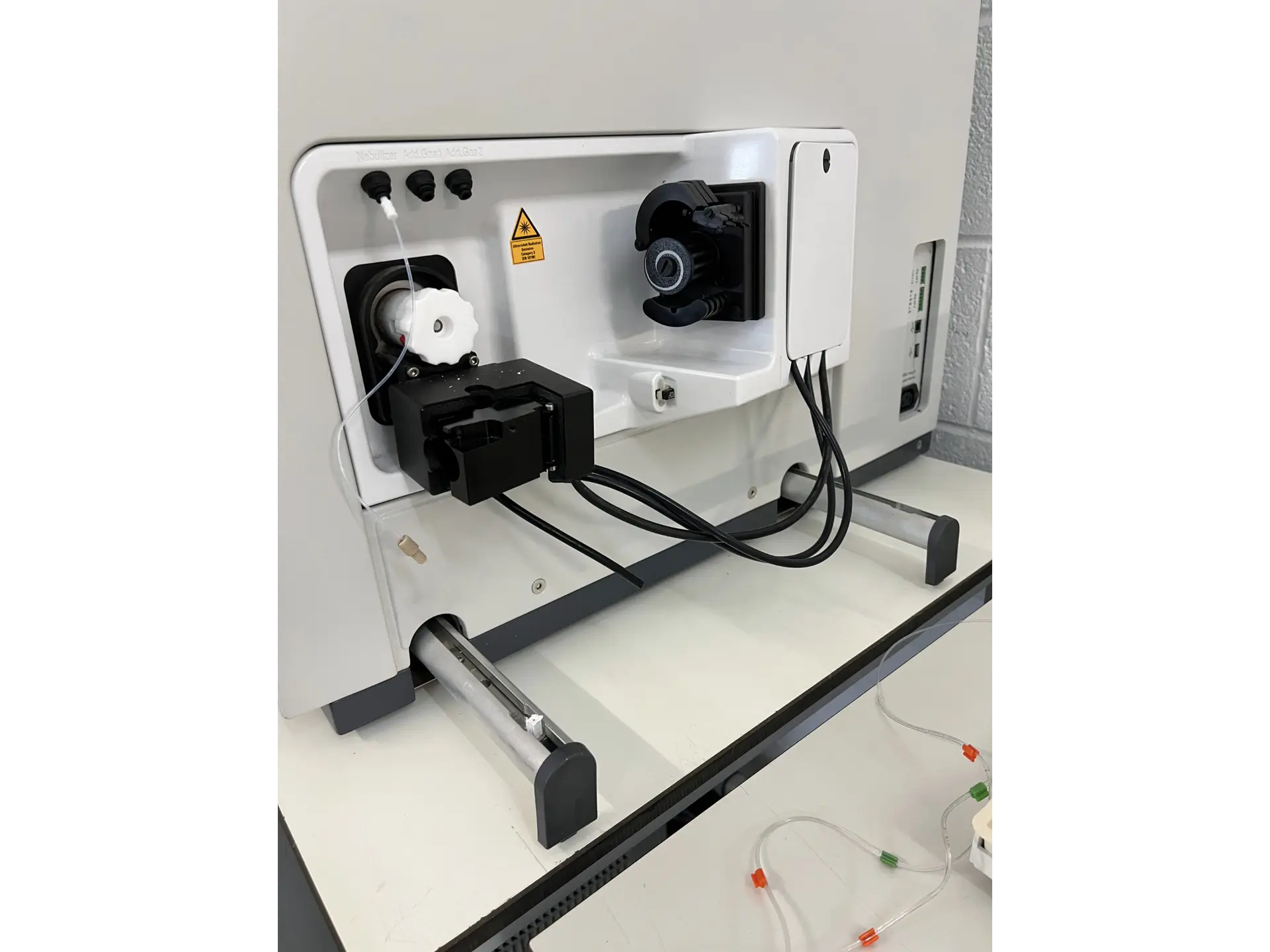

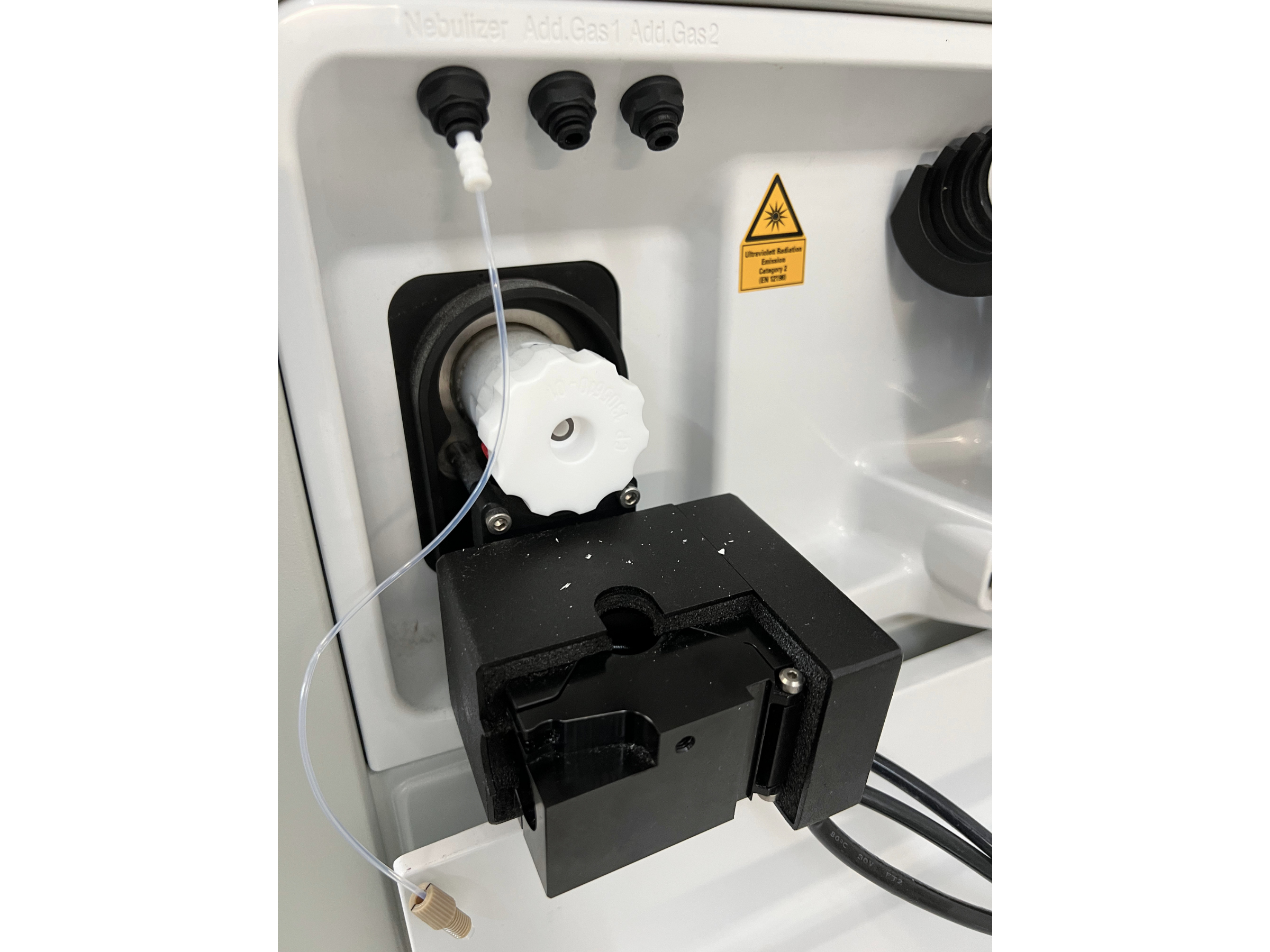

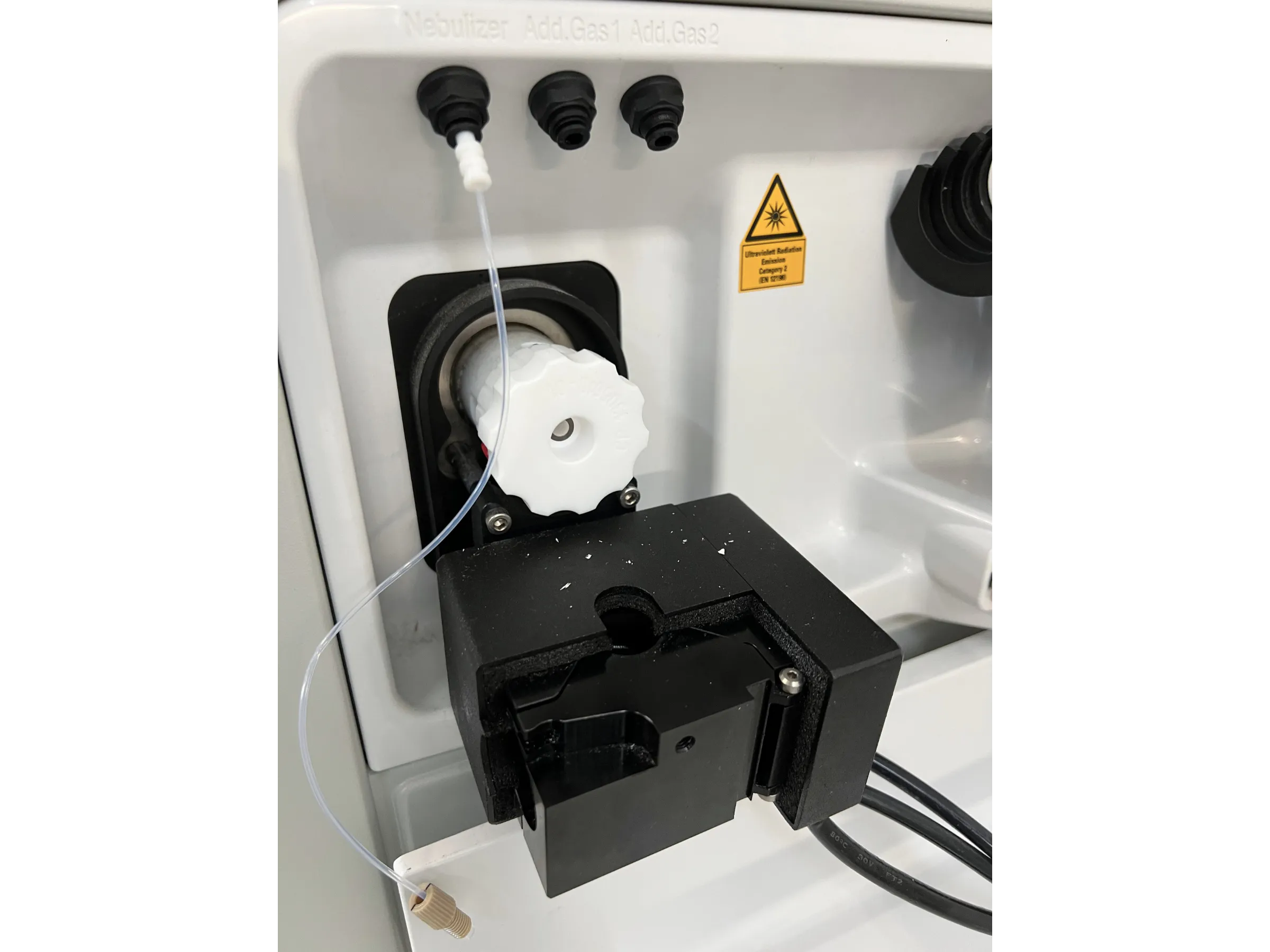

For interference management, the system features a proprietary QCell collision/reaction cell utilizing flatapole technology. Specifically, it employs Helium Kinetic Energy Discrimination (HeKED) mode to eliminate polyatomic and argon-based spectral interferences. As a result, the system can achieve exceptionally low detection limits even when processing complex sample matrices. The standard sample introduction setup accepts liquid samples via a nebuliser and temperature-controlled spray chamber. For routine operations, the standard sample introduction configuration accepts liquid samples via a nebuliser and temperature-controlled spray chamber. Alternatively, for expanded analytical capabilities, the iCAP Q platform supports direct coupling to external peripheral techniques, such as laser ablation, ion chromatography (IC), liquid chromatography (LC), and gas chromatography (GC).

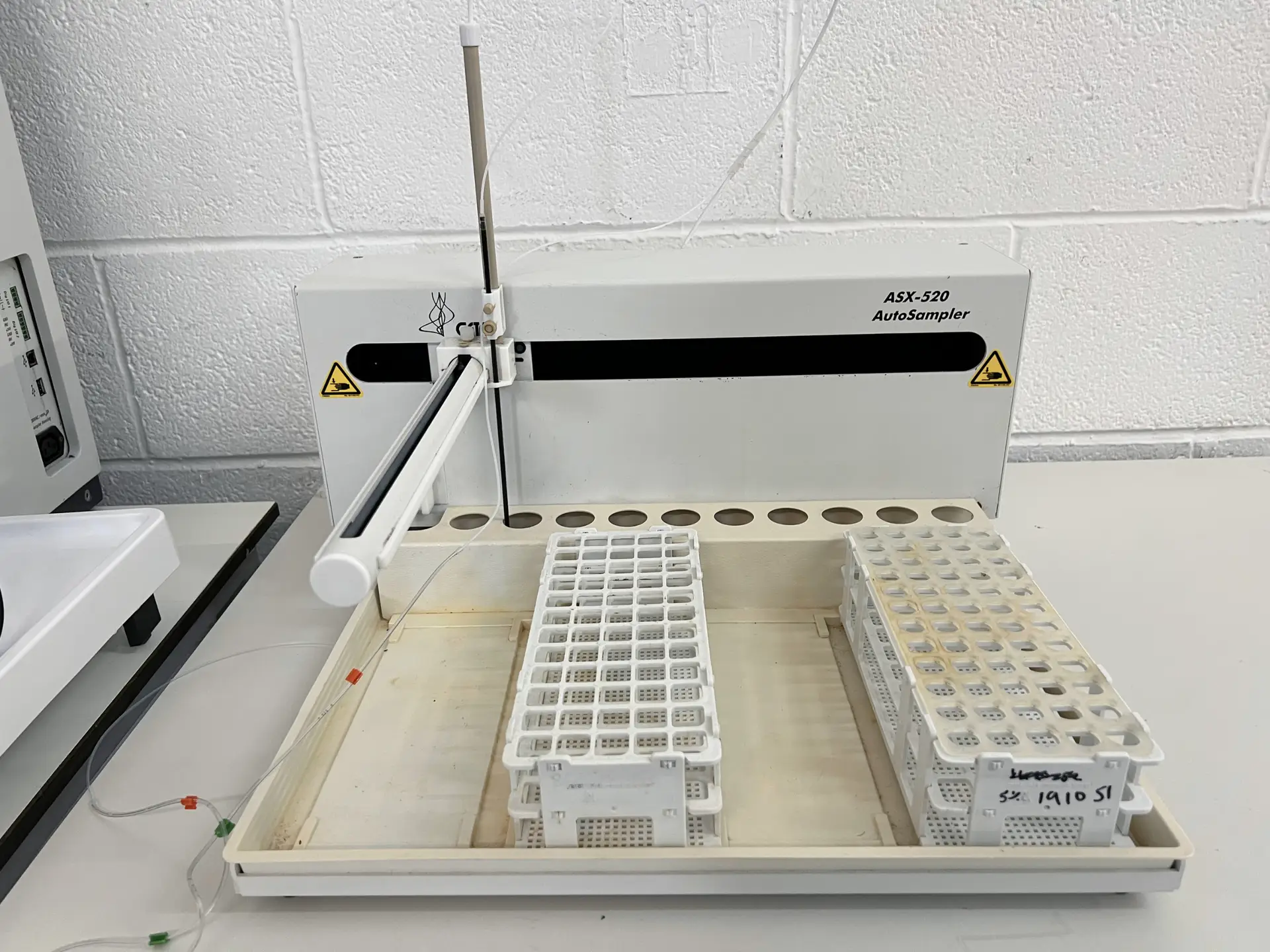

Furthermore, automation is managed by the accompanying CETAC ASX-520 Autosampler, which accommodates a four-rack tray configuration holding up to 360 samples, alongside 10 dedicated positions for calibration standards. Markedly, the autosampler features a metal-free, PEEK/PTFE liquid flow path to ensure maximum chemical resistance against corrosive matrices during long periods of unattended operation.
Key Features of Thermo Scientific iCAP Q ICP-MS
- Quadrupole Mass Filter
- QCell Collision Cell Technology
- Helium Kinetic Energy Discrimination (HeKED)
- High Elemental Sensitivity
- Qtegra ISDS Software
- Scan Speed: > 90,000 u/s
- ION Optics: 90° Deflection RAPID Lens Technology
- CETAC ASX-520:
- Tray: 4 Rack Capacity (360 Samples)
- Racks: 90 x 7 ml, 60 x 14 ml, 40 x 20 ml, 24 x 30 ml, 21 x 50 ml
- Power Requirements: 100 – 240 VAC +/- 10%, 50/60 Hz
- Metal Free PEEK/PTFE Liquid Flow Path
- Dimensions (W x D x H): 52 x 48.2 x 25 cm
