Description

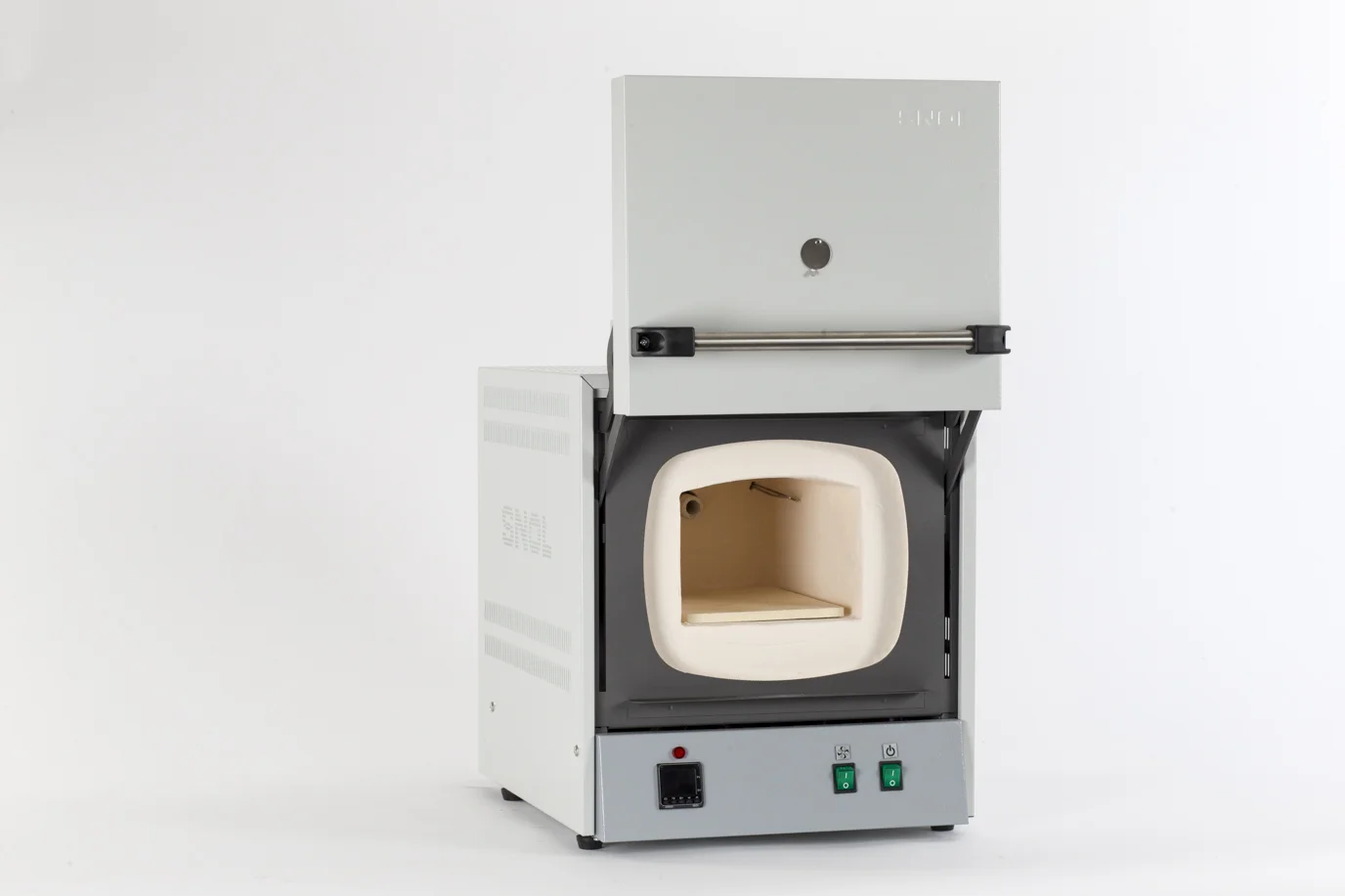

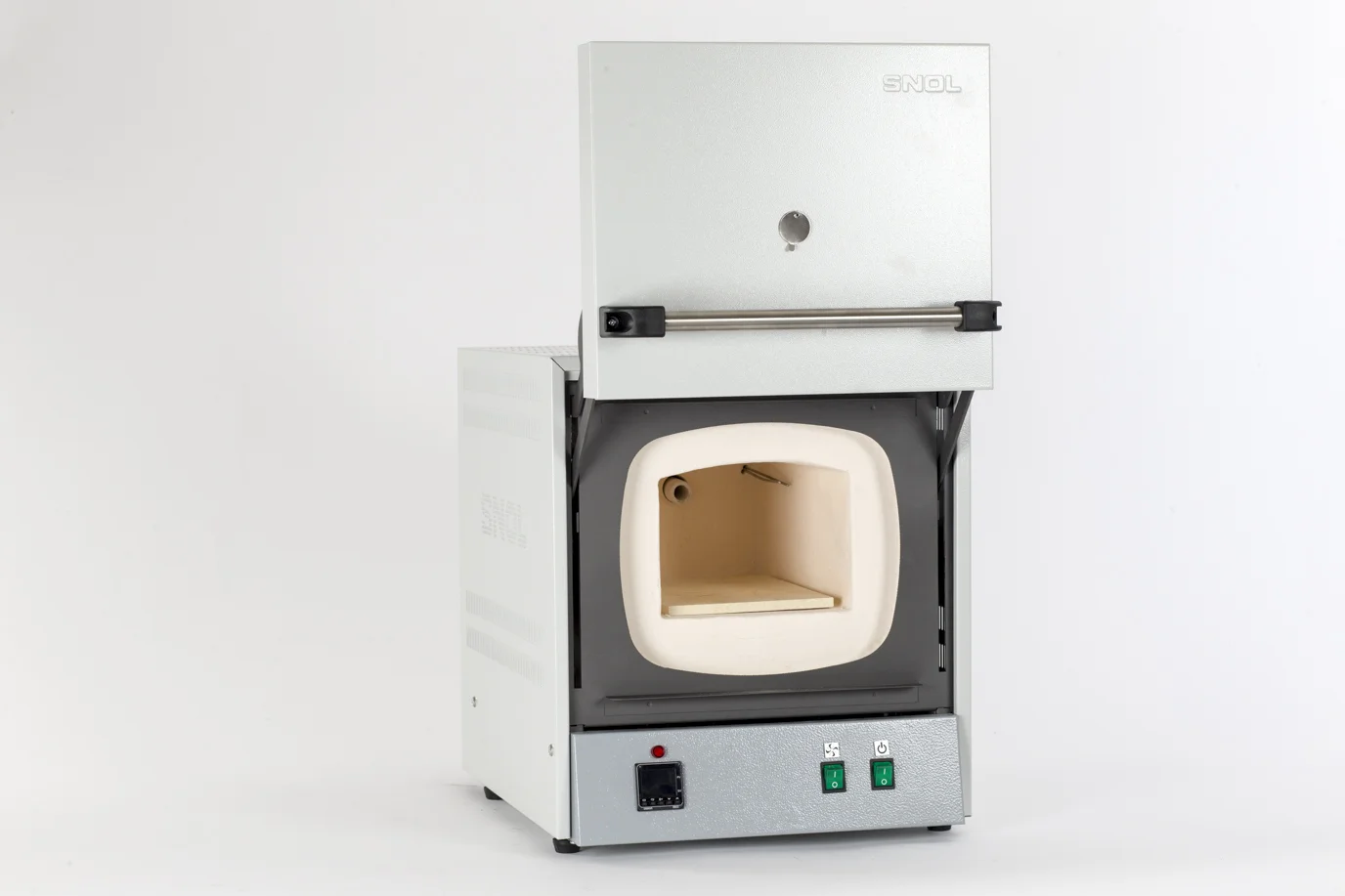

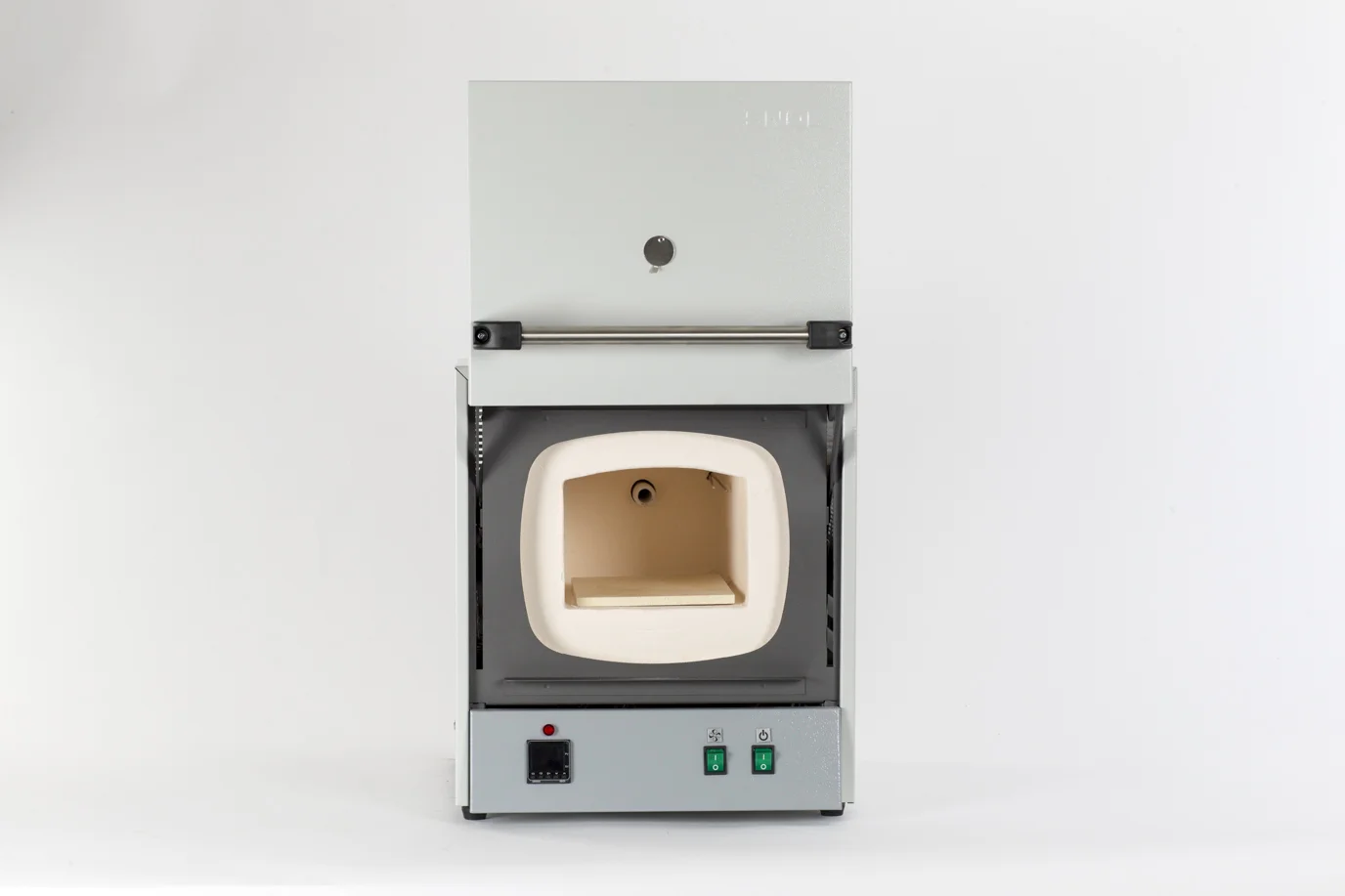

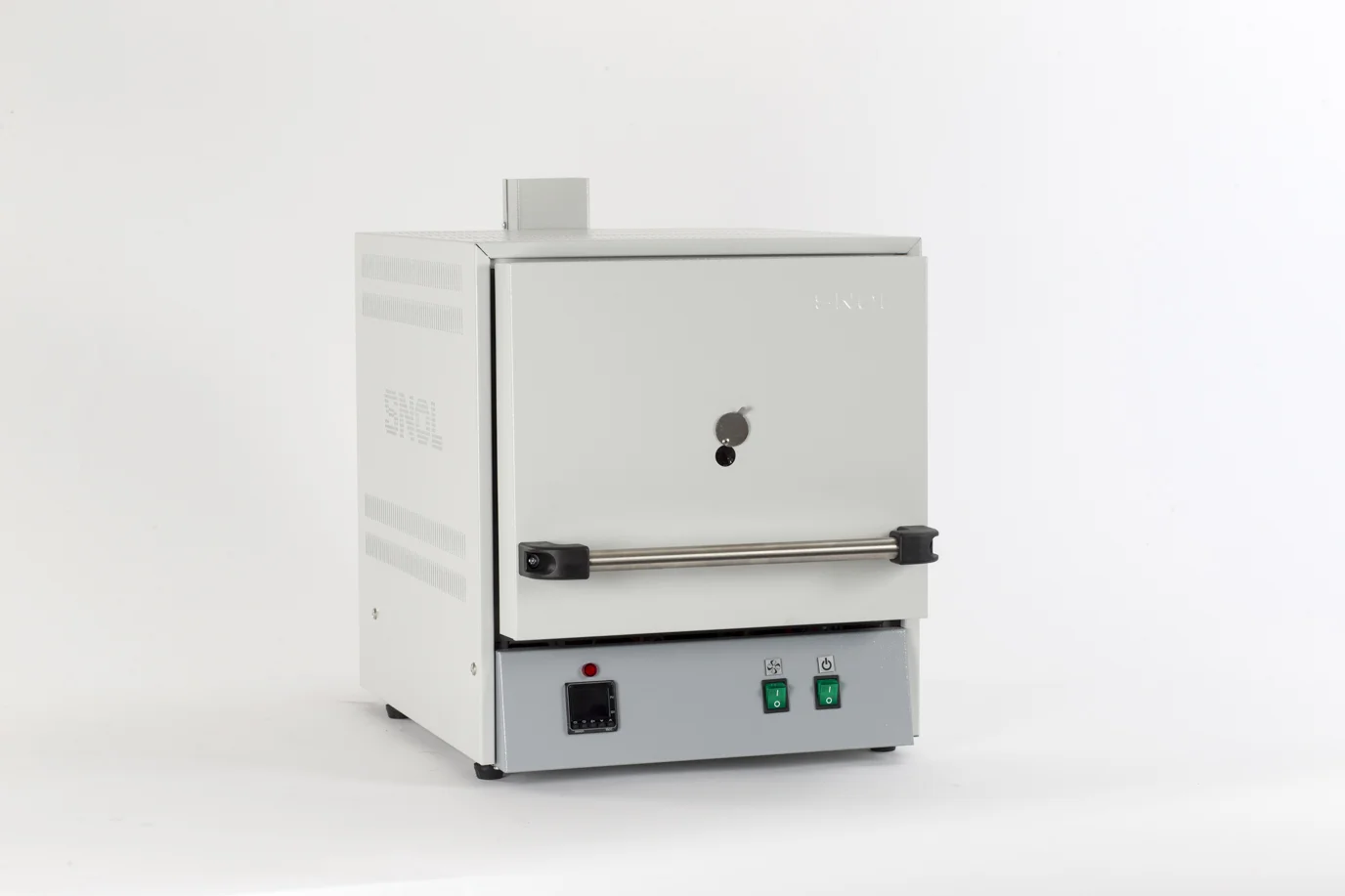

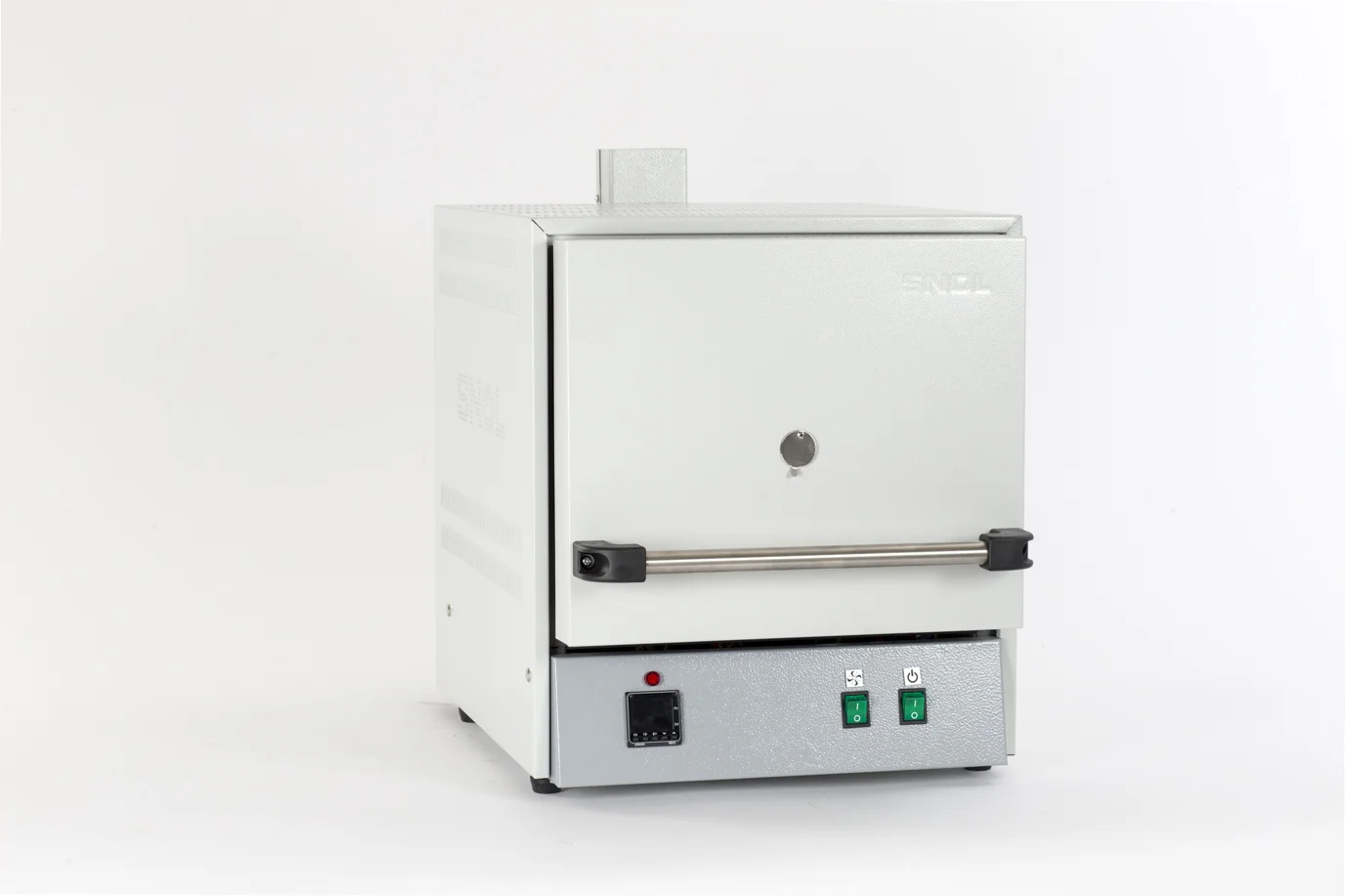

The 8.2/1100 LHM21 ashing furnace from Snol is designed specifically for high-temperature applications, capable of reaching a maximum temperature of 1100°C. It is ideal for material testing, as well as heat treatment and ashing proceedures. The vaccumed ceramic fiber chamber, providing excellent insulation and heat containment, creating a controlled and energy-efficient environment within the furnace for various applications. The inclusion of fan-assisted chimney in the deisgn of a chamber permits the effective elimination of smoke generated during the process by creating an airflow that helps to exhaust and remove the smoke from the chamber, ensuring a cleaner and healthier environment.
The furnace features a one-piece high thermal efficiency vaccum-formed ceramic fiber chamber, allowing for easy cleaning and maintenance. The embedded heating elements on all four sides of a chamber provide uniform temperature control, facilitate heat transfer, ensure thermal uniformity, enable rapid heating, and allow for heat recovery or management.
Features of the 8.2/1100 LHM21 Ashing Furnace
- 8.2 Litres chamber volume.
- Temperature range: +10 to +1100°C.
- Chamber internal dimensions (WxDxH): 19.5 x 31 x 13.5 cm.
- Door safety interlock switch to protect the user and the sample.
- Digital PID temperature controller E5CC with 1 program and 2 steps.
- Fan assisted chimney for smoke and humidity extraction.
- Choose powder painted grey or metal sheet exterior.
- For the ability to program ramp times, start times, etc. see controller upgrade options below
- Upgrades available:
- Buzzer
- Process observation window (o 35 mm) up to 1100 °C
- Overheat protection
- Additional ceramic hearth plates
- Data recorder
- 12 months manufacturer warranty
See full technical specifications on Snol website
Buy Snol ashing furnaces online, or speak to our team on 01257 270 433 to discuss your options. This furnace is available to buy online in a choice of external finishes, or contact us to discuss optional upgrades, if required. All Snol chamber furnaces come with 12 month manufacturer warranty for complete peace of mind. Want more info?
