Nikon YS100 614869

Product Code


Enquire for price

1 in stock

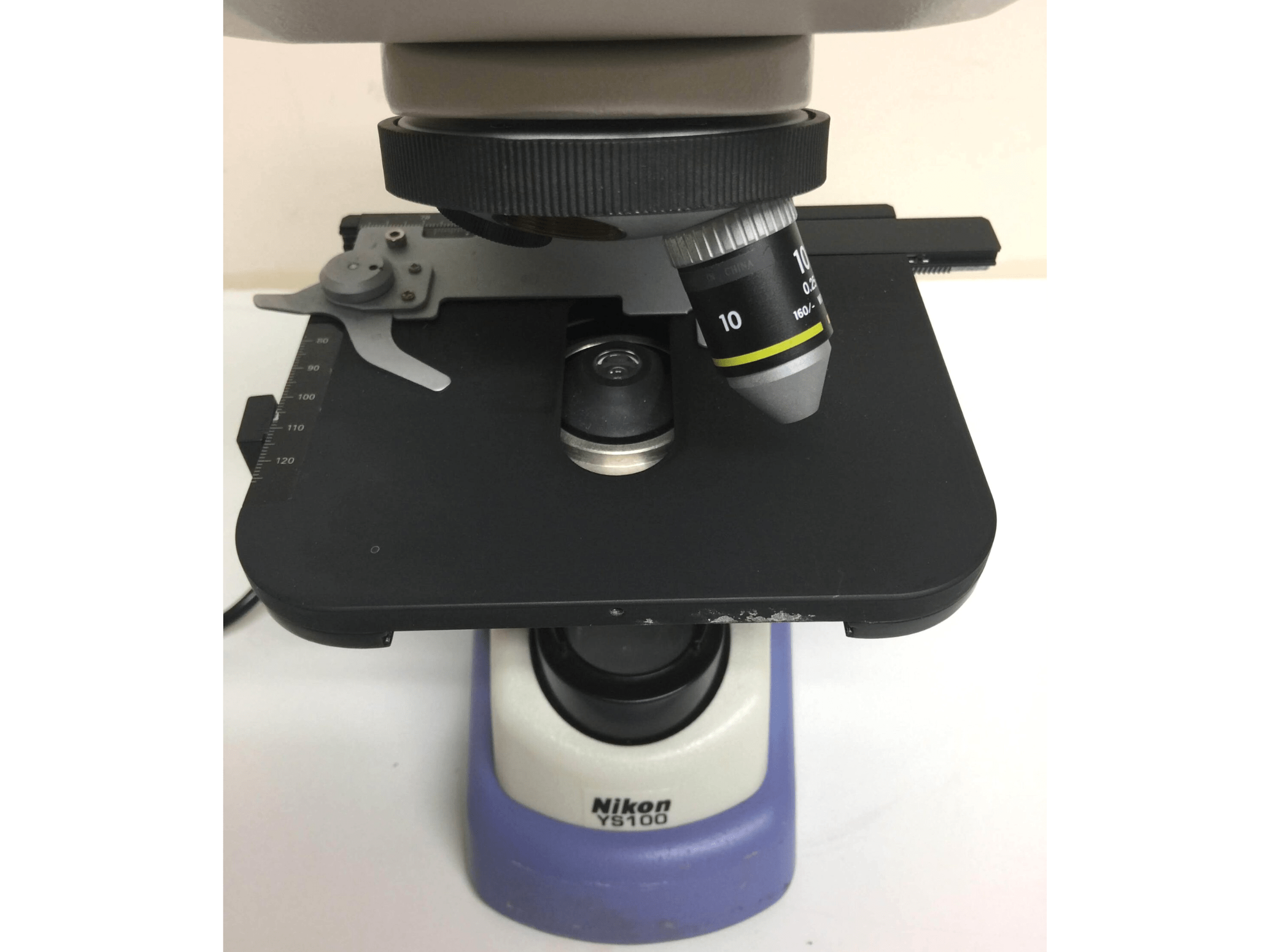

Nikon YS100

This microscope is a very good quality, education-level microscope. This microscope comes virtually ready to use out of the box with only minimum assembly required. The optics provided with the YS100 are excellent, considering the price, and more than enough for educational purposes.


  • Quadruple click-stop
  • revolving mechanism with multiple ball bearings
  • Elastic nosepiece grip-ring.
  • Binocular
  • 45° inclined
  • built-in prism type
  • Diopter adjustment for both eyepiece lenses
  • Interpupilary distance adjustment: 52-74 mm.
  • Coaxial coarse/fine focusing with cross roller guide incorporated
  • 22mm coarse/fine focusing range
  • Coarse motion is 37.7mm per rotation.
  • Fine motion is 0.2mm per rotation with 2μm scale increments
  • Coarse motion torque adjustable
  • Symmetric positioning of fine control and stage handle

Technical Specifications

  • Eyepiece Lens: 10x/18mm
  • Stage Size (W x D): 155 x 134 mm
  • Illumination: 6V 20W

For further technical specifications please refer to the brochure.

See Brochure Here

See Video Here

Additional information





See Nikon Brochure Here
