Description

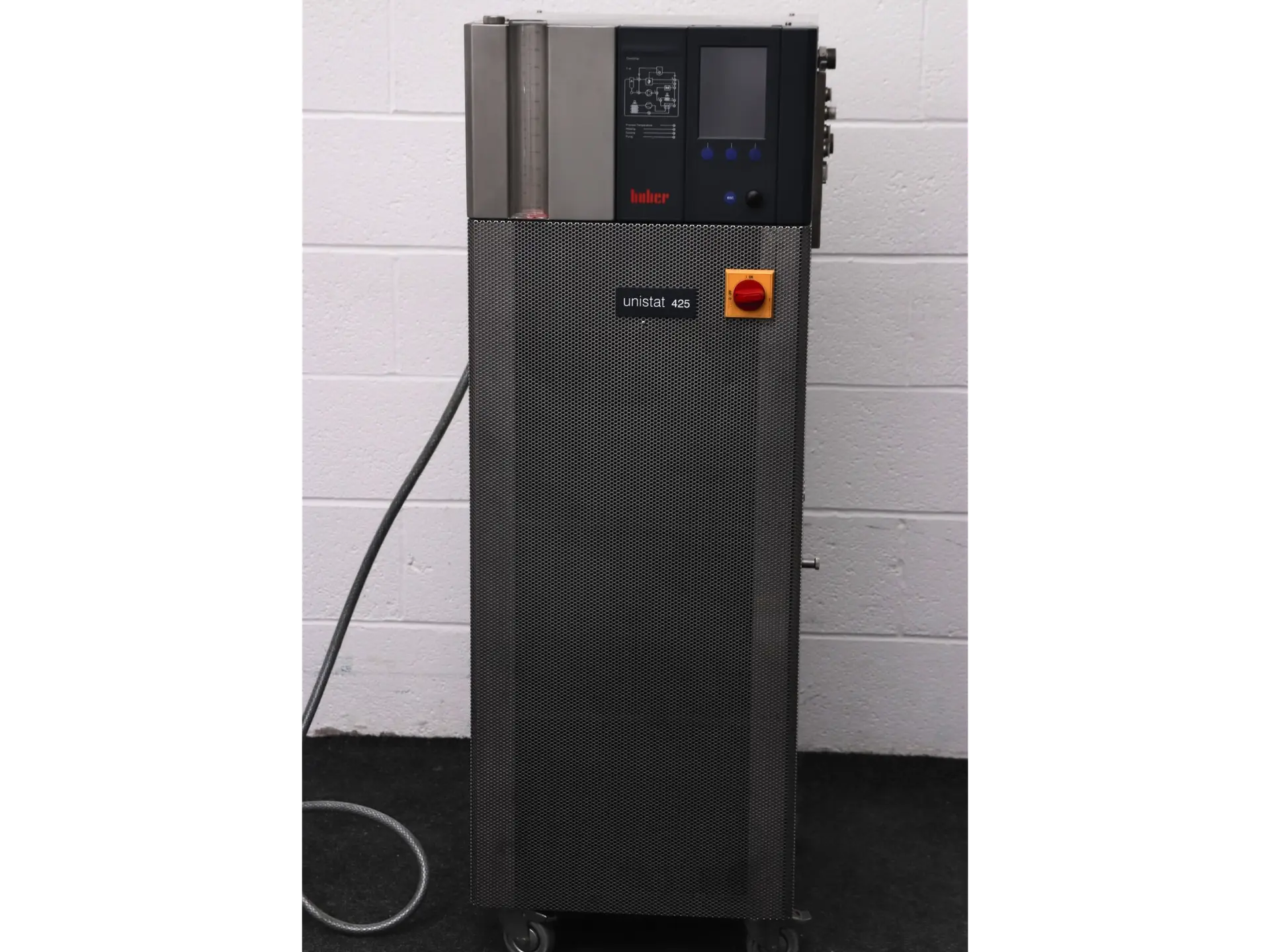

The Huber Unistat 425 offers a range of advanced features designed to meet precise temperature control requirements across various applications. It boasts an impressive temperature range from -40 to 250°C with exceptional stability of ±0.01 K and a high resolution of 0.01 K, ensuring accurate and reliable temperature management.

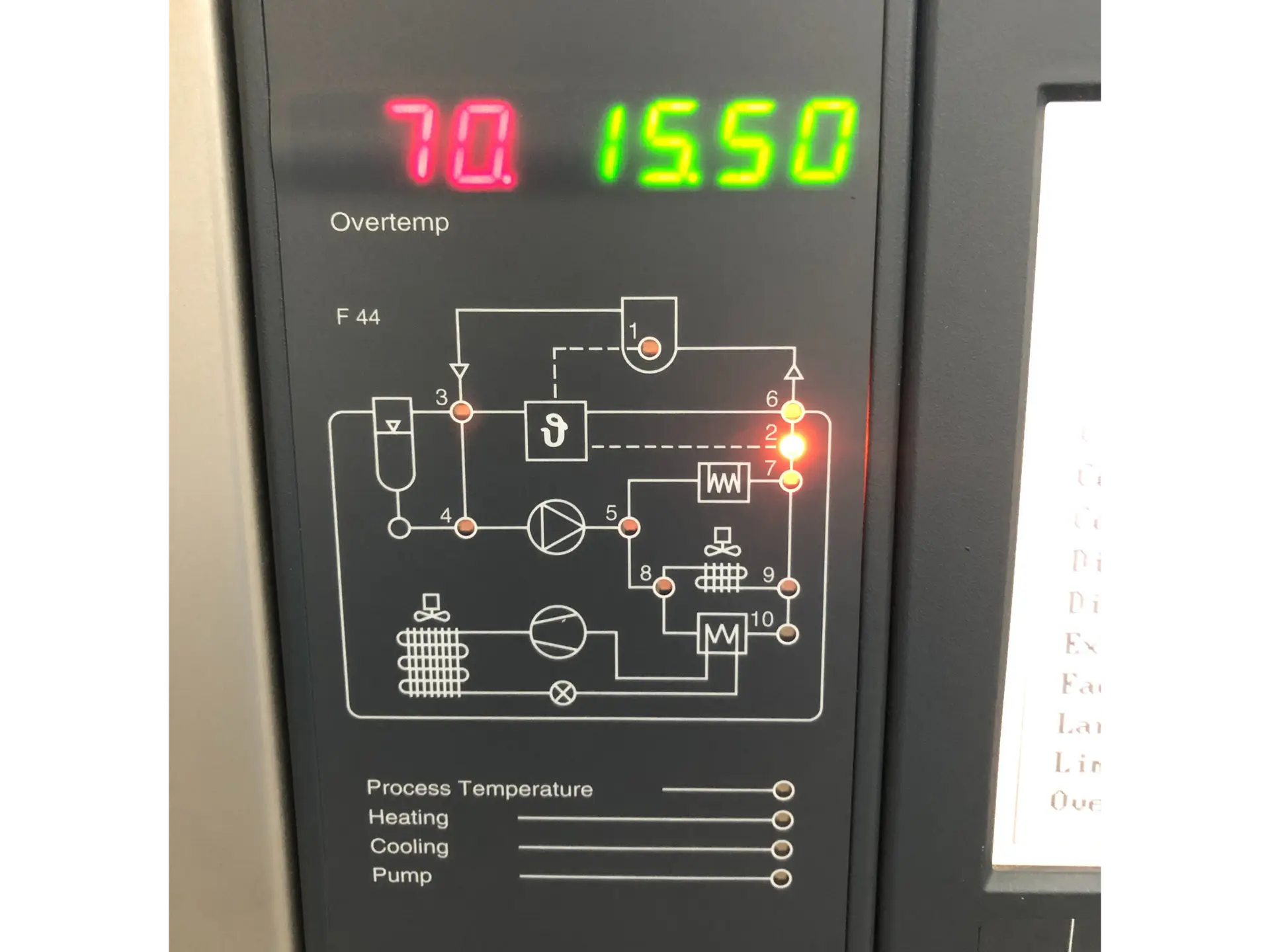

Control of the Unistat 425 is handled through a user-friendly 5.7″ Pilot ONE touchscreen controller, providing intuitive operation and monitoring capabilities. The system utilises an air-cooled cooling machine and includes visual and audible alarms for immediate notification of any deviations. An optical level indicator enhances user awareness of fluid levels, while the stainless steel housing ensures durability and reliability in laboratory environments.
Equipped with a magnetically-coupled circulation pump, the Unistat 425 ensures reliable fluid circulation. It also features a pressure pump with soft start and integrated pressure control, allowing seamless operation. The unit automatically switches between heating and cooling modes, adapting capacity as needed.
For enhanced efficiency, the Unistat 425 incorporates a copper-soldered evaporator, optimising heat exchange capabilities. It includes a USB port for connectivity to a PC, facilitating data logging and remote control. Adjustable overtemperature protection to DIN 12876 standards ensures safety during operation, making the Huber Unistat 425 an ideal choice for demanding temperature control applications in research and industrial settings.
Features of the Huber Unistat 425:
- Temperature range: -40 to 250°C
- Temperature stability: ±0.01 K
- Temperature resolution: 0.01 K
- 5.7″ Pilot ONE touchscreen controller
- Air-Cooled Cooling Machine
- Visual and audible alarm
- Optical level indicator
- Stainless steel housing
- Circulation Pump
- Stainless Steel
- Magnetically Coupled
- Reliable Fluid Circulation
- Pressure Pump
- Soft Start
- Integrated Pressure Control
- Can be Paired with Optional External Pressor Sensor
- Automatic Switching & Capacity Adaptation
- Between Heating/Cooling Modes
- Copper-Soldered Evaporator
- Enhances Heat Change Efficiency

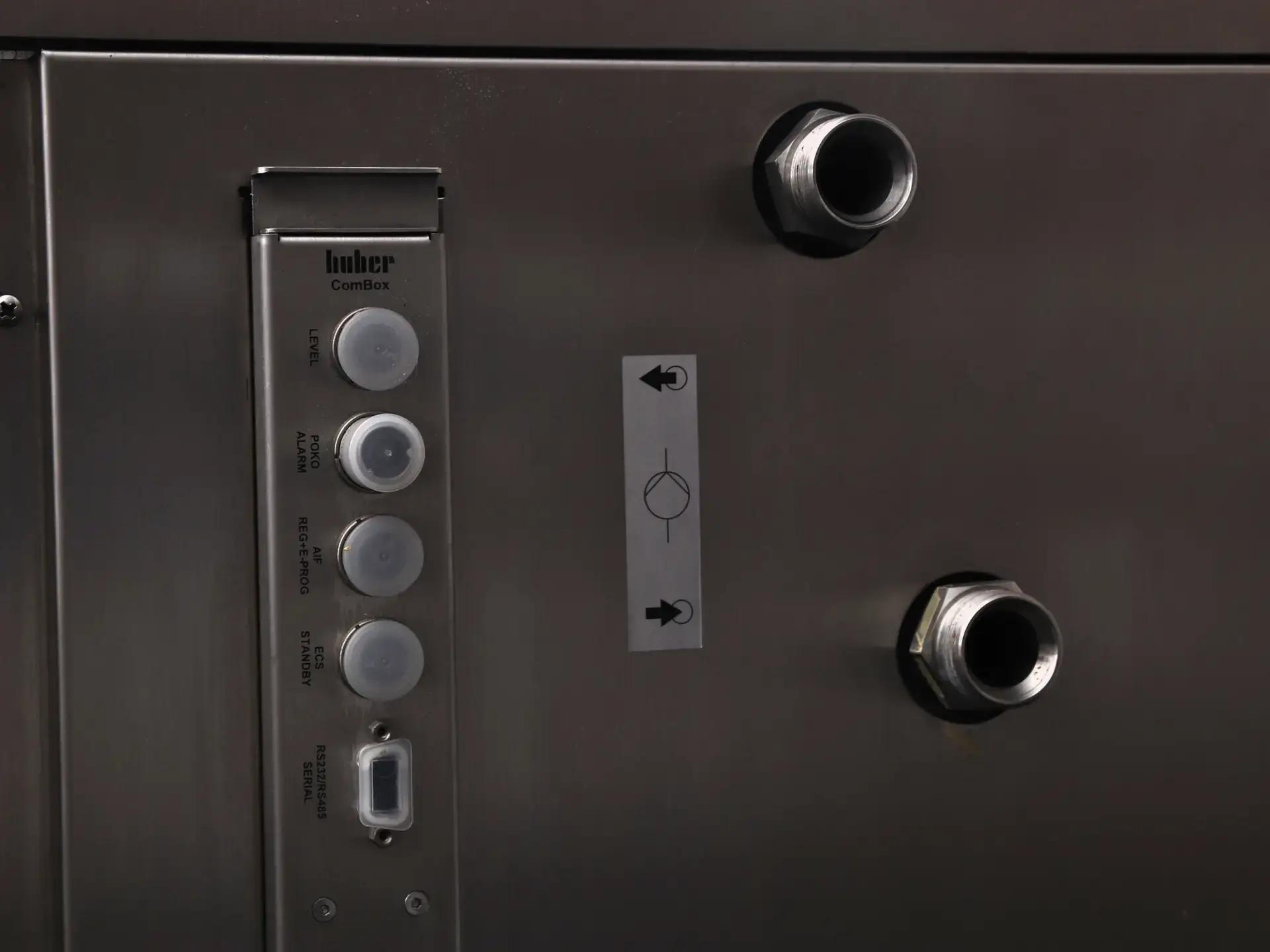

- USB Port
- Connection to a PC
- Adjustable Overtemperature Protection to DIN 12876
