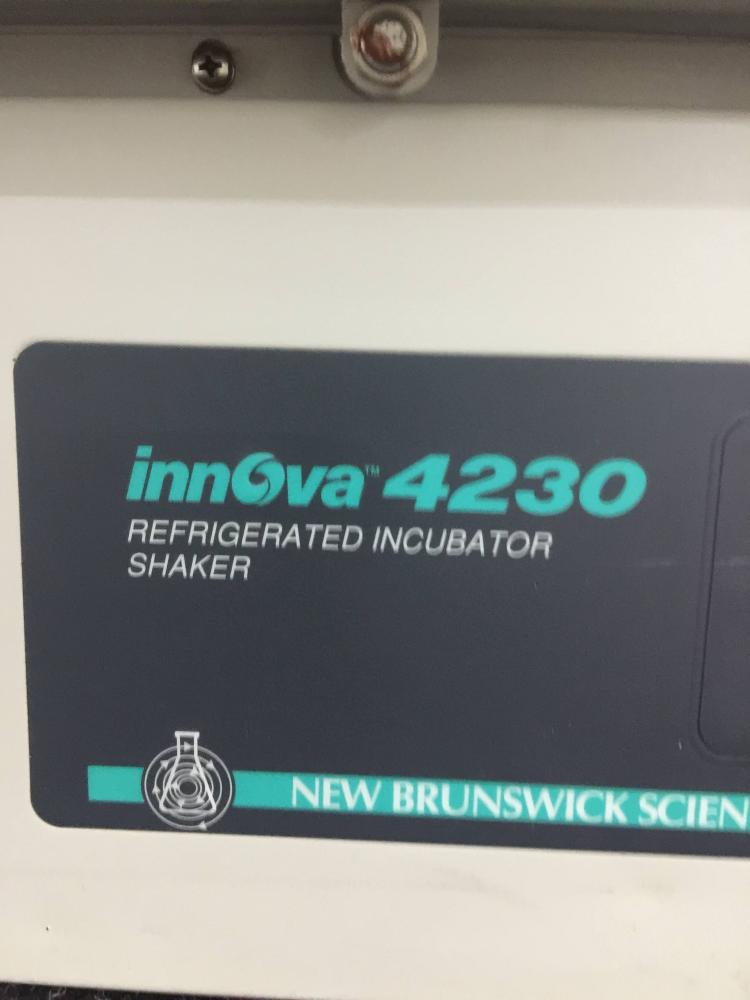

New Brunswick Innova 4230 Incubator Shaker Cabinet

This product has been sold!

If you’d like to chat to us about alternatives we have in stock, or be informed when similar stock becomes available, please contact us using the details below:

Telephone: +44 (0) 1257 270 433

Email: [email protected]

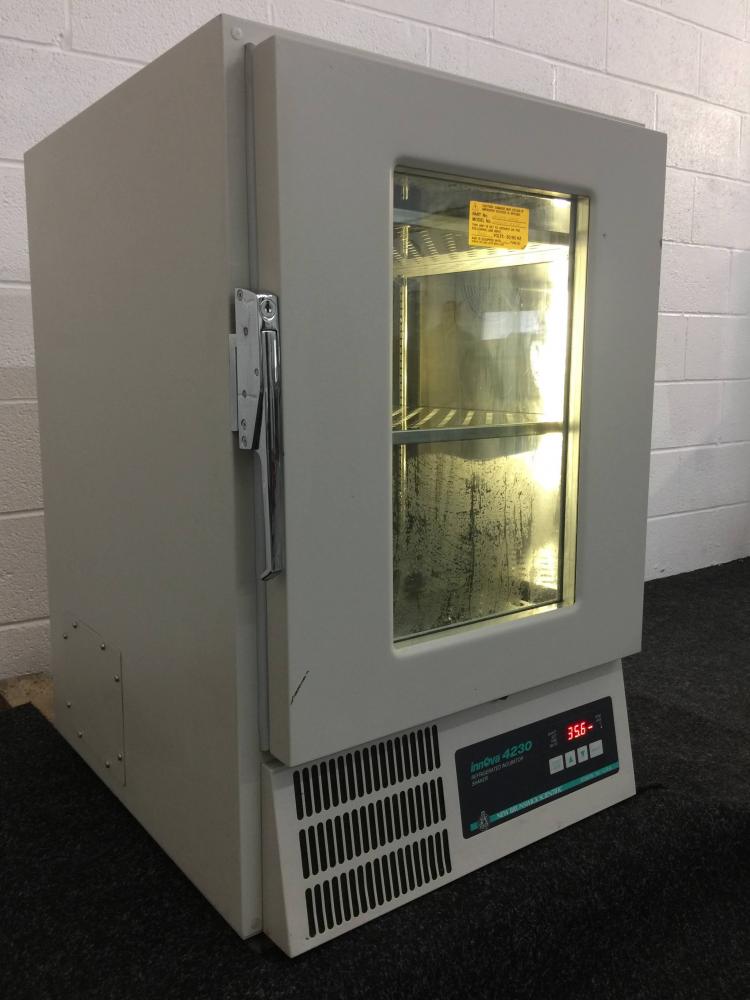

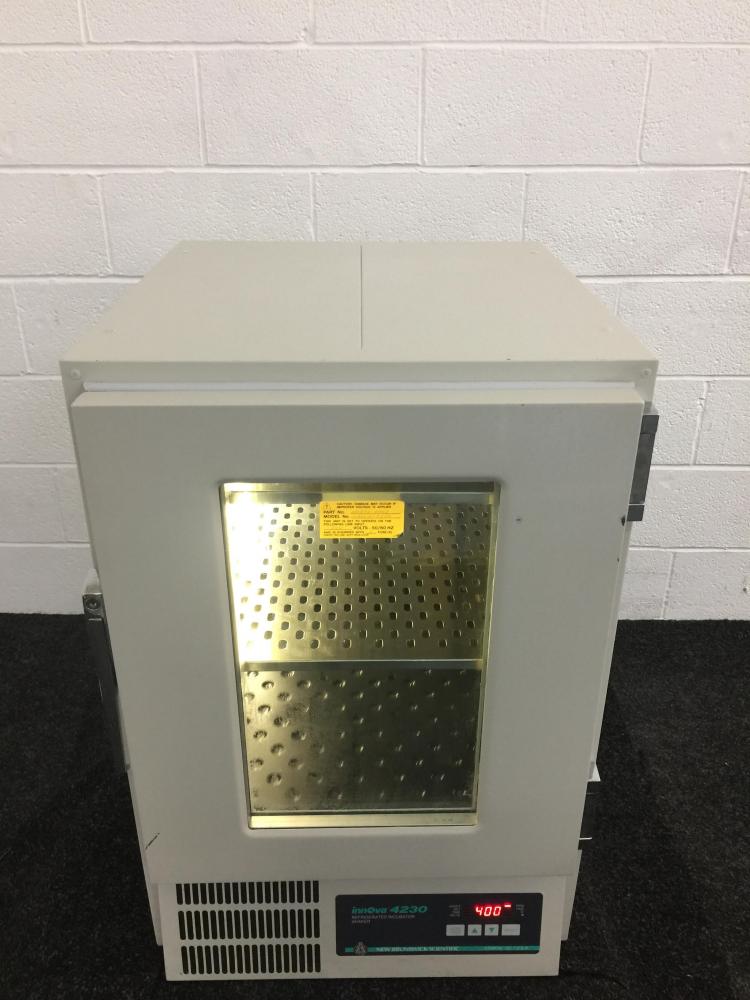

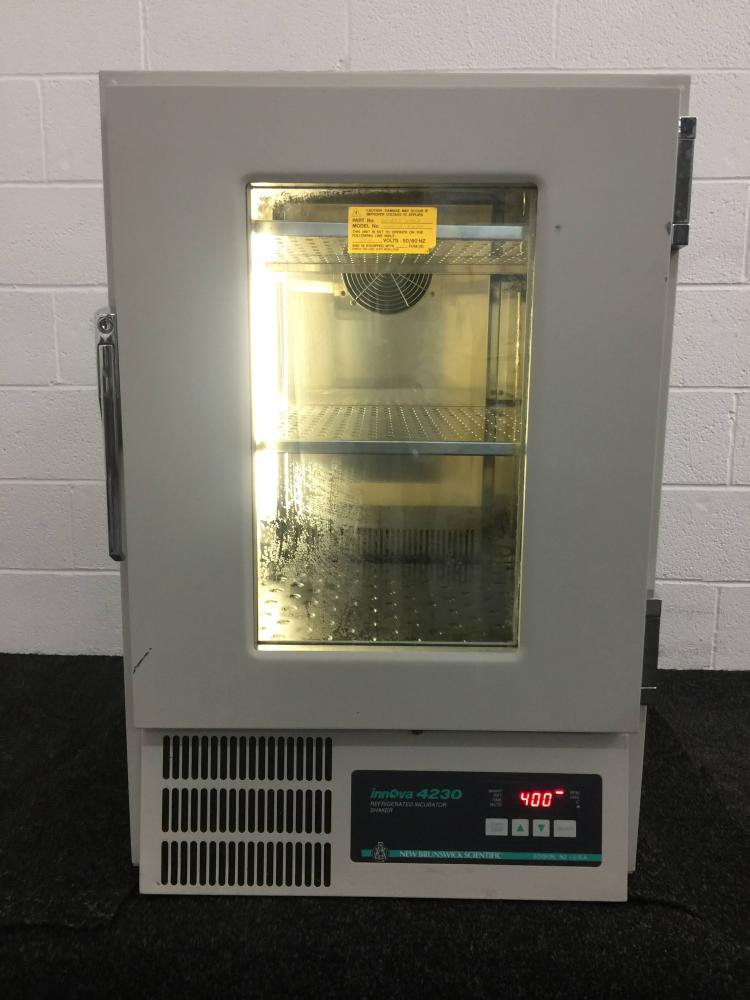

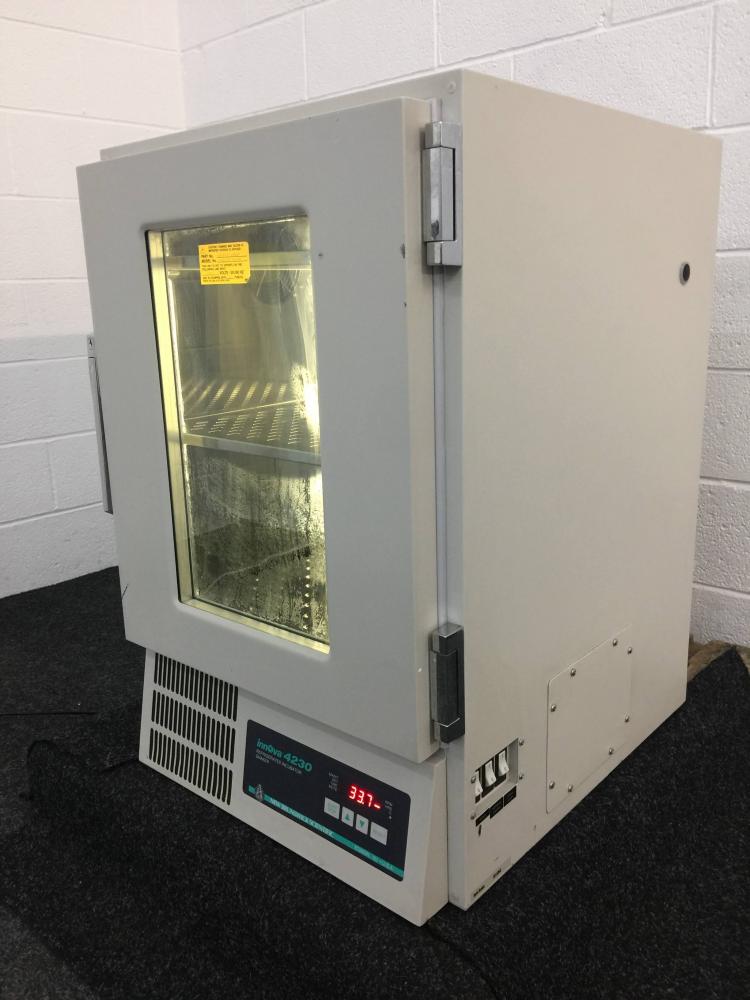

The New Brunswick Innova 4230 Refrigerated incubator shaker features a sturdy construction and the ultimate flexibility. This low temperature Incubator has the capability to heat or refrigerate your samples to meet your needs and conditions. You can also equip this with various accessories. The Innova 4230 is ideal for many applications, such as cell growth, hybridization, as well as cell cultures.

We have another in stock, you can use them as benchtop models or stack them 2 units high, for higher throughput in the same footprint. With a potent and responsive shaking system, this incubator shaker has you covered. The internal shaking system of this Innova incubator has a triple eccentric counter balanced drive system. With 9 sealed ball bearings, a 3/4-inch orbit, and a variable speed range up to 400rpm. The drive system of the Innova 4230 also has a special acceleration control. This prevents both sudden starting and stopping and helps minimize splashes.

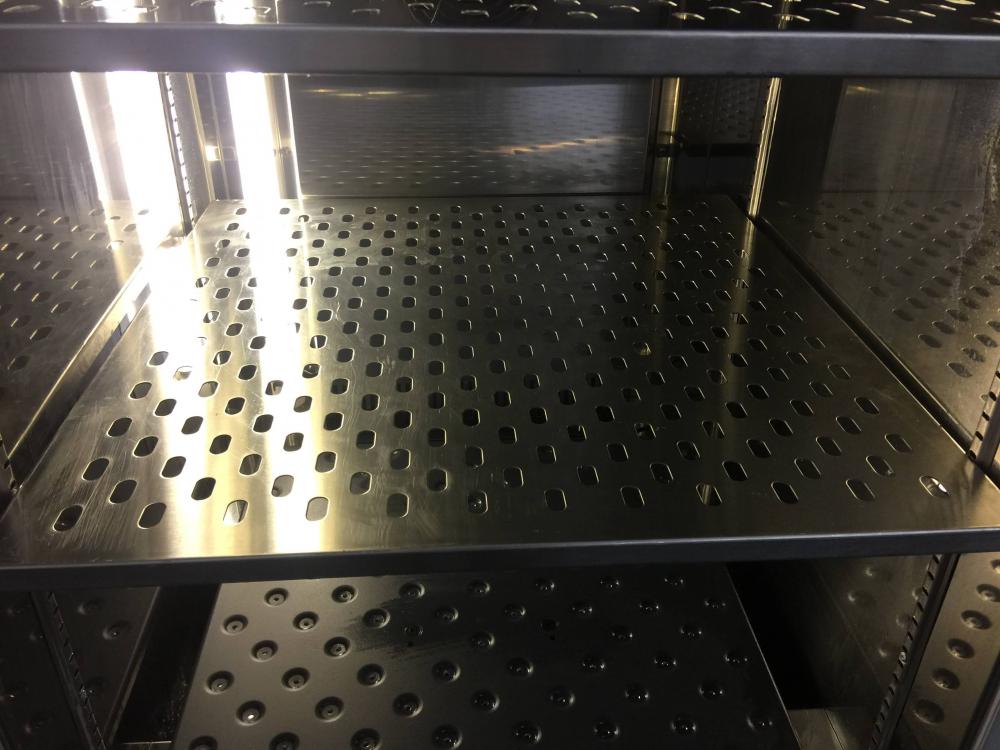

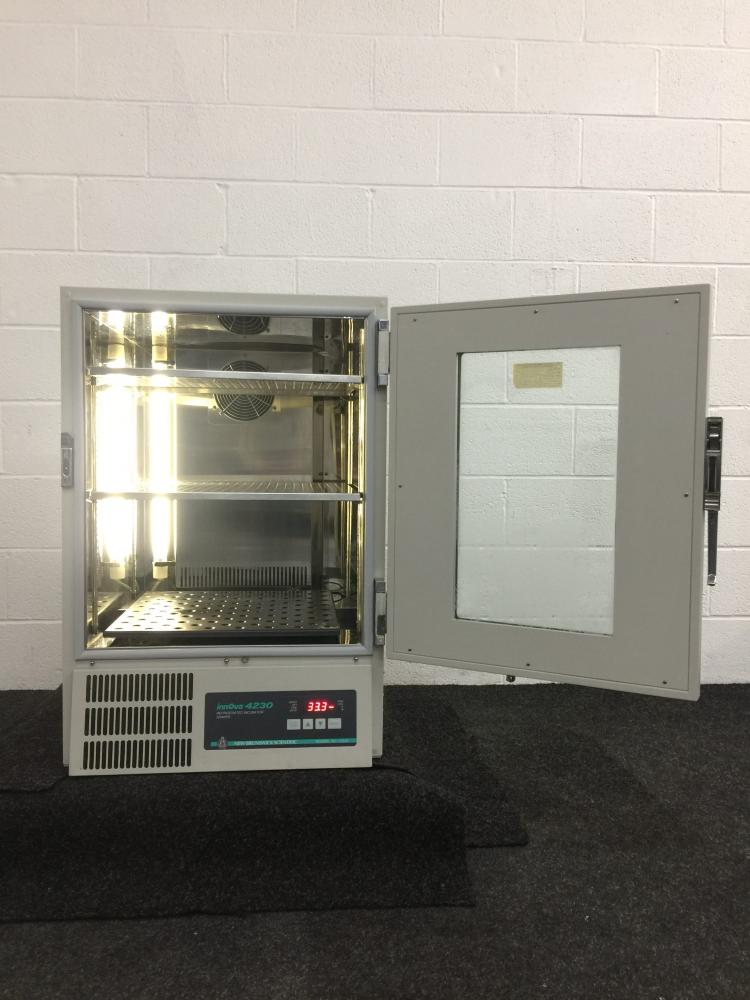

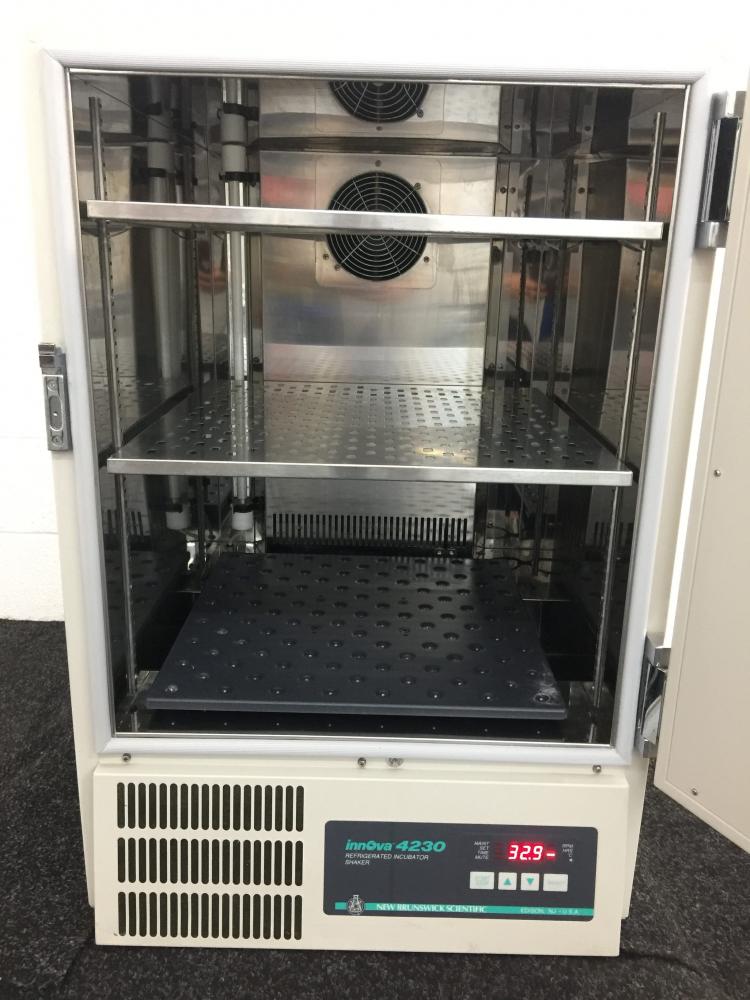

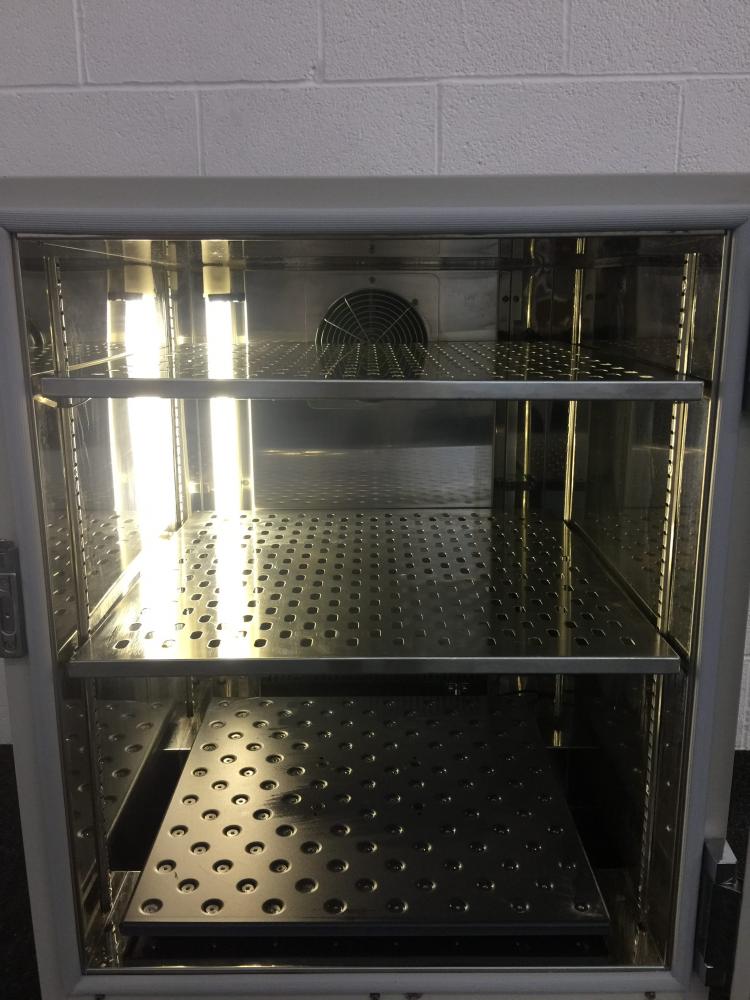

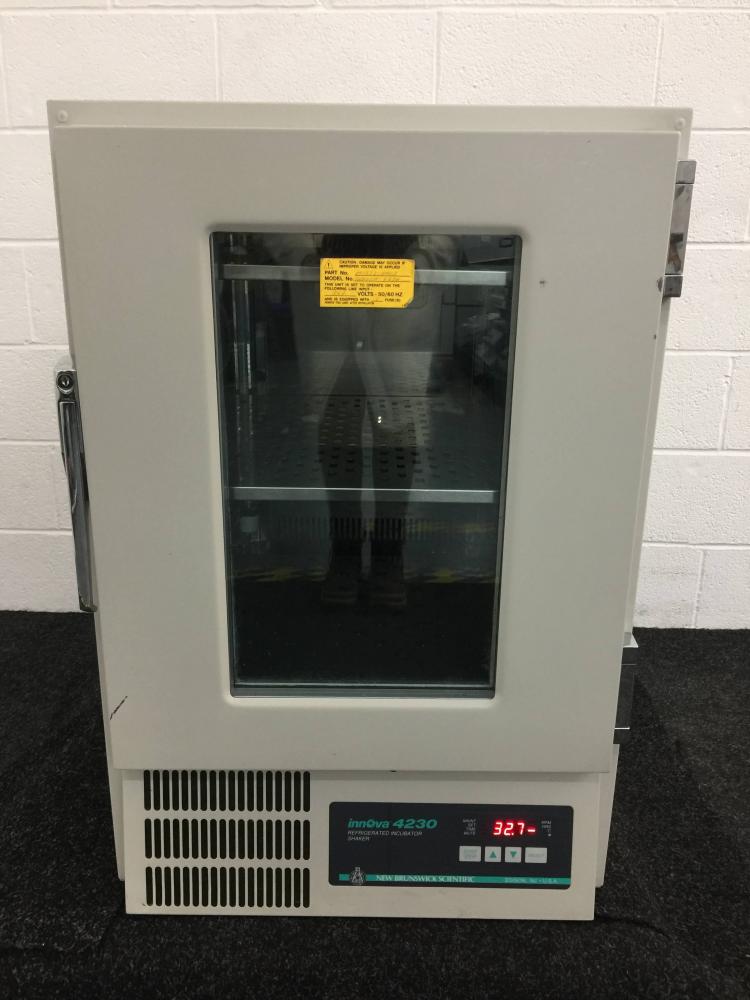

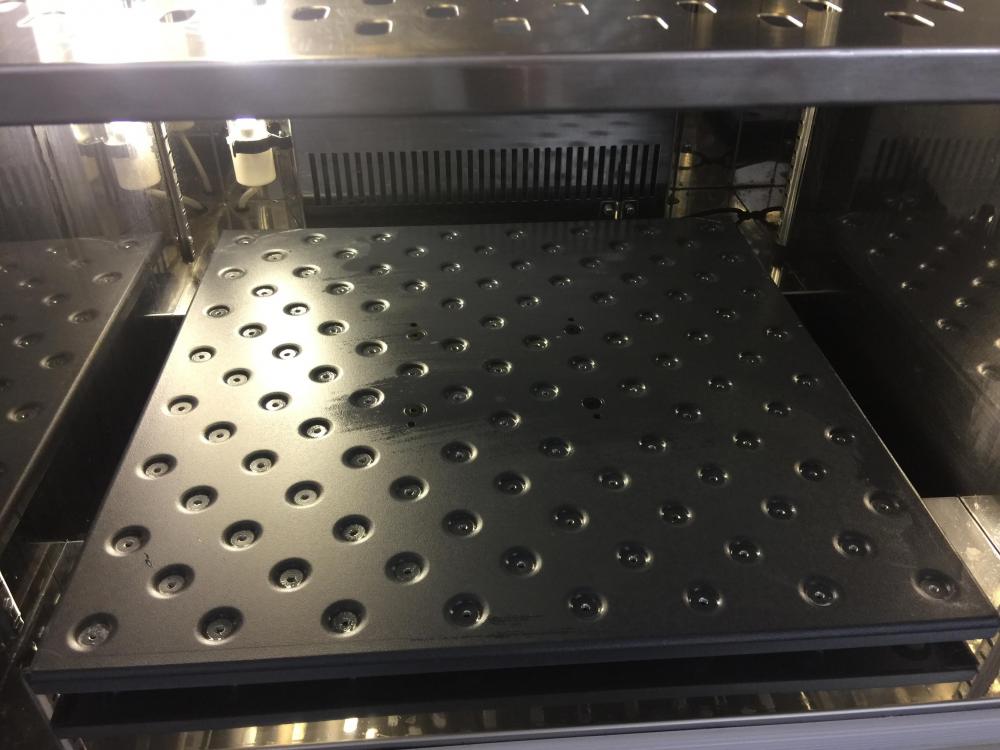

The New Brunswick Innova 4230 Refrigerated incubator shaker cabinet interior is heavy gauge stainless steel for easy cleaning. With sturdy stainless steel shelves that you can use independently of the shaker platform for added incubation, and storage. Within this chamber is a waterproof AC receptacle to power accessory machines. The shaker platform of this Shaking Incubator can accommodate flasks from 10ml up to 6L and tubes from 13mm to 30 mm. The front opening door features double-paned glass that allows users to observe progress while the internal environment is undisturbed. Temperatures in this refrigerated incubator shaker has a maximum of 70°C. This incubator is CFC Free and has a safety feature that shuts off the shaker when the door is open.

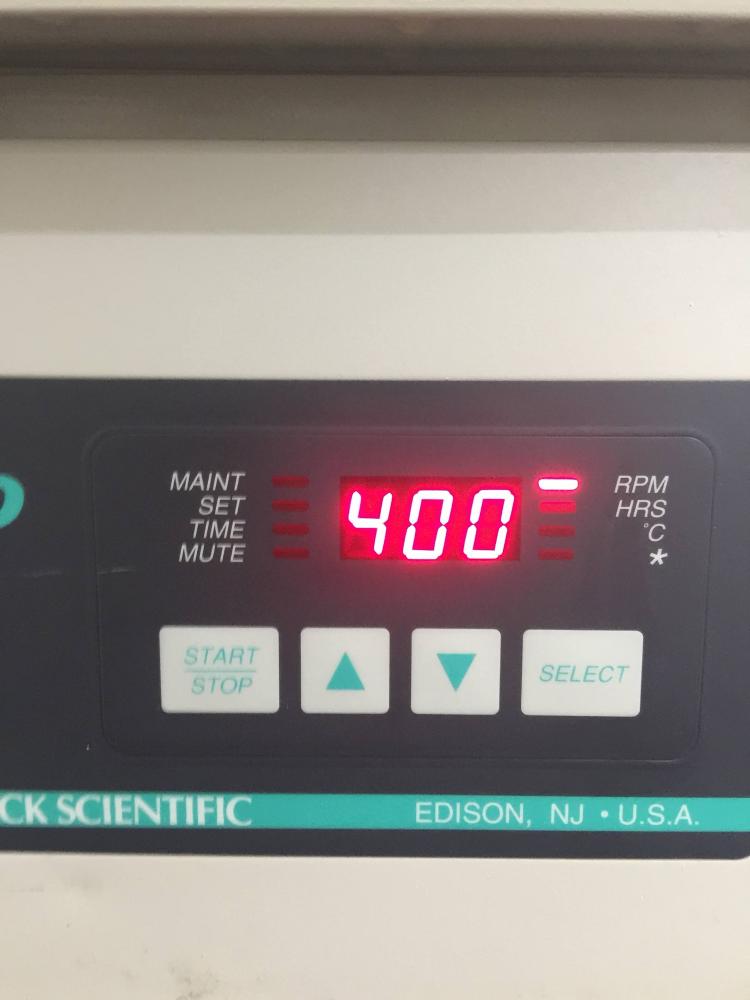

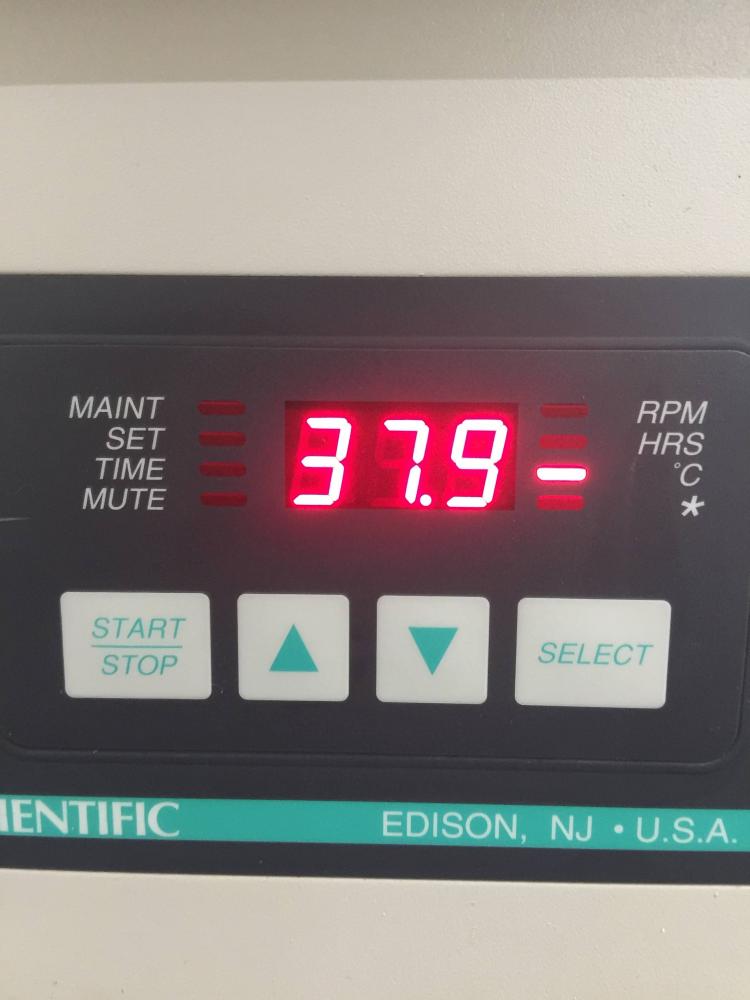

The New Brunswick Innova 4230 Refrigerated incubator shaker features self-diagnostics and various alarms. These alert users to a deviation from their setpoints as well as when a cycle ends. Alarms are audible and visual and can be set with other parameters such as temperature control, timer, and speed from the lower easy to read control panel. This incubator shaker can either be used continuously or with timed cycles that can be programmed in increments of 0.1 hours, with a range of up to 99.9 hours. An overload and unbalanced sensor limit the speed to prevent accidental damage.

Click Here to See Brochure

Click Here to See User Manual


Additional information

Weight136 kg
Dimensions61 × 76 × 92 cm


Innova 4230




This item has been powered on, tested by our engineer, and is in working condition.

Internal Dimensions (LxDxH)

52cm x 60cm x 63cm


25-400 RPM

Temperature Range

4°C to 75°C
