Description

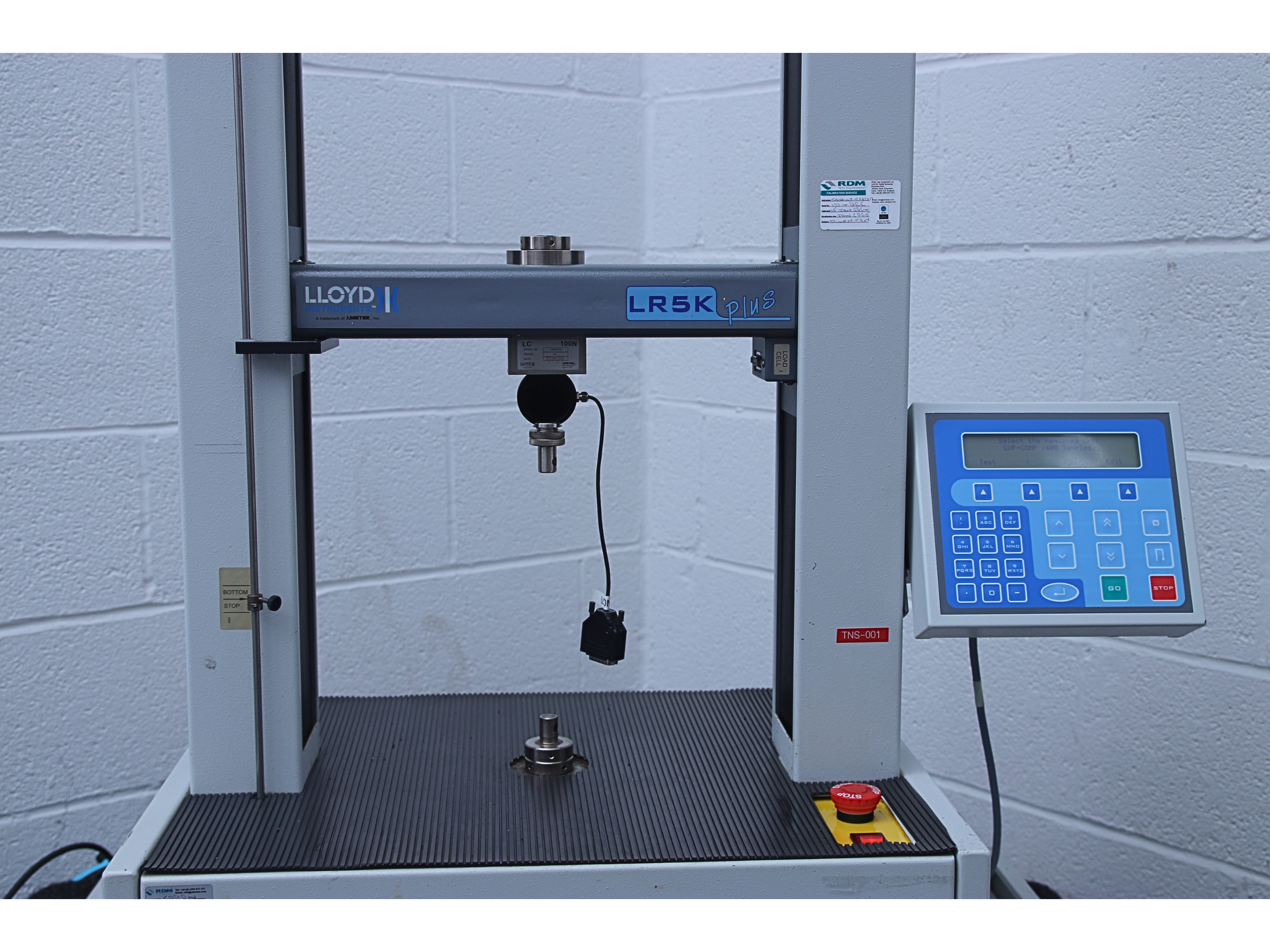

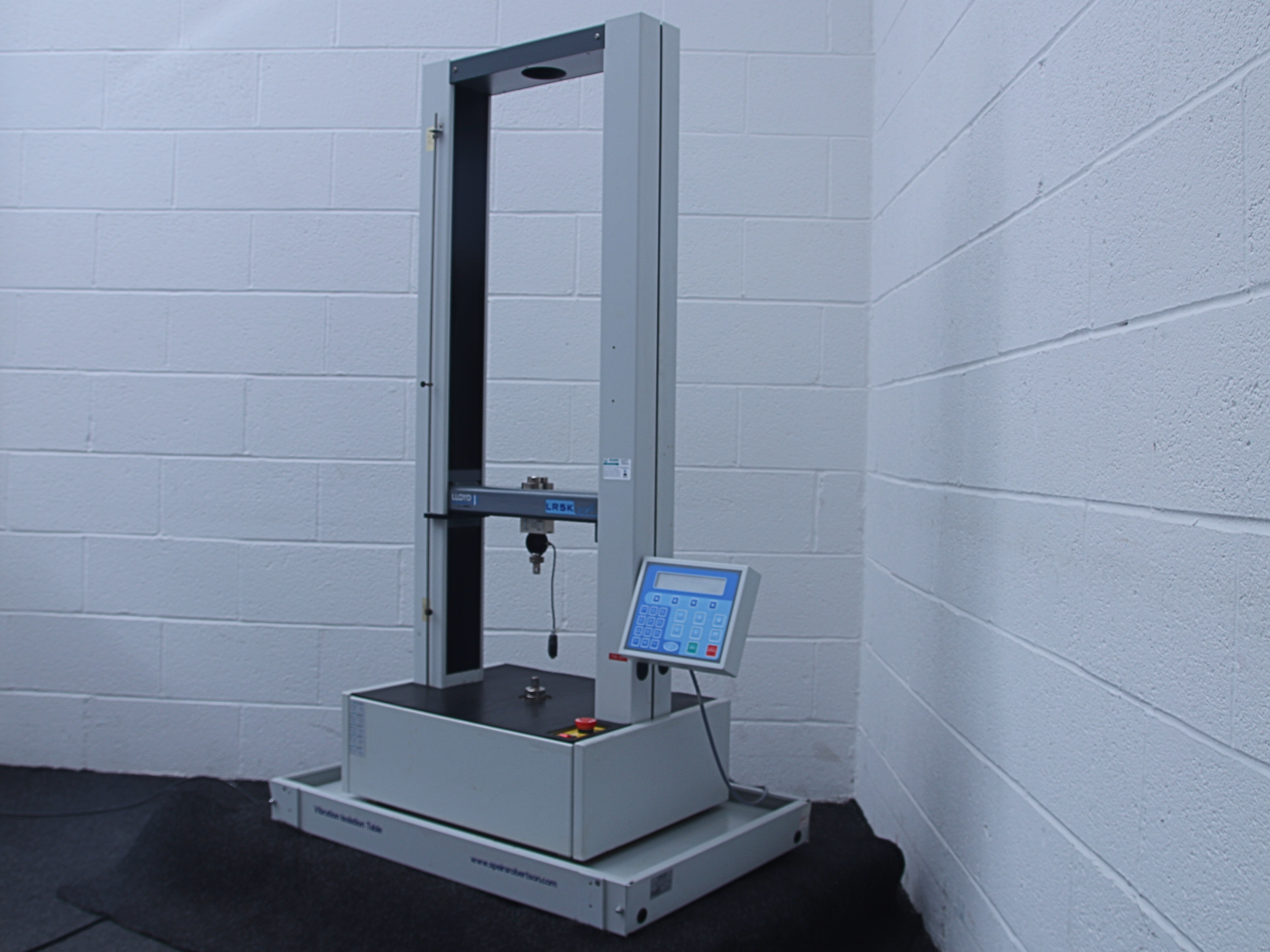

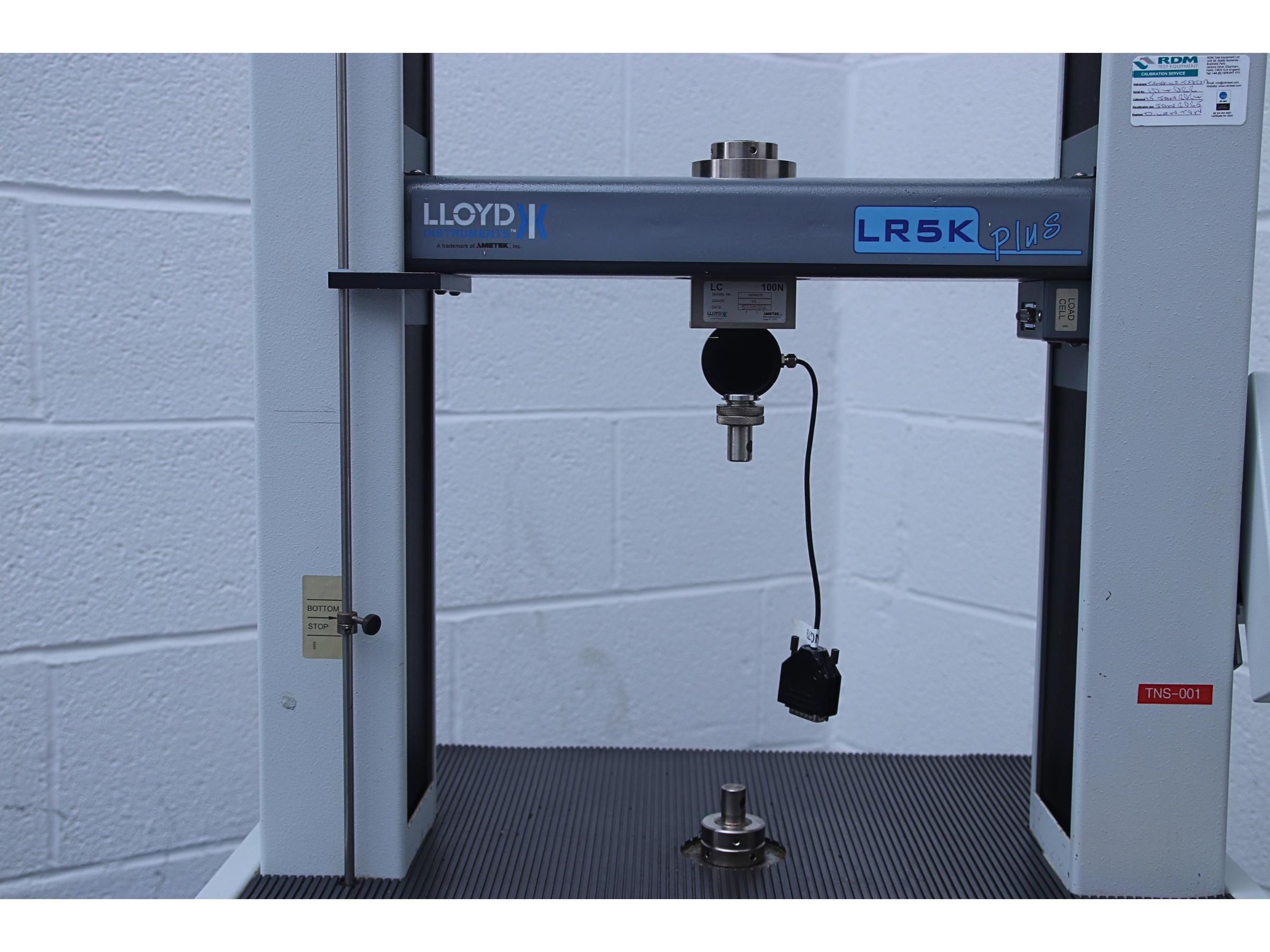

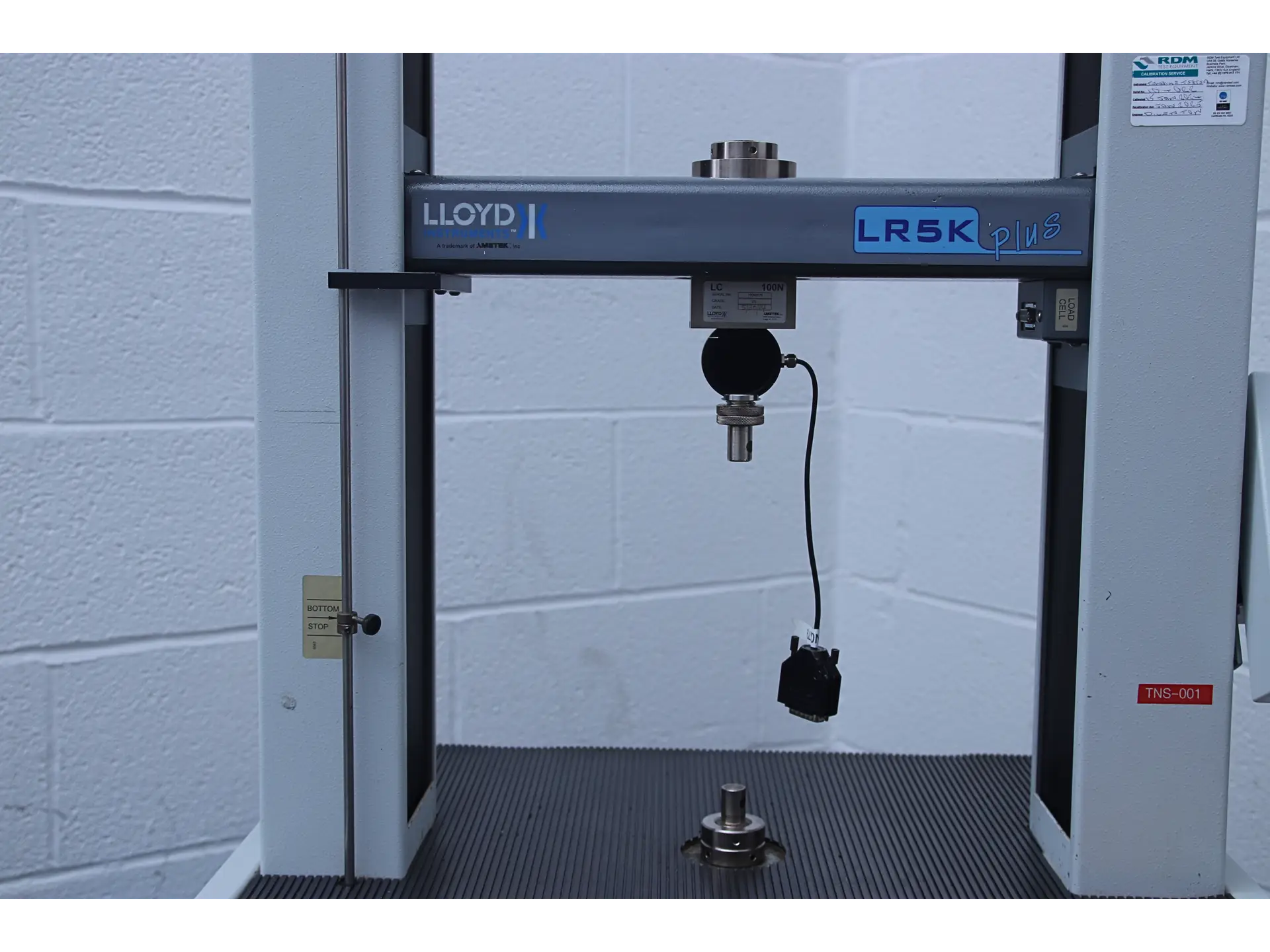

The Lloyd LR5K Plus is a high-performance material testing system designed for precise and reliable data acquisition in a wide range of applications. Engineered with cutting-edge technology, the LR5K Plus offers advanced capabilities for testing mechanical properties such as tension, compression, and shear forces. Whether you’re in materials science, quality control, or research and development, this versatile system ensures accurate results and consistent performance, you can trust that your testing processes are supported by a very reliable system. The LloydLR5K Plus is part of Lloyd Instruments’ range of precision materials testing systems and is specifically designed for evaluating the mechanical properties of a wide variety of materials, including metals, plastics, rubber, and composite materials.
The application of the LR5K Plus spans several key areas. In material research, it is ideal for testing the mechanical properties of metals, polymers, composites, and other materials. In quality control, it ensures that materials meet industry standards and specifications. Additionally, it plays a crucial role in product development, supporting engineers in designing and improving products by providing accurate material performance data.
Key Features of the Lloyd LR5K Plus :
- Maximum Force (tension and compression) 5kN (1124lbf)
- Force Measuring Accuracy Better than 0.5%
- Crosshead Speed Range 0.01- 1016mm/min (0.0004 – 40in/min )
- Crosshead Speed Accuracy ± 0.2% @ steady state
- Maximum Working Width Between Columns 404mm (16in)
- Operating Temperature: 5 to 35ºC (40ºF to 95ºF)
- Storage Temperature: -20 to 55ºC (-4ºF to 130ºF)
- Vertical Travel : Standard Travel 975mm (38.39in) – Extended Travel 1460mm (57.48in)
- Data Sampling Rate 8 kHz
