Gallenkamp Vacuum Oven

Capacity: 31 L | Temperature range: 30 – 200°C

Product Code

25049
Used

Enquire for price

Available now

1 in stock

Covered by our 30 Days No Quibble RTB Guarantee.

Description

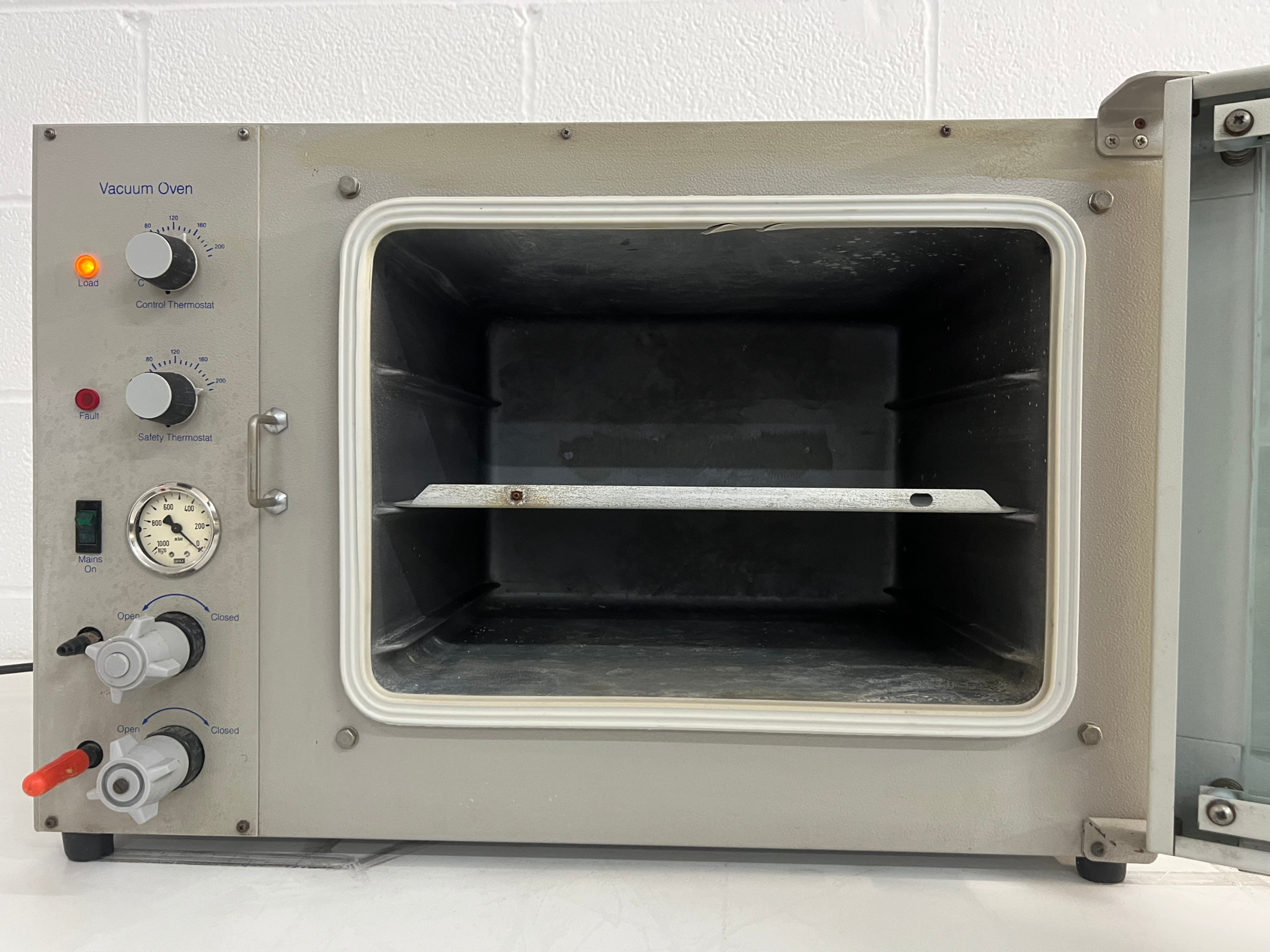

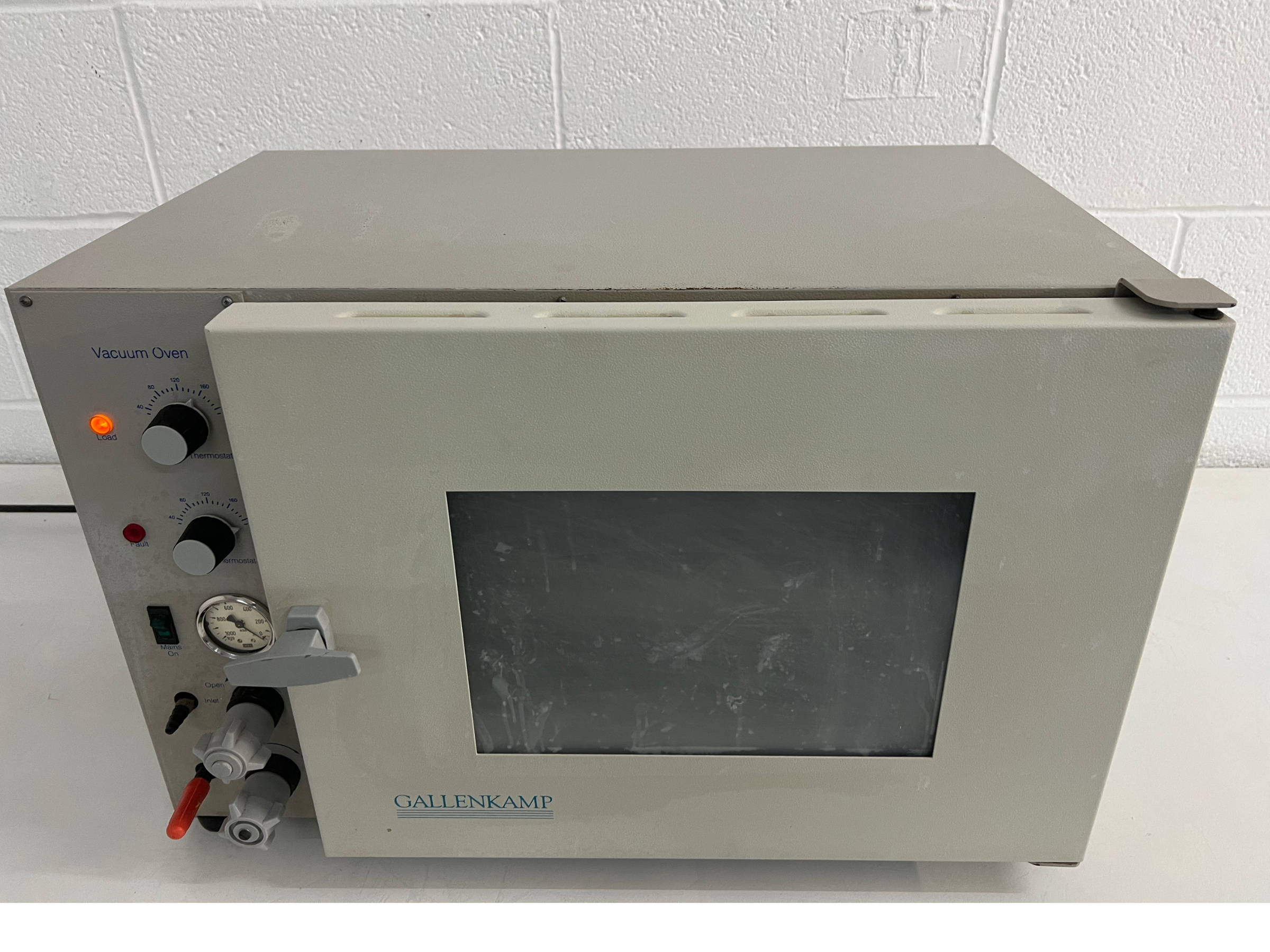

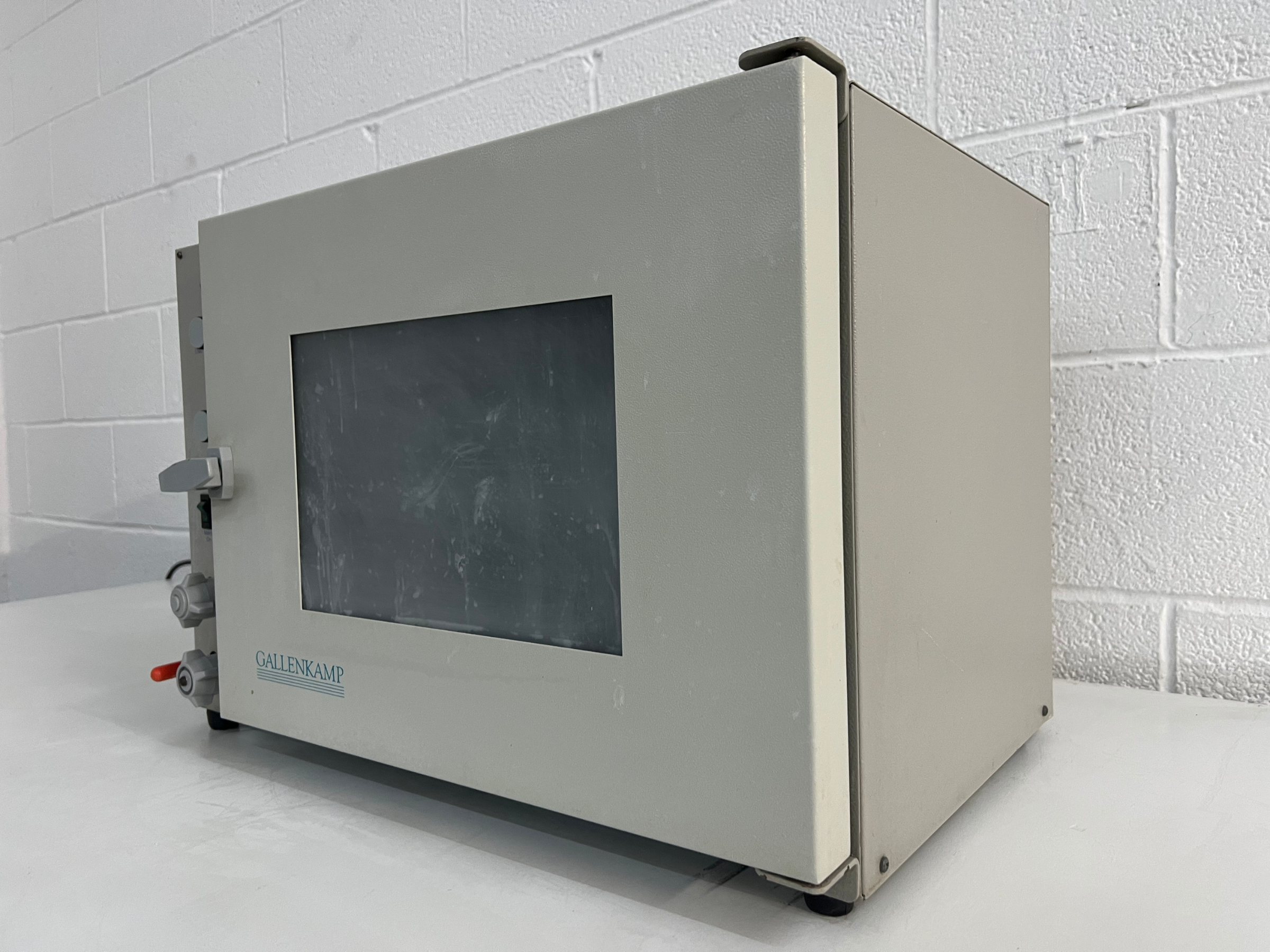

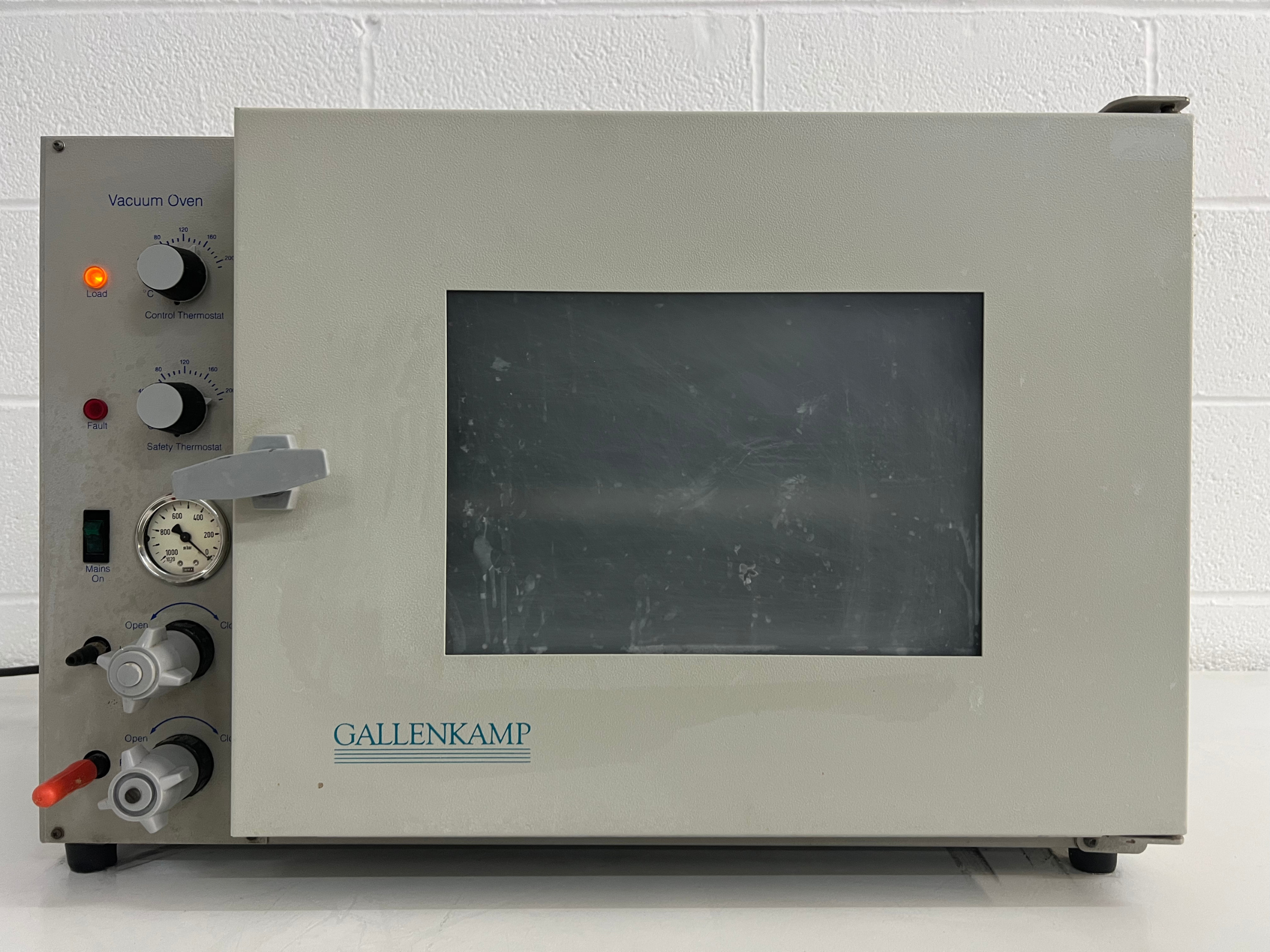

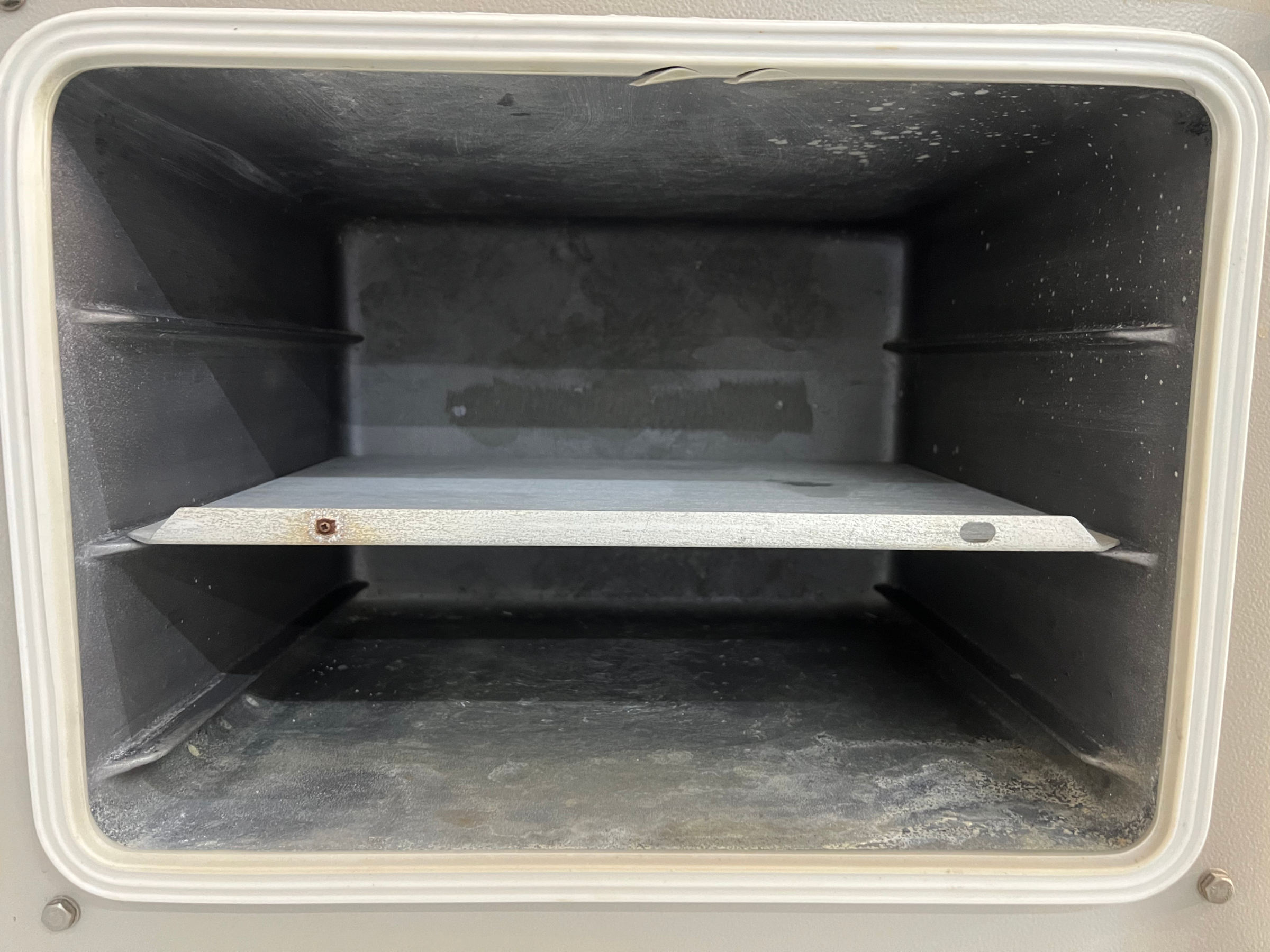

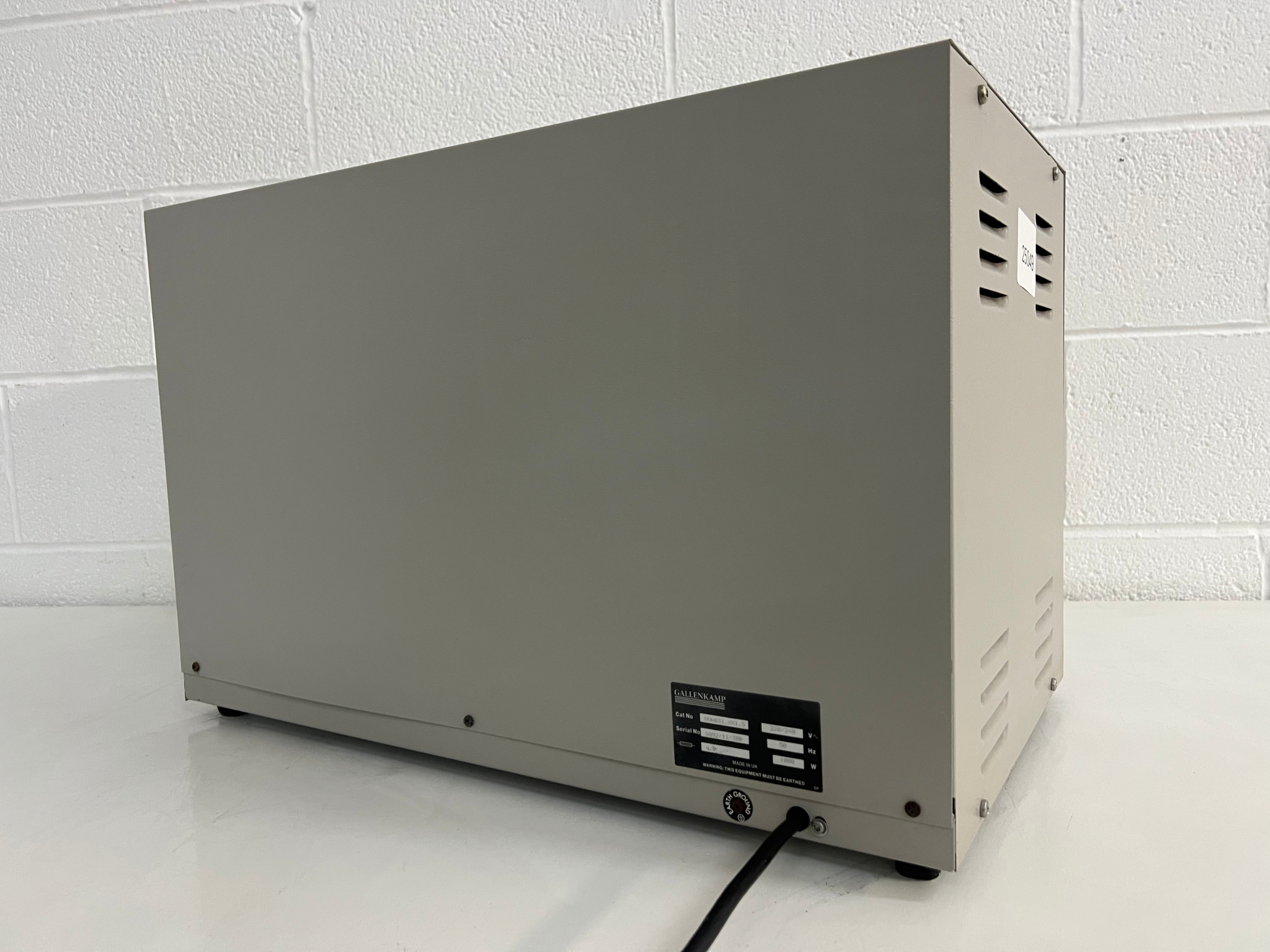

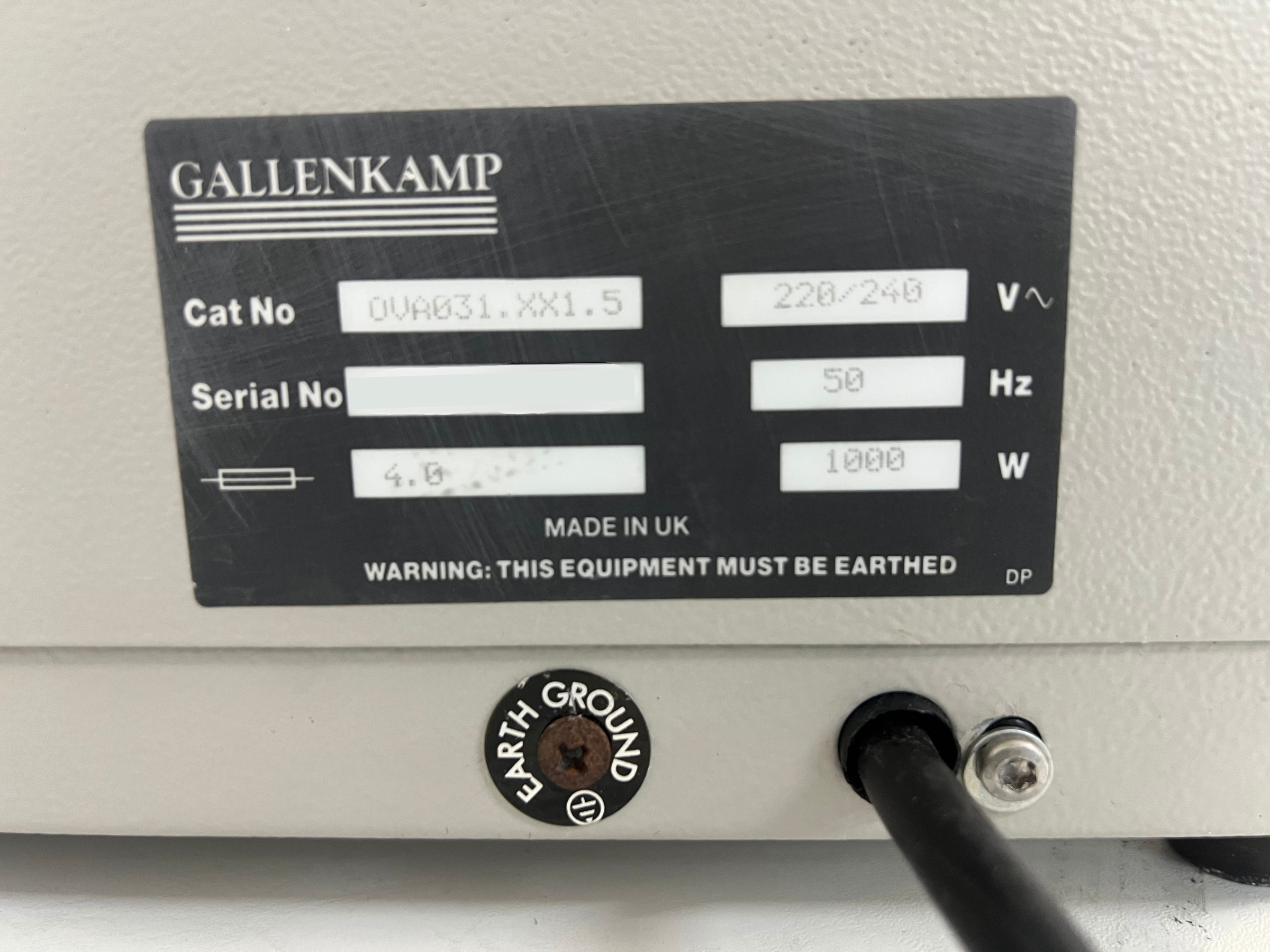

This Gallenkamp vacuum oven (model OVA031.XX1.5) is suitable for a wide range of applications. These include controlled drying, curing, and heat treatment of sample. It is ideal for applications where heat-sensitive materials must be processed without oxidation or contamination. The 31 L oven features a stainless steel chamber for corrosion resistance and easy cleaning. It operates from 30 to 200 °C and is equipped with digital temperature control for accurate and stable heating. The vacuum system ensures reduced pressure operation, supporting processes such as degassing, desiccation, and drying of delicate samples.

A toughened glass viewing window allows for sample observation without interrupting the process. For safety, the unit includes an independent over-temperature cut-out to protect both samples and equipment. You can control the unit easily with the analogue control panel. The OVA031.XX1.5 is a compact and reliable oven which is ideal for precise vacuum drying.

Features of the Gallenkamp Vacuum Oven:

  • Temperature range: 30-200°C
  • Capacity: 31 L
  • One shelf included, with three shelf positions
  • Distance between shelf positions: 75 mm
  • Simple analogue control
  • Vacuum guage displays vacuum pulled from 0 to 1000 mbar
  • 10-12 mm bore tubing connections
  • Over-temperature safety circuit
  • Shatter-proof glass safety door
  • Glass fibre insulation
  • Note that this product has some staining as per the images



Download user manual

Additional information

Weight75 kg
Dimensions64 × 45 × 42.5 cm
Brand

Lead Time

Available now

New/Used

Used

Warranty

30 days (Richmond Promise)

Downloads

Download user manual
