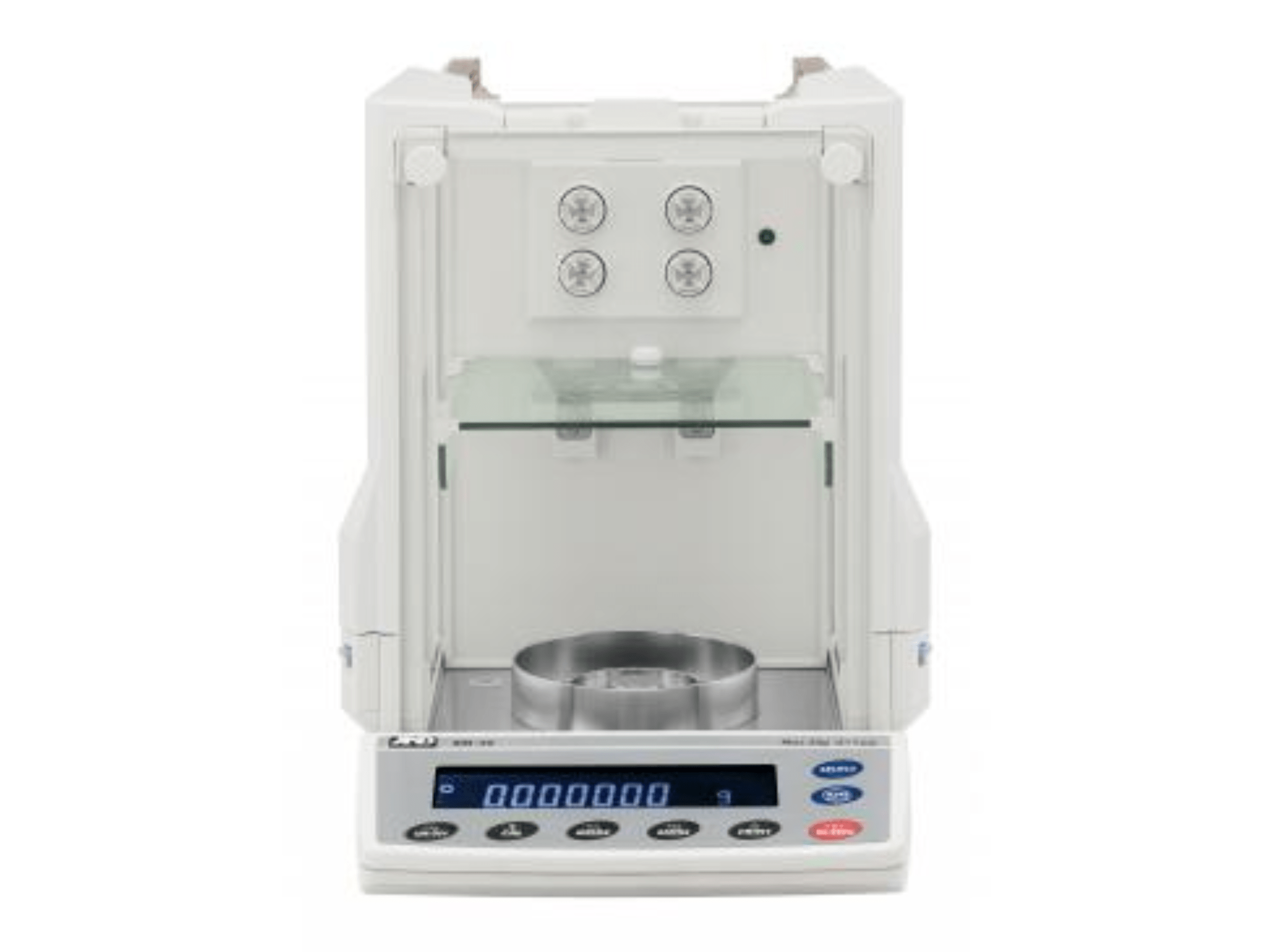

A&D ION BM-5 Series Dual Capacity Micro Balance

Two models available BM-5 (5.2g to 1ug) and BM-5D (Dual capacity: 5.2 to 0.01mg/2.1g to 1ug)


Product Code




The A&D ION BM-5 micro balances are designed for repeatable and reliable measurements in areas where accuracy is key. The balances feature a built in ioniser to remove charge from samples before measuring. This helps to ensure an accurate result, and quicker stabilisation. Integrated internal calibration ensures accurate readings. Further, the balance automatically recalibrates when changes in ambient temperature are detected.

Choose the best micro balance for your needs:

Weighing capacity: 5.2g
Readability: 0.001 mg (1μg)
Typical minimum weight: 2.0mg

Dual weighing capacity: 2.1 / 5.2g
Dual readability: 0.01 mg / 0.001 mg (1μg)
Typical minimum weight: 5.0mg

The BM-5D model is a dual capacity balance. Balances that feature dual capacity can automatically weigh samples at the best readability available.

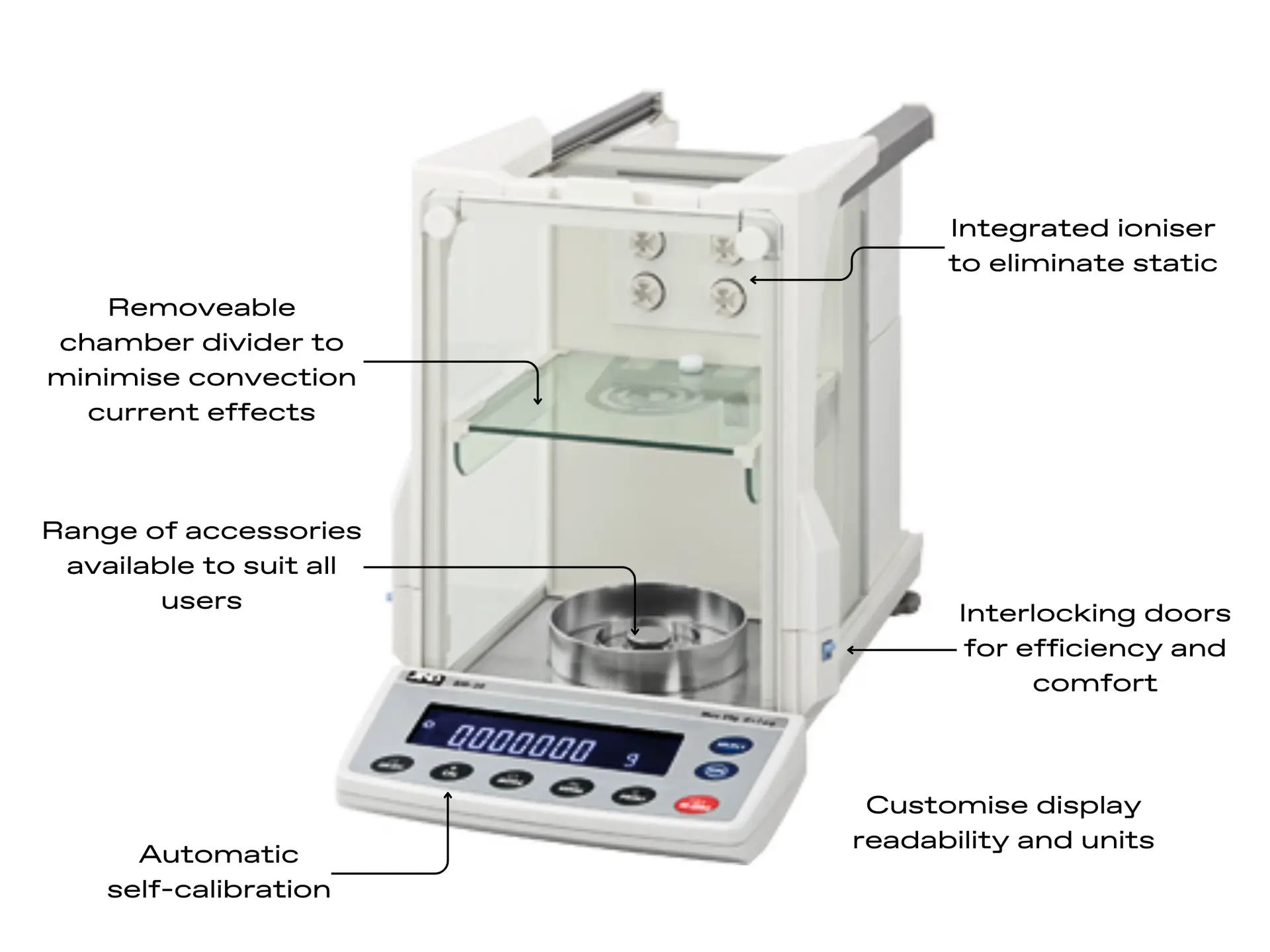

Features of the A&D Ion BM Series Micro Balances:

  • Internal calibration with auto-self calibration feature to adjust for temperature variations, ensuring consistent measurements
  • Standard RS232C allows for easy system integration
  • Easy ION switch allows built-in fan-less internal ionizer to neutralize electrostatically charged objects instantly at no additional costs
  • Large breeze chamber is flexible enough to adjust to all sample vessels small or large. A removeable divider minimises the effect of convection currents, while allowing the flexibility to use taller vessels or pipettes if required.
  • Anti-static glass coating blocks outside electrical interferences
  • Auto response adjustment allows balance to auto or manually stabilize FAST, MID, SLOW depending on draft &vibration influences
  • Built in environmental sensors monitor and display the temperature, humidity and atmospheric pressure
  • Illuminated back-mounted spirit level bubble helps reduce levelling time and increase accuracy & precision
  • One touch Full Digital Calibration (internal & external) ensures balance is calibrated onsite for the best performance
  • Data Memory up to 200 points
  • GLP/GMP/GCP/ISO compliant reports with Manufacturer, Model, Serial, Balance ID, Time/Date, Mass Std, Signature space
  • Comes standard with USB and RS-232C with Optional Bluetooth and LAN Ethernet Interface with WinCT-Plus software
  • AD1688 Data Logger hand held device allows storage up to 5,000 pt with time/date and direct output via USB
  • Full technical specifications and comparison of models in brochure below

Download PDF Brochure for A&D ION BM-5 Micro balance

Download user manual for A&D Ion BM Series Balances

Additional information

Weight24 kg
Dimensions86 × 69 × 63 cm


BM-300, BM-5, BM-500, BM-5D, BM Series




3 years (Manufacturer Warranty)

Capacity (g)

5.2, 5.2/2.1 (Dual)


User manual for A&D Ion BM Series Balances

Brochure for A&D Ion BM Series Balances

Data sheet for A&D Ion BM Series Balances
