Description

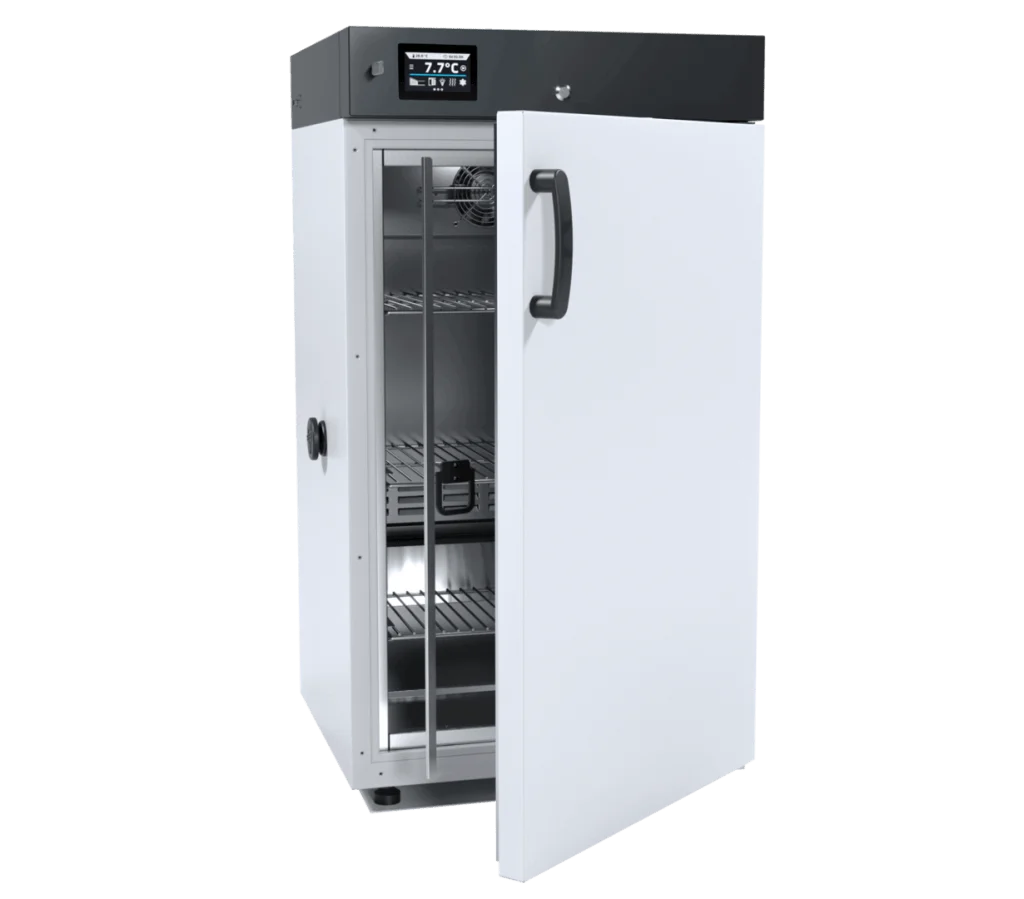

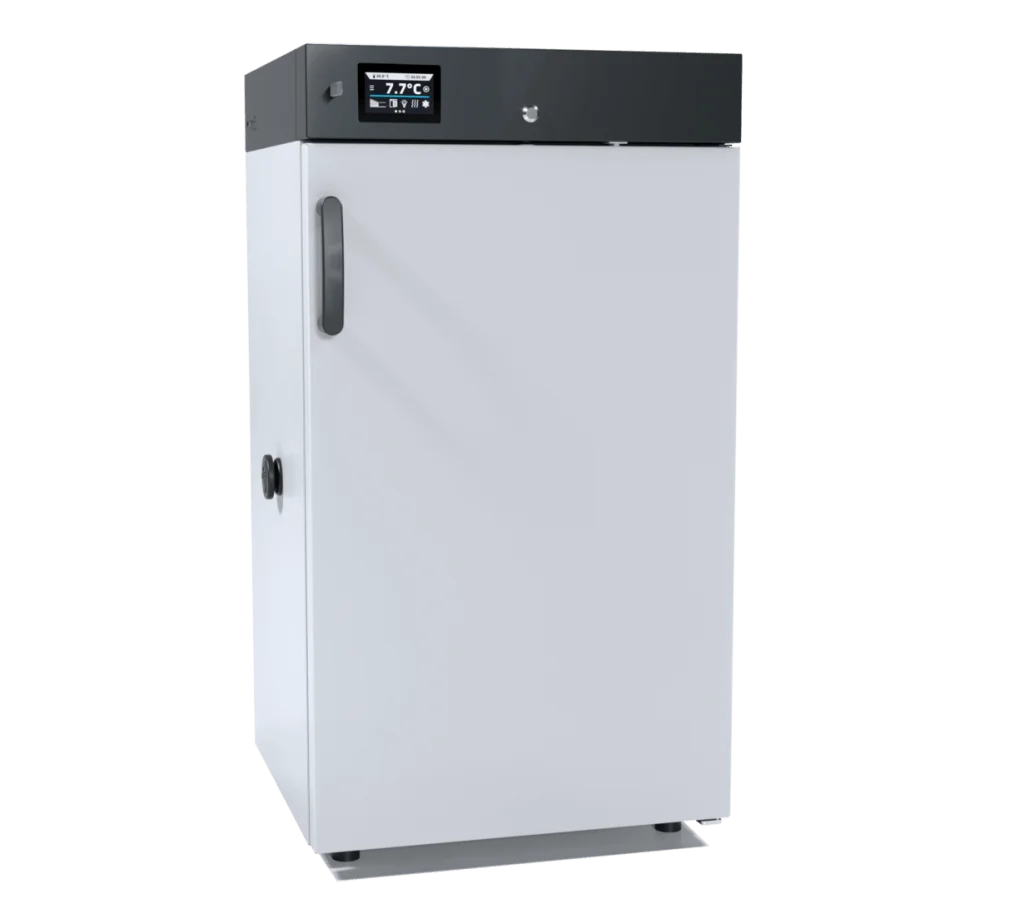

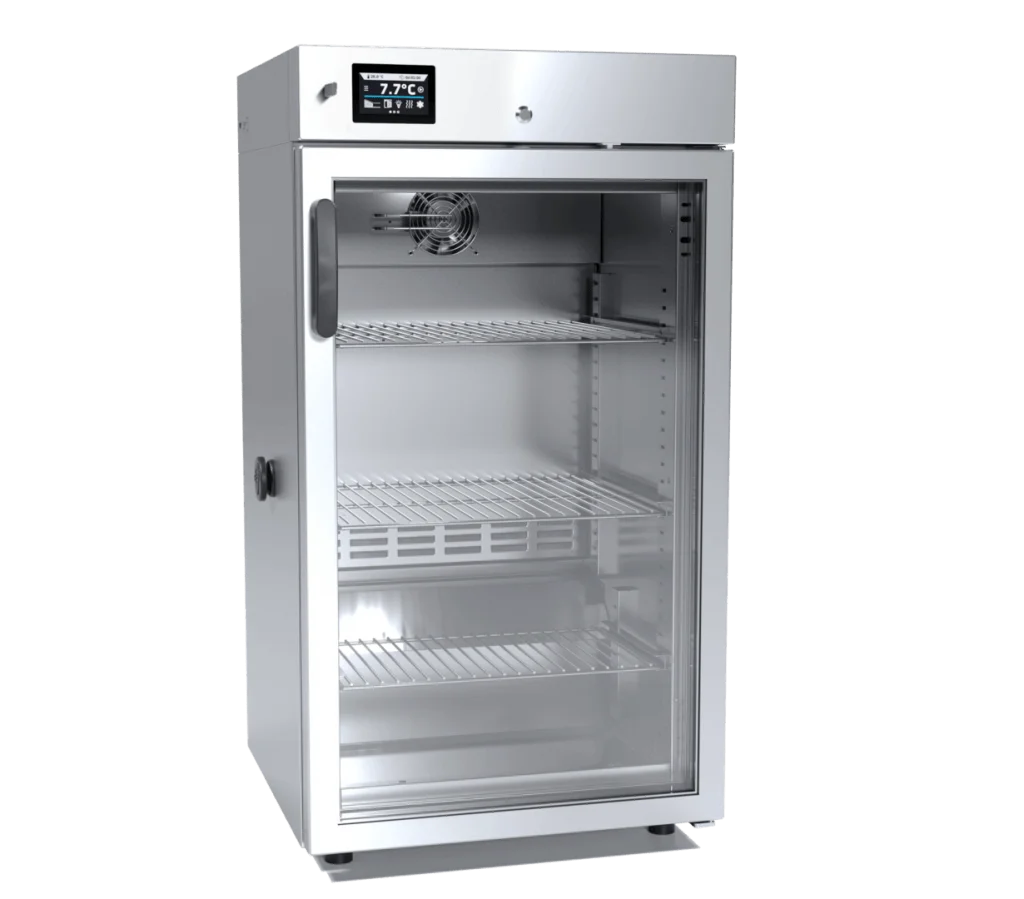

The Pol-Eko CHL 4 is a mid-sized laboratory refrigerator. Pol-Eko are known for robust and reliable cooling units that offer the potential to record and download temperature settings and events such as door opening times, for full reporting and accountability. Click here for the full range of laboratory refrigerators from Pol-Eko.
As with most Pol-Eko laboratory equipment, the CHL 4 refrigerator can be customised to meet the requirements of your lab. Choose between the basic, comfort or premium configurations; with a Smart or Smart PRO controller (See full details below).
Features
- Chamber capacity: 250 L
- Working capacity: 203 L
- Stable temperature range between 0 – 15 °C
- Open door alarm
- LAN and USB ports for data transfer
- Internal LED lighting
- 30 mm access port on the left wall (option to change size)
- Door lock to protect against unauthorised use
- Touch screen control unit that can be operated while wearing gloves
- Multi segment time and temperature programs
- Basic:
- Stainless steel shelves with plastic coating
- Interior: Aluminium

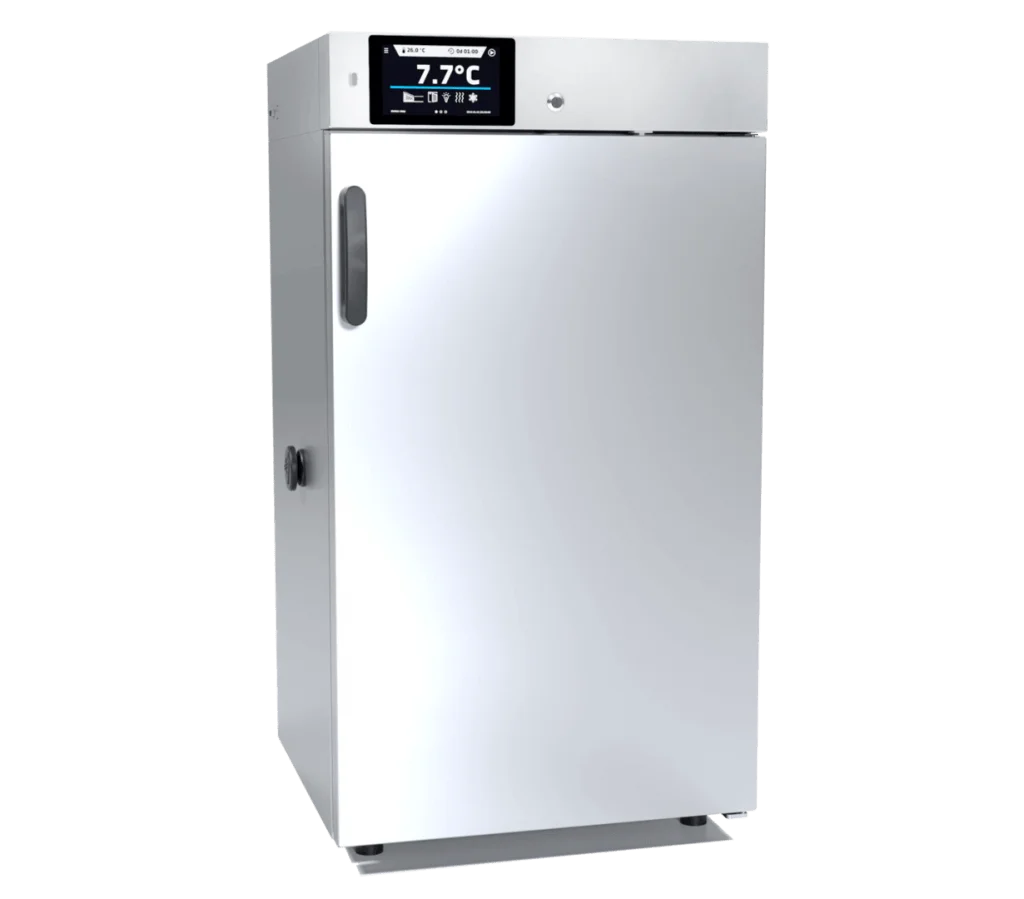

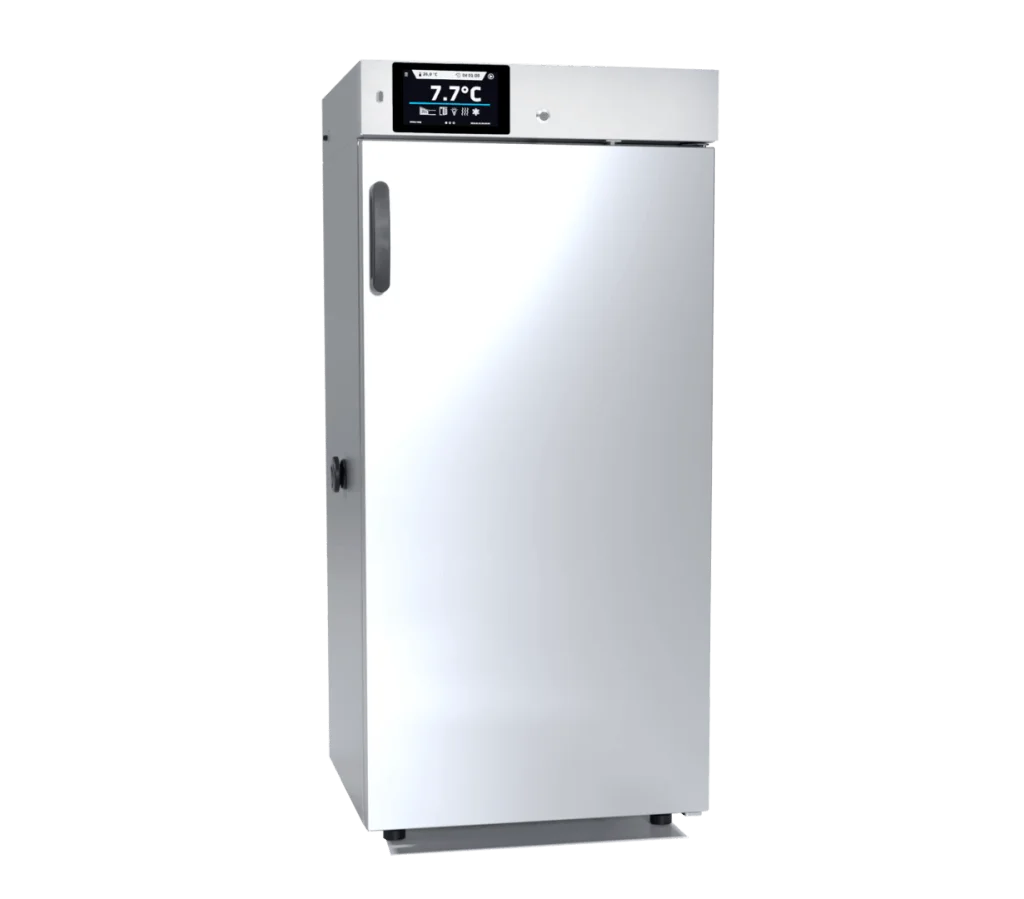

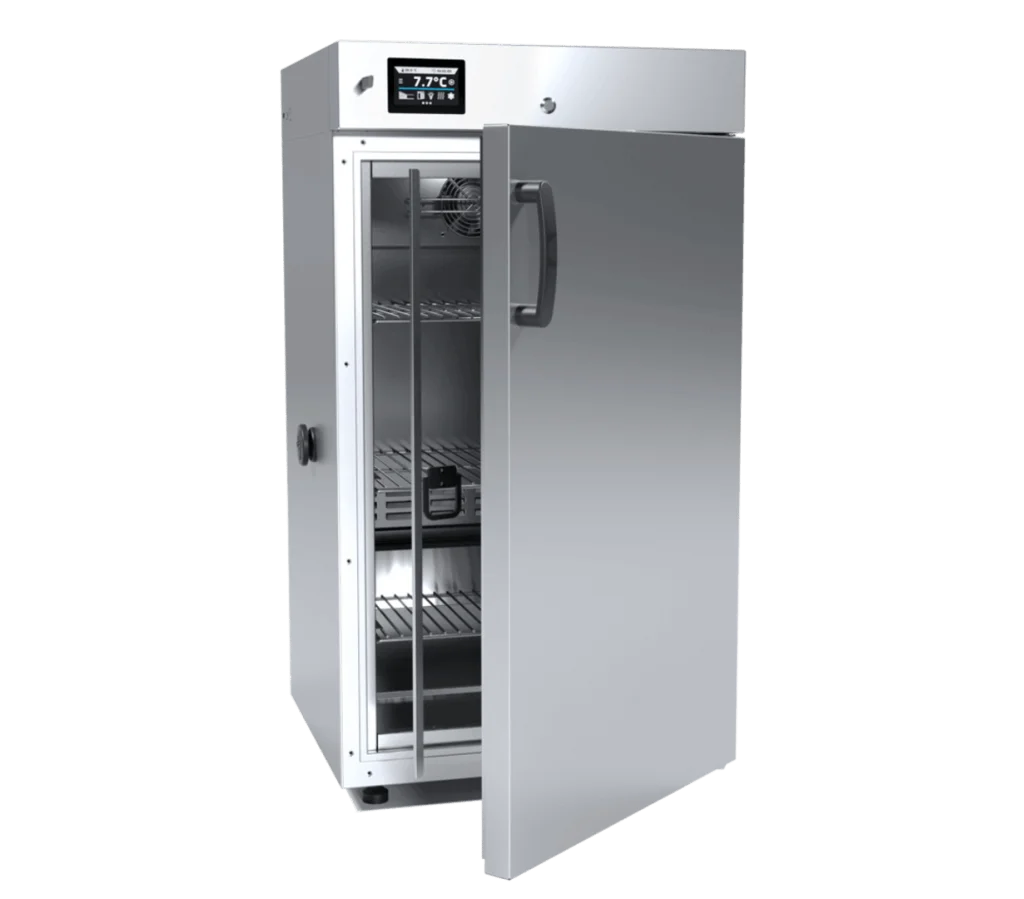

- Housing: Powder coated sheet as standard, or upgrade to polished stainless steel
- Choose Smart or Smart PRO controller (See below)
- Temperature protection class 1.0
- Comfort:
- INOX Stainless steel wire shelves
- Interior: Stainless steel meeting DIN 1.4016
- Housing: Powder coated sheet as standard, or upgrade to polished stainless steel
- Choose Smart or Smart PRO controller (See below)
- Temperature protection class 1.0
- Premium:
- INOX Stainless steel wire shelves
- Interior: Stainless steel meeting DIN 1.4301
- Housing: Powder coated sheet as standard, or upgrade to polished stainless steel
- Choose Smart or Smart PRO controller (See below)
- Temperature protection class 2.0 when fitted with the Smart controller OR class 3.2 when fitted with the Smart PRO controller
- Choose between Smart or Smart PRO controller (See full details below)
Controller / Display

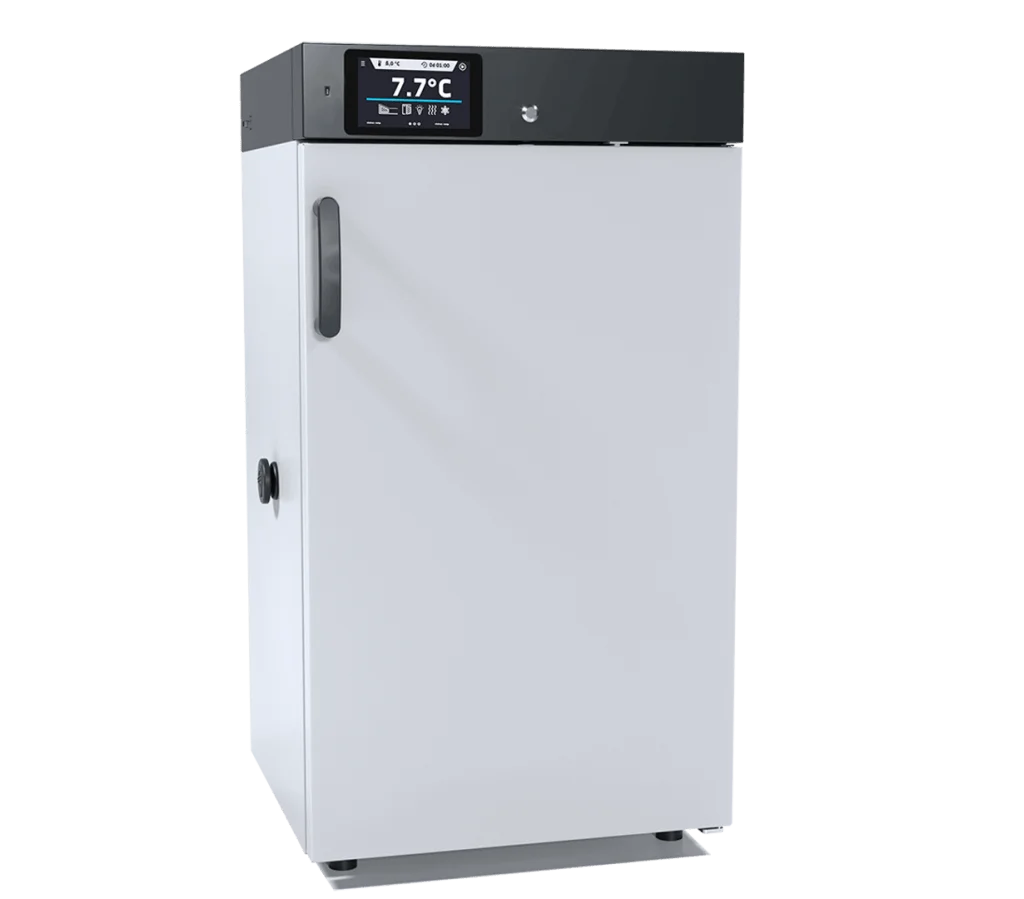

CHL refrigerators are fitted with either a Smart or Smart PRO touchscreen controller. Both are full colour touch screen controllers and display units, with USB ports for data transfer.
The Smart PRO controller is the larger of the two at 7″, and has a full alphanumeric keypad. The PRO provides the option of setting five different user accounts. Users can login using the keypad, or by scanning a key fob or mobile phone. More programs can be pre-set (up to 40), with up to 100 segments, and a full alphanumeric range for program names. The full alphanumeric keypad means the unit name is fully customisable, and provides the possibility of making notes directly within the software. Data can be downloaded using USB or via WiFi directly to a computer, tablet or even a mobile phone.
The Smart is a smaller scaled-down controller at 4″, with only a numerical keypad. Things are kept simple with no user accounts, and space for five program pre-sets with up to six segments. Lights are controlled with a simple on/off switch. Data is stored for up to six months, and can be downloaded via USB.
Additional options
The CHL refrigerators can be configured exactly to your requirements. Please speak to a member of our sales team to discuss your needs.

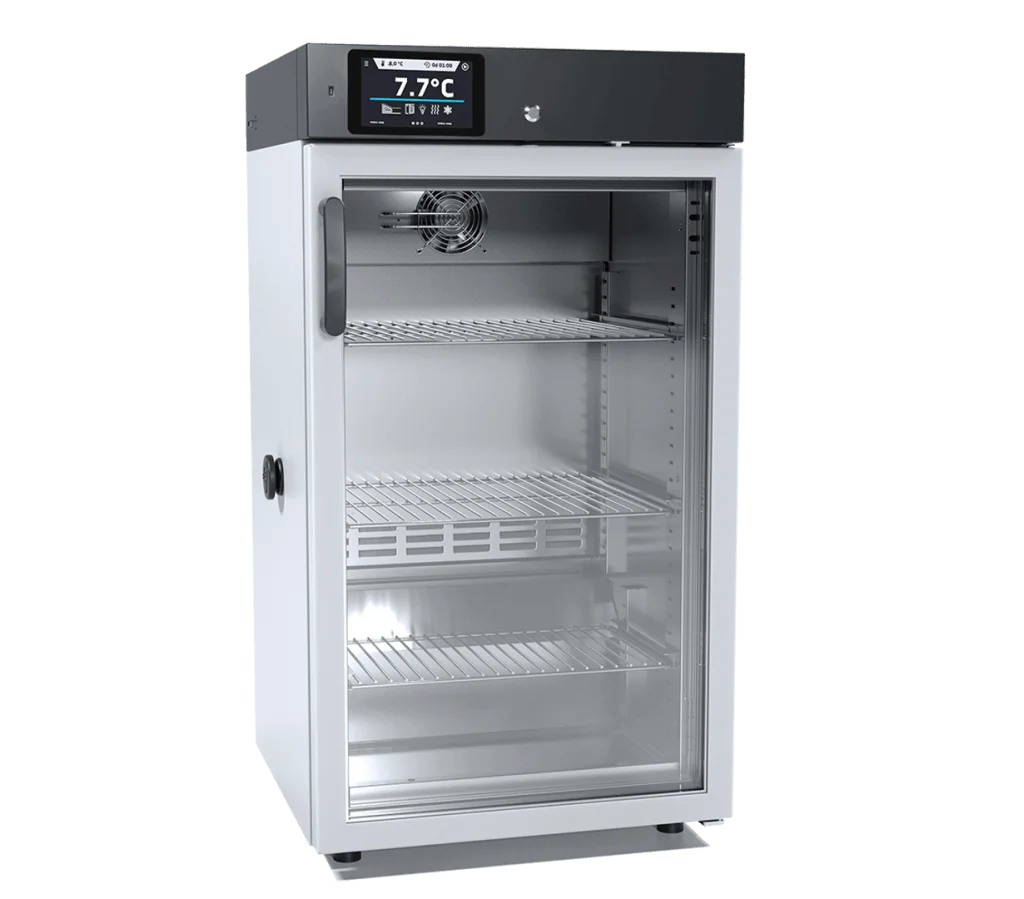

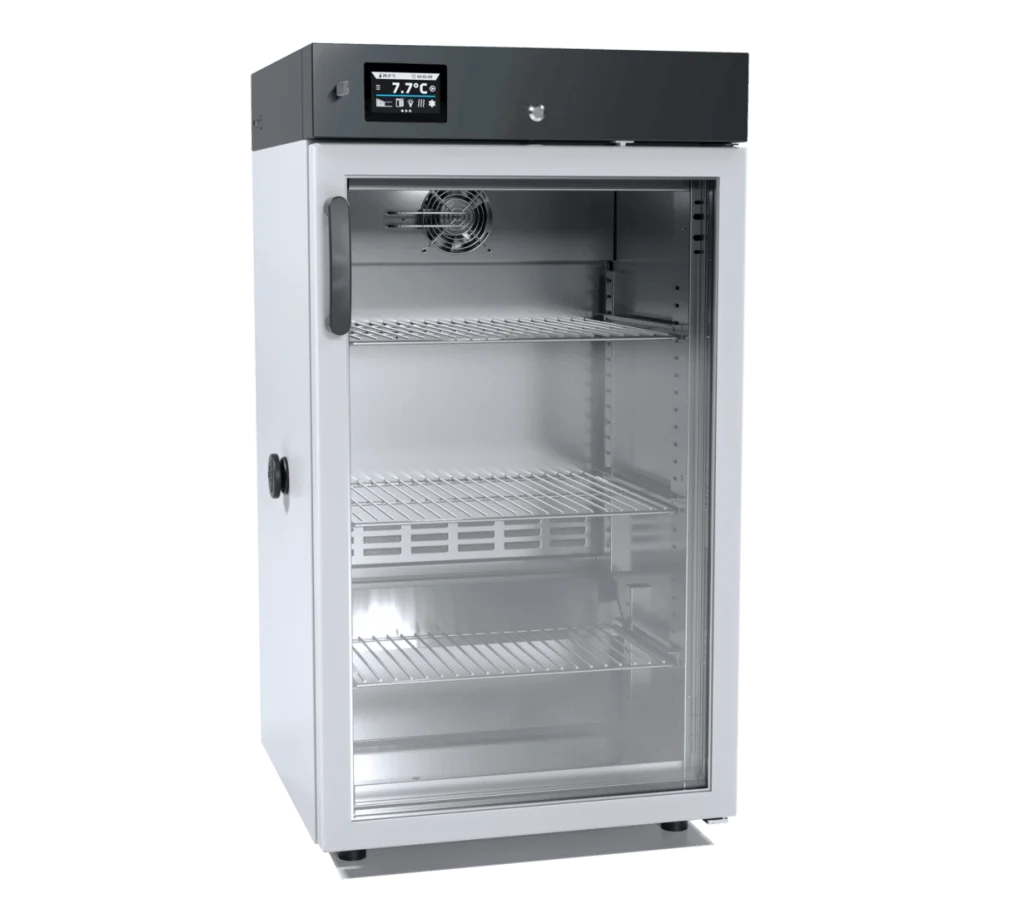

- Glass doors
- Range of shelf options: plastic coated wire shelf, perforated stainless steel shelf, full stainless steel shelf with hole, stainless steel wire shelf, reinforced shelf, aluminium drawer, stainless steel drawer
- Pharma organiser with four drawers
- Additional temperature sensor (can be used to monitor a specific sample)
- Castors
- Table or base with castors
- Non-standard access port (20, 30, 60 or 100 mm)
Downloads
Data sheet for Pol-Eko CHL 4 Smart
Data sheet for Pol-Eko CHL 4 Smart PRO
Comparison chart for all CHL refrigerators (Brochure page 22)
