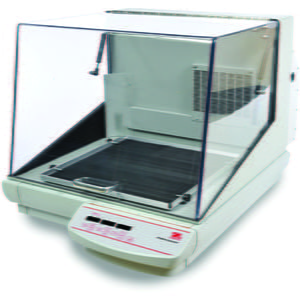

Ohaus Refrigerated Incubating Shaker 25mm | ISHD23CDG

Orbital Motion 25 mm. Capacity 22.7kg at 125 rpm.

Product Code



Lead time varies. Please call for details

Covered by our 30 Days No Quibble RTB Guarantee.


The Ohaus Refrigerated Incubating Shaker operates with a 25 mm orbital motion, providing effective and consistent mixing. The tray measures 45.6 x 45.7 cm, accommodating a wide range of samples. You can set the speed from 15 to 500 rpm, with the shaker supporting a capacity of 22.7 kg at 125 rpm and 4.53 kg at 500 rpm.

A PID temperature controller allows precise control of the temperature, which ranges from 15°C below ambient to +65°C. The shaker includes a temperature calibration feature, along with overload and overshoot protection for enhanced safety. A load sensor ensures optimal performance and sample protection, while temperature uniformity is maintained at ± 0.5°C at 37°C.

The shaker offers simple digital controls and features a triple eccentric drive system for reliable operation. Independent LED displays provide clear readings for temperature, speed, and time. The timer ranges from 1 second to 160 hours, allowing for both short and extended applications.

Constructed from aluminium and Cycoloy, the shaker is robust and durable. RS232 communication capability ensures easy data transfer and integration with other systems.

Features of the Ohaus Refrigerated Incubating Shaker:

  • Orbital Motion 25 mm
  • Tray Dimensions (L x W): 45.6 x 45.7 cm
  • Speed Range: 15 – 500rpm
  • Capacity: 22.7kg at 125 rpm, 4.53kg at 500 rpm
  • PID Temperature Controller
  • Temperature Range: 15 °C below ambient to + 65°C
  • Temperature Calibration Feature
  • Overload Protection, Overshoot Protection (temperature)
  • Load Sensor
  • Uniformity: ± 0.5 °C at 37  C
  • Simple digital control
  • Triple Eccentric Drive System
  • Independent LED Displays
    • Temperature
    • Speed
    • Time
  • Timer: 1 second to 160 hours
  • Aluminium and Cycoloy Construction
  • RS232 Communication
  • External Dimensions (H x L x W): 59.6 x 104.4 x 67.5 cm
  • Internal Dimensions (H x L x W): 432. x 52.3 x 62.9 cm


User Manual for Ohaus Incubating Shaker series

Data sheet for Ohaus Incubating Shaker series


Additional information

Weight131.7 kg
Dimensions81 × 68 × 60 cm
Internal dimensions (w x d x h)

62.9 x 52.3 x 43.2 cm







30 days (Richmond Promise)

Lead Time

Lead time varies. Please call for details

Motion type


Speed range

15 rpm to 500 rpm

Temperature range:

15 °C below ambient to 65 °C

Power consumption

800 W

Working environment

15 °C – 32 °C, 80% relative humidity, non-condensing


User Manual for Ohaus Incubating Shaker series

Data sheet for Ohaus Incubating Shaker series
