Description

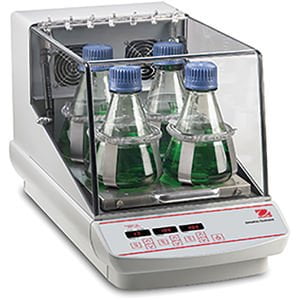

The Ohaus ISHD16HDG Heavy Duty Incubating Shaker operates with a 19 mm orbital motion, providing efficient mixing. The shaker can handle a capacity of 16 kg at 75 rpm and 2.3 kg at 500 rpm, with a speed range of 15 rpm to 500 rpm.
Temperature uniformity is maintained at ± 0.5°C at 37°C, and the temperature range is from ambient +5°C to 65°C. The PID temperature controller ensures precise temperature regulation, while the temperature calibration feature allows for accurate adjustments. The shaker includes overload and overshoot protection for added safety, along with a load sensor to monitor performance.
The triple eccentric drive system ensures smooth and reliable operation. Independent LED displays provide clear readings for temperature, speed, and time, facilitating easy monitoring and control. Constructed from durable aluminium and cycoloy, the shaker is robust and long-lasting. RS232 communication capability enables easy data transfer and integration with other systems.
Features of the Ohaus Heavy-Duty Incubating Orbital Shaker:
- Orbital motion 19 mm
- Capacity: 16 kg at 75 rpm, 2.3 kg at 500 rpm
- Speed range: 15rpm – 500rpm
- Uniformity: ± 0.5 °C at 37 C
- Temperature range: Ambient +5 °C – 65 °C
- PID temperature controller
- Temperature calibration feature
- Overload protection, overshoot protection (temperature)
- Load sensor
- Triple Eccentric Drive system
- Independent LED Displays
- Temperature
- Speed
- Time
- Aluminium and Cycoloy Construction
- RS232 Communication
