Description

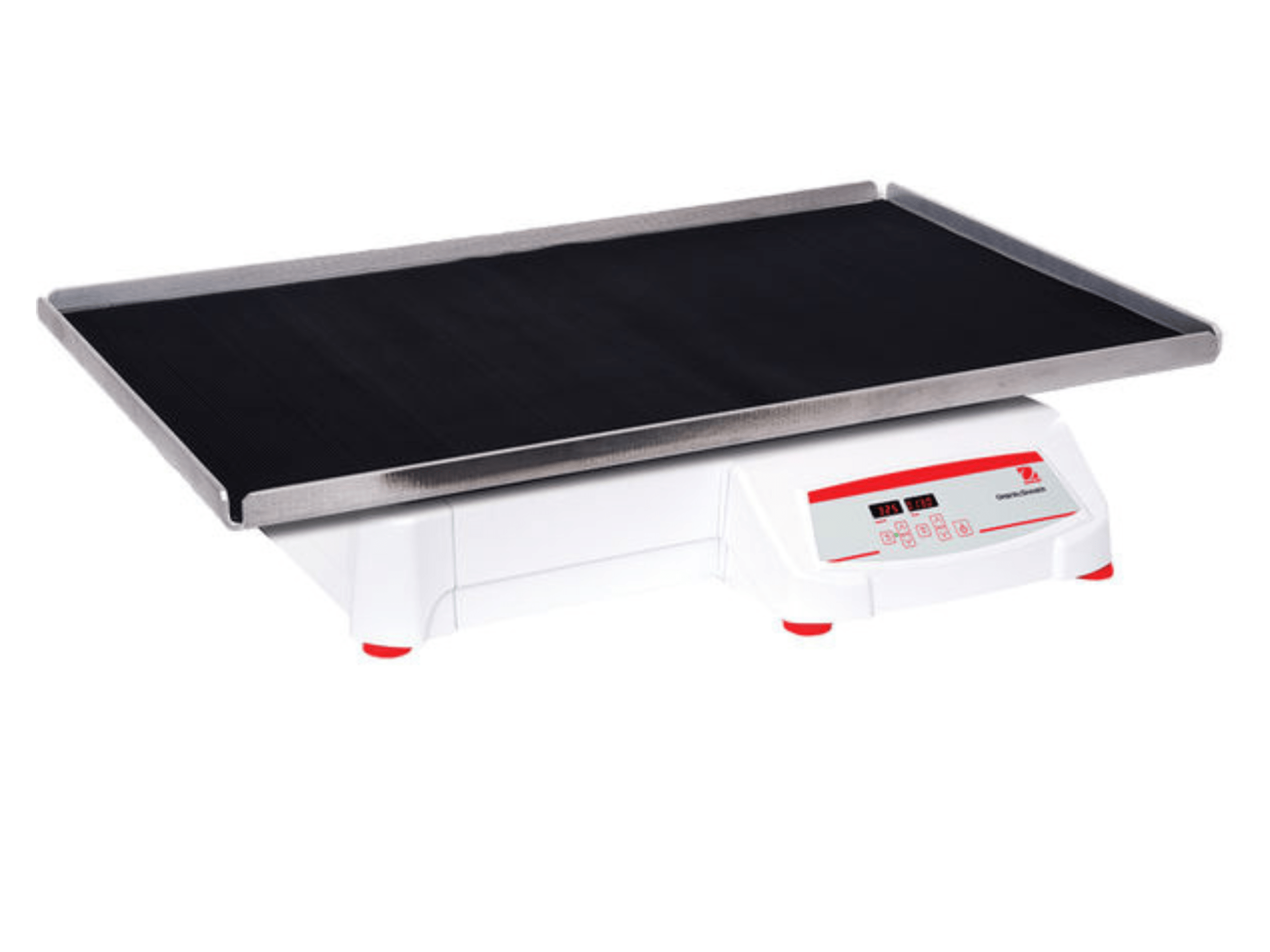

The Ohaus Heavy Duty Orbital Shaker features a 25mm orbital motion and supports a maximum capacity of 22.7kg. It offers a speed range from 20rpm to 500rpm with an accuracy of ± 1 rpm, ensuring precise and consistent operation. The shaker includes speed calibration to maintain accuracy across different settings.
Users benefit from independent LED displays for both speed and time settings, enhancing visibility and control during operation. The shaker is equipped with a timer that ranges from 1 second to 160 hours, providing flexibility for various experimental durations. An aluminum tray measuring 61 x 45.7 cm, along with a rubber non-slip mat, ensures secure placement of samples during shaking.
Controlled digitally, the shaker offers easy adjustment and monitoring of parameters. It is powered by a triple eccentric brushless DC motor drive system, which enhances durability and efficiency. Additionally, the shaker features an RS232 interface for seamless data connectivity, enabling integration with external devices for data management and analysis.
Features of the Ohaus Heavy Duty Orbital Shaker:
- Orbital Motion 25mm
- Maximum Capacity 22.7kg
- Speed Range 20rpm to 500rpm
- Speed Accuracy ± 1 rpm
- Speed Calibration
- Independent LED Displays
- Timer 1s to 160h
- Aluminium Tray 61 x 45.7 cm
- Rubber Non-Slip Mat
- Cold-Rolled Steel Housing
- Digital Control
- Triple Eccentric Brushless DC Motor Drive System
- RS232 Interface
Manual for the Ohaus Heavy Duty Orbital Shaker SHHD2325DG
Data Sheet for the Ohaus Heavy Duty Orbital Shaker SHHD2325DG
If you see any accessories on the data sheet which you need, but can’t see on our website, please give us a call on 01257 270 433, or send us a message, and we’ll be happy to help.
