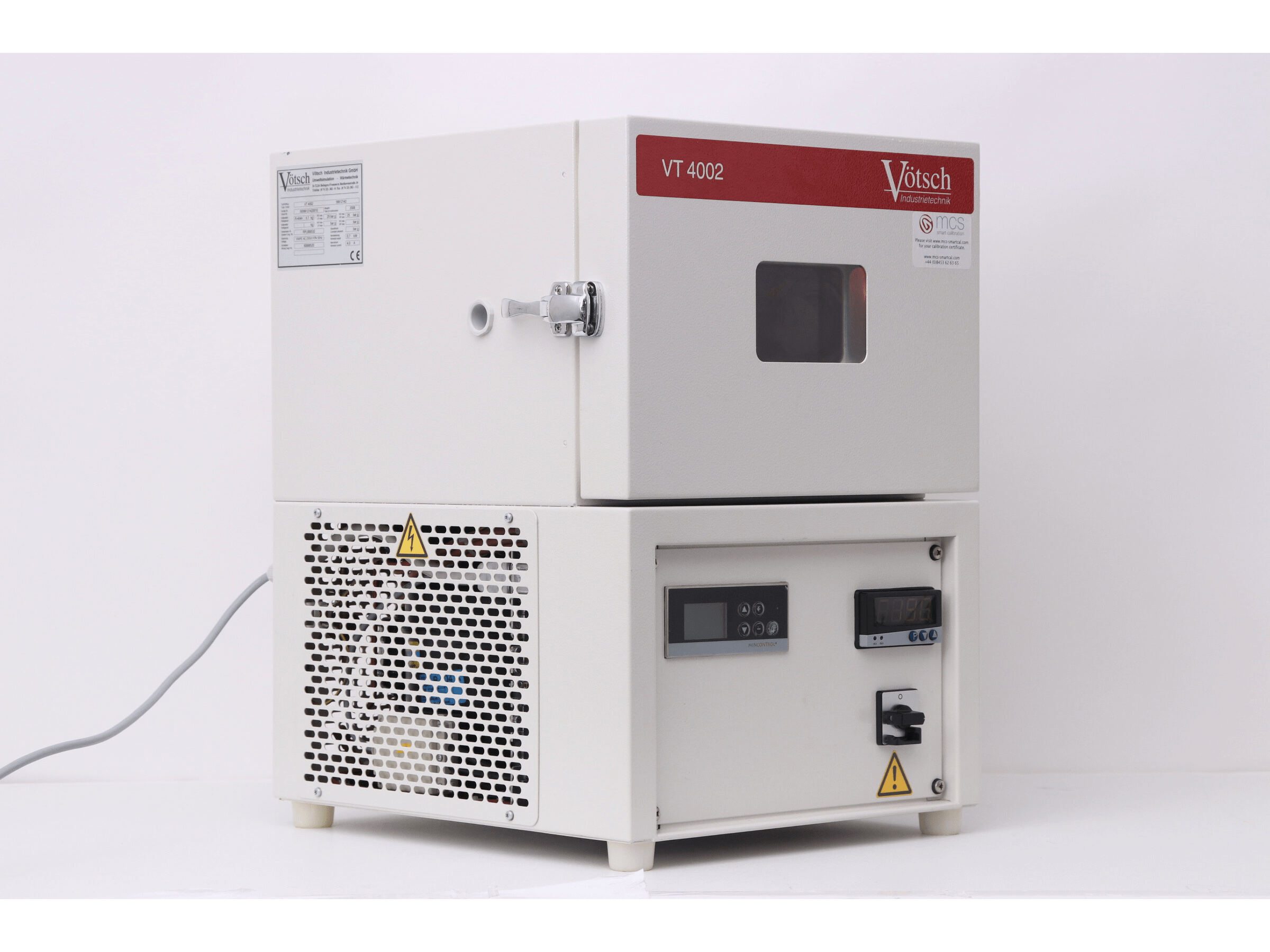

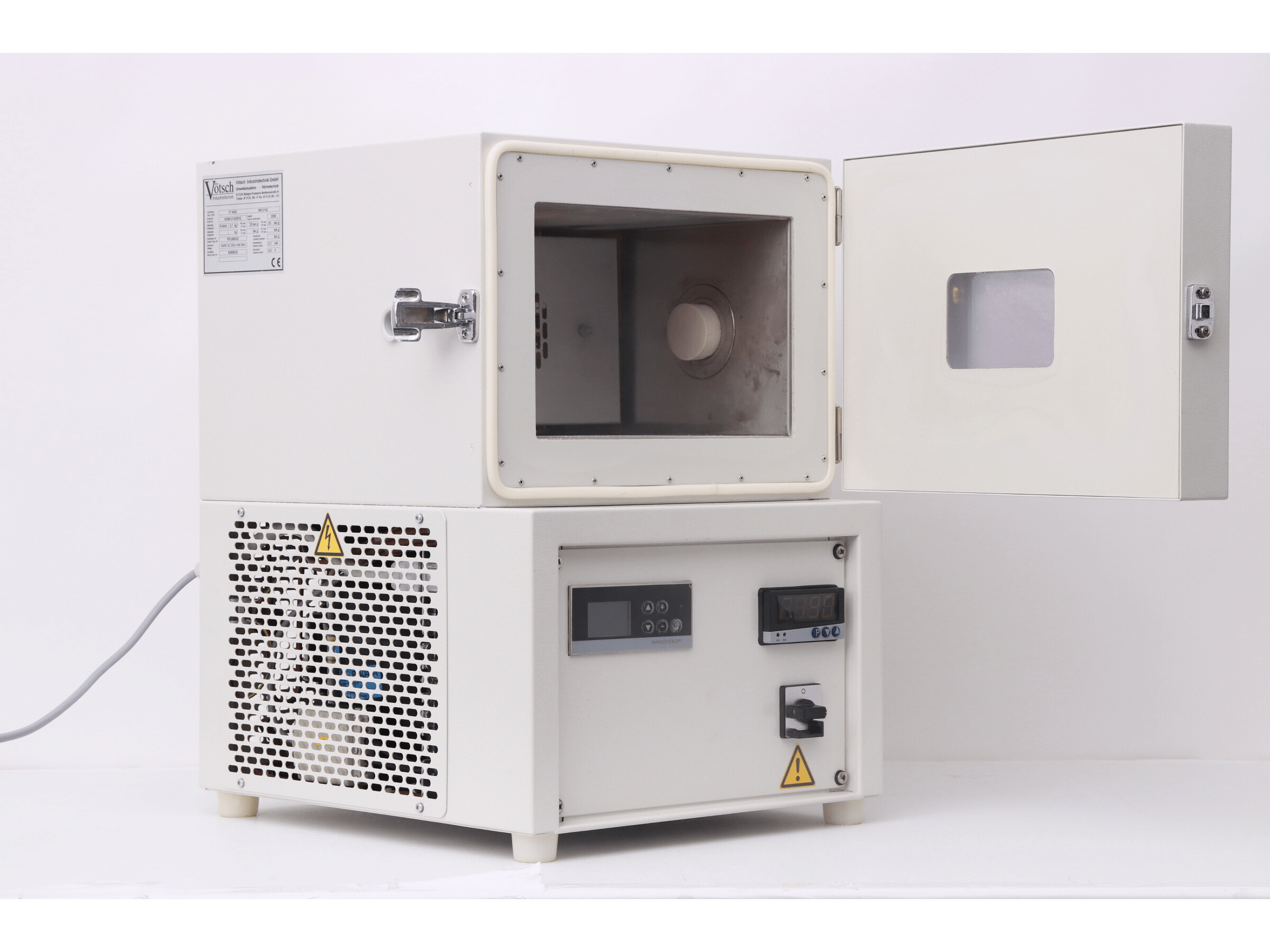

Votsch VT 4002 Climate Chamber

The Votsch VT4002 Temperature test chamber is used to test the durability and performance of products under a variety of environmental conditions in a variety of industries, including automotive, aerospace, electronics and medical devices.  This compact system has an internal capacity of 16L with an operating range of -40c to +100c.

Product Code

23051501

Enquire

Lead Time:

Enquire

1 in stock

Covered by our 30 Days No Quibble RTB Guarantee.

Description

The Votsch VT4002 Temperature test chamber is used to test the durability and performance of products under a variety of environmental conditions in a variety of industries, including automotive, aerospace, electronics, and medical devices. It offers an optimum solution for laboratories with limited space, with its test space volume of 16 litres. The temperature range of this VT4002 chamber is -40 °C to +100 °C.  This compact and very quiet system suitable for universal applications in any laboratory and comes with a powerful 32-bit control and monitoring system M!NCON/32. The quiet operation of the chamber makes it suitable for use in noise-sensitive areas and the easy-to-use interface makes it simple to set up and operate the chamber.

The versatile temperature range makes the  Votsch VT 4002 Climate chamber suitable for a variety of applications, including:

    • Testing the performance of electronic devices
    • Simulating environmental conditions for research purposes
    • Qualifying products for use in extreme environments

This chamber test system is equipped with many safety devices to protect both of the test space and test specimens. Independent temperature limiter (Tmin/Tmax) provides protection against thermal overstressing of the test specimen. The software temperature limiter protects against non-permissible temperatures in the test space and pressure switch protects against non-permissible pressure in the refrigeration circuit.

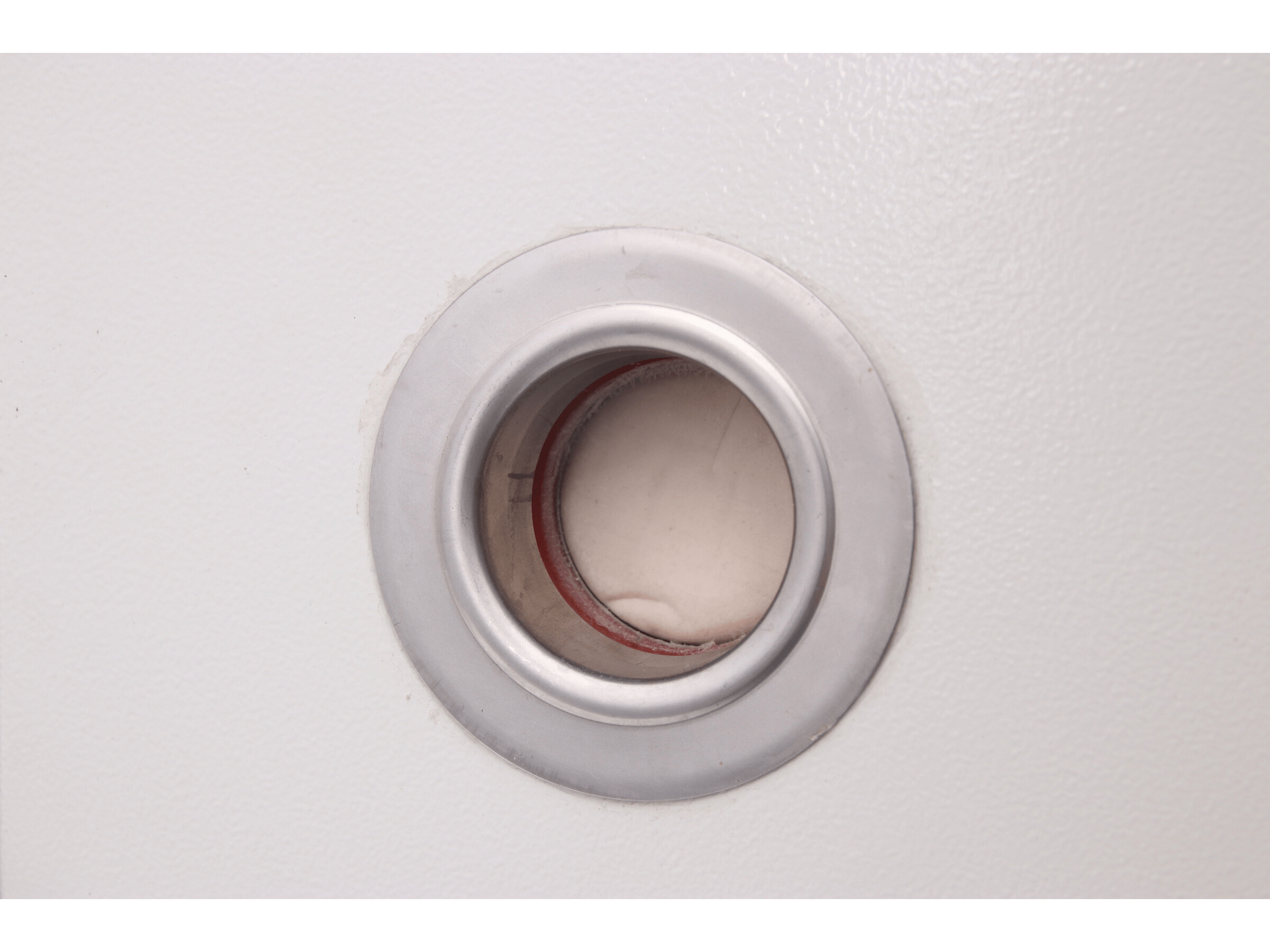

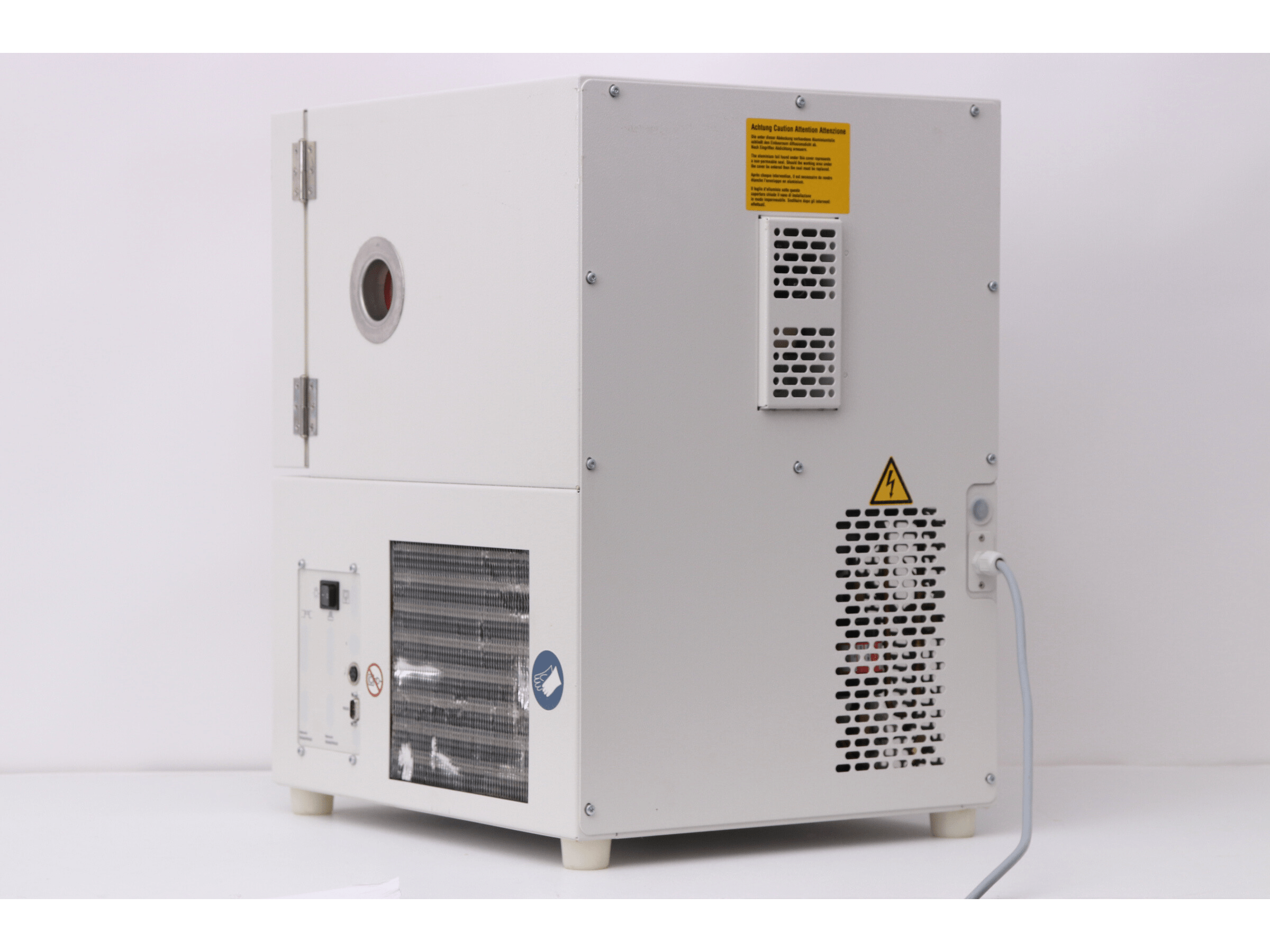

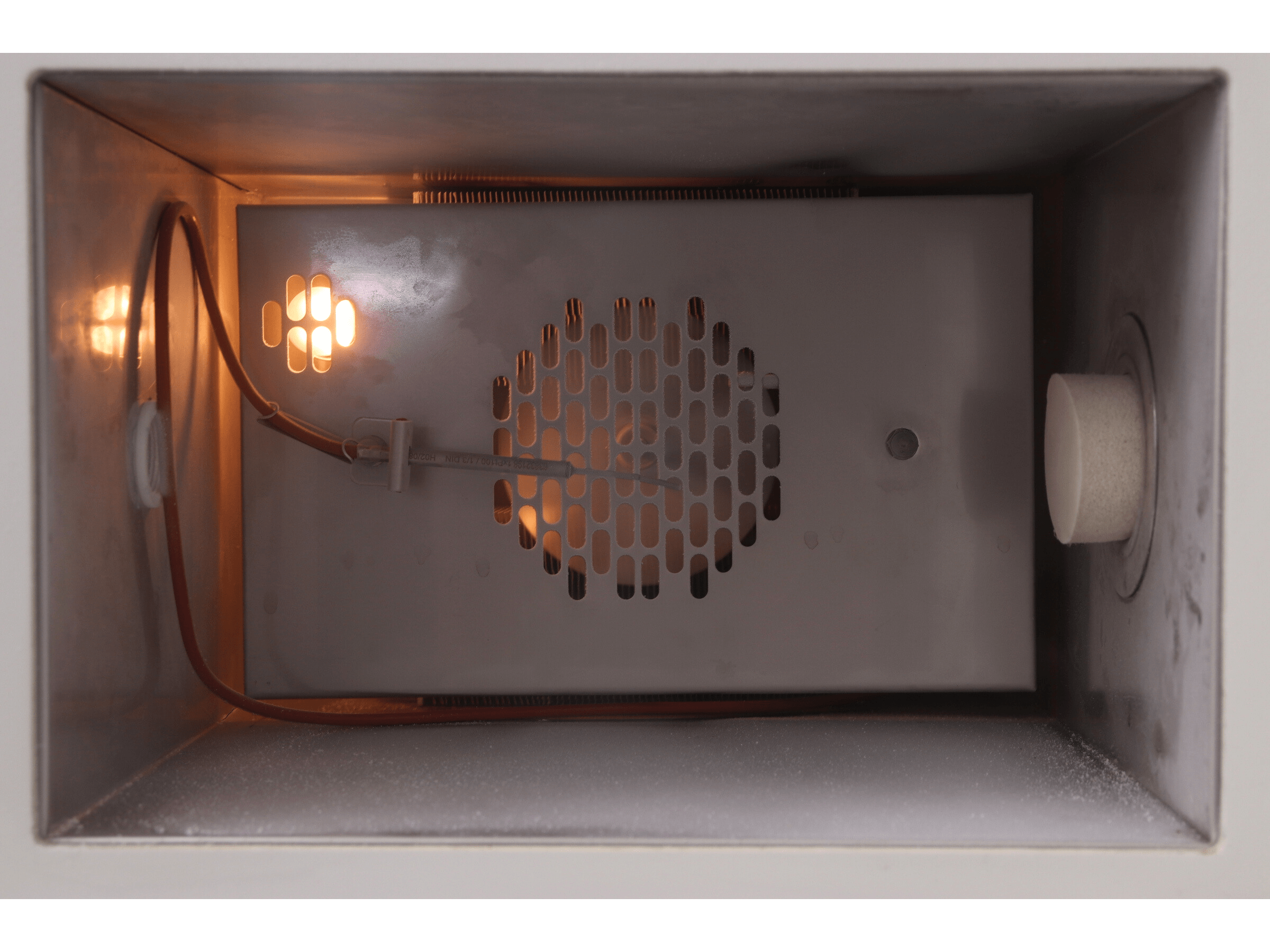

All control and operating commands can be activated on the control unit.  The entry port at the left side of the test system enables measuring lines and testing equipment to be introduced into the test space. The equipment’s switchgear cabinet contains the control modules and electrical components. The internal test space is made of high-grade steel for longevity and easy cleaning of the chamber.

Features

  • Optical conformity made of reliable materials
  • 32-bit control system M!NCON/32 what enables monitoring and controlling the test chamber

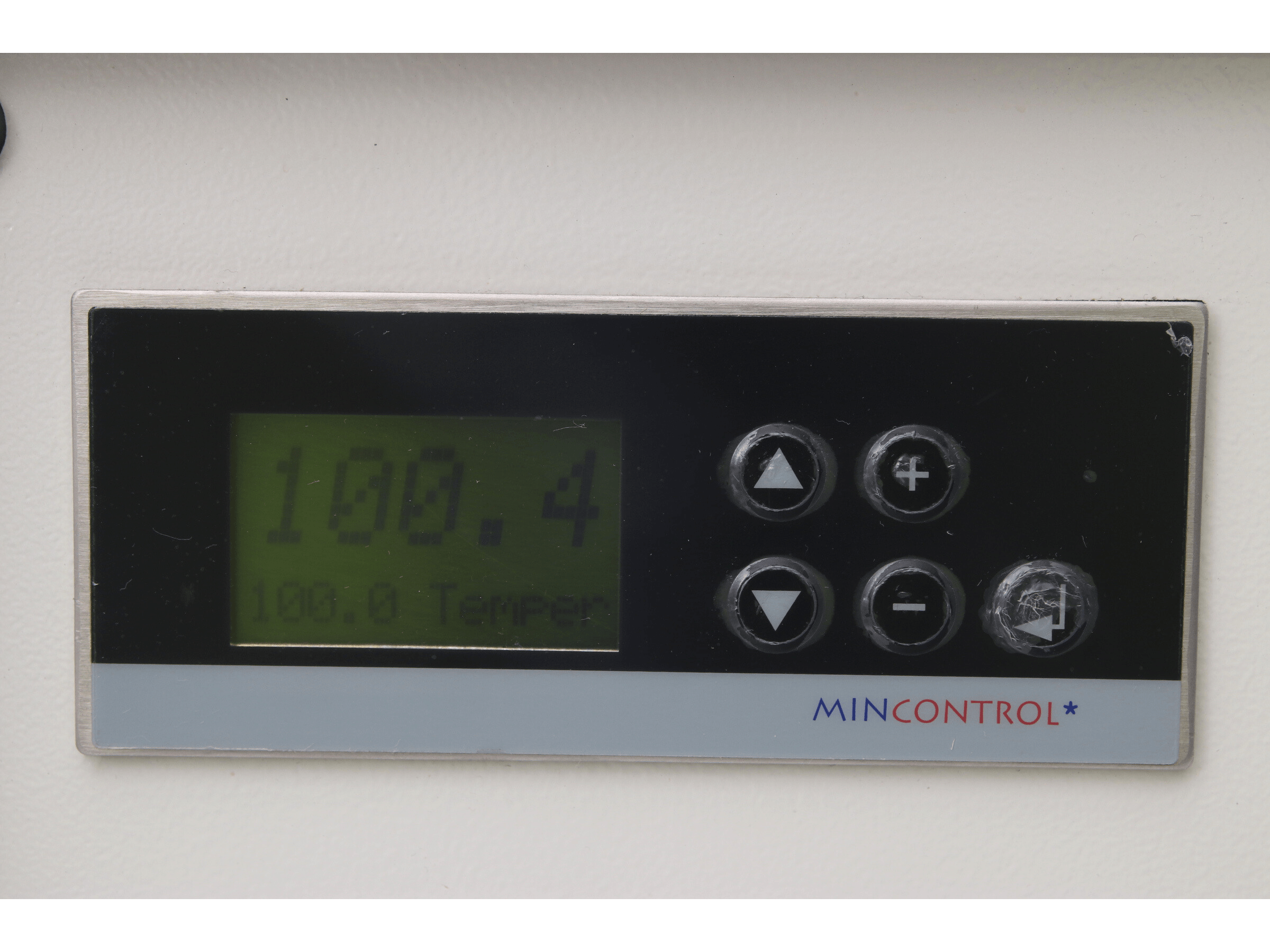

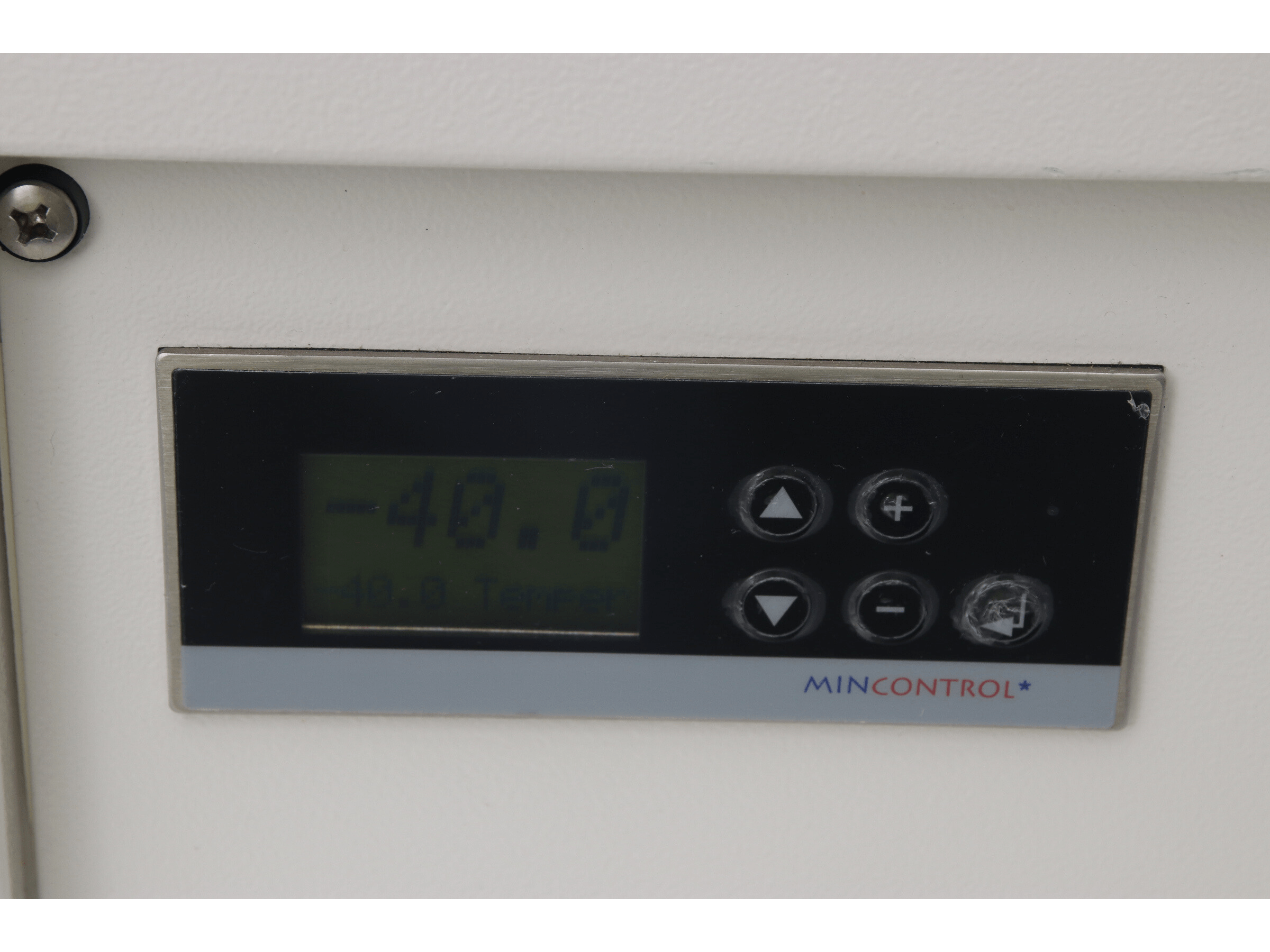

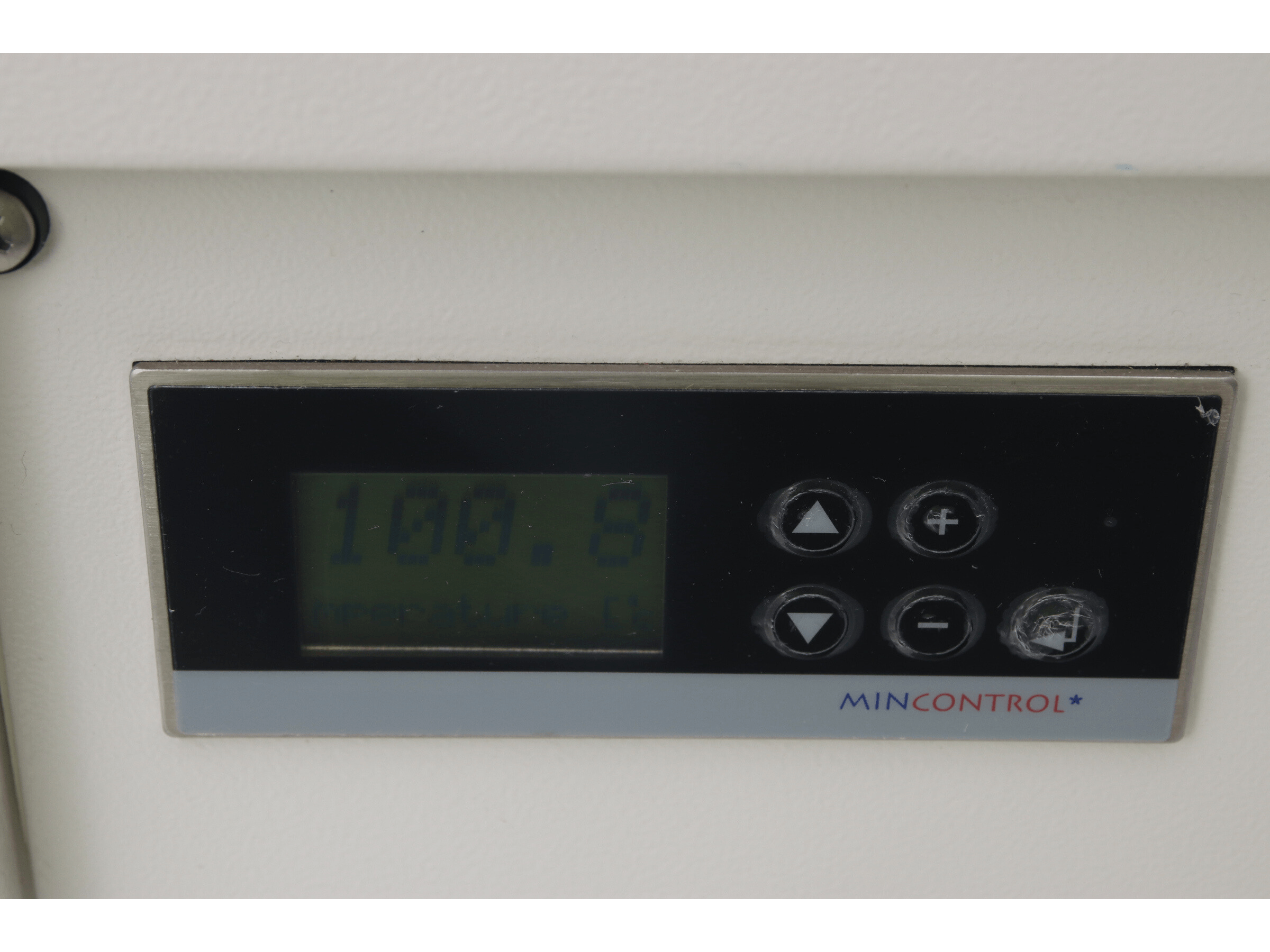

  • Terminal with LCD-display
  • 16 Litres test space volume
  • Weight 60kg
  • Temperature range of -40C to +100C
  • High grade steel test space
  • Sound pressure level <55dB
  • Internal Dimensions Approx L 23cm W 31cm H 20cm
  • External Dimensions Approx L 56cm W 48cm H63cm
  • Versatile for a variety of applications
  • PID controller with one temperature sensor
  • Ability to run predefined temperature test profiles

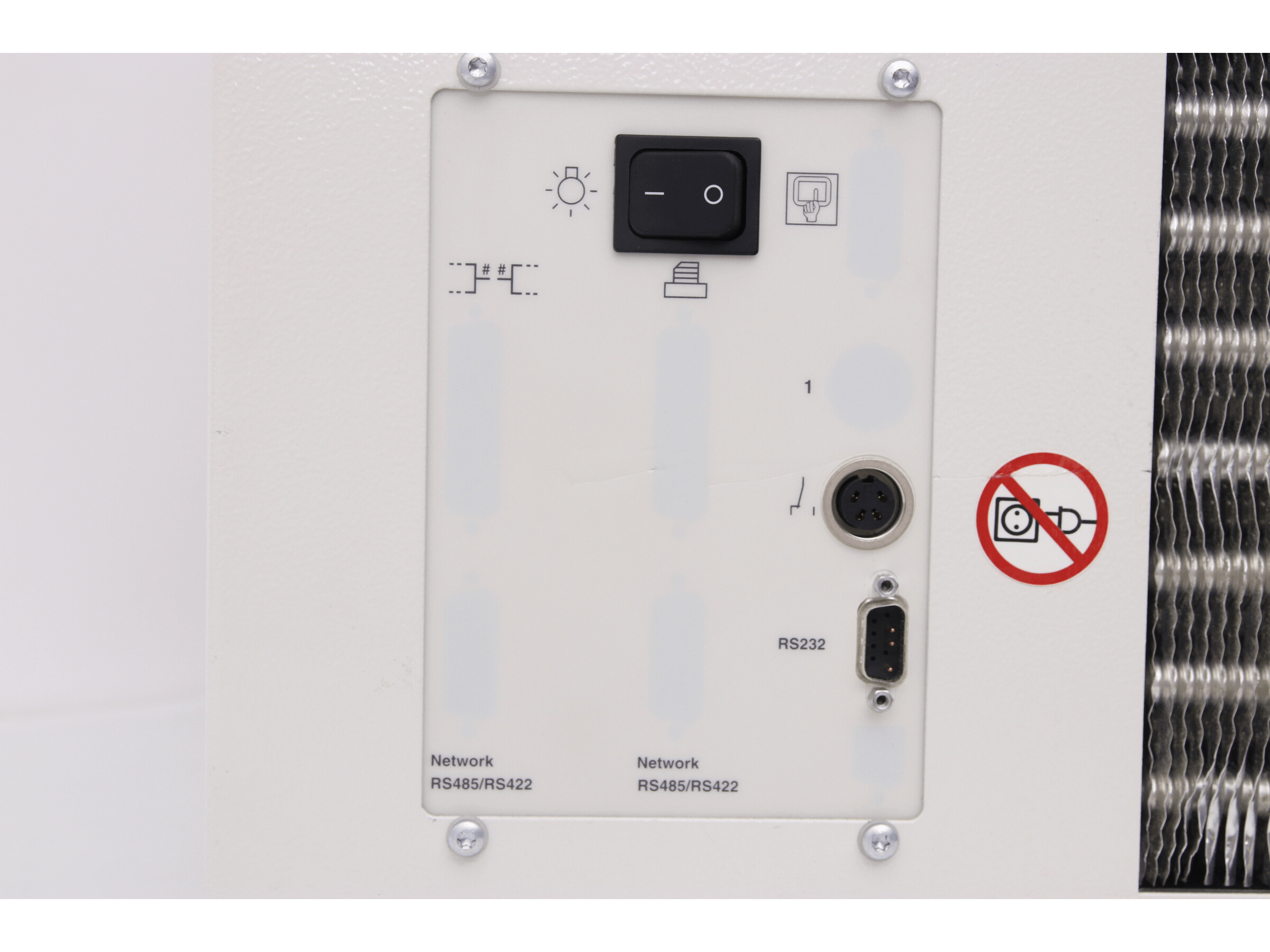

  • Ethernet interface for remote monitoring and control
  • Air-cooled refrigeration unit for energy efficiency
  • Calibrated temperature sensors for accurate results
  • Safety device and temperature limiter

Votsch VT 4002 Climate Chamber is made of high-quality materials, that are designed to withstand the harsh conditions of laboratory use. Its small size, compact design, and quiet operation make it a valuable asset for any laboratory or research facility.

Download Datasheet for Votsch VT 4002 Climate Chamber

Download Operation Manual for Votsch VT 4002 Climate Chamber



Additional information

Weight60 kg
Dimensions56 × 48 × 63 cm
Brand

Model

VT 4002

New/Used

Used

Warranty

30 days (Richmond Promise)

Downloads

Datasheet for Votsch VT 4002 Climate Chamber

Operation Manual for Votsch VT 4002 Climate Chamber
