PCT Longer dPOFLEX Biopharmaceutical Peristaltic Pump

Product Code

Enquire

Description

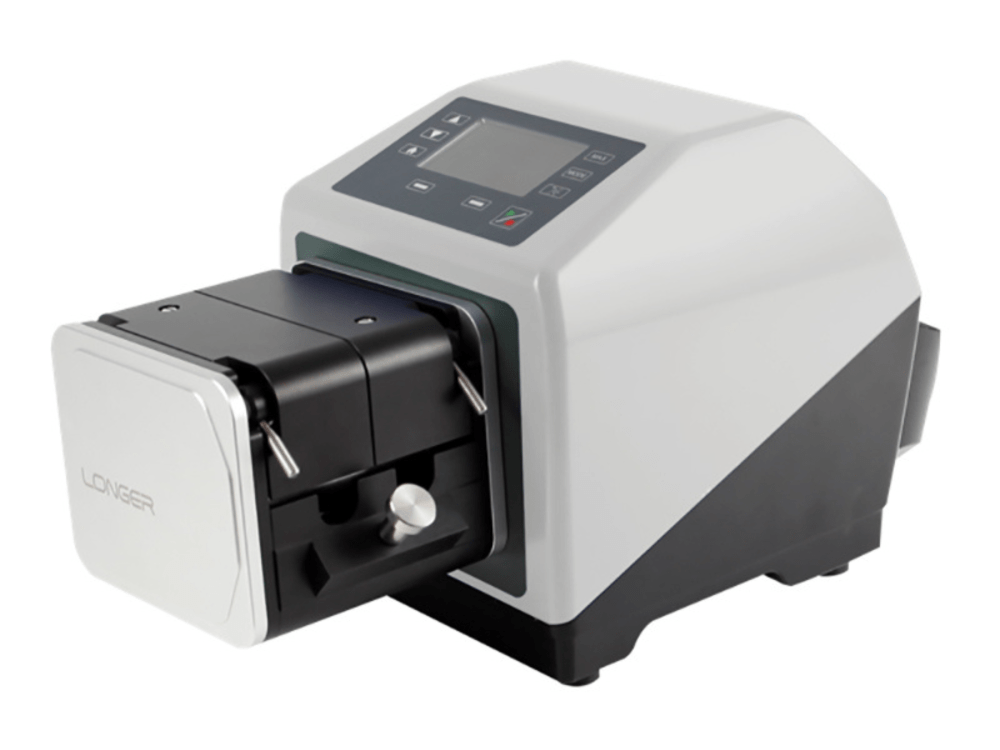

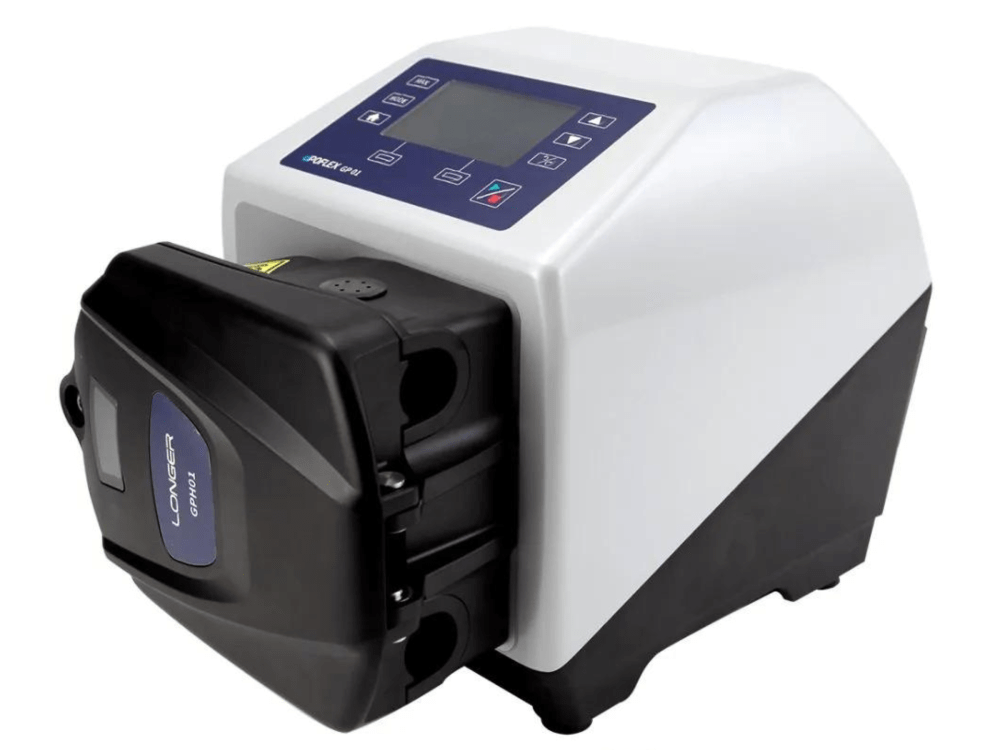

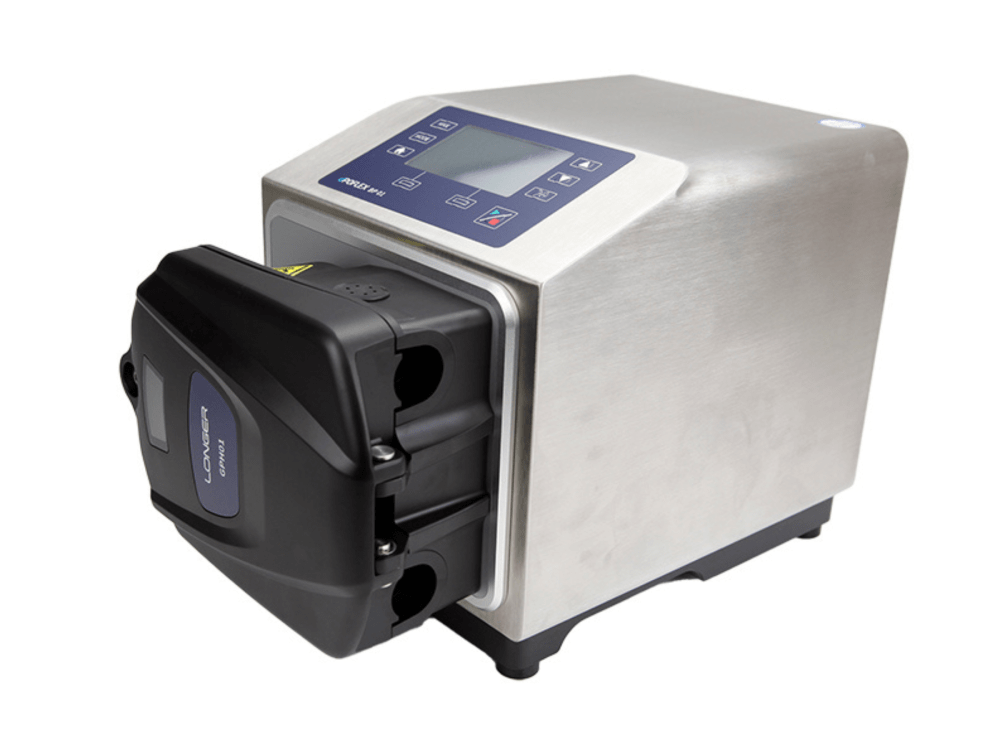

The dPOFLEX Biopharmaceutical Peristaltic Pump is ideal for use within research and development labs, for upstream or downstream processing or with a finished product. The dPOFLEX is available in either a cast aluminium (GP01) or 304 stainless steel (BP01) enclosure, both offering an IP 66 rating.

The peristaltic pump has a number of integrated sensors such as the fluid leakage sensor and open head sensor, reducing waste and contamination risk as well as providing an alarmed output. The flow rate sensor is an optional addition, this ensures pump delivery rates are being met.

Choose from either a Low-Pulsation Pump Head (LPH) for high flow rate accuracy or a General Pump Head (GPH) available in 3 variants dependant on tubing size requirements and desired flow rates. GPH and LPH pump heads are part of Longers dPOFLEX industrial range, specifically designed for demanding processes and environments within the biopharmaceutical processes.

Features of the dPOFLEX Biopharmaceutical Peristaltic Pump:

  • External pump speed control
  • Speed range: 0.1 RPM – 265 RPM
  • Resolution: 0.1 RPM
  • Maximum Flow Rate: 17L/min
  • Pressure: 0-2 bar
  • Start/stop, direction control: 5V-24V logic level signal or relay signal
  • 4.3 inch Digital Display
  • Integrated sensors: Fluid leakage, open-head and flow rate (optional)
  • Dispensing Mode: pump repeats the dispensing at set volume, cycles and interval time
  • Dispensing interval time: 5s – 9999s
  • Dispensing cycle: 1 – 9999 (0 for unlimited)
  • Time in fluid transferring modules: 1s – 9000s
  • Delay time setting range: 0.5s – 9000s
  • Three level user access control
  • IP 66 rating
  • AC100-240V 50/60Hz

Choice of Pump Heads:

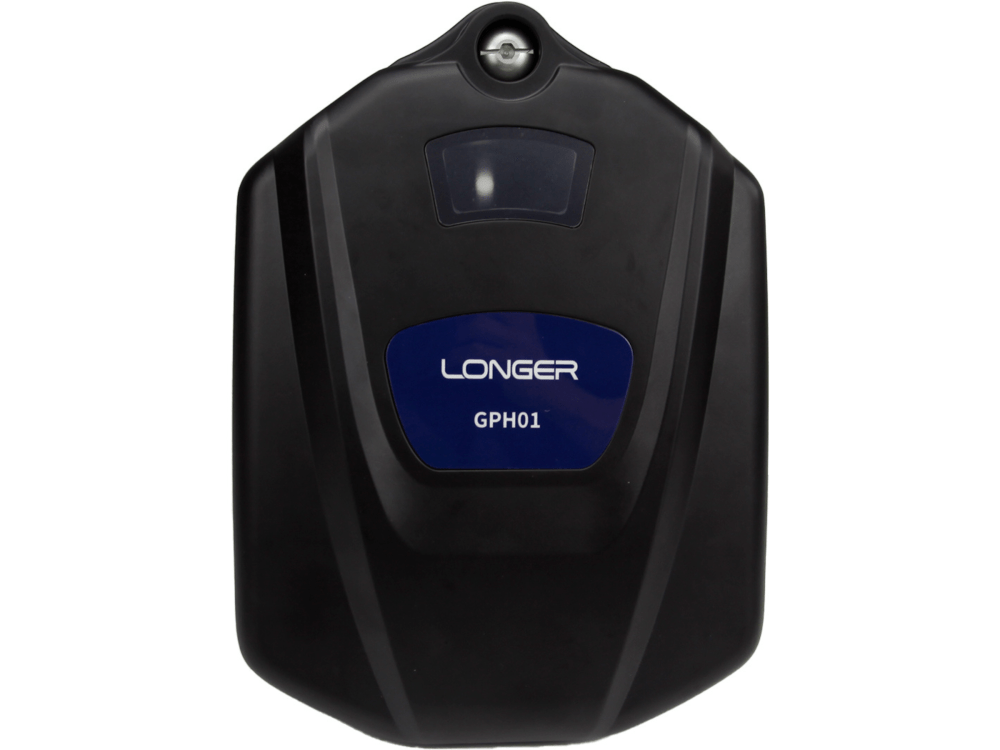

  • GPH01: 2 Rollers, Die-cast aluminium casing, Max. flow rate 15 L/min
  • GPH02: 2 Rollers, Die-cast aluminium casing, Max. flow rate 17 L/min
  • GPH03: 4 Rollers, Die-cast aluminium casing, Max. flow rate 14L/min

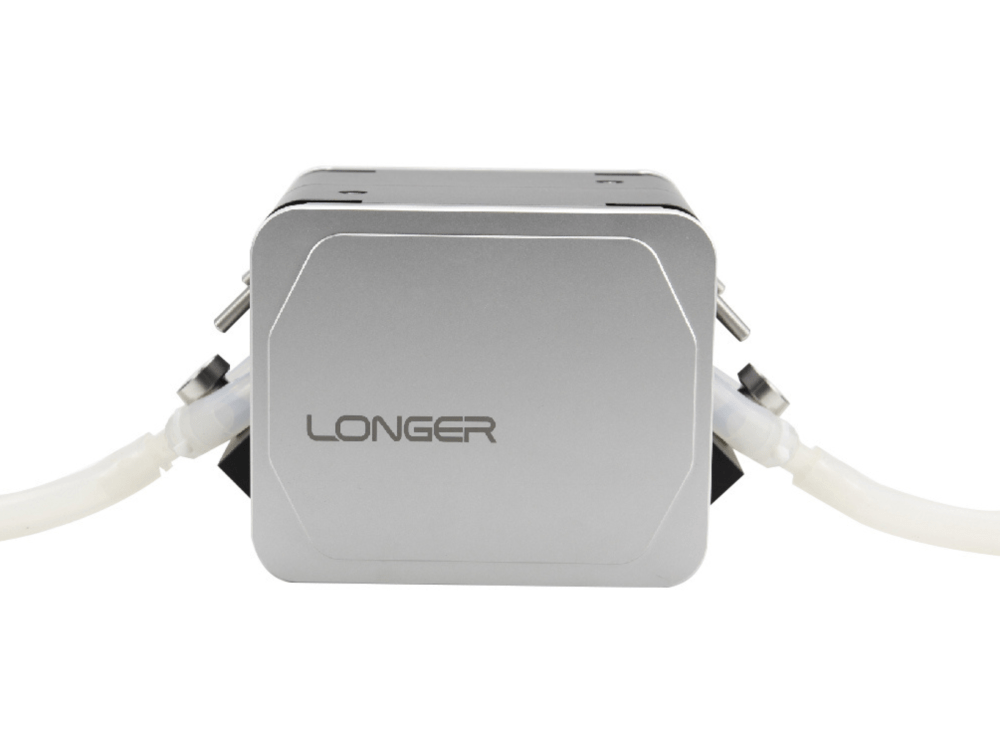

  • LPH01: 6 Rollers, Anodized aluminium casing, Max. flow rate 13.5 L/min



Download the Brochure Here

See the Specifications Here

Additional information

Brand

Model

dPOFLEX

New/Used

New

Pump Drive

GP01, BP01

Pump Head

LPH01, GPH01, GPH02, GPH03

Warranty

1 year (Manufacturer Warranty)

Downloads

dPOFLEX Pumps Brochure Here

See the Pump Specifications Here

Info for Pump Heads on the PCT Website Here
