PCT Longer L100-1F Intelligent Peristaltic Pump

Product Code

L100-1F

Enquire

Description

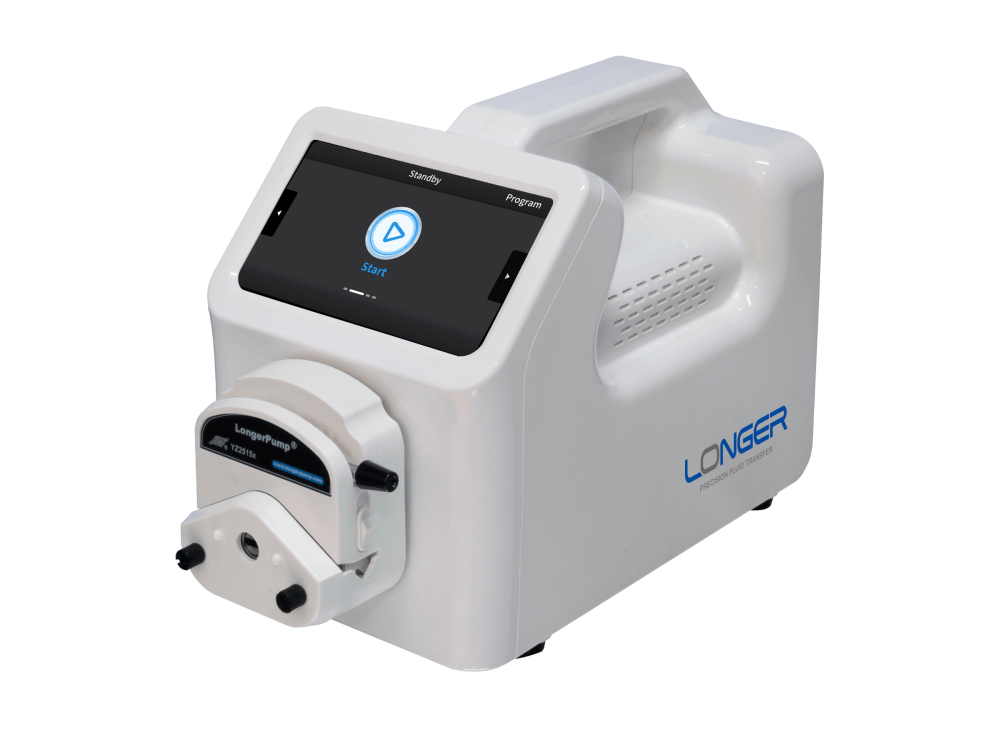

The Longer L100-1F Intelligent Peristaltic Pump is ideal for low rate applications with a 100 Rpm pump speed. The L100-1F features a 7 inch intuitive touchscreen display for easy set up and configuration of the pump.

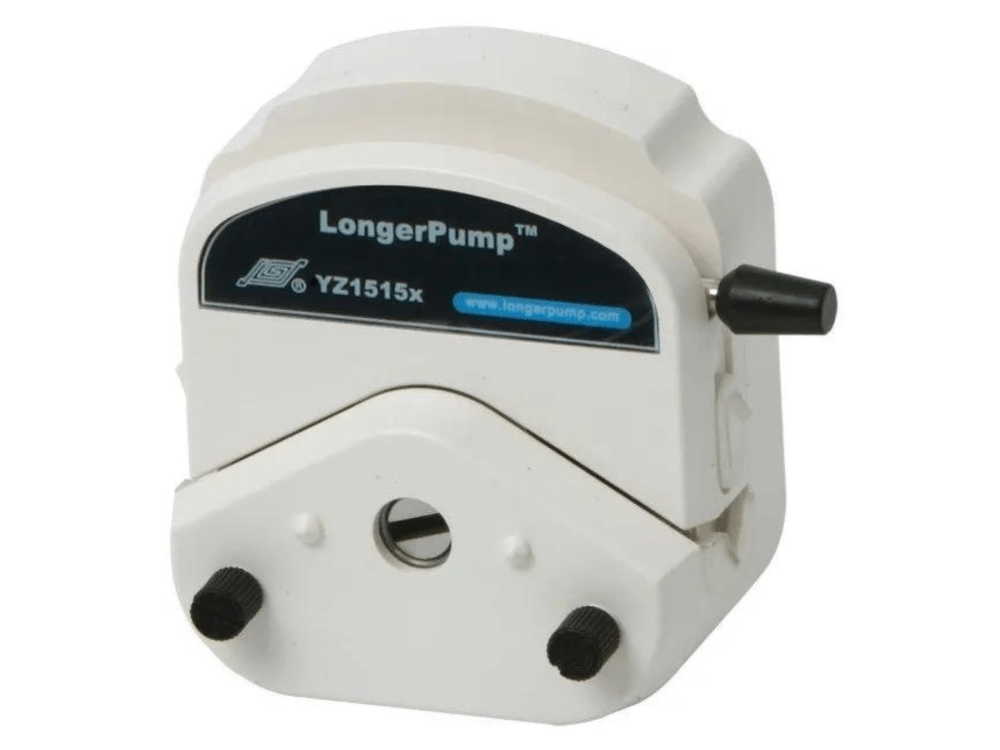

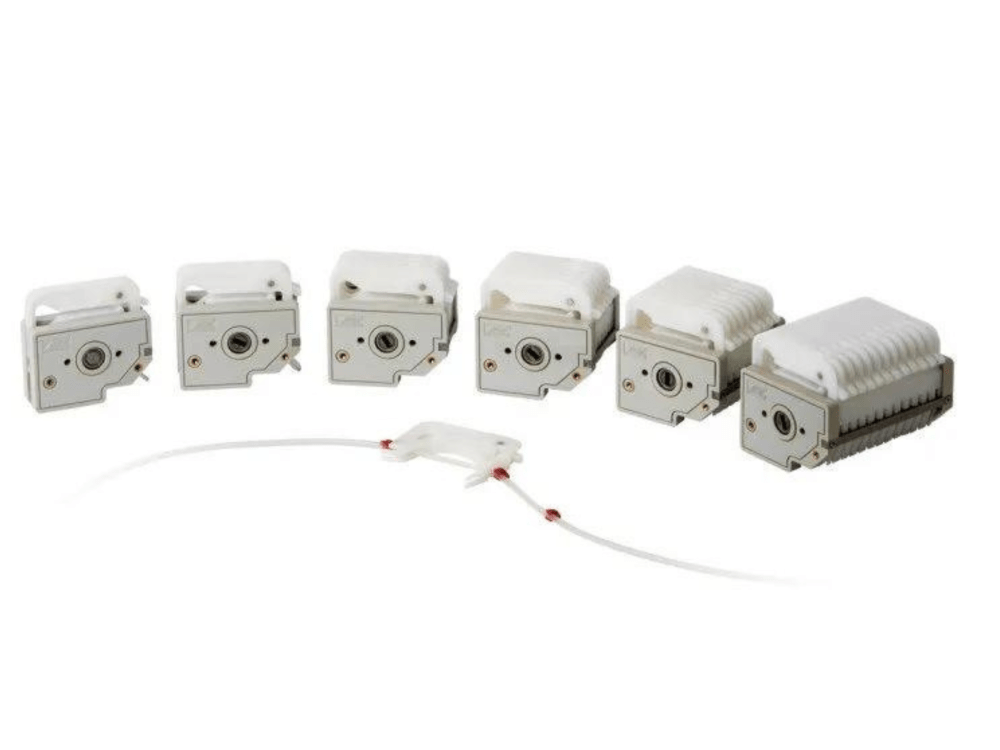

The L100-1F can be used with a variety of pump heads to offer a wide range of flow rate requirements from 1.5ml/min up to 500ml/min. Multi-channel pump heads are also available for up to 12 channels. The “Longer YZ” range of pump heads offers an easy-loading mechanism for pump tubing aiding tube replacement whilst the “Longer DG” series of pump heads is ideal for low flow dispensing. Depending on the tubing used, maximum flow rates vary from 2, 8, 28 and 48 ml/min.

Features of the Longer L100-1F Intelligent Peristaltic Pump:

  • Speed Range: 0.1-100Rpm
  • Flow Rate: 0.15uL/min – 500ml/min
  • Intuitive Touchscreen Display
  • Footswitch Control
  • External signal and communication control
  • Pump speed control available via 0-5 VDC, 0 – 10 VDC, 4 – 20 mA or 0 – 10 kHz input
  • Dispensing volume setting range: 0.00luL – 9999L
  • Dispensing time and interval time: 0.5s – 9000s
  • Dispensing cycle: 1 – 999999 (0 for unlimited)
  • Time in fluid transferring modules: 1s – 9000s
  • Delay time setting range: 0.5s – 9000s
  • Multiple function modules for a variety of applications
  • 7 parameter programs of up to 10 steps can be configured and stored
  • IP31 rating



Available with a wide range of compatible pump heads , to find out more info call us on 01257 270433



See the YZ Range Pump Heads Specifications Here

See the DG series Pump Heads Specifications Here

Download the Intelligent Peristaltic Pump Brochure Here

See the Specifications Here



Additional information

Weight5 kg
Brand

Model

L100-1F

New/Used

New

Warranty

1 year (Manufacturer Warranty)
