The Cole-Parmer SSM6500 Overhead Mixer is a variable speed mixer designed for reliability and durability. The 4-digit LED Display indicates Rpm, torque, time and rotation direction.
The Overhead mixer has a speed range of 50 to 2500 Rpm, with a maximum torque of 80 N·cm and accurate speed control with ‘soft-start’ gradual adjustment to set speed. The mixer also features a low/no maintenance brushless motor and the adjustable tilt from 0 to 30 degrees, to allow proper propeller placement.

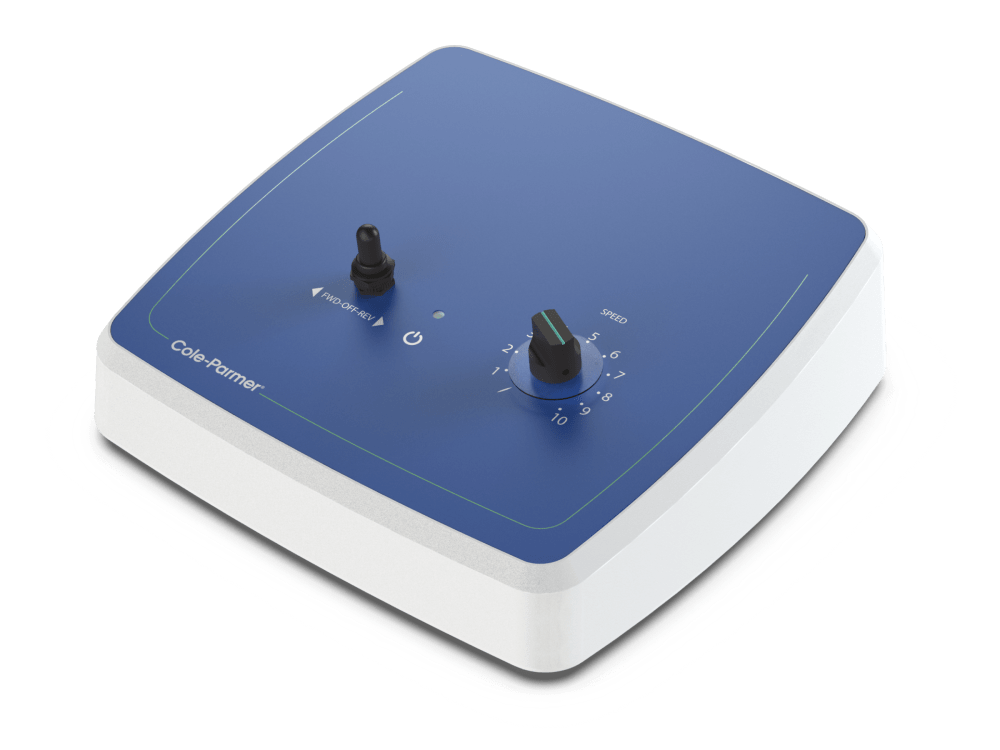

Available with an analogue or digital controller with adjustable torque and forward/reverse options. The digital controller has a timer/alarm and finer 1 rpm adjustments.
Features of the Cole-Parmer SD Overhead Mixer:
- Accurate and dependable speed control with ‘soft-start’ gradual adjustment to set speed.
- Speed range: 50 to 2500 Rpm.
- Maximum Torque: 80 N·cm
- Maximum Volume: 120L.
- Remote digital/analogue controller.
- Constant speed maintained – automatic compensation for changes in load torque.
- LED indicators identify the function being displayed, and a flashing LED and audible alarm indicate when limit conditions reached.
- Low/no maintenance brushless motor.
- Strong and stable retort stand with adjustable height.
- Adjustable tilt from 0 to 30 degrees.
- Motor current limiting – protects system from locked rotor condition.
- Built-in motor current compensation – minimise speed drift.
- User-replaceable keyless chuck.
- Output circuit protection.
- Dual Voltage 115/230V.
- IP44 rated per IEC 60529.
Download the Brochure for Cole-Parmer SD Overhead Mixers
Download the Instruction Manual for the Cole-Parmer SD Overhead Mixers
