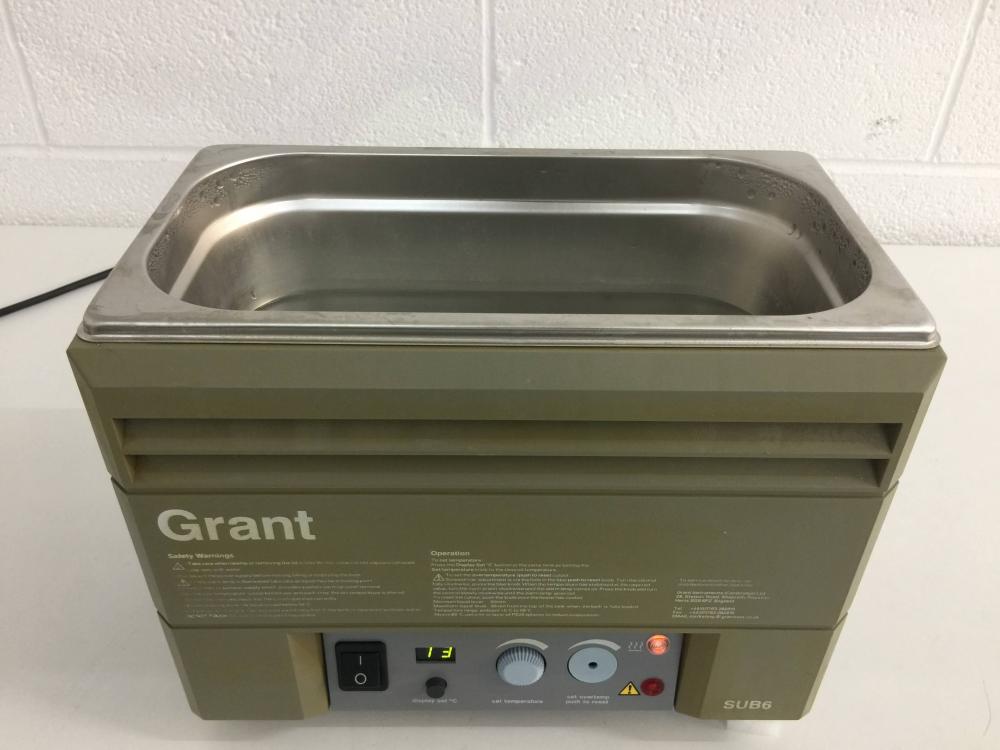

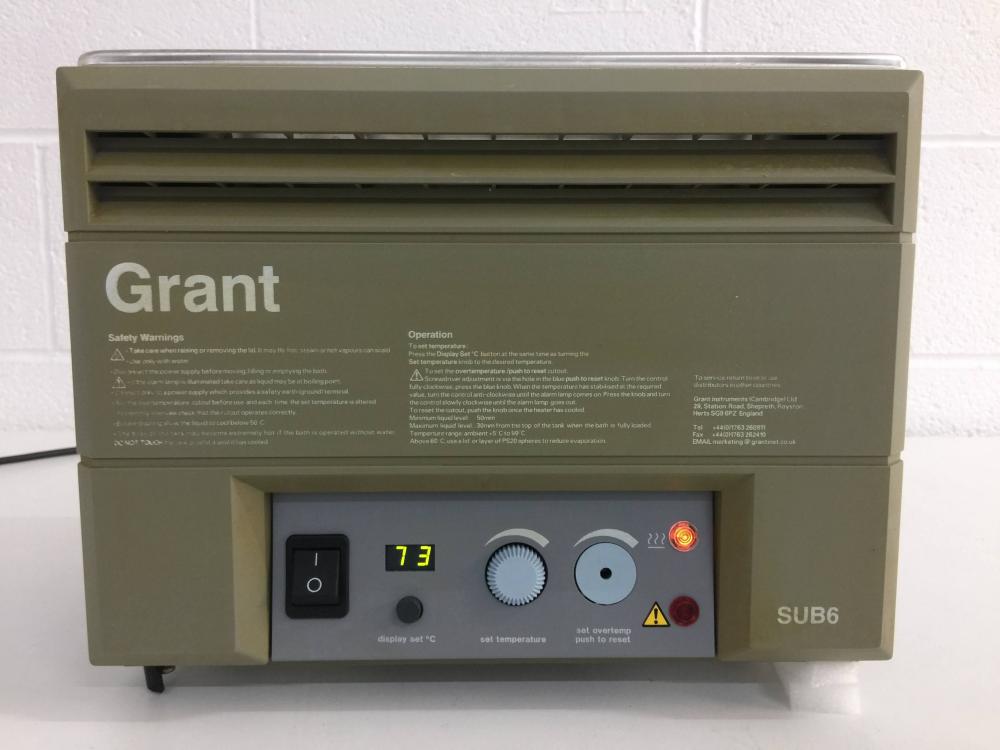

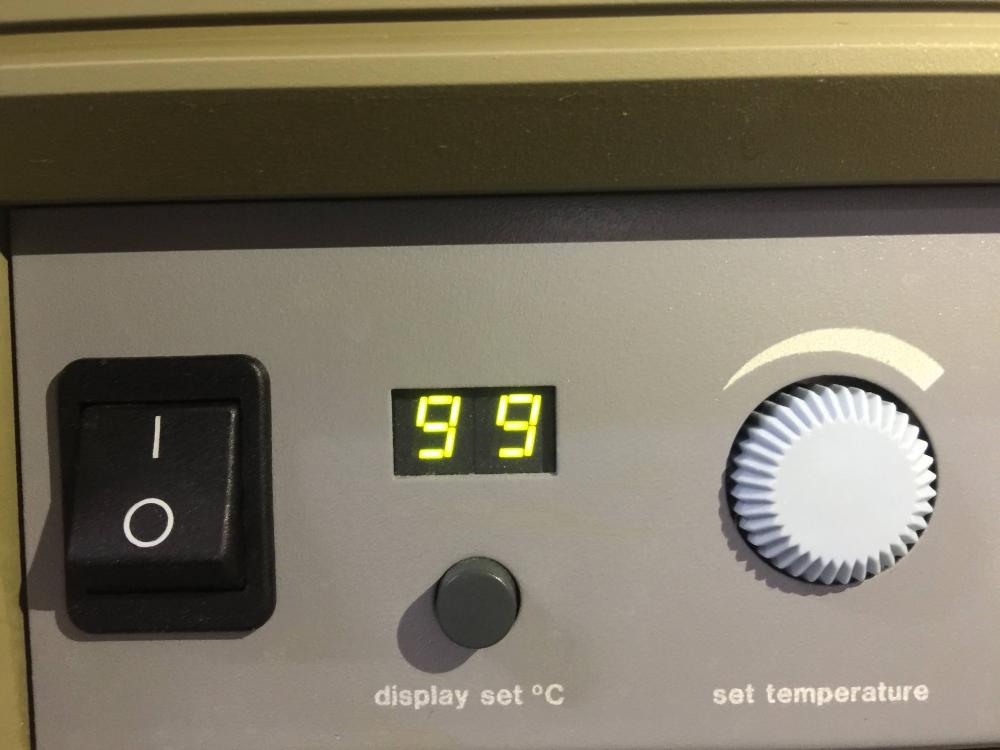

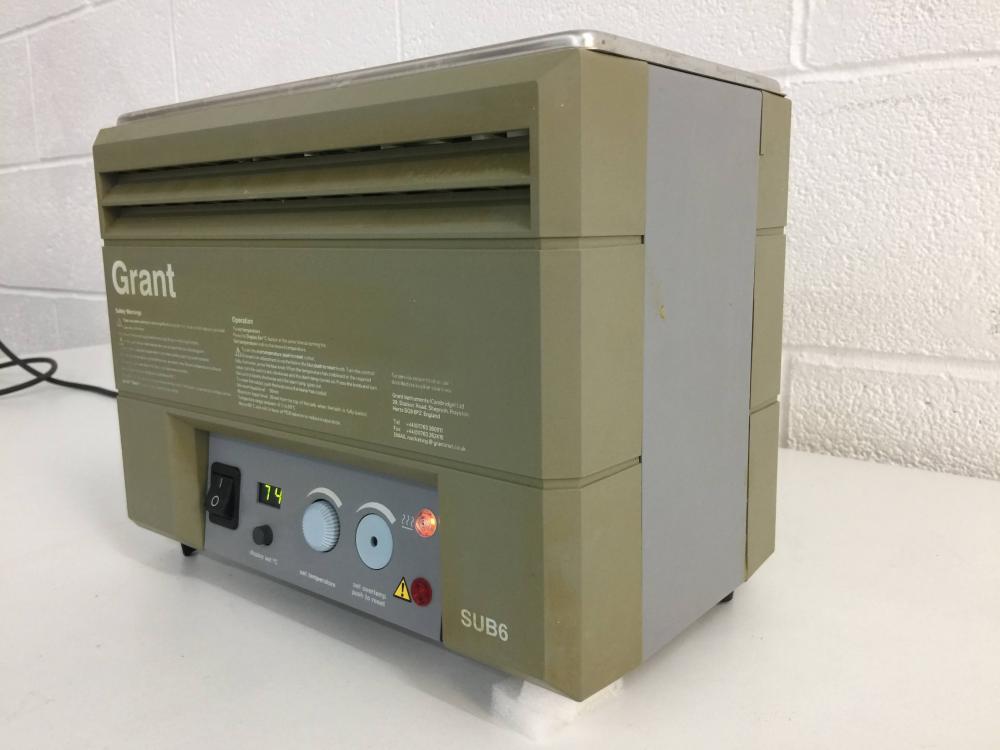

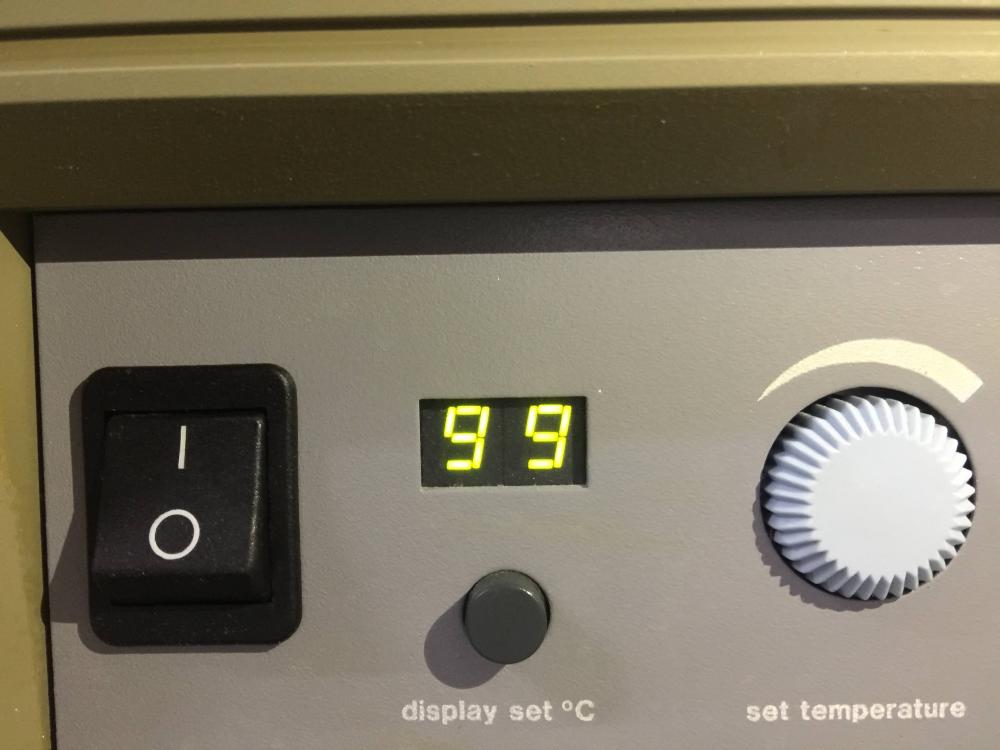

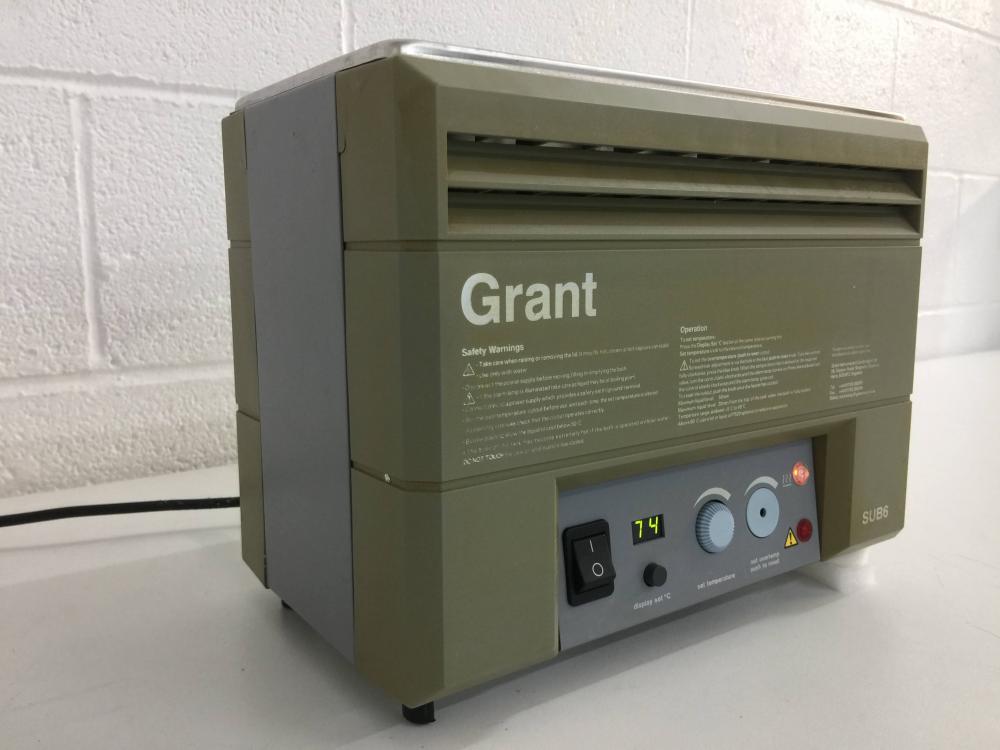

This is a Grant SUB6 Universal water bath. It’s from Grant’s SUB Series and has a capacity of 6 litres. The temperature display shows the water temperature in degrees Celsius. In our tests (with a lid) the pictures demonstrates it reaching up to 99°C. The setting range is 15°C to that 99°C with a temperature display resolution of 1°C.
A set temperature control knob sets the operating temperature you require.
Display set temp shows set temperature when you press it.
The orange Heater Lamp indicates when the heater is on.
The red Alarm Lamp illuminates when the over temperature cut-out has operated.
The set over temperature control sets the operating point of the over temperature cut-out.

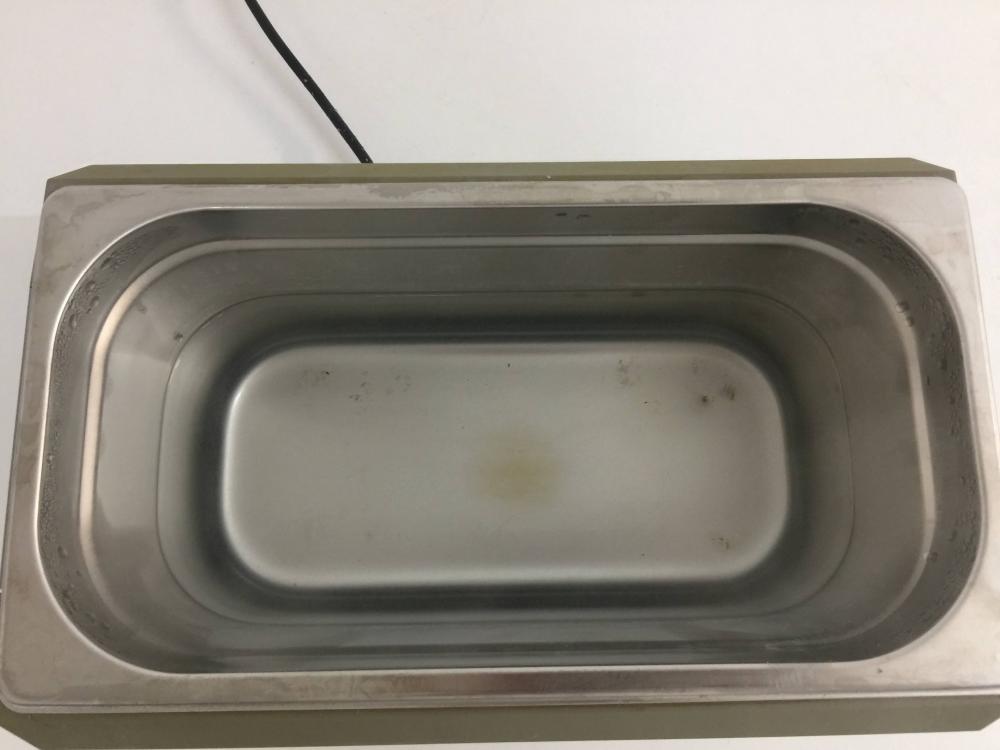

You should keep the water depth between 50mm above the tanks base, up to 30mm from the top of the tank.
Note: This Grant SUB6 water bath does not include a lid and a foot is missing at the front
