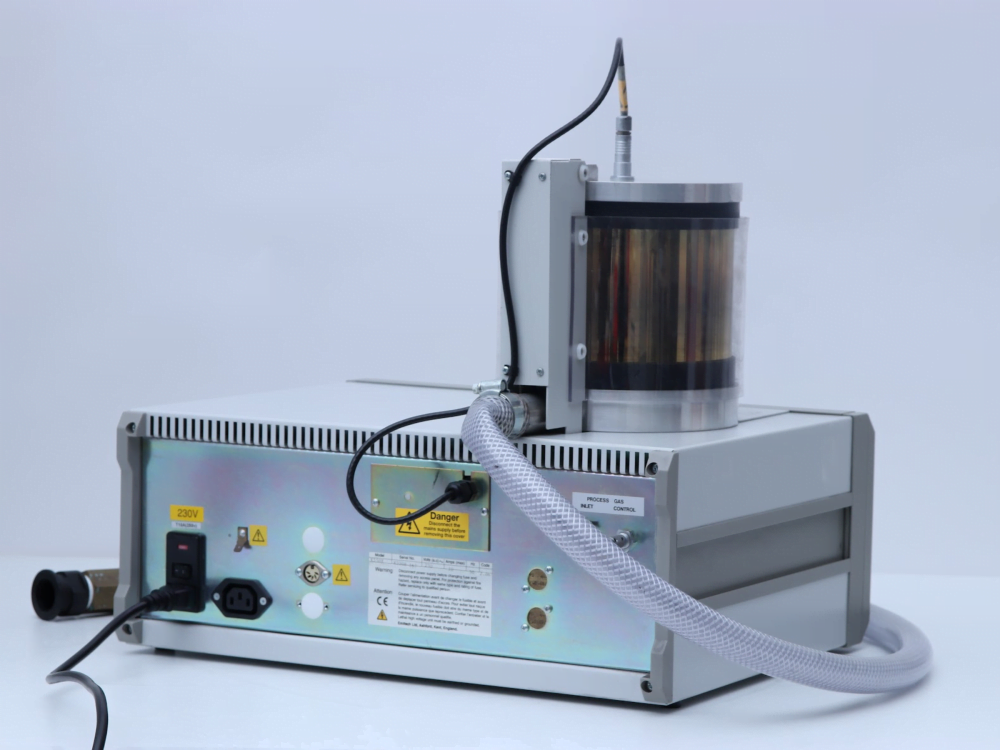

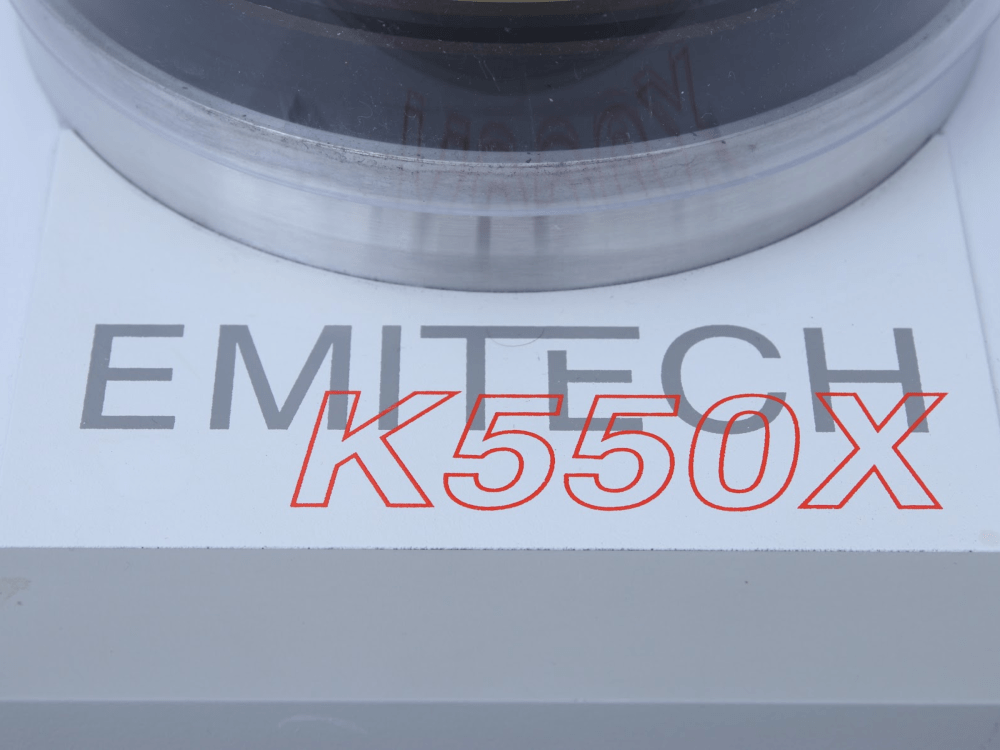

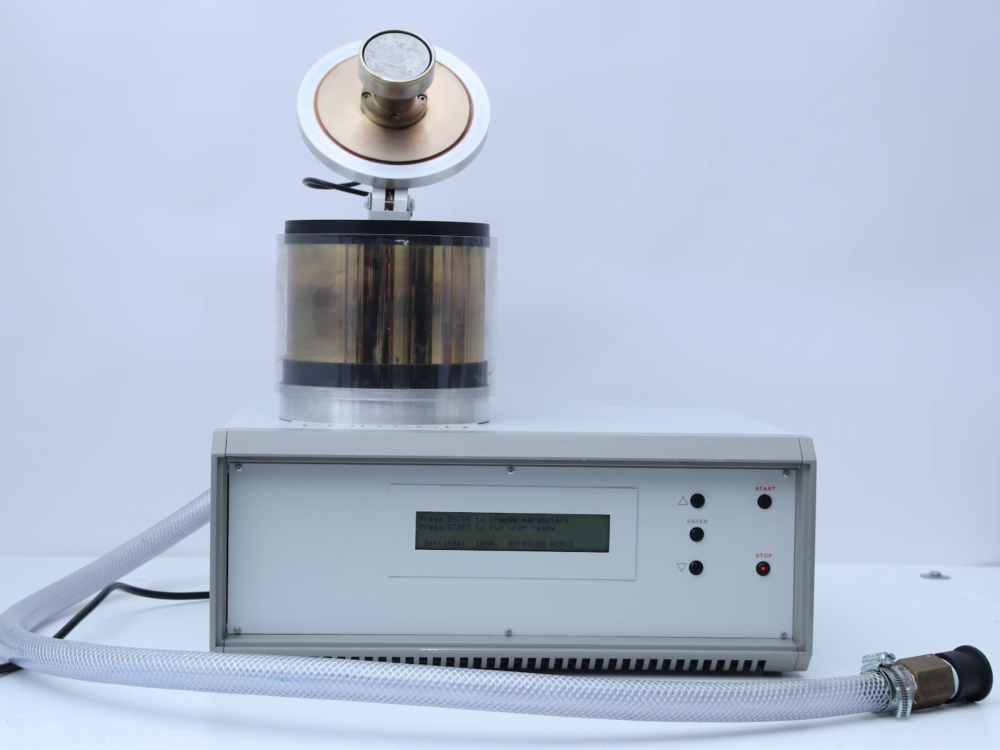

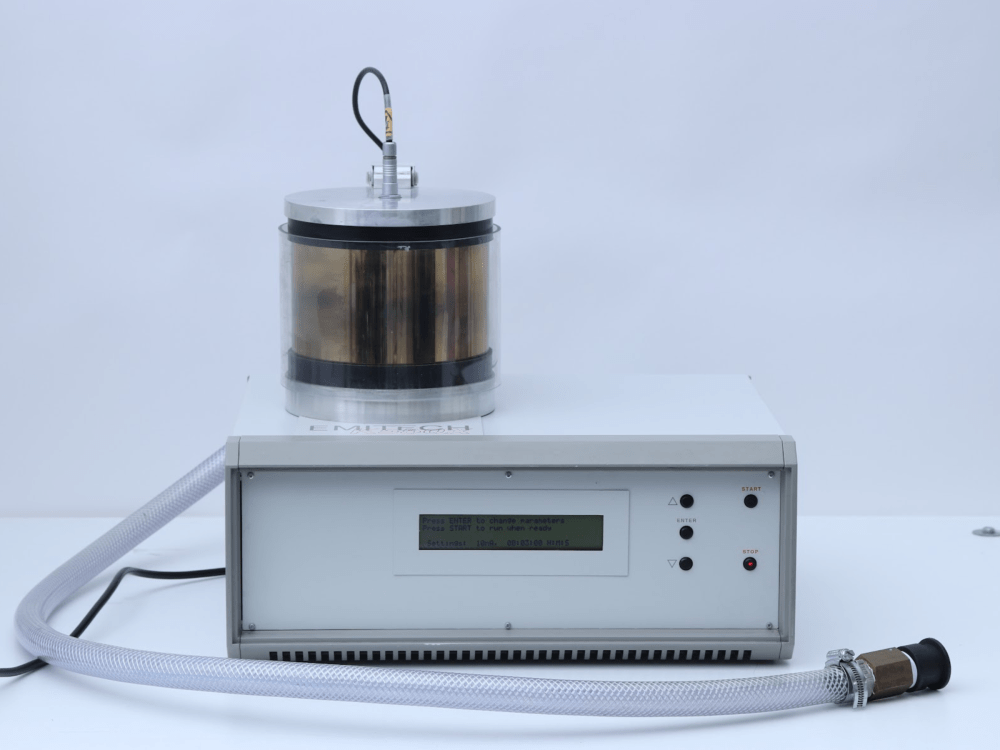

Emitech K550X Sputter Coater

Product Code

22100408

Enquire

1 in stock

Description

The Emitech K550X Sputter Coater system employs a magnetron target assembly to enhance the efficiency of processes using low voltages and producing a fine grain cool sputtering without the need to cool the target specimen stage. The specimen stage is suitable for a range of specimens and stubs, with pre-selectable parameters and automatic control for repeatable film thickness depositions.

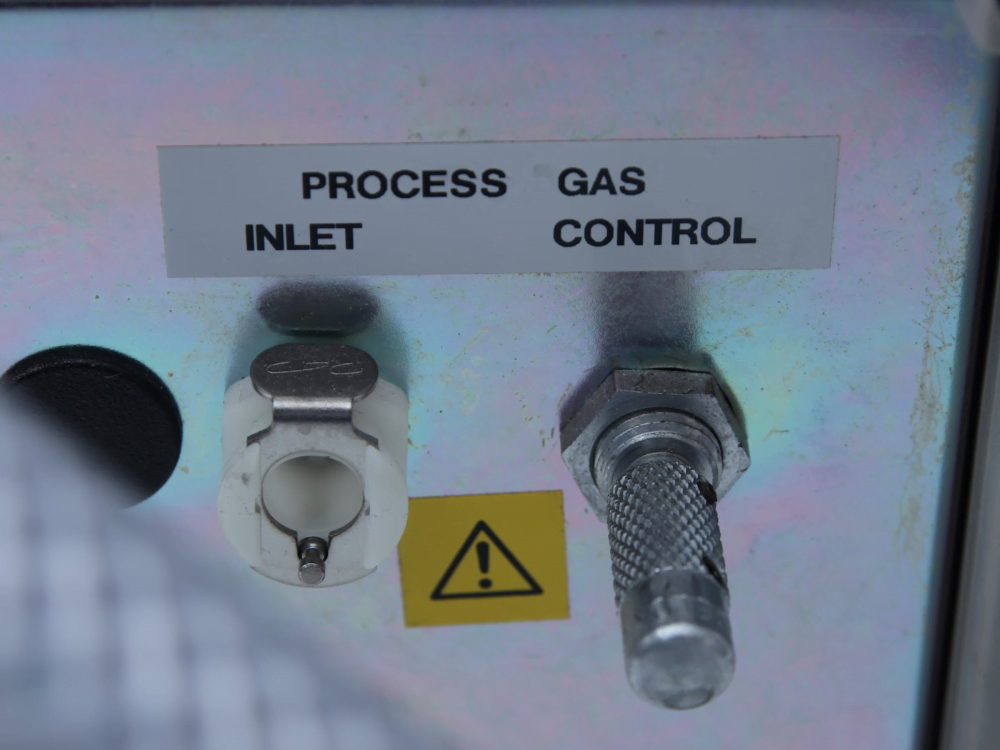

The K550X features  a 60mm diameter by 0.1mm thick, gold, quick-change target enabling optimum performance. The parameters can be pre-set, including the gas bleed needle valve that has electromagnetic valve back up.

Features of the Emitech K550X Sputter Coater:

  • Deposition Range: 0-50mA
  • Deposition Rate: 0-25nm/min
  • Fully automatic control
  • Low voltage sputtering
  • High resolution fine coating
  • Pre-selectable parameters and automatic control
  • Special rotating stage with full tilt facility

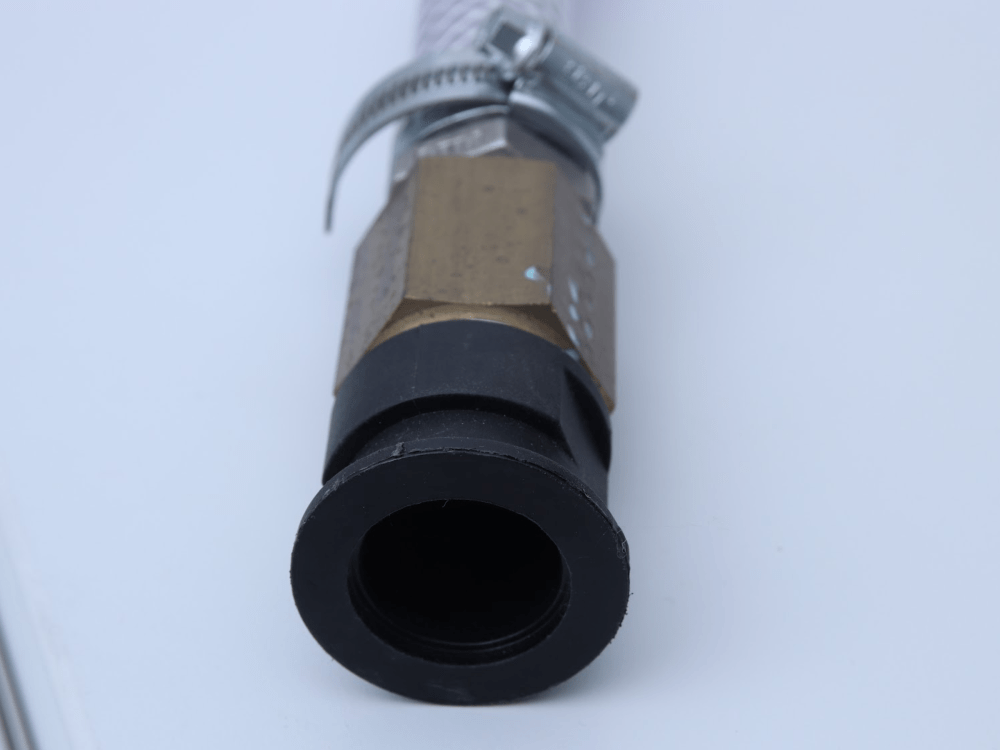

  • Independent vacuum pump
  • Even and repeatable thickness deposition
  • Easy loading and unloading of specimens

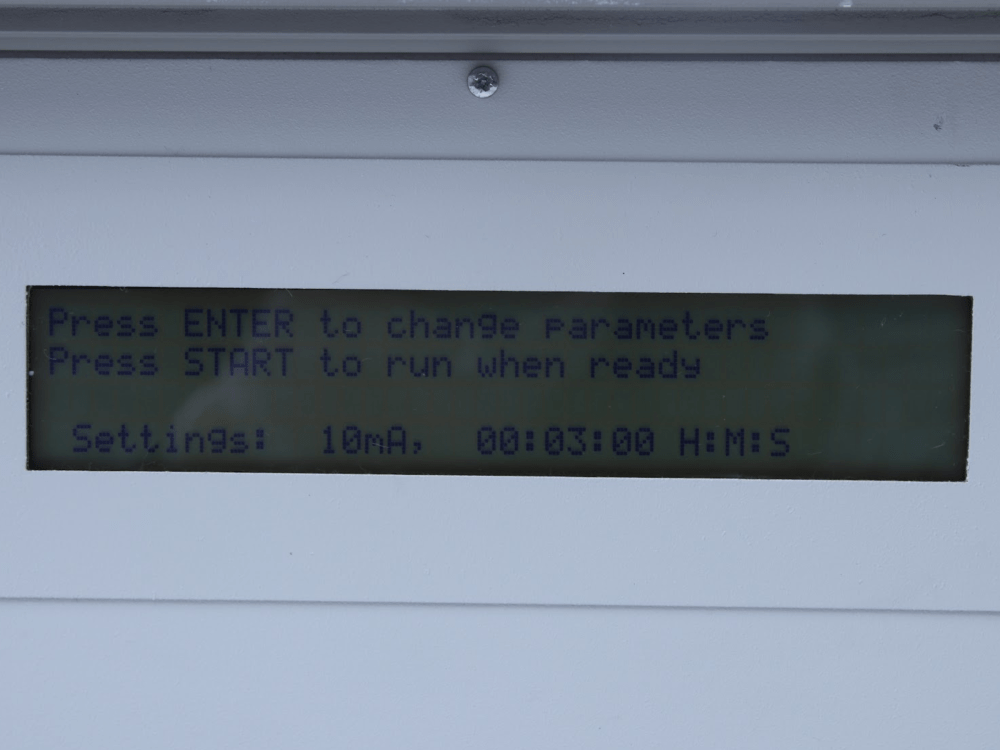

  • User-friendly control panel

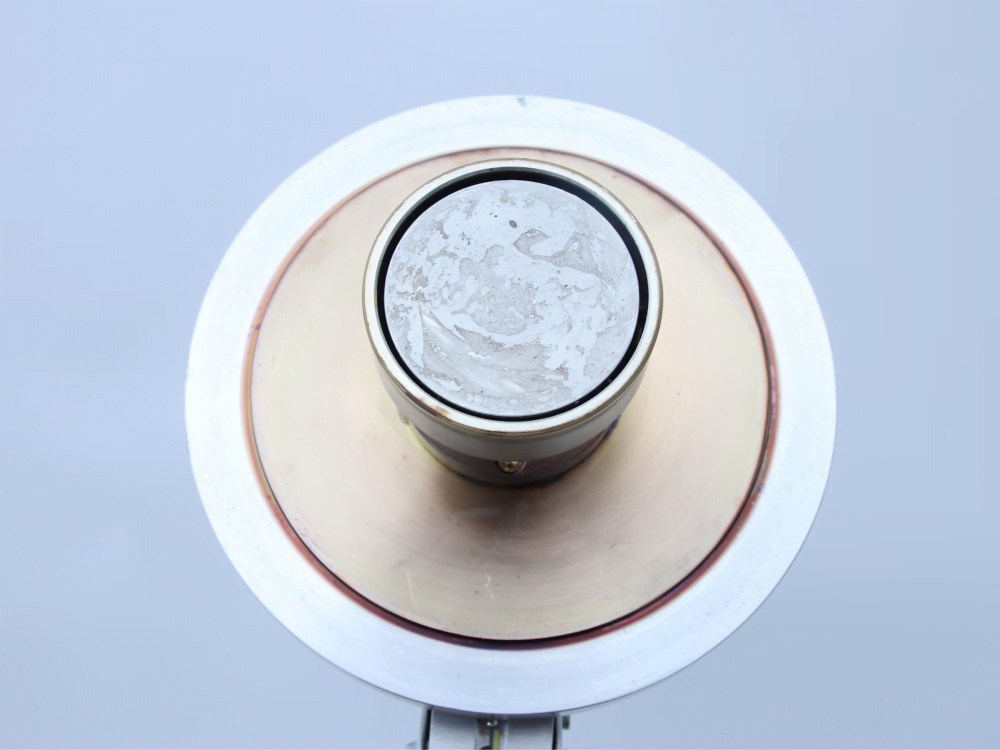

  • 60mm diameter by 0.1mm thick, gold, quick-change target

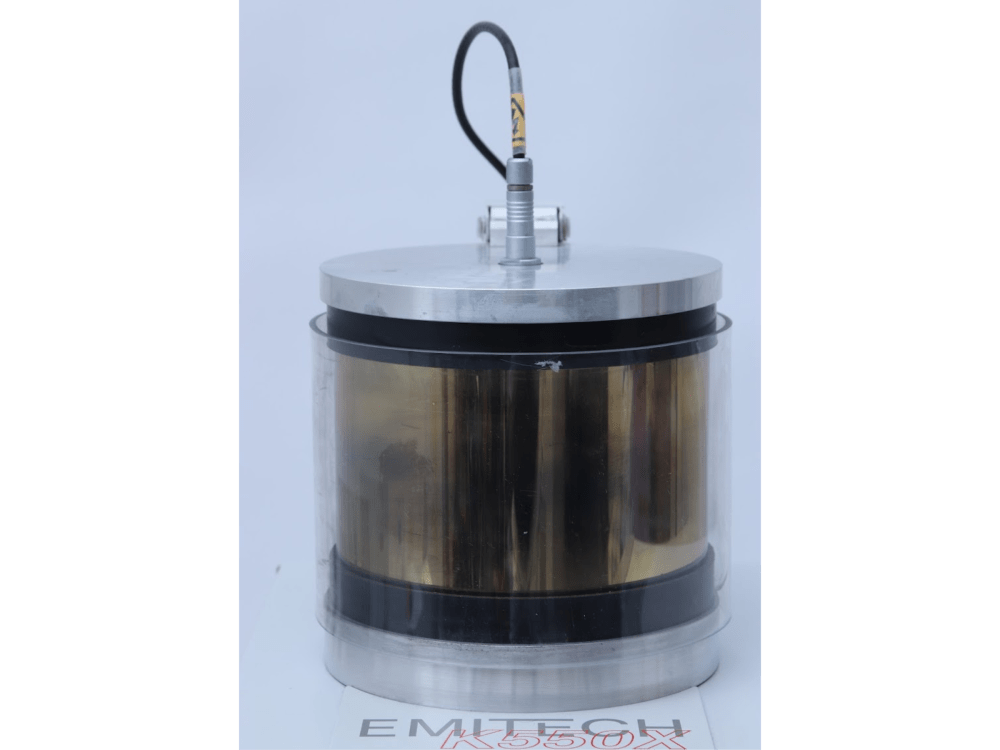

  • 165mm Diameter chamber

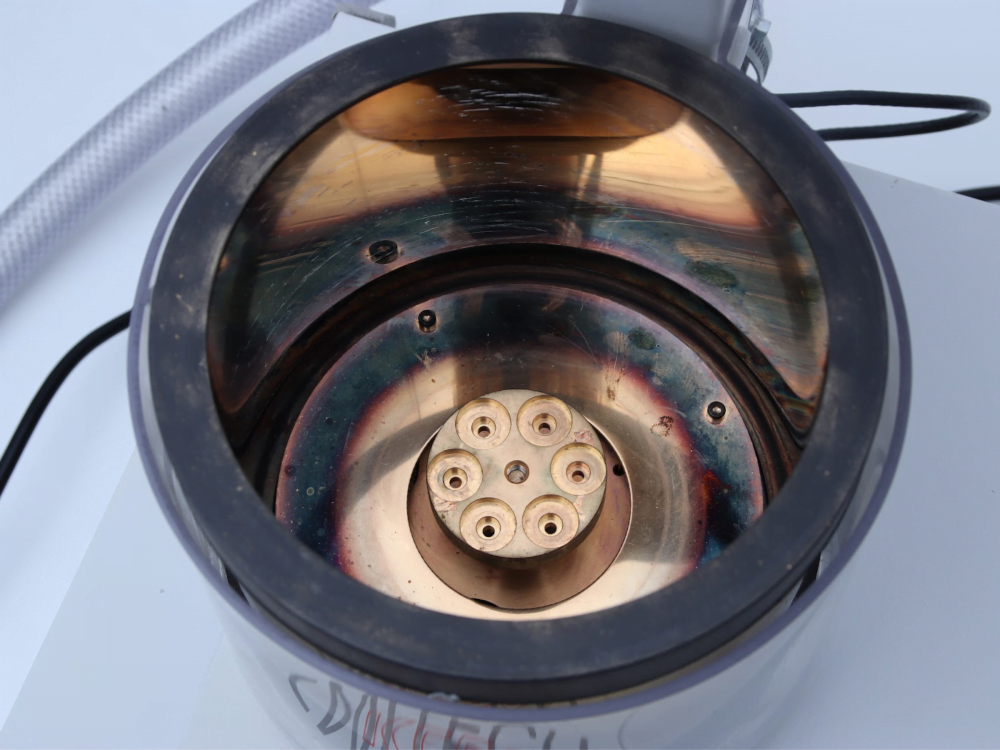

  • Specimen stage – suitable for a range of specimens and stubs



Download the K550X User Manual Here

Additional information

Dimensions43 × 45 × 30 cm
Brand

Model

K550X

New/Used

Used

Downloads

The K550X User Manual Here
