Buchiglasuster Pressure Reactor System

,

Cyclone 300 AC Drive | Polyclave | Huber Grande Fleur Temperature Control System

Product Code

25880
Used

Enquire for price

1 in stock

Add to Quote

Log-in to add this item to your wishlist.

Covered by our 30 Days No Quibble RTB Guarantee.

Richmond Promise

Description

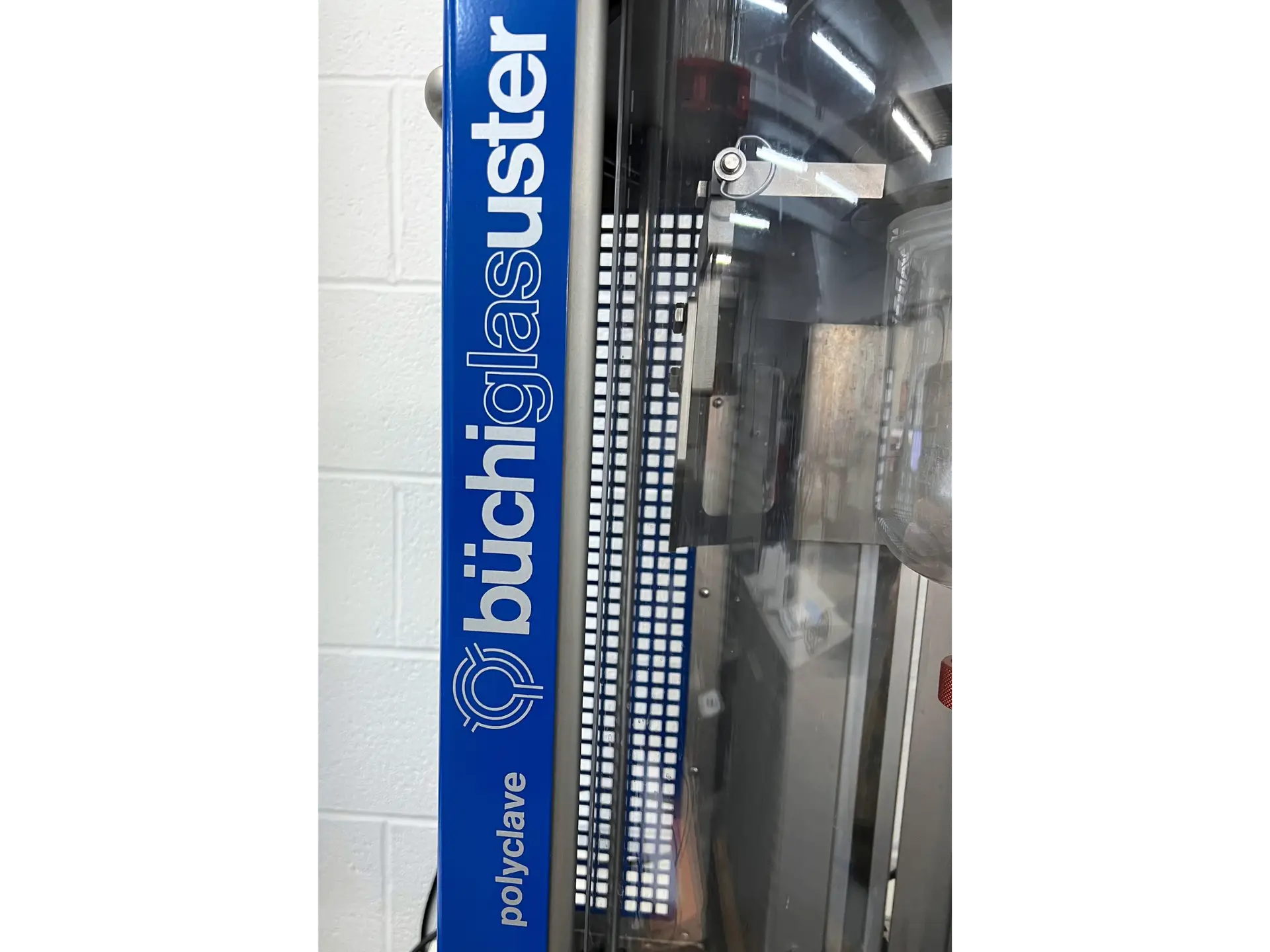

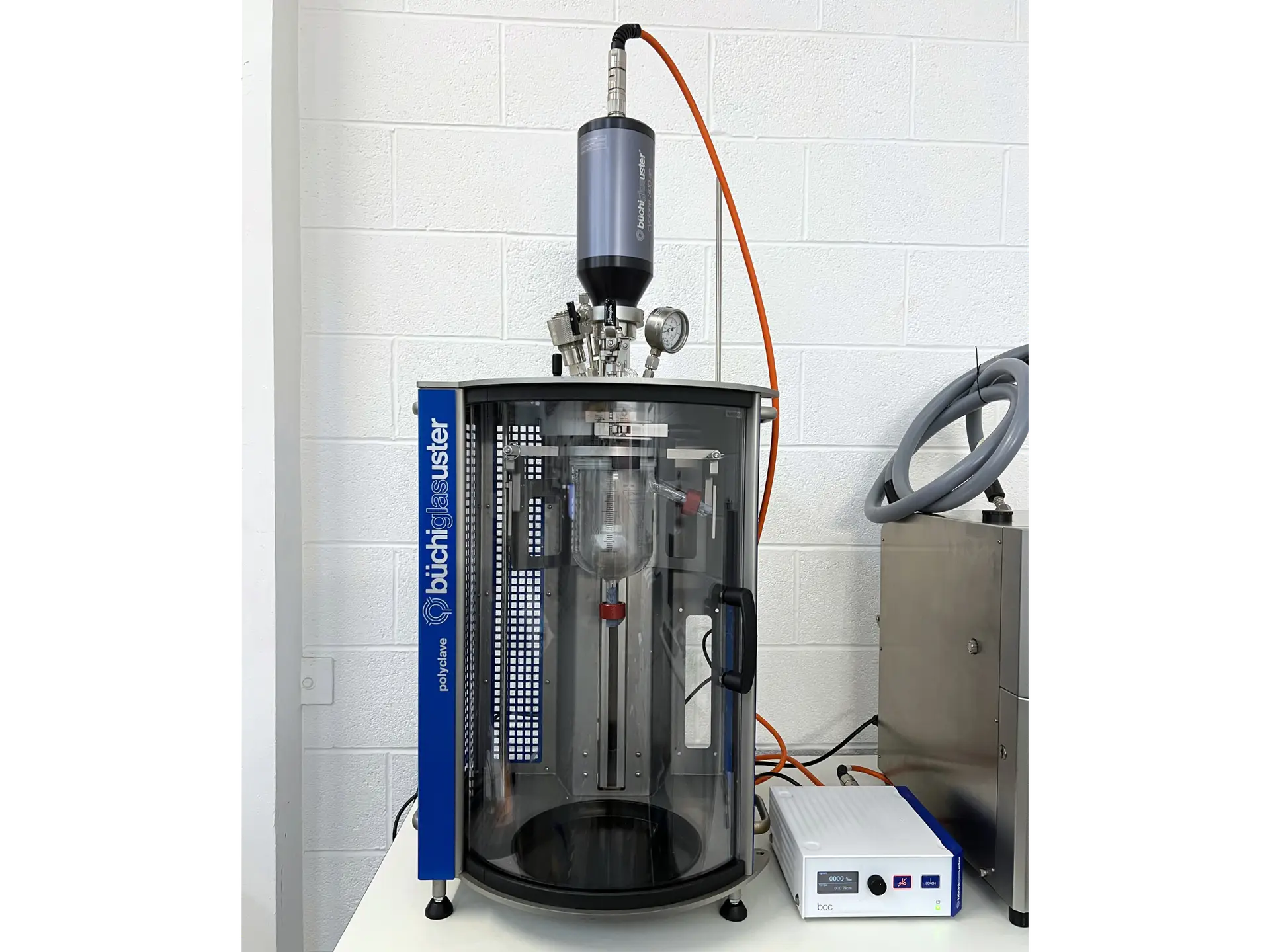

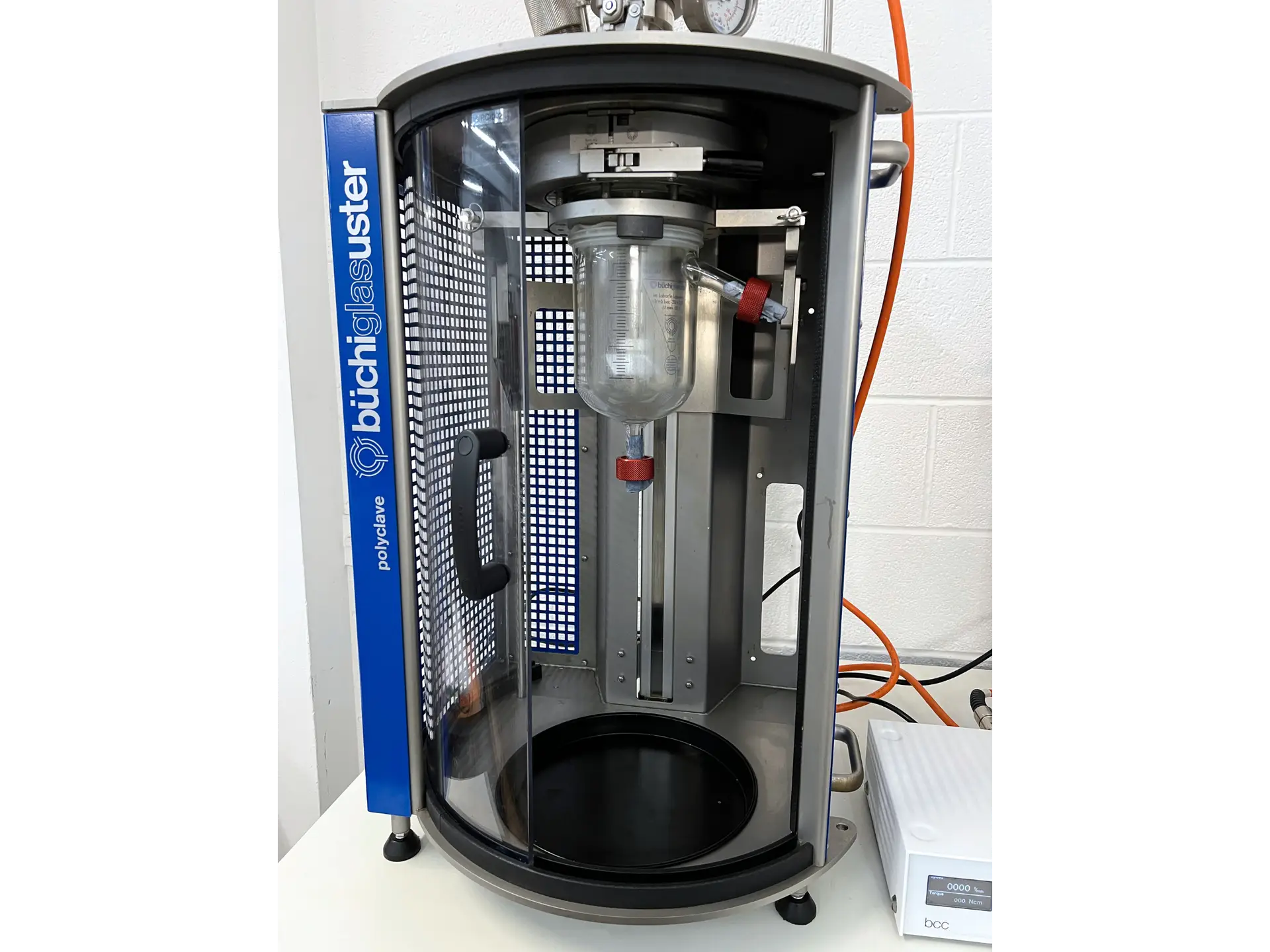

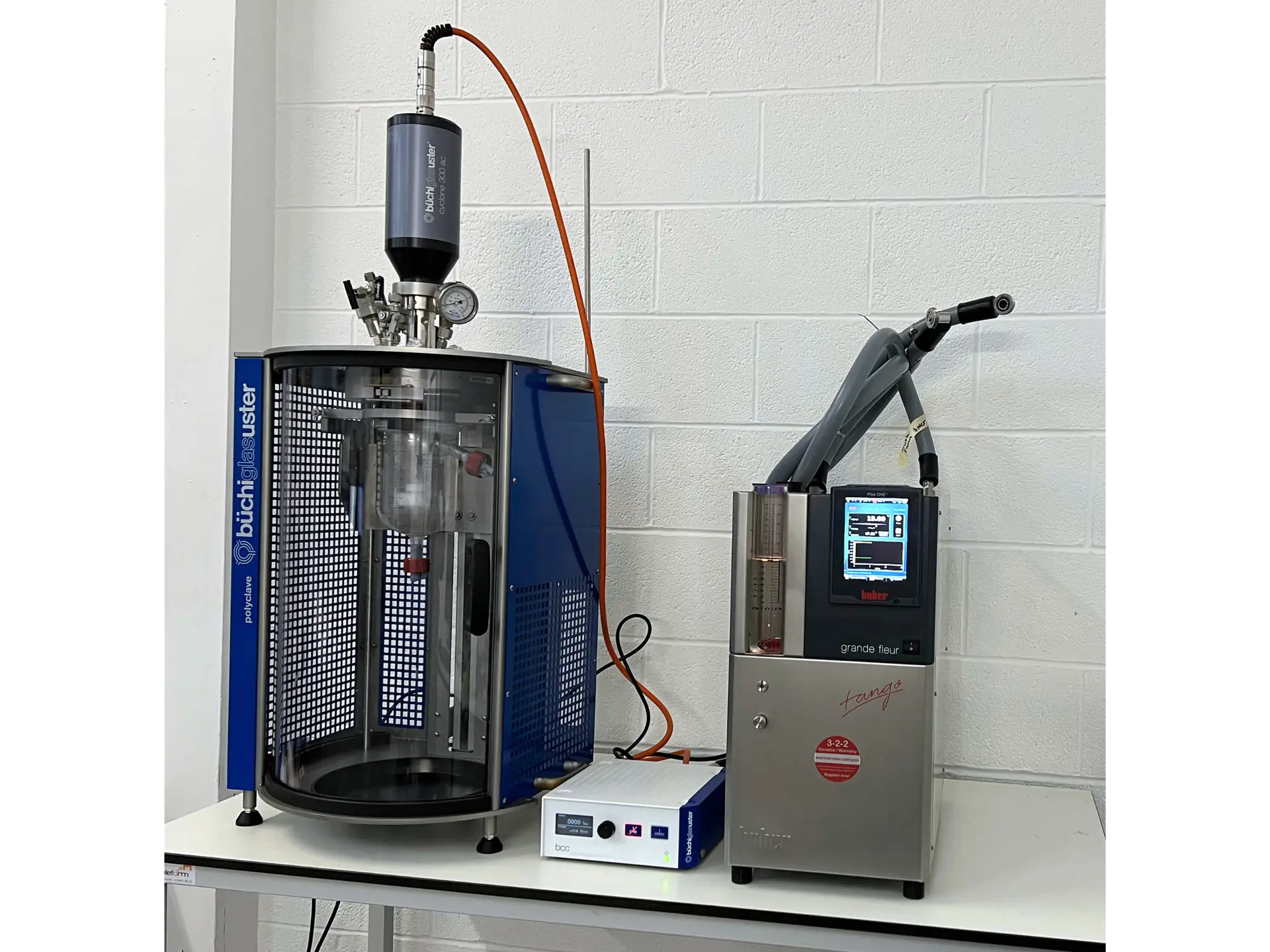

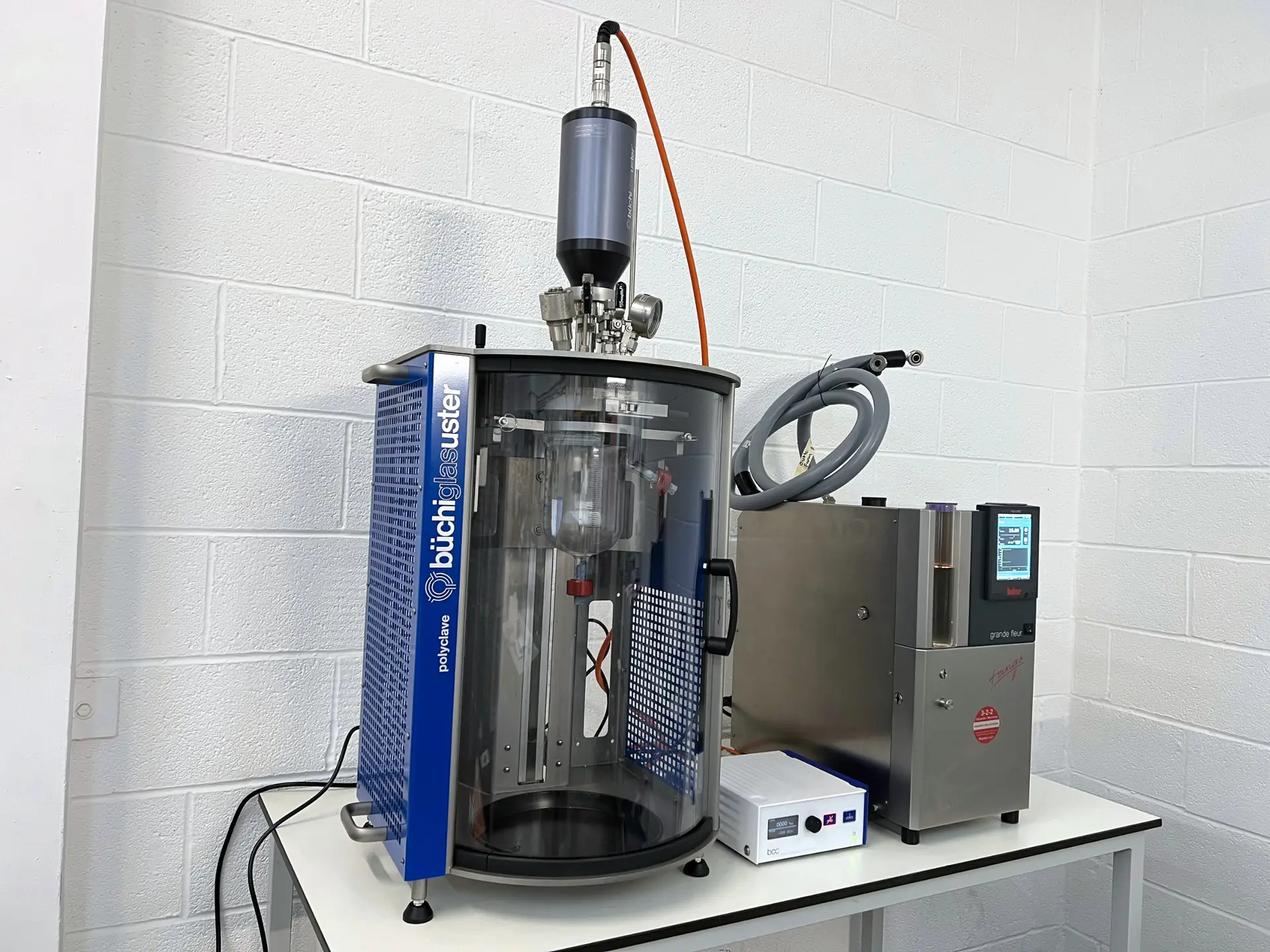

The Buchiglasuster Pressure Reactor System is a bioreactor system complete with Polyclave, Cyclone 300 AC drive, controller, and Huber temperature control unit. It is suitable for use in applications such as process development, biofuel research, hydrogenation, and nanoparticle synthesis to name but a few. The Polyclave has been designed for the use of interchangeable glass and steel pressure vessels, and the modular setup allows for changing or upgrading for different projects.

Features of the Polyclave include a capacity range of 0.25 to 5 litres, an operating pressure range of between 5 to 12 bar, and a maximum operating temperature of 200°C. (Please note these technical specifications apply to glass vessels only). The Polyclave measures 48 x 55 x 131 cm approximately, including the drive.

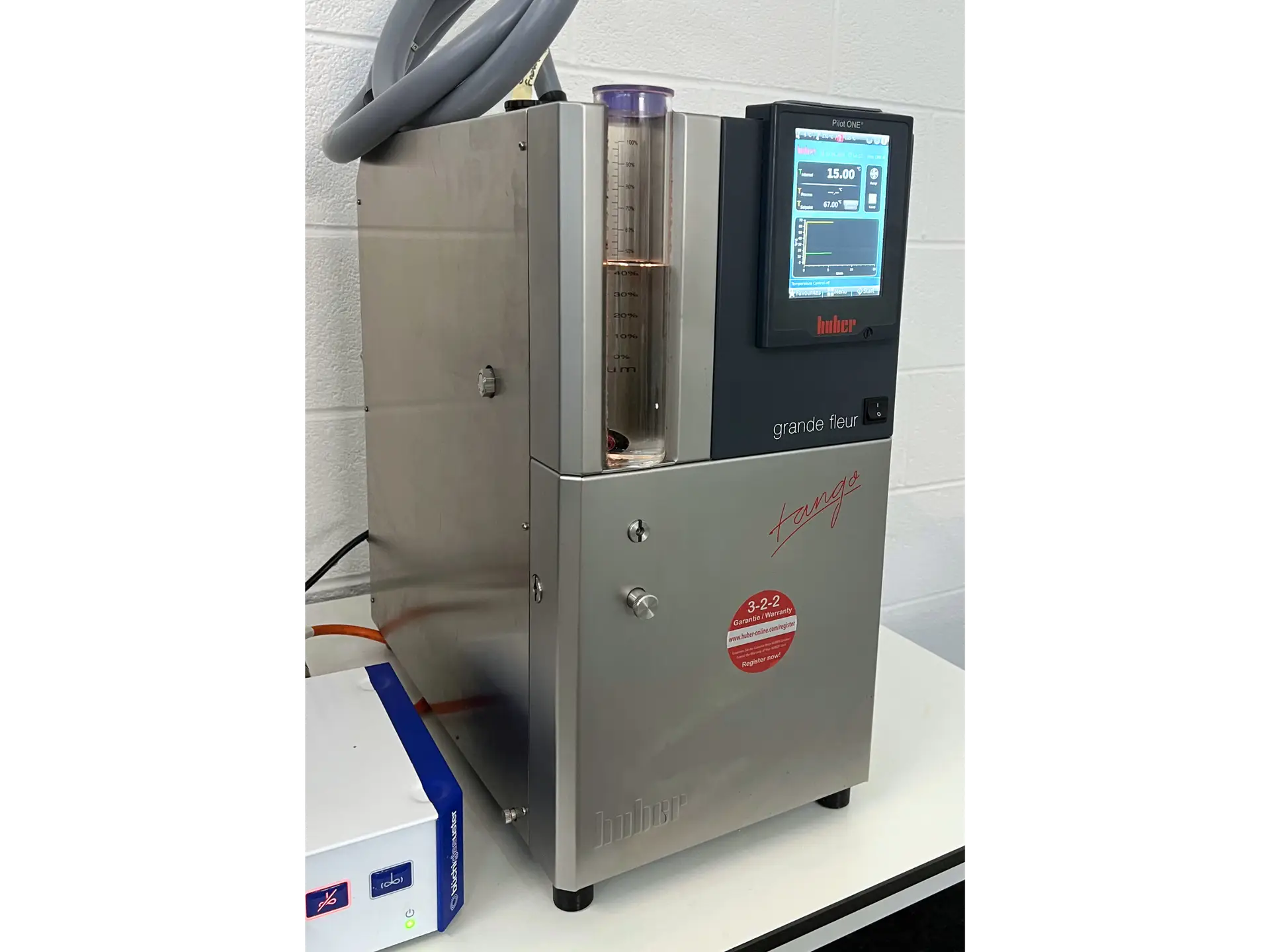

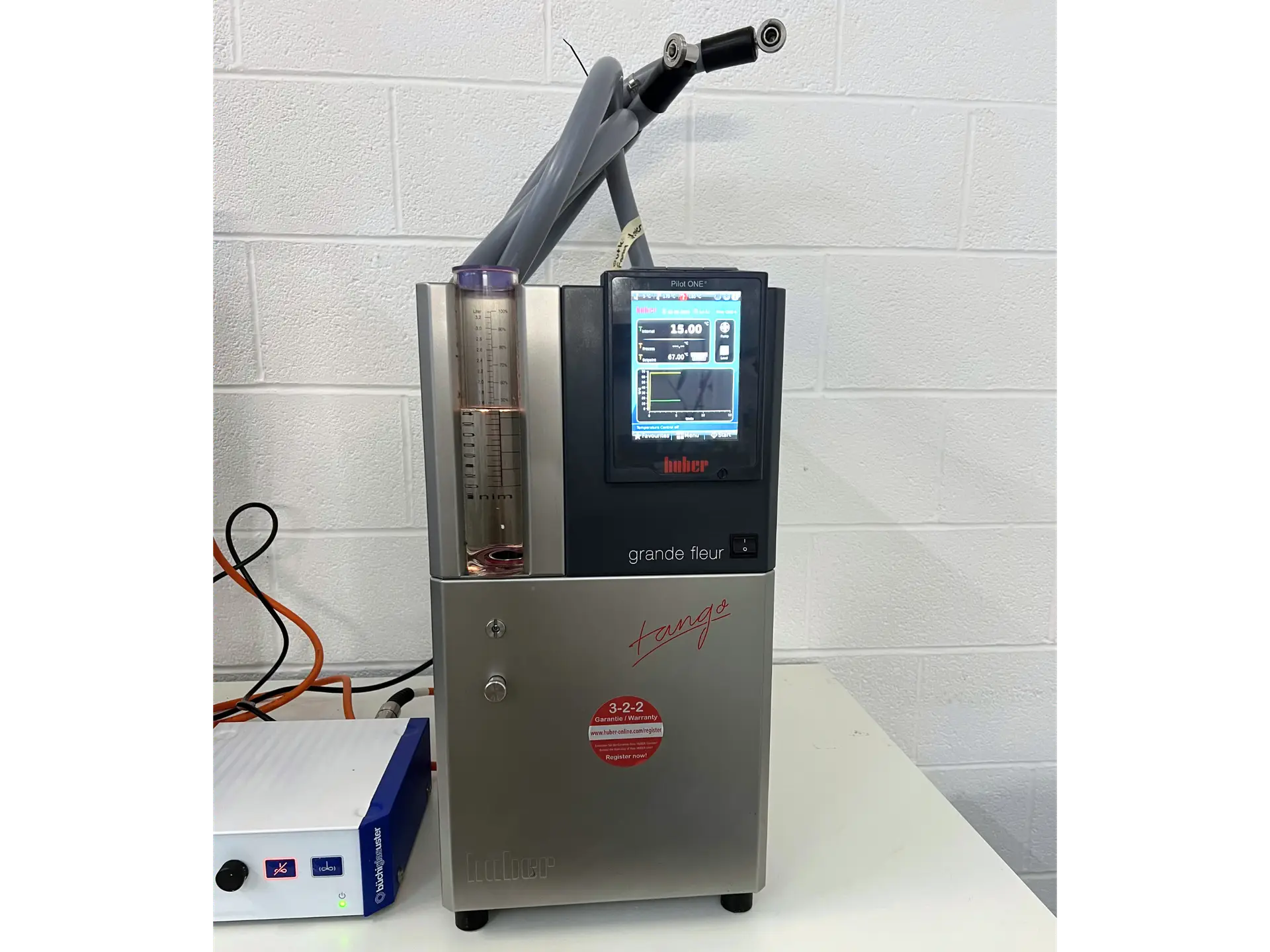

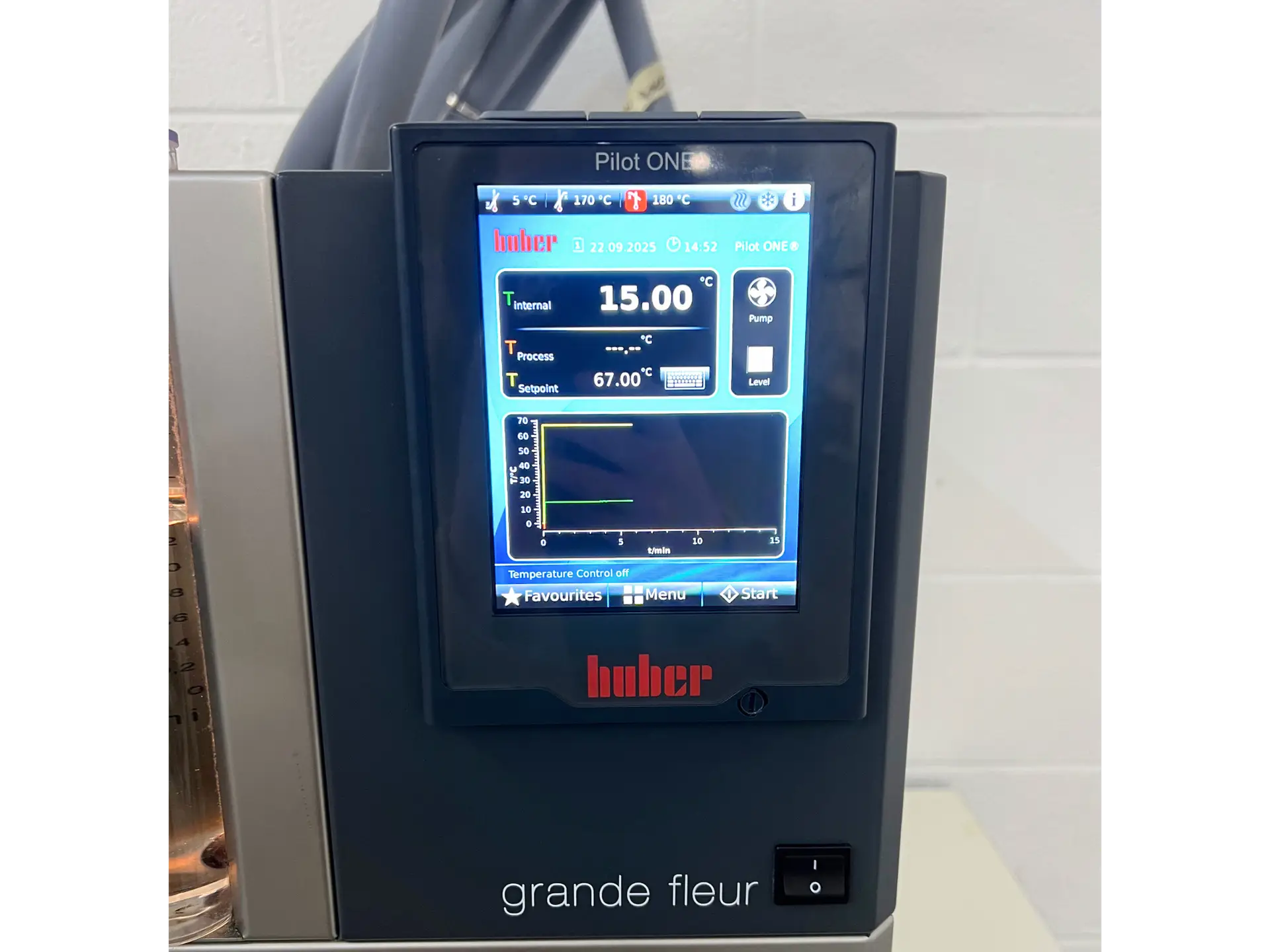

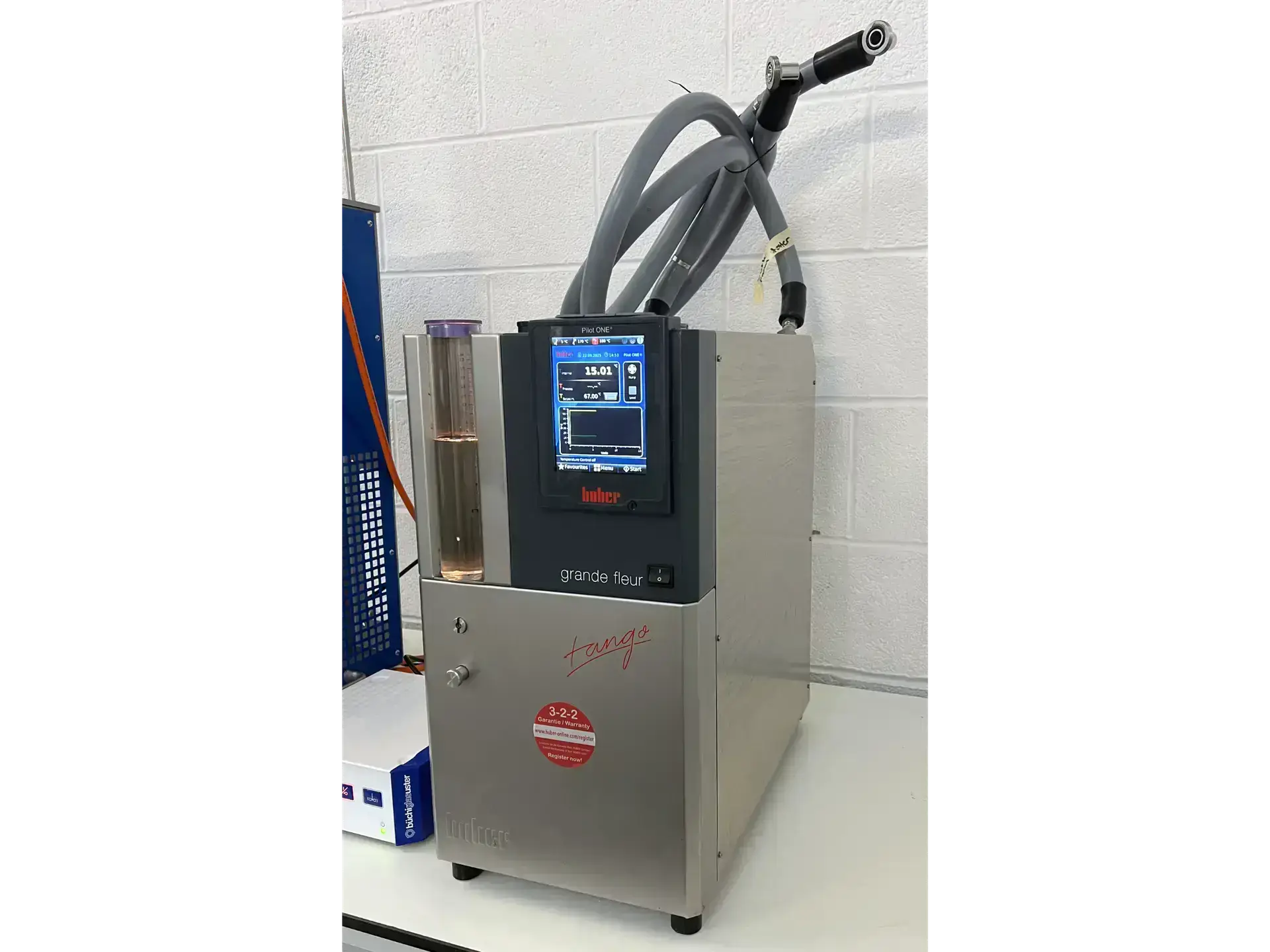

Also included with this system is the Huber Grande Fleur Temperature Control System with the Pilot ONE controller. Ideally suited for high precision temperature control of research reactors, the Grande Fleur ensures reliable and reproducible results. The Grande fleur comes complete with the Pilot ONE contoller, featuring an easy to use 5.7 inch touchscreen, which brightly displays temperature values and operating parameters. Data can be quicly and efficiently transferred to PC with it’s integrated USB and ethernet ports. Operating temperatures for this control system range from -40°C to +200°C, and it measures 53 x 30 x 57 cm approximately.



Key Features Of The Buchiglasuster Pressure Reactor System

  • Buchiglasuster Polyclave
  • Huber Grande Fleur Dynamic Temperature Control System With Pilot ONE Controller

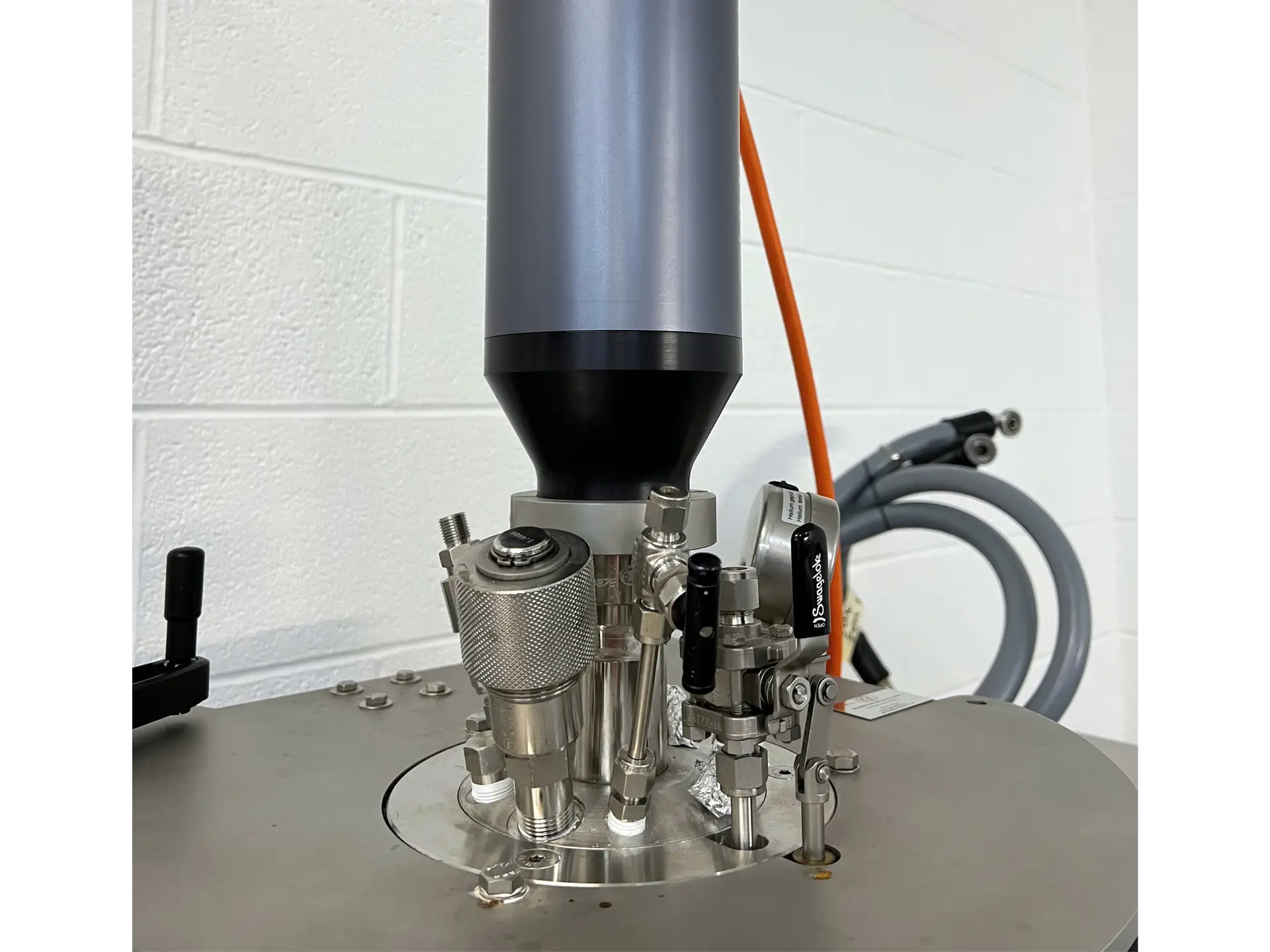

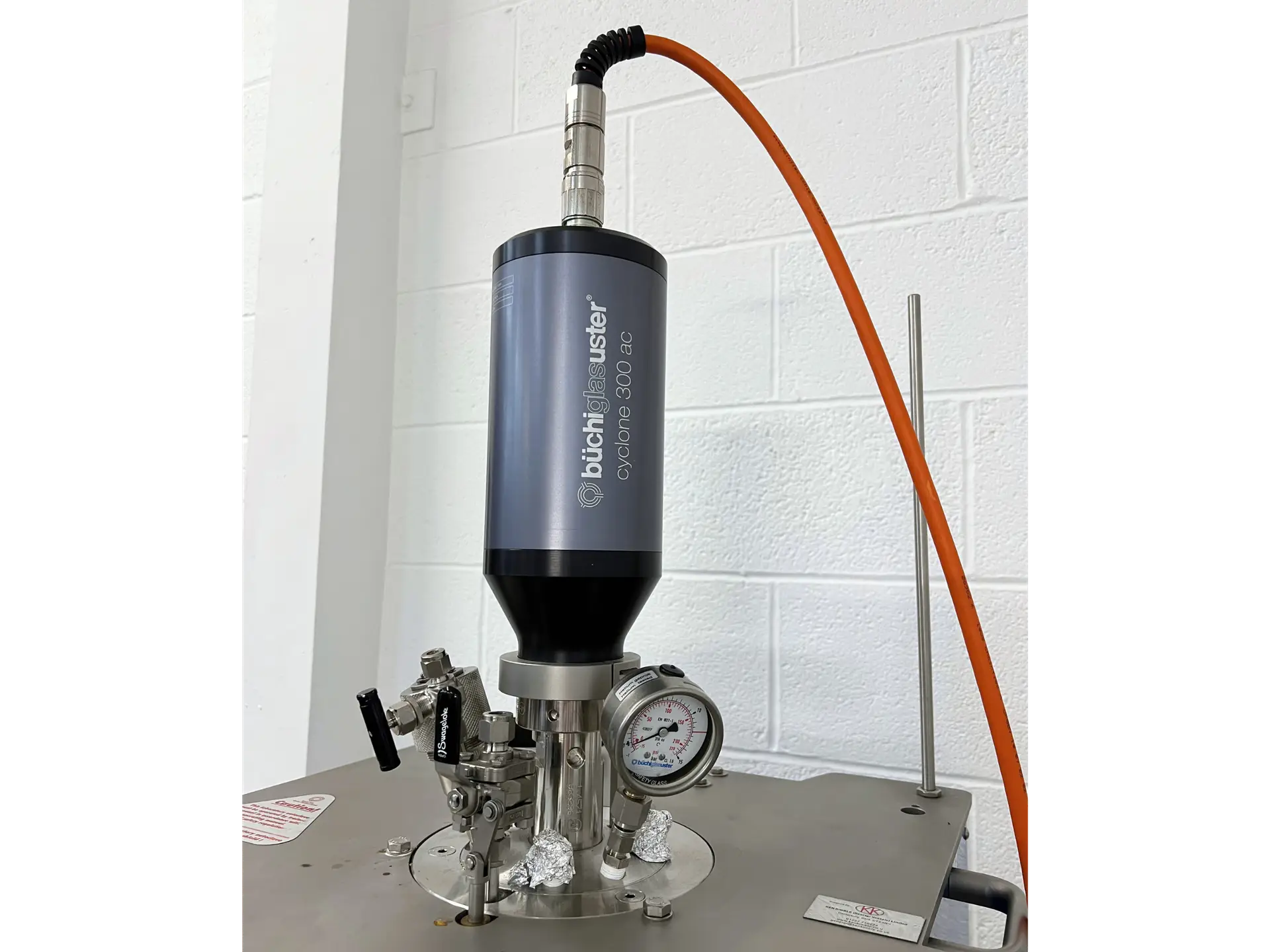

  • Buchiglasuster Cyclone 300 AC Drive

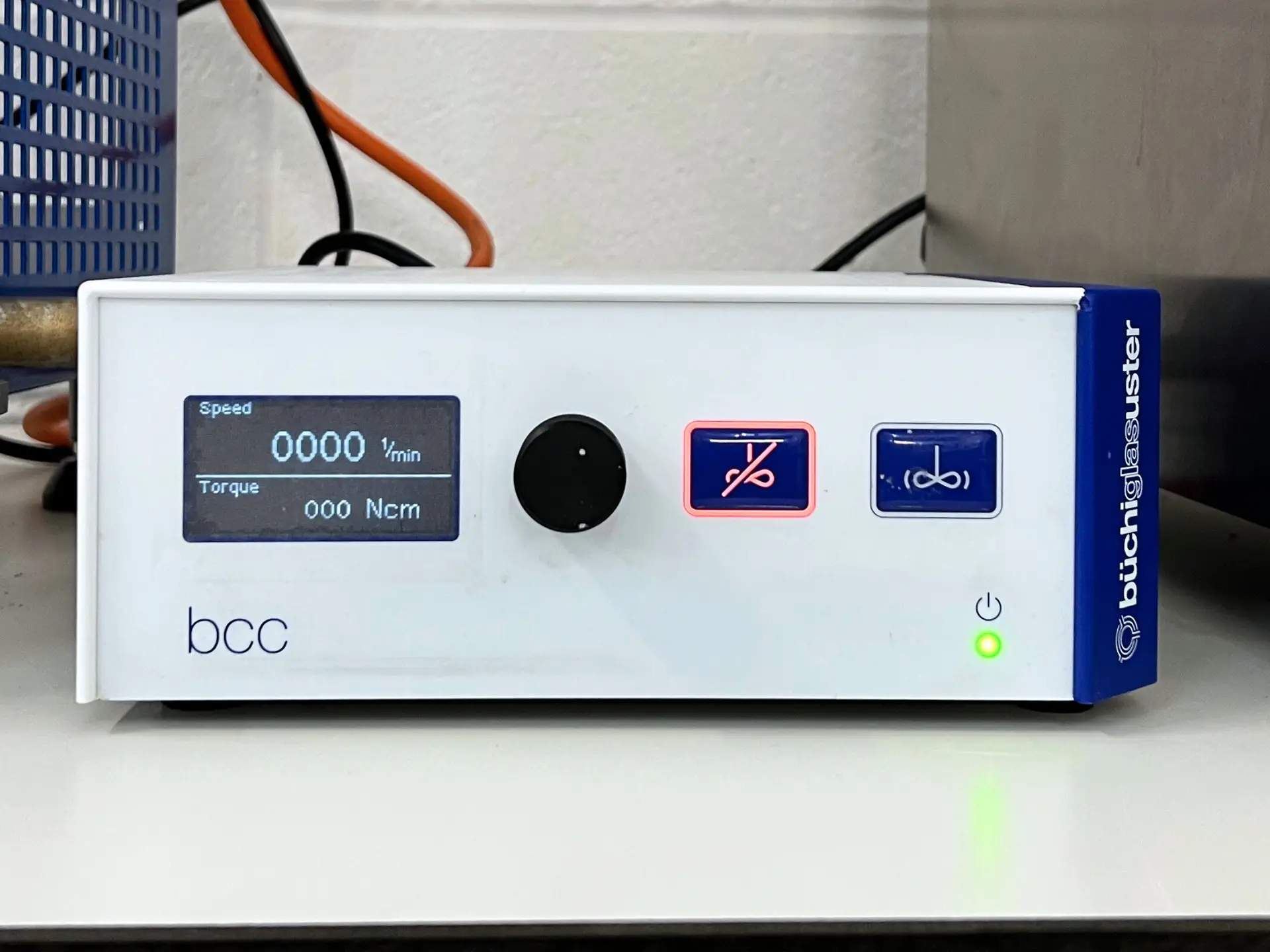

  • Buchiglasuster BCC Controller

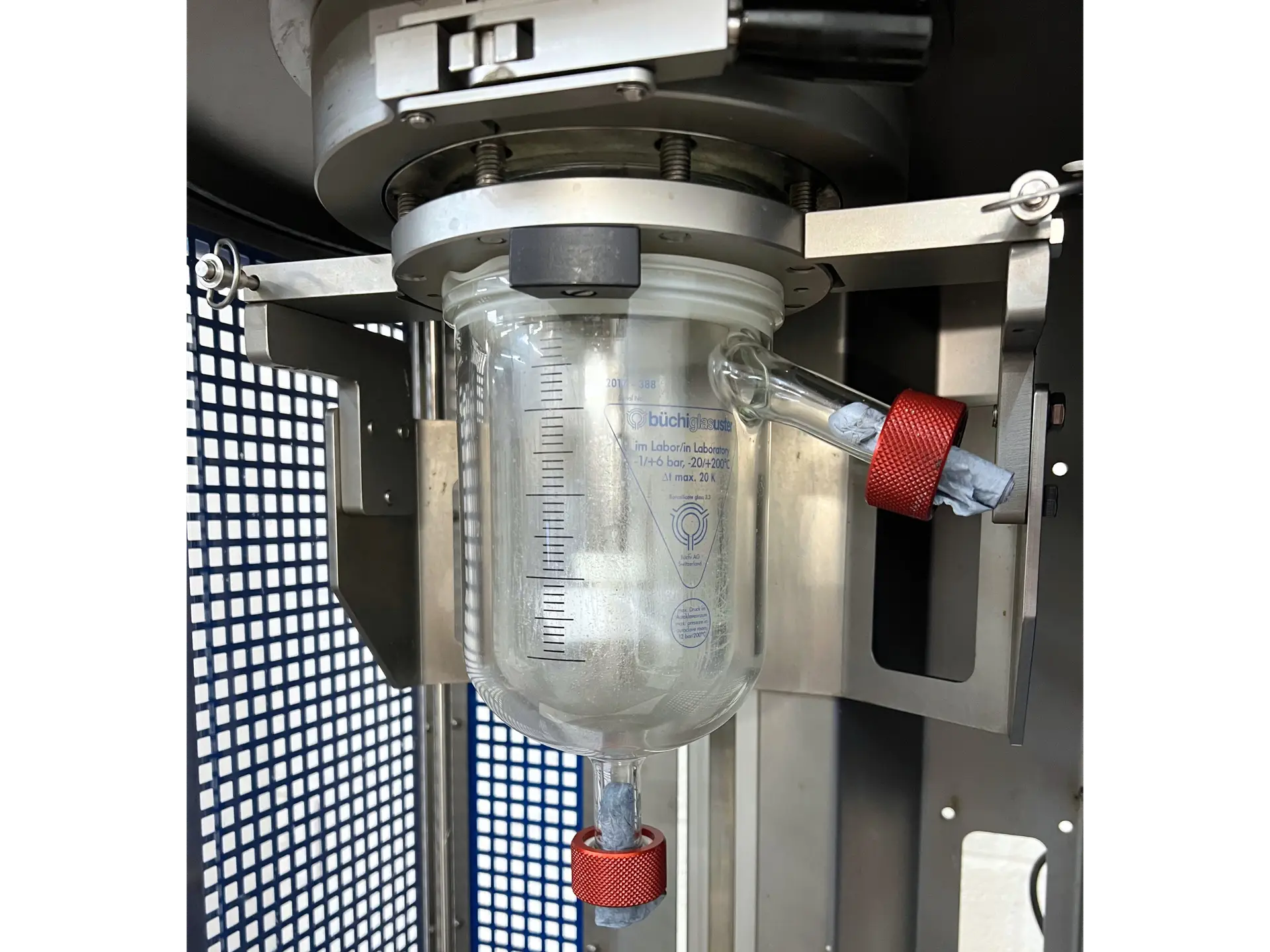

  • Type 1 Glass Vessel Included
  • Capacity 0.25 to 5 Litres
  • Pressure Range 5 to 12 Bar
  • Polyclave Maximum Operating Temperature 200°C
  • Polyclave External Dimensions (L x W x H) 48 x 55 x 131 cm approx
  • Grande Fleur Operating Temperature -40°C to +200°C
  • Grande Fleur External Dimensions (L x W x H) 53 x 30 x 57 cm approx



Brochure For Cyclone 300 AC Polyclave

Data Sheet For Huber Grande Fleur

Additional information

Brands

Model

Cyclone 300 AC

New/Used

Warranty

30 days (Richmond Promise)

Downloads

Brochure For Cyclone 300 AC Polyclave

Data Sheet For Huber Grande Fleur
