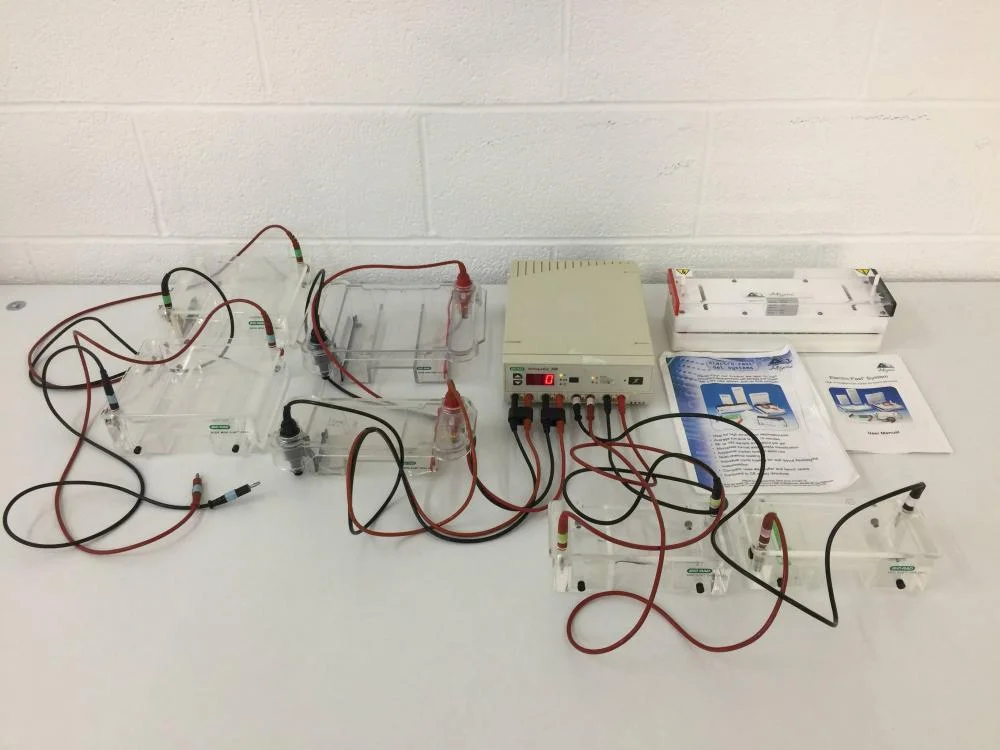

This Gel Electrophoresis System features a BioRad PowerPac 300, 6 BioRad SubCells as well as 1 Thermo ABgene Electro-fast Gel Unit.

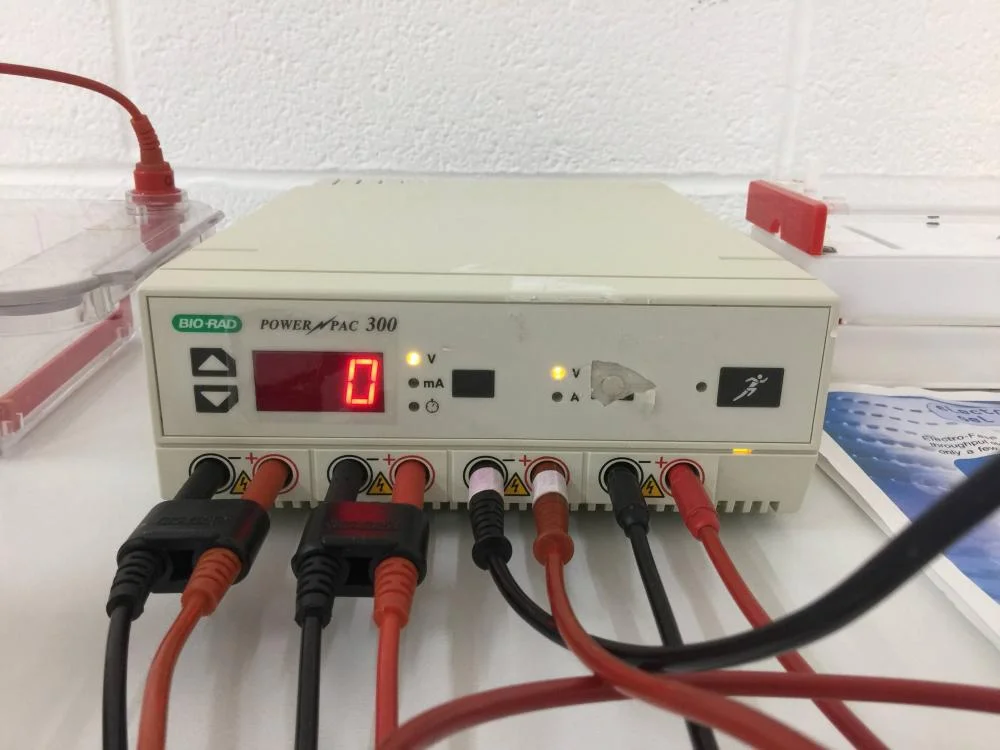

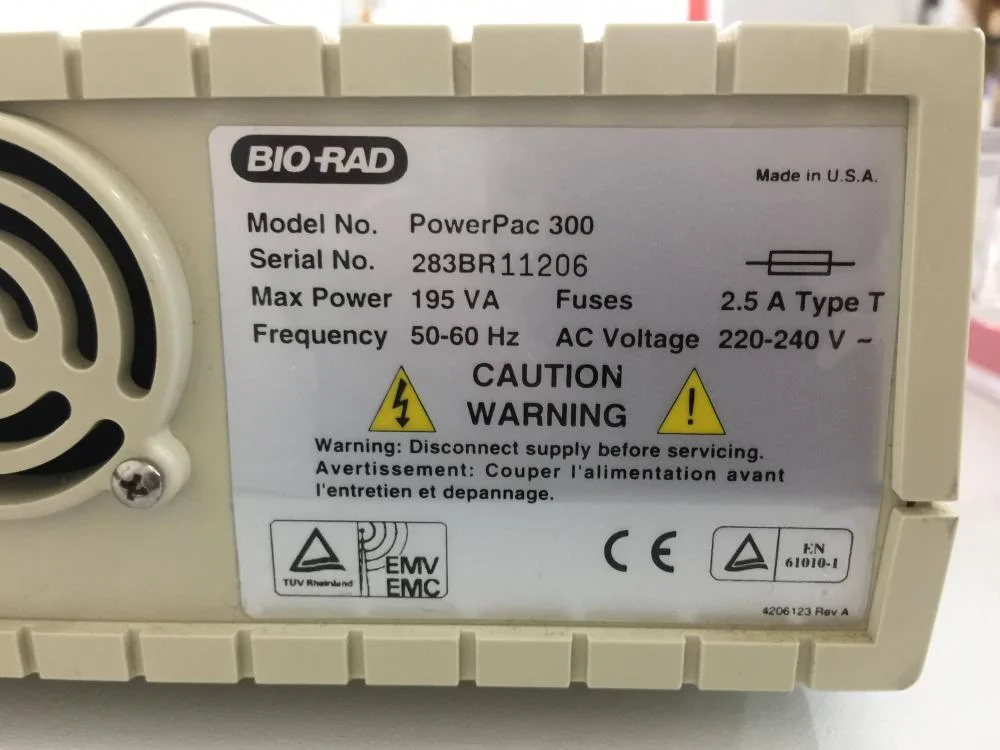

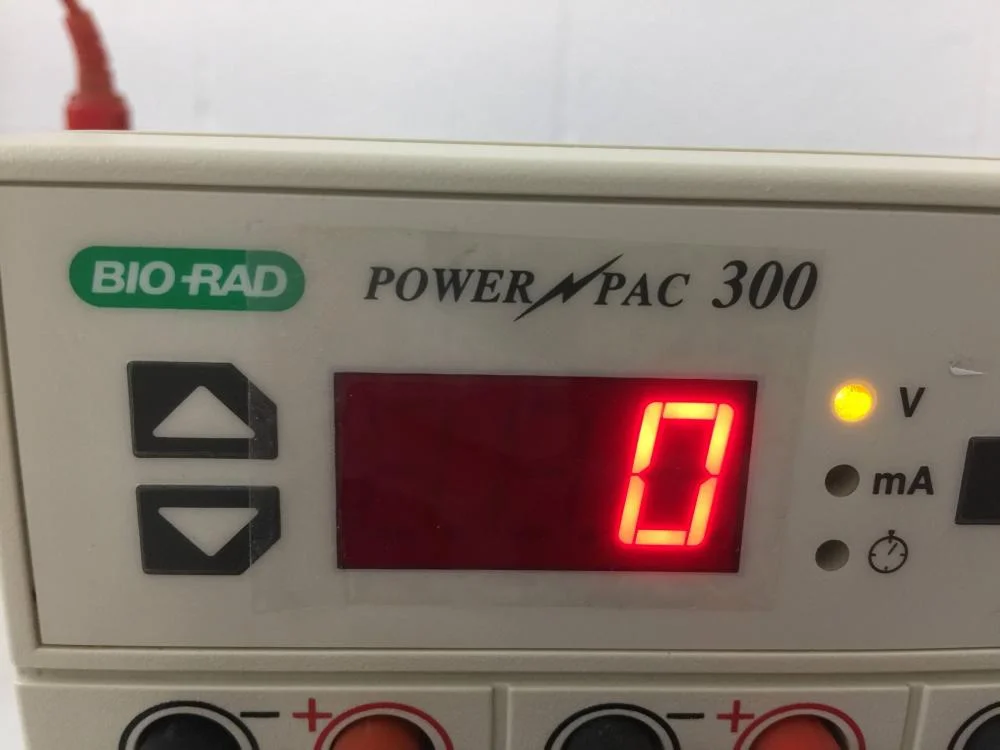

BioRad PowerPac 300
PowerPac power supplies provide constant voltage or constant current to instruments used in electrophoresis and blotting. The PowerPacs are capable of the following adjustable outputs:
Voltage output: Adjustable from 10 to 300 volts in increments of 1 volt.
Current output: Adjustable from 4 to 400 milliAmps (mA) in increments of 1 mA.
Power output: 75 watts (maximum)

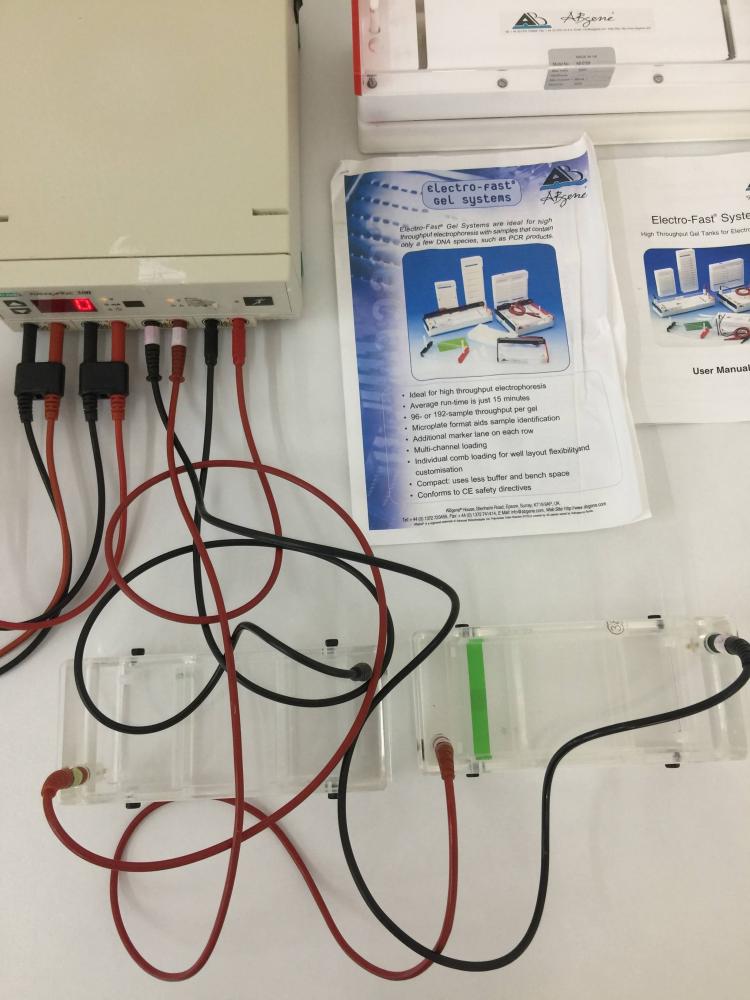

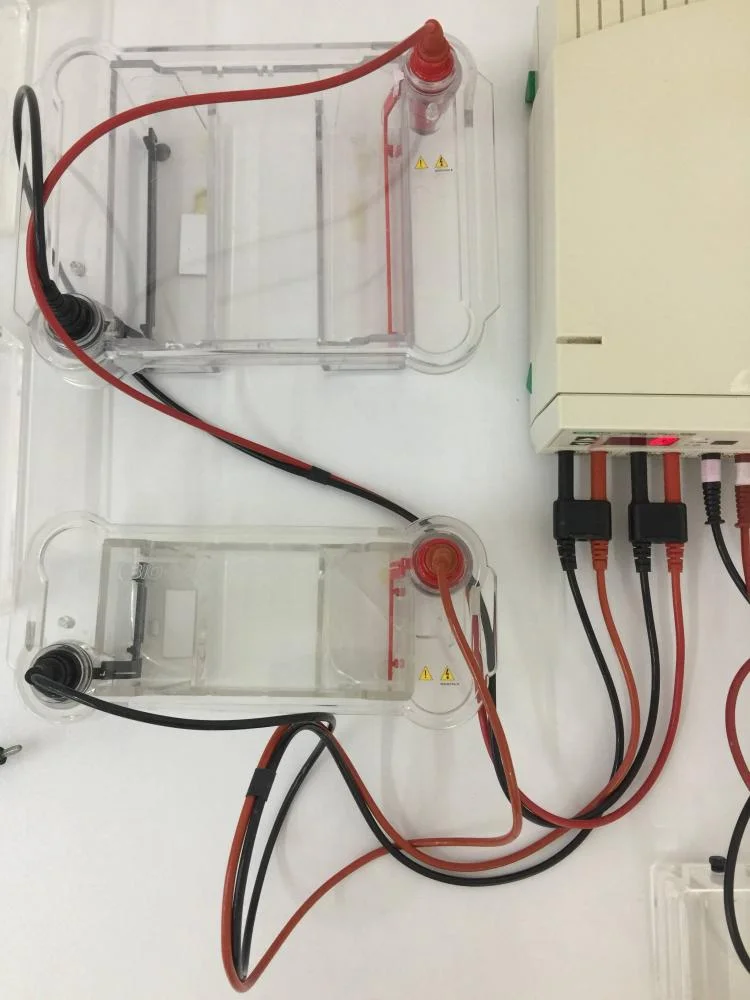

In this system, up to four of the electrophoresis cells can be connected in parallel to this BioRad power supply.
BioRad SubCells Include:

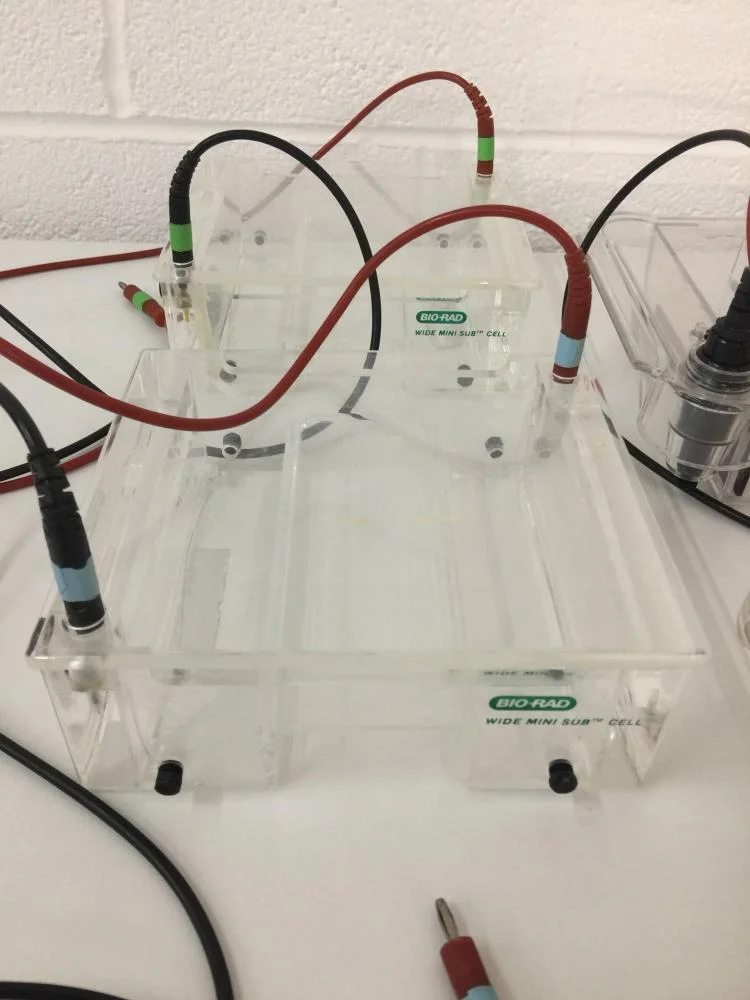

- Wide Mini Sub Cells x2
- Mini Sub Cells x2
- Mini Sub DNA Cells x2
All with corresponding wires to the power pack.

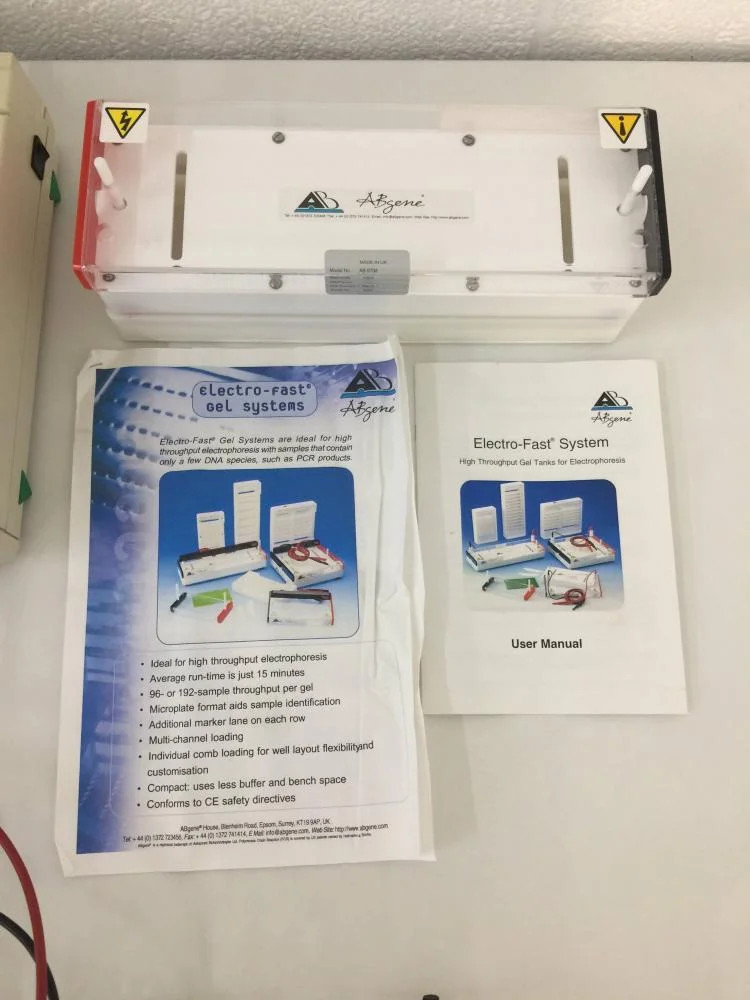

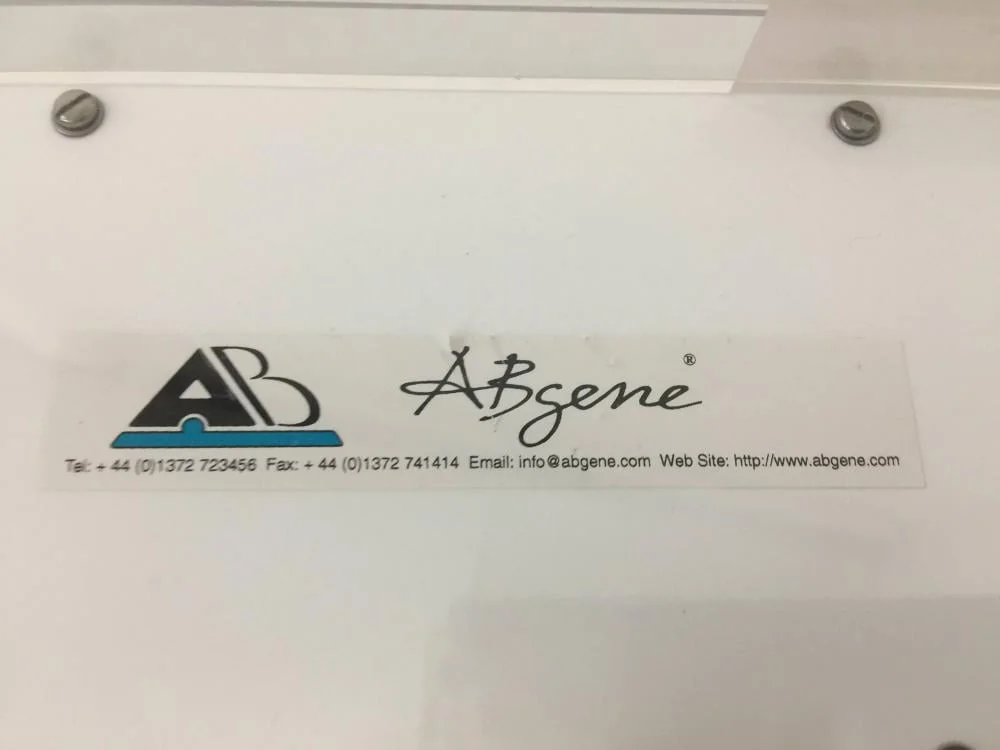

Thermo ABgene Electro-fast Gel Unit

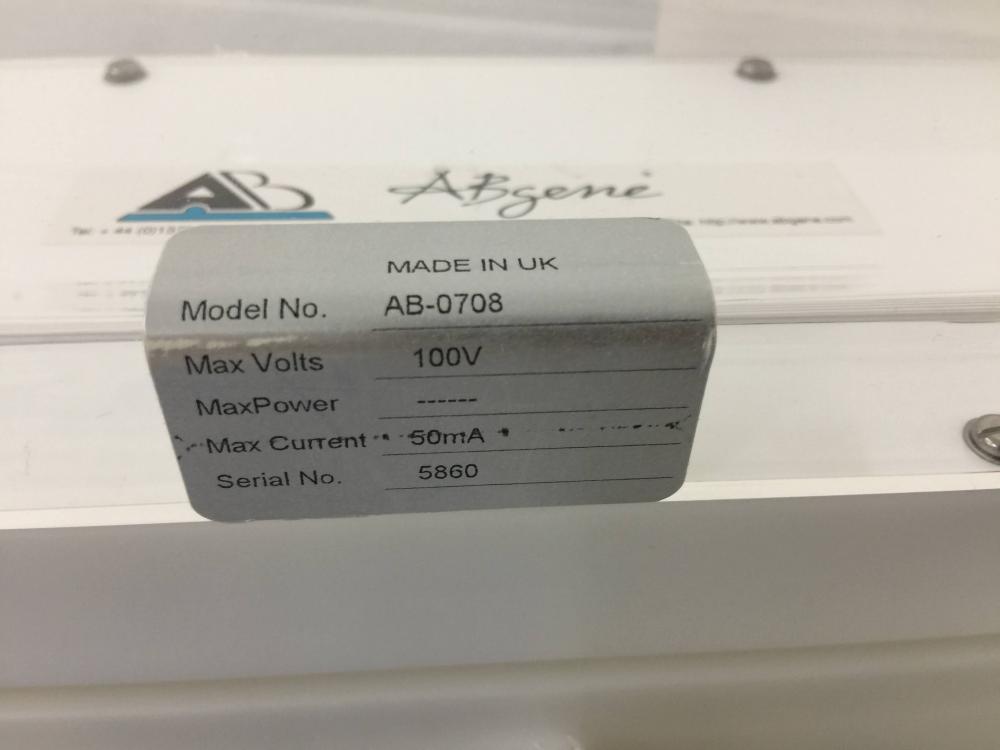

The ABgene 0708 Gel Unit with Electro-Fast® Stretch 108 has a well volume of 15µL as well as space for 9 tooth comb sample lanes.
- Dimensions: 310mm x 105mm x 85mm (unit)
- Volume: Approx. 100ml (gel), <100ml (buffer)
