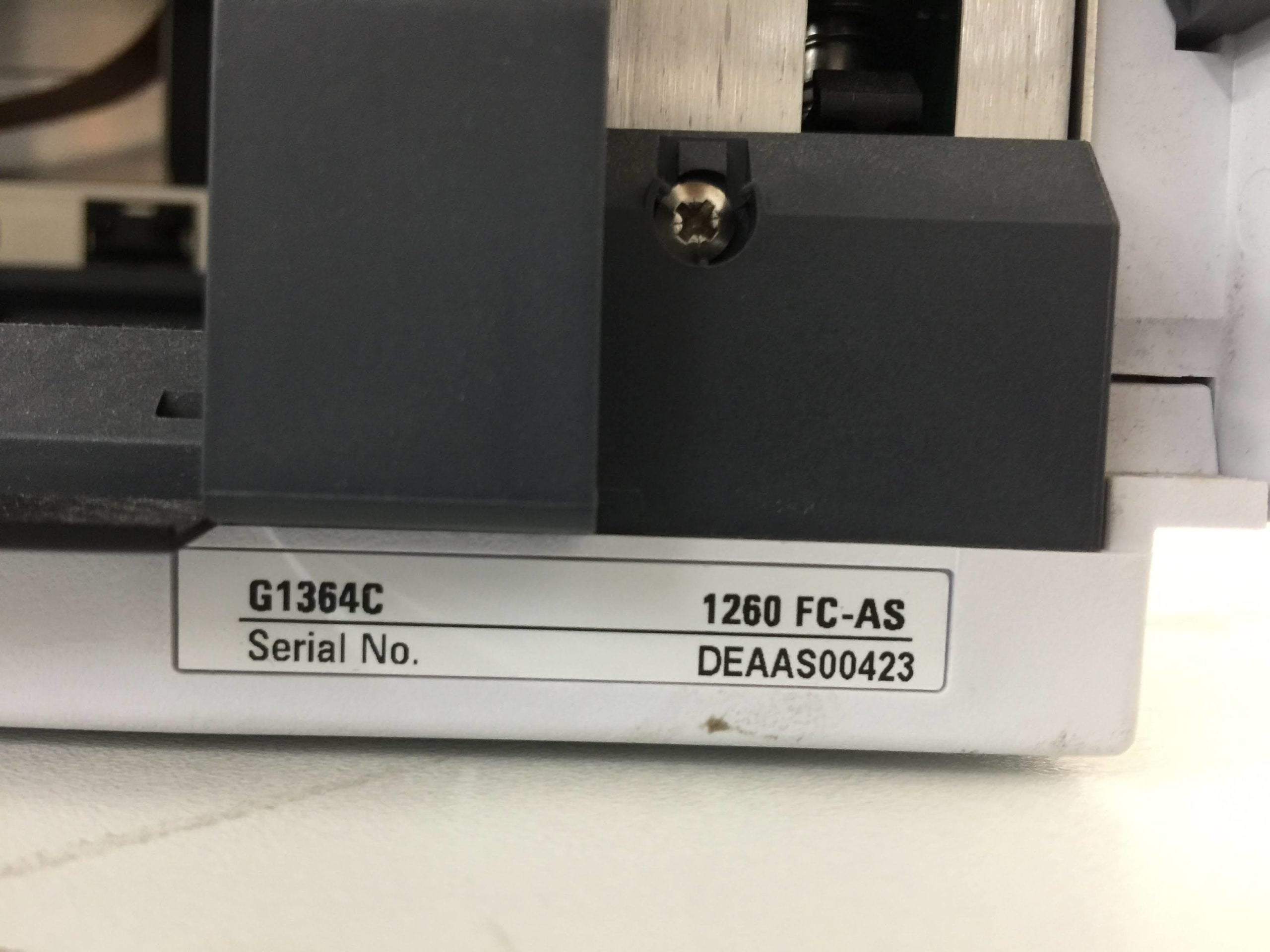

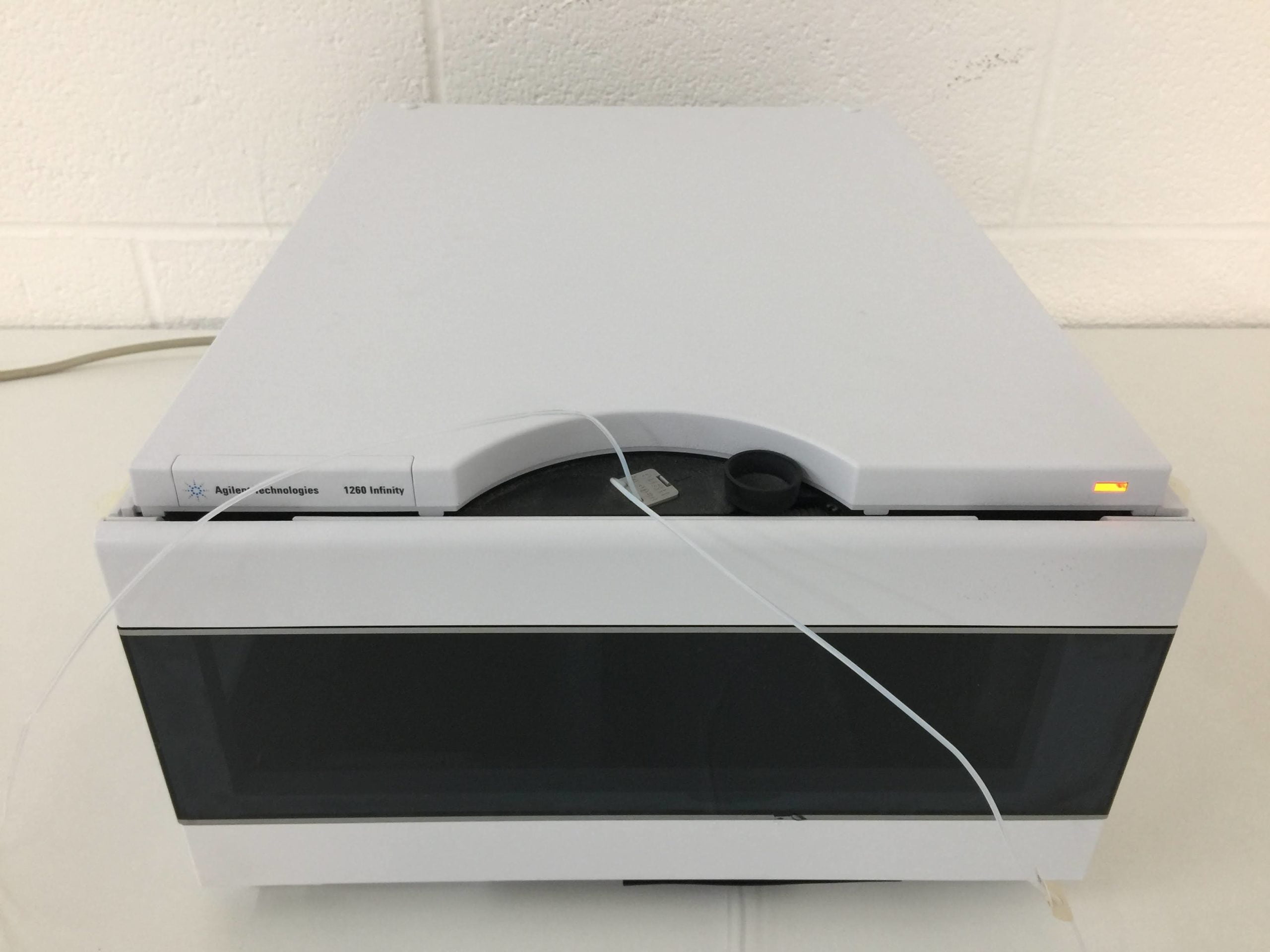

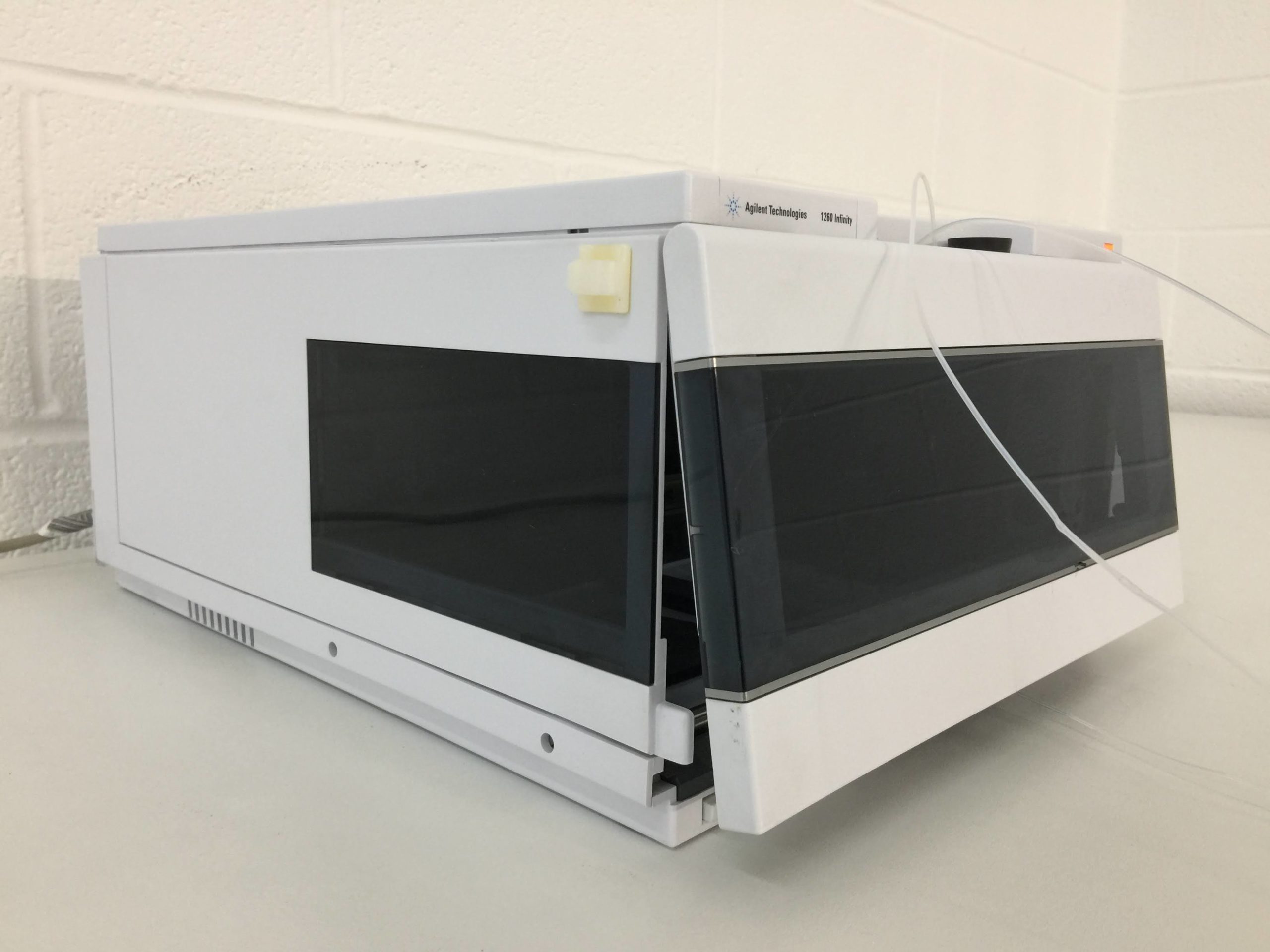

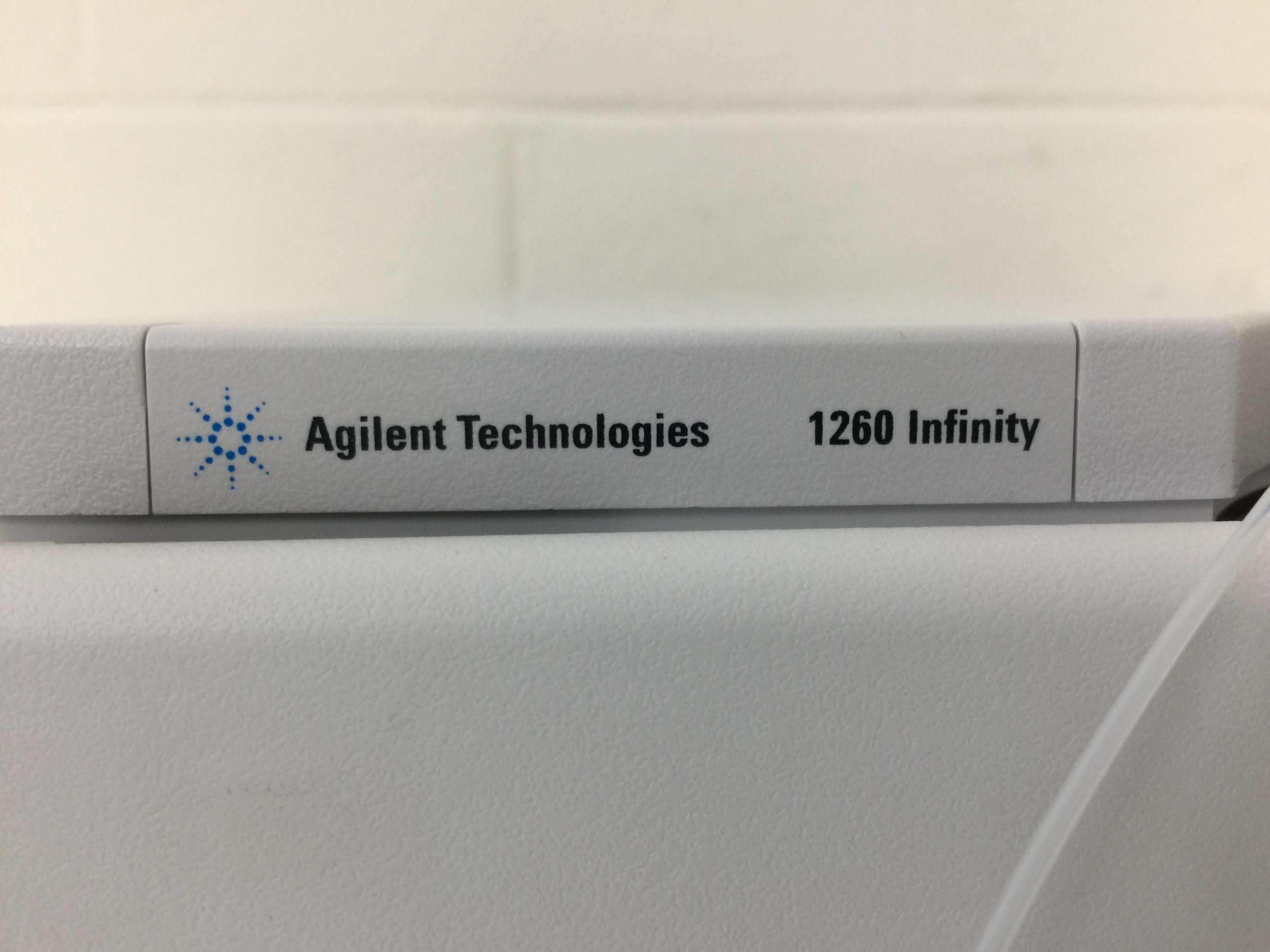

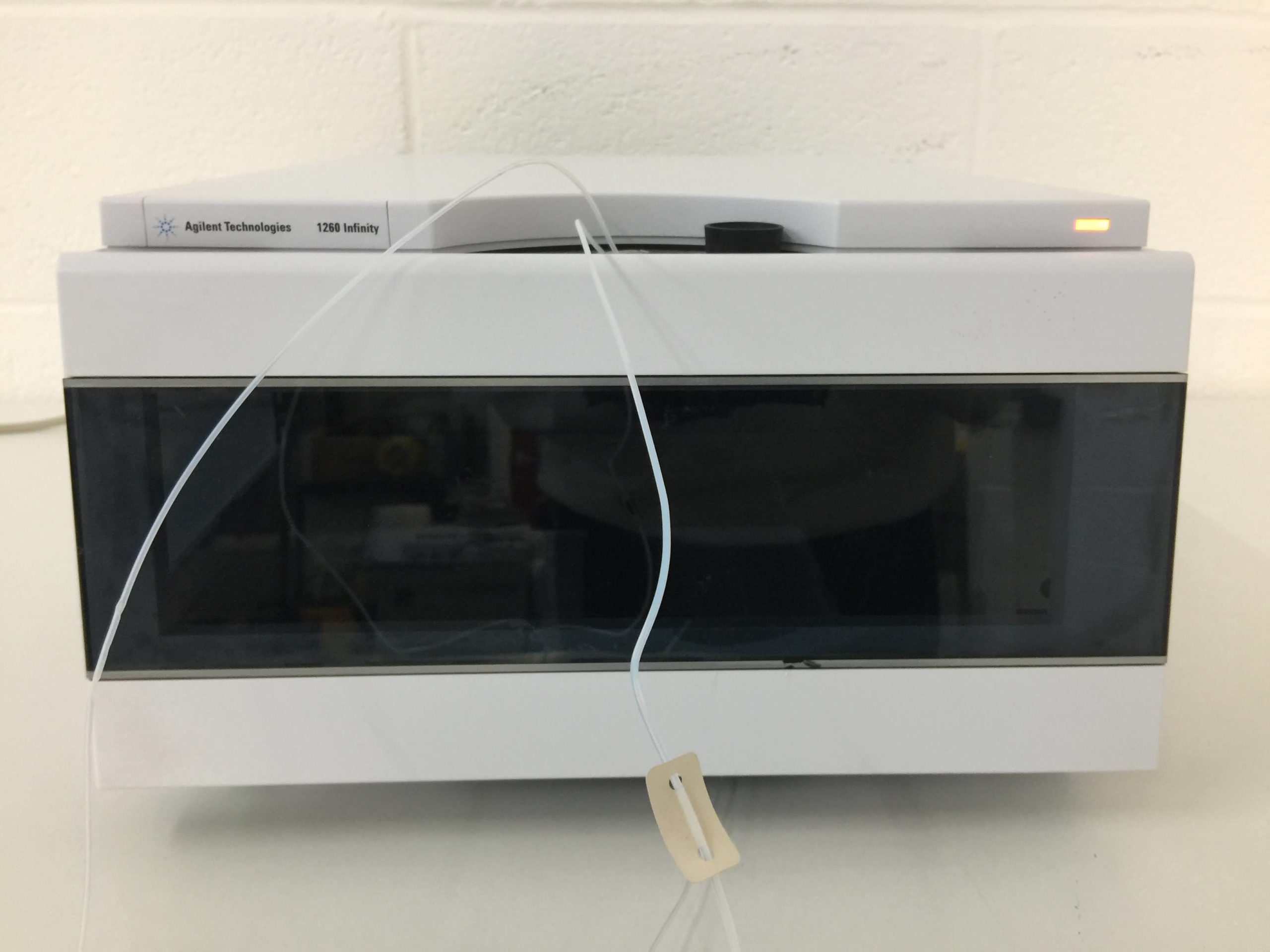

Agilent 1260 Infinity G1364C FC-AS

This Agilent 1260 Infinity G1364C Analytical Scale Fraction Collector is optimized for laboratories performing semipreparative-scale purification of milligram to low gram quantities.

Product Code

DEAAS00423

1 in stock

Price on Enquiry

1 in stock

Description

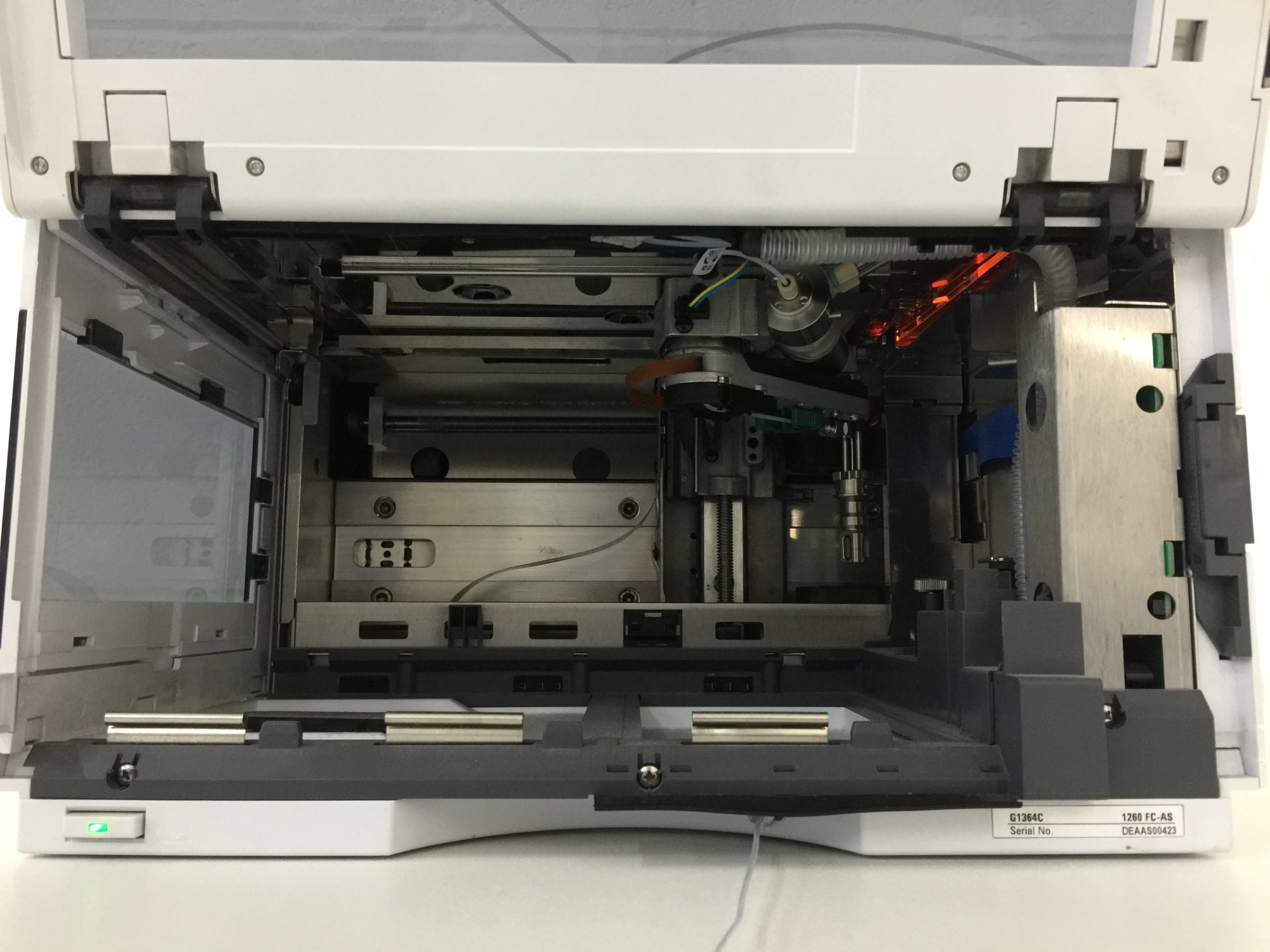

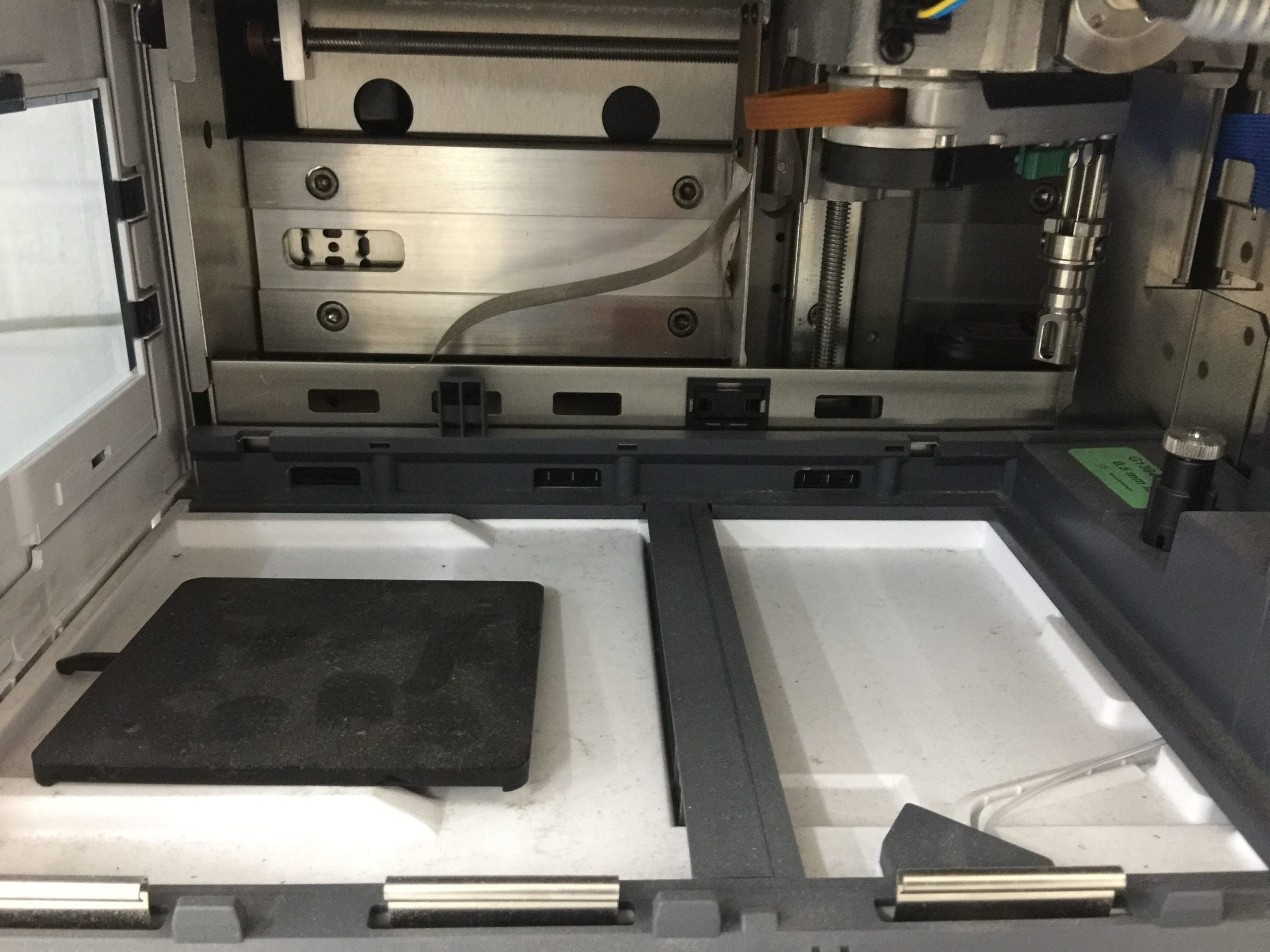

This Agilent 1260 Infinity G1364C Analytical Scale Fraction Collector is optimized for laboratories performing semipreparative-scale purification of milligram to low gram quantities.

The Agilent 1260 G1364C fraction collector fits in the modular design of Agilent’s Infinity LC Series, occupying minimal bench space. For high-throughput applications, you can combine up to three fraction collectors in a single LC system. Maximize your capacity up to 648 fractions within the same foot print.

Operating Modes:

  • Discrete fractions: default mode for all vessels. The flow diverts waste, while moving from one vessel position to the next vessel position
  • Continuous flow: optional, available only when using the deep well plates. It is possible to move from one well plate position to the next one without diverting the flow into the well plate to waste
  • Needle into location: Needle pushes into the vessel as deep as specified, for the use with capped vials and test tubes and well plates with closing mats

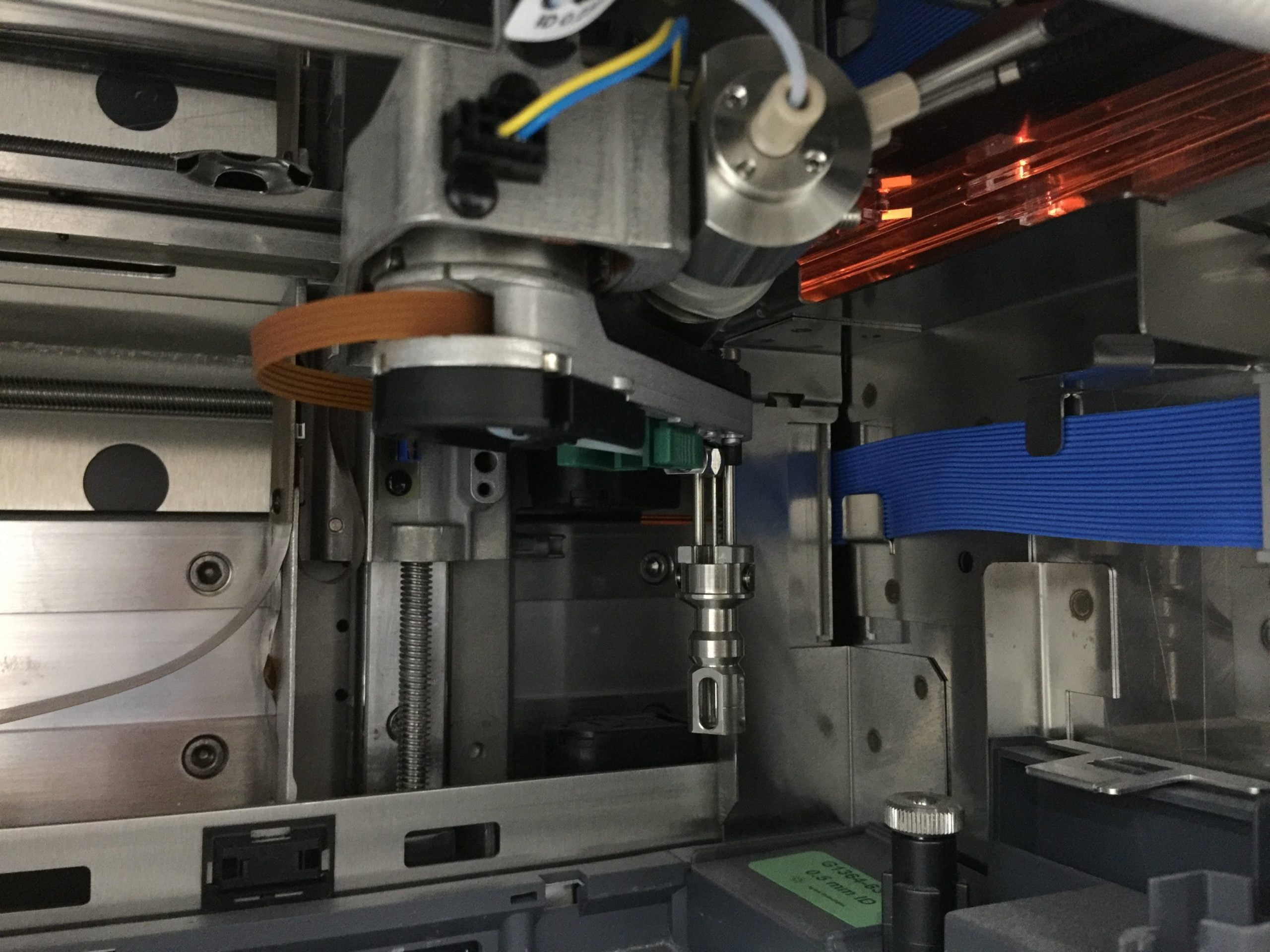

  • Droplet setup mode: The tip of the fraction collector needle will initially move down to the bottom of the well. Then it will slowly move upwards to collect fraction. The droplet setup mode enables the fraction collector to collect small fractions without bubbles.



See Manual Here

Additional information

Weight13.5 kg
Dimensions13.5 × 17 × 8 cm
Brand

Model

G1364C

New/Used

Used

Environment Requirements

Ambient operating temperature 4 – 45 °C (41 – 113 °F)
Ambient non-operating temperature -40 – 70 °C (-4 – 158 °F)
Humidity < 95 %, at 25 – 40 °C (77 – 104 °F) Non-condensing
Operating Altitude Up to 2000 m (6500 ft)
Non-operating altitude Up to 4600 m (14950 ft) For storing the Fraction
Collector
Safety standards: IEC, CSA, UL Installation Category II, Pollution Degree 2.
For indoor use only.

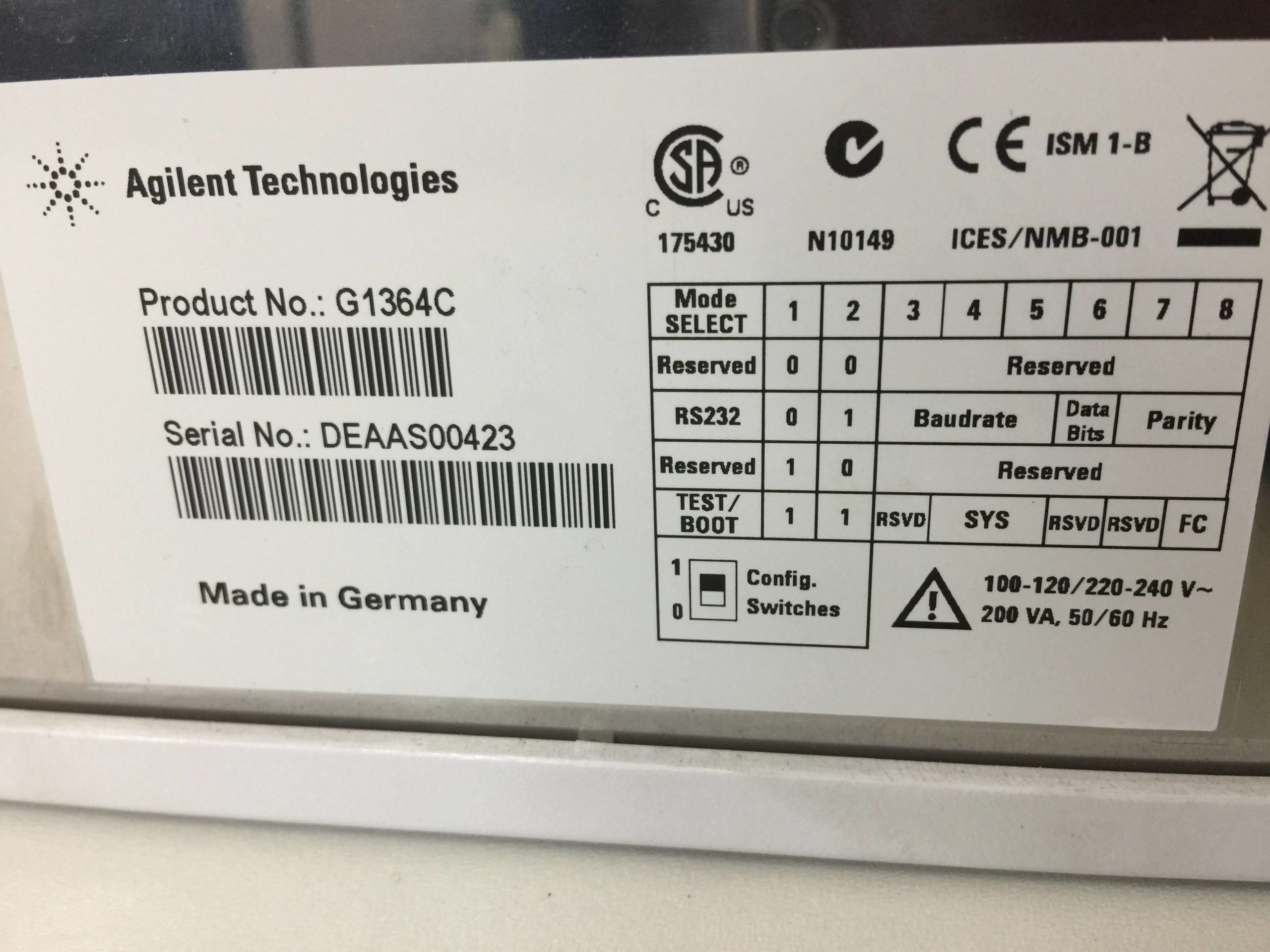

Electrical Requirements

Line voltage 100 – 240 VAC, ±10 % Wide-ranging capability
Line frequency 50 or 60 Hz, ±5 %
Power consumption (apparent power) 200 VA Maximum
Power consumption (active power) 180 W Maximum
